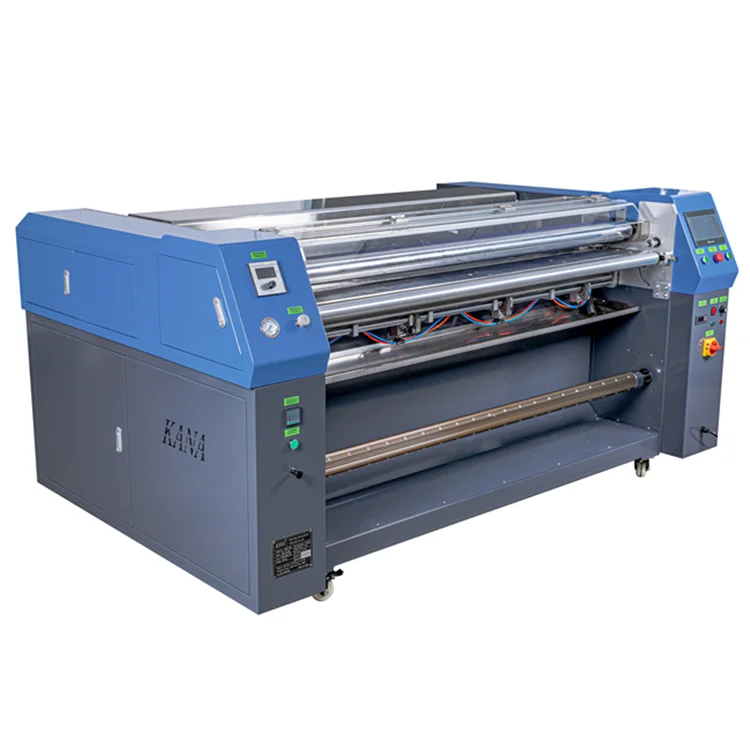

KANA 1700 Automatic Low Temperature Large Format 1650mm Wide Format Cold Film Laminating Machine Price in China
- Category: Printing Machine >>>
- Supplier: Hefei Kana Photoelectric Technology Co. Ltd.
Share on (1600474530008):
Product Overview
Description
Product Description
What is KANA liquid coating technology?
Leather UV liquid coating laminating machine is suitable for coating the surface of PVC and leather coil products with UV varnish to achieve the effect of non-fading, anti-aging and scratch resistance.
feature:
1. The surface of the substrate is UV coated with high-quality rubber roller, which is more durable.
2. High efficiency, convenient operation, energy saving and environmental protection (LED tube 15000h).
3. High and low temperature resistance (-20°C - +68°C) coating does not change.
4. 4 pounds, can withstand 2000 rubs.
5. Resist 20 times of alcohol friction.
6. The coating will not peel off by pulling with 3M tape.
7. Good ductility, rubbing will not break.
8.In real outdoor data, coated car stickers and reflective films can withstand 2 years of sunlight, heavy rain and car washes.
Product Paramenters
Machine Name | LED UV instant curing liquid coating machine |

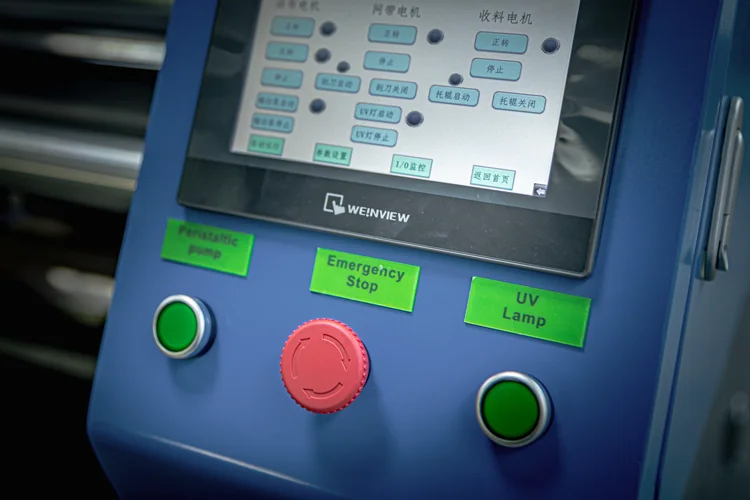

Control System | PLC with Touch Screen. Automatic Running |
Model Number | KANA-1700 |
Working Width | 1650mm custom length is ok |
Power | 5kw |
Voltage | 220V 50/60Hz |
Speed | 1-12m/min |
Coating Thickness | 5～10um |
Working Thickness | ≤5mm |
Curing System | LED - UV |
LED Life Expectancy | 15000 hours |
Coating Type | SC-6748 glossy coating / SC-6738 matte coating |
Varnish Component | 99% solid content and 1% solvents. |
Glossy Varnish | SC-6748 80-85 ° Glossiness (60° vanceometer) |
Matte Varnish | SC-6738 20 ° Glossiness (60° vanceometer) |
Storage | 1 year. (25℃ at room temperature, keep away from light) |
Package | 5kg in PVC Sealed Bottle |
Hardness | ≥2H (pencil hardness) |
Consumption | 6-8g/㎡ Max 600 square meter / 5 kg |
Drying speed | 40-80Ft/Min/80W/Cm/Lamp |
Viscosity | coating with 4 jar in 22 second/25℃ |
Our Advantages
Comparison | PVC laminating film（×） | KANA UV coating（√） |
Cost | Due to the different sizes of the material, cold laminated film requires a larger inventory , and the scrap rate is close to 15% | Coating on substrates of various formats only needs 6 to 10 grams per square meter, which can reduce waste to 2% |
Application | Poor ductility, inconvenient to use on bus car trailer van sticker | Good ductility and easy to use on bus car trailer van sticker |
Quality | Prone to shrinkage, breakage, separation and wrinkles | No break, no yellowing, scratch resistance, （Aging test report, scratch test in video） |
Transmittance | Low transmittance will darken printing color | It has high light transmittance and good color consistency. The surface brightness of the coating can reach 90° |
Environmental friendly | white pollution, air pollution,water and soil pollution. it takes 30 years to decompose. | The coating and the substrate are better combined, and there is no volatile organic compounds. |
Human hazards | Above 65℃, the laminated PVC film will produce harmful substances and gases such as lead, tin, and chlorine. | No harm to human body（Heavy metal and halogen test report） |
Smell | Heavy odor: the odor is difficult to dissipate in a confined space. | Only a little smell of epoxy resin. 1% solvents solves the problem of volatility and irritation. |
Certifications
YOU CAN DOWNLOAD OUR TEST REPORT BY BELOW LINK
https://drive.google.com/drive/folders/1RxkAYGQeX6t-OkrCDNMiC2ykQulrE2U5?usp=sharing
A | KANA coating performance test report (British SGS company) |
1 | Aging test report (coating has no quality change during 500 hours of water spraying and UV light cycle) |
2 | High temperature resistance test report (coating has no quality change under 68℃ within 48 hours) |
3 | Low temperature resistance test report (coating has no quality change under -20℃ within 48 hours) |
B | KANA coating environmental protection test report (China National Coating Quality Supervision and Inspection Center, British SGS company) |
1 | Heavy metal and halogen test report provided by SGS Test method: burn in a high-pressure oxygen bomb tank, the absorption of combustion products is analyzed by ion chromatography, and no volatile toxic gas will be generated |
2 | SGS inspection report provided by SGS Test method: SVHC 211 high concern substance screening, SVHC test result ≤0.1% (W/W), pass the test standard |
3 | Volatile Organic Compound (VOC) Test Report (By China National Coatings Quality Supervision and Inspection Center) Test method: test condition (105±2)℃/h/about 1g, the test result is 246g/L |
Company Profile
Hefei Kana Photoelectric Technology Co., Ltd. was newly established in April 2020 and is located in Hefei National High-tech Development Zone. The KANA team started focusing on surface coating technology in 2006, and its product development has obtained a number of national authorized patent certificates. Hefei Kana is committed to the R&D, production and marketing of LED cold UV light source energy-saving coating equipment and surface environmental protection coating materials, and strives to replace all kinds of PVC cold-laminated film protection.
Exhibition
FAQ
No. | Service | Description |
1 | LEAD TIME | 30 working days |
2 | MOQ | Machine 1 pcs, Matte or Glossy Varnish 200kg |
3 | SAMPLE | Free Sample Available,7 Days |
4 | PACKAGING | Plywood Box |
5 | PRICE | EXW FCA FOB CIF DAT DDP |
6 | PAYMENT | Credit/Debit Card,Paypal,Google Pay,ApplePay,WESTERN UNION,T/T,L/C, |
7 | SHIPPING | By Air 9-15 Days,By Express 7-14 Days,By Sea or Train 20-45 days, |
