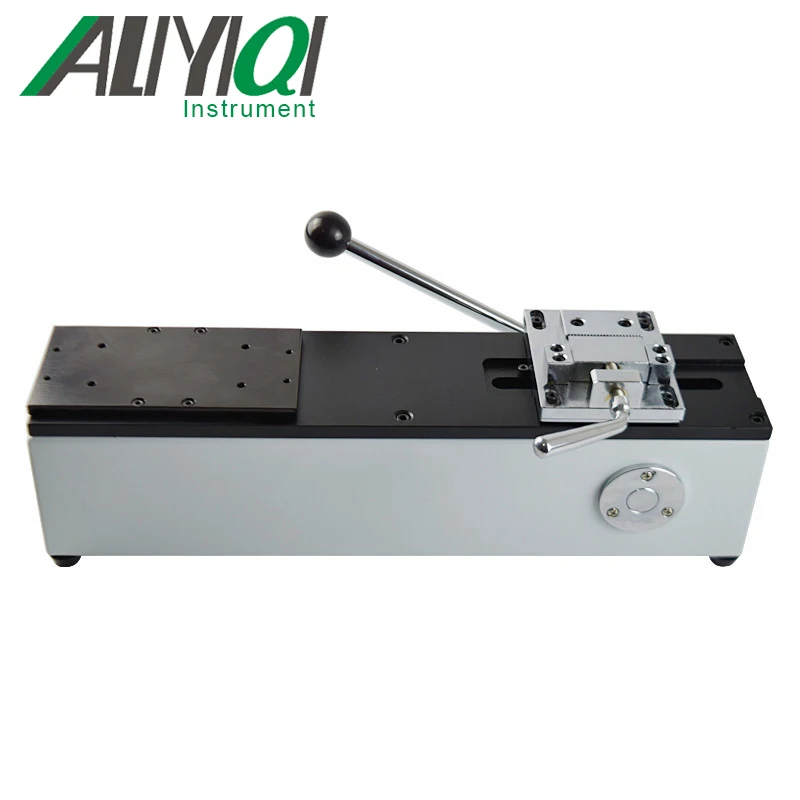

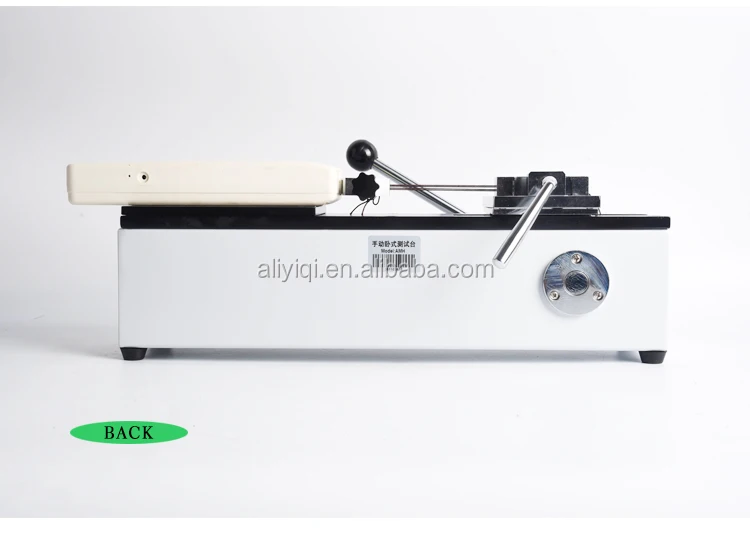

Whole Set Terminal pull force test device

Share on:

Price:$315.00 - $320.00
Price in USD:Details


Product Overview


Whole Set Terminal pull force test device

The force gauge of the instrument:

The standard configuration of Terminal pull force tester is with digital force gauge (HF-500)

1. Digital force gauge

Ø Type: HF—500  HF-1000

Ø Max. Load: 500N  or 1000N for optional

Ø (Kg,N and Ib three units can be converted automatically)

Ø Resolution: 0.01N

Ø Precision: ±0.5%

Ø Output interface: RS 232 Nine holes socket

Ø Charging power: 110-220V/AC, Batteries continuous working time: 6-8 hours

Ø Stability: temperature drift: 0.2uV/℃(0~60℃); null drift: ≤ 0.1%/8hours/FS

Ø Calibration range: Full range calibration

Ø Environmental temperature: 0~+60℃

Ø Environmental humidity:≤ 80%

Ø Allow overload: 150%

Ø Supply power mode: No. 5 Ni-MH battery, 220V AC, charging for 4-6 hours


ADL .jpgADL  (1).jpgADL  (2).jpgADL  (3).jpgADL  (4).jpgADL  (5).jpgADL  (6).jpgADL  (7).jpgADL  (8).jpgADL  (9).jpgADL  (10).jpgADL  (11).jpgADL  (12).jpgADL  (13).jpg

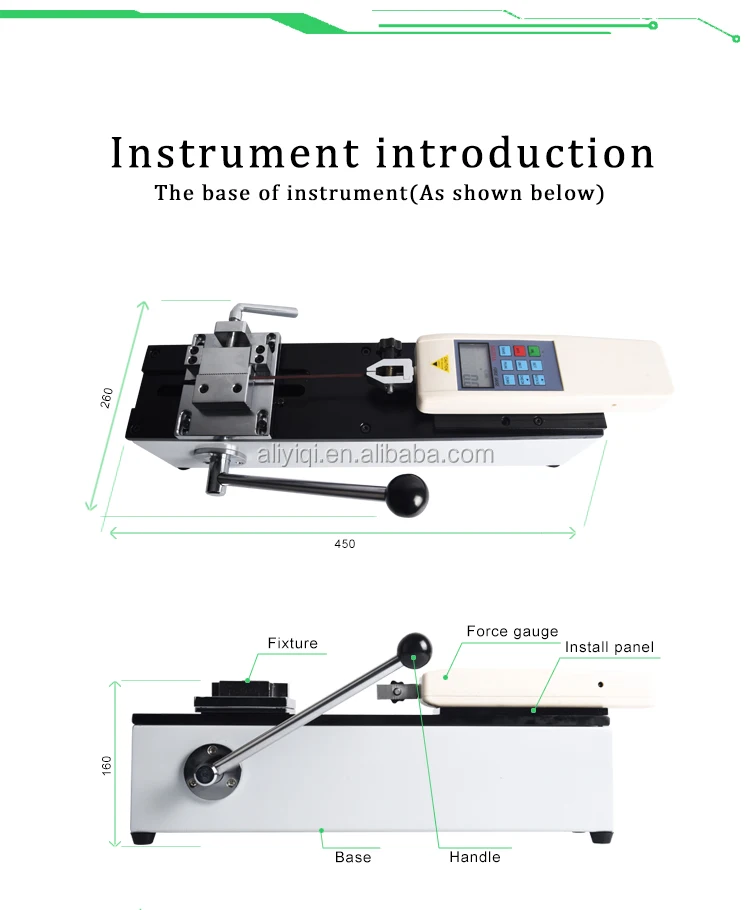

Effective stroke 150mm
Max. Load500N 1000N
Weight 15kg
Packagewooden case

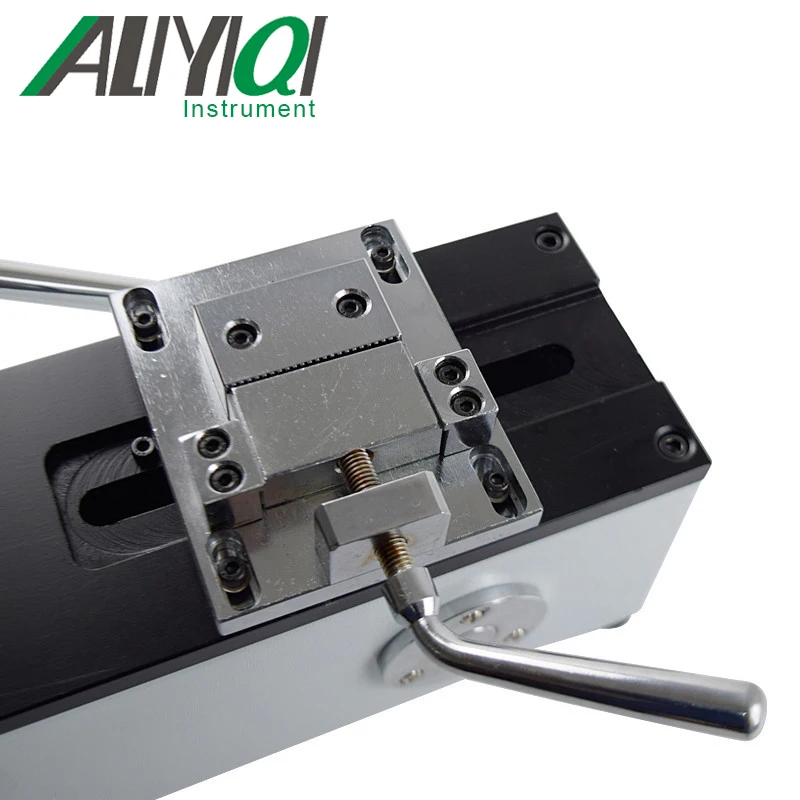

Includingtest stand ,digital force gauge and clamp
