Huawei OLT SmartAX MA5800 X2 MA5800 X2 4*10GE Uplink MA5800X2 Brand New 2U Small Mini GEPON GPON EPON OLT
- Category: >>>
- Supplier: Shenzhen Gigabit Optical Network Optronics Co. Ltd.
Share on (1600474576970):
Product Overview
Description
Company Profile
Products Description
Smart NG-OLT MA5800
The MA5800 multi-service access device is a 4K/8K/VR Ready OLT in the gigabit ultra-broadband era. It adopts a distributed architecture and supports PON/10G PON/GE/10GE co-platforms. The MA5800 supports multi-media Gigabit aggregation, the best 4K/8K/VR video experience, multi-service virtualization co-platform, and 50G PON smooth evolution.
MA5800 series frame products include three sizes of large, medium and small, namely MA5800-X17, MA5800-X7 and MA5800-X2, which support various networking applications such as FTTB/FTTC/FTTD/FTTH/D-CCAP. The 1U box-type OLT product MA5801 supports all-optical access coverage in low-density areas.
The MA5800 can help operators meet the development needs of "wider, faster, and smarter" Gigabit ultra-broadband networks, and meet users' extreme service experience for 4K/8K/VR video; support future smart homes and all-optical parks. At the same time, the MA5800 can realize the unified bearer of multiple services such as home users, enterprise users, mobile bearer, and the Internet of Things, so as to simplify the network architecture, reduce the number of CO equipment rooms, and reduce operation and maintenance costs.
MA5800 series frame products include three sizes of large, medium and small, namely MA5800-X17, MA5800-X7 and MA5800-X2, which support various networking applications such as FTTB/FTTC/FTTD/FTTH/D-CCAP. The 1U box-type OLT product MA5801 supports all-optical access coverage in low-density areas.
The MA5800 can help operators meet the development needs of "wider, faster, and smarter" Gigabit ultra-broadband networks, and meet users' extreme service experience for 4K/8K/VR video; support future smart homes and all-optical parks. At the same time, the MA5800 can realize the unified bearer of multiple services such as home users, enterprise users, mobile bearer, and the Internet of Things, so as to simplify the network architecture, reduce the number of CO equipment rooms, and reduce operation and maintenance costs.

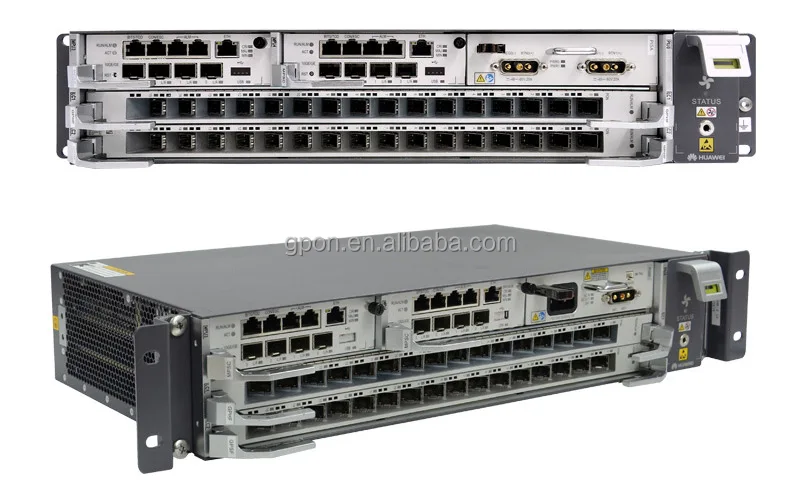

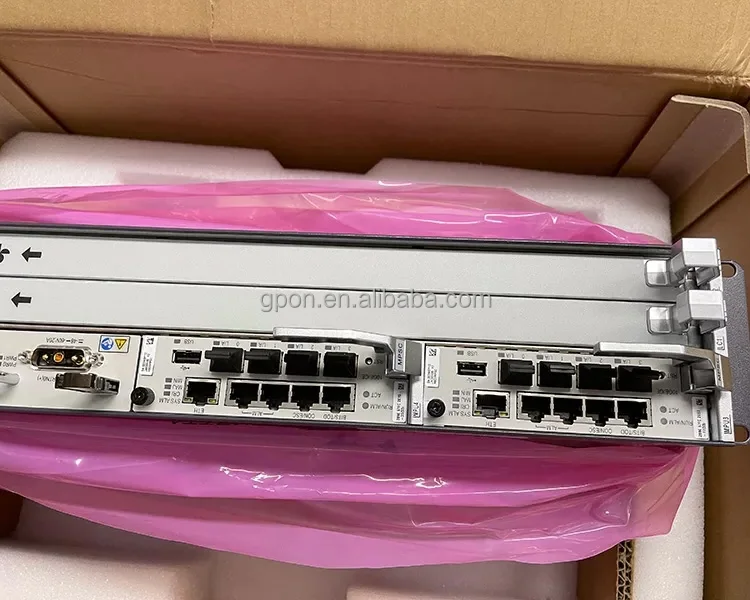

MA5800-X2 OLT
2*PISA: DC power board
2*MPSC: 10GE Management Board/ uplink board
2*PISB: AC power board
2*MPSC: 10GE Management Board/ uplink board
2*MPSC: 10GE Management Board/ uplink board
2*PISB: AC power board
2*MPSC: 10GE Management Board/ uplink board

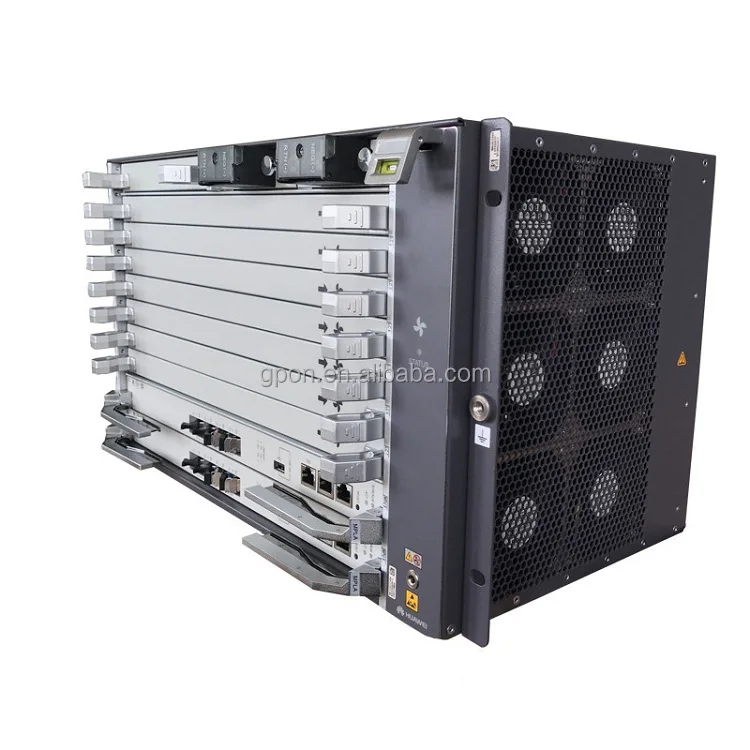

MA5800-X7 OLT
2*PILA: DC power board
2* MPLA: Control and integrated boards(with 4 * 10G ports)
2* MPLA: Control and integrated boards(with 4 * 10G ports)
MA5800-X15 OLT
2*PILA: DC power board
2*MPLA: 10GE Mainagement board / uplink board
2*MPLA: 10GE Mainagement board / uplink board
MA5800-X17 OLT
2*PILA: DC power board
2*MPLA: 10GE Mainagement board / uplink board
2*MPLA: 10GE Mainagement board / uplink board
Huawei Service Board C+
1*GPHF: 16 port with C+ SFP module
Huawei Service Board C++
1*GPHF: 16 port with C++ SFP module
Huawei MA5800-X2 | 2*PISA: DC power board 2*MPSC: 10GE Management Board/ uplink board |
Huawei MA5800-X2 | 2*PISB: AC power board 2*MPSC: 10GE Management Board/ uplink board |
Huawei MA5800-X7 | 2*PILA: DC power board 2* MPLA: Control and integrated boards(with 4 * 10G ports) |
Huawei MA5800-X15 | 2*PILA: DC power board 2*MPLA: 10GE Mainagement board / uplink board |
Huawei MA5800-X17 | 2*PILA: DC power board 2*MPLA: 10GE Mainagement board / uplink board |
Huawei Service Board C+ | 1*GPHF: 16 port with C+ SFP module |
Huawei Service Board C++ | 1*GPHF: 16 port with C++ SFP module |

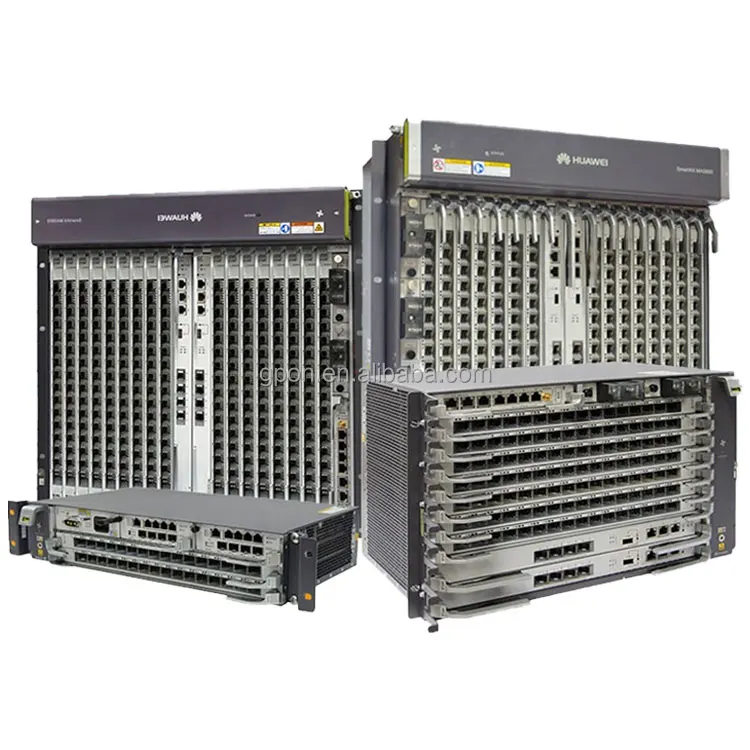

Huawei MA5800 OLT
SmartAX MA5800 Full-service Virtualized OLT Building a convergence access network that is green, ultra-broadband, and intelligent.
The MA5800 series multi-service access device is the first OLT in the industry with distributed architecture. Developed using virtual access technology, it provides a unified carrying platform for multiple services, such as broadband, wireless, video, and monitoring.
The MA5800 provides GPON, XG-PON, XGS-PON, GE, and 10GE access, and supports POL, FTTH, FTTB, FTTC, and D-CCAP network construction modes. It carries all services over one fiber network, simplifying network architecture and reducing OPEX.
The MA5800 supports capacities for large, medium, and small products, meeting requirements in different scenarios.
The MA5800 series multi-service access device is the first OLT in the industry with distributed architecture. Developed using virtual access technology, it provides a unified carrying platform for multiple services, such as broadband, wireless, video, and monitoring.
The MA5800 provides GPON, XG-PON, XGS-PON, GE, and 10GE access, and supports POL, FTTH, FTTB, FTTC, and D-CCAP network construction modes. It carries all services over one fiber network, simplifying network architecture and reducing OPEX.
The MA5800 supports capacities for large, medium, and small products, meeting requirements in different scenarios.
Huawei MA5800 OLT
SmartAX MA5800 multiple-service access module employs a distributed architecture to support ultra-broadband, Fixed Mobile Convergence (FMC) services, and smart capabilities, such as SDN-based virtualization. MA5800’s programmable Network Processor (NP) chip set accelerates the roll-out of new services, catering to the demand for differentiated services, including partitioning of wholesale and retail service providers.
SmartAX MA5800 Series OLTs
The industry’s first 40 Gbit/s-capacity Next-Generation Optical Line Terminal (NG-OLT). Huawei’s SmartAX MA5800 multiple-service access module employs a distributed architecture to support ultra-broadband, Fixed Mobile Convergence (FMC) services, and smart capabilities, such as SDN-based virtualization.
MA5800’s programmable Network Processor (NP) chip set accelerates the roll-out of new services, catering to the demand for differentiated services, including partitioning of wholesale and retail service providers.
MA5800’s programmable Network Processor (NP) chip set accelerates the roll-out of new services, catering to the demand for differentiated services, including partitioning of wholesale and retail service providers.

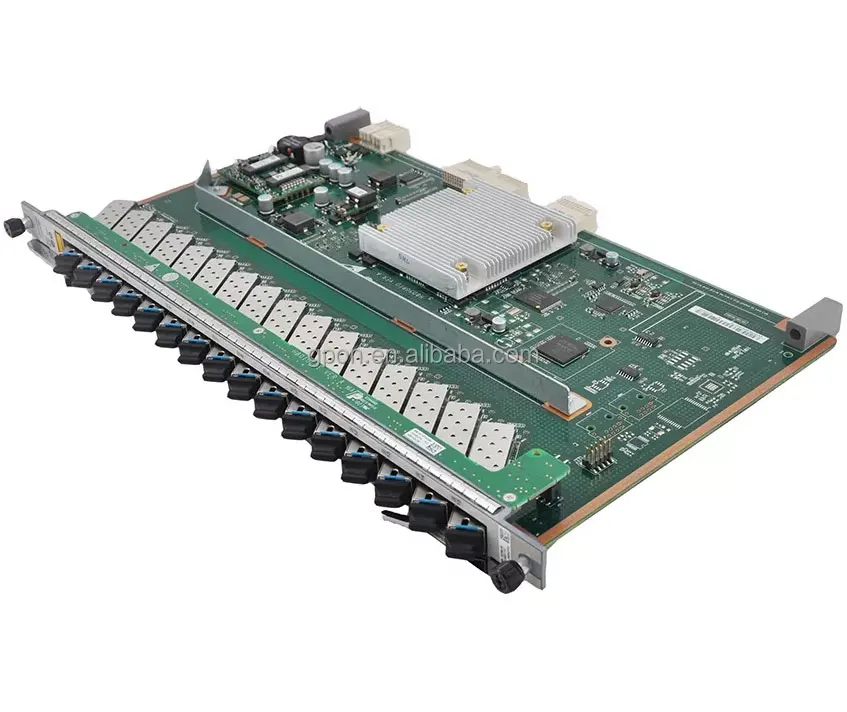

Huawei Service Board
1*GPHF: 16 port with C+ SFP module
1*GPHF: 16 port with C++ SFP module
1*GPHF: 16 port with C++ SFP module
Product Paramenters
MA5800-X17 | MA5800-X15 | MA5800-X7 | MA5800-X2 | ||||
Dimension (mm) | 486 x 493 x 287 | 486 x 442 x 287 | 263.9 x 442 x 268.7 | 88.1 x 442 x 268.7 | |||
Main control board swap capacity | 7 Tbit/s | 480 Gbit/s | |||||
Maximum bandwidth of each slot of the service board | 200 Gbit/s | 80 Gbit/s | |||||
4K video users concurrently | 16000 | 8000 | 2000 | ||||
Power supply | DC power supply (dual backup) | DC power supply (dual backup) AC power supply + battery backup | |||||
Rated voltage | -48V/-60V | DC power supply: -48V/-60V AC power supply: 110V/220V | |||||
Working temperature | -40°C to +65°C* (normal operation), minimum start-up temperature is -25°C. * 65℃ refers to the temperature of the air inlet of the service frame. | ||||||
Number of GPON/EPON ports | 16*17=272 | 16*15=240 | 16*7=112 | 16*2=32 | |||
XG(S)-PON, XG(S)-PON Combo Ports | 16*17=272 | 16*15=240 | 16*7=112 | 16*2=32 | |||
Number of 10G EPON ports | 8*17=136 | 8*15=120 | 8*7=56 | 8*2=16 | |||
Number of GE/10GE upstream ports (upstream on the main control board) | 4*2=8 | 4*2=8 | 4*2=8 | 4*2=8 | |||
Number of GE/10GE upstream ports (upstream on the upstream board) | 8*17=136 | 8*15=120 | 8*7=56 | 8*2=16 | |||
Our Advantages
Guarantee
The guarantee is 1 year, and we will record the serial number of each product. Within the one-year warranty, if you have any questions, our engineers will solve the problem remotely.
Lead Time
Huawei and ZTE OLT and Service Board can send after 3~6 days
