Smart Intelligence High Security Swing Barrier Gate Turnstile Kindergarten Protect Children Swing Gate Turnstile Popularity
- Category: >>>
- Supplier: Shenzhen TDZ Technology Co. Ltd
Share on (1600474585860):
Product Overview
Description

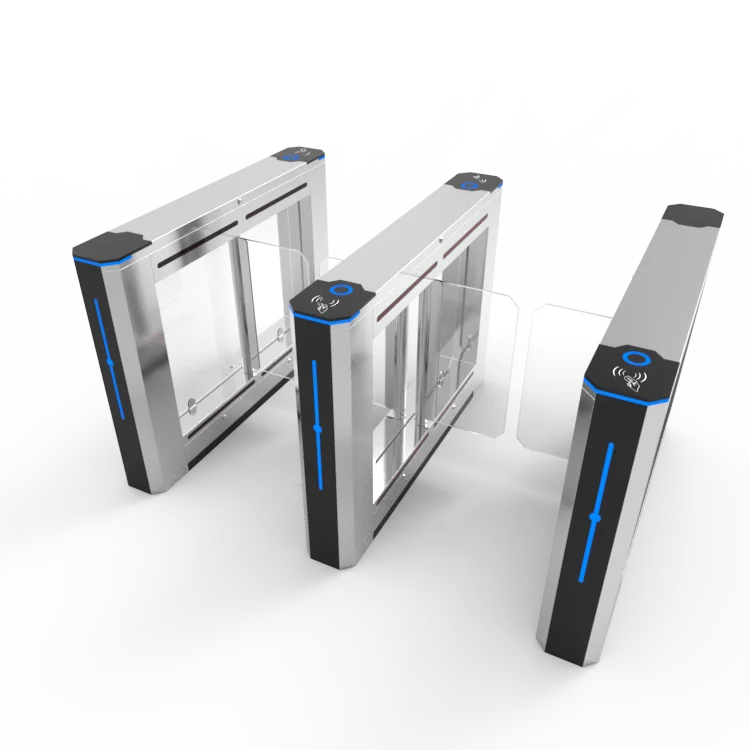

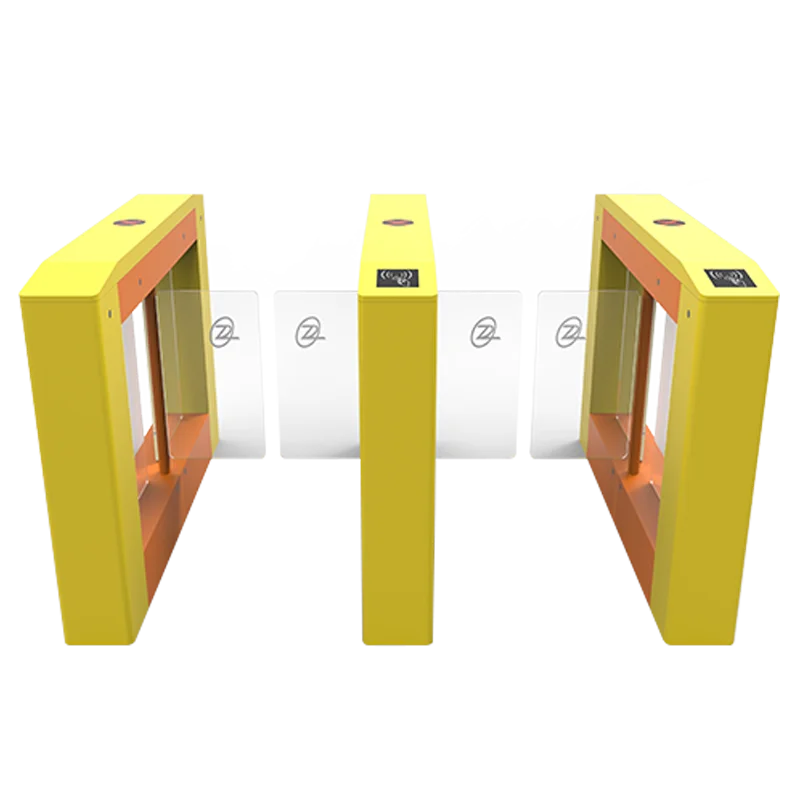

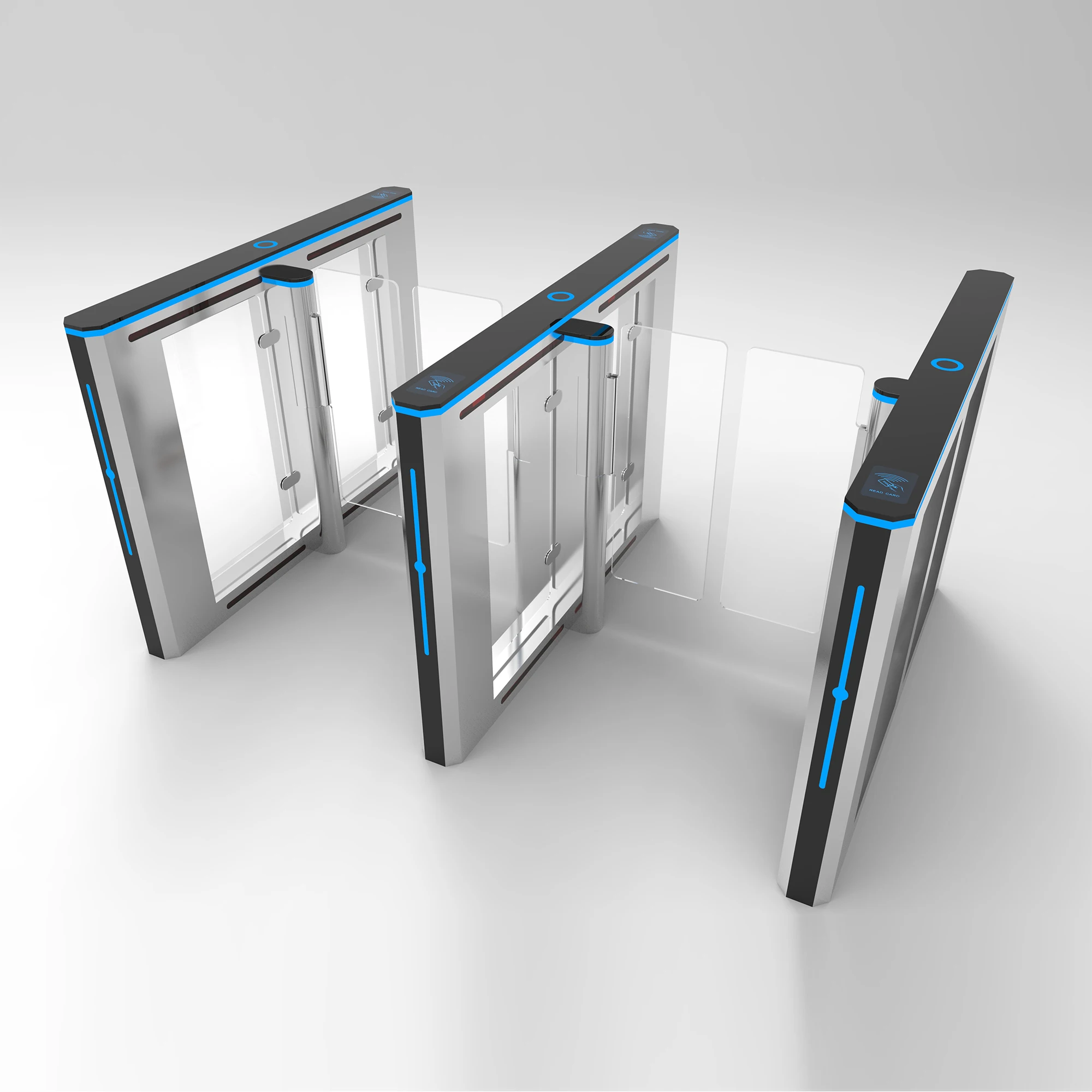

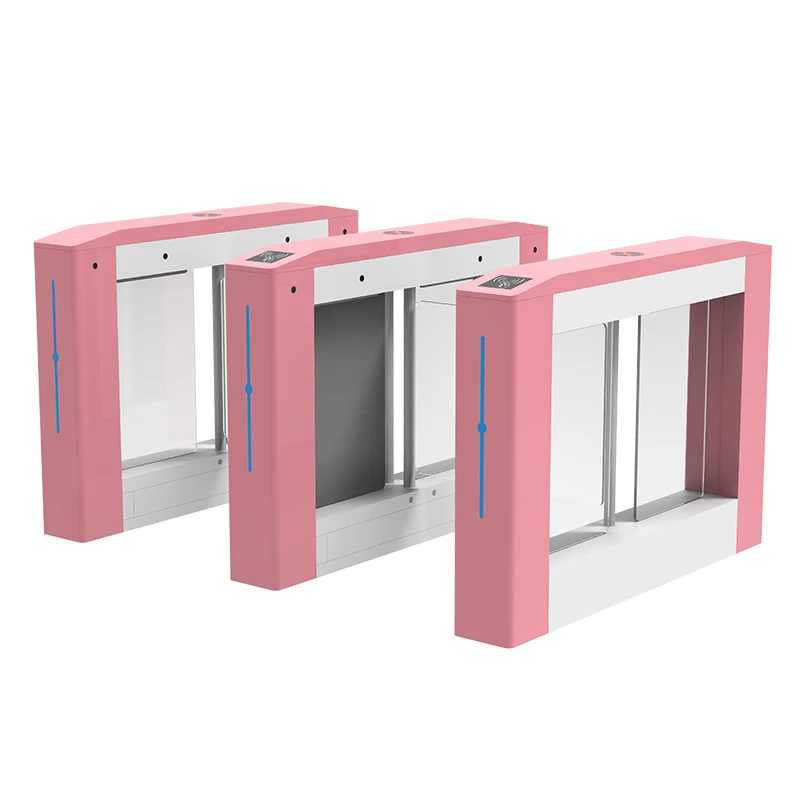

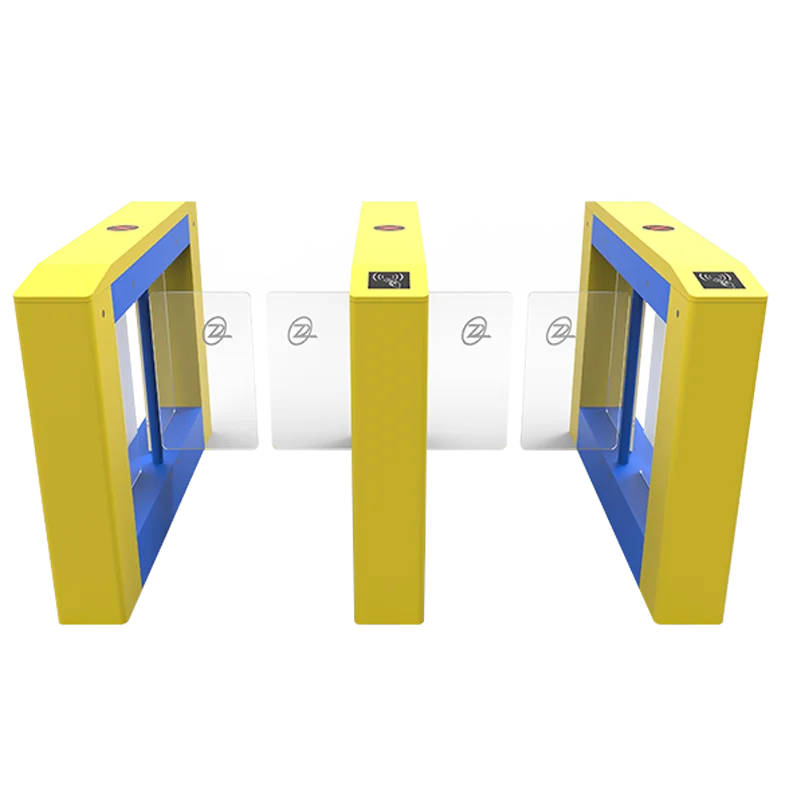

Smart Intelligence High-Security Swing Barrier Gate Turnstile Kindergarten Protect Children Swing Gate Turnstile Popularity

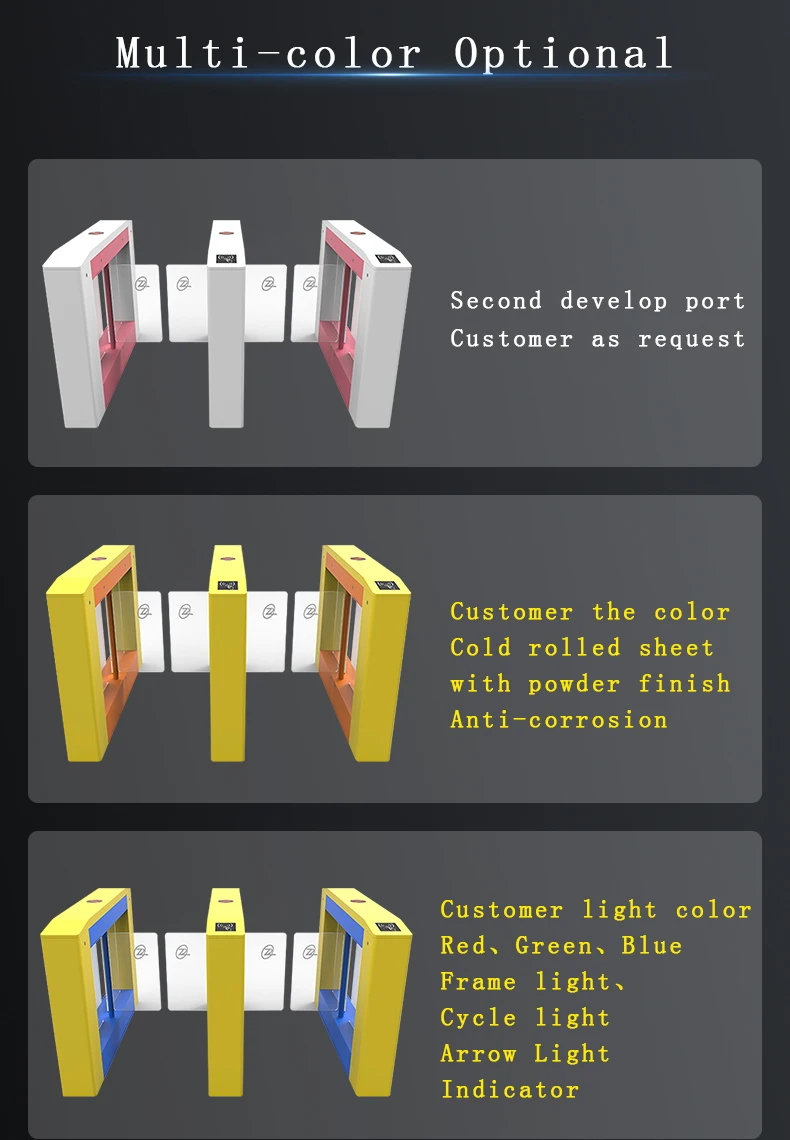

The swing barrier provides a reliable and effective method to ensure that only authorized users are allowed to access every area of the building. It meets the fire emergency requirements, all channels are opened for power failure, and there is an independent fire alarm interface. The compact unit makes it easy to construct a multi-channel setup, while the multiple colors allow you to perfectly match this turnstile to your hall or brand.
Parameters
Structure parameters | |
Housing material | 304-grade stainless steel |
Thickness | 1.2mm |
Mainboard | Independent development mainboard |
Arm material | Acrylic |
Technical parameters | |
Size | 1400x200x980mm |
Lane width | ≤1000mm |
Passing speed | 35--50 people/min |
Open/close speed | 0.1--0.6sec |
Weight | 50KG |
Turning angle | 90 degree |

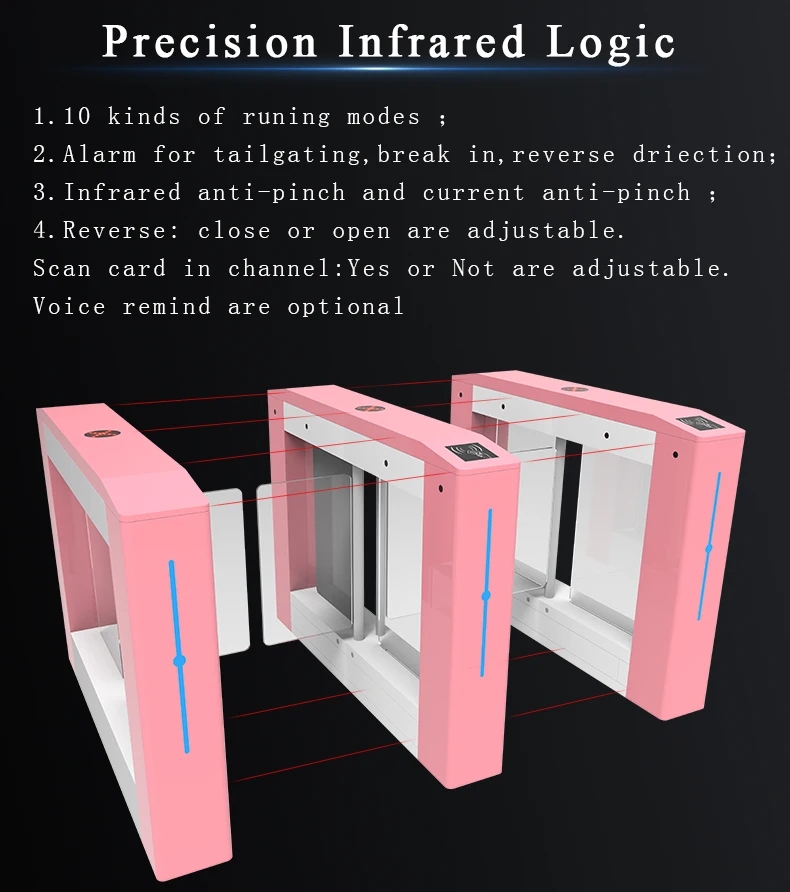

infrared sensors | 4 pairs |
MCBF | 5.000.000 times |
Application | Indoor or outdoor |
Rotating directional | Single-way or Bi-directional adjustable |
Noise | <55db |
Operating temperature | -25 to 70℃ |
Relative humidity | 5% to 95% |
Package | Carton box inside. Wooden case outside |
Electronic parameters | |
Power supply | 110-220V/AC, 50/60HZ |
Rated power | 100W |
Input signal | Dry contact |
Driving motor | Brushed motor |
Method of position | Limiter |
Company Information
Shenzhen Tongdazhi Technology Co., Ltd.
>Established in 2009.
>National high- tech enterprise integrating R&D, production, sales and service.
> One-stop service provider solutions for intelligent access control gates.
>Design&develop advanced access control systems.
Our Advantages:
1.14 years of access control system solution service supplier.
2. Enterprise with patented technology for the whole industry of access turnstile gates.
3. Enterprise with the patents for a full range of the same style of access turnstile gate.
4. Possess technology enterprise certificate and ISO quality system management certification.
5. The product with CE, SGS certification, and the Department of Public Safety test report.

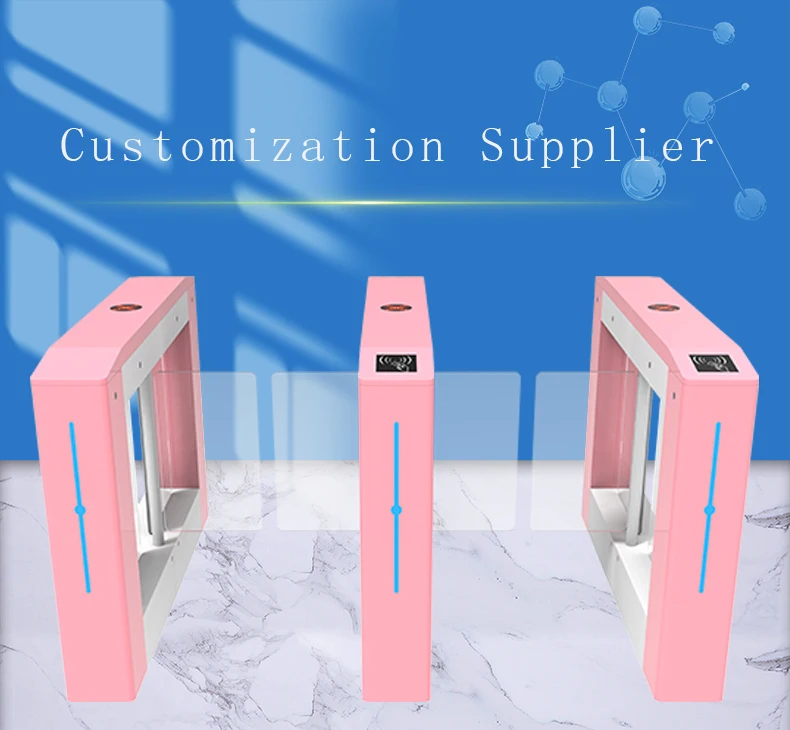

6. Support secondary development and customization of hardware and software such as access turnstile gates, access control, face recognition, etc.
7. Appearance design patent, movement utility new model patent, gate control board patent.
8. Software patents of Smart scenic spot ticket sales system, Smart building cloud visitor system, Smart community system, All-in-one card management system, etc.
Certifications
FAQ
1. Why choose us?
We are a national high enterprise, which is a 14-year factory manufacturer for access turnstiles exported to 180 countries, and products sold up to 100,000 units.
Skillful in designing different applications per scenarios, like RFID-based access control turnstile systems, Paperless ticketing solutions/Biometric worker entrance turnstile solutions/BRT/MRT e-boarding solutions for global integrators and distributors in the past 14 years.
2. Can this Entrance Gate work with my control system?

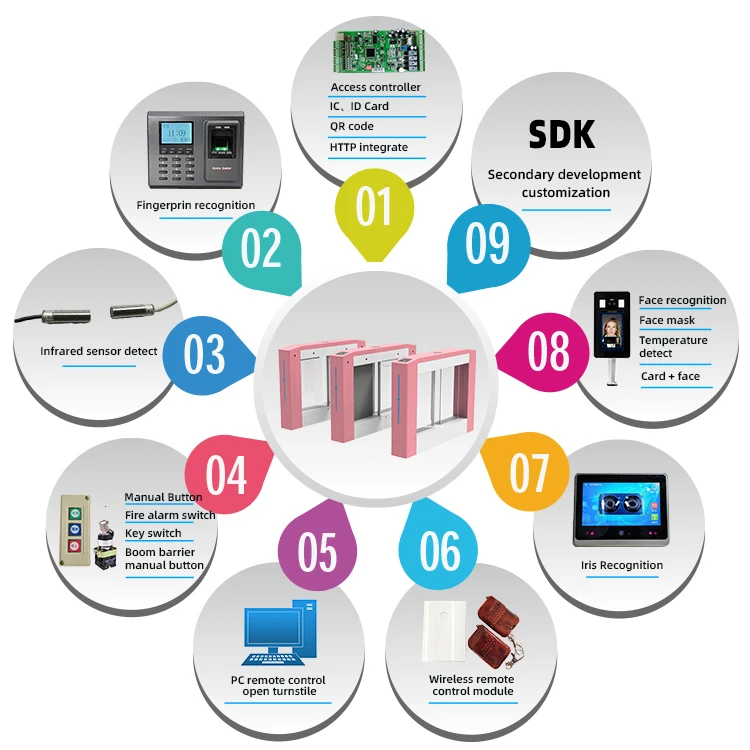

Absolutely Yes. In addition, Supporting the secondary development and customization of hardware and software for channel gates, access control, and face recognition; providing SDK for secondary expansion and integrated engineer team support.
3. When will you make the delivery?
Our Turnstile gates production time is 3-5 days. Bulk quantity may differ. more than 500 pcs a month.
4. Do you have experience exporting turnstile gates to my country?
Since 2009, We had exported turnstiles to more than 180 countries all over the world.
We have import and export limits
