AS AMCP Addressable Manual Call Point
- Category: Fire Alarm >>>
- Supplier: Shenzhen Ansorl Technology Co. Ltd.
Share on (1600474646598):
Product Overview
Description
Description

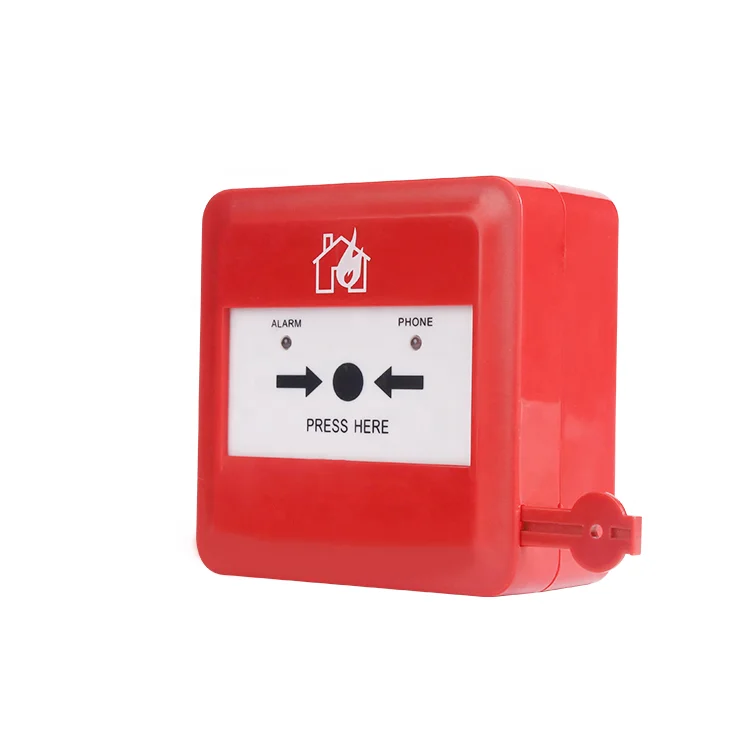

AS-AMCP Addressable Manual Call Point
The AS-AMCP manual fire call point is mainly designed to be used with an intelligent two bus control system. If it is pressed after a fire is manually confirmed, an alarm signal may be sent to a fire alarm control system which will, after receiving the alarm signal, display the coded address and the equipment status of the manual fire call point. When the manual fire call point is operating normally, the red indicator will blink; when there is a fire alarm, it will remain lit.
Pictures
Features
☆ It can realize complete electronic coding and in situ rewriting with help of a coder.
☆ Designed with an upper cover and a lower cover, it can be installed, debugged and maintained conveniently.
☆ Designed with an upper cover and a lower cover, it can be installed, debugged and maintained conveniently.
☆ It is designed with a two-wire fire telephone jack and is therefore more applicable to engineering application.
☆ Designed with passive output contacts, it can control other external equipment directly through an intermediate
relay.
relay.
☆ The pressing sheet on the manual fire call point will not get crushed after it is pressed, but can be reset by a
special tool, so it can be used repeatedly.
special tool, so it can be used repeatedly.
Parameters
Product Name | Manual Call Point | ||||
Model No. | AS-AMCP | ||||
Type | Addressable, resettable | ||||
Power supply | 24VDC | ||||
Standby Current | <300uA | ||||
Alarm Current | <2mA | ||||
Indicator | Yes | ||||
Wiring | L1, L2 signal line | ||||
Standard | EN54-11 | ||||
Matched Host | AS-MN3010 and AS-9108E | ||||
Application | Office, factory, warehouse, apartment, hotel, bank, supermarket, shopping mall, school, hospital etc. | ||||

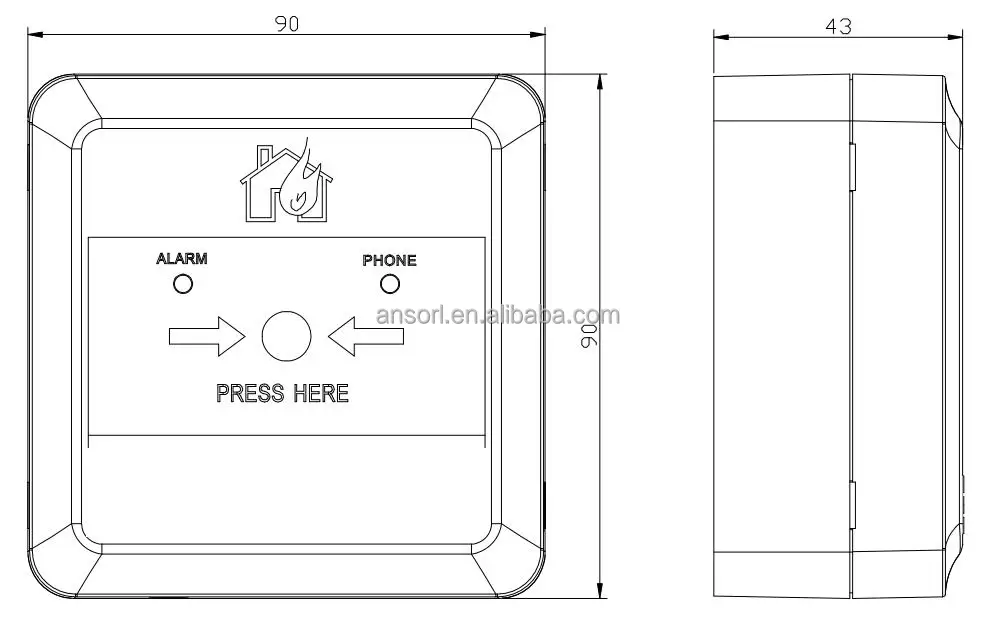

Dimension(mm):

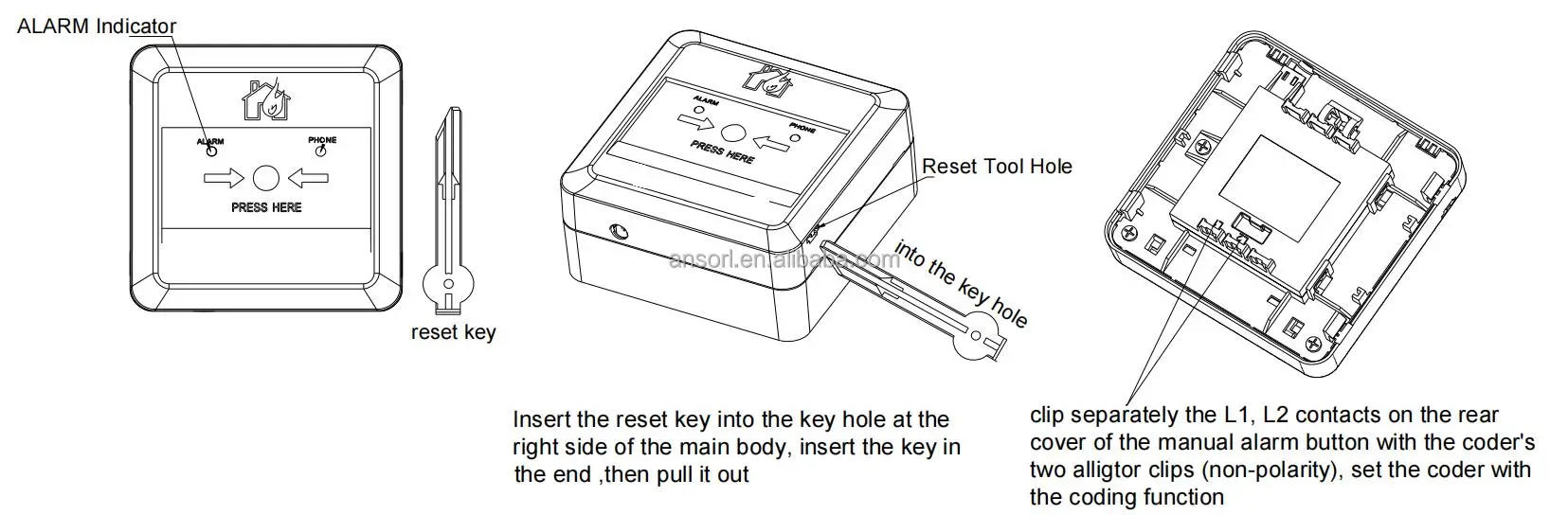

Reset and Coding Methods:

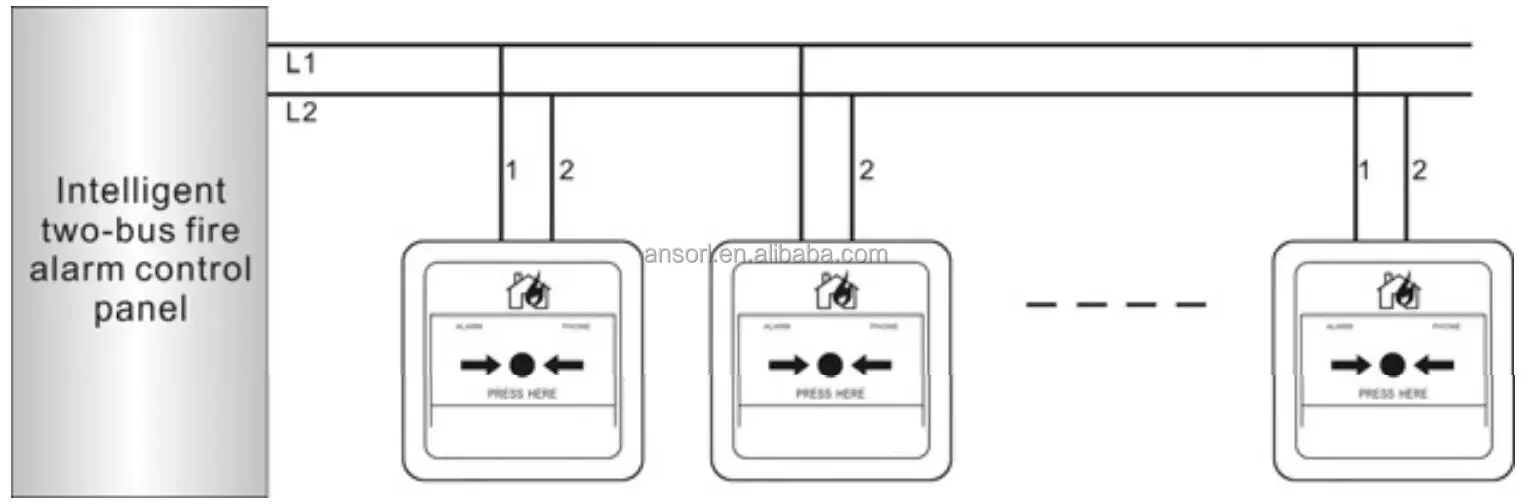

Wiring Connections:
