2.2 kW 3.7 kW 4.5 kW PM VSD Oil free Scroll Type Air Compressor for Electric bus or Gas Generator
- Category: >>>
- Supplier: Beijing Beneair Technology Co. Ltd.
Share on (1600474677909):
Product Overview
Description
Product Description
Product Application
Electric bus, High-speed train, Precision machine tool, Precision spray production line, Medical apparatus, Dental chairs, Laboratory and so on.

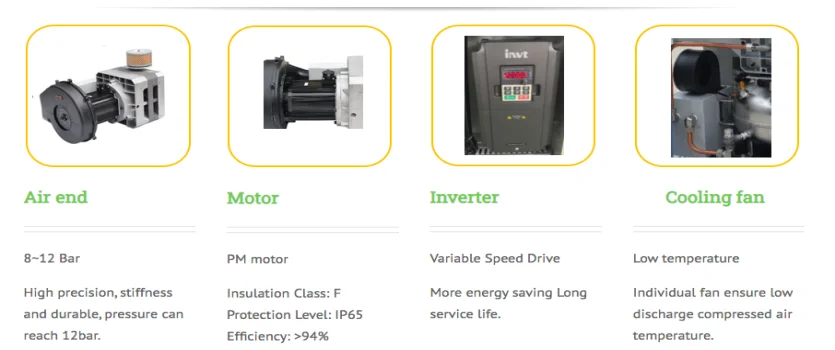

Product Features
Precision air end（2 years warranty）
High precision, stiffness and durable square air-end ensure pressure can reach 12bar.
IP65 protection level, F insulation level, Efficiency is improved 10%

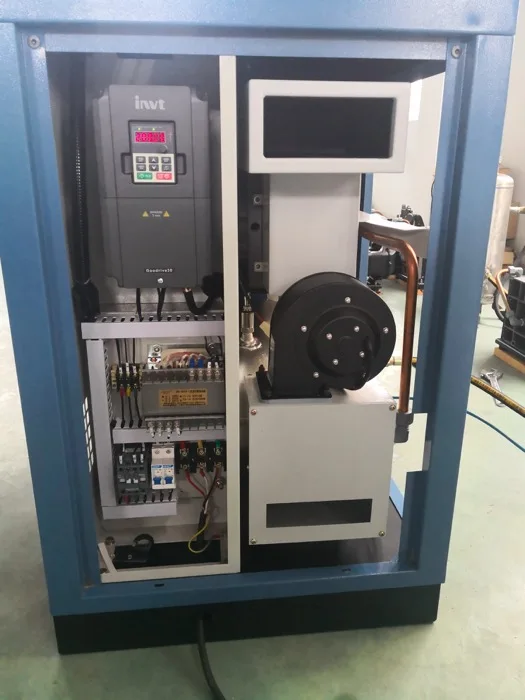

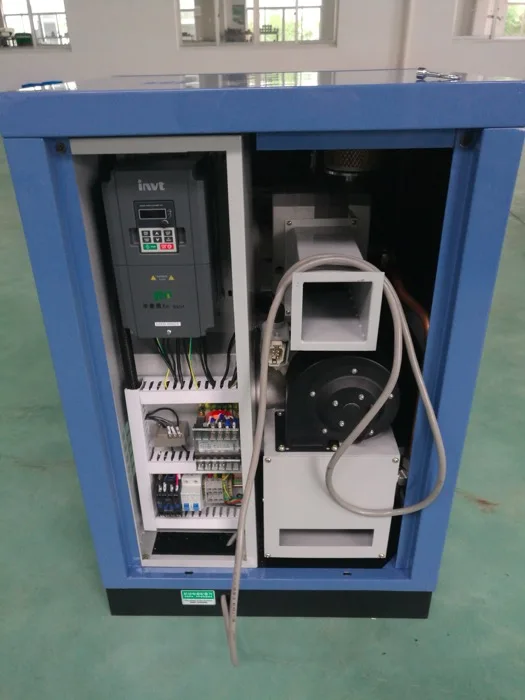

PM motor & Variable frequency inverter
VSD soft no current impact. Inverter adjusts motor speed automatically, save energy and long service life.
Direct drive
Motor is connected with air-end directly, without belt, coupling, no need adjustment, super low noise
Individual cooling fan:
Low discharge compressed air temperature after cooled by individual fan to ensure the low pressure dew point.

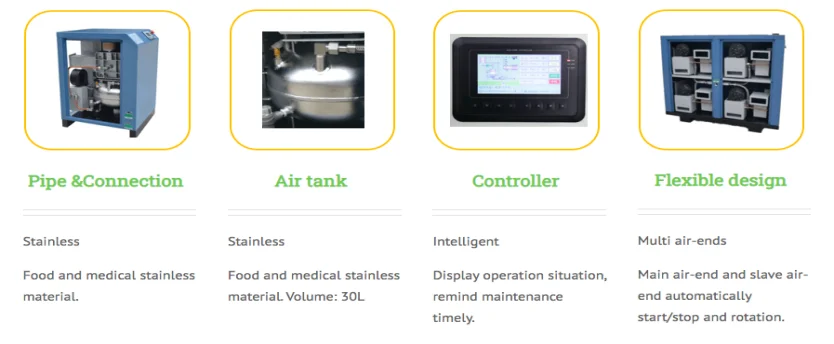

Purity stainless steel air tank
Stainless Steel pipe and connection
Super quiet:
Smart structure and advanced soundproof casing to reduce the noise to 49dB(A)
Intelligent PLC controller.
Display operation situation of air-end
Remind maintenance timely
High precision, stiffness and durable square air-end ensure pressure can reach 12bar.
IP65 protection level, F insulation level, Efficiency is improved 10%
PM motor & Variable frequency inverter
VSD soft no current impact. Inverter adjusts motor speed automatically, save energy and long service life.
Direct drive
Motor is connected with air-end directly, without belt, coupling, no need adjustment, super low noise
Individual cooling fan:
Low discharge compressed air temperature after cooled by individual fan to ensure the low pressure dew point.
Purity stainless steel air tank
Stainless Steel pipe and connection
Super quiet:
Smart structure and advanced soundproof casing to reduce the noise to 49dB(A)
Intelligent PLC controller.
Display operation situation of air-end
Remind maintenance timely
Product Parameters

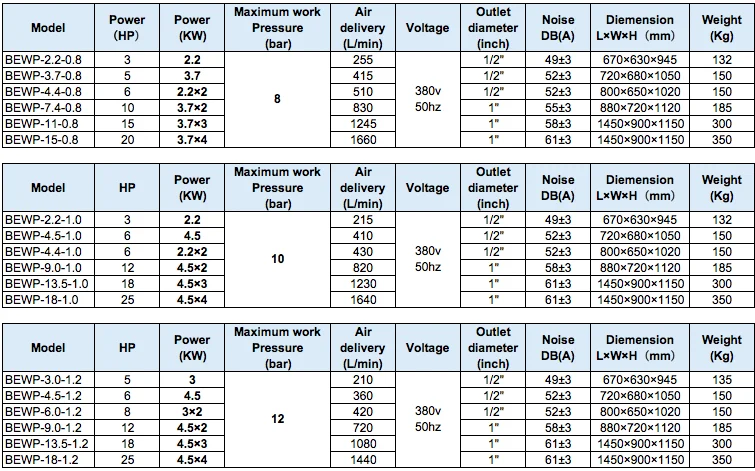

Technical Specifications.
Direct drive oil free scroll air compressor with pm inverter
Capacity FAD m3/min | 0.21m3/min ~ 1.64m3/min |
Working Pressure | 8bar ~ 12bar |
Motor Power | 2.2kw ~18kw |
Product details
Scroll Air end
Air end.
1) Oil free: no need any lubrication oil
2) Stable and reliable: oil grease is added one time per year
3) Low consumable: only air filter and sealing element
4) Super quiet design
5) World first innovating of high stiffness air end, air pressure can reach 12 bar
6) individual air end set can be match with any devices which need compressed air, simple and convenient

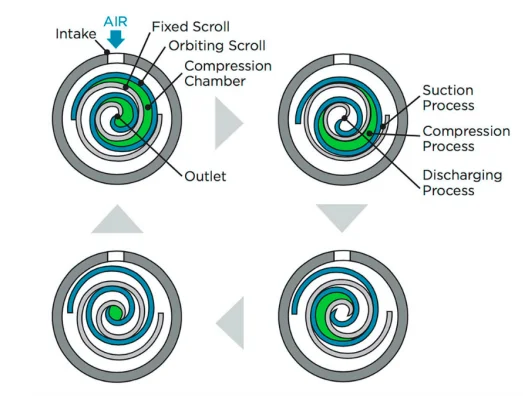

Working Principle
Principle
❉ The orbiting scroll and fixed scroll housing are mated to create the compression chambers.
❉ The continual movement of the orbiting scroll moves atmospheric air from the intake toward to the center, compressing the air into progressively smaller areas.
❉ The compressed air is discharged from the exhaust port at the center of the fixed scroll plant.
❉ The continual movement of the orbiting scroll moves atmospheric air from the intake toward to the center, compressing the air into progressively smaller areas.
❉ The compressed air is discharged from the exhaust port at the center of the fixed scroll plant.
Multi air-ends.
2-4 sets of scroll air-ends built in one.
To save energy, we consider many kinds of using situation and set main air end and slave air end start, stop and self-rotation automatically are according with the air demand.
Maximum prolong the compressor service time and save the energy cost.

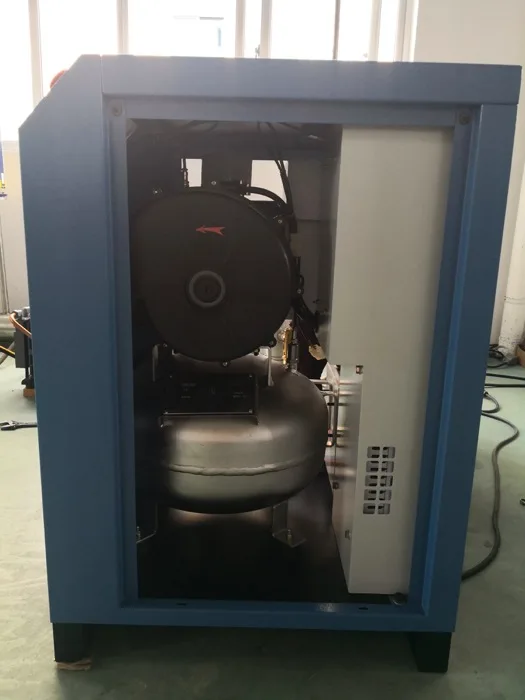

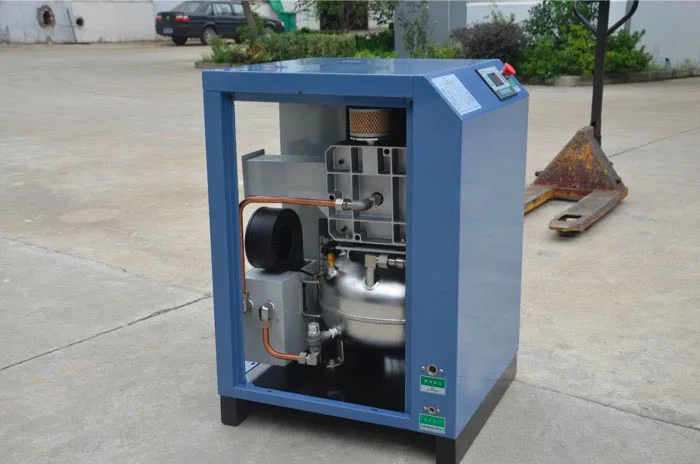

single air end with air tank

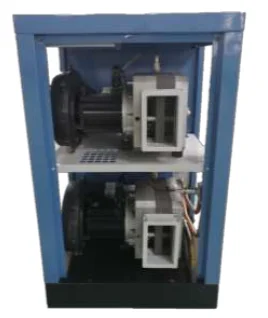

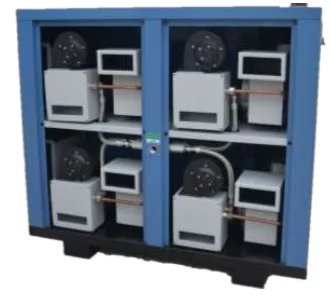

Multi air-ends modular design
2-4 pcs scroll air-end built in one
