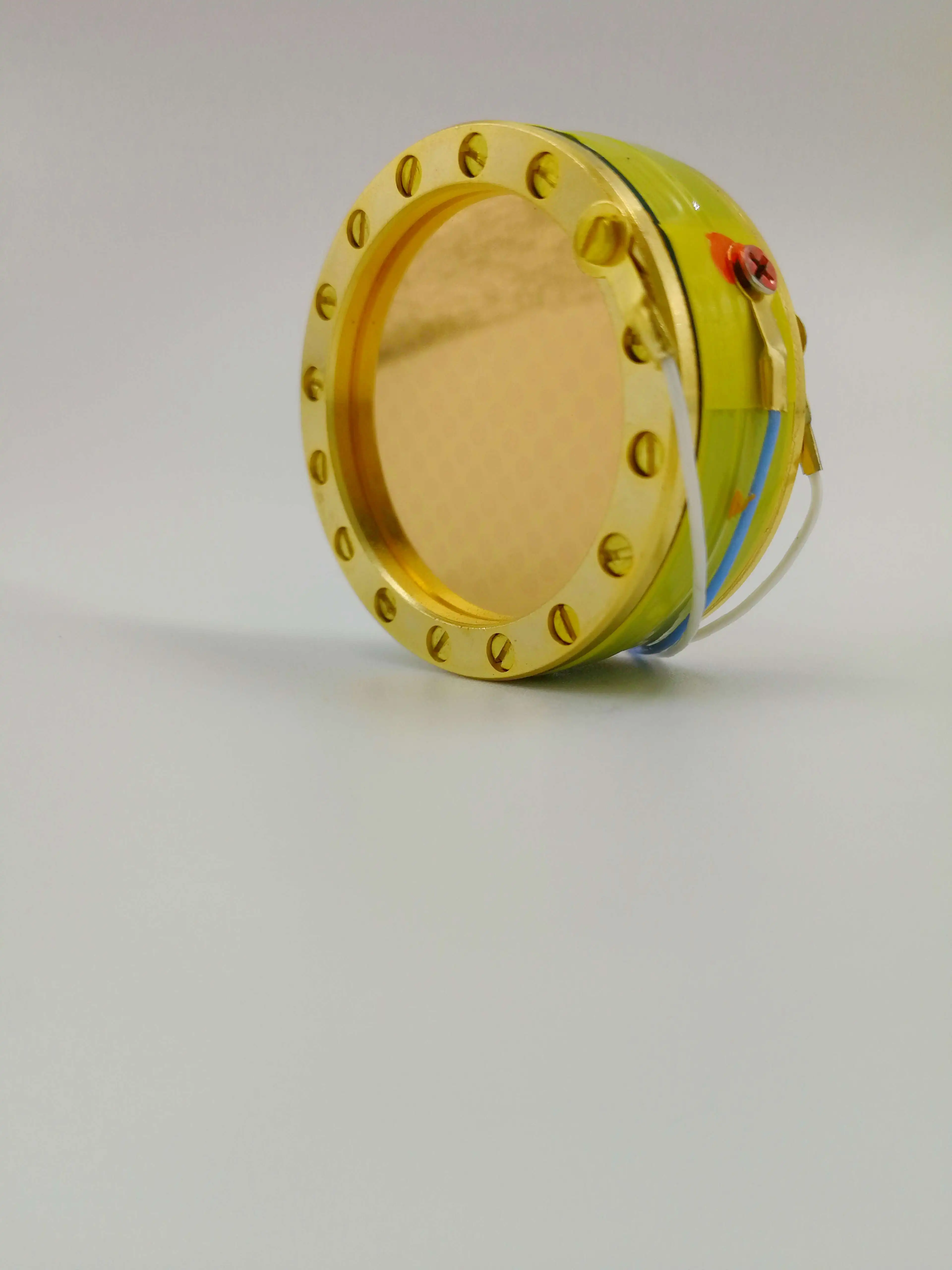

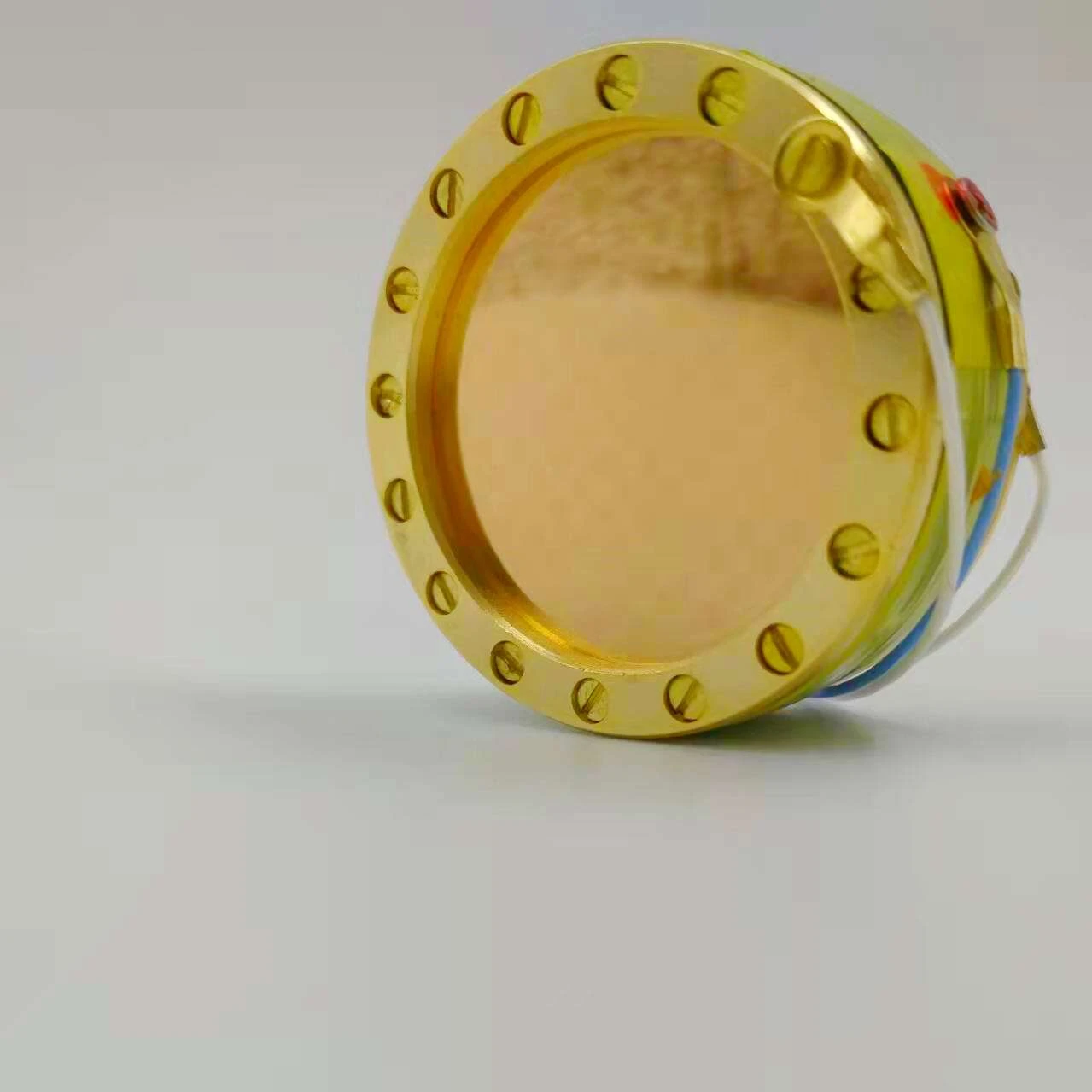

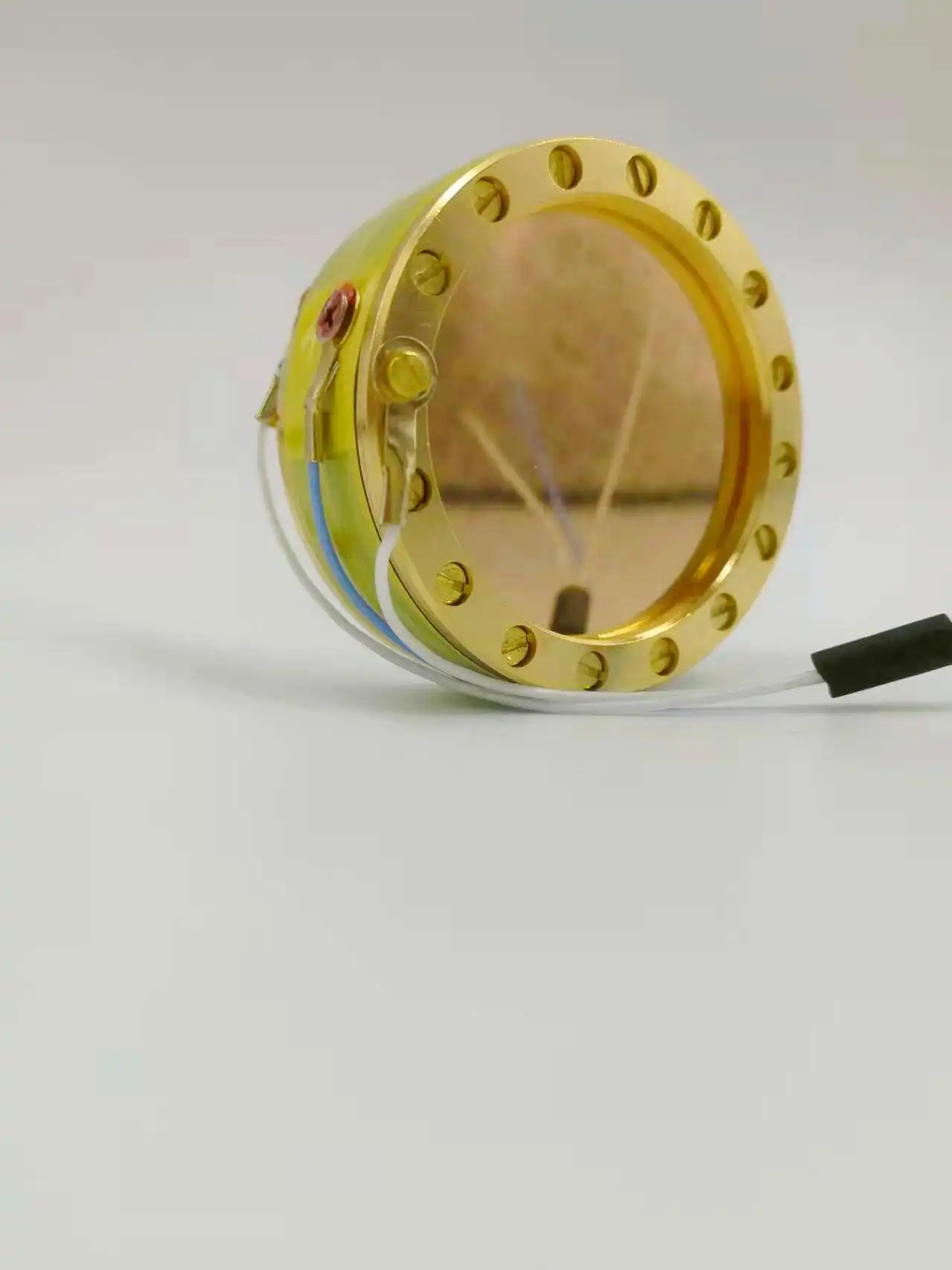

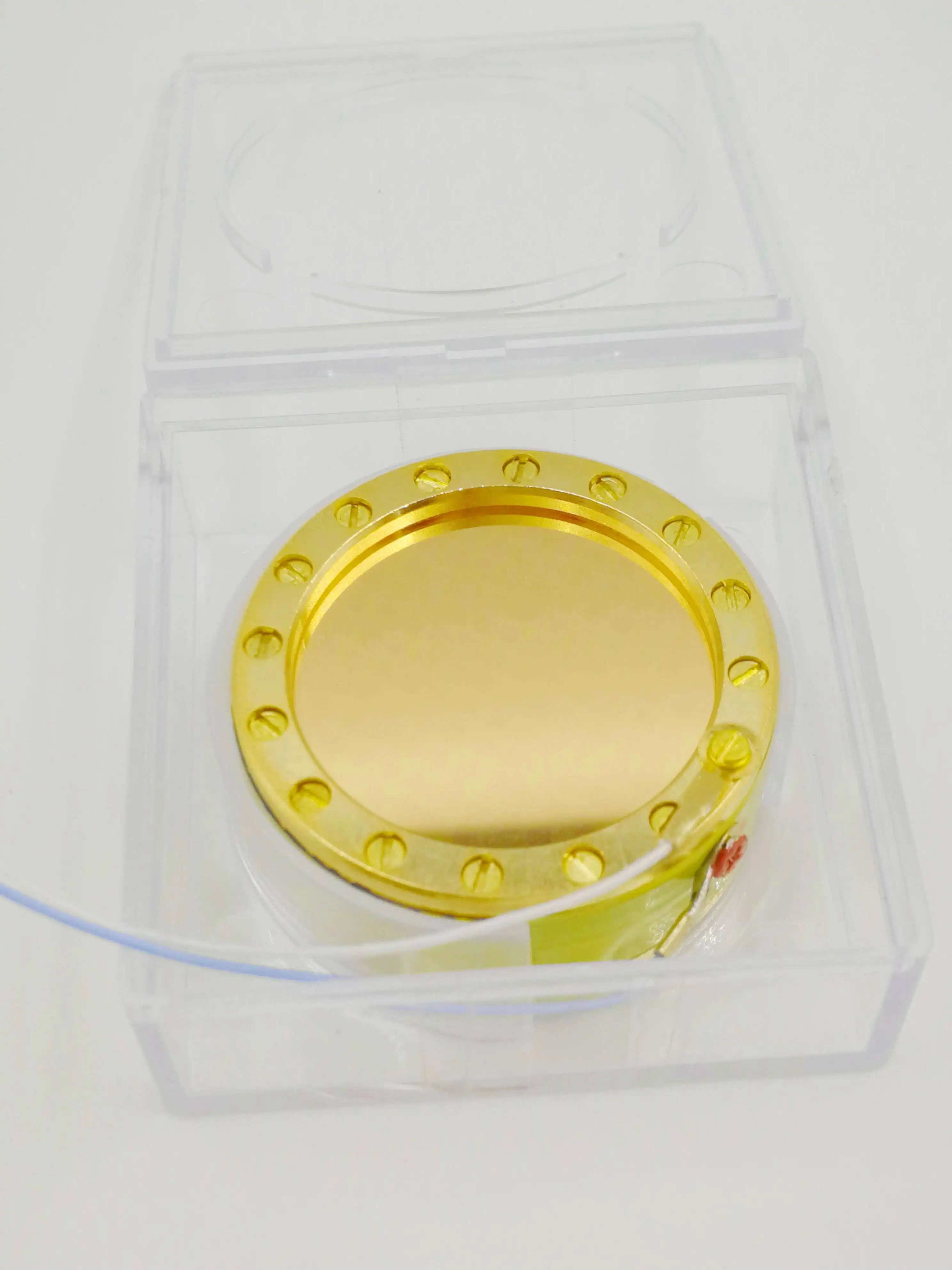

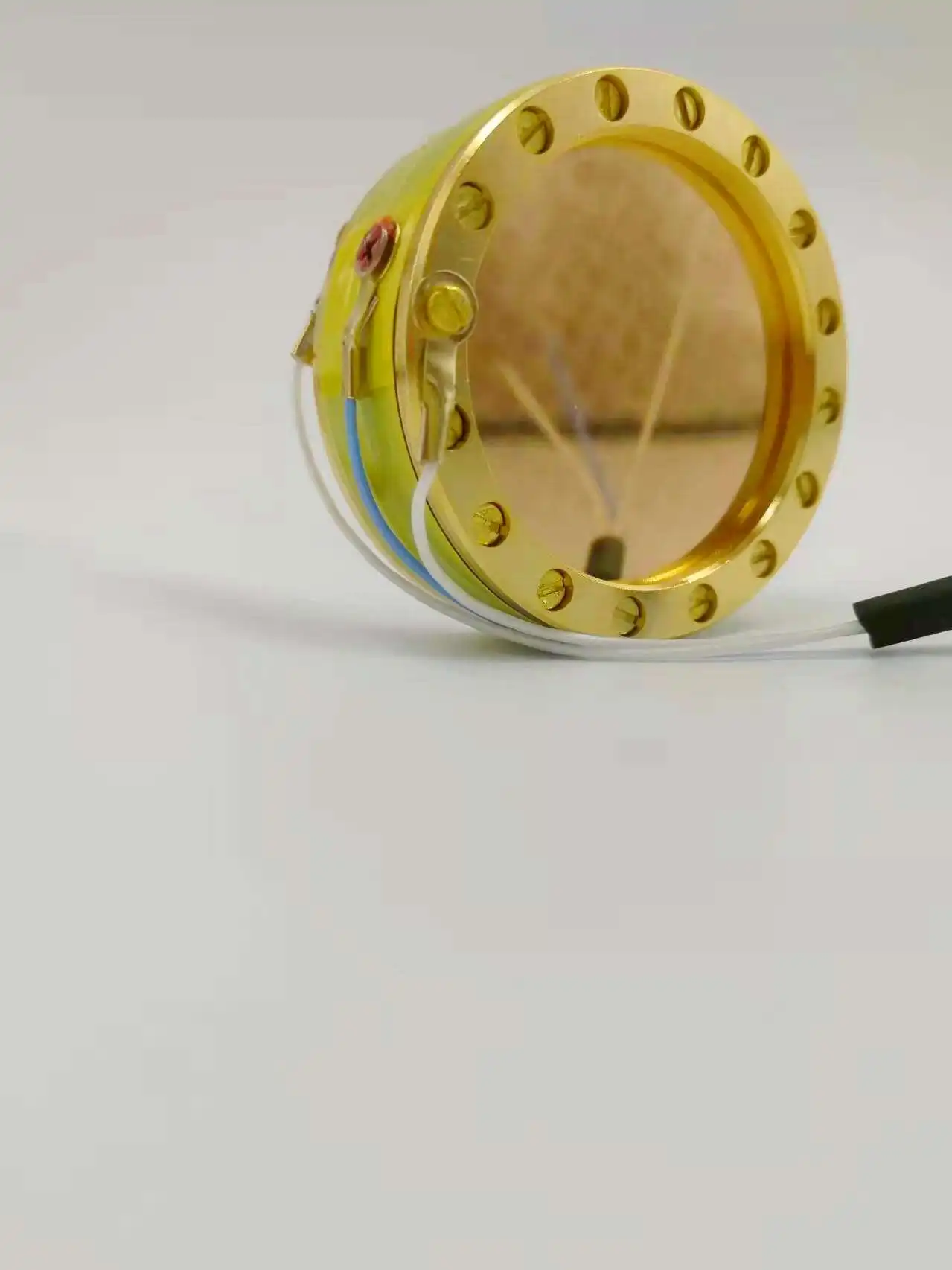

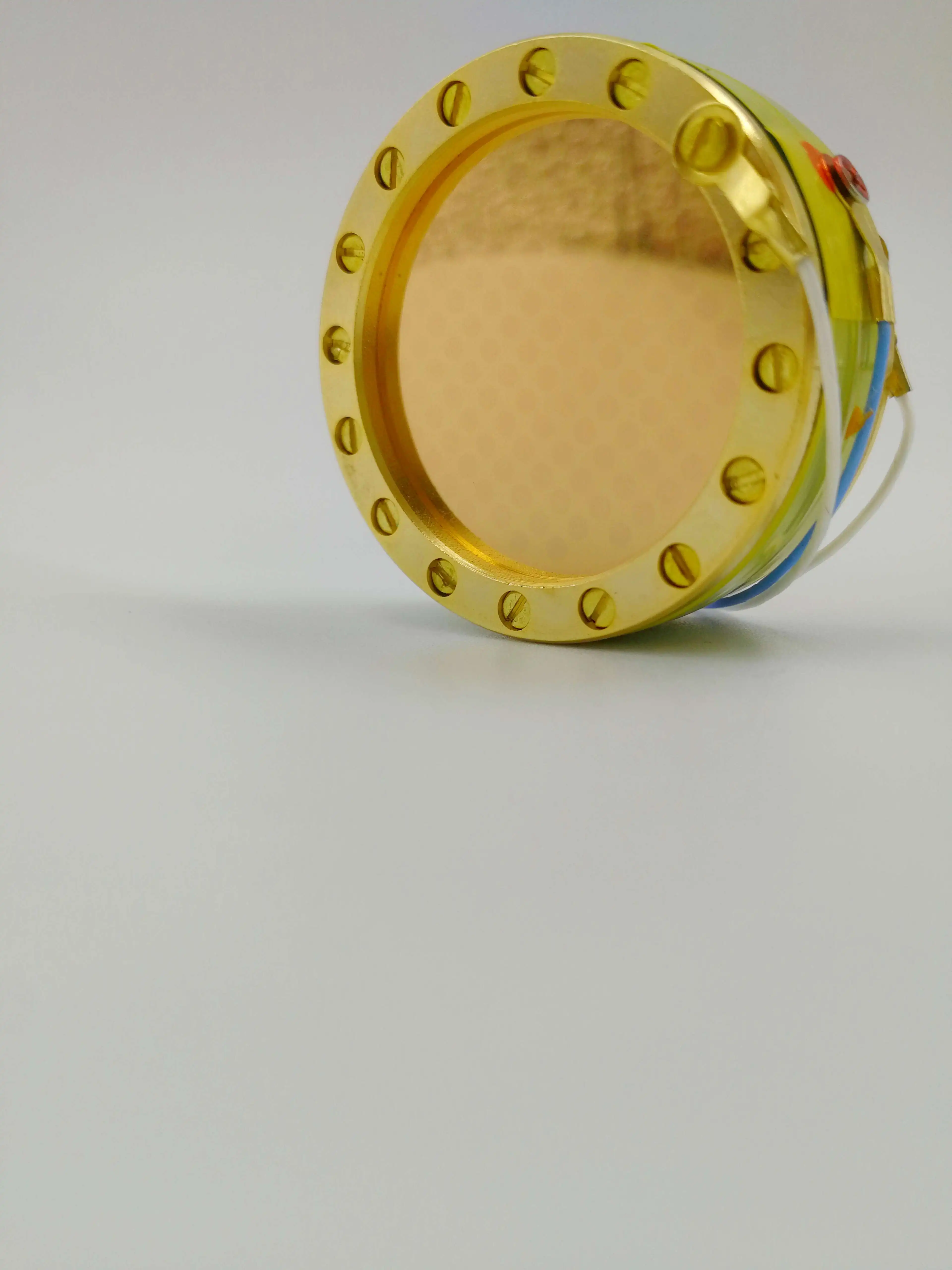

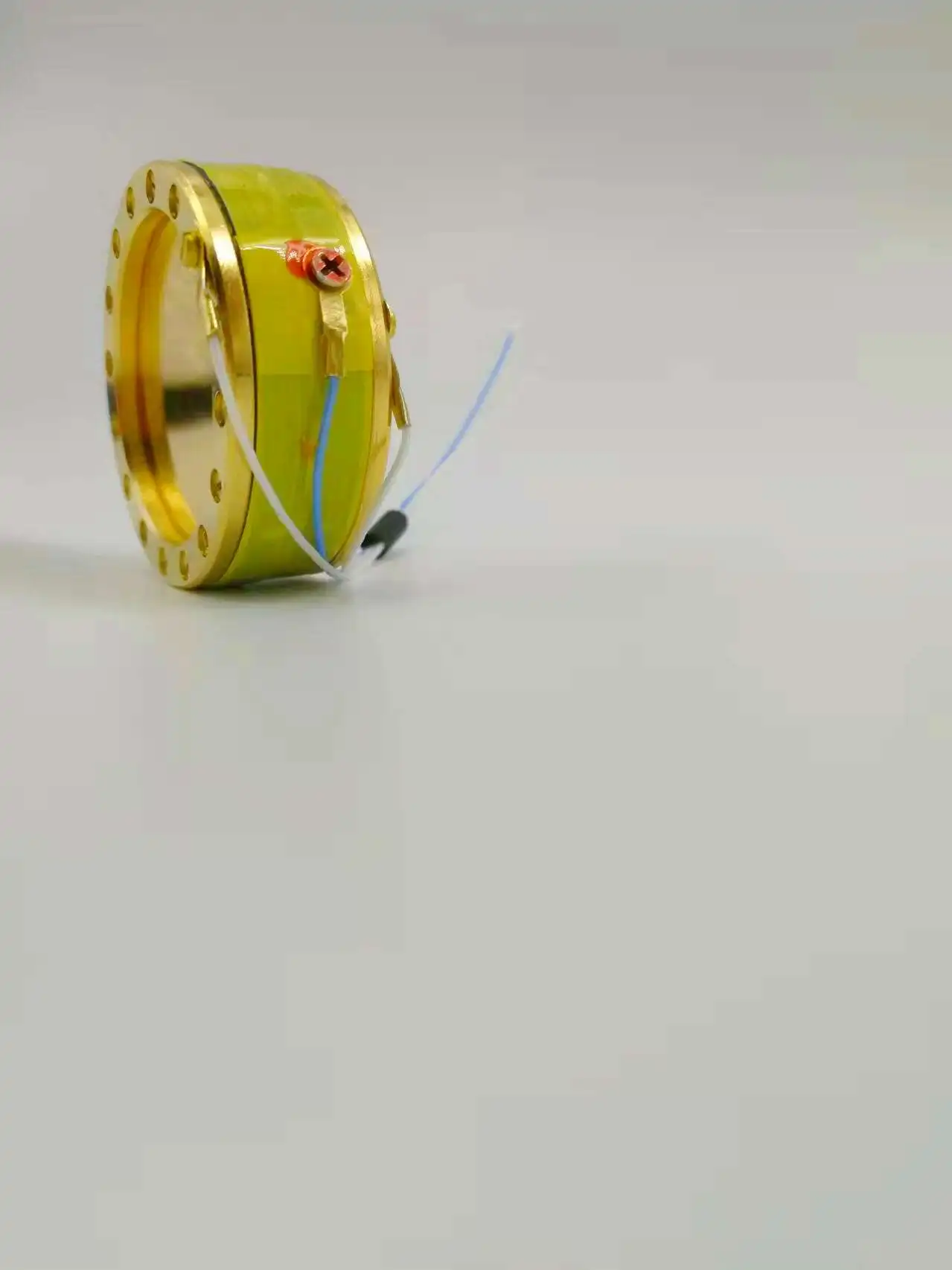

3 wires 34mm Microphone capsule large golden diaphragm dual side Pro DIY Element Replacement

Product Overview

Description

1. Element:φ34mm pressure gradient transducer,evaporated gold with thin mylar membranes
2. Polar Pattern: multi-directional(Uni/Bi/Omni)
3. Frequency Response: 20Hz-20kHz
4. Sensitivity: -38dB±2dB (0dB=1V/Pa at 1kHz)
5. Output Impedance: 200Ω±30% (at 1kHz)
6. Load impedance: ≥1000Ω
7. Self Noise: 15dB A
8. Max. Input SPL: 140dB (at 1kHz =1% T.H.D)
9. S/N Ratio: 79dB
10. Capacitor: 70±4PF
11. Double-sided version
12. Body dimension:φ34x13.4mm





Questions:



1. Whether component comply with ROHS & Reach?

Reply:  YES



2. Do you provide free sample?

Reply: Yes, we provide regular free sample if price under 1USD.



3. Delivery?

Reply: We use DHL/UPS/Fedex more, fast and safe.



4. Quality assurance

Reply: We will do 100% inspection first. Yes, if our component not work, or have quality issue, will replace on our charge.
