surveying ts06 lei cca ATS 120A sunway total station
- Category: >>>
- Supplier: Jiangsu Conwy Optoelectronic Technology Co. Ltd.
Share on (1600474953285):
Product Overview
Description
Product Description
Specification
Model | ATS-120A | |
Angle Measurement | ||
Measurement Method | Absolute Encoding | |
Minimun Readout | 1″ | |
Accuracy | 2″ | |
Telescope | ||
Magnification | 30X | |
Field of View | 1°30″ | |
Minimum Fousing Distance | 1.5m | |
Reticle | Illuminated | |
Compensator | ||
System | leicca | |
Working Range | ±3″ | |
Accuracy | 1″ | |
Distance Measurement(with Reflector) | ||
Single Prism (Under general/good conditions) | 4000m/5000m | |
Reflective Sheet | 1000m | |
Accuracy | 2mm+2ppm | |
MeasuringTime(Fine/Tracking) | 0.8s/0.4s ；0.8s/0.3s | |
Distance Measurement(Reflectorless) | ||
Reflectorless Range (Calculated by Kodak Gray Card white side with 90% reflective) | 400m/ 600m/ 800m/ 1000m | |
Accuracy | 3mm+2ppm | |
Measuring Time | 1.5s | |
Communication | ||
Internal Data Memory | Approx.20000 Points/SD Card | |
Interface | Standard RS232,Mini-B,USB pen drive | |
Wireless Communication | Buletooth | |
Data Format | ASCⅡ | |
Operation | ||
System | Real-time Operating System | |
Display | True color,320*240 TFT Screen | |
Keyboard | 2 sides Alphanumeric backlit crystal keyboard | |
Laser Plummet | ||
Type | Laer point,4 brightness levels adjustment/Optical plummet(optional) | |
Centering Accuracy | 1mm at 1.5m insturument height | |
Environmental | ||
Operating Temperature | -20℃-+50℃(-4F to+122F) | |
Storage Temperature | -40℃-+70℃(-40F to +158F) | |
Temperature&Pressure | Auto input | |
Dust&Water Proof(IEC60529 Standard) | IP55 | |
Power Supply | ||
Battery Type | Li-ion battery | |
Voltage/Capacity | ZBA-400:7.4V(DC)/3000mAh | |
Operating Time With ZBA-400 | Optimal 16 hours(Continuous angle measurement every 30 seconds)/10 hours(Typical) | |
Measuring Times | Approx.12000 times | |
Product Details

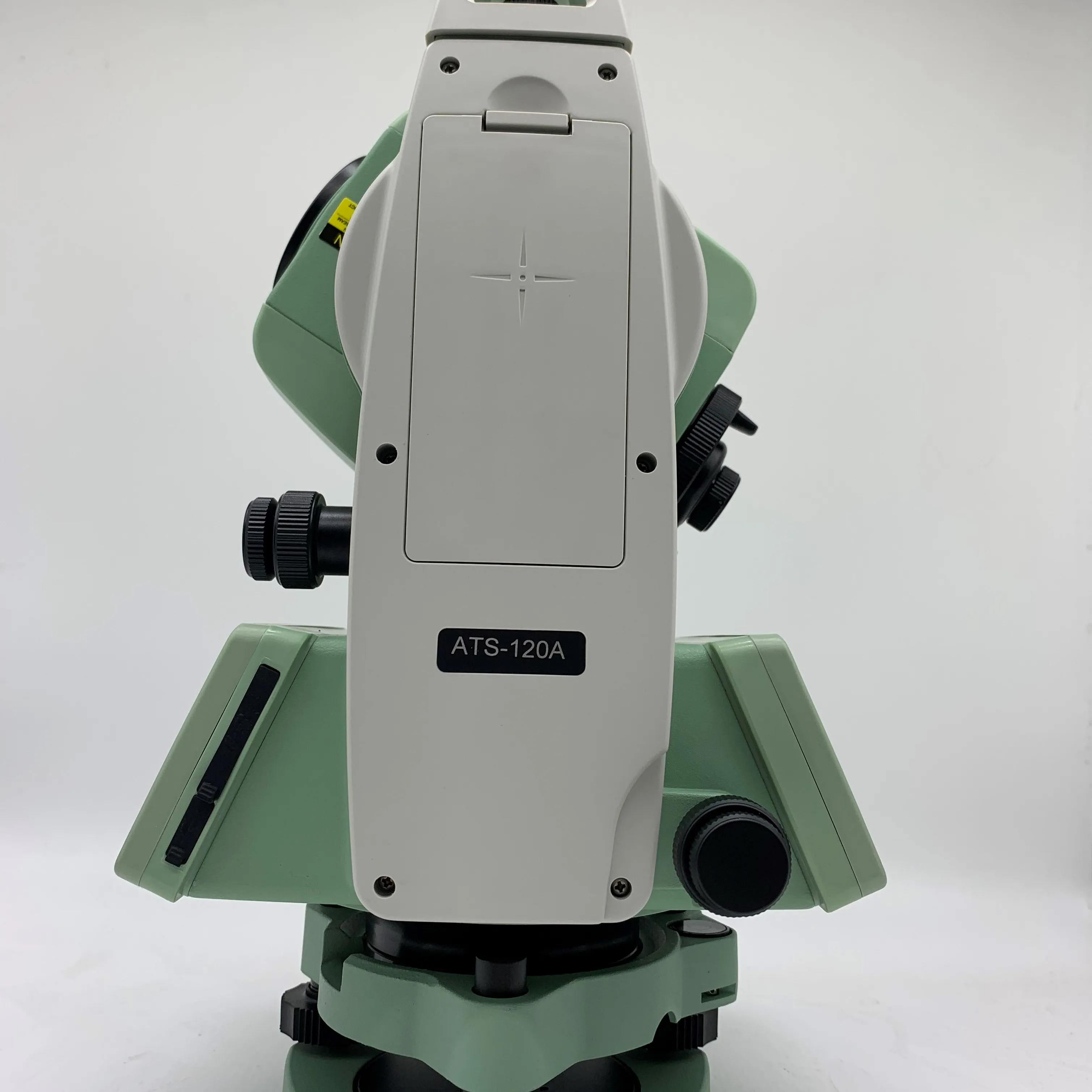

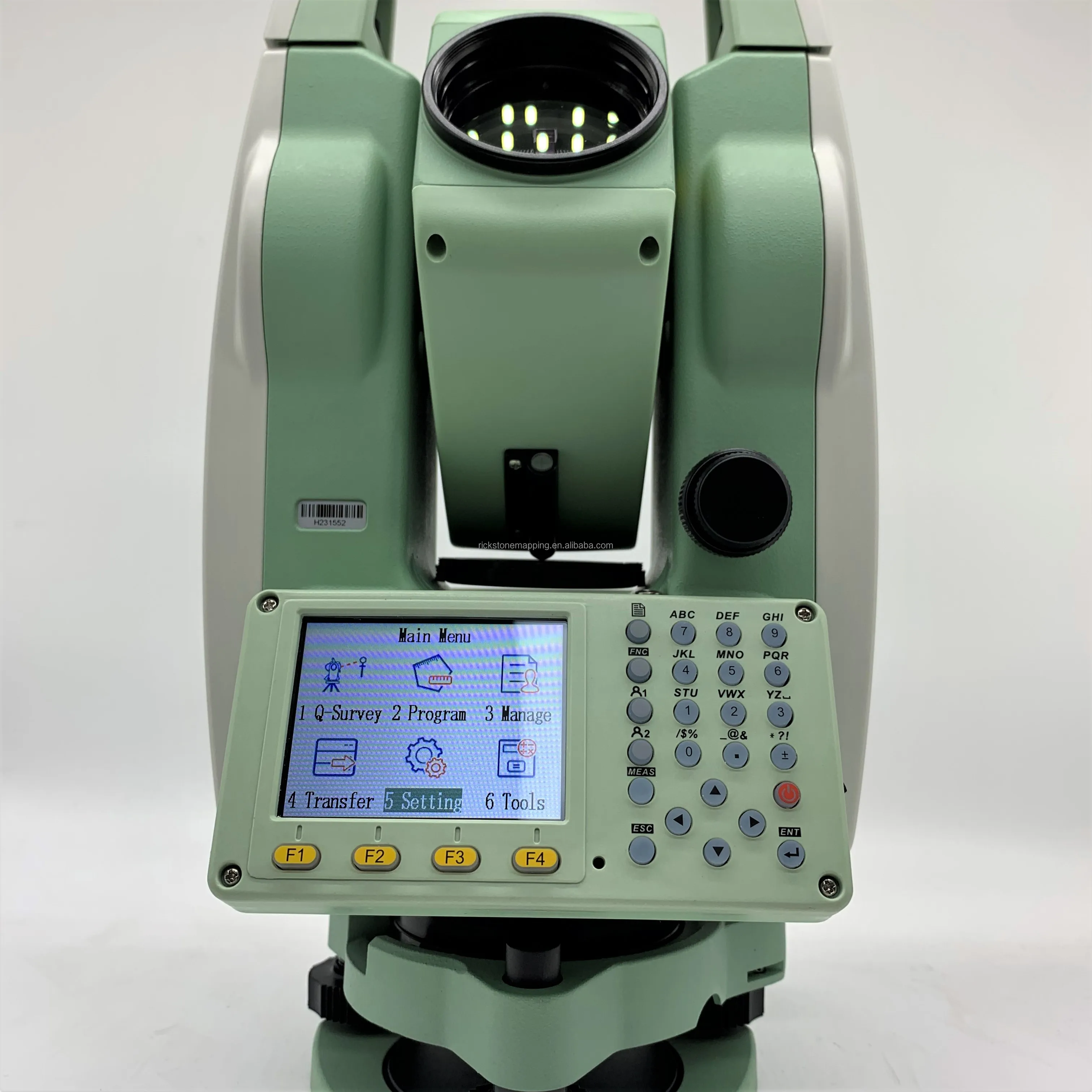

SUNWAY ATS-120A TOTAL STATION
Ultrafast Measurement:

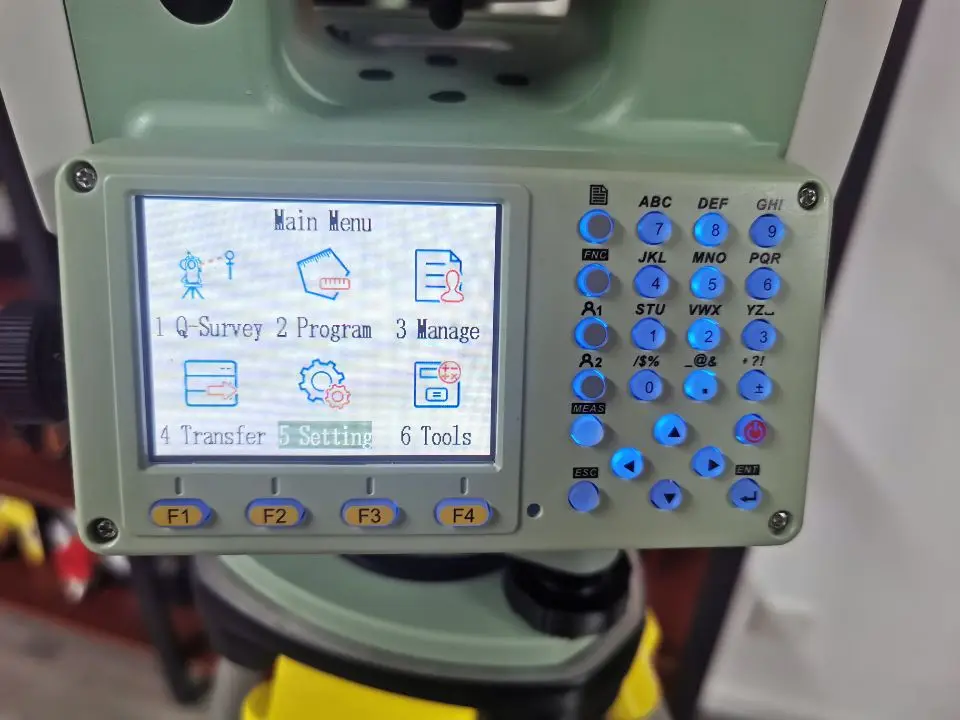

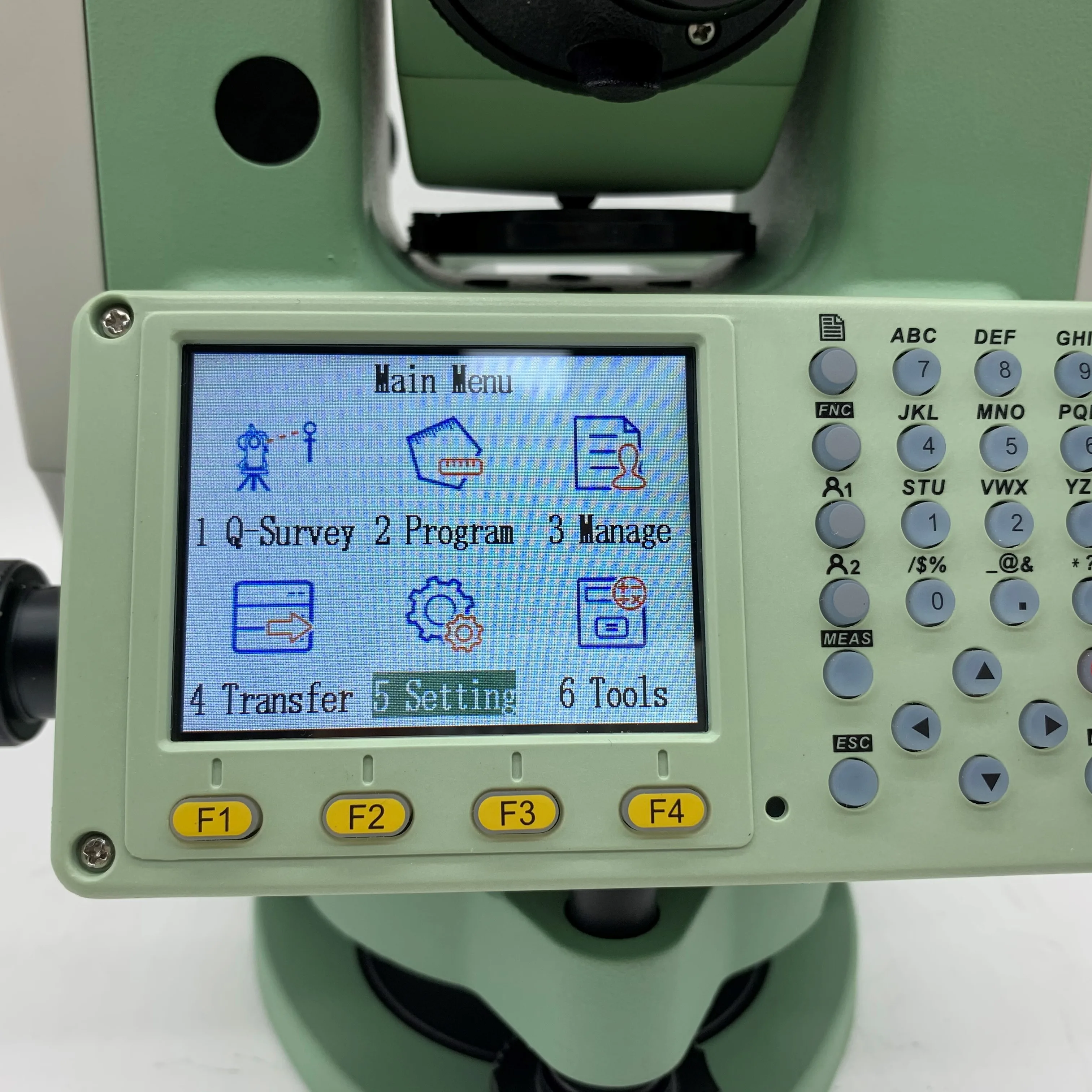

Fine mode 0.8s, Track mode 0.3s.True color screen:
240*320pi high-quality TFT screen, designed for clear reading in strong sunlight condition.
Brightness is adjustable in 3 levels.
240*320pi high-quality TFT screen, designed for clear reading in strong sunlight condition.
Brightness is adjustable in 3 levels.
Smart T-P sensor:
Configured with a Temperature-pressure sensor, one key to get atmosphere conditions.
Dual-axis compensation:
Advanced dual-axis compensator configured for auto error elinination and auto accuracy compensation.
Configured with a Temperature-pressure sensor, one key to get atmosphere conditions.
Dual-axis compensation:
Advanced dual-axis compensator configured for auto error elinination and auto accuracy compensation.
Leicca type OS
The operation is very similar to Leica operation, both on keybords and software. Which is very welcome by Leica TS users and distributors
LI-ON Battery
With laser pointing function, easier to target the objects, or can be served for orientation.
Direct laser plummet on benchmark, make it easier for station point setup.
Direct laser plummet on benchmark, make it easier for station point setup.

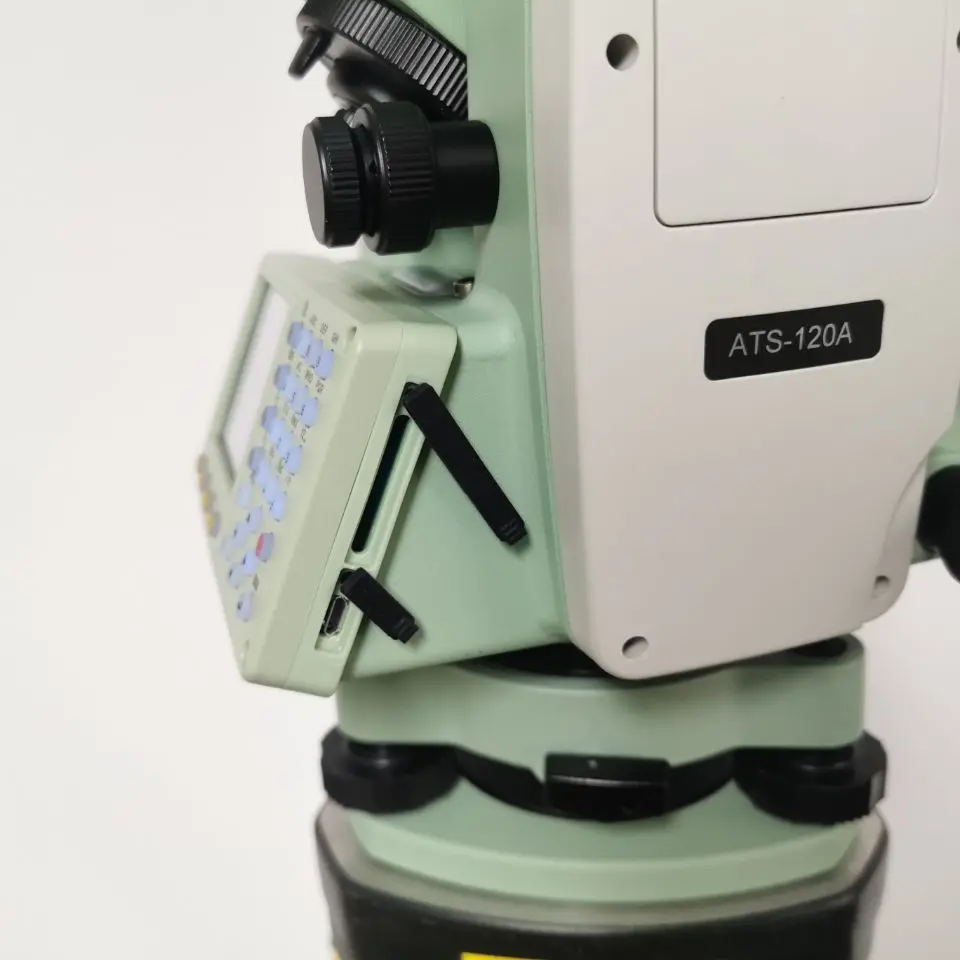

Variable communication
Bluetooth, RS 232, USB, SD card(with extension up to 32GB)
Easy to download and upload the data between TS and PC
Our Advantages
We are the OEM factory of Japan TAJIMA and Germany GEO-FENNEL and other famous worldwide brand.
Jiangsu GeoMATO Optoelectronic Technology Co.,Ltd established in 2002 is a company which is specialized in researching, designing and manufacturing Total Station, Range Finder, Theodolite, Digital Auto-Level, Laser Sensor (measure the range, angle and height).
At present, Our products include: MET200 series Electronic Theodolite, DS200 Series Digital Level, DS100 series Digital Level, DM200 series Distance Laser Sensor, AM200 series Angle sensor,MTS100 series total station, MTS300 series total station, MTS600 series total station, MTS800 series total station,MTS1000 series total station, MTS1200 series total station etc survey instruments.
Packing & Delivery
The external package: carton

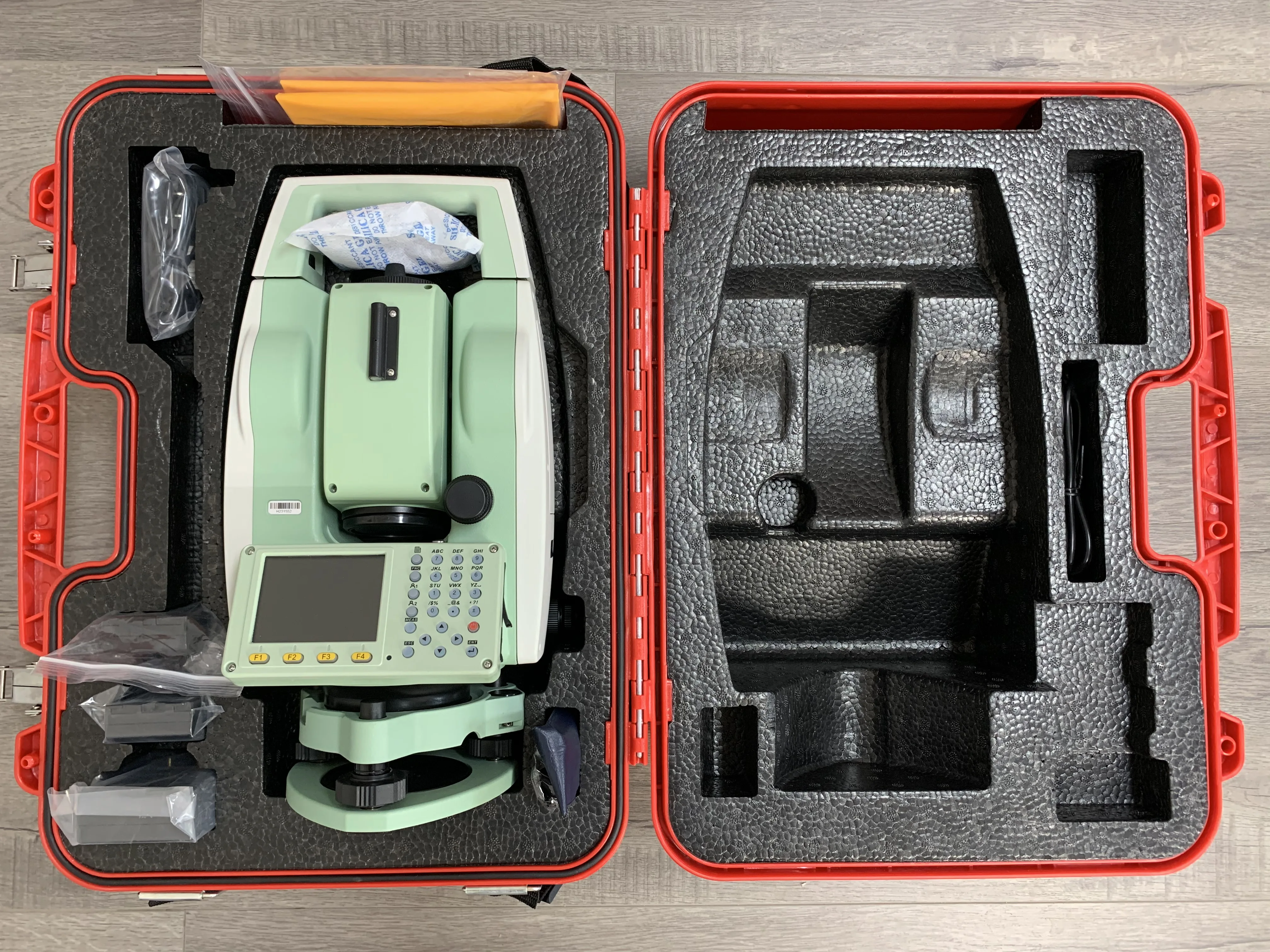

The internal package: engineering case+ hard foam for buffering.
Note: If export to countries who not accept hard foam, the inside buffering material will be hard paper.
The internal package: engineering case+ hard foam for buffering.
Note: If export to countries who not accept hard foam, the inside buffering material will be hard paper.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. What kind payment method we accept?
T/T, L/C at sight, Western Union, Trade Assurance on Alibaba, Moneygram and Paypal.
2. How can you guarantee payment safety ?
2. How can you guarantee payment safety ?
Our company supports TRADE ASSURANCE service. If you will choose payment through ALIBABA TRADE ASSURANCE service, you payment will be guaranteed. Because we are not able to receive payment until you confirm goods receipt.
3. What kinds of shipment for goods and how long time it takes ?
3. What kinds of shipment for goods and how long time it takes ?
Our company supports DHL, FEDEX, UPS, TNT, CHINA POST, by sea and other methods. Shipping time is 3-5 days from payment receipt.
4. Does your company ship battery or not ?
4. Does your company ship battery or not ?
Our company can receive battery order and ship to customer normally, except a few special countries.
5. Do you have other items not displayed on your website ?
5. Do you have other items not displayed on your website ?
Yes, our company supplies full survey range products. If you are looking for product not displayed on our website. Please contact us freely. We will reply you on time.
