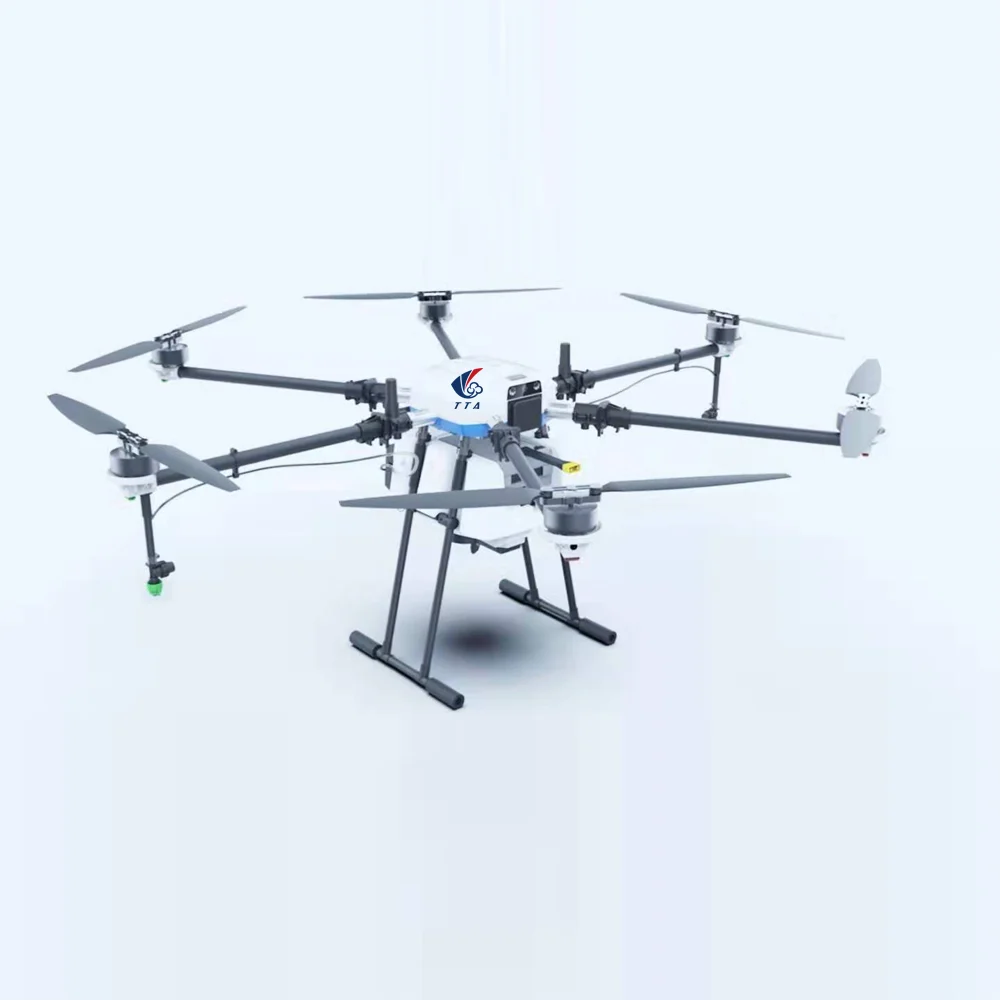

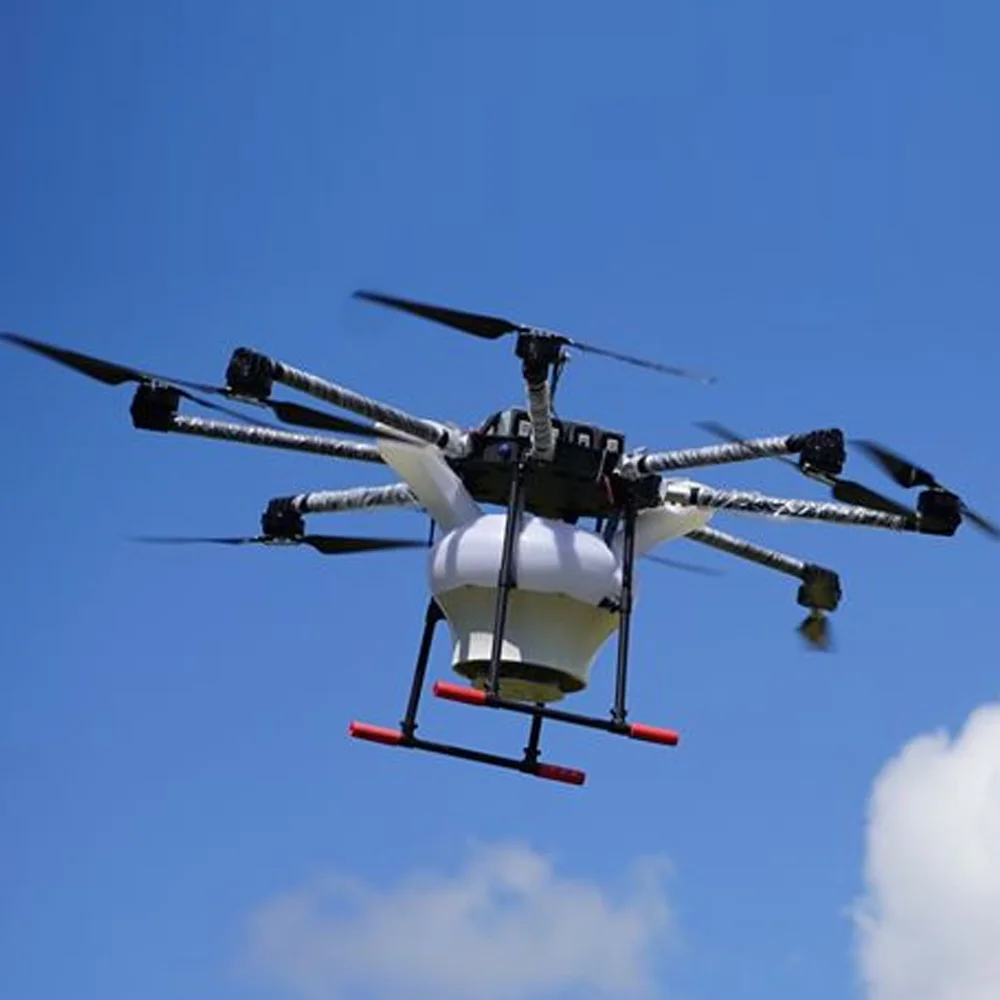

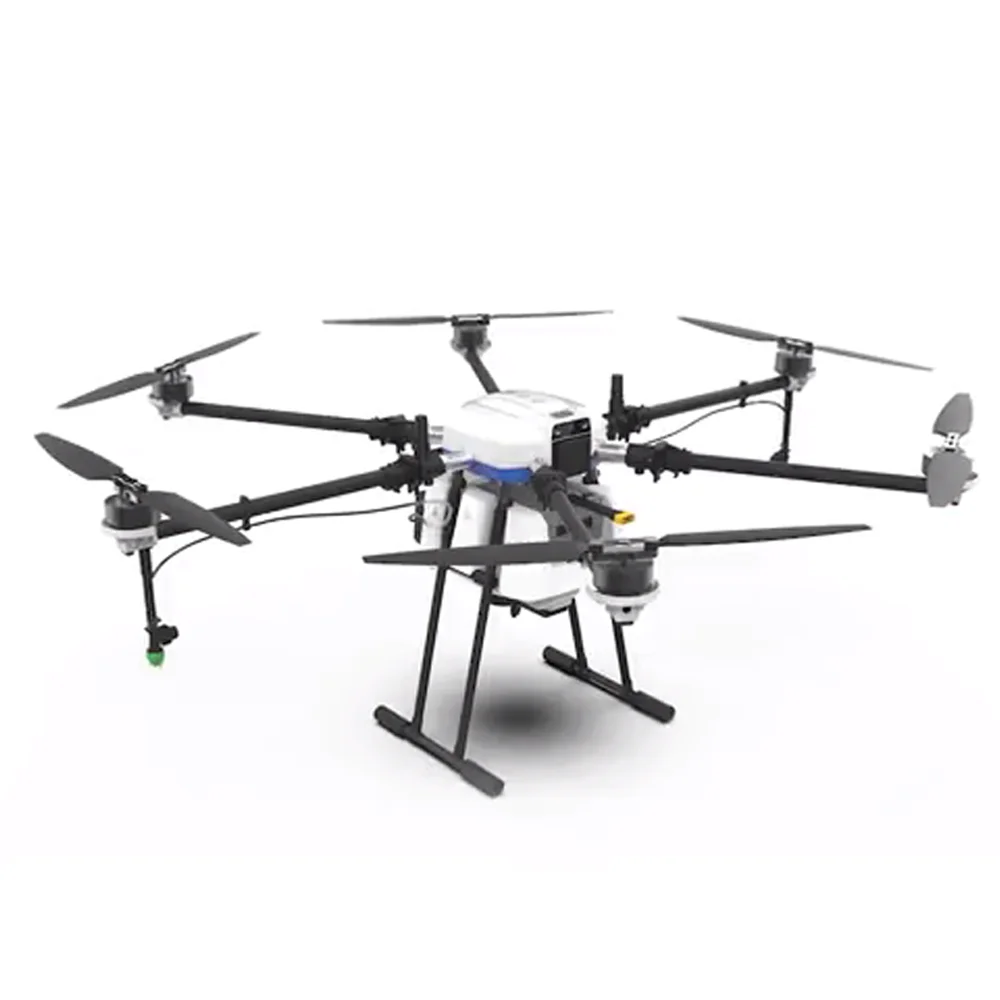

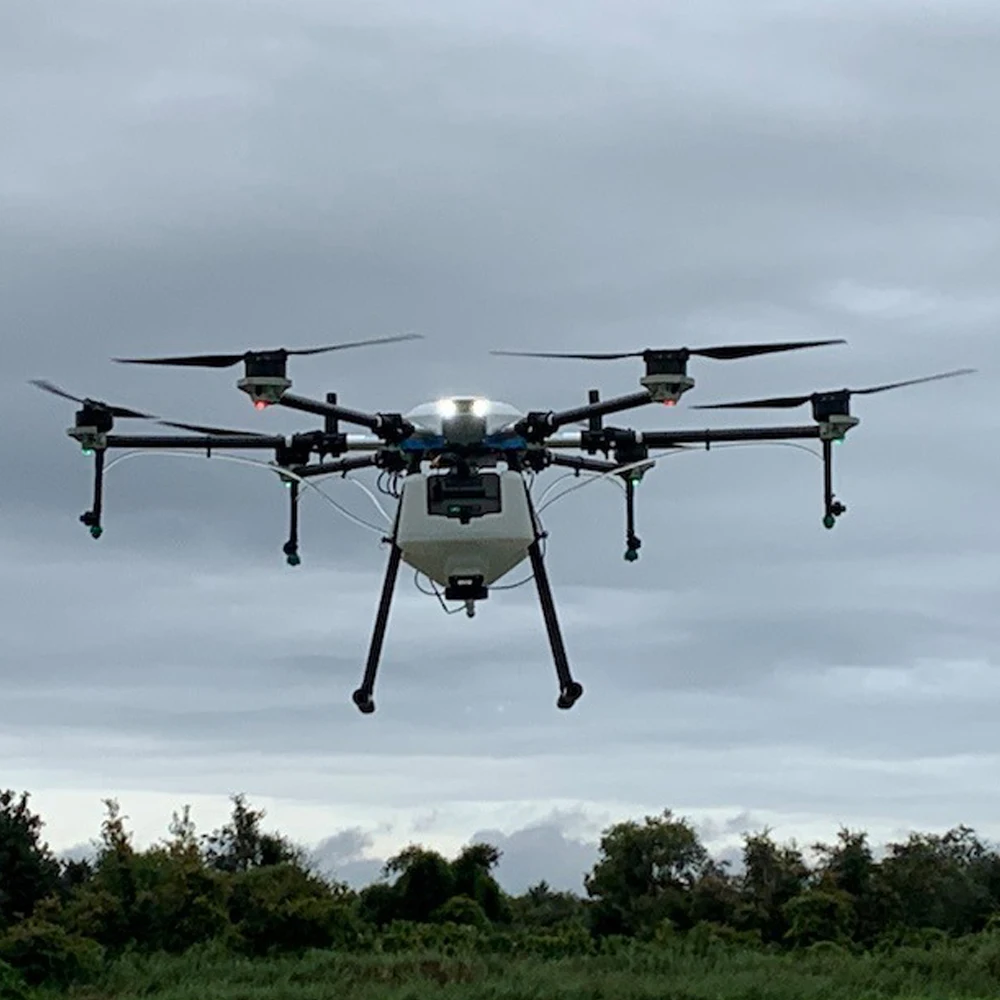

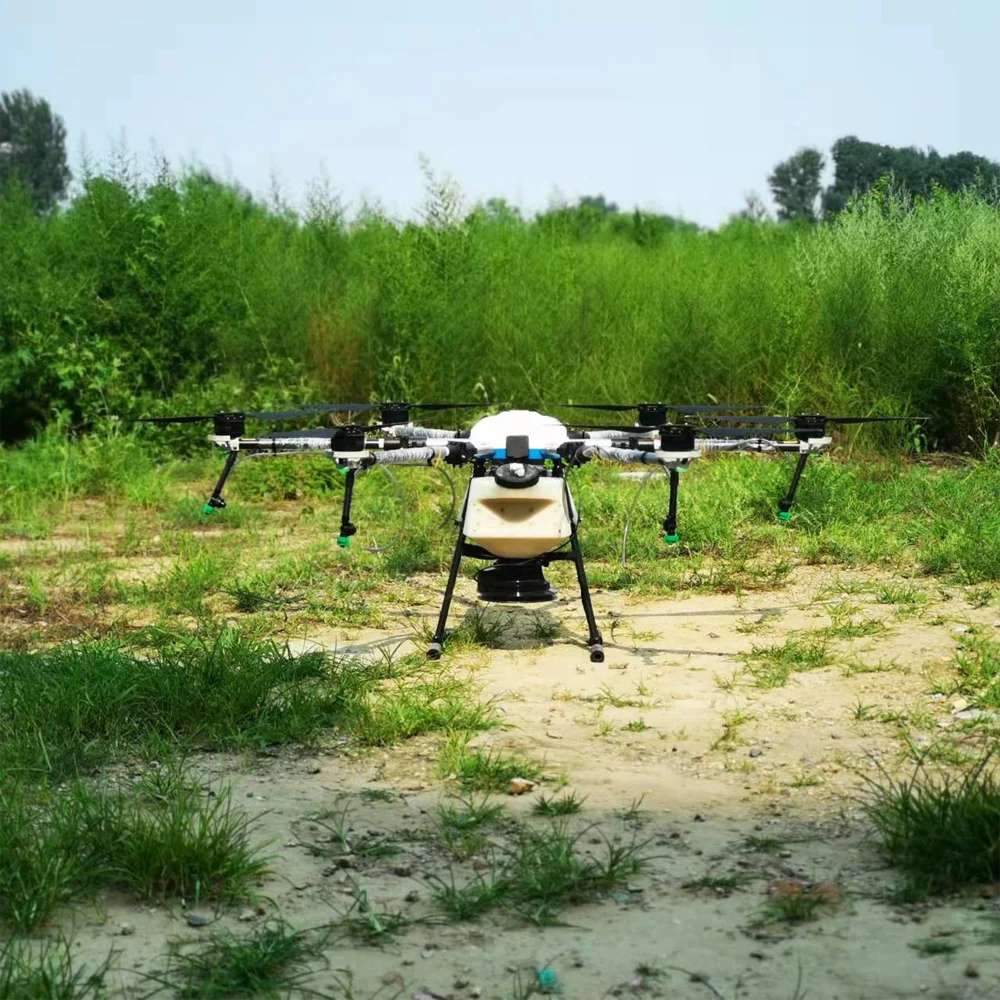

16KG Tank Aircraft Agricultural Pesticide G200 UAV Drone Crop Sprayer UAV Drone Agriculture Sprayer
- Category: Aircraft >>>
- Supplier: Beijing TT Aviation Technology Co. Ltd.
Share on (1600475102013):
Product Overview
Description
Product Description

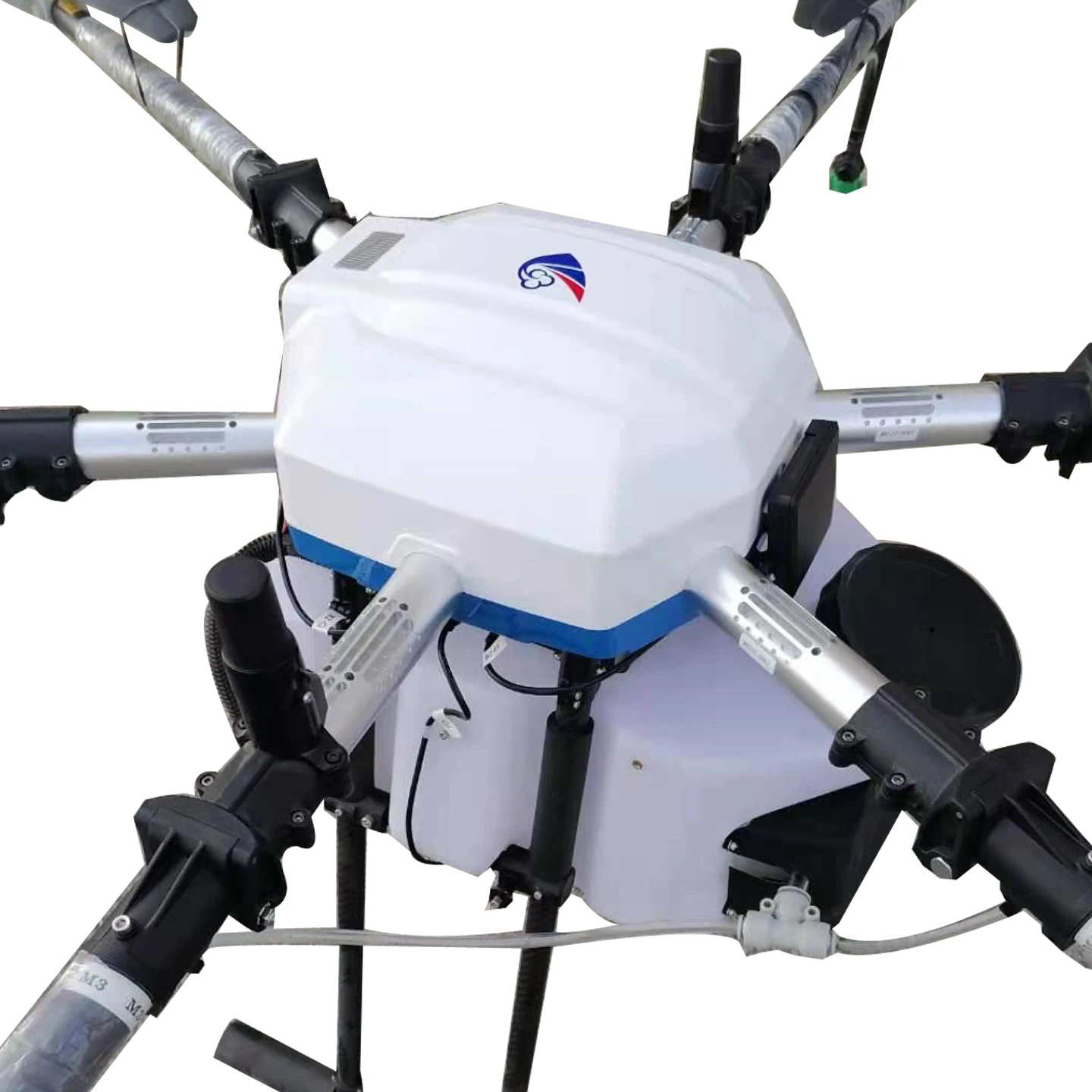

16L16KG Datalink Agricultural Drones Pesticide Sprayer Drone Professional Agriculture Sprayer
Specification
Model No. | M6E-G200 | |
Tank Volume | 16L | |
Work Efficiency | 1.1~1.6 hectare/10min | |
36~45 hectare/8 hours | ||
Flying | ||
Full payload Flying Time | 10-13min | |
Max Flying Time | ≥20min | |
Flying Speed | 0-10m/s | |
Flying Height | 3500m | |
Landing approach | Vertical take-off and landing | |
Anti-wind | <12m/s | |
Positioning | GPS&RTK | |
Spraying | ||
Spray droplet diameter | 80-200μm | |
Quantity of Nozzles | 4pcs | |
Recommend Spray Speed | 4-6m/s | |
Spray Width | 4-6M | |
Spray Height | 2-4M above crop | |

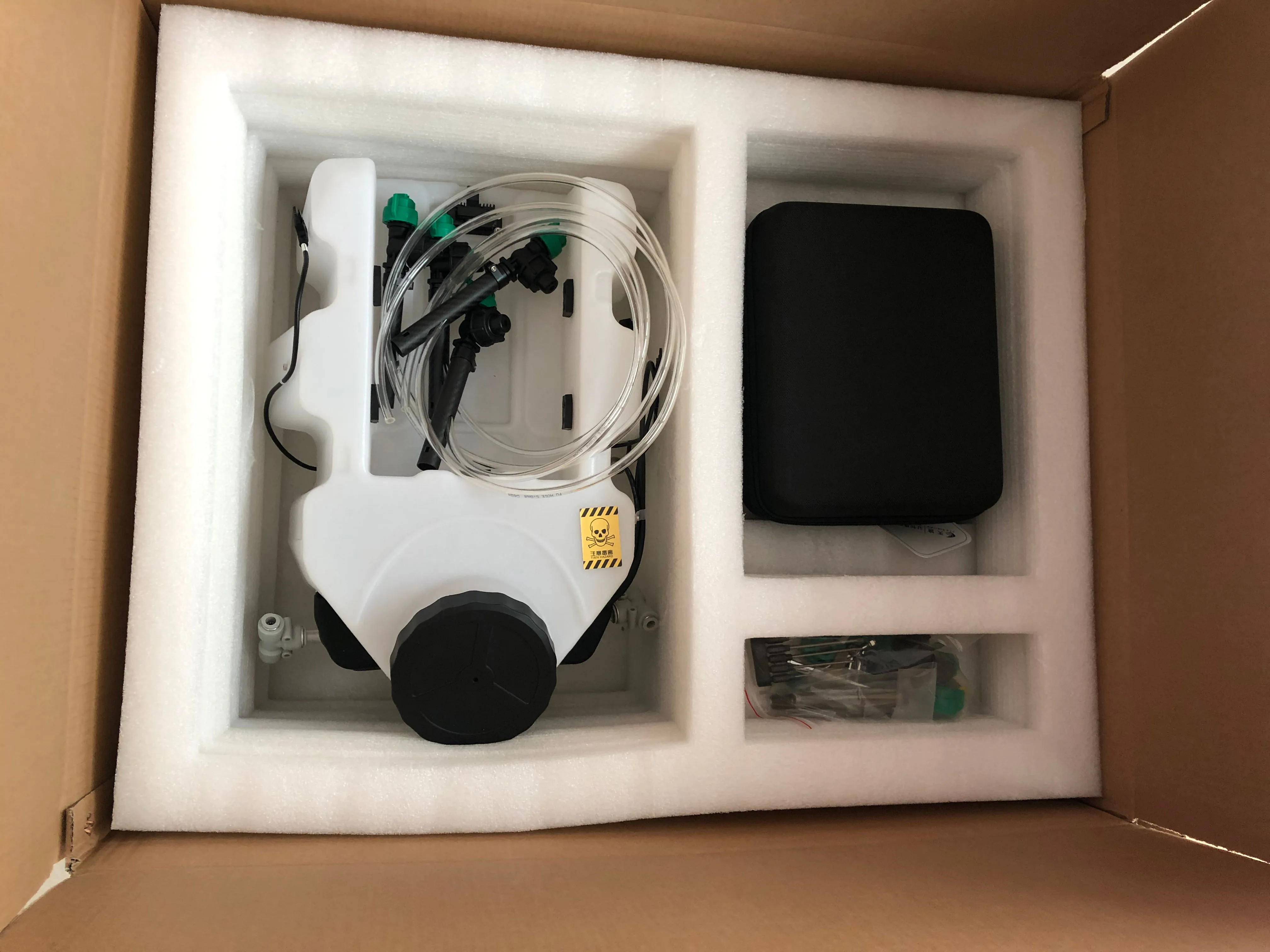

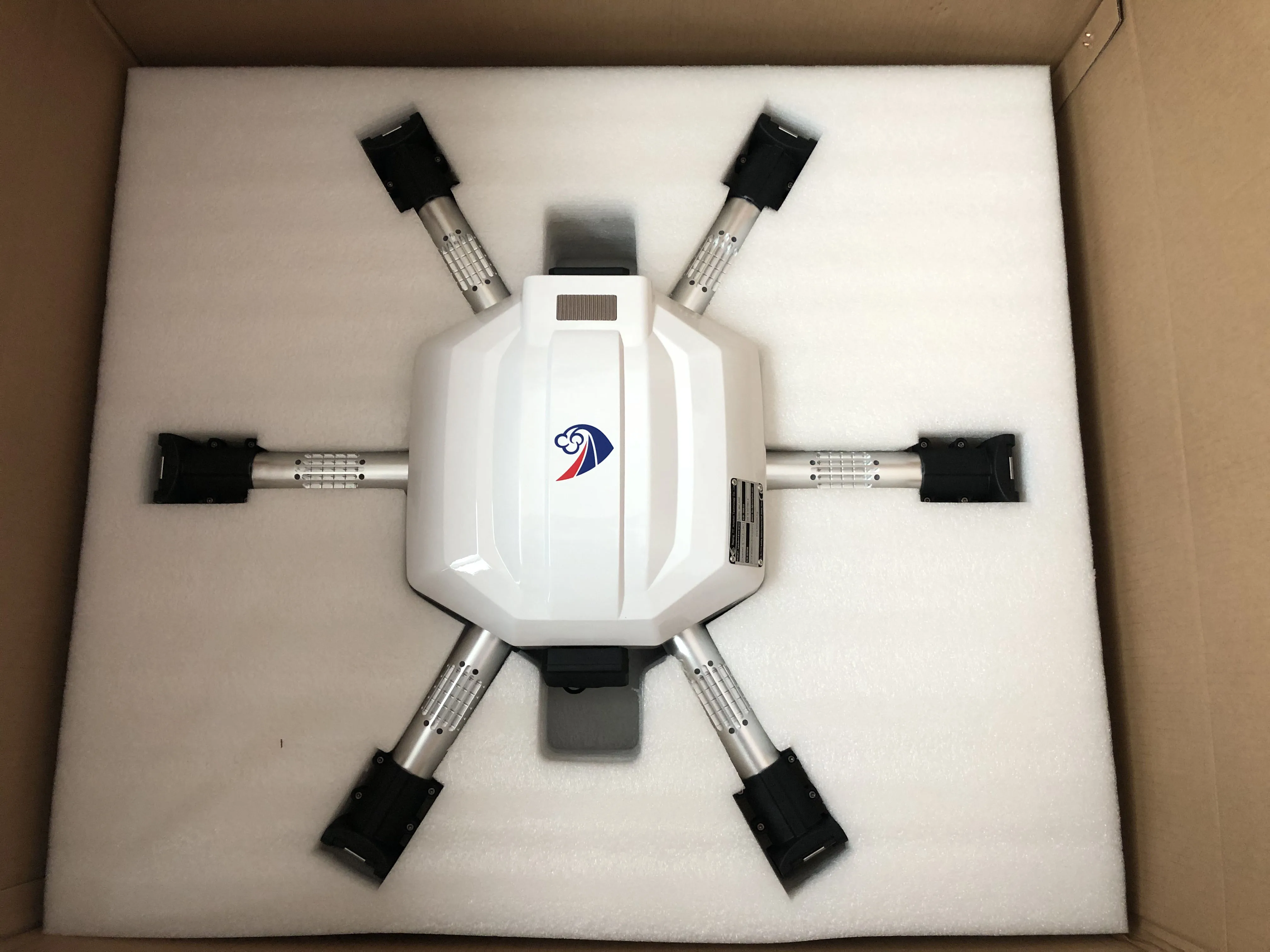

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Beijing TT Aviation Technology Co.Ltd(TTA) was founded in 2008 and the head office is located in Zhongguangcun Science and Technology Park,Changping District, Beijing . The company has established 6 branches in China.
With a number of software copyrights and more than 160 drone industry patents,TTA is granted as National High-Tech Enterprise and Zhongguancun High-Tech Enterprise .
TTA is a specialized unmanned aerial vehicle (UAV) industry chain provider. Our main products are multi-rotor, unmanned helicopter and fixed wing UAV. The company integrates researching and development, manufacturing, test and training to provide professional UAV products, service and training to our customers (Government, Institutions, Enterprise, farmers).
TTA Education is the biggest CAAC & AOPA UAV pilot training institute of China. The school has the qualification to train and test UAV pilot, captain, instructor and types of UAV are multi-rotor , helicopter, fixed wing, and VTOL UAV . At present, there are 36 TTA training branches in China.
With a number of software copyrights and more than 160 drone industry patents,TTA is granted as National High-Tech Enterprise and Zhongguancun High-Tech Enterprise .
TTA is a specialized unmanned aerial vehicle (UAV) industry chain provider. Our main products are multi-rotor, unmanned helicopter and fixed wing UAV. The company integrates researching and development, manufacturing, test and training to provide professional UAV products, service and training to our customers (Government, Institutions, Enterprise, farmers).
TTA Education is the biggest CAAC & AOPA UAV pilot training institute of China. The school has the qualification to train and test UAV pilot, captain, instructor and types of UAV are multi-rotor , helicopter, fixed wing, and VTOL UAV . At present, there are 36 TTA training branches in China.
Details Images

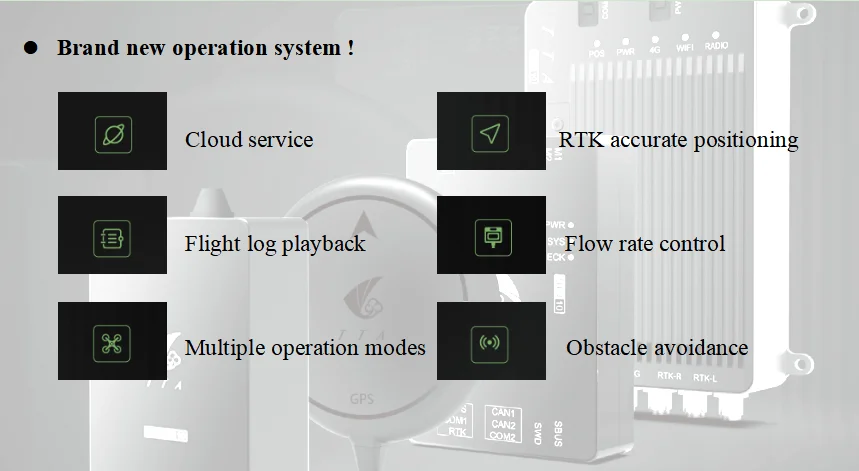

Main Features
Advantages of M6E-G200
Automatic spraying mode
Mode 1
Preset the working route on GCS ,find your crop field on Google Map, the route will automatically appear. The start point,the final point and the working direction can all be set.
Mode 2
Import Kml file directly , the route will automatically
appear. The start point, the final point and the working direction can all be set.
appear. The start point, the final point and the working direction can all be set.
Mode 3
Quick scanning mode: Operator only need to set A and B point and give the drone a direction order then the drone will fly and spray automatically. Easy to shorten or extend the AB point distance during flying to adapt irregular shape

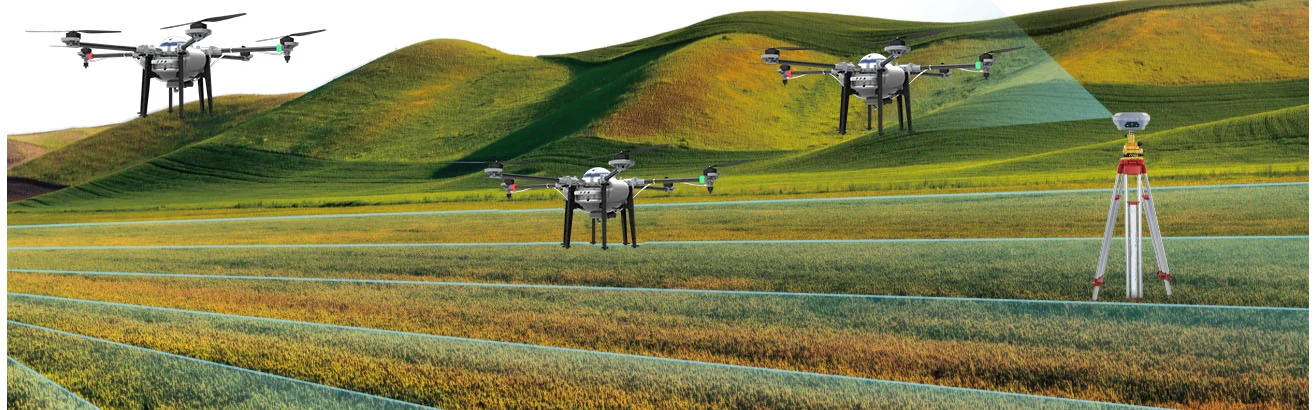

RTK accurate positioning system
Accuracy:
Horizontal: ±1cm + 1ppm Vertical：±2cm + 1ppm
Function:
Make sure the field can be fully covered.
To avoid damage neighbour crop and pollution.
One base station supports multiple drones work at same time.
Horizontal: ±1cm + 1ppm Vertical：±2cm + 1ppm
Function:
Make sure the field can be fully covered.
To avoid damage neighbour crop and pollution.
One base station supports multiple drones work at same time.

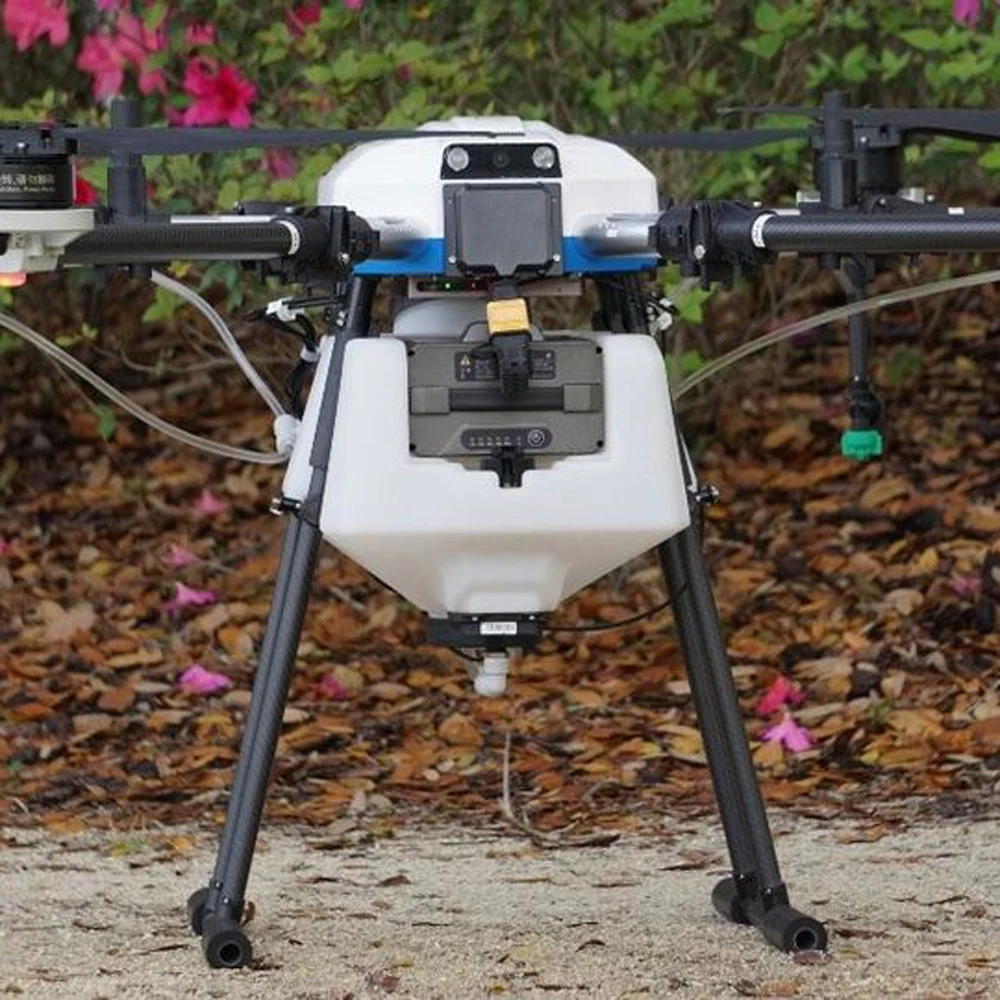

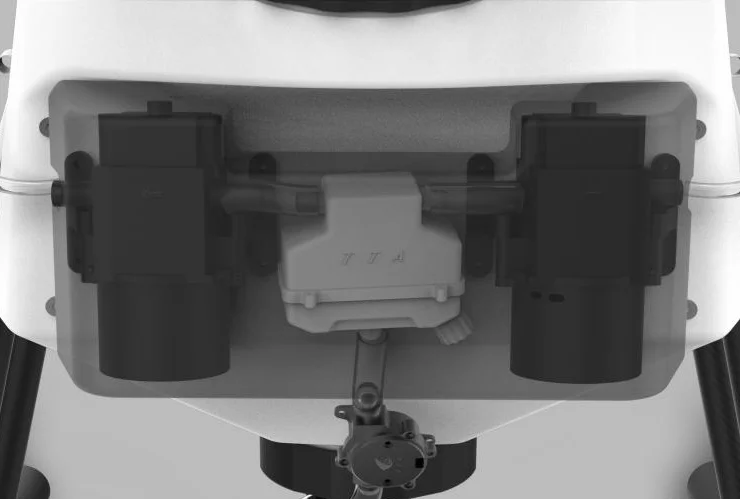

Spraying system
Double water pumps generate bigger pressure , max 4L/min adjustable flow rate.
Auxiliary tank can prevent the reverse flow of water from spraying system to achieve more precise flow counting.
Auxiliary tank can prevent the reverse flow of water from spraying system to achieve more precise flow counting.
Double water pumps generate bigger pressure , max 4L/min adjustable flow rate.
Auxiliary tank can prevent the reverse flow of water from spraying system to achieve more precise flow counting.
Auxiliary tank can prevent the reverse flow of water from spraying system to achieve more precise flow counting.
Obstacle avoidance sensor
Equip front and back Obstacle avoidance sensor makes the drone has the ability to automatically detect obstacles to avoid unexpected crash and lose.
The GCS presents the distance from the obstacles at the same time.
Equip front and back Obstacle avoidance sensor makes the drone has the ability to automatically detect obstacles to avoid unexpected crash and lose.
The GCS presents the distance from the obstacles at the same time.
Terrain following module
To make the drone has the ability to work on undulating crop field and make the spraying work much easier.
To make the drone has the ability to work on undulating crop field and make the spraying work much easier.
FPV camera
Wide-angle FPV camera makes flying more safety !
Real time video monitoring let you know detail information of drone and your crop situation !

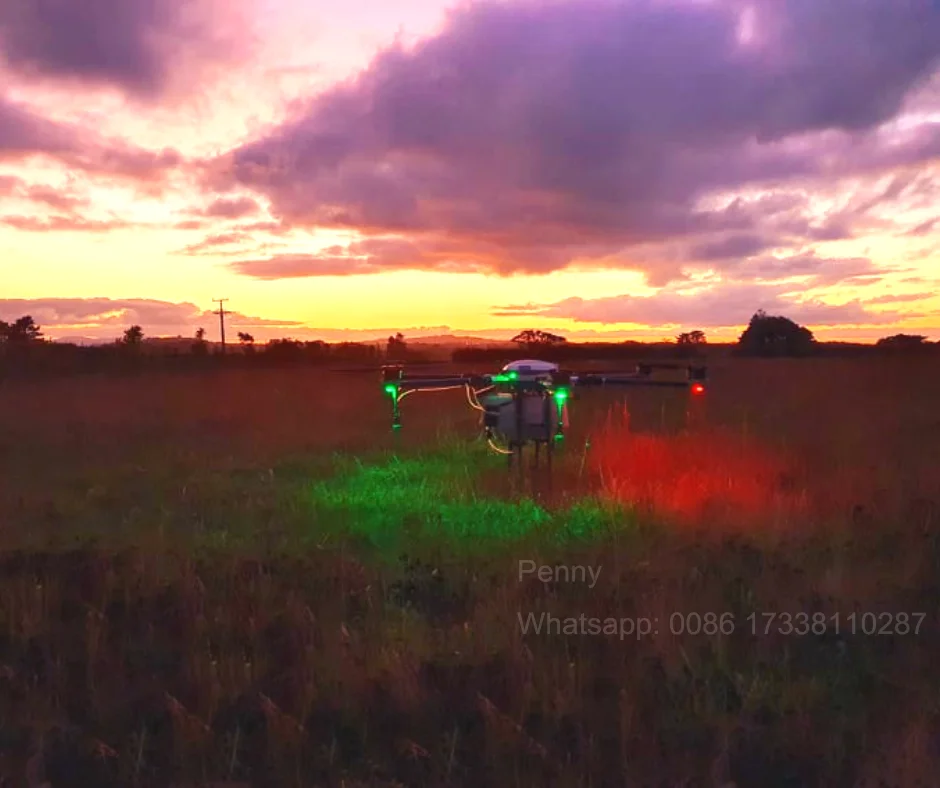

Dual LED light. Support night flight!
Wide-angle FPV camera makes flying more safety !
Real time video monitoring let you know detail information of drone and your crop situation !
Dual LED light. Support night flight!
Real time tracking the flight log from the GCS. And obviously to check where is sprayed and where is not according to the color
