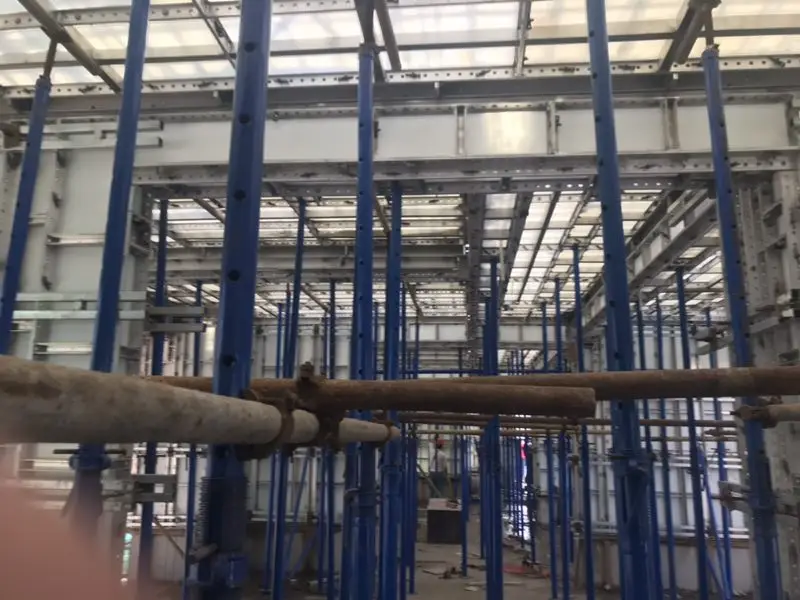

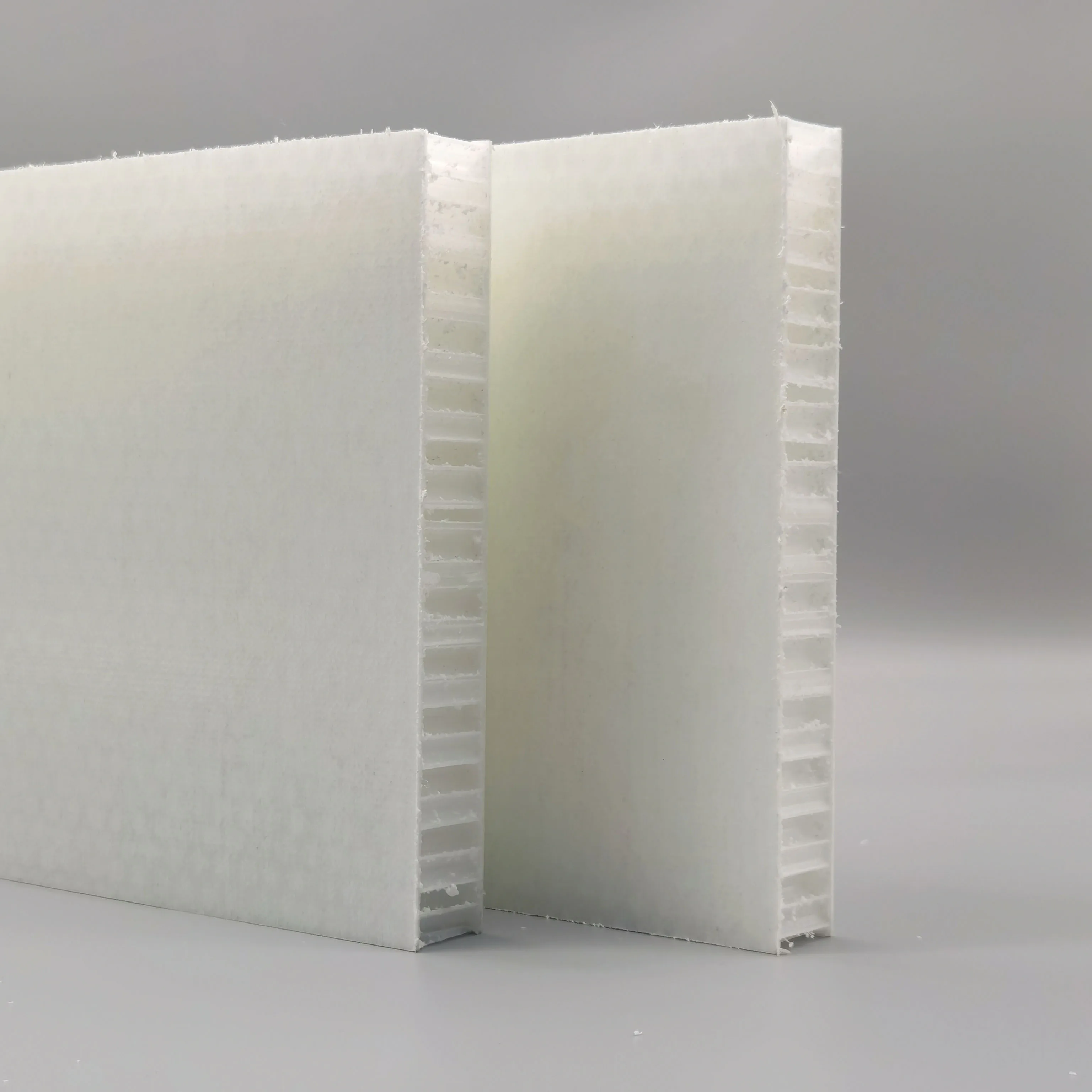

Customized Light Weight Polypropylene Fiberglass Reinforced Honeycomb Panel for Concrete Shuttering
- Category: >>>
- Supplier: Hangzhou Holycore Composite Material Co. Ltd.
Share on (1600475107428):
Product Overview
Description
Products Description

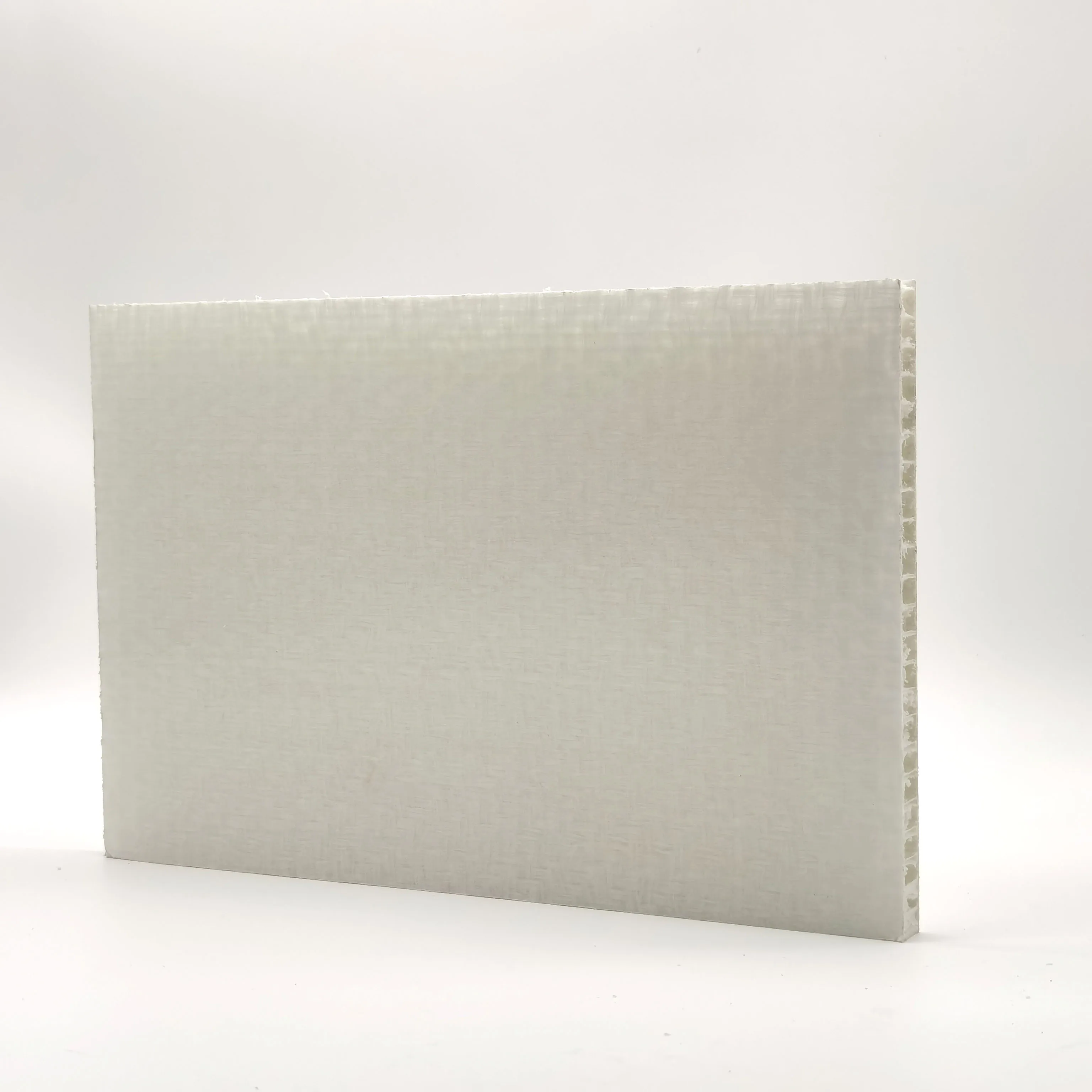

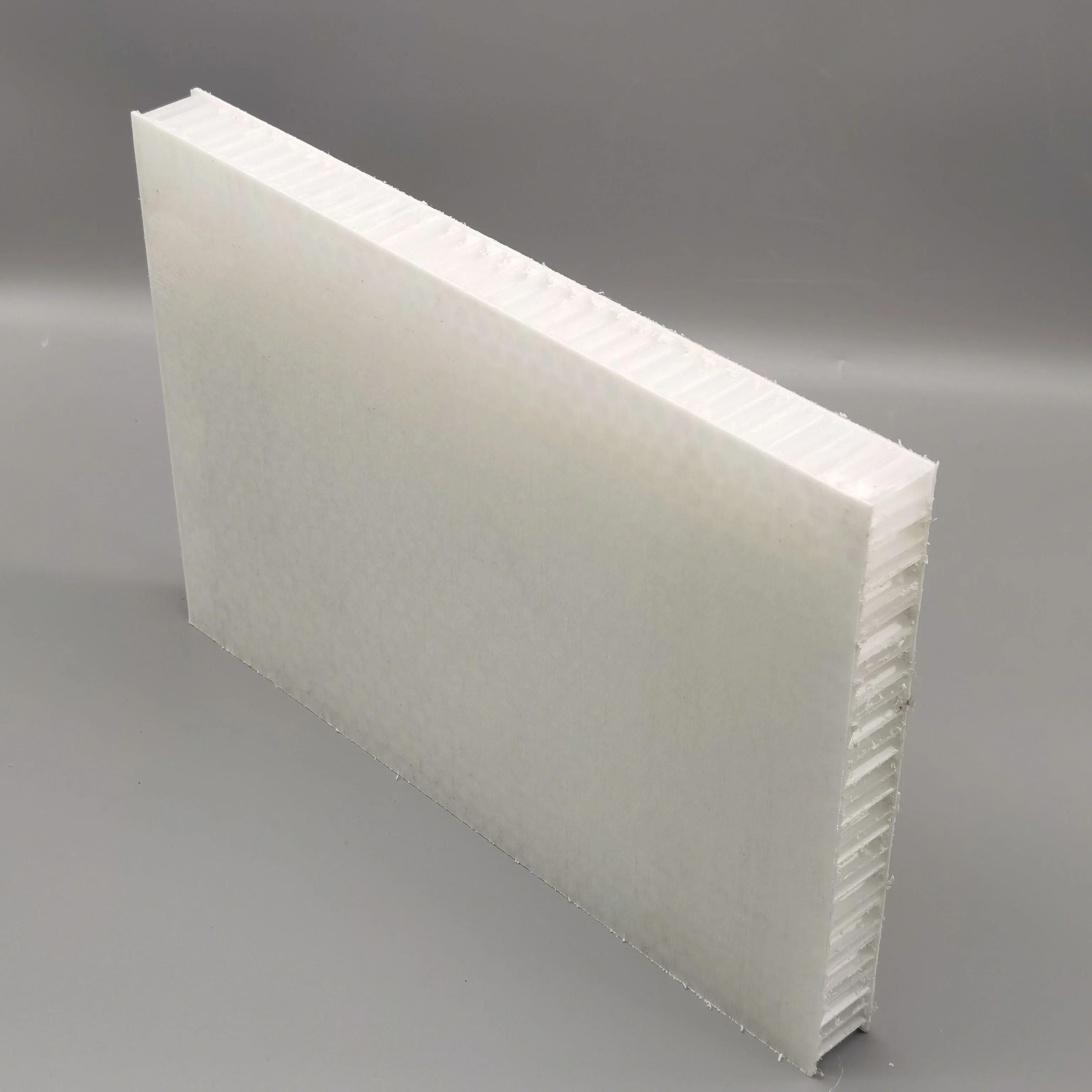

HolyPan is one of the lightest and strongest composite sandwich panels produced for industries.
This innovative sandwich panel is thermally fused with polypropylene honeycomb core and fiberglass reinforced polypropylene skin.
This innovative sandwich panel is thermally fused with polypropylene honeycomb core and fiberglass reinforced polypropylene skin.
The core material gives HolyPan high resistance due to its honeycomb structure, and the super strong fiberglass-reinforced skin materials provide high stiffness and an extremely good impact resistance of the panel surface.
The thermally fused connection between the honeycomb core and the skins leads to an indivisible connection and makes HolyPan much lighter and eco friendly.
And the delamination of the skin is almost impossible which distinguishes it from other traditionally glued or laminated panels.
Compared to aluminum scaffold plank, the cost of HolyPan is much lower, compared to plywood panels, HolyPan is much lighter.

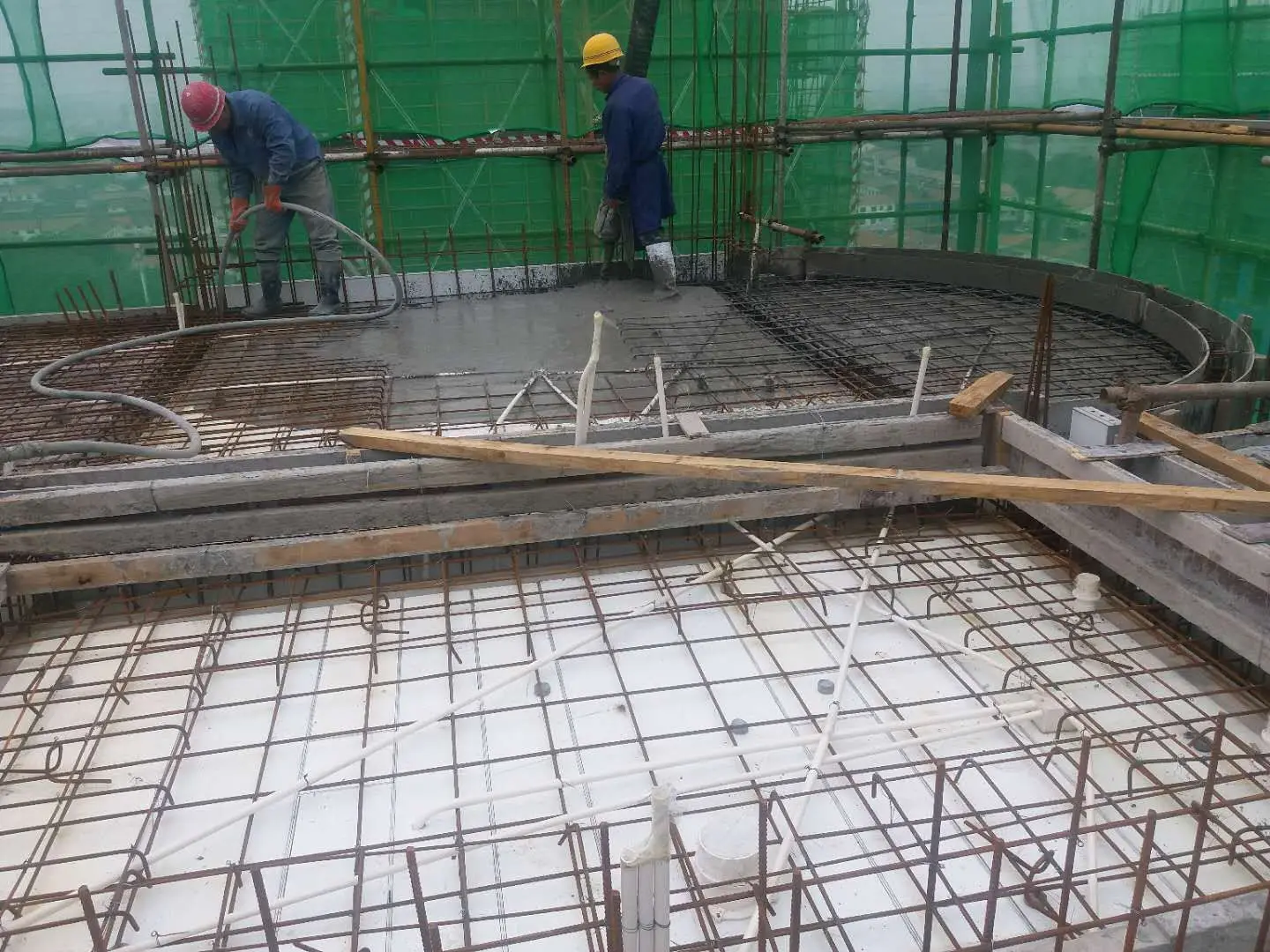

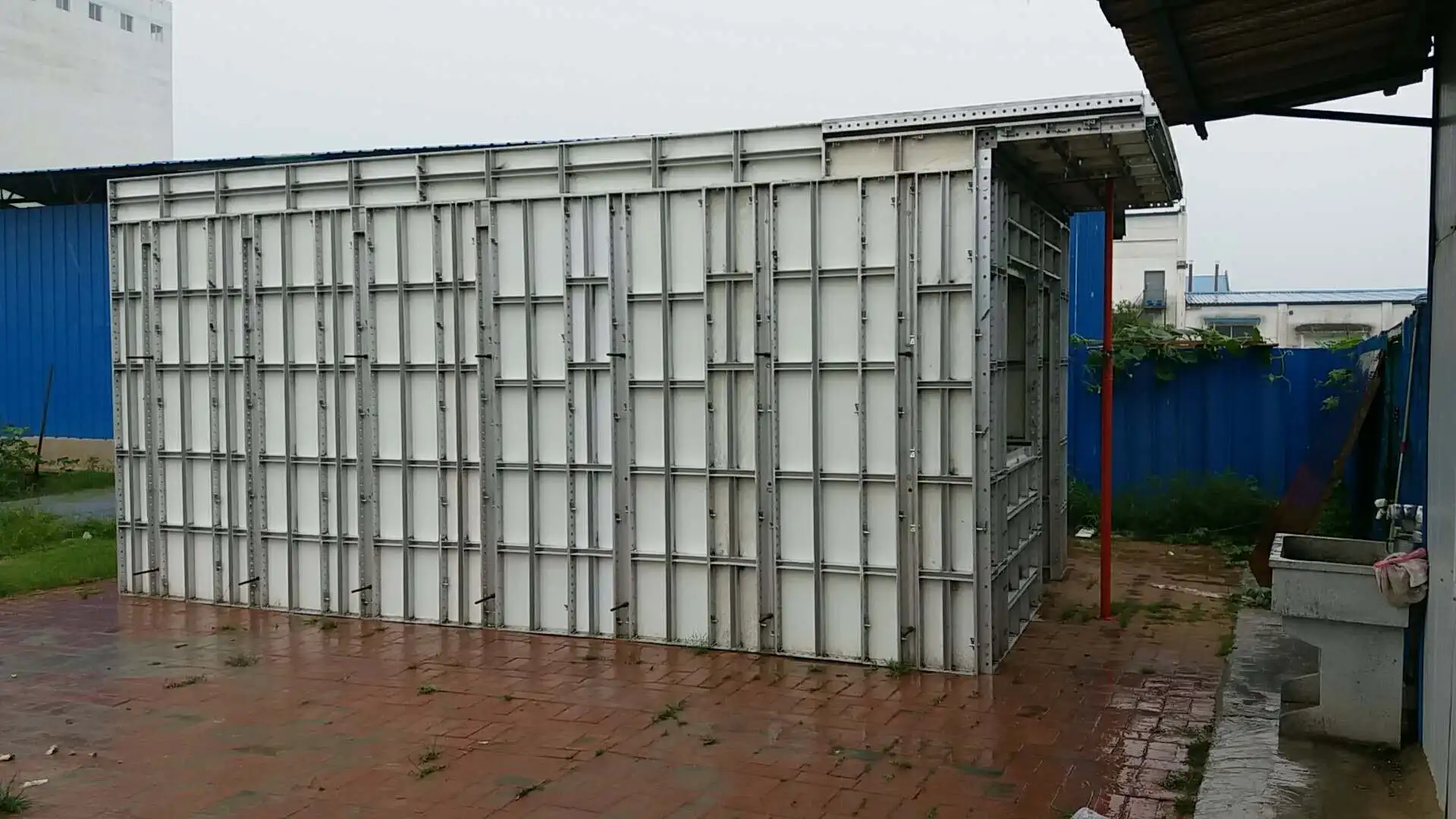

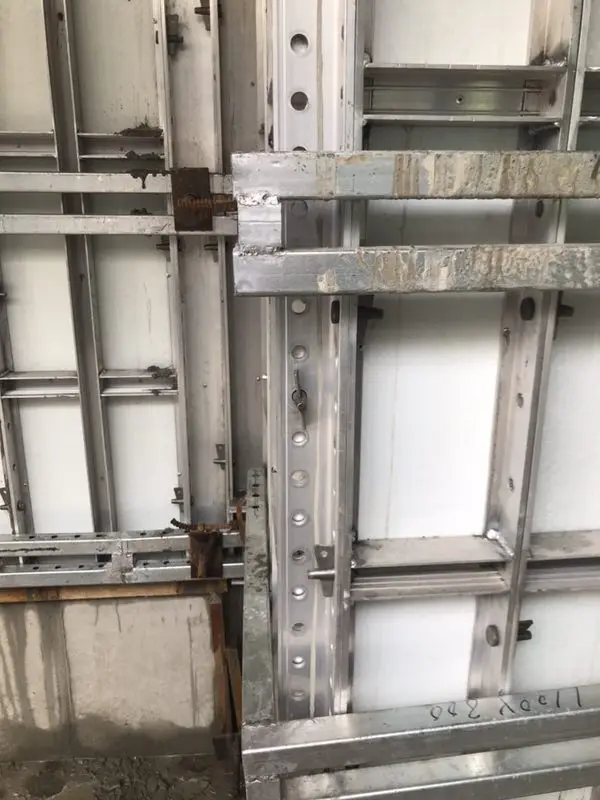

HolyPan could be used in different scaffolding systems from light duty to heavy duty.
HolyPan could be used in different scaffolding systems from light duty to heavy duty.
Specifications
Testing Results of DWCFRTP Honeycomb Panel 12mm | ||
Items | Data | |
Bending Stiffness | 9.1*107 N·mm² | |
Flat Compressive Strength | 3.6 Mpa | |
Flattening Modulus | 56 Mpa | |
Static Bending Strength | 63 Mpa | |
Static Flexural Modulus | 4400 Mpa | |
Shear Strength | 1.4 Mpa | |
Flat Tensile Strength | 1.5 Mpa | |
Weight | 4.7 Kg/㎡ | |
Skin Weight | 1.45 Kg/㎡ | |
Core Density | 120 Kgs/㎥ | |
* This data table is for your reference, and the precise details will up to the product customized. *

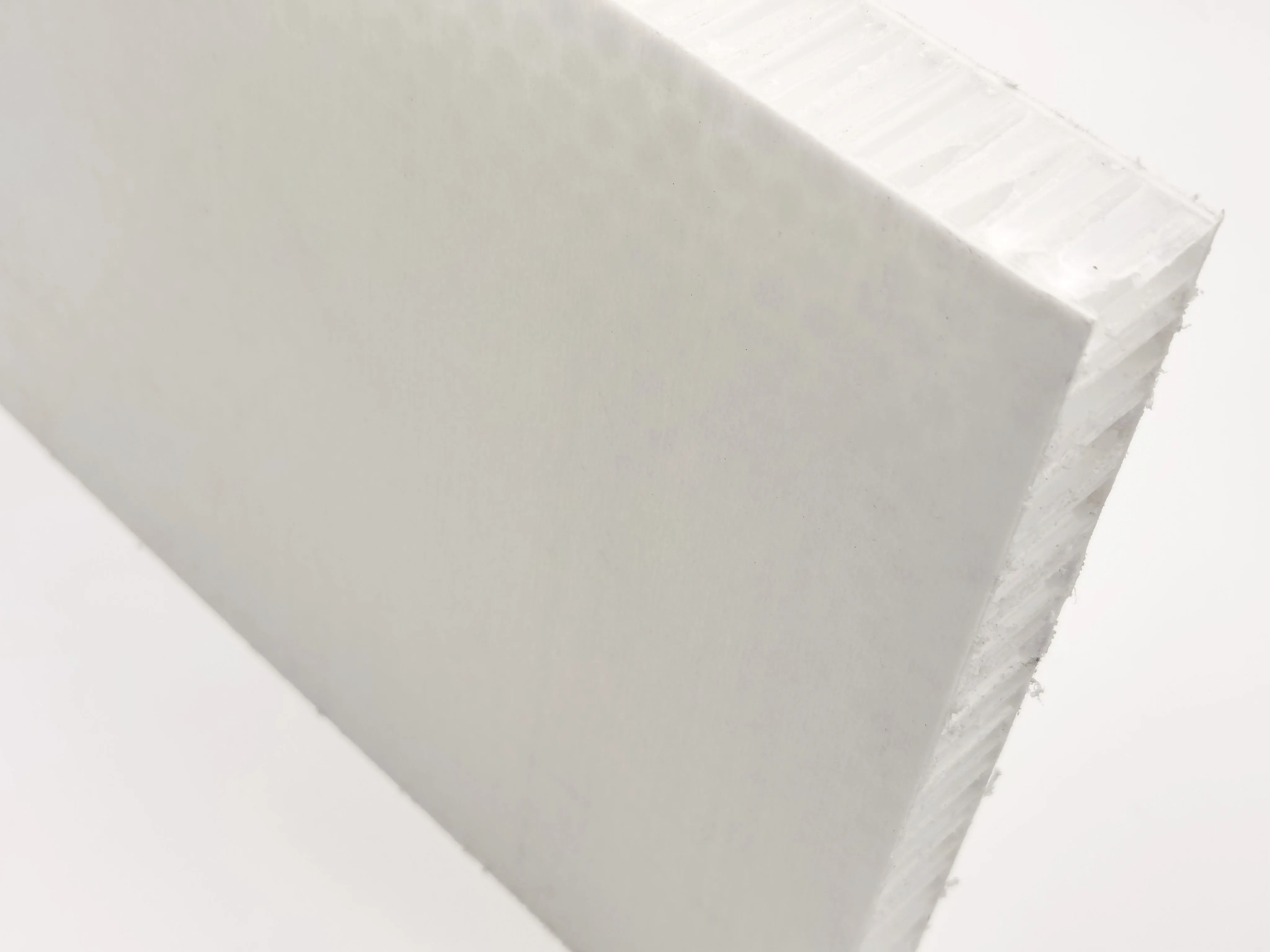

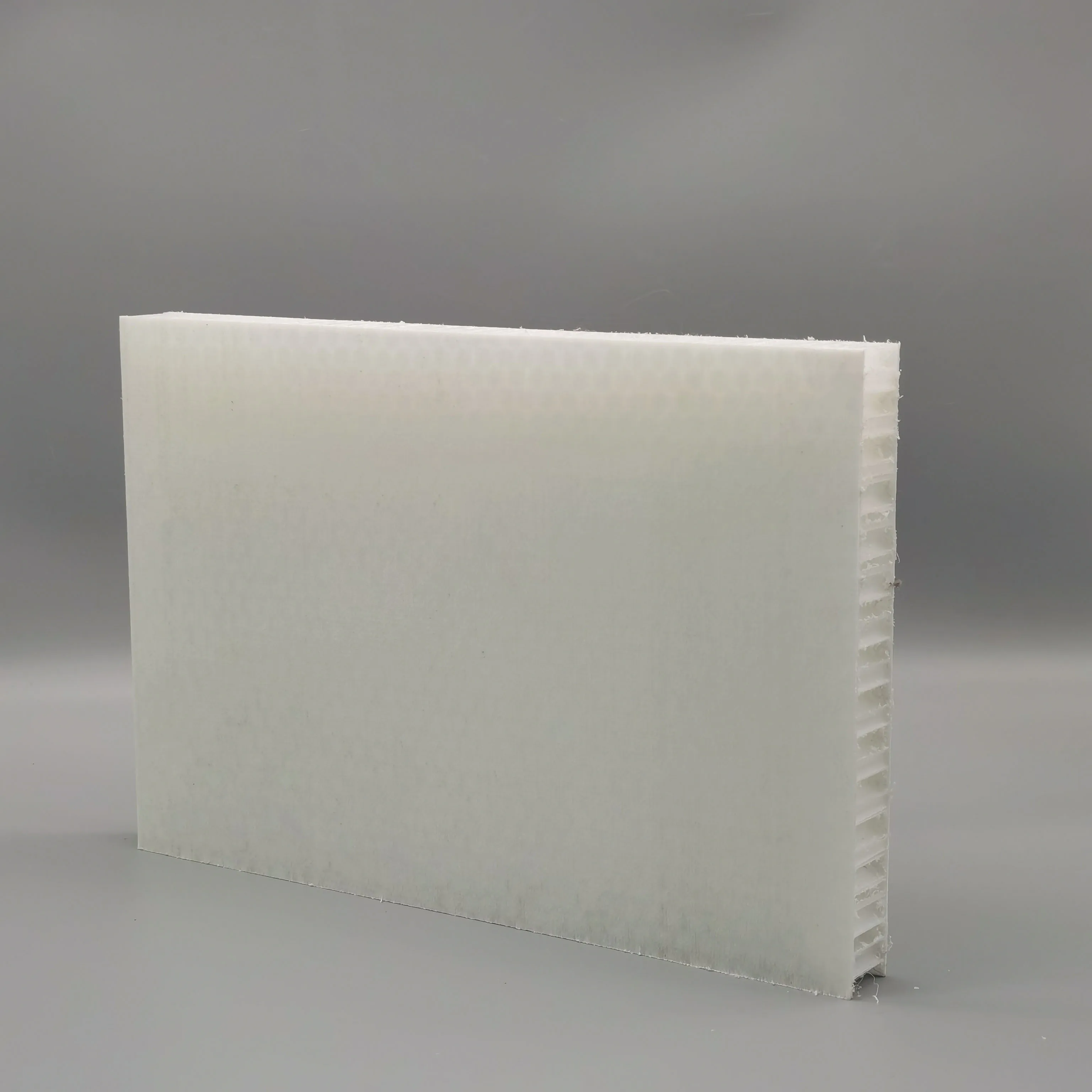

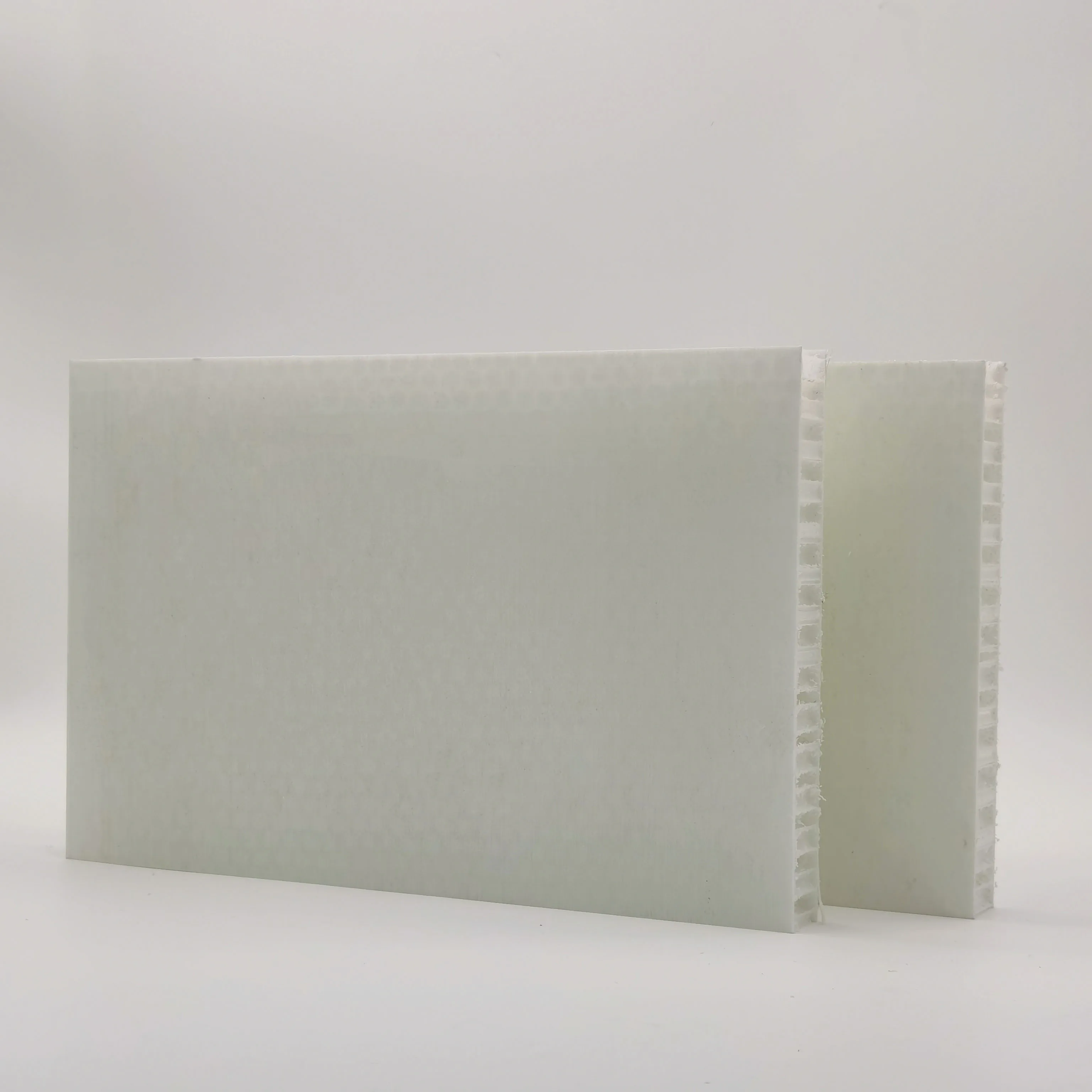

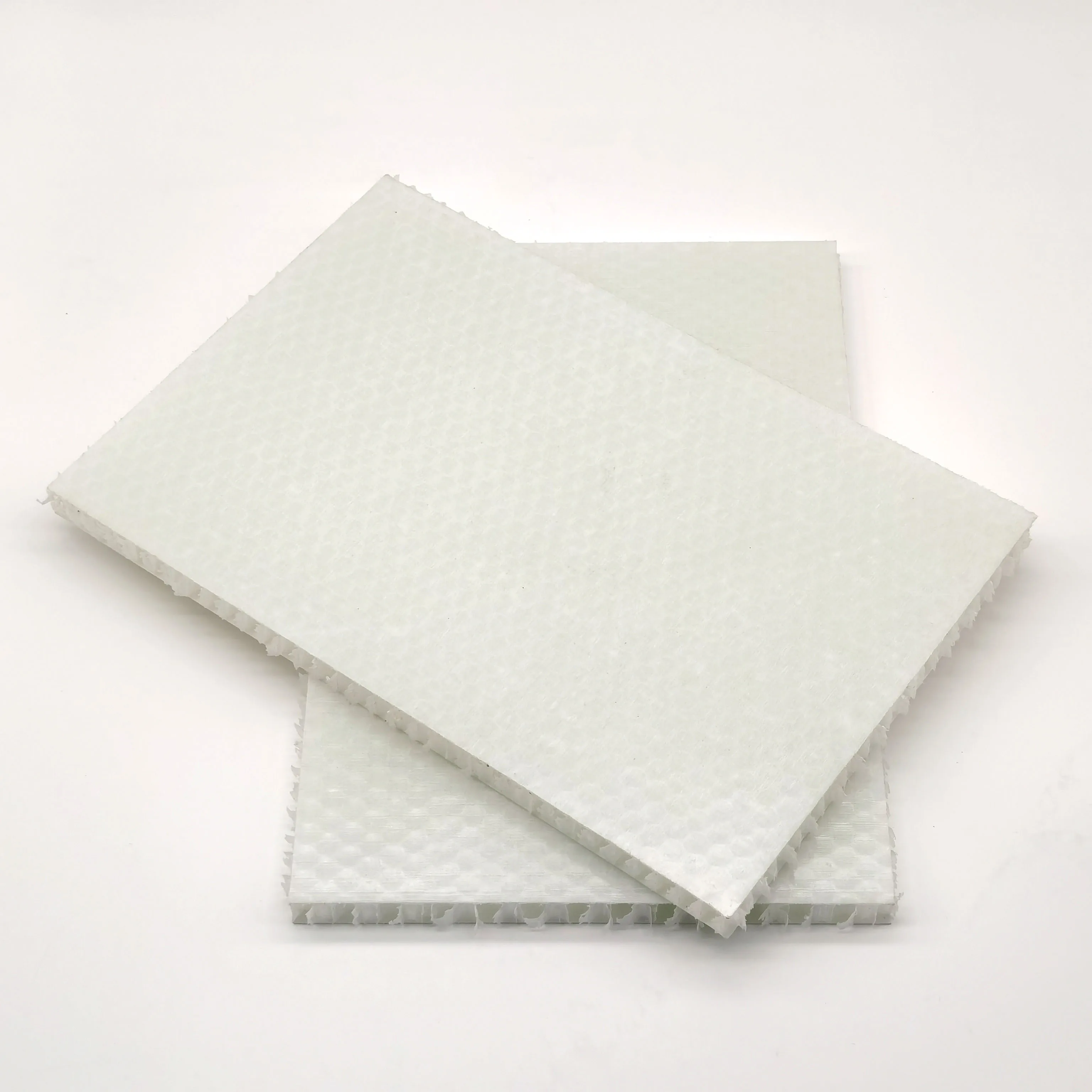

Sample Display
Details Images
For more product and service information, please contact us through the link below, and we’re looking forward to your inquiry!

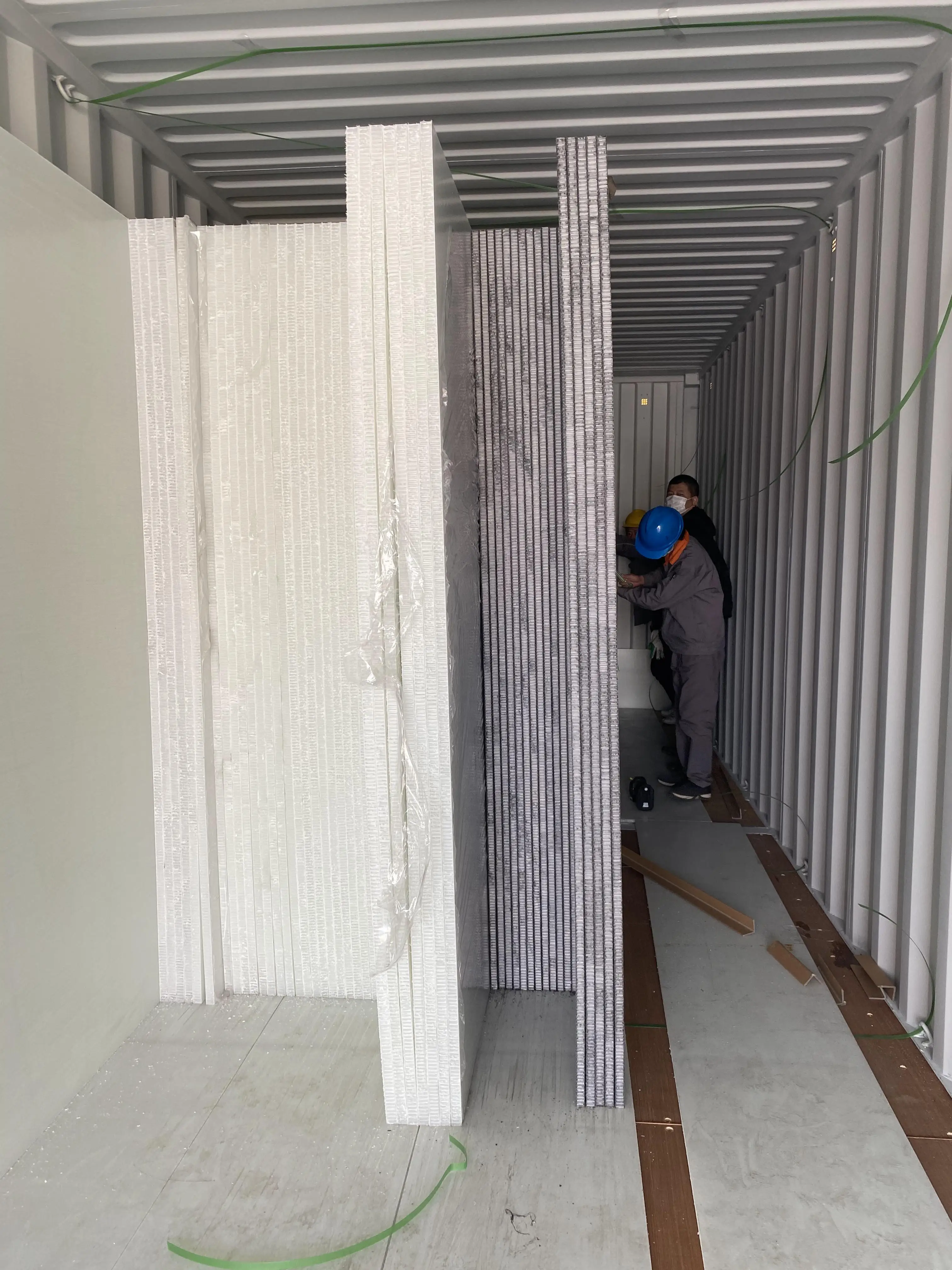

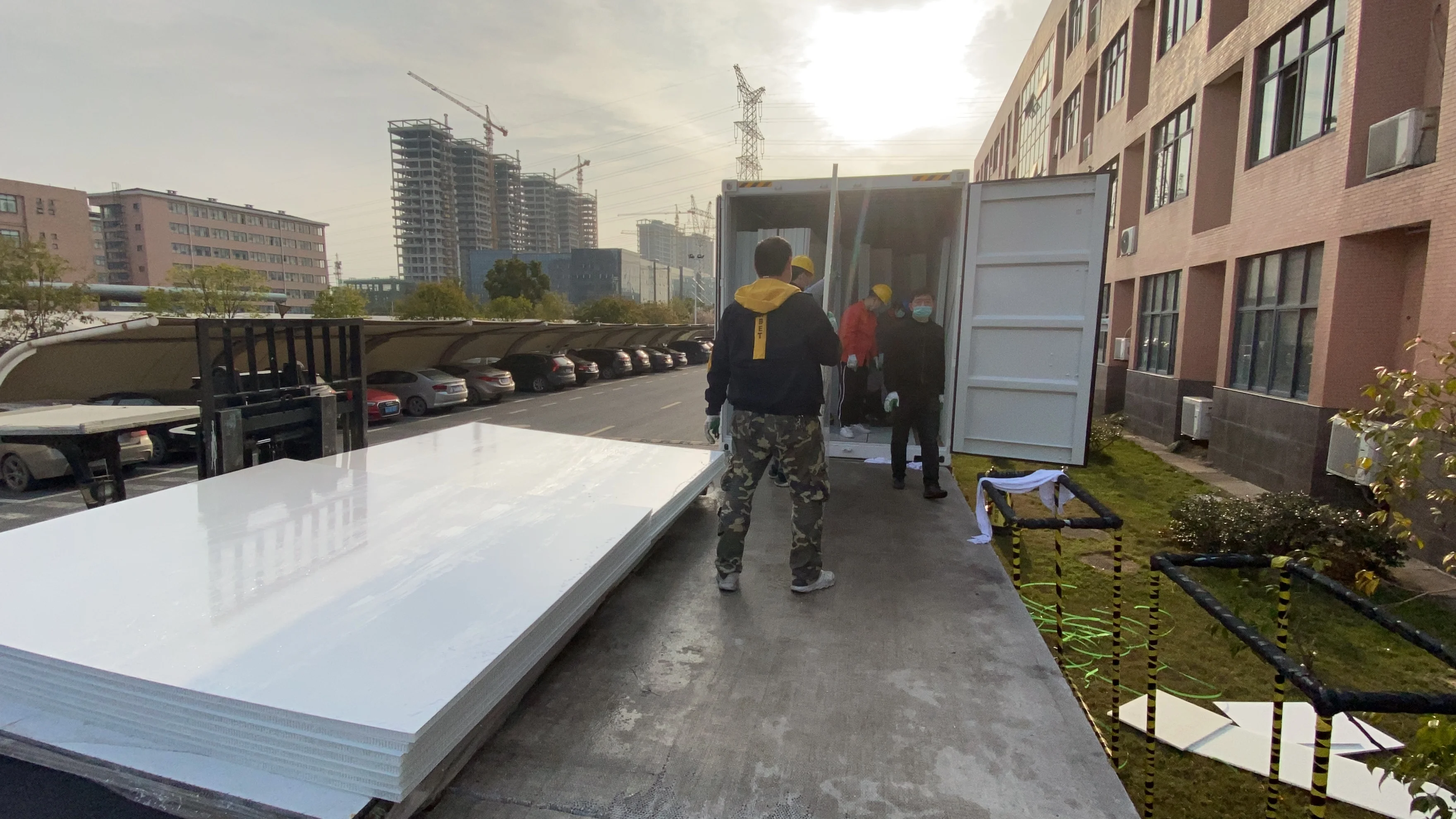

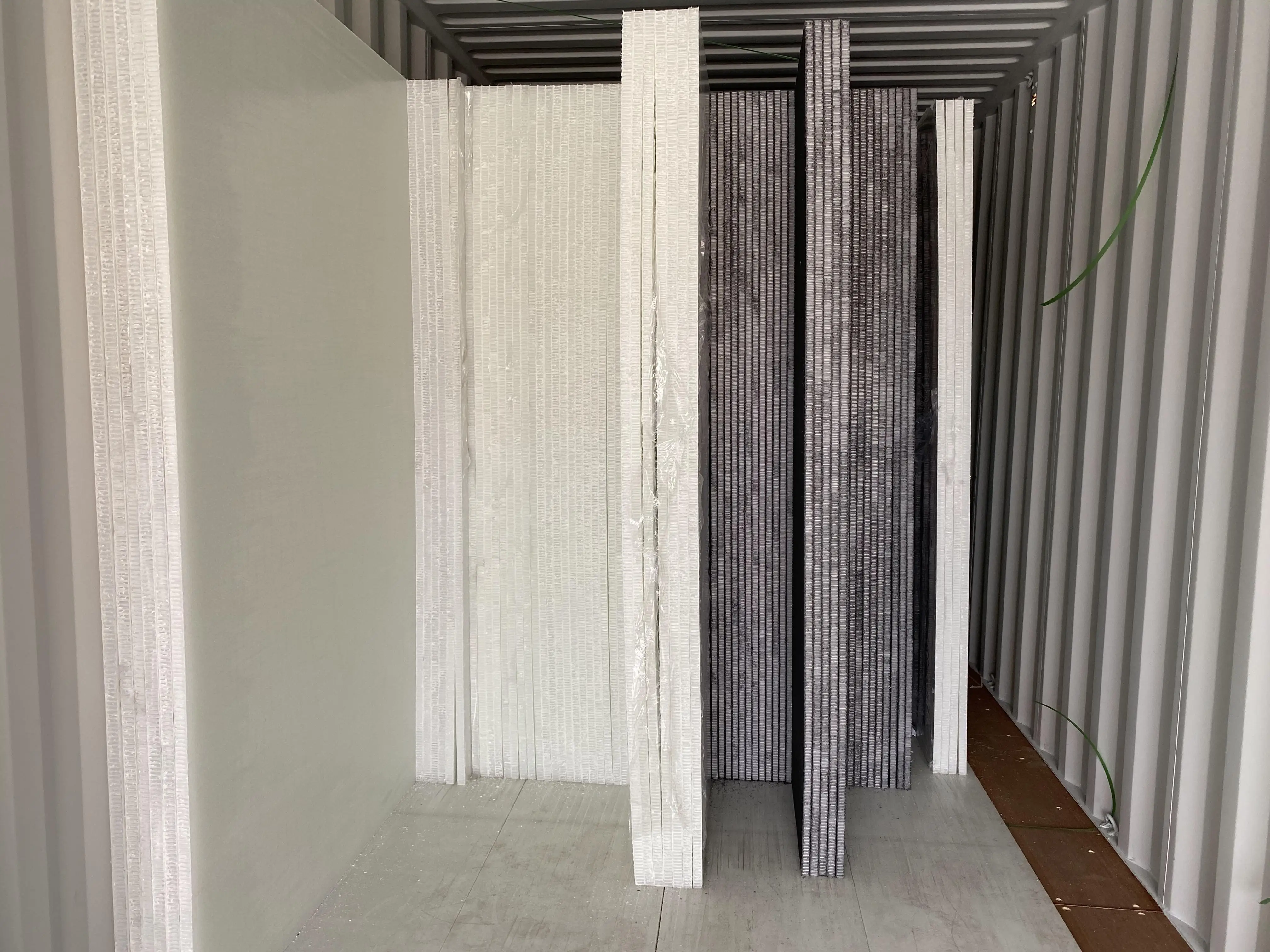

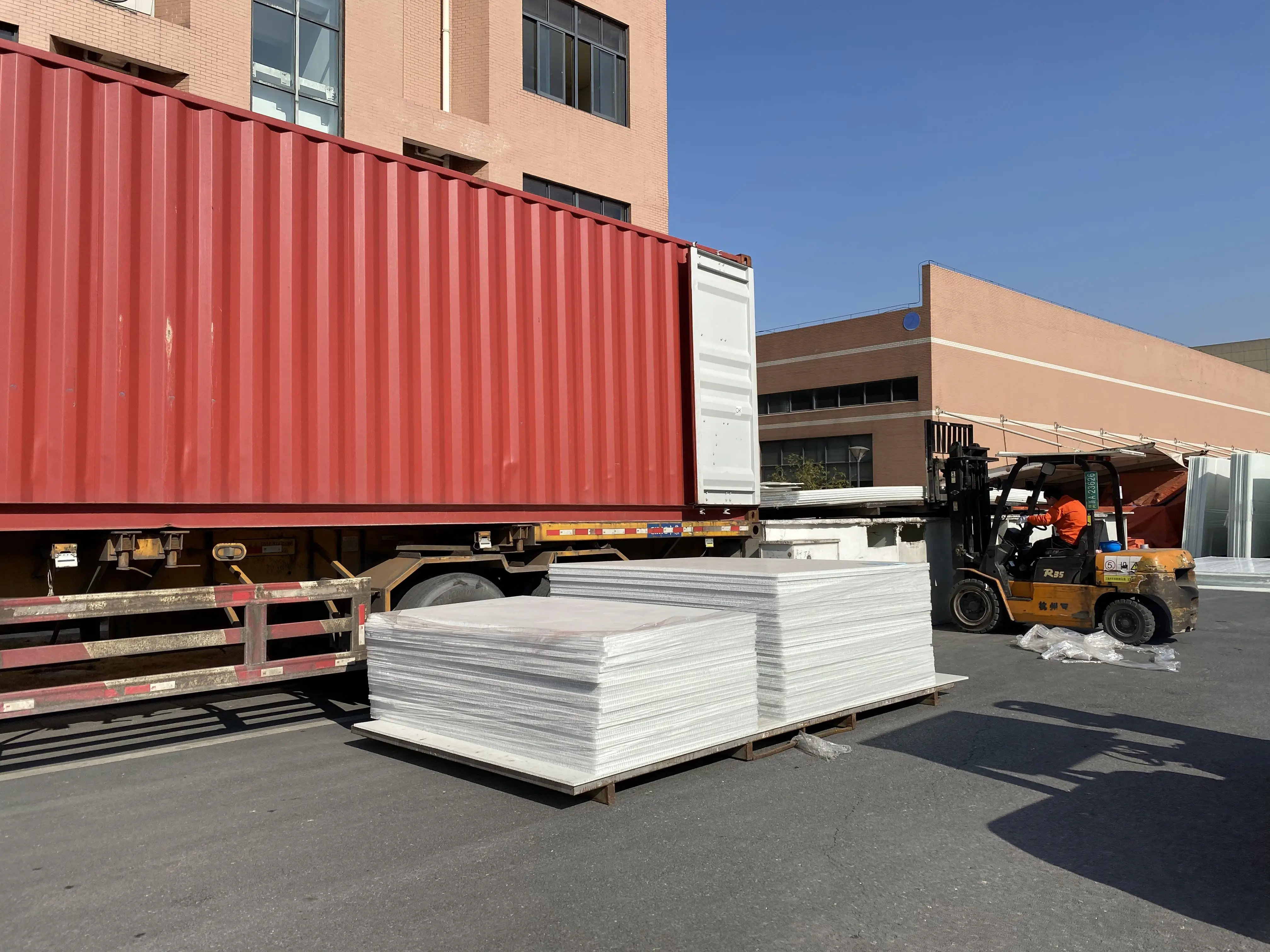

Packing & Delivery
FAQ
1.Can the panels be cut to different sizes?
We can customize different sizes for you, but there will be some wastage.
2.How the panels are packed?
3.What colors are the panels?
2.How the panels are packed?
We will provide packaging solutions according to the size of the board, bulk or pallet.
3.What colors are the panels?
General colors are black and white, other colors need to be customized individually, and the MOQ is 3000㎡.
Company Profile
HolyCore is a wholly-owned investment of Wazam New Material. It was established in 2012 with a registered capital of 8.5 million US dollars and a total investment of over 20 million US dollars. We have an independent R&D and design team of more than 20 employees, and we have 12 honeycomb core production lines, 2 thermoplastic sandwich panels production lines, 2 roller painting lines, 7 CNC engraving machines and one truck body assembly workshop more than 10,000 square meters. With the joint efforts of all employees, we have obtained ISO 9001 and IATF certification.
At present, our main overseas markets are Europe, North America, Southeast Asia, Australia, and the Middle East. We have established many distributors in these areas to provide services to our customers. Innovative materials , drive the future, we look forward to working with you to build a green world.
