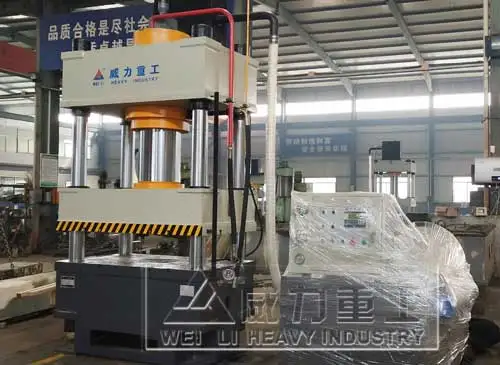

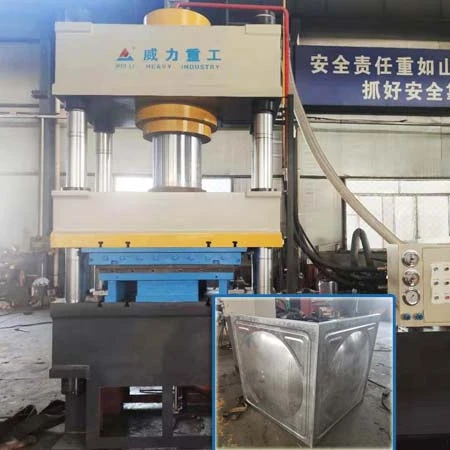

Automatic 400 Tons Hydraulic Stainless Steel Water Tank Making Press Machine
- Category: >>>
- Supplier: Shandong Weili Heavy Industry Co. Ltd.
Share on (1600475108771):
Product Overview
Description
Products Description
YW32-400T
1.Computer optimized structure design, three-beam four-post structure,simple, economical and practical.
2. Hydraulic control cartridge valve integrated system reliability, long life and small hydraulic impact, reducing the link pipe.and leak points.
3. Independent electrical control system working reliably. Action and intuitive. Easy maintenance.
4. Use the button centralized control, with adjustment for manual and semiautomatic operation.
5. Via the operator panel to choose from. Can be achieved given away two constant pressure forming process, and has features such.as security during rolling.
2. Hydraulic control cartridge valve integrated system reliability, long life and small hydraulic impact, reducing the link pipe.and leak points.
3. Independent electrical control system working reliably. Action and intuitive. Easy maintenance.
4. Use the button centralized control, with adjustment for manual and semiautomatic operation.
5. Via the operator panel to choose from. Can be achieved given away two constant pressure forming process, and has features such.as security during rolling.
Product Paramenters
Specification | Unit | YW32-400T | YW32-500T |
Nominal pressure | kN | 4000 | 5000 |
Liquid maximum working pressure | Mpa | 25 | 25 |
The maximum travel oil cylinder | mm | 500 | 800 |
The largest open | mm | 800 | 1200 |
Effective area of the workbench(L·R) | mm | 1300 | 1400 |
Effective area of the workbench(F·B) | mm | 980 | 1200 |
Fast forward speed | mm/s | 100-120 | 100-120 |
Work into the speed | mm/s | 5-12 | 5-12 |
The return speed | mm/s | 100 | 100 |
Ejecting force | kN | 1600 | 2600 |
Maximum ejecting cylinder stroke | mm | 300 | 300 |
The motor | kw | 22 | 2x22 |
Main machine size | mm | 2500x1600x3700 | 2800x1900x3900 |
Thickness of steel plate | Press capacity | ||||
≤3mm | 400Ton | ||||
＞3mm | 500Ton | ||||

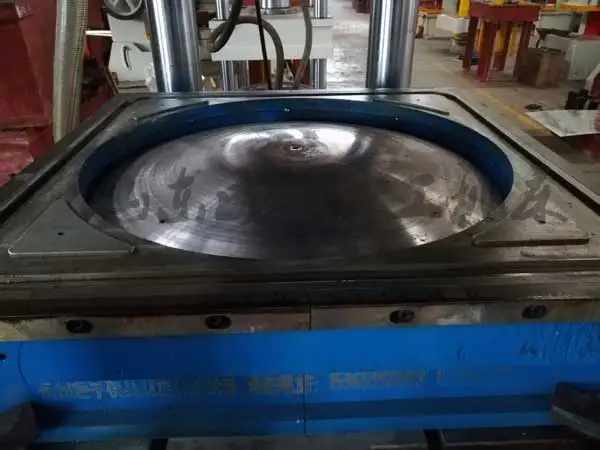

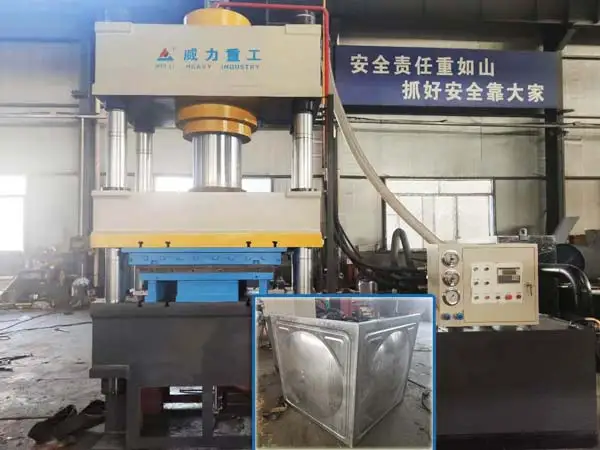

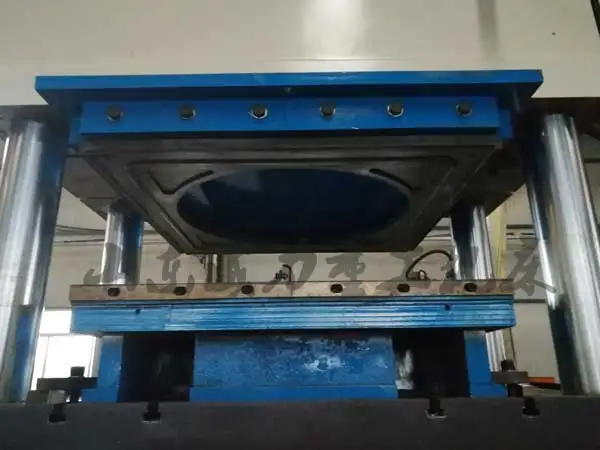

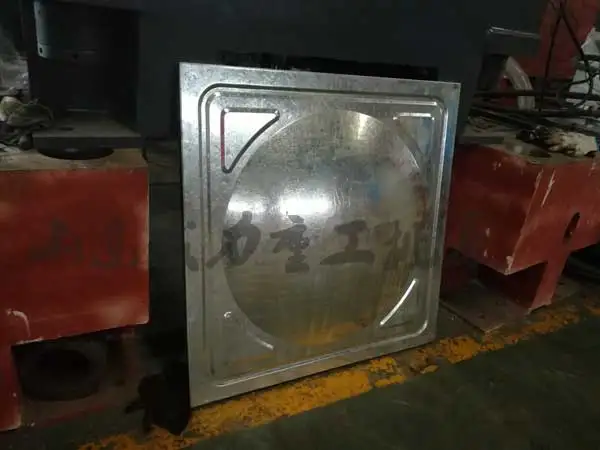

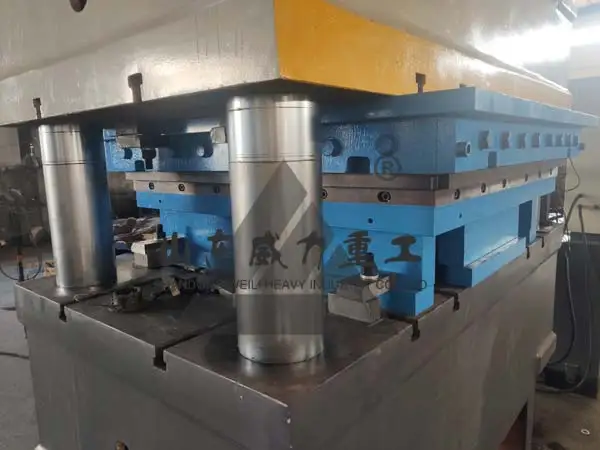

Details Images
Product packaging

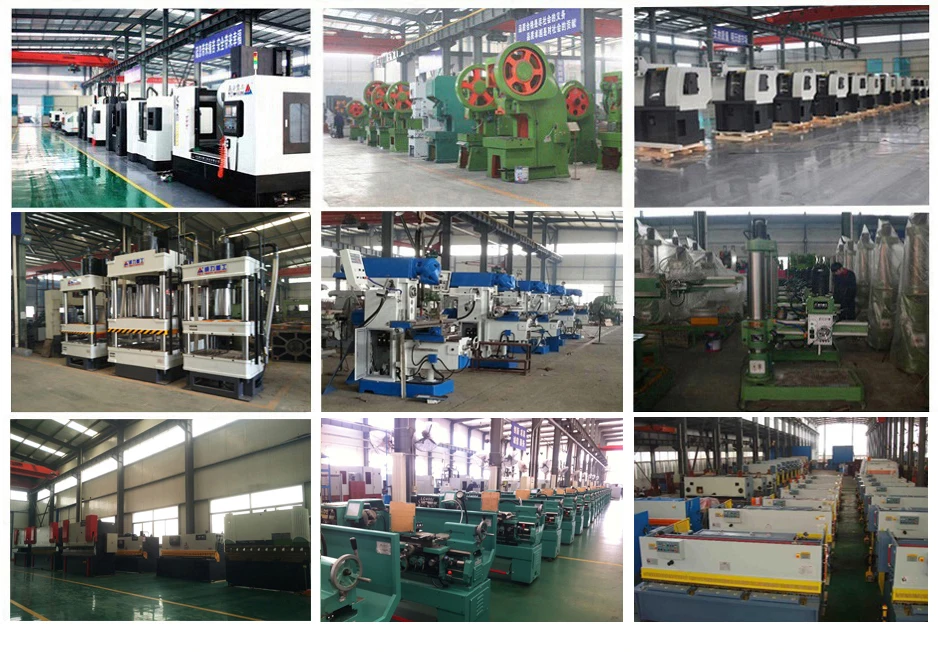

Factory workshop
Some products

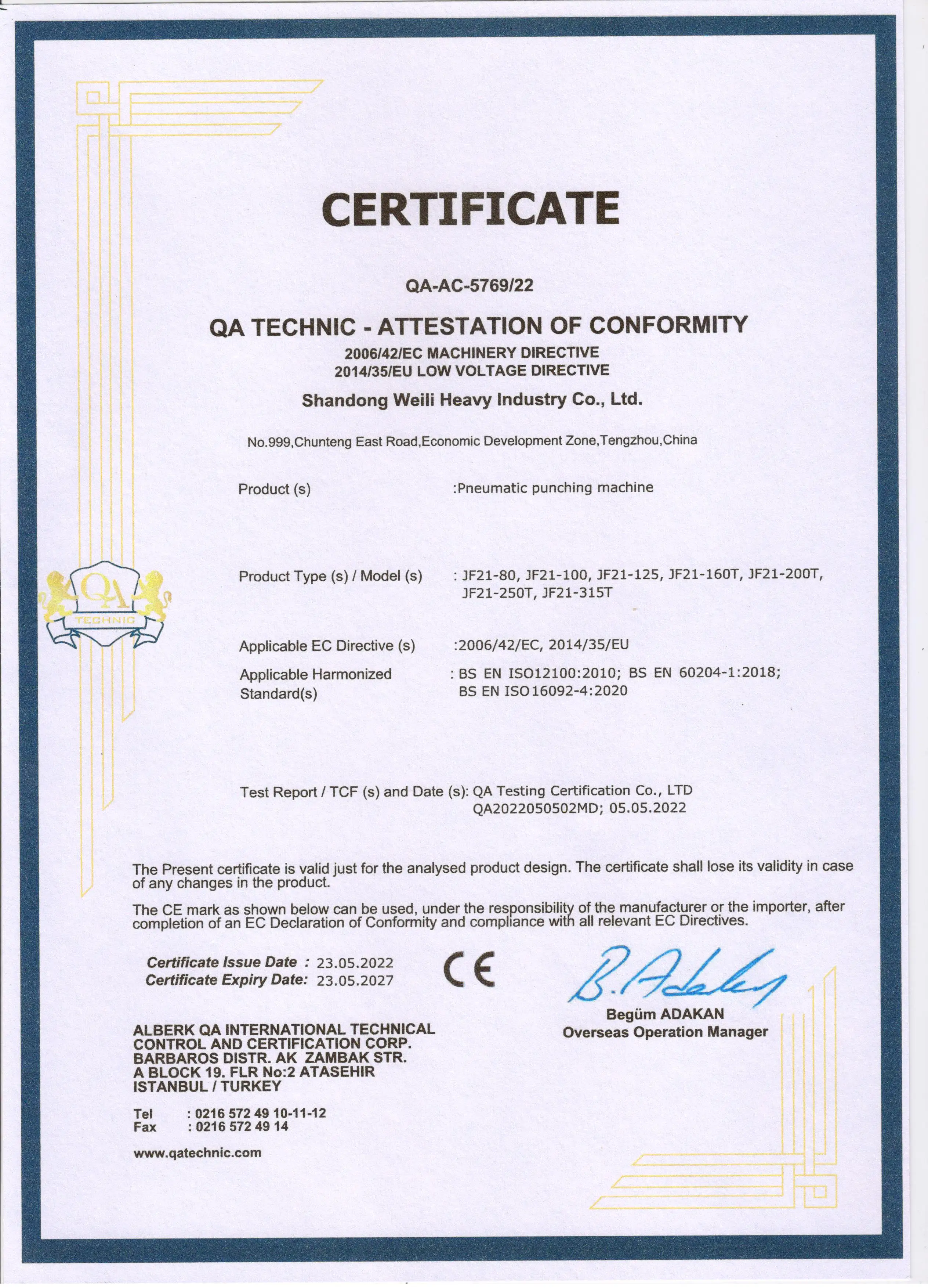

Certifications
