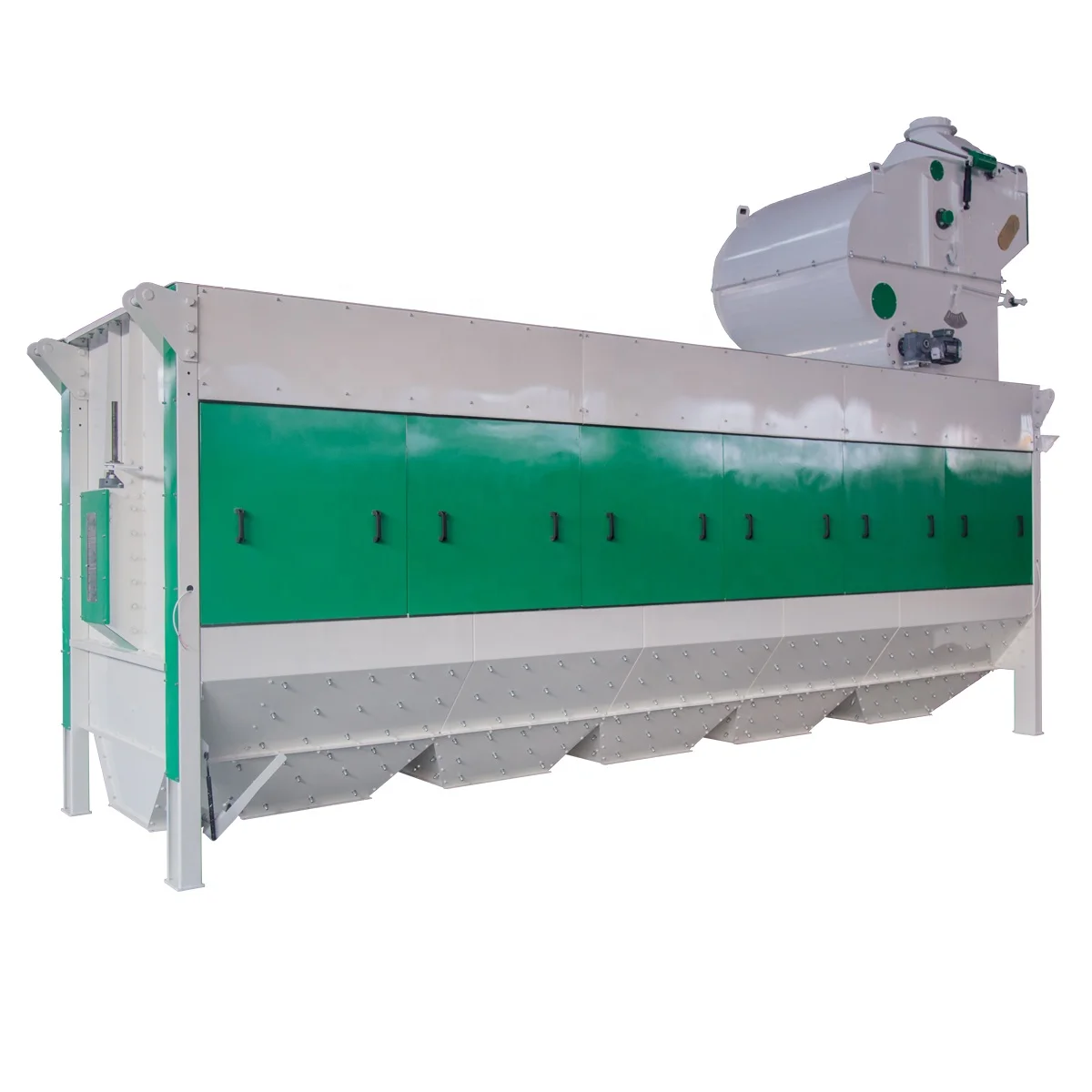

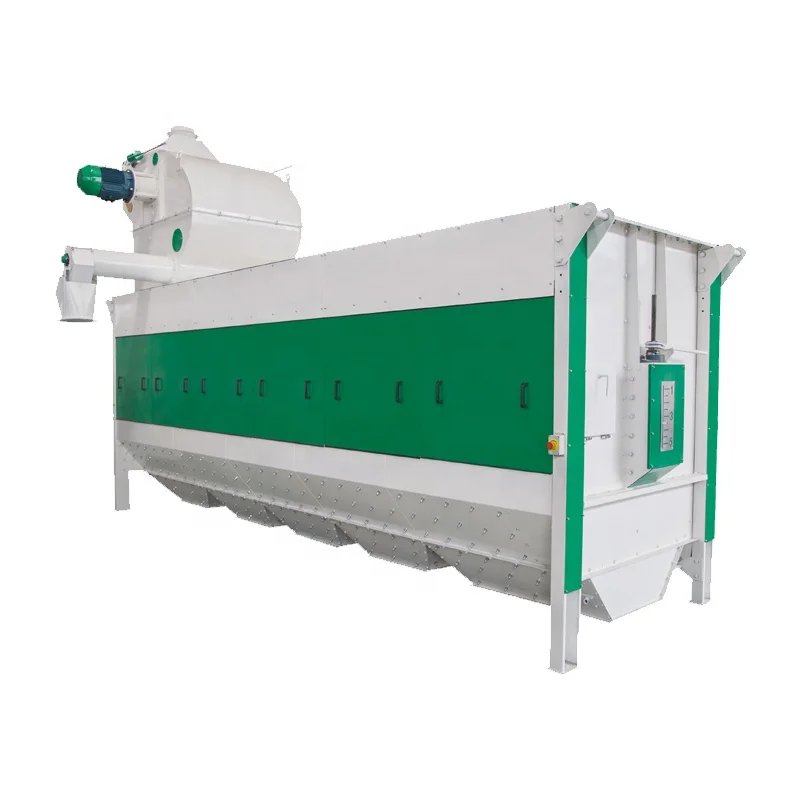

TCRS rotary drum sieve rotary drum filter for paddy
- Category: >>>
- Supplier: Zhengzhou Chinatown Grain Machinery Co. Ltd.
Share on (1600475109962):
Product Overview
Description
Why Choose Us
Serve 21 countries and
75 flour mills
Industry leading processing
equipment and process
Strong design capability for
complete sets of equipment
Product Description

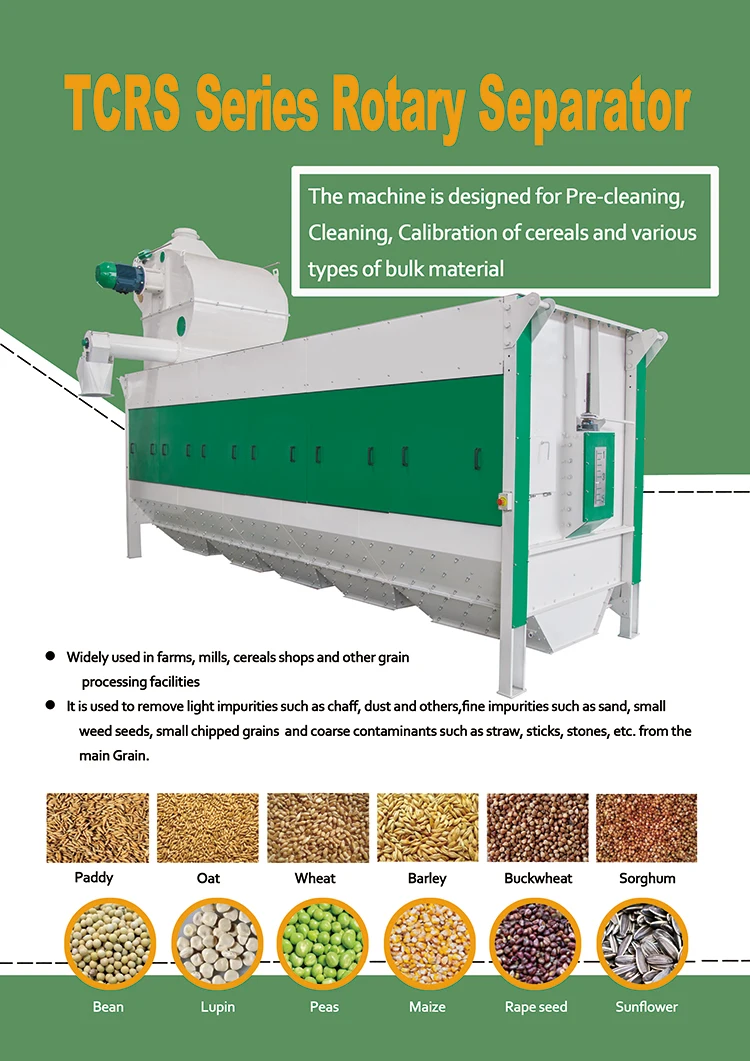

The TCRS rotary grain separator machine is designed for Pre-cleaning, Cleaning, Calibration of cereals and various
types of bulk material .
* Widely used in farms, mills, cereals shops and other grain processing facilities
* It is used to remove light impurities such as chaff, dust and others, fine impurities such as sand, small weed seeds, small
chipped grains and coarse contaminants such as straw, sticks, stones, etc. from the main Grain.
types of bulk material .
* Widely used in farms, mills, cereals shops and other grain processing facilities
* It is used to remove light impurities such as chaff, dust and others, fine impurities such as sand, small weed seeds, small
chipped grains and coarse contaminants such as straw, sticks, stones, etc. from the main Grain.

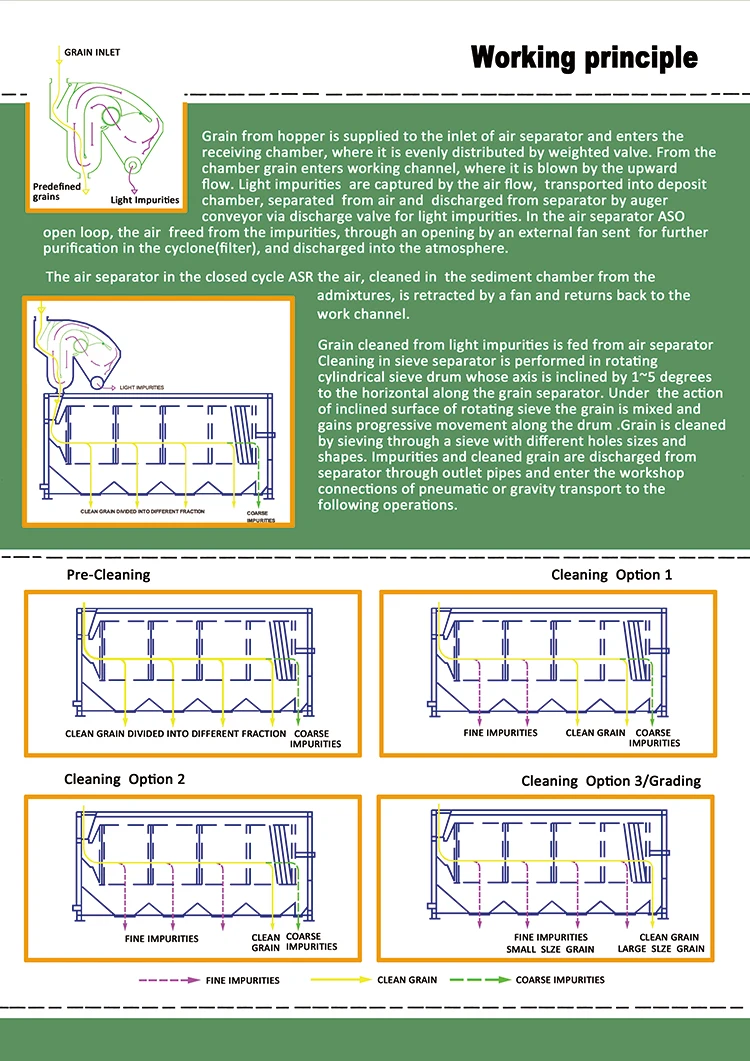

The TCRS rotary grain separator machine works as follows.

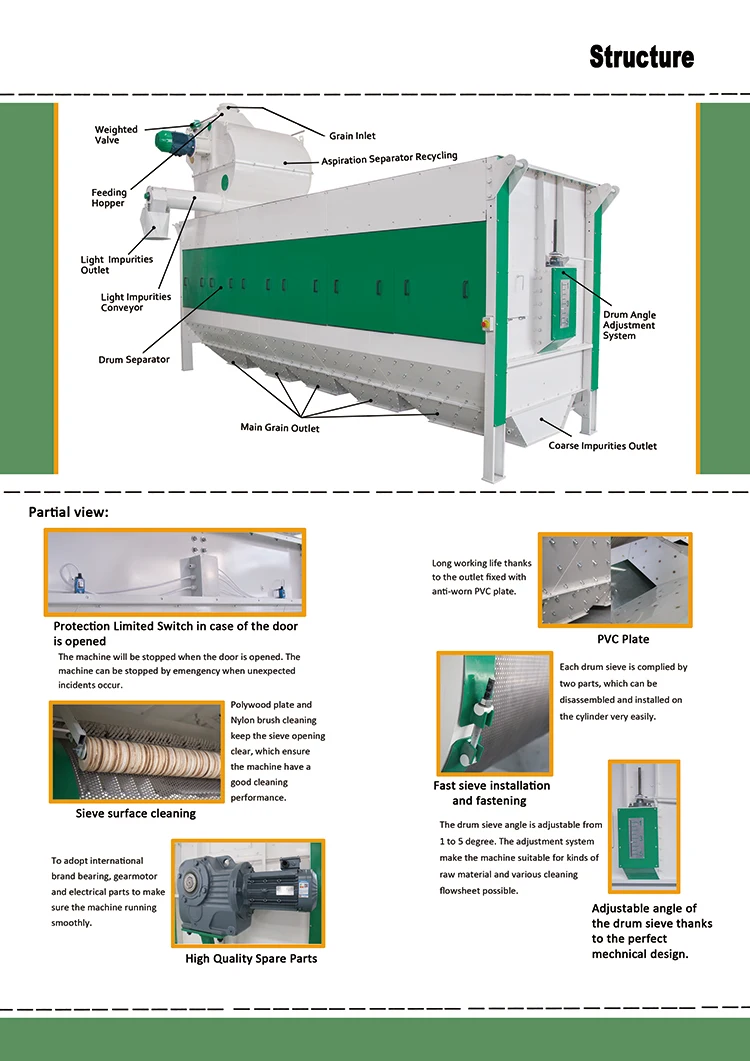

Grain from hopper is supplied to inlet of air separator and enters the receiving chamber, where is evenly distributed by weighted valve. From the chamber grain enters working channel, where it is blown off by the upward flow. Light impurities are captured by the air flow, are transported into deposit chamber, separated from air and are discharged from separator by auger conveyor via discharge valve for light impurities. In the air separator APC open loop, the air freed from the impurities, through an opening by an external fan sent for further purification in the cyclone(filter), and discharged into the atmosphere. In an air separator with an open cycle, APS, clean air-free through the hole using an external fan is routed to the process of additional filtration in the cyclone (filter) and then goes out.
The air separator in the closed cycle ASR the air, cleaned in the sediment chamber from the admixtures, is retracted by a fan and returns back to the work channel.

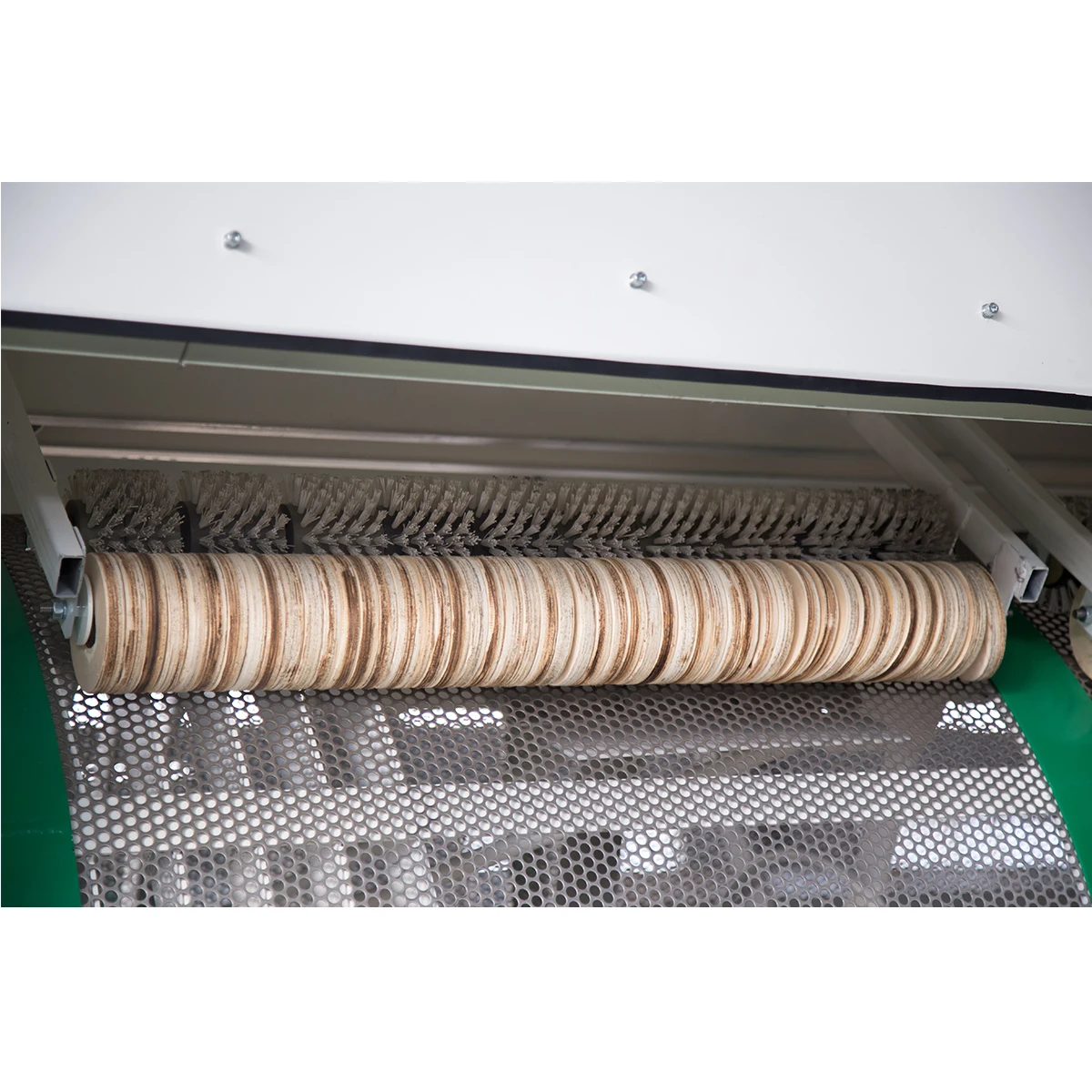

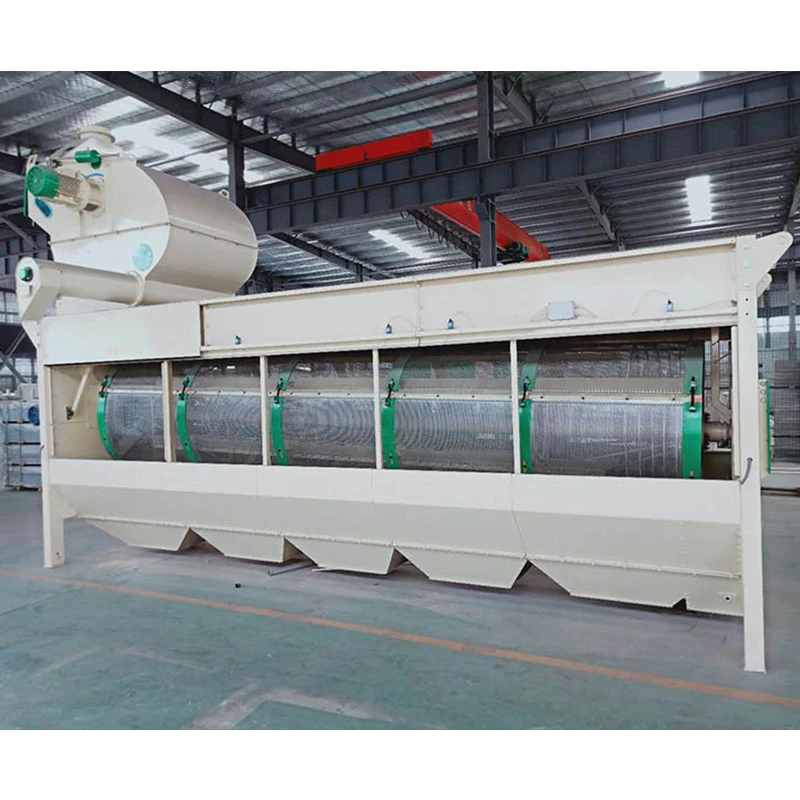

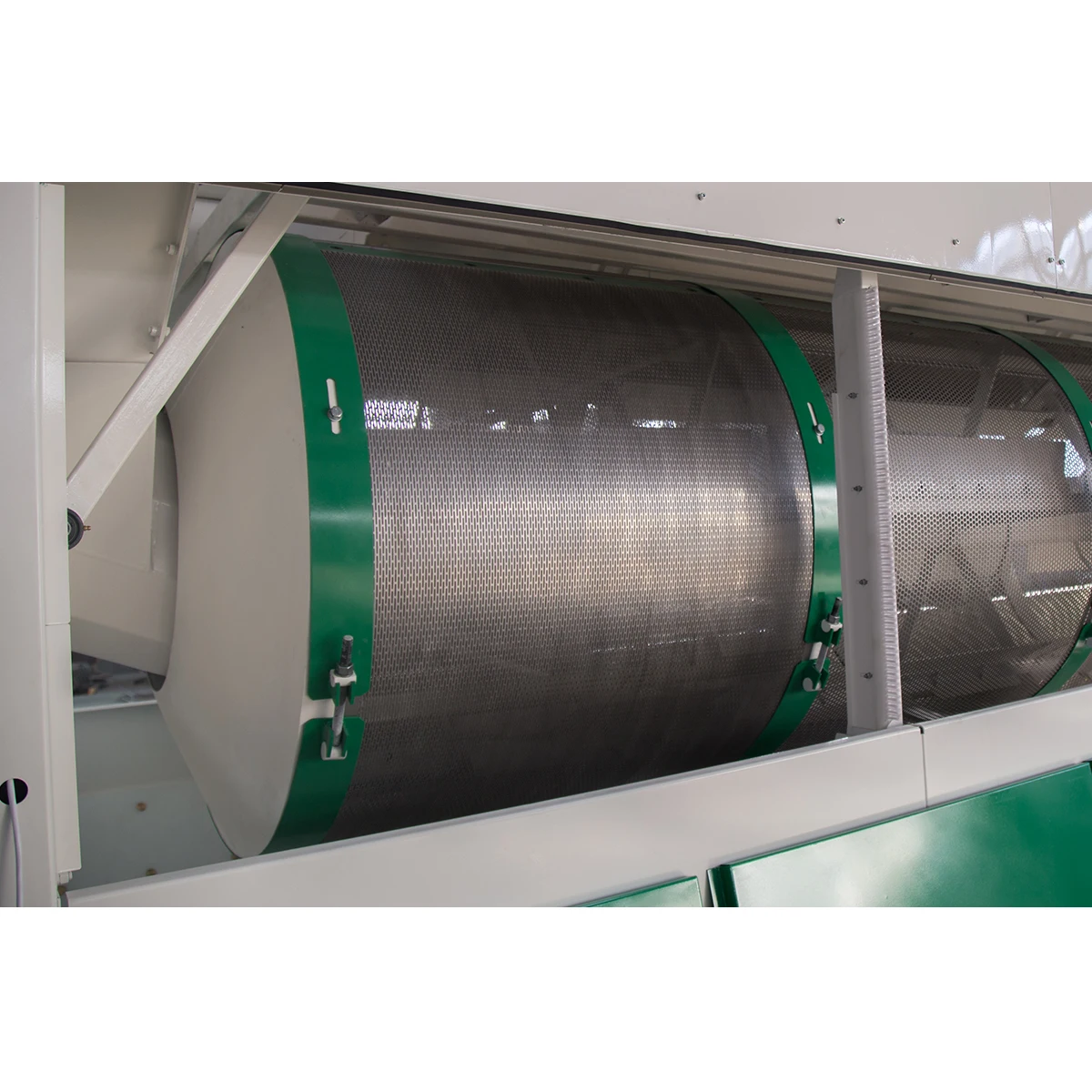

Grain cleaned from light impurities is fed from air separator. Cleaning in sieve separator is performed in rotating cylindrical sieve drum which axis is inclined by 1~5 degrees to the horizontal along the grain. Under the action of inclined surface of rotating sieve the grain is mixed and gains progressive movement along the drum rain is cleaned by sieving through a sieve with different holes sizes and shapes. Impurities and cleaned grain are discharged from separator through outlet pipes and enter the workshop communications of pneumatic or gravity transport to the following operations.
Grain from hopper is supplied to inlet of air separator and enters the receiving chamber, where is evenly distributed by weighted valve. From the chamber grain enters working channel, where it is blown off by the upward flow. Light impurities are captured by the air flow, are transported into deposit chamber, separated from air and are discharged from separator by auger conveyor via discharge valve for light impurities. In the air separator APC open loop, the air freed from the impurities, through an opening by an external fan sent for further purification in the cyclone(filter), and discharged into the atmosphere. In an air separator with an open cycle, APS, clean air-free through the hole using an external fan is routed to the process of additional filtration in the cyclone (filter) and then goes out.
The air separator in the closed cycle ASR the air, cleaned in the sediment chamber from the admixtures, is retracted by a fan and returns back to the work channel.
Grain cleaned from light impurities is fed from air separator. Cleaning in sieve separator is performed in rotating cylindrical sieve drum which axis is inclined by 1~5 degrees to the horizontal along the grain. Under the action of inclined surface of rotating sieve the grain is mixed and gains progressive movement along the drum rain is cleaned by sieving through a sieve with different holes sizes and shapes. Impurities and cleaned grain are discharged from separator through outlet pipes and enter the workshop communications of pneumatic or gravity transport to the following operations.

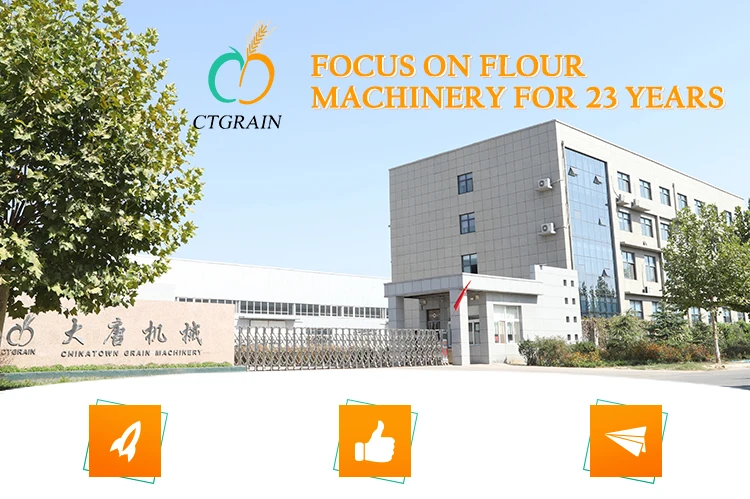

About Us
The company focuses on technology reformation, improving the manufacturing ability and quality of machine. The company took the lead in the introduction of CNC laser cutting machine, CNC bending machine, CNC lathes and other advanced processing equipment.
At the same time purchased CNC machining center, CNC boring machine, CNC lathe, CNC milling machine,surface grinder, planing machine and other advanced processing equipment investment, and added electrostatic spraying production line. The product quality can be promised by these reliable manufacturing equipment support.
Our company adopt steel plate laser cutting machine, CNC bending machine, carbon dioxide arc welding and argon arc welding, welding scale, rotary automatic welding, electrostatic spraying surface treatment, continuous improvement and innovative models. Our products are not only has good performance, but also easy for installation and maintenance with low cost. The product with advanced technology, reliable quality, and nice appearance has been appreciated by many clients.

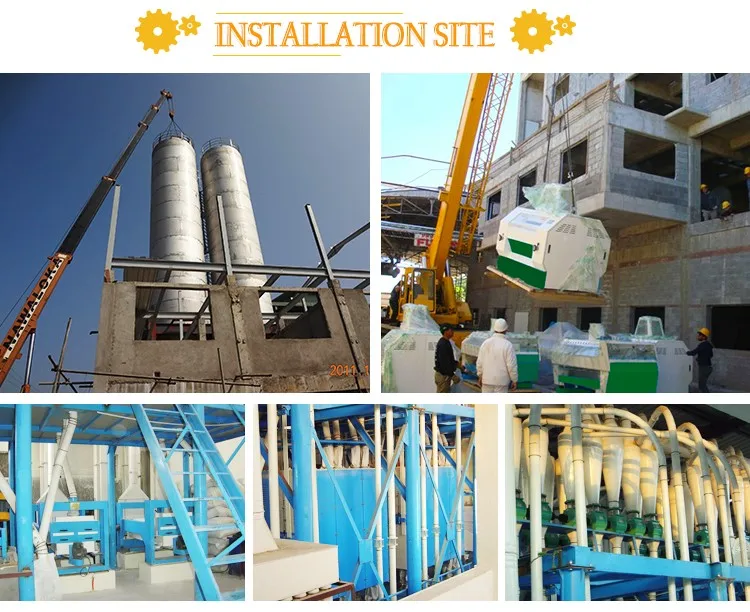

Project installation: we have professional electrical and mechanical project installation team. The display of the equipment is neat, reasonable, beautiful, generous, and easy maintenance.
The commissioning is carried out under the guidance of experienced experts and professors on the spot. The test can be successful by one time commissioning, and can totally meet or exceed the design specifications and requirements.
The commissioning is carried out under the guidance of experienced experts and professors on the spot. The test can be successful by one time commissioning, and can totally meet or exceed the design specifications and requirements.
Our machinery are widely used in many domestic users. And our turn-key projects and single equipment were exported to Thailand, Burma, Australia, Sri Lanka, Italy, Germany, Chile, Argentina, Brazil, Ukraine and other more than 20 countries and regions. Many clients around the world have visited our company on business.We warmly welcome clients and supplied excellent solutions with best quality equipment and technical services, and we received high recognition from them.
Certifications
The company has a strong technical force, with more than 20 engineers and technicians who are specialized in flour, electric, automatic control computer and so on.The products have passed ISO9001:2000 international quality management system, European Union CE quality certification and other international quality management system certification.It also has obtained Henan Province Science and Technology Type Sme Certification , National High-tech Enterprise Certification and 7 national invention patent certificates.The company can provide a turn-key project design, including the flowchart drawing design, electrical and automatic control design, architectural planning a.These designs all get CAD computer aided design. Detailed drawing materials, advanced tool and rapid design can supply the client the best choice.
FAQ
1.Q: Are you the manufacturer?
A :Yes, We are a professional flour milling machine manufacturers.
2.Q :Will you help to install the machines?
A :Yes, our engineers can indicate installation,test running, and training local operators. Engineers available to service
machinery overseas after-sales Service
3.Q : Do you accept small order?
A : Yes,We accept small order , the MOQ is 1.
4.Q: How do I make payment for my order?
A: You make payment by taking the proforma invoice and our bank details,you can use T/T(bank transfer) and L/C to finish the payment.
5.Q: What's the warranty time?
A: Our warranty time is 12 months, so you can trust us and the quality of our machine.
A :Yes, We are a professional flour milling machine manufacturers.
2.Q :Will you help to install the machines?
A :Yes, our engineers can indicate installation,test running, and training local operators. Engineers available to service
machinery overseas after-sales Service
3.Q : Do you accept small order?
A : Yes,We accept small order , the MOQ is 1.
4.Q: How do I make payment for my order?
A: You make payment by taking the proforma invoice and our bank details,you can use T/T(bank transfer) and L/C to finish the payment.
5.Q: What's the warranty time?
A: Our warranty time is 12 months, so you can trust us and the quality of our machine.
