Rotate tube furnace continuous working rotary tube furnace for coconut carbon calcination
- Category: >>>
- Supplier: Zhengzhou Kejia Furnace Co. Ltd.
Share on (1600475111869):
Product Overview
Description
Product Description
Rotate tube furnace continuous working rotary tube furnace for coconut carbon calcination
Main application:
This rotate tube furnace with automatic feeding and discharging rotary tube furnace is mainly to coat the conductive layer on the cathode material of the lithium-ion battery (such as LiFePO3, LiMnNiO3), and the Si/C anode material, carbon powder related material calcination research, can also be prepared by CVD.
Description:
Description:

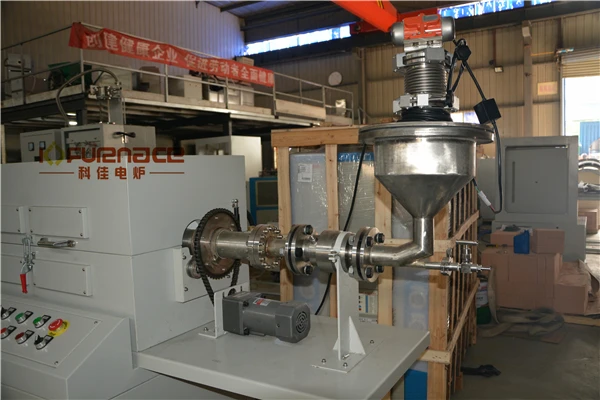

The rotate tube furnace, equipped with automatic feeder and collection tank. The powder material is automatically fed into the furnace tube in a fixed amount. This process can be carried out in an atmosphere protection environment, and the continuous CVD method can be used to coat and modify the powder material. The collection tank can collect the processed powder in an atmosphere protection environment.
Specification
Model Number | KJ-T1000-R-III-AF rotate tube furnace |
Furnace structure | LED |
Max. working temperature | 1150℃ |
Max. continuous working temperature | ≤1100℃ |
Heating rate | 0-20℃/min, suggest 0-10℃/min |

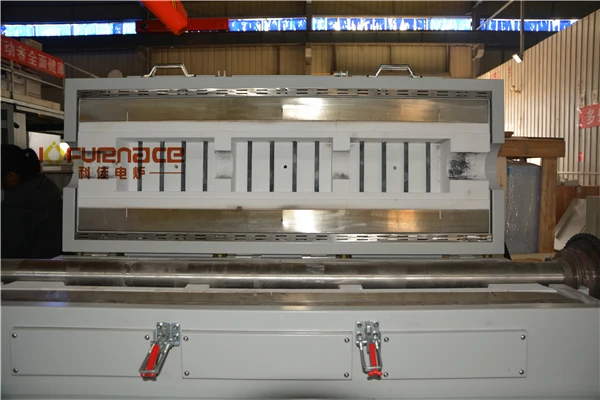

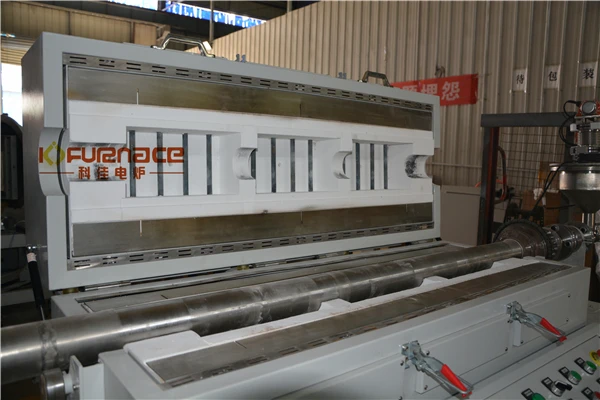

Temperature zone | Three |
Heating zone length | 300+300+300mm |
Tube size | OD80 x L2000mm |
Temperature control accuracy | ±1℃ |
Tube rotating speed | 0-10RPM variable |
Furnace tilt angle | 0-30° |
Thermocouple | K type |
Max. power | 6.0KW |
Tube material | 310S stainless steel |

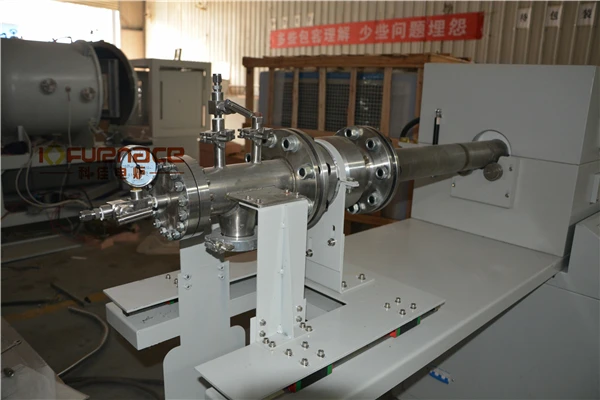

Flanges | Sealing flanges with 2L stainless steel feeder and collector |
Working voltage | AC220V, single phase, 50HZ(or according to your requirement) |

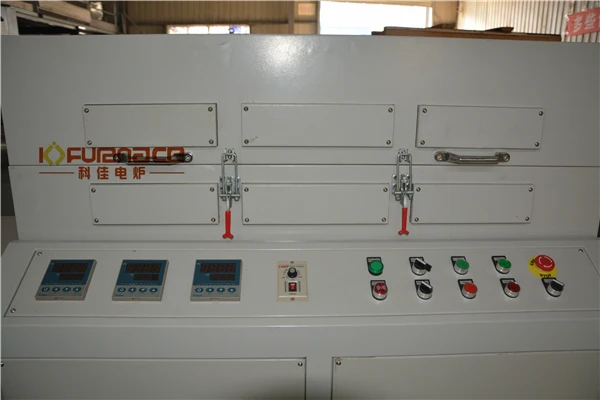

Temperature control | 30 setps PID Automatic Control |
Warranty | One year |
We accept customization | Furnace temperature: 600℃/800℃/1000℃/1200℃/1400℃/1600℃ Tube diameter: φ60/80/100/120/150/180/200/230/250/280/300mm Heating zone length: Single/double/multi-zone Flange: air/vacuum/gas atmosphere condition Tube material: quartz/ alumina/stainless steel Temperature controller: LED/touch screen |
Related Products
Packing & Delivery
Package: Standard export plywood box package, protective film surround the rotary tube furnace body firstly, then filled in sponge stuff.
Shipping method:
By FedEx/TNT/DHL/UPS international express, need about 7-10 days arrive.
By air need about 5-7 days arrive.
By sea need about 25-40 days arrive.
Shipping method:
By FedEx/TNT/DHL/UPS international express, need about 7-10 days arrive.
By air need about 5-7 days arrive.
By sea need about 25-40 days arrive.

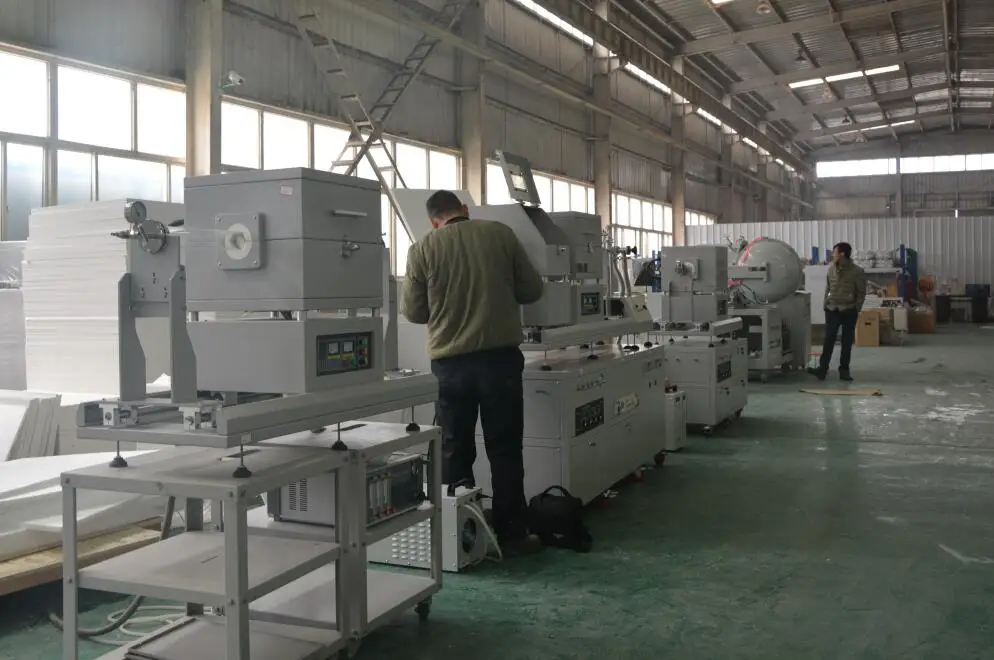

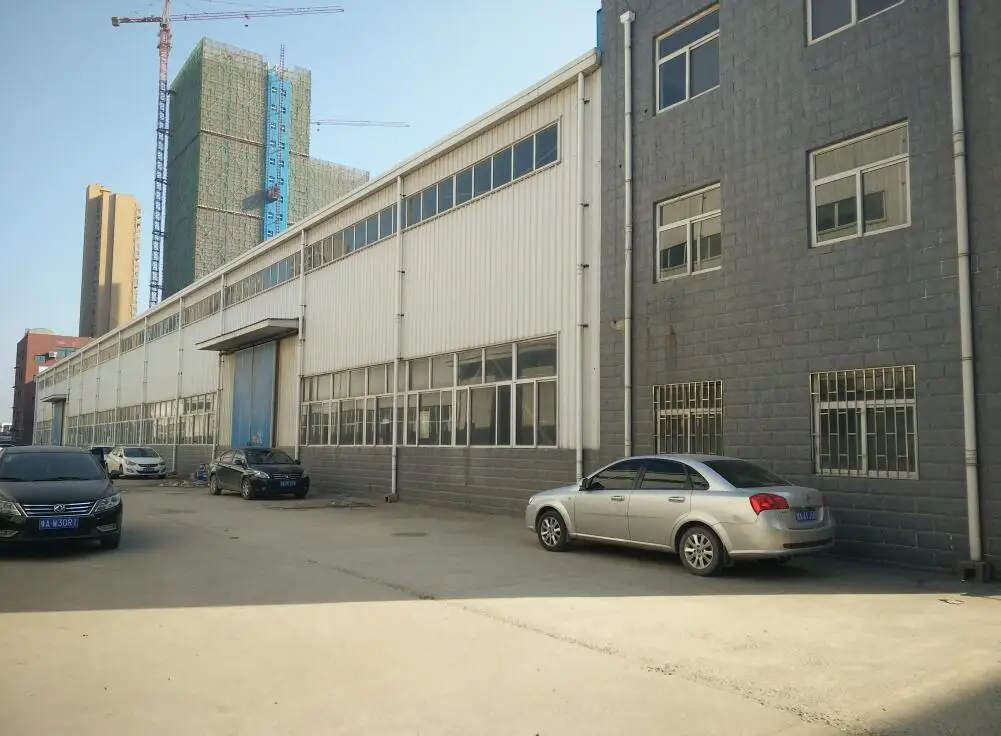

Company Profile
Zhengzhou Kejia Furnace Co., Ltd. is a leading and professional enterprise that specializes in the manufacture of Electric Furnaces and related products. Kejia Furnace is devoted to satisfying customers' needs with quality products and customized services.
Relying on a strong R&D team, Kejia Furnace has developed a reputation for excellent performance, competitive prices and timely delivery. We have become a leading manufacturer and exporter of furnaces in China.
We pay much attention to every client who is interested in our company and products. Our products have enjoyed great popularity from our customers. Here we sincerely expect to keep a good relation with you.
Products:
1) Muffle furnaces / Box furnaces / Chamber furnaces / Lab furnaces
2) Vacuum tube furnaces / Multi zones tube furnaces/ rotate tube furnace
3) Atmosphere furnaces / Vacuum Furnaces
4) Silicon Carbide Heating Elements
5) Molybdenum Disilicide Heating Elements
6) Other Furnaces related products
Relying on a strong R&D team, Kejia Furnace has developed a reputation for excellent performance, competitive prices and timely delivery. We have become a leading manufacturer and exporter of furnaces in China.
We pay much attention to every client who is interested in our company and products. Our products have enjoyed great popularity from our customers. Here we sincerely expect to keep a good relation with you.
Products:
1) Muffle furnaces / Box furnaces / Chamber furnaces / Lab furnaces
2) Vacuum tube furnaces / Multi zones tube furnaces/ rotate tube furnace
3) Atmosphere furnaces / Vacuum Furnaces
4) Silicon Carbide Heating Elements
5) Molybdenum Disilicide Heating Elements
6) Other Furnaces related products
