Gas / Gaseosa Agua maquina de rellenar/maquina de llenado de liquido

Product Overview

Description

Golden Machinery,One Stop Service

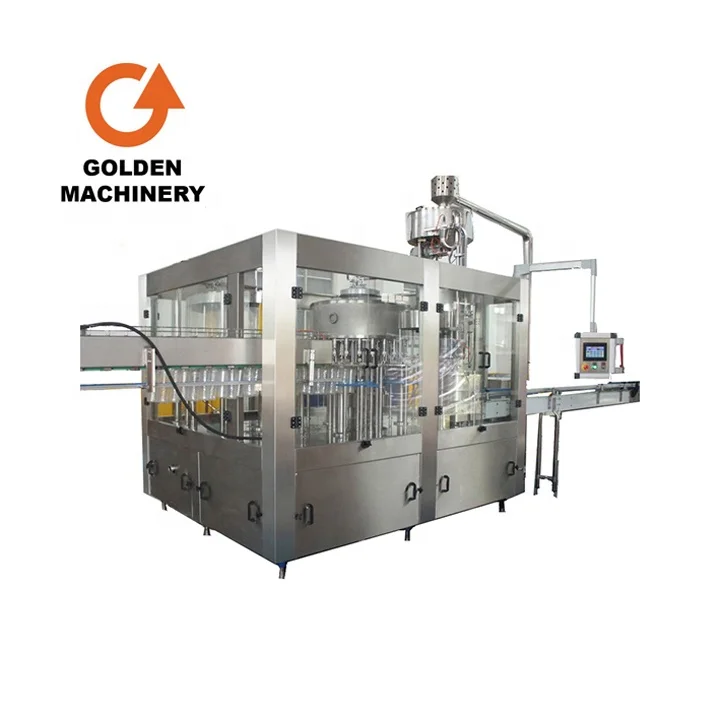

                 Gas / Gaseosa Agua maquina de rellenar/maquina de llenado de liquido



• This series of machines are used for the production of non-carbonated soft drink,such as pure water,mineral water and so on.


• It integrates bottle washing,filling and capping into one body of the machine.It is very convenient to change bottle size by means of advanced bottleneck clamping&bottle suspending technology.


• Advanced programmable PLC is equipped to control the main machine.Main electronic components are all from famous international enterprises.All spare parts that connect with material are made from high-quality stainless steel

• Production Capacity(500ml):3000-36000BPH


• Filling precision:≤5mm(liquid level)


• Bottle dianeter:Φ40-100


• Bottle height:130-320mm



Main Technical parameters
Model	CGF16126	CGF18186	CGF24248	CGF32328	CGF404010	CGF50-50-12	CGF60-60-15
Heads of washing ,filling , sealing	16-12-6	18-18-6	24-24-8	32-32-8	40-40-10	50-50-12	60-60-15
Production  capacity (bottle/hour)	2000-4000	5000-7000	8000-12000	12000-15000	16000-20000	20000-24000	25000-30000
Suitable bottle diameter(mm)	φ=50-100 H=170 330-1500ml
Spraying pressure	2~3
Motor power	Main  motor 1.5kw	Main motor 2.2kw	Main motor 3kw	Main motor 4kw	Main motor 7.5kw	Main motor 9.5kw	Main motor 12kw
Power of outer vacuum  pump	0.75	1.1	1.5	2.2	2.2	3	4
overall dimension (LxWxH)	2100x 1400x 2500	2460x 1720x 2650	3100x 2100x 2650	3500x 2500x 2650	4600x 1800x 2650	5200x 4500x 3400	6500x 4500x 3400
Weight	2500	3500	4200	5500	6800	7600	9800





Zhangjiagang Golden Machinery(Group) Co., Ltd is located in Zhangjiagang City, which is near to Shanghai, Suzhou and Wuxi,the transportation is extremely convenient.

We specialize in the design and production of all types of Carbonated or Non-Carbonated Beverage,Drinking Water and Liquid Packing Line. Not only the domestic market more than 30 provinces,municipalities ,but also exporting to USA ,Canada, Australia,Mexico,Bahamas,Bolivia,Argentina,Malta,Turkey,Cyprus,kosovo, Georgia, Portugal, South Korea, Armenia, Malaysia, the Philippines, Vietnam, Thailand, India, Pakistan, Iraq, Jordan, Saudi Arabia, Libya, Nigeria, Mozambique, South Africa, Sudan, Ghana, Mauritius, Chile, Peru more than 30 countries and areas ,well received by the users !

We have obtained the authentication of ISO9001:2000 quality management system and CE Certificate. At present, as an advanced company in this field, we win a good reputation among clients based on timely service, high quality and competitive price.

We firmly believe that "quality is life, " we are willing to work with you to create new and old customers a better tomorrow !

Meanwhile,we sincerely welcome all friends from all walks of life to know much more about “Golden Machinery Group”,Sincerely hope “Golden Machinery Group” can help you out ! We are willing to lend wings to you for your business successfully !
