Product Overview
Description
Product Overview

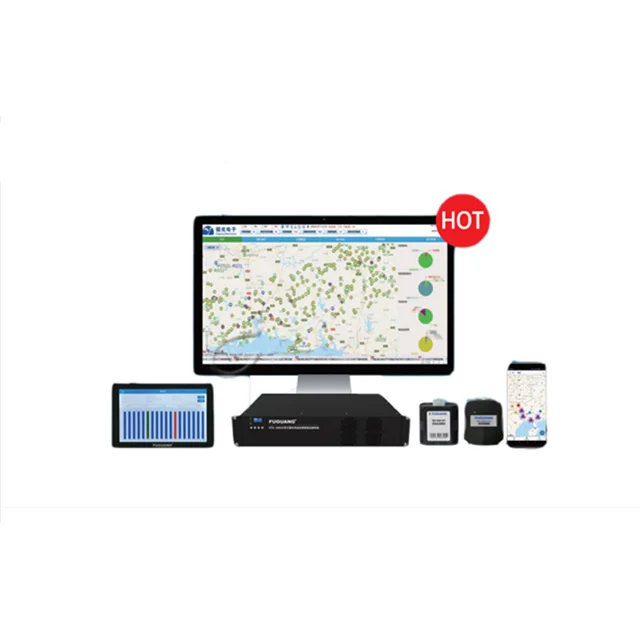

WDBTS battery cell/pack remote intelligent operation and maintenance/monitoring system battery test device
Basic maintenance of batteries Remote energy-saving discharge and charging: The software remotely starts online to check capacity discharge, comprehensively monitor parameters such as voltage, internal resistance, temperature, conductance, voltage of the whole group, current capacity, etc. of single or multi-cell batteries. Insufficient battery for precise positioning. The software platform can export test reports.
Products Description
(1) Real-time monitoring function
Real-time monitoring of the voltage of a single cell (voltage accuracy: ±5mv)
Real-time monitoring of single-cell battery pole temperature (temperature accuracy: ±1°C)
Real-time monitoring of battery pack terminal voltage (voltage accuracy: ±0.5%)
Real-time monitoring of rectifier terminal voltage (voltage accuracy: ±0.5%)
Real-time monitoring of battery pack current (current accuracy: ±1%)
(2) Test function
Internal resistance test function (automatic start of internal resistance test, test cycle can be set according to demand, repeatability error: <5%)
Capacity test function: a Active capacity test, under the condition of stable mains power, discharge the battery pack with actual load through the WDBTS host, and conduct capacity test. B passive capacity test, monitor and test the discharge capacity of the battery in the state of power failure.
Remote unattended charge and discharge test function: Set the discharge parameters of the battery pack through the remote platform, and start the discharge function. The host makes intelligent judgments based on the voltage, temperature, and current data collected in real time by each module, and sets the threshold for monitoring data. The host will take corresponding actions (stop, continue to discharge, charge, etc.)
(3) Software functions
Real-time data monitoring display (voltage, current, battery life, temperature, internal resistance)
Historical data analysis (analyze various battery data in historical data for energy-saving discharge, charging, power outage discharge, and charging, and output effective reports)
Battery life management (statistics on battery usage time, charge and discharge times, and current internal resistance)

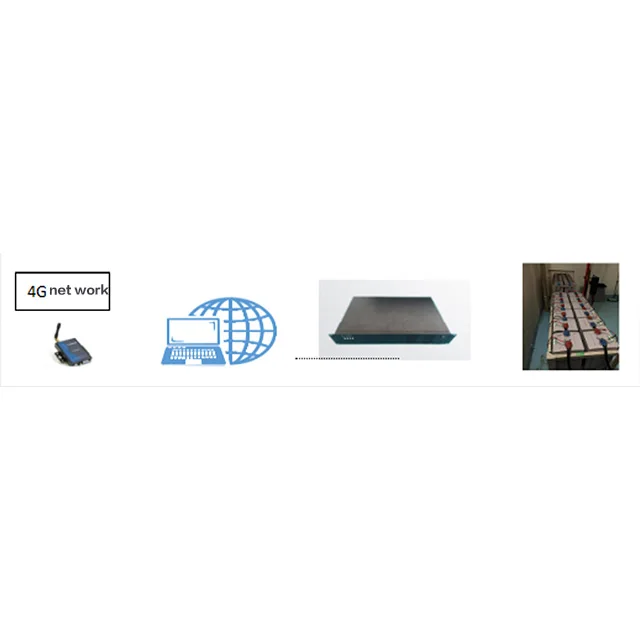

Battery pack location management (map address location using internal network or Internet)
Support data export and format customization
Real-time monitoring of the voltage of a single cell (voltage accuracy: ±5mv)
Real-time monitoring of single-cell battery pole temperature (temperature accuracy: ±1°C)
Real-time monitoring of battery pack terminal voltage (voltage accuracy: ±0.5%)
Real-time monitoring of rectifier terminal voltage (voltage accuracy: ±0.5%)
Real-time monitoring of battery pack current (current accuracy: ±1%)
(2) Test function
Internal resistance test function (automatic start of internal resistance test, test cycle can be set according to demand, repeatability error: <5%)
Capacity test function: a Active capacity test, under the condition of stable mains power, discharge the battery pack with actual load through the WDBTS host, and conduct capacity test. B passive capacity test, monitor and test the discharge capacity of the battery in the state of power failure.
Remote unattended charge and discharge test function: Set the discharge parameters of the battery pack through the remote platform, and start the discharge function. The host makes intelligent judgments based on the voltage, temperature, and current data collected in real time by each module, and sets the threshold for monitoring data. The host will take corresponding actions (stop, continue to discharge, charge, etc.)
(3) Software functions
Real-time data monitoring display (voltage, current, battery life, temperature, internal resistance)
Historical data analysis (analyze various battery data in historical data for energy-saving discharge, charging, power outage discharge, and charging, and output effective reports)
Battery life management (statistics on battery usage time, charge and discharge times, and current internal resistance)
Battery pack location management (map address location using internal network or Internet)
Support data export and format customization
(4) Security verification
During the discharge process, the mains power is stopped, and the battery pack supplies power to the load. There is no switching time, and seamless switching can be achieved.
During the charging process, the mains power is stopped, and the battery pack supplies power to the load. There is no switching time, and seamless switching can be achieved.
After the utility power is supplied, the rectifier can normally charge the battery and supply power to the load.
Set stop and alarm thresholds. After triggering, the device can complete control accordingly.
The power saving function can be realized by remote control, and it will be automatically released after incoming calls.
During the discharge process, the mains power is stopped, and the battery pack supplies power to the load. There is no switching time, and seamless switching can be achieved.
During the charging process, the mains power is stopped, and the battery pack supplies power to the load. There is no switching time, and seamless switching can be achieved.
After the utility power is supplied, the rectifier can normally charge the battery and supply power to the load.
Set stop and alarm thresholds. After triggering, the device can complete control accordingly.
The power saving function can be realized by remote control, and it will be automatically released after incoming calls.
