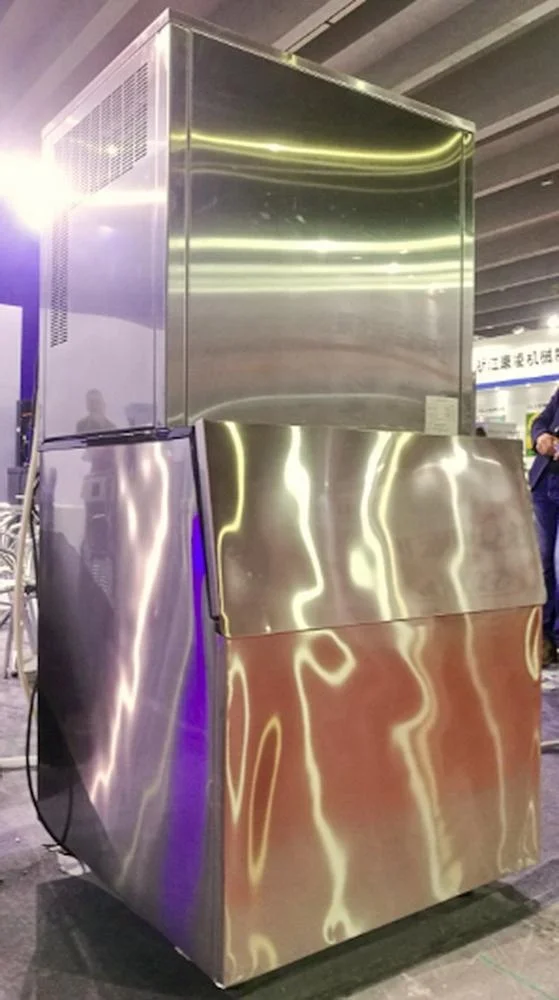

ZBJ 450 Modular Cube Ice Machine Commercial
- Category: >>>
- Supplier: Changshu Lingke Electric Appliance Co. Ltd.
Share on (1600475130411):
Product Overview
Description
1) Brief Introduction
Commercial Cube Ice Machine,some customer also called Modular Ice machine or Square Ice Machine or Block Ice Machine or Lozenge Ice Machine or Rhombus Ice Machine or Nugget Ice machine,Diamond Ice Machine,can be named Gourmet Ice machine if connecting with a good water filter;For using purpose,can named Hotel Ice Machine,laboratory Ice Machine,Supermarket Ice Machine,Home Ice Maker,Portable Ice Maker,Commercial hospital Ice machine,etc.Different country different people have a different a named habit.
2) Main Features
1, This type ice-producing machine adopts the latest international fashionable ice making method-with the newest design ideas, this ice-producing machine has large capacity, high efficiency and save energy.
2, Stainless steel streamlined outer cover with luxury outward appearance, which can resist corrosions and endure bumping and can be used for a long period of time, the main body and ice storage box split design, suitable for all kind of environments usin.
3, Automatic control:The ice-producing machine adopts COMS integral circuit and can automatically finish water supply, producing ice, ice taken off, ice storage, protection of trouble with great safety and convenience.
4, Economical power:The ice-producing machine uses world well-known compressor, reliability with good performance, 1/3 power consumption of similar products.
5, Advanced design:The ice-producing machine adopts the advanced ice-producing Technique from Europe with perfect design and excellent performance.
3)Technical Data of Commercial Cube Ice Maker
| Model | Daily | Ice Bin | Input | Cooling | Net Size (mm) | N./G. | |
| Production | Storage | Power | System | Packing size( mm) | Weight | ||
| ZBJ-25 | 25kg | 5 kg | 350W | Fan cooling | 379*420*675 | 30/32 kg | |
| Water Spray | 430*470*750 | ||||||
| ZBJ-30 | 30kg | 5 kg | 350W | Fan cooling | 379*420*675 | 30/32 kg | |
| Water Spray | 430*470*750 | ||||||
| ZBJ-50 | 50kg | 10 kg | 440W | Fan cooling | 507*585*750 | 42/45 kg | |
| Water Spray | 560*630*965 | ||||||
| ZBJ-60 | 60kg | 18 kg | 490W | Fan cooling | 507*585*900 | 46/52 kg | |
| Water Spray | 560*630*1030 | ||||||
| ZBJ-80 | 80kg | 40 kg | 550W | Fan cooling | 677*585*900 | 58/65 kg | |
| Water Spray | 730*630*1030 | ||||||
| ZBJ-100 | 100kg | 40 kg | 665W | Fan cooling | 677*585*900 | 58/65 kg | |
| Water Spray | 730*630*1030 | ||||||
| ZBJ-120 | 120kg | 25 kg | 1100W | Fan cooling | 680*610*1020 | 60/68 kg | |
| Water Spray | 730*630*1130 | ||||||
| Model | Daily | Ice Bin Storage | Input Power | Cooling | Top unit Size(mm) | N./G. Weight | |
| Ice Bin size(mm) | |||||||
| Production | System | Packing Top Unit(mm) | |||||
| Packing Ice Bin(mm) | |||||||
| ZBJ-180 | 180kg | 150kg | 1400W | Fan cooling | 560*585*635 | 118/132kg | |
| 560*800*970 | |||||||
| Water Spray | 625*650*675 | ||||||
| 625*855*1000 | |||||||
| ZBJ-200 | 200kg | 150kg | 1400W | Fan cooling | 764*606*559 | 128/142kg | |
| 764*780*840 | |||||||
| Water Spray | 825*650*675 | ||||||
| 810*860*950 | |||||||
| ZBJ-225 | 225kg | 150kg | 1600W | Fan cooling | 764*606*559 | 148/168kg | |
| 764*780*840 | |||||||
| Water Spray | 840*680*670 | ||||||
| 810*860*950 | |||||||
| ZBJ-310 | 310kg | 150kg | 2000W | Fan cooling | 764*606*730 | 160/180kg | |
| 764*780*840 | |||||||
| Water Spray | 840*680*840 | ||||||
| 810*860*950 | |||||||
| Model | Daily | Ice Bin | Input | Cooling | Top unit Size(mm) | N./G. Weight | |
| Ice Bin size(mm) | |||||||
| Production | Storage | Power | System | Packing Top Unit(mm) | |||
| Packing Ice Bin(mm) | |||||||
| ZBJ-450 | 450kg | 150kg | 2300 | Fan cooling | 764*606*730 | 170/190kg | |
| 764*780*840 | |||||||
| Water Spray | 840*680*840 | ||||||
| 810*860*950 | |||||||
| ZBJ-650 | 650kg | 240kg | 4000 | Water Cooling | 1220*635*678 | 230/260kg | |
| 1220*850*1080 | |||||||
| 1285*700*710 | |||||||
| 1285*910*1160 | |||||||
| ZBJ-860 | 860kg | 240kg | 4500 | Water Cooling | 1220*635*738 | 260/290kg | |
| 1220*850*1080 | |||||||
| 1285*700*770 | |||||||
| 1285*910*1160 | |||||||

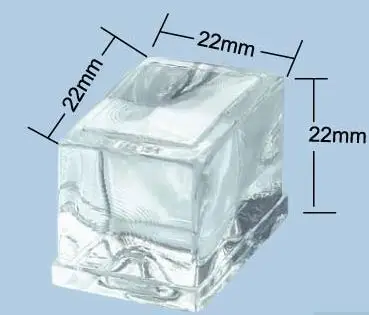

| Remark | 1,Ice Size:ZBJ-20 to ZBJ-80 32*32*24mm ZBJ-120 to ZBJ-860 22*22*22mm 2,Voltage: ZBJ-20 to ZBJ-650 220V 50/60Hz ZBJ-860 380V 50/60Hz | ||||||

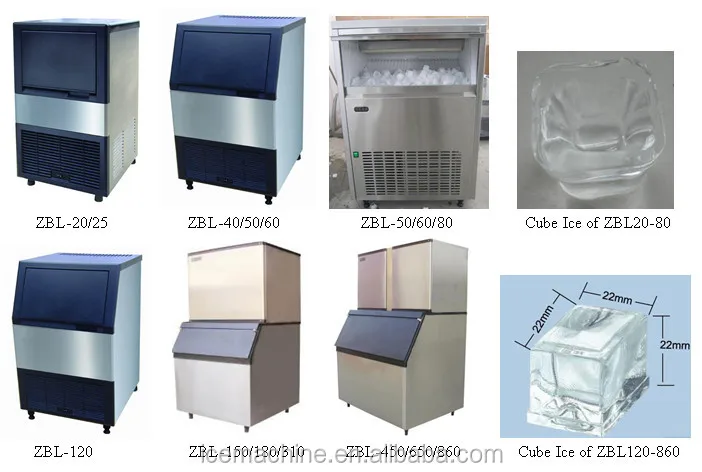

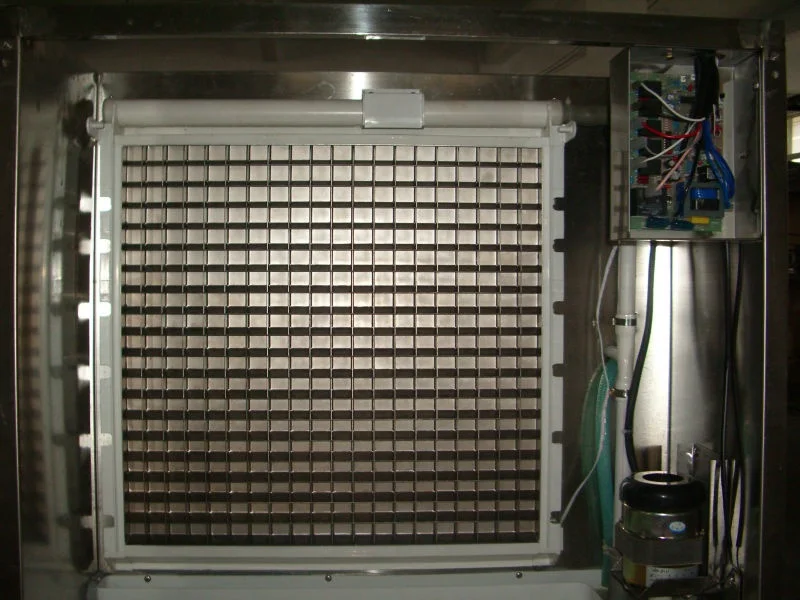

4) Details of models

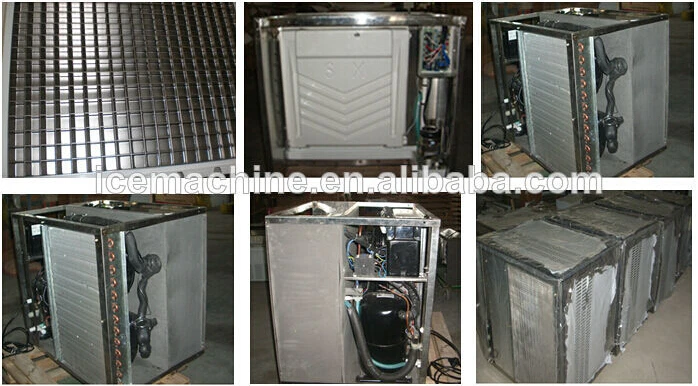

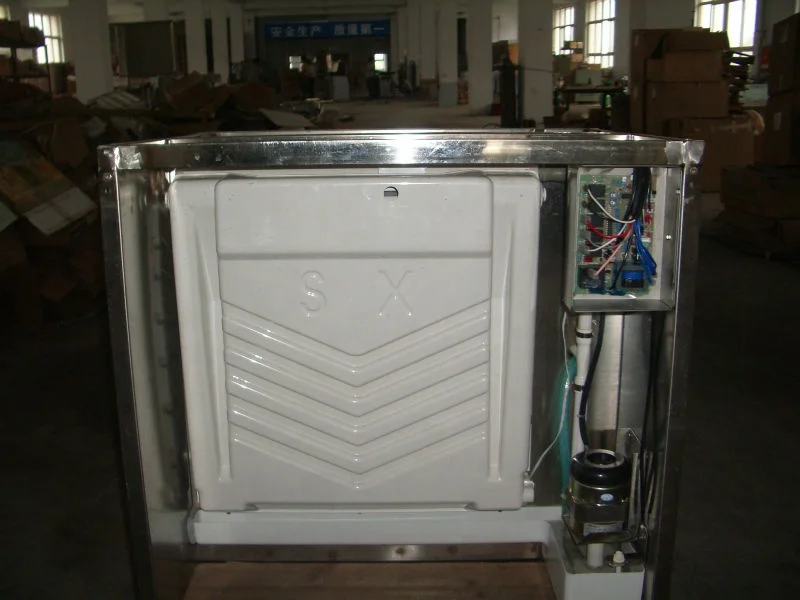

5) Manufacturing Plant
6) CE Approved

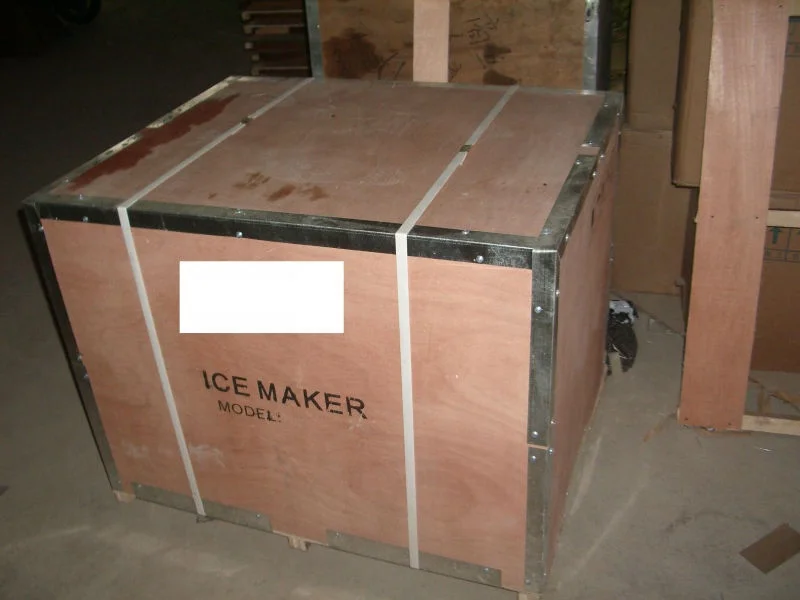

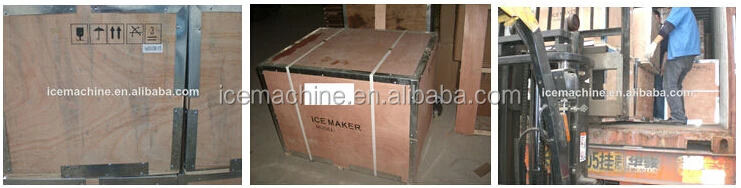

7) Packing and Shipping

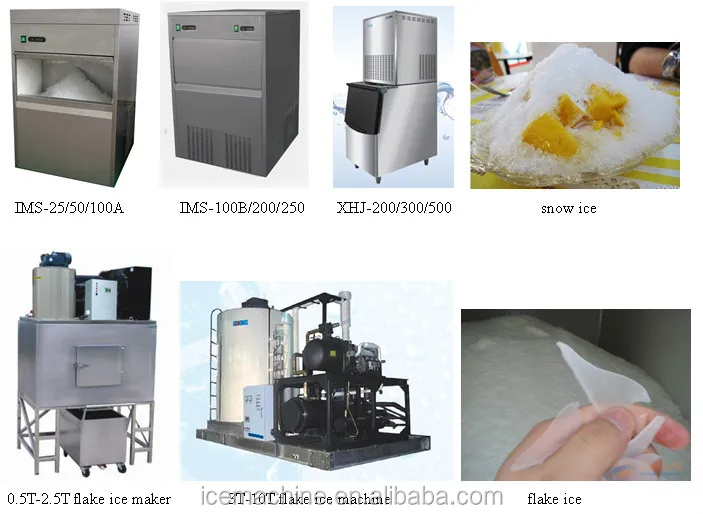

8) More Hot-sale Machines

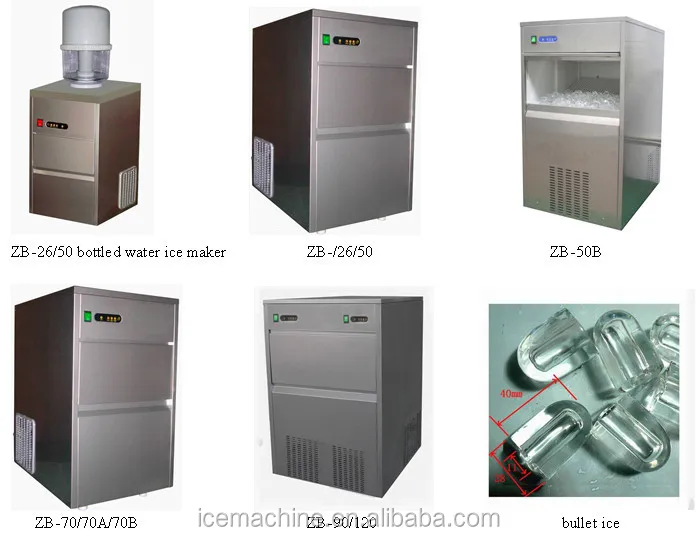

from 20kg to 120kg per day bullet ice maker.please CONTACT US for more details.

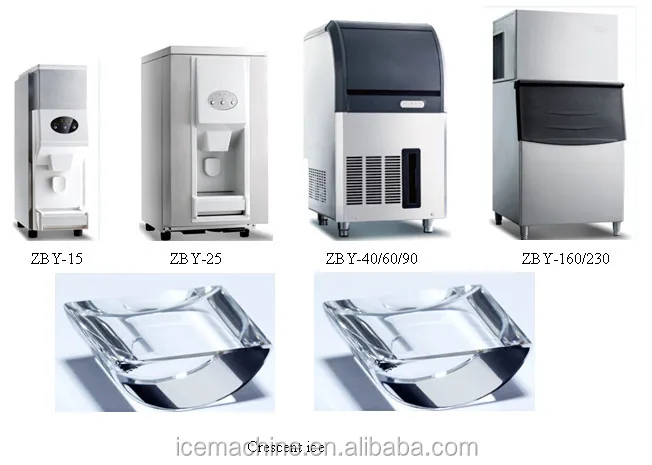

15 kg to 230 kg per day crescent ice maker,also call moon ice maker.
9) Our Guarantee
All the ice making machine,ice cream maker,Usually we ship 1% easy broken spare parts for free of charge,ice machine compressor is 5 year guarantee and other parts 2 year guarantee,we can send you freely spare parts during guarantee time.If our machine have quality problem in your country because of our real mistake,our company accept the replacement any time,our company pay for all the extra cost loss caused to your company.
Quality Control
So as to adjust the machine to be a best working conditions,our testing time for flake ice machine is two weeks at least,for cube ice machine is one week at least,also every ordering we will first produce one batch of some sample each models's ice makers,keep testing all the time until the last dayfor loading container.
Our Services
All the ice making machine,Usually we ship 1% easy broken spare parts for free of charge,ice machine compressor is 3 year guarantee and other parts 1 year guarantee.If our machine have quality problem in your country because of our real mistake,our company accept the replacement any time,our company pay for all the extra cost loss caused to your company.
