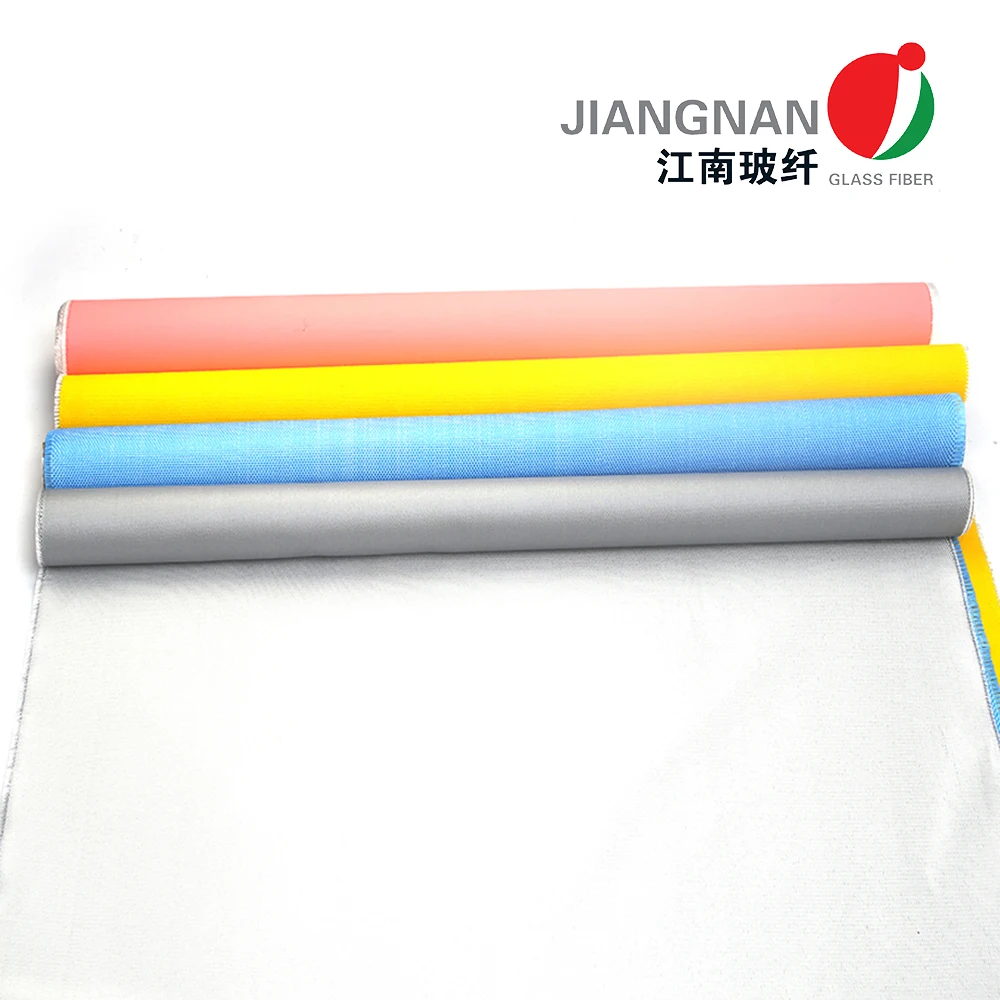

Silicone Coating Technology Fireproof Waterproof Silicone Rubber Coated Fiberglass Fabric Cloth
- Category: >>>
- Supplier: Changshu Jiangnan Glass Fiber Co. Ltd.
Share on (1600475135731):
Product Overview
Description
Product Introduction
3732 Double Side Silicone Coating Fiberglass Cloth | ||||||||
Item Model | 3732 Silicone Coating Cloth | |||||||
Description | E-glass Industrial Fabric | |||||||
Weave Structure | 1/3 Twill Weave | |||||||
Cloth Weight | 430gsm | |||||||
Silicone Coating Weight | 200g/m2 | |||||||
Thickness | 0.5mm | |||||||
Yarn Type | Warp | EC9 68 1*2 | ||||||
Weft | EC9 68 1*2 | |||||||
Thread Count | Warp | 18±1 ends/cm | ||||||
Weft | 12±1 picks/cm | |||||||
Breaking Strength | Warp | 700N/cm | ||||||
Weft | 600N/cm | |||||||
Loi | < 5% | |||||||
Working Temperature | Basic fabric 550 ºC, Silicone coating 260 ºC. | |||||||
Color | Black, Grey, Red | |||||||
Fire Resistance | Non-Flame | |||||||
Products Description
What is silicone coating fiberglass cloth?
Silicone-coated fiberglass cloth is based on fiberglass cloth and produced by coating or calendering. It is made of high temperature resistant, corrosion-resistant, high strength glass fiber cloth, and through the organic silicone rubber calendering or impregnating. It is a new type of composite material with high performance and multiple applications. It is made of a fiberglass base fabric and coated on 1 or 2 sides with a specially compounded iron oxide red silicone rubber or manganese iron black silicone. They have excellent electrical insulation, thermal insulation, and chemical resistance. The silicone coating is durable and wear-resistant to withstand high-temperature heat. It extends service life while providing higher oil and water resistance and electrical insulation than uncoated fabrics.
Title goes here.
Type: E-glass
Coating: 130g on each side
Structure: silicone+glass fiber
Weight:15.43oz/yd2
Flammability: ≤25%
Thickness: 0.45mm
Weave: Plain
LifeTime: 10 Years under normal environment
Dielectric Constant: 3-3.2
Breakdown Voltage: 20-50 KV/MW
Coating: 130g on each side
Structure: silicone+glass fiber
Weight:15.43oz/yd2
Flammability: ≤25%
Thickness: 0.45mm
Weave: Plain
LifeTime: 10 Years under normal environment
Dielectric Constant: 3-3.2
Breakdown Voltage: 20-50 KV/MW
Silicone Coating Features
Fireproof
High Strength
Anti-Friction
Chemical Resistance
Heat Resistance
Application
Duct Connection
Soft Connection
Connector for Air Duct
Industry Conveyor belt and flexible hoses, expansion joints.
Serve as welding blankets, foundry splash protection, heat protection quilt.
Acoustic insulation of piping works
Electrical insulation, chemical resistant, UV light, abrasion and contamination resistance, packing material.
Serve as welding blankets, foundry splash protection, heat protection quilt.
Acoustic insulation of piping works
Electrical insulation, chemical resistant, UV light, abrasion and contamination resistance, packing material.
How to choose Knife Coating Silicone Coating Fiberglass Fabric?
Knife Coating Silicone Coating Differences between Premier and Industrial Quality | ||||||
Premier Quality | Industry Quality | |||||
1 | Loomstate | High-speed Rapier Weaving Machine | Normal Dornier (small weaving defects might occur occasionally) | |||
2 | Silicone | Wet, High-Quality Silicone Rubber | Dry, Standard Silicone Rubber | |||
3 | Appearance | Shiny and Tacky | Dull but Smooth | |||
4 | Performance | Strong Adhesion Strength Between Silicone Fabric, High Abrasion Resistance | Normal Adhesion Strength Between Silicone Fabric, Normal Abrasion Resistance, silicone might be peeled or scratched off in some particular circumstances | |||
5 | Application | Mostly for Removable Insulation Jackets | Mostly for Welding, But Also for Economic Removable Insulation Jackets | |||
Related Products
Premier Quality | Thickness (mm) | Weight (g/m2) | Weaving | |||
E7628-LG1 | 0.2MM | 230 | Plain | |||
E7628-LG2 | 0.23MM | 280 | Plain | |||
E3732-LG1 | 0.4MM | 510 | Twill | |||
E3732-LG2 | 0.45MM | 590 | Twill | |||
E666-LG1 | 0.65MM | 750 | Satin | |||
E666-LG2 | 0.7MM | 850 | Satin | |||
E3784-LG1 | 0.85MM | 950 | Satin | |||
E3784-LG2 | 0.9MM | 1050 | Satin | |||
Other Thickness and Weight Can be Customized | 0.9mm | 1050 | Satin | |||
Industrial Quality | Thickness (mm) | Weight （g/m2) | Weaving | |||
E7628-SG1 | 0.2MM | 230 | Plain | |||
E7628-SG2 | 0.23MM | 280 | Plain | |||
E3732-SG1 | 0.4MM | 510 | Twill | |||
E3732-SG2 | 0.45MM | 590 | Twill | |||
E666-SG1 | 0.65MM | 750 | Satin | |||
E666-SG2 | 0.7MM | 850 | Satin | |||
E3784-SG1 | 0.85MM | 950 | Satin | |||
E3784-SG2 | 0.9MM | 1050 | Satin | |||
Other Thickness and Weight Can be Customized | ||||||
More Related Products
Company Information

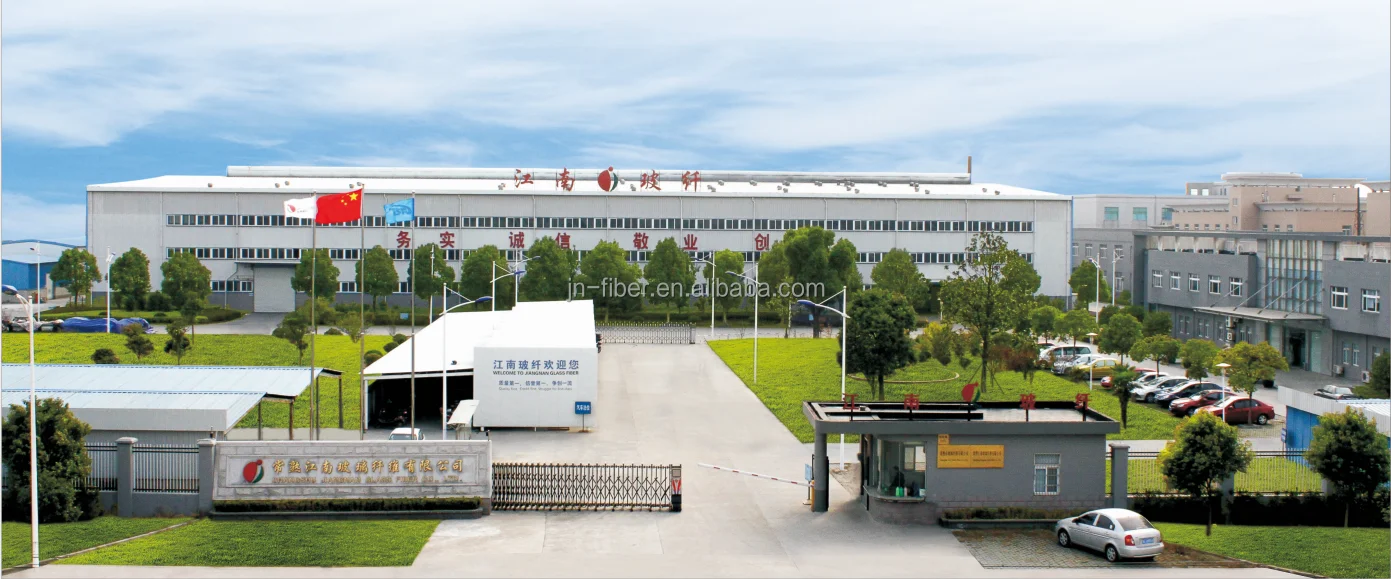

Changshu Jiangnan Glass Fiber Co., Ltd is one of the leading professional manufacturers and exporters of fiberglass composite and thermal resistance materials in China. The Company was established in 1956 and it is located in the famous Chinese cultural and historic city –Changshu. The plant covers a total area of more than 70,000 square meters. It is only 80km from Shanghai port and 200km from Ningbo port. The superior location makes it enjoy pleasant climate all year around and convenient transportation facilities, such as by the Highway along the Yangtze River, Sujiahang Highway, and Changshu Port.
Presently, we have adopted the advanced high-speed rapier weaving machine, three twist yarn machines equipped with variable frequency unit controllers, and two-meter-width coating equipment to ensure the leading supplier to the market with powerful output and guaranteed quality. Jiangnan produces over 8,000 tons of fiberglass yarn, 50 million square meter alkali-resistant fiberglass-mesh, 2.4 million pieces of fire blankets, 10 million meters of fiberglass cloth with silicone, polyurethane, Acrylic, EPDM coating, and 8 million square-meter of fabric used in electronic industry and fireproof. The products are widely used in the field of construction, transportation, electricity, insulation material, wind power generation, and smoke curtains.
Moreover, our production and quality control team has more than 30 years of development and research experience in various fiberglass products. Meanwhile, Jiangnan has its own fire-test laboratory, according to the latest fire blanket standard. We have routine and extensive cooperation with the world leading testing organizations. We also have our own fiberglass yarn raw material subsidiary in Shandong - Shandong Jinming Glass Fiber Co., Ltd. Additionally, Jiangnan have R&D investment and production capacity for blended fiberglass fabrics and special glass fiber fabrics.
Jiangnan and its products have been certified by various certification bodies and organizations with a number of certifications like ISO9001:2015 Quality Systems, ISO14001:2014 Environmental Systems, BSI Kitemark，LPCB, TUV, Australian QAS and other certificates. Jiangnan has cooperative partners across several countries like America, Europe, Australia, Japan, Korea, the Middle East, and other countries.
Jiangnan will continue to make efforts to be the leader with competition and creativity in the global industries based on our core corporate values of "Superior Quality, High Integrity, Continuous Innovation"!
Jiangnan and its products have been certified by various certification bodies and organizations with a number of certifications like ISO9001:2015 Quality Systems, ISO14001:2014 Environmental Systems, BSI Kitemark，LPCB, TUV, Australian QAS and other certificates. Jiangnan has cooperative partners across several countries like America, Europe, Australia, Japan, Korea, the Middle East, and other countries.
Jiangnan will continue to make efforts to be the leader with competition and creativity in the global industries based on our core corporate values of "Superior Quality, High Integrity, Continuous Innovation"!
FAQ
1. Before the order, may I have the sample to test the fire resistance quality?
Samples can be arranged to be sent to you for testing before placing an order. But my shipping will be paid by you. Of course, we will adjust additional samples and shipping costs to your bulk order.
2. How can I get your samples?
Of course, we can send you some samples. Most samples are free, but sometimes we charge a small sample fee. Maybe you can also send us your DHL or EMS/UPS/TNT etc account so you can pay directly to your carrier.
3. Can we print our logo or need our color or size?
We can print your logo, we can also make it to your size and print it in your color.
4. How many payment methods can you accept?
Regarding payment terms, if it is less than $1000.00, we want 100% TT, usually for bulk order, hope can pay 30%-50% in advance, the rest should be paid before shipment.
Samples can be arranged to be sent to you for testing before placing an order. But my shipping will be paid by you. Of course, we will adjust additional samples and shipping costs to your bulk order.
2. How can I get your samples?
Of course, we can send you some samples. Most samples are free, but sometimes we charge a small sample fee. Maybe you can also send us your DHL or EMS/UPS/TNT etc account so you can pay directly to your carrier.
3. Can we print our logo or need our color or size?
We can print your logo, we can also make it to your size and print it in your color.
4. How many payment methods can you accept?
Regarding payment terms, if it is less than $1000.00, we want 100% TT, usually for bulk order, hope can pay 30%-50% in advance, the rest should be paid before shipment.
