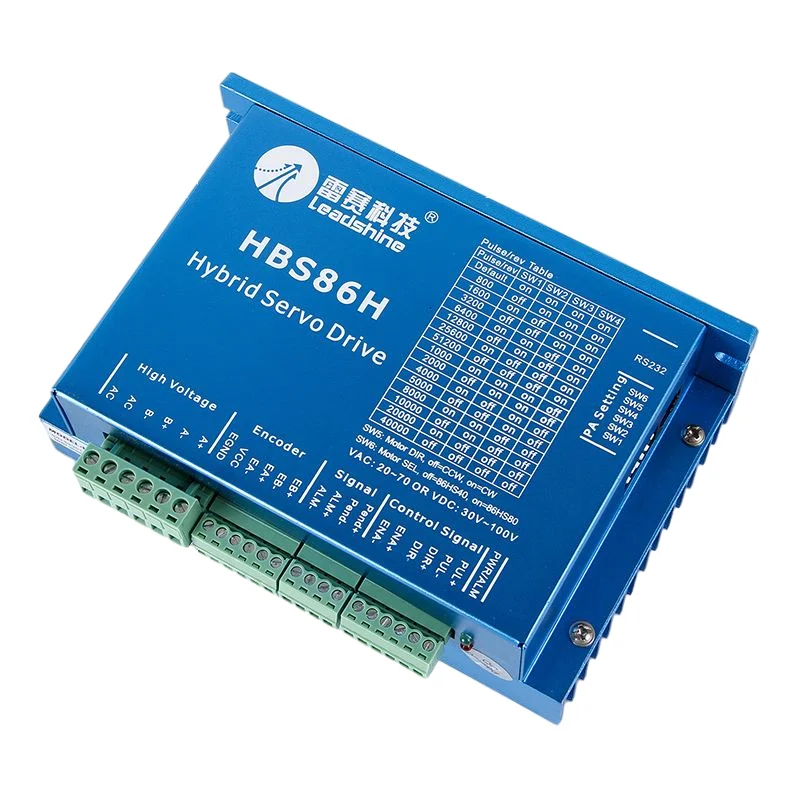

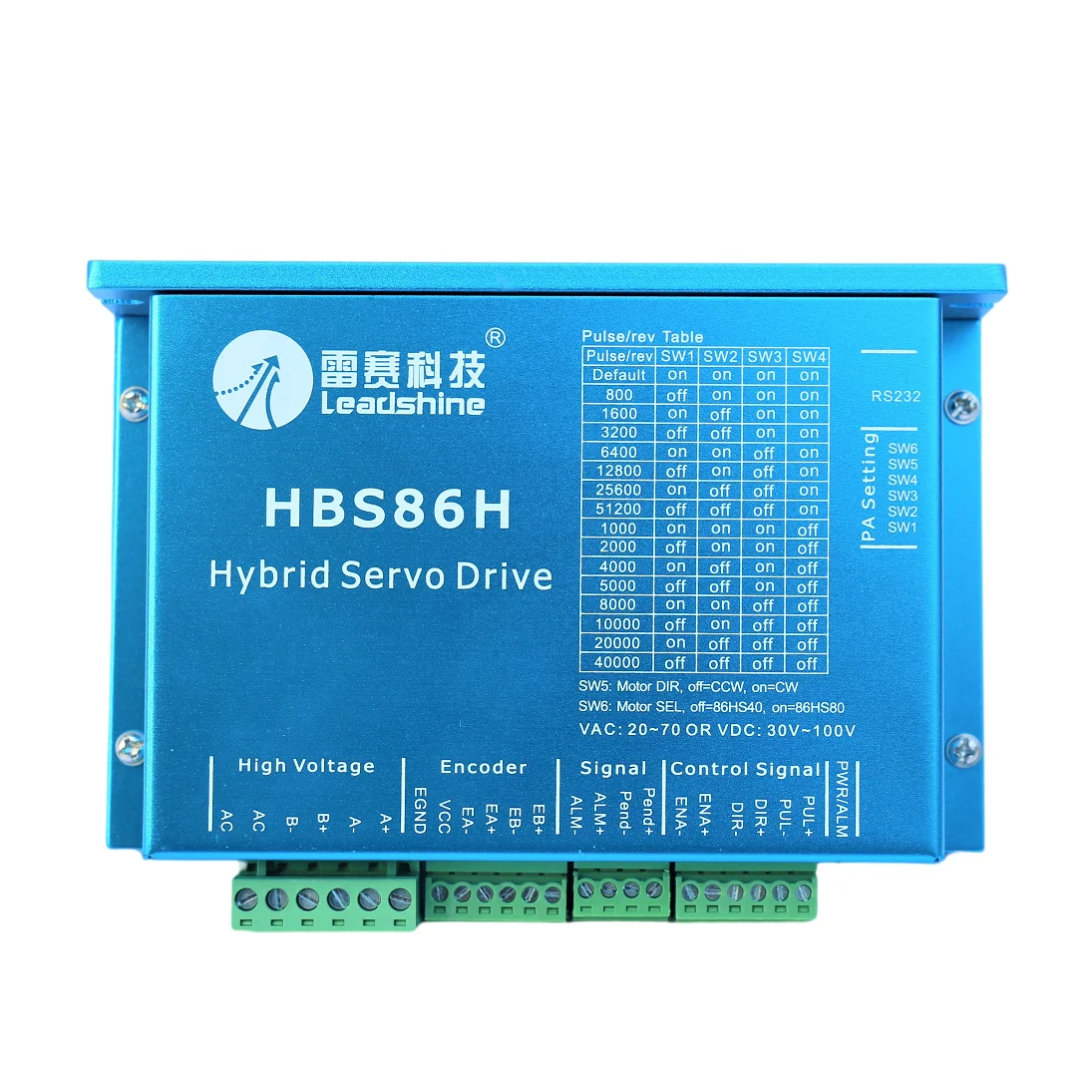

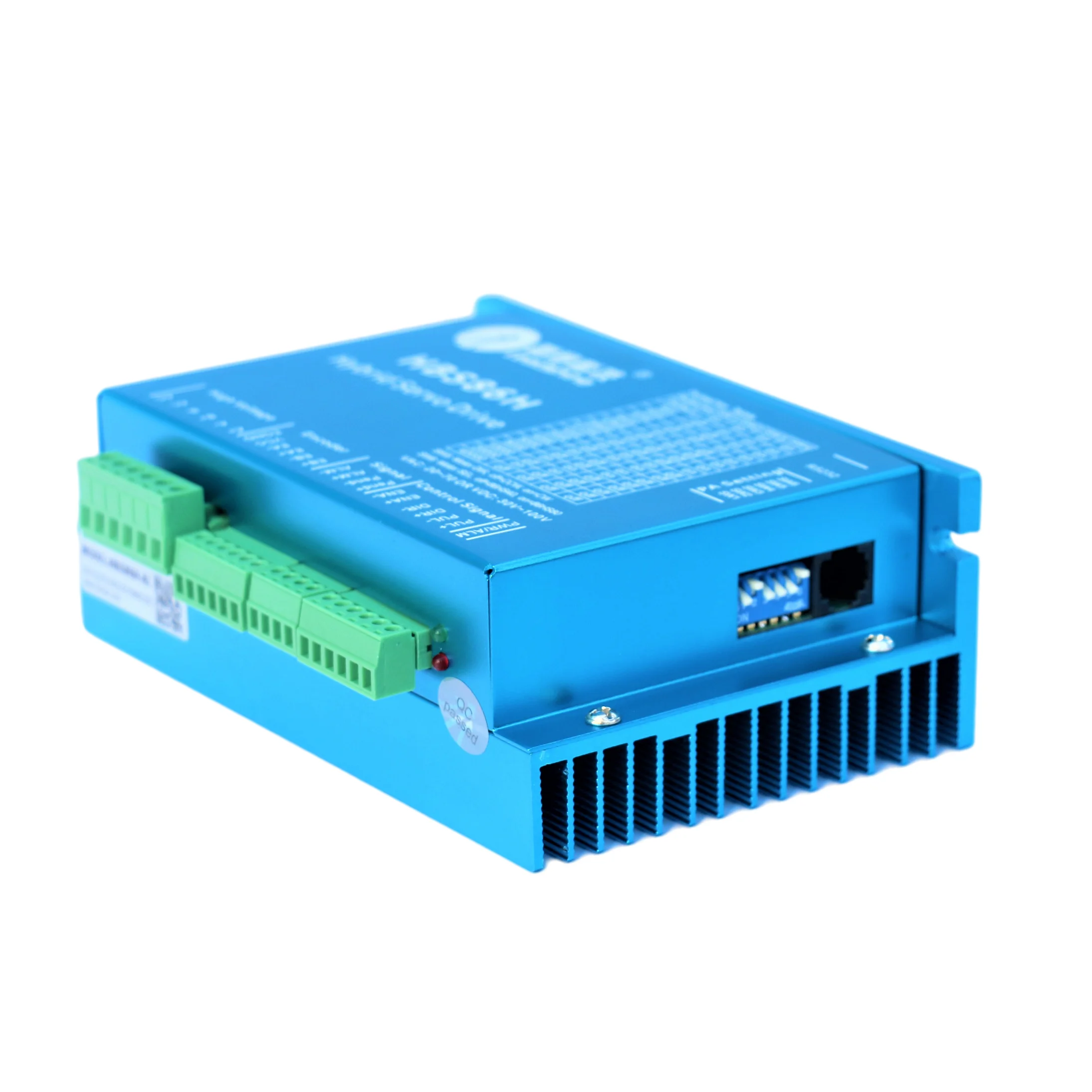

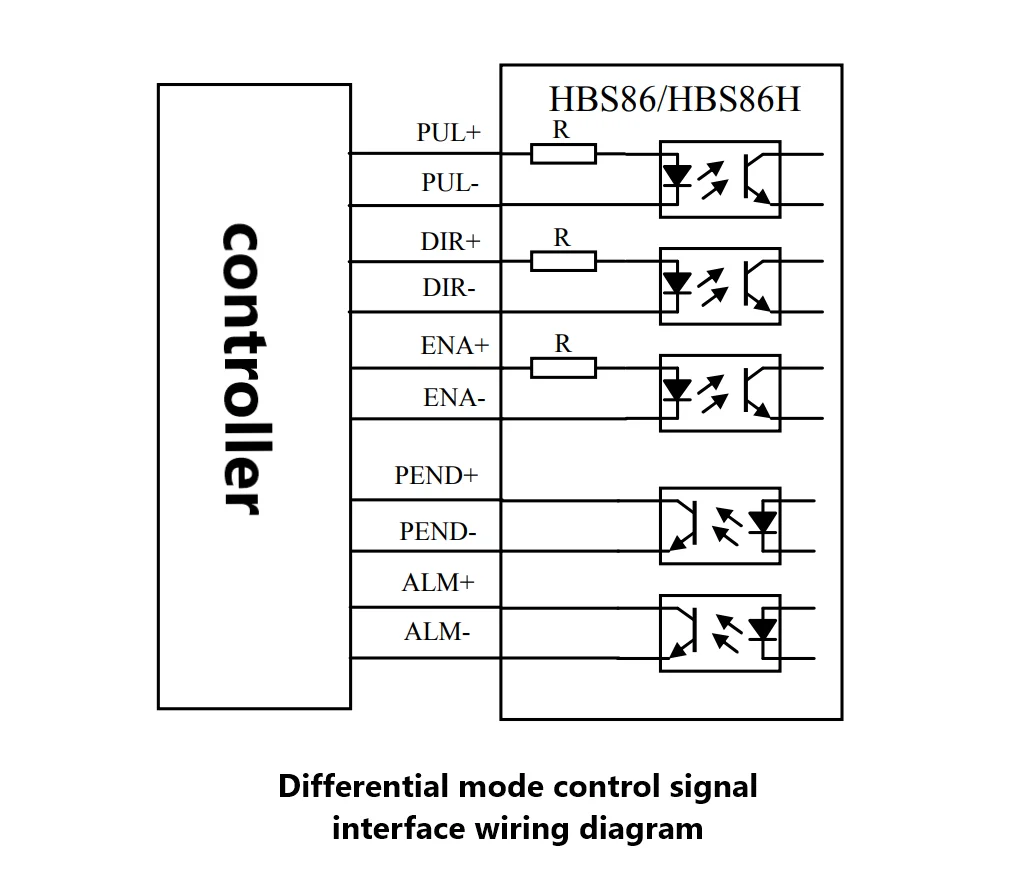

High quality closed loop hybrid servo driver HBS86H
- Category: >>>
- Supplier: Jinan Ruike International Trade Co. Ltd.
Share on (1600475138318):
Product Overview
Description
Parameters | HBS86H | ||||||
minimum value | typical value | maximum | company | ||||
Continuous output current | 0 | - | 8.2 | A | |||
Input power supply voltage | +18 | - | +80 | V | |||
Logic input current | 7 | 10 | 20 | Ma | |||
Pulse frequency | 0 | - | 200 | kHz | |||
Insulation resistance | 500 | - | - | MΩ | |||
Alarm output logic current | - | - | 50 | Ma | |||
Cooling mode | Natural cooling or external radiator | ||
Use environment | use occasion | try to avoid dust, oil mist and corrosive gas | |
temperature | 0℃－50℃ | ||
humidity | 40－90%RH | ||
shock | 10~55Hz/0.15mm | ||
Storage temperature | -20℃－65℃ | ||
Weight | about 570 G | ||
一、Technical features
*A new 32-bit DSP chip for motor control is adopted;
*It has the function of oscilloscope monitoring;
*The current can be set arbitrarily (in the range of 0-7a);
*It can drive 42, 57, 60 series hybrid servo motor;
*Pulse, direction, compatible with 5 ~ 24 VDC signal input;
*The maximum impulse response frequency is 200kHz;

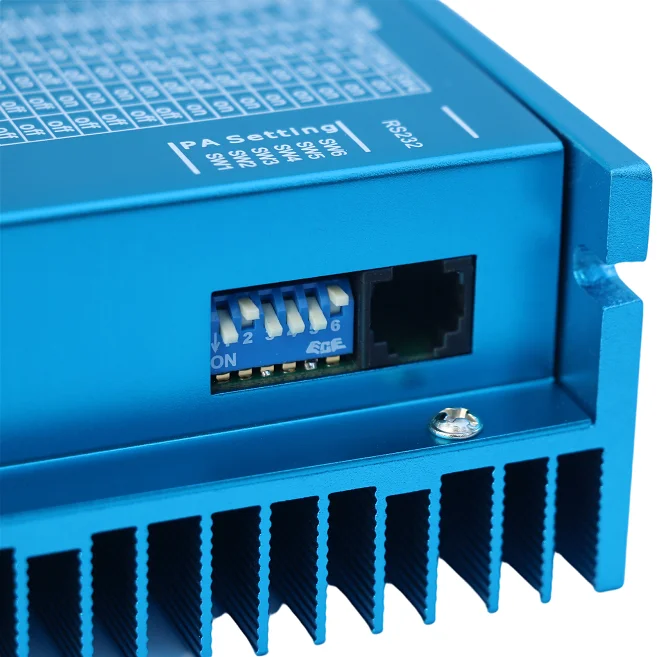

*Subdivision setting (within 200 ~ 51200);
*It has over-current, over-voltage and tracking error out of tolerance protection;
二、Application area
Widely used in small and medium-sized automation equipment and instruments, such as: engraving machine, stripping machine, marking machine, cutting machine, laser machine, plotter, medical equipment, CNC machine tools, automatic assembly equipment, electronic processing equipment, etc.
*A new 32-bit DSP chip for motor control is adopted;
*It has the function of oscilloscope monitoring;
*The current can be set arbitrarily (in the range of 0-7a);
*It can drive 42, 57, 60 series hybrid servo motor;
*Pulse, direction, compatible with 5 ~ 24 VDC signal input;
*The maximum impulse response frequency is 200kHz;
*Subdivision setting (within 200 ~ 51200);
*It has over-current, over-voltage and tracking error out of tolerance protection;
二、Application area
Widely used in small and medium-sized automation equipment and instruments, such as: engraving machine, stripping machine, marking machine, cutting machine, laser machine, plotter, medical equipment, CNC machine tools, automatic assembly equipment, electronic processing equipment, etc.

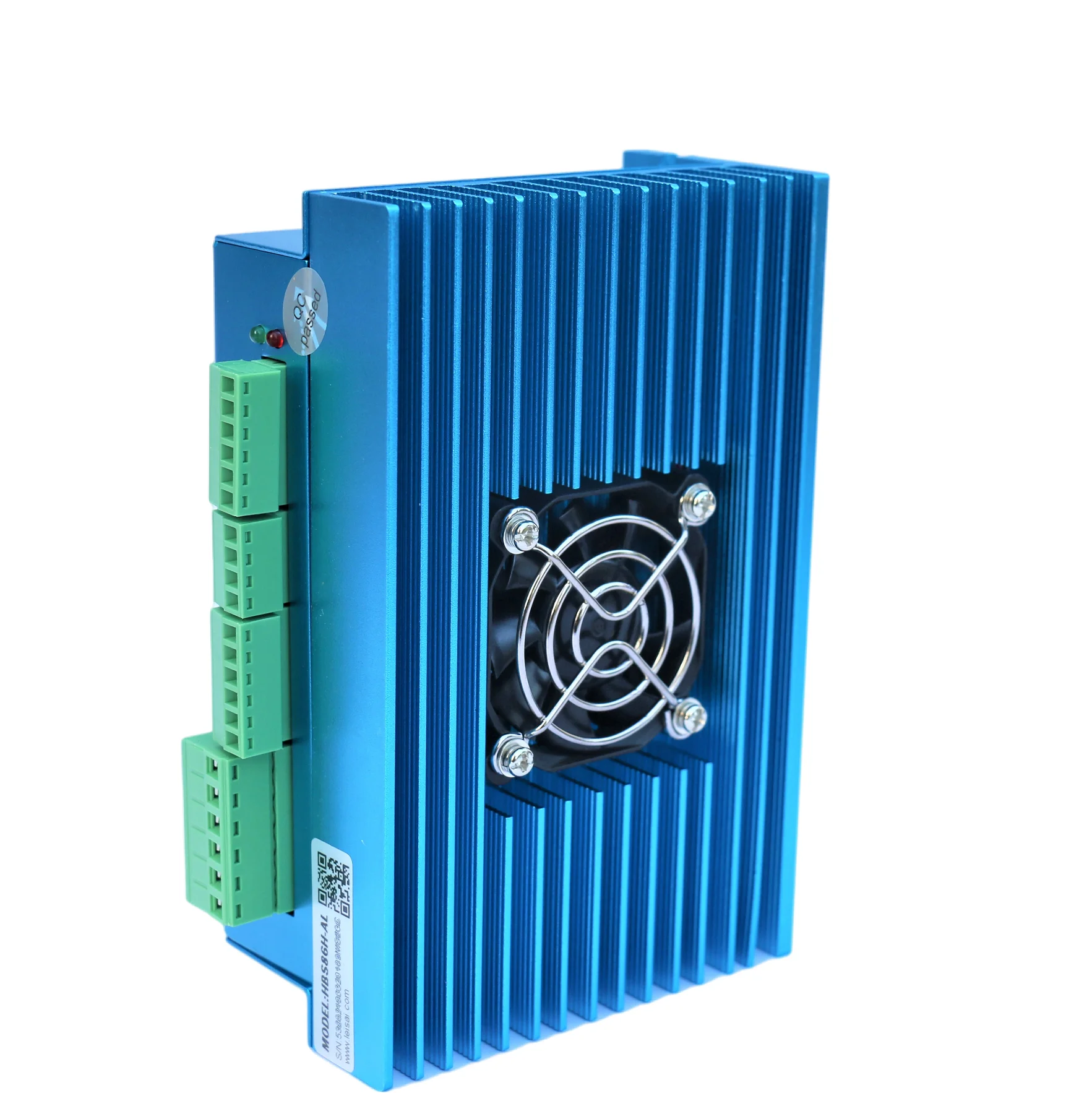

Strengthen heat dissipation mode
(1) The reliable working temperature of the driver is usually within 60 ℃, and the working temperature of the motor is within 80 ℃;
(2) When installing the driver, please use vertical side installation to form strong air convection on the radiator surface; If necessary, install a fan near the driver to force heat dissipation, so as to ensure that the driver can work within the reliable working temperature range.
四、Encoder wiring
When the current ICC required by the encoder is less than 50mA, it can be directly powered by hbs86 / hbs86h. At this time, egnd should be connected to the encoder ground, e + 5V should be connected to the encoder VCC, and the encoder a +, a -, B +, B - signals should be connected to the driver EA +, EA -, EB +, EB - ports in turn. When the current ICC required by the encoder is > 50mA, an additional 5V power supply is required. The specific wiring mode is shown in Figure 5. It is necessary to ensure that the encoder and hbs86 are grounded together.
(1) The reliable working temperature of the driver is usually within 60 ℃, and the working temperature of the motor is within 80 ℃;
(2) When installing the driver, please use vertical side installation to form strong air convection on the radiator surface; If necessary, install a fan near the driver to force heat dissipation, so as to ensure that the driver can work within the reliable working temperature range.
四、Encoder wiring
When the current ICC required by the encoder is less than 50mA, it can be directly powered by hbs86 / hbs86h. At this time, egnd should be connected to the encoder ground, e + 5V should be connected to the encoder VCC, and the encoder a +, a -, B +, B - signals should be connected to the driver EA +, EA -, EB +, EB - ports in turn. When the current ICC required by the encoder is > 50mA, an additional 5V power supply is required. The specific wiring mode is shown in Figure 5. It is necessary to ensure that the encoder and hbs86 are grounded together.
