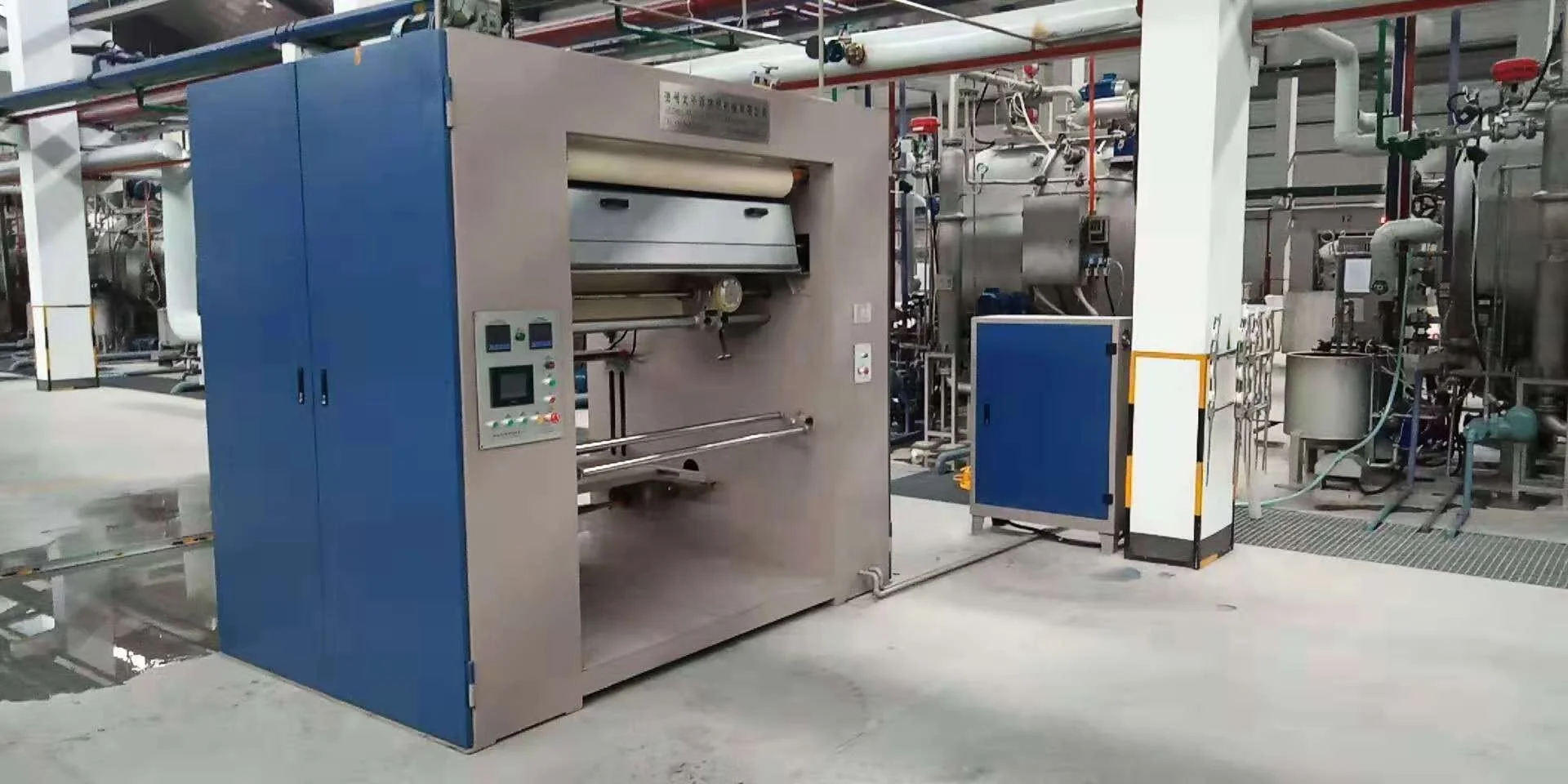

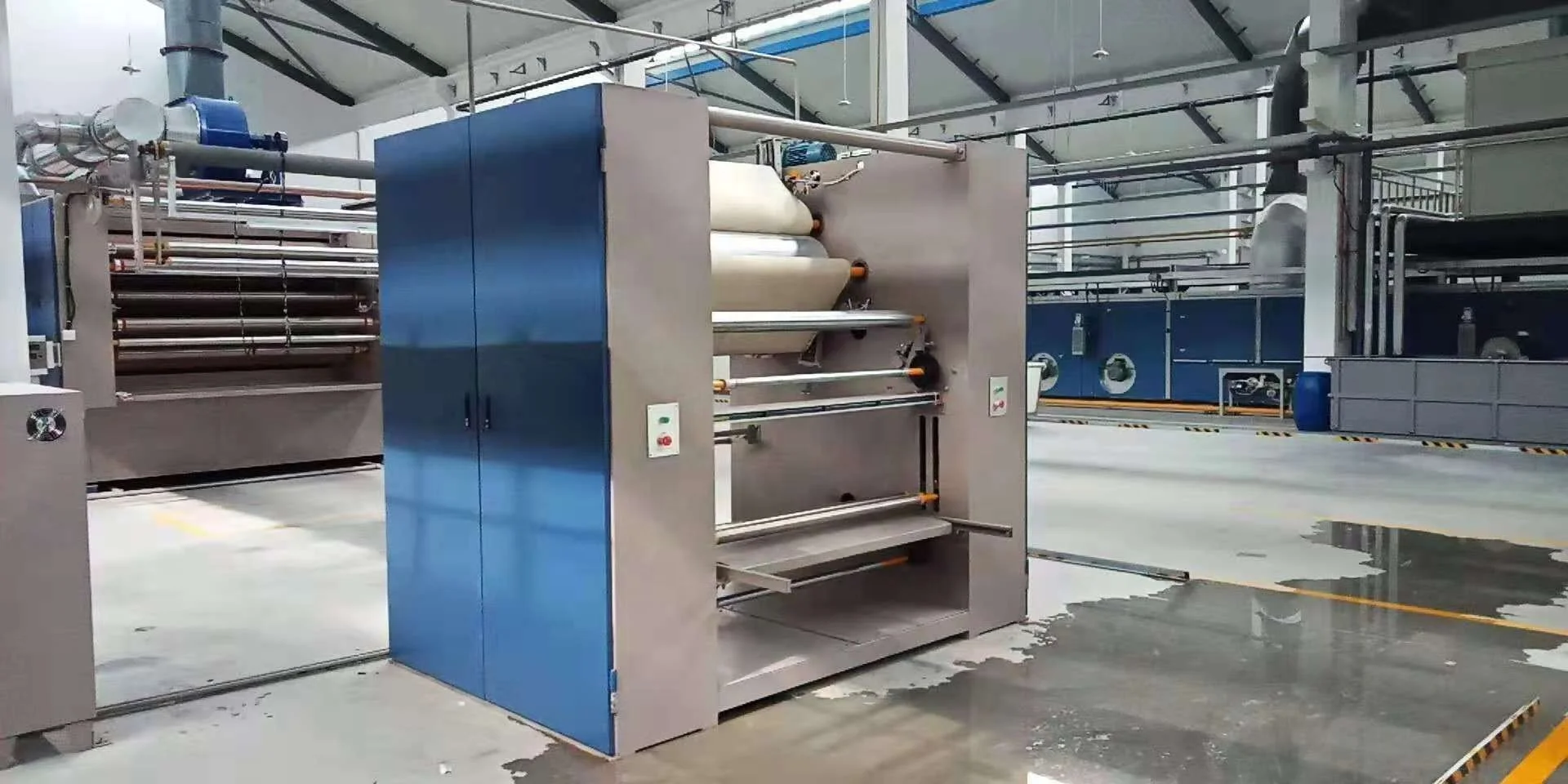

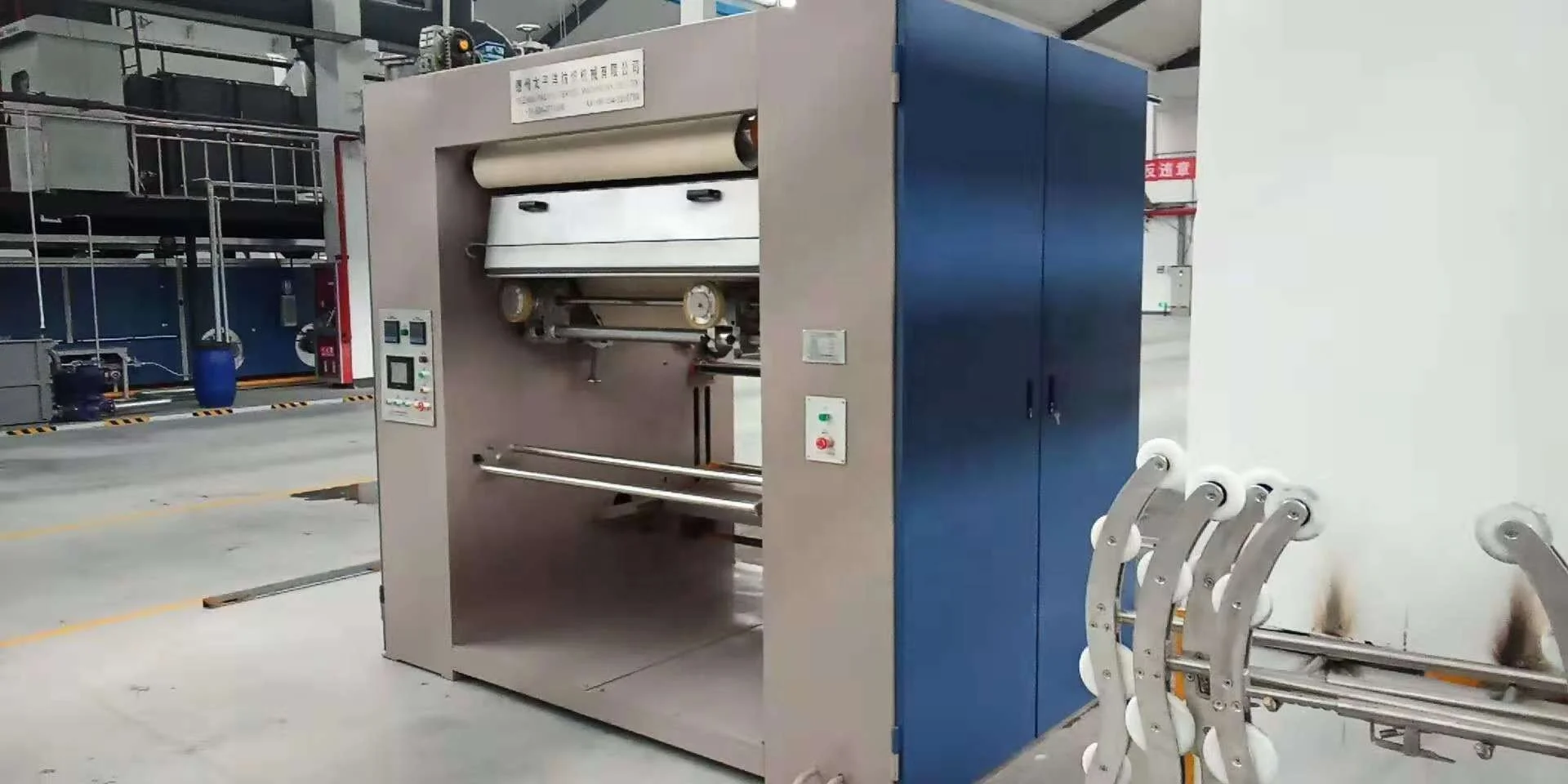

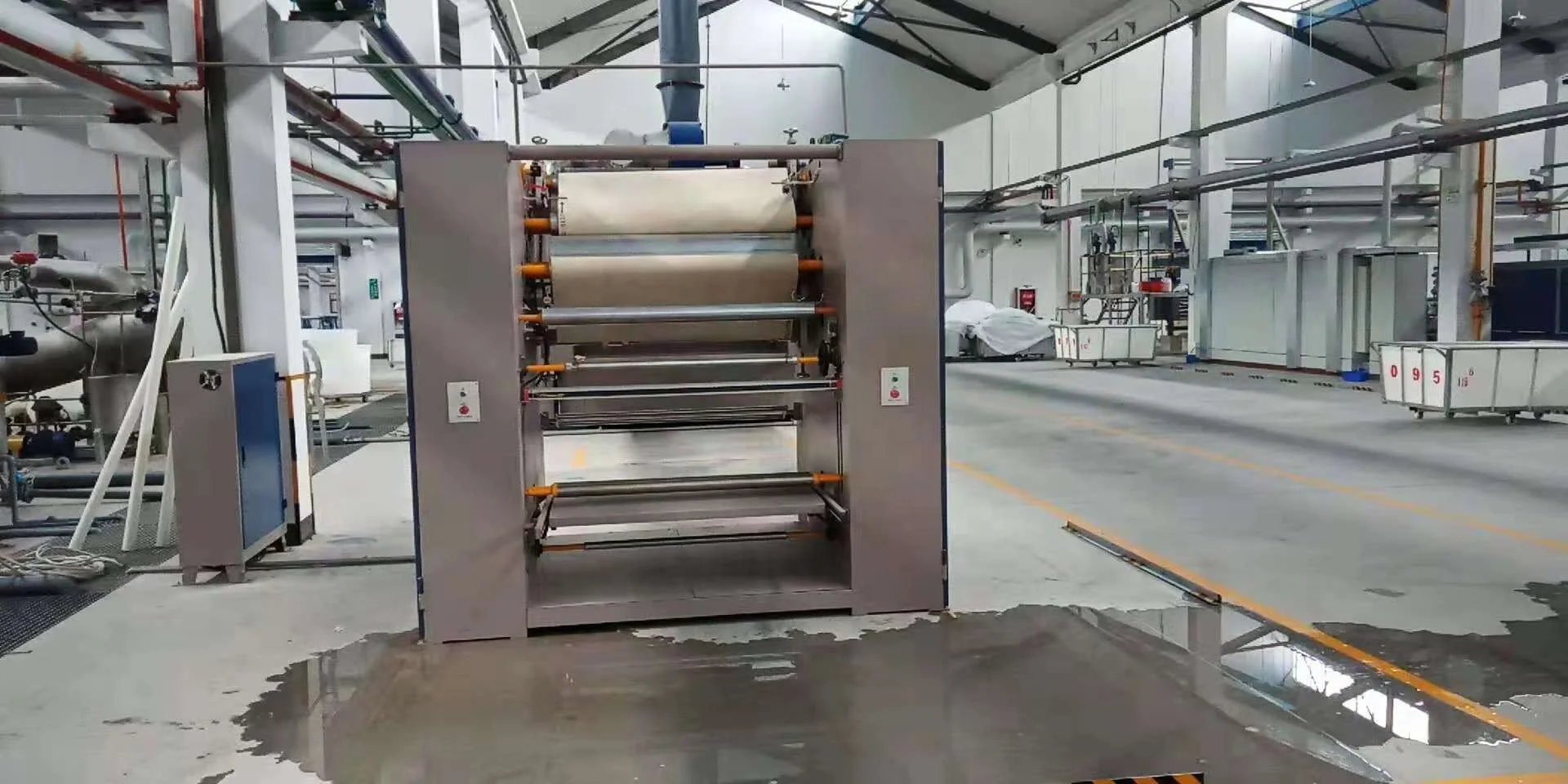

Vertical felt calender machine used for setting polyester and cotton fabric
- Category: >>>
- Supplier: Dezhou Guanlu Precision Machinery Co. Ltd.
Share on (1600475145432):
Product Overview
Description
Product Description
Textile soft calender machine
Machine usage ：
Textile soft calender machine is used for processing cotton and blend( polyester 65% cotton 35%) tubular knitting fabric .After
working by this machine ,The fabric could get stable size , smooth appearance and good hand feeling
Machine features :
1. Imported material of felts for machine good in wear and heat resistance .
2. Stainless steel steam box ,Steam volume is adjustable ,and supply when the machine open not condense water droplets.
3. Machine heat source : steam , electric oil ,Thermal oil .
4. When the fabric go through the heated cylinder through the felt , It is ironed .
5. Felts running with automatic deviation correction device.
6. Variable frequency speed regulation, increase the heat pressure shrinkage and contraction .
7. With coolant system at the fabric exit . Fabric size is stable .
8. With adjustable fabric stretcher .according to the fabric width .
9. Exit model : Mechanical folding ,simple rolling ,Non-stop rolling .
10. Economic model and easy operation ,Small footprint.
11. Dual pass and single pass is optional .
Textile soft calender machine is used for processing cotton and blend( polyester 65% cotton 35%) tubular knitting fabric .After
working by this machine ,The fabric could get stable size , smooth appearance and good hand feeling
Machine features :
1. Imported material of felts for machine good in wear and heat resistance .
2. Stainless steel steam box ,Steam volume is adjustable ,and supply when the machine open not condense water droplets.
3. Machine heat source : steam , electric oil ,Thermal oil .
4. When the fabric go through the heated cylinder through the felt , It is ironed .
5. Felts running with automatic deviation correction device.
6. Variable frequency speed regulation, increase the heat pressure shrinkage and contraction .
7. With coolant system at the fabric exit . Fabric size is stable .
8. With adjustable fabric stretcher .according to the fabric width .
9. Exit model : Mechanical folding ,simple rolling ,Non-stop rolling .
10. Economic model and easy operation ,Small footprint.
11. Dual pass and single pass is optional .
Specification
item | value |
Showroom Location | Egypt, Viet Nam, Peru, Pakistan, Mexico, Chile, Romania, Bangladesh, Uzbekistan |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | PLC, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump |
Condition | New |
Automatic Grade | Automatic |
Place of Origin | China |
Shandong | |
Brand Name | TPY |
Voltage | 380V/3PHASE |
Power | 380V 220V |
Dimension(L*W*H) | 3960*1800*2500mm |
Weight | 4500KG |
Warranty | 1 Year |
Production Capacity | |
Machine name | Vertical felt calender |
Working width | 1400mm |
Mechanical speed | 3-30m/min |
Drying cylinder temperature | 100-200 degree |
Motor power | 7kw |
Heating source | Steam ,thermal oil ,electric oil |
Machine weight | 4.5ton |
Dimension | 3980*1800*2500mm |
Packing & Delivery
1. Before shipment, every part of machine will be painted with a
layer of anti-rust and water-proof oil to prevent possible
erosion during transportation.
2. A plastic cover to wrap around machine parts to enhance corrosion prevention.
3. Export standard fumigated wood cases are measured and specially made for packing.
4. Steel wire will be used to tighten and strengthen the packages inside container.
5. At seaport, extra strengthen with wire ropes, bandages, wedges ect. to avoid packages leaning or moving during
transportation.
layer of anti-rust and water-proof oil to prevent possible
erosion during transportation.
2. A plastic cover to wrap around machine parts to enhance corrosion prevention.
3. Export standard fumigated wood cases are measured and specially made for packing.
4. Steel wire will be used to tighten and strengthen the packages inside container.
5. At seaport, extra strengthen with wire ropes, bandages, wedges ect. to avoid packages leaning or moving during
transportation.
Company Profile
FAQ
1. Q: How about the payment terms?
A: We accept T/T 30% prepaid when ordering, the balance paid before shipping.
2. Q: How about the delivery time?
A: Normally, 4-6 months after the deposit.
3. Q: How about the after-sale services?
A: We supply on-site commissioning, operators training, and maintaining services.
4. Q: How about the technical support?
A: While the customer is meeting the technical problems in processing, our engineer will try their best to give them suggestions
and support. This is for free to our customers.
A: We accept T/T 30% prepaid when ordering, the balance paid before shipping.
2. Q: How about the delivery time?
A: Normally, 4-6 months after the deposit.
3. Q: How about the after-sale services?
A: We supply on-site commissioning, operators training, and maintaining services.
4. Q: How about the technical support?
A: While the customer is meeting the technical problems in processing, our engineer will try their best to give them suggestions
and support. This is for free to our customers.
