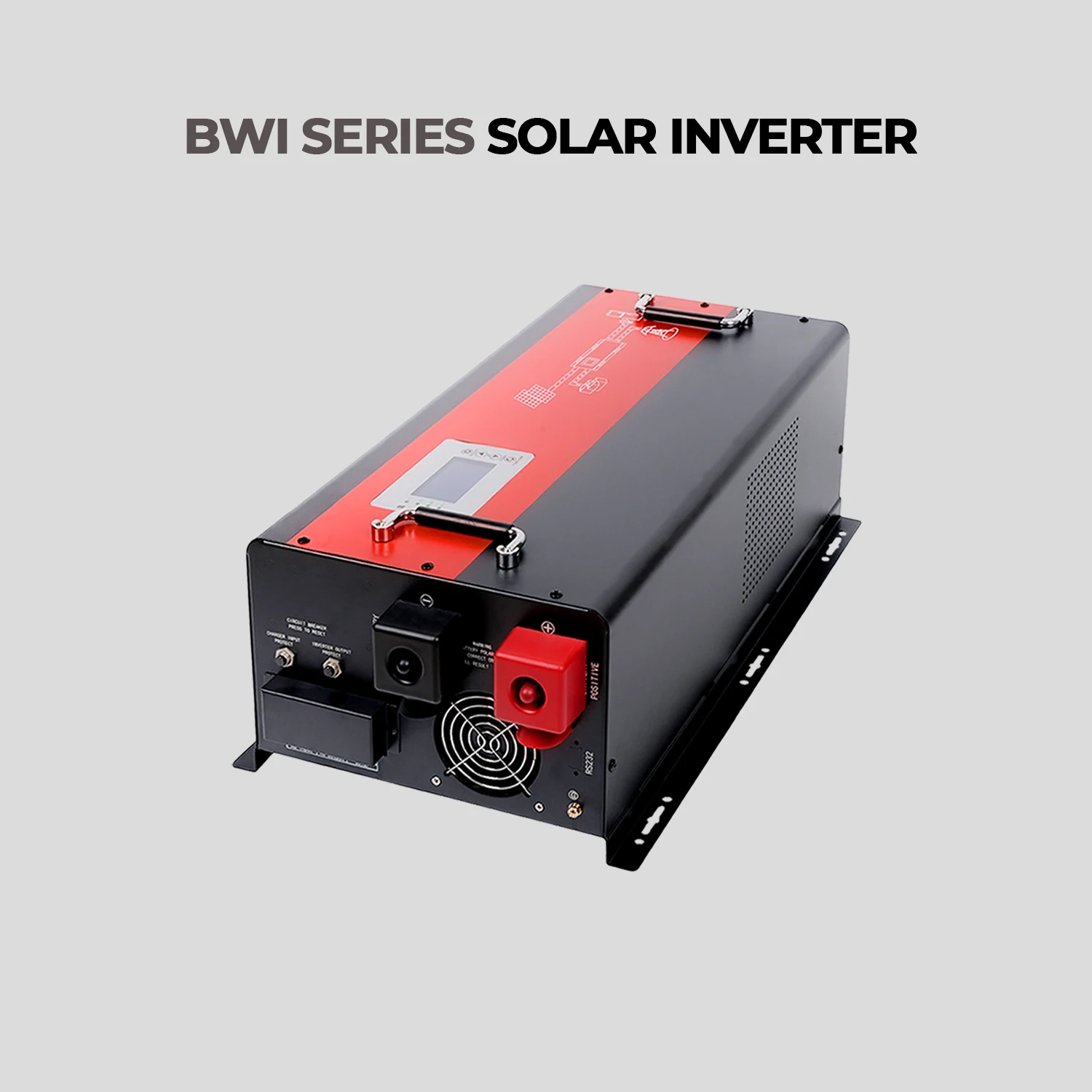

Reliable Sunlight Optimisers Solar Inverter with Pure Wave MPPT Controller
- Category: >>>
- Supplier: Genesis Green Energy Technology Co. Ltd.
Share on (1600475158790):
Product Overview
Description
Product Description
High Quality 1Kva to 6000w Split Phase Solar Off grid Inverter with Solar Panel With Manufacturer Price
| Item | Power frequency pure sine wave inverter/solar inverter built in controller | |||||
| Model Number | BWI100 | BWI200 | BWI300 | BWI400 | BWI500 | BWI600 |
| Rated power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W |
| Battery voltage | 12V/24V | 24V/48V/96V | 48V/96V | |||
| Charging current | 15A(Mains mode)optional | |||||
| Charging voltage | single battery (default)13.8V, Maximum adjustable 14.5V | |||||
| Mains voltage | 220VAC(±20%) | |||||
| Mains frequency | 50Hz/60Hz auto recognition | |||||
| Output voltage | Mains mode and mains synchronization, inverter mode: 220VAC±3% | |||||
| Output frequency | Inverter mode:50Hz/60Hz | |||||
| Output waveform | Pure sine wave | |||||
| Inverter efficiency | >85% | |||||
| Conversion time | ≤5ms | |||||
| Battery protection | 1-When the voltage of a single battery is lower than 10V, the machine shuts down; 2-When the voltage of a single battery is lower than 10.8V, the machine will switch to mains mode; 3-When the single battery voltage is higher than 13.3V, the machine switches back to inverter mode. | |||||
| Overload power | Full load alarm,Overload 110%-120%/30 seconds automatic shutdown, >150%, 3 seconds automatic shutdown | |||||
| Protective function | Overcharge/overdischarge protection, overload protection, short circuit protection, over temperature protection | |||||

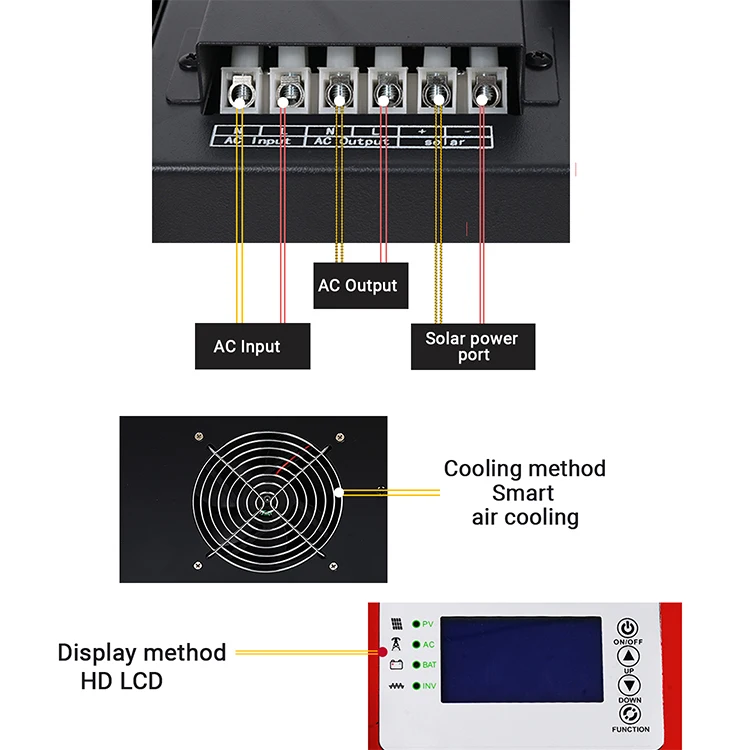

| Display method | HD LCD | |||||
| Working environment | Temperature 0℃~40℃ | |||||
| Cooling method | Smart air cooling | |||||
| Operating mode | Mains priority mode/Battery priority mode/Dual mode | |||||
| Battery Type | Maintenance-free lead-acid battery/gel/lithium battery | |||||
| Inverter dimension | 500*260*180mm | 550*335*200mm | ||||
| Package size | 580*325*240mm | 645*370*250mm | ||||
| Net weight(kg) | 11.5 | 14.5 | 17.5 | 23.5 | 25 | 26.5 |
| Gross weight(kg) | 14 | 17 | 20 | 27 | 28.5 | 30 |
| Packing | Honeycomb cardboard carton with shockproof foam | |||||
| Buit in PWM solar controller | ||||||
| Rated current | 30A | 30A | 50A | 50A | ||
| DC voltage | 24V | 48V | 24V | 48V | ||
| Access to photovoltaic power range | 750W | 1440W | 1200W | 2400W | ||
| Input photovoltaic voltage range | 30-65V | 60-100V | 30-65V | 60-100V | ||
| Remark:If the above specifications cannot meet your needs, please click here to contact us to customize it for you. | ||||||
