L Shaped Copper Evaporator Coil for Air conditioning Spare Parts Vyparnik Tepelneho Cerpadla
L Shaped Copper Evaporator Coil for Air-conditioning Spare Parts Vyparnik Tepelneho Cerpadla
L Shaped Copper Evaporator Coil for Air-conditioning Spare Parts Vyparnik Tepelneho Cerpadla
L Shaped Copper Evaporator Coil for Air-conditioning Spare Parts Vyparnik Tepelneho Cerpadla
L Shaped Copper Evaporator Coil for Air-conditioning Spare Parts Vyparnik Tepelneho Cerpadla
L Shaped Copper Evaporator Coil for Air-conditioning Spare Parts Vyparnik Tepelneho Cerpadla
L Shaped Copper Evaporator Coil for Air-conditioning Spare Parts Vyparnik Tepelneho Cerpadla

L Shaped Copper Evaporator Coil for Air conditioning Spare Parts Vyparnik Tepelneho Cerpadla

Share on (1600475158956):


Price:

Quantity:


Product Overview

Description



Product description




1. Product Application

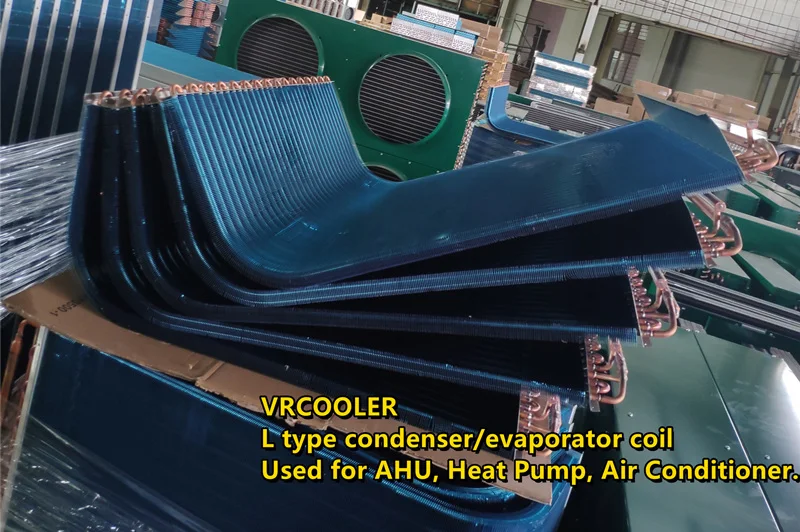

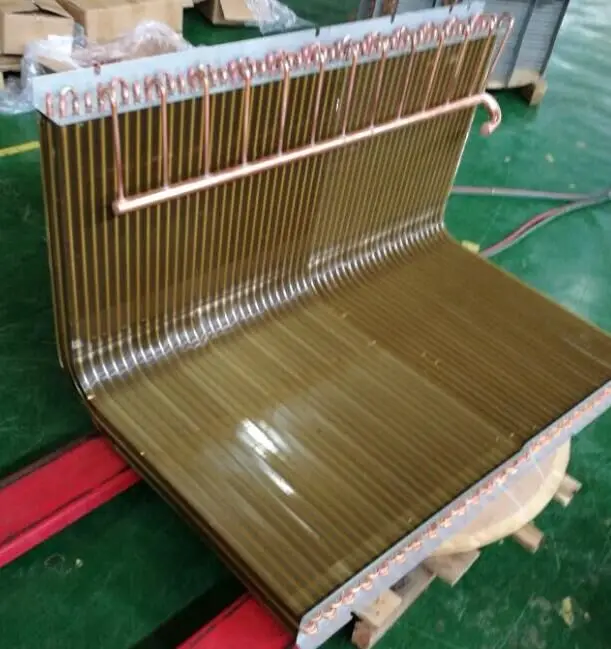

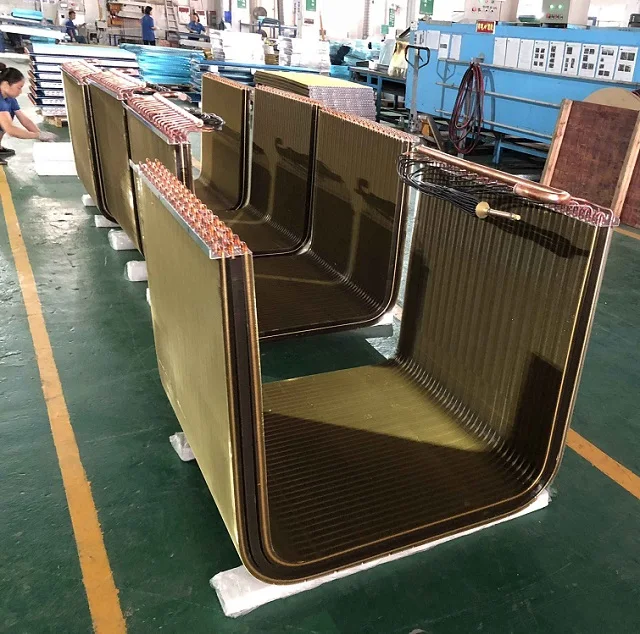

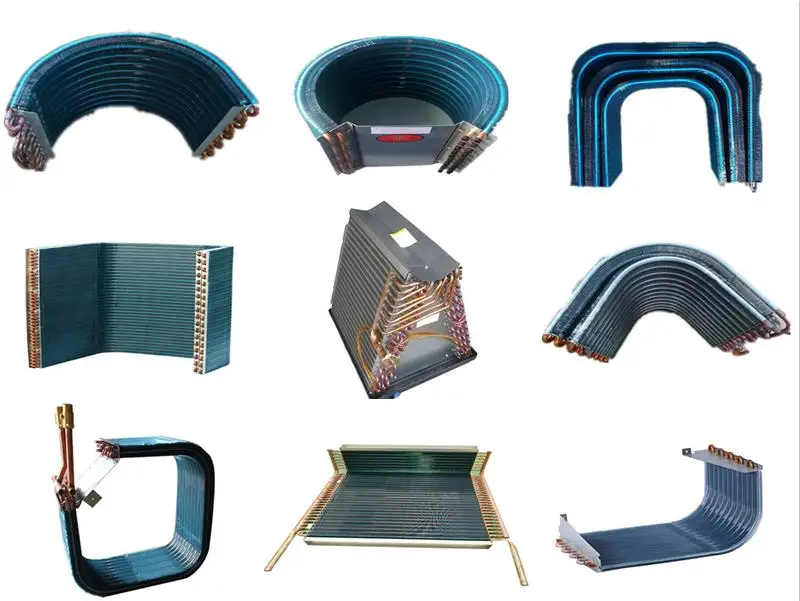

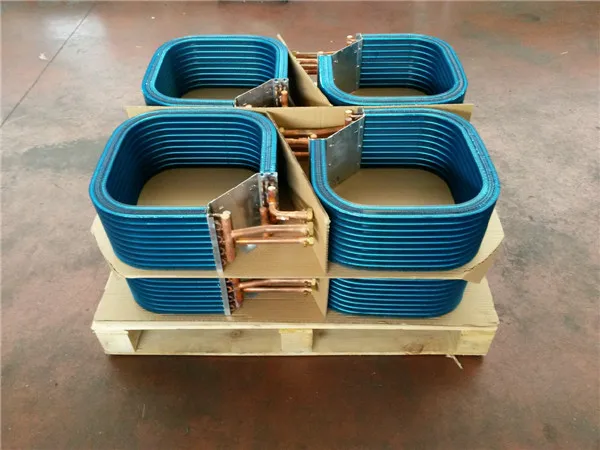

We supply bend coils in “L” shape, “C” shape or “D” shape configurations.
These can be built with 2 pipe or 4 pipe designs. Large bent coils can be made using two “L” shape coils brazed together and we can provide both 1 and 2 row designs. Additional rows will require nesting a separate coil inside a coil.

Applications:
Refrigeration display cabinet
Upright Coolers
Showcase freezers
Multideck Cabinets
Island Freezers/Coolers
Impules Coolers
Ice Cream Scooping Cabinets
Coffee machine
Air conditioner
AHU
Heat Pump
Water Chiller

Materials of Construction:
Tubes and Fins: Copper, cupro-nickel, aluminum, and stainless steel
Tube Diameters: according to our mold sheet
Casings: Aluminum, galvanized steel, and stainless steel

Optional Features:
Polycoat (Polyester) precoated aluminum fins
Baked Phenolic or Electrofin corrosion resistant coating
Bolted and gasketed removable headers
Gastight casings
Integral drainpans
Integral mist eliminators


2. Raw materials



TUBE
Copper
Titanium
Aluminum
Carbon steel
Stainless steel 304
Stainless steel 316
Cu-Ni(90/10)
Cu-Ni(70/30)
FIN
Copper
Aluminum
Stainless steel
Carbon steel
Titanium
FRAME
Galvanized
Aluminum
Stainless steel


Fin mold




Details of materials


TUBES
We make tubes of different diameters, with a greater number of thicknesses and different materials such as copper, stainless steel and cupronickel. The tube expansion, during the flaring phase, allows a perfect contact between the tubes and the fins and as a consequence it assures efficient thermal exchange.


COPPER - Copper tube
STAINLESS STEEL - AISI 316L tube
CURRONICKEL - CuNi10Fe1Mn tube


FINS
The fins, made of aluminium, prevarnished aluminium or copper, are pressed by means of a particular ondulation that increases the thermal exchange between the air and the fin reducing the load losses on the air side and encouraging at the same time the flow of condensation or defrosting water.

The fins can also be made from 316L stainless steel for installations where the thermal exchange is in aggressive environments such as the food sector or exchangers used in salty environments.

The main geometries, achievable according to the chosen material, are reported following below; besides, according to the application chosen by the customer and to the thickness of the requested strap, it will be possible to make a major or minor pitch between the fins.


ALUMINIUM FINS
HYDROPHYLIC ALUMINIUM FINS\t
PREVARNISHED ALUMINIUM FINS


STEEL FINS 316L
COPPER FINS


PLATES
Thanks to its accurate three-dimensional design and to modern punchers and numerical control bending machines, it is possible to make carpentry and structures of different sizes that can be adapted to any construction requirement of the customer.


GALVANIZED STEEL PLATES
ALLUMINIUM PLATES
COPPER PLATES


BRASS PLATES
STAINLESS STEEL PLATES Aisi 304
plated with protective pvc


Customer feedback photos


Russia epoxy coating project
Thailand chiller project
New Zealand gold fin evaporator for heat pump project


Italy 7mm fan coil unit coil
British Blygold project
Australia U-type coil project


Engineering Data


We have customized products for many customers, following are some projects we did before.
We can provide designing data and prodcution drawings.




We promise we use the design software sold by a well-known European HAVC software company.

Through 8 years of cooperation with them, we have designed, processed and exported dry coolers to various countries all around the world.

All of customers feedback is that the actual cooling performance is almost the same as the theoretical design value.






Our Company


MORE THAN 15 YEARS OF SUCCESS
Changzhou Vrcoolertech Refrigeration Co.,Ltd specializes in researching, manufacturing and exporting Heat Exchangers, Evaporators, Condensers, air cooler and other heat transfer equipments for the varied industries since 2004.


OUR MISSION
We are committed to quality products and services to meet our customer's expectations and the needs of industrials. We are dedicated to our mission and goal and we believe in long term business relationship with our customers which is based on integrity, responsiveness and quality


A STRATEGIC LOCATION
Address: Qingsitang, Henglin Town, Wujin Dist, Changzhou, Jiangsu, China.
Tel: +86-0519-81695177
E-mail: info@vrcooler.com ; sales@vrcooler.com
Website: www.vrcoolertech.com ; www.vrcooler.com


QUALITY CERTIFICATES


Since 2004 UNI EN ISO 9001:2008 Quality System
Since 2005 UNI EN ISO 14001:2004 Environmental Management System




Packing and delivery




The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
