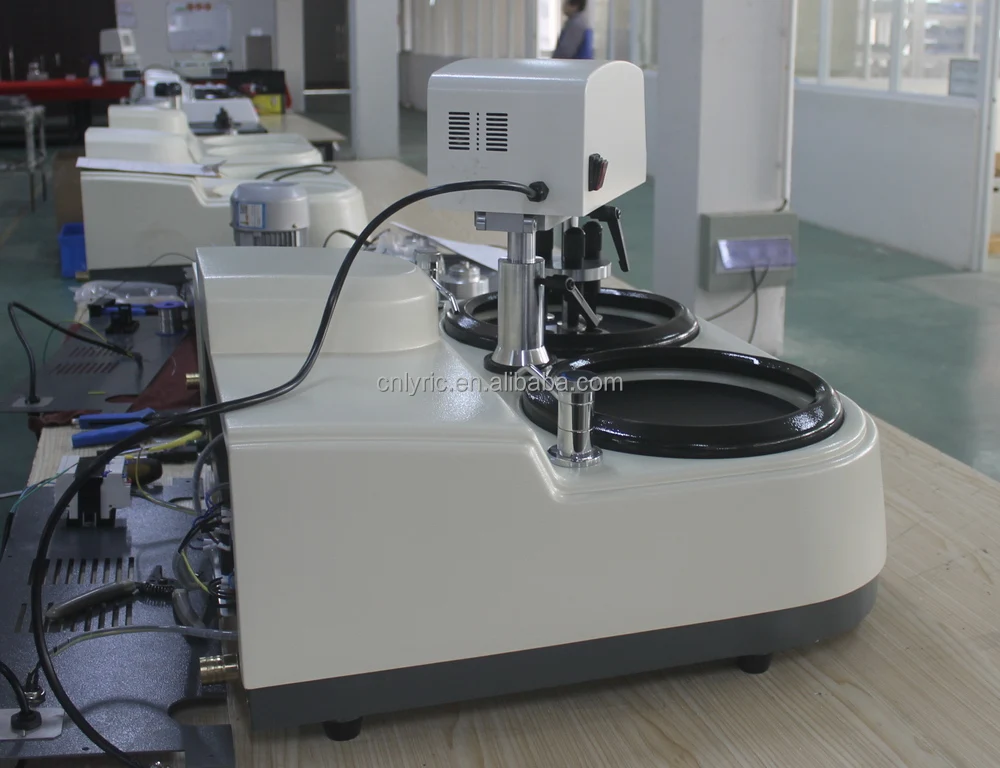

MPS 2250X stepless speed changing automatic metallographic grinding polishing machine
- Category: >>>
- Supplier: Laizhou Lyric Testing Equipment Co. Ltd.
Share on (1600475181422):
Product Overview
Description
Product Description
MODEL MPS-2250X SEMI-AUTOMATIC METALLOGRAPHIC GRINDING & POLISHING MACHINE Features * Semi-automatic polishing head with 3-hole 30mm for sample clamping * Multi-usage, metallographic specimen of coarse grinding, fine grinding, coarse and fine polishing, one machine to complete * Grinding disc diameter: 250 mm, compare to ordinary grinding disc, effective area increased by 60% * Manual mode: four-level constant speed mode and variable speed mode * Four level constant speeds: customer can define three common speeds for pre-grinding, grinding and polishing * Variable speed mode: grinding speed 100-1000 rpm * Automatic mode: Eight sections programmable control, automatically stop, convenient for customer getting metallographic sample * Easily replace magnetic anti-sticking dish, can make all kinds of sample of coarse and fine grinding, coarse and fine polishing all process * Optional work rotating direction: clockwise and counterclockwise are optional * By using the electromagnetic valve to control the water on and off * Beautiful outlook and good quality Technical specifications MPS polishing head: Power: Single phase, 220V, 50Hz Rotate speed: 50-200 rpm Sample force: 0-40N Sample capacity: 1-3 METAPOL 2250X main machine: Stepless Speed changing: 100-1000 rpm FWD & REV rotating directions can be switched) Three-level constant speed: V1=300rpm, V2=500rpm, V3=600rpm, V4=800rpm (or customizable) Disc diameter: 250mm (Optional 230mm, 200mm) Power: 750W, 220V, 50/60Hz Overall Dimensions: 760×730×360mm Net weight: 46Kg | ||
MAGNETIC DISC
Magnetic working disc is applied in this machine. Working together with anti-sticky disc, it can make the abrasive paper replacement much more easier.

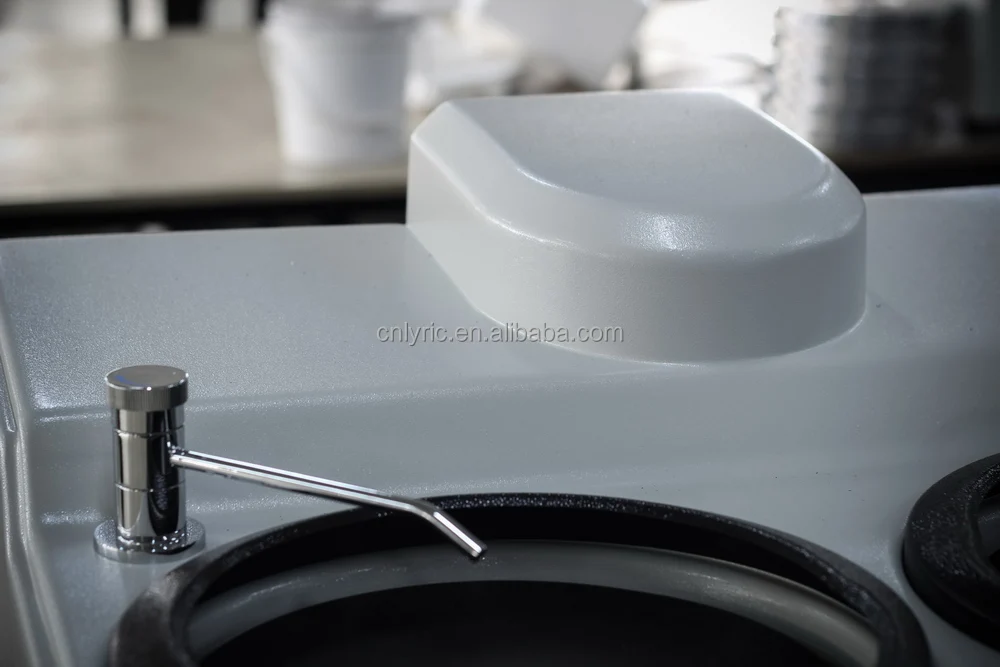

WATER COOLING TAP
Water cooling tap is equipped with this machine which can bring away the heat produced during grinding & polishing process and avoid damage to the metallographic structure of specimen

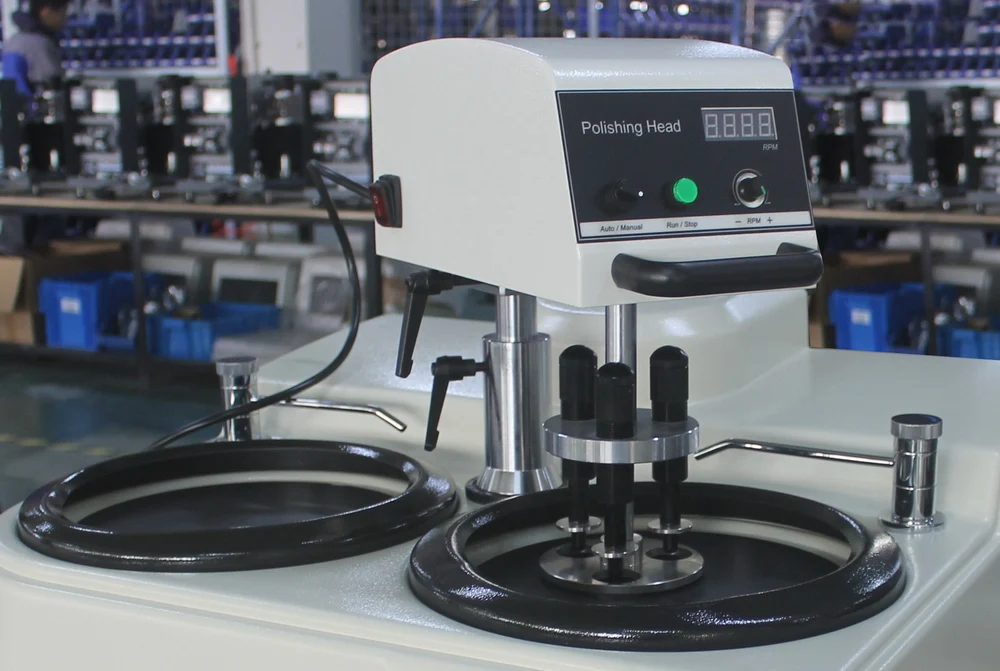

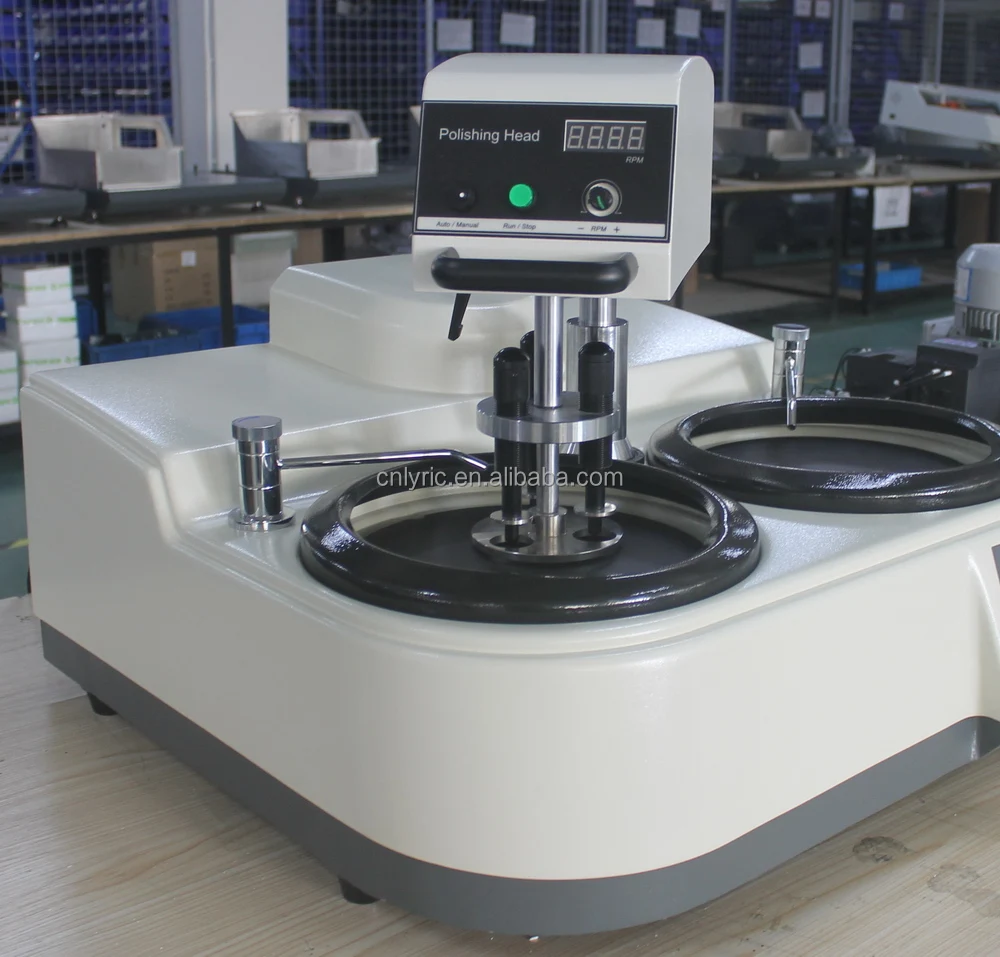

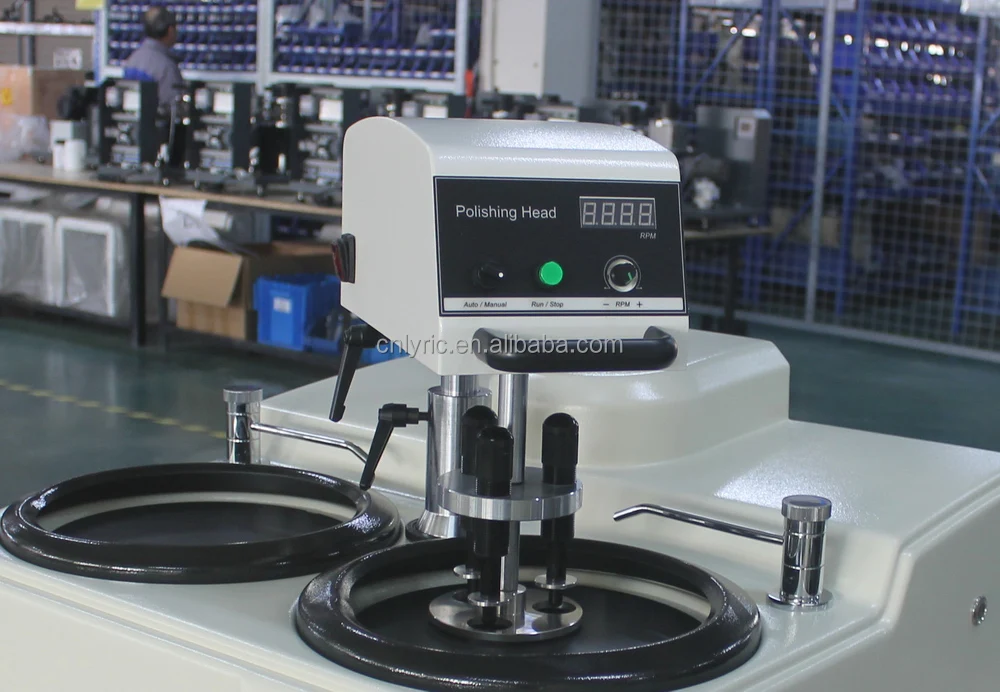

POLISHING HEAD
Semi-automatic polishing head with 50-200 rpm stepless adjustable rotation speed
3-HOLE SPECIMEN HOLDER
3-hole sample holder with 30mm diameter. Other sizes of sample holes are optional against customer demand.
STEPLESS SPEED CHANGING & ROTATION DIRECTION CHANGING
The rotation speed of grinding disc can be adjusted between 100-1000 rpm steplessly. It also has four level constant speed of 300rpm, 500rpm, 600rpm, and 800rpm
BEAUTIFUL MACHINE BODY AND APPEARANCE DESIGN
The machine body is specially designed with beautiful appearance and durable structure.
Standard Accessories | ||||||
Name | Quantity | Name | Quantity | |||
Magnetic working plate (250mm) | 2 pieces | Anti-sticky disc (250mm) | 2 pieces | |||
One side sticky grinding paper (250mm) 320#, 1000# | 10 pieces/each | One side sticky polishing cloth (250mm), velvet fabric | 1 piece | |||
Diamond polishing liquid, 6micron, 200ml | 1bottle | Lubrication cooling liquid, blue, 200ml | 1 bottle | |||
Waterproof ring | 2 pieces | Input-water pipe adapter | 1 piece | |||
Input-water pipe | 1 piece | Power cable | 1 piece | |||
Output-water pipe | 1 piece | Machine certificate | 1 set | |||
Machine manual | 1 set | Packing list | 1 set | |||
Optional Accessories | ||||
Metallographic grinding paper | GSC250A | * 100 pieces /package * Material: black carborundum * Sand size: P80# 120# 180# 320# 600# 800# 1000# 1200# 1500# 2000# * Size: Φ250mm * Waterproof and one side sticky, can be attached on the grinding plate directly | ||
Anti-sticky disc | MAGNOMET | * Anti-sticky disc: 5 pieces/box * Diameter: Φ250mm * Surface coating with Special anti-sticky layer, can attach the sticky paper and polishing cloth directly, and easily replace without sticky mark. * Can be reused | ||
Polishing cloth | FT250A | * Polishing cloth 10 pieces/package * Velvet fabric(long floss) / canvas (short floss)/ Woolen cloth (short floss) / silk cloth (no floss) * Φ250mm * One side sticky, can be attached directly on the grinding plate | ||
Diamond grinding and polishing liquid | DSU | * Diamond grinding and polishing liquid, 500ml/bottle * Diamond suspending in the liquid, can be dropped automatically or watering pot, Uniformly distribution * Size: 0.25, 0.5, 1, 1.5, 2.5, 3, 3.5, 5, 6, 7, 9, 10, 14, 15, 20, 28, 40micron, for different material | ||
