High Quality Frequency Control Laboratory Double Jacketed Glass Reactor S212 1L

Product Overview

Description

Product Description:

Jacketed Glass Reactor can do stirring reaction in the inner layer under the condition of vacuum. The interlayer can make constant temperature for heating or cooling reaction through the heat or cold source(freezing liquid, water or hot oil).It is widely used in modern refined chemical, biological pharmacy, new material synthesis industry research experiment,etc.



Product Features:

1.Constant rotate speed, no electric brush, no spark, safe and stable, enable continuous working.

2.Full set of glass part is produced by G3.3 borosilicate glass, owns excellent chemical and physical properties.

3.When glass interlayer connecting to hot oil and been circulated, it can do heating reaction, connecting to refrigerating fluid can do low temperature reaction.

4.Enable reaction under normal temperature, that is connecting to tap water can take away the reaction heat quickly.

5.Discharge outlet has flange mouth and PTFE valve, there has no dead angle in vessel, detachable and convenient for solid material to discharge.

6.Main body is made from stainless steel, which is beautiful and anti-corrosion.

7.Sealed by PTFE component, be able to maintain higher vacuum degree.

8.Be able to work under normal and negative pressure, negative pressure up to -0.09MPa.

9.Alternating current dynamo conducts frequency control stirring, reliable operation, large moment of force and no spark.

10.The inner core of stirring rod is made from 321 stainless steel, strengthened anti-corrosion property.

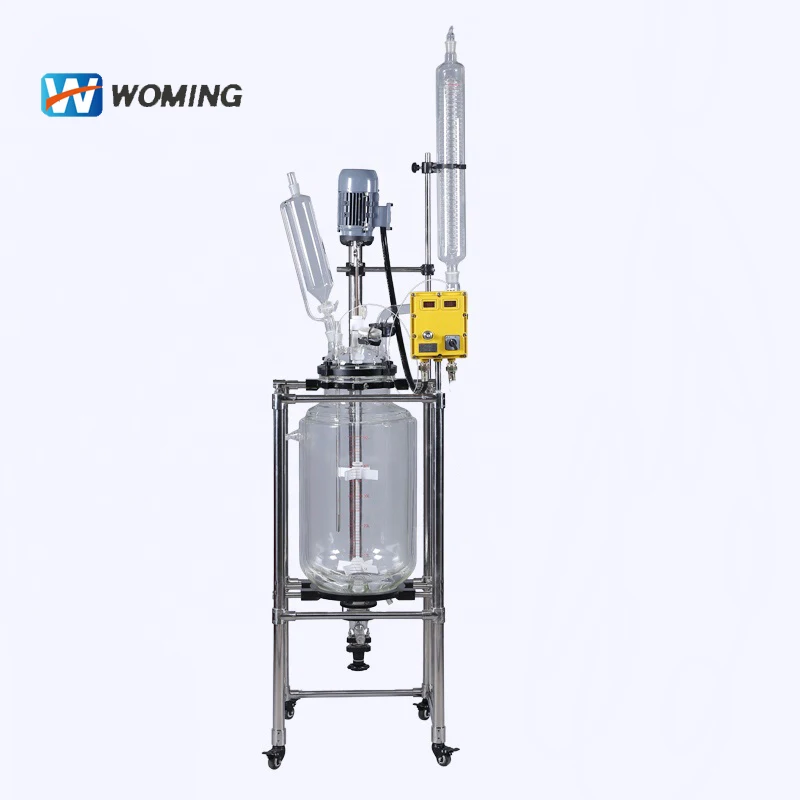

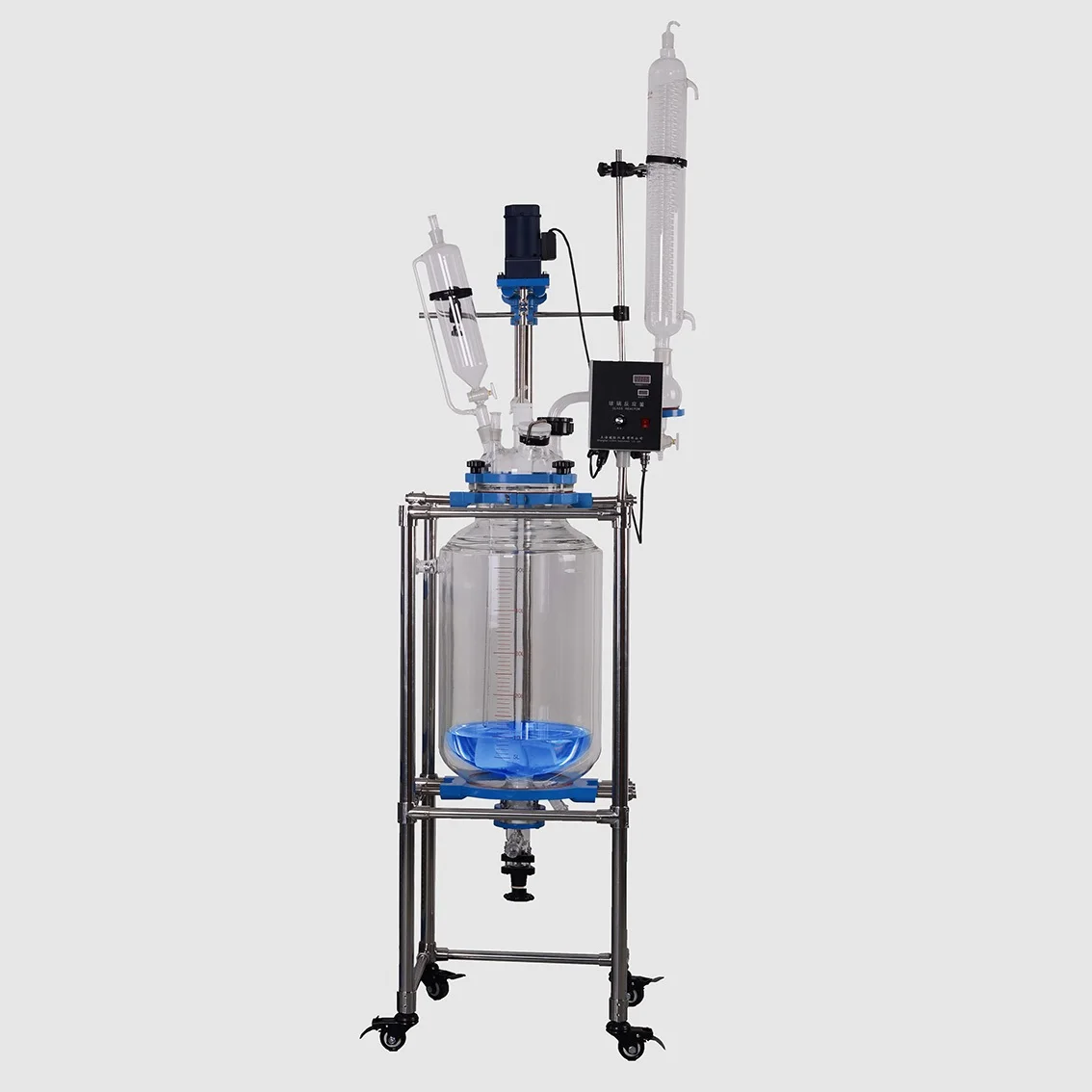

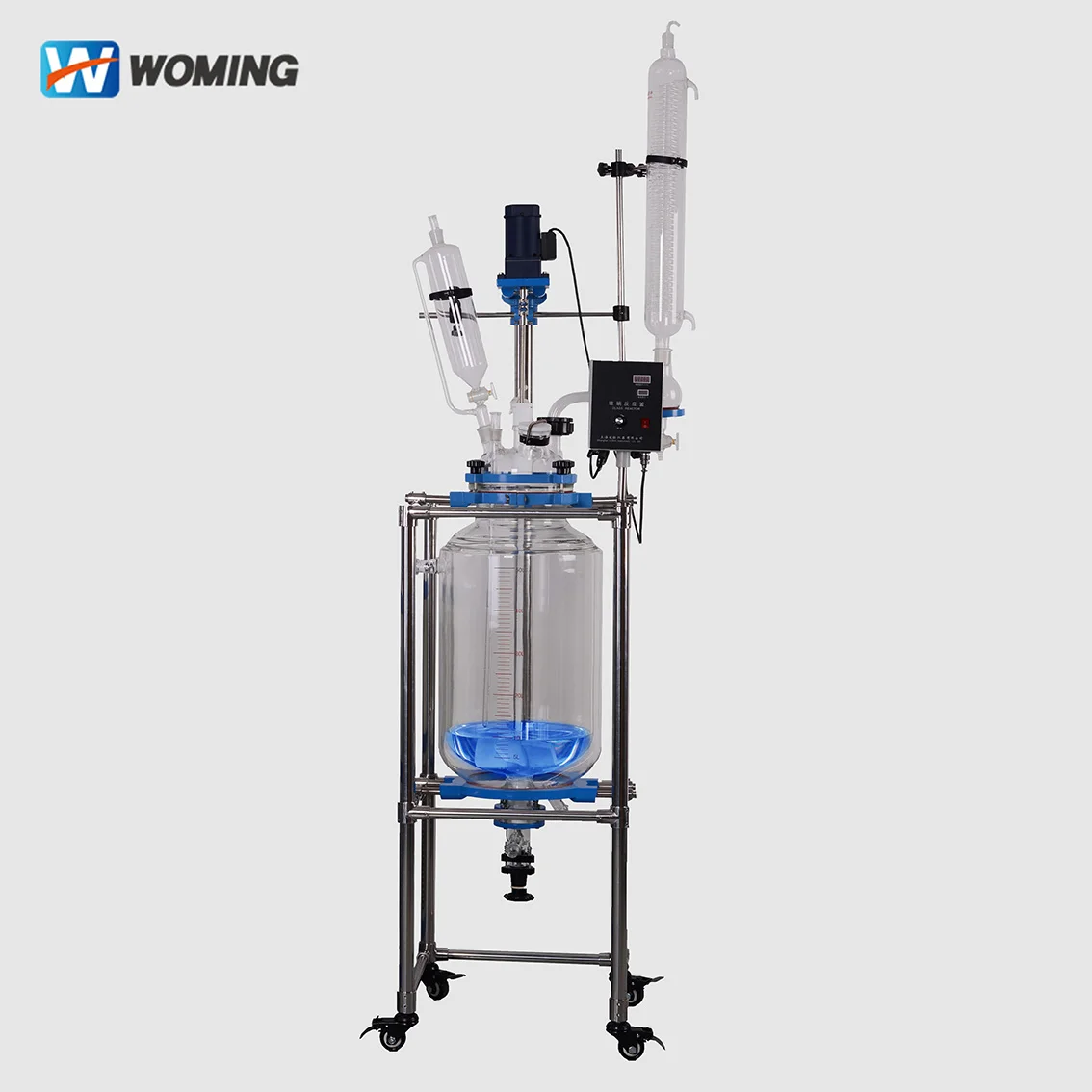

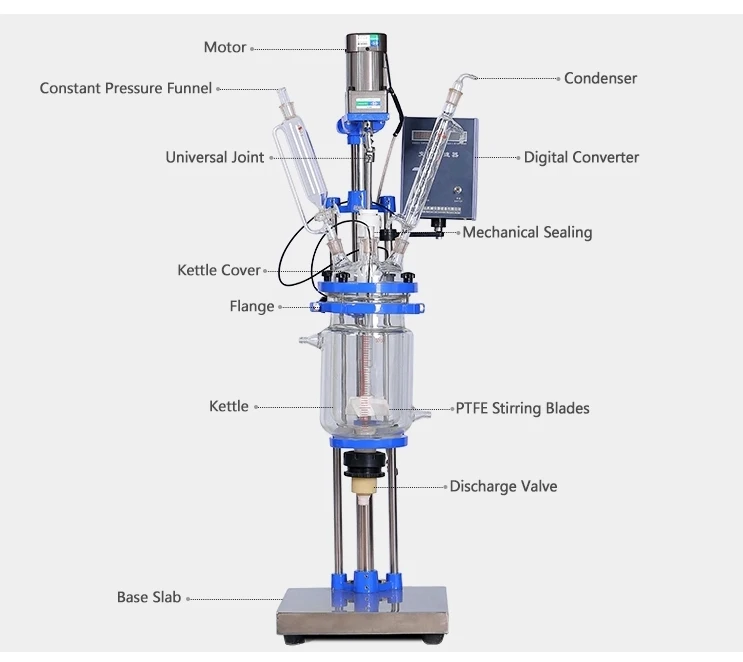

Product Pictures:

Product Details

Basic Parameters:

Basic Parameter	Type	S 212-20 L
	Glass material	GG-17
	Frame material	Stainless Steel
	Pipe fitting material	304 Stainless Steel
	Move method	Universal castors with braking
	Reaction flask volume	20L
	Interlayer volume	8L
	Flange type oil in and out circulation port	Enter from low port, come out from high port
	Number of reactor bottle	6
	Discharge outlet liftoff height	450mm
	Reactor reaction temperature	-80-250 degree
	Vacuum degree	0.098Mpa
	Stirring speed	0-450rpm
	Stirring diameter of axis	12mm
	Stirring power	90W
	Voltage/Frequency(V/Hz)	220V/50Hz
	Boundary dimension(mm*mm*mm)	560*560*2100
	Package Dimension(mm*mm*mm)	1480*660*810  0.80m³
	Package weight(KG)	80



Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.



Shipping method	Note
Express	Door to door, very convenient, don't need to clearance or pick-up
By air	Airport to airport, you need to do the customs clearance and pick up  the goods at your local airport,which you can have a local shipping agent to do for you
By sea	Port to port and you need to do the customs clearance and pick-up the goods at your local port,which you can have a local shipping agent to do for you



Company Information:

Henan Woming Instrument Equipment co.,Ltd is a professional exporter that is concerned with the design, development and production of lab equipments, in the areas of heat treatment and material processing for universities, research facilities and labs. We have more than 5 years of manufacturing experience with induction rotary evaporators, glass reactors, drying ovens, chillers, water ring vacuum pumps, and other lab instruments. We have gained a global sales network reaching USA, Canada, Europ, India, etc.We attach importance to every customer and every order. 100% customer satisfaction is always our first priority.A strict and complete quality control system is implemented, which ensures that each product can meet quality requirements of customers. Our professional sales team keeps a closet tie with all our clients and always be ready to provide all round services and solutions to our clients purchase and sales.Please feel free to contact us if you would like to learn more of our company and work with our team. Looking forward to a cooperation with you!



FAQ:



1.What's the minimum order quantity?

One set at present

2.What kind of payment term do you accept?

Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term will be discussed during the deal.

3.How will you delivery these goods?

It will be decided according to your quantity. Normally we will choose International Express, Air and sea.

4.How will package glass equipment?

We package these glass equipment in good and non fumigation standard plywood case
