Full Automatic Double Glazing Glass Glue Coating Machine
- Category: Building Material Machinery >>>
- Supplier: Lingbo (shandong) Cnc Machinery Co. ltd
Share on (1600475266339):
Product Overview
Description
Product Overview

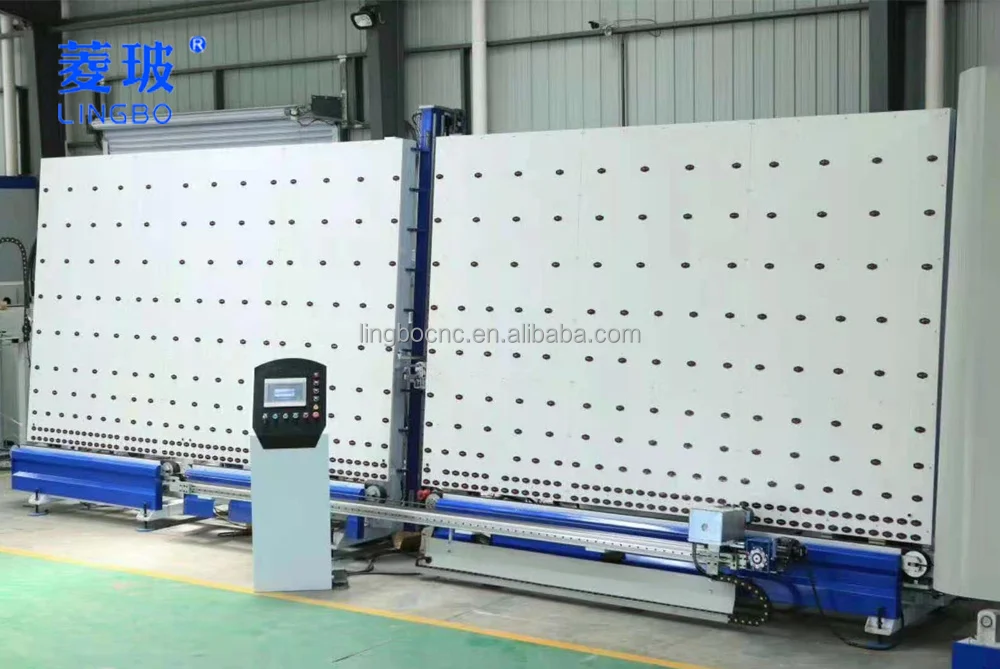

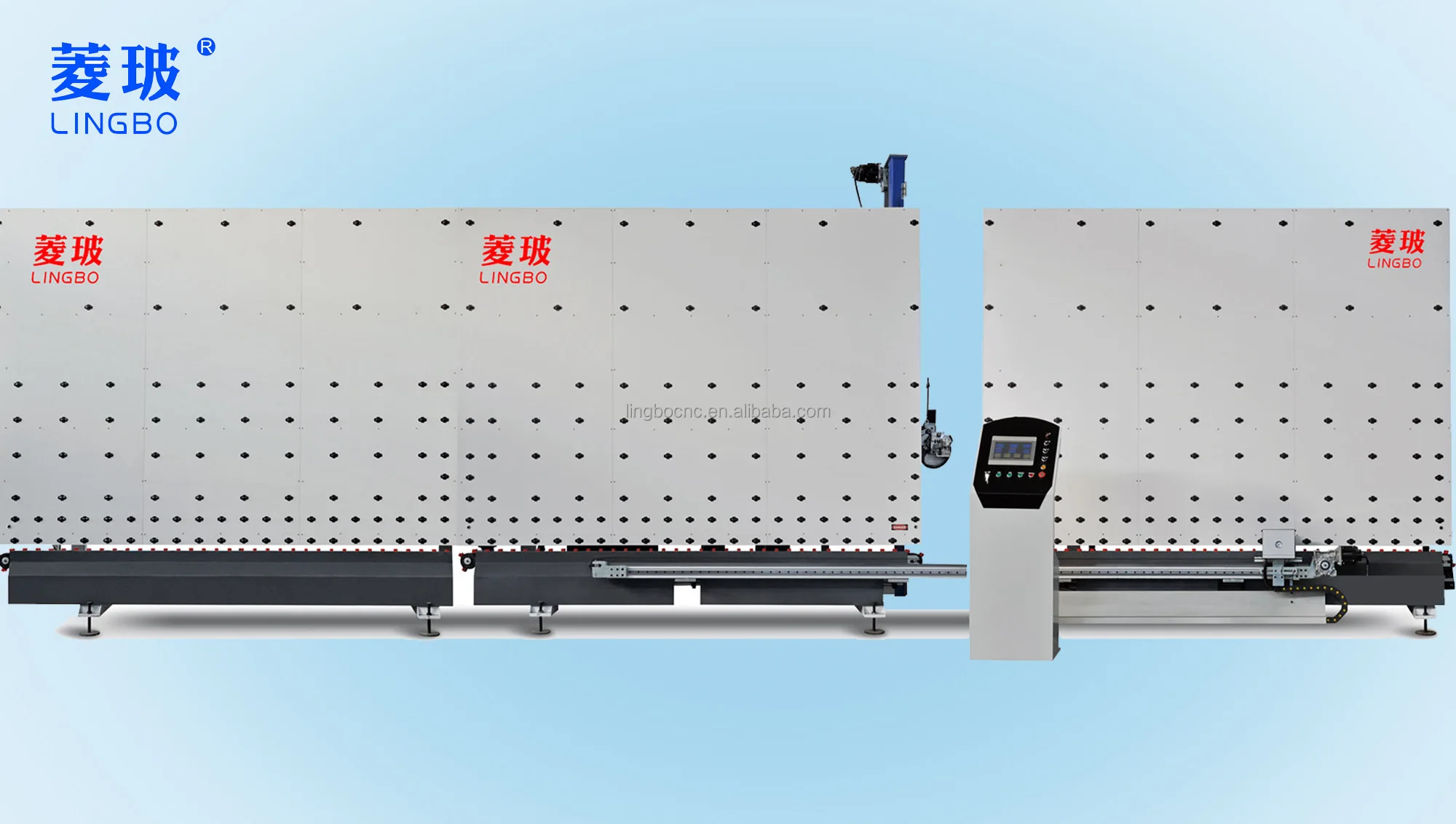

Full Automatic Double Glazing Glass Glue Coating Machine
The advantages of Full Automatic Double Glazing Glass Glue Coating Machine
1. convey：
(1) The V-shaped block on the conveyor belt is detachable, which is convenient for customers to replace and the replacement cost is low. The V-shaped block is not glued to ensure the perfect glue effect;
(2) The transmission structure has no chains and belts, all of which are directly connected by servo motors, reducers, and
conveyor belts, with no gaps, stable operation, and stable glue without waves;
(3) The back-to-back wheel is inlaid, and the glass runs more stably, especially for small glass;
2. Machine head:
(1) The machine head adopts square guide rails, which has smaller clearance than round guide rails, and runs softly, smoothly and stably;
(2) The scanning ruler has high sensitivity and is easy to calibrate, and can be calibrated without complete disassembly;
(3) The glue nozzle can be used for 4A-27A aluminum strips. The smaller the aluminum strips, the harder it is to play. This is the guarantee of technology. The glue nozzle is flexible, and if there is a wrong piece of glass with a small error (within 5mm), it can be glued normally, and the glass will not be wasted;
(4) Unique pressure relief valve device: the pressure relief valve can be opened to release the pressure in the needle valve when going off work every day, and the mixed glue in the glue mixer can be better cleaned. The first function is to quickly flush the glue, and the second function It is to effectively protect the sealing ring in the needle valve from being corroded by black glue. And no special waste of glue;

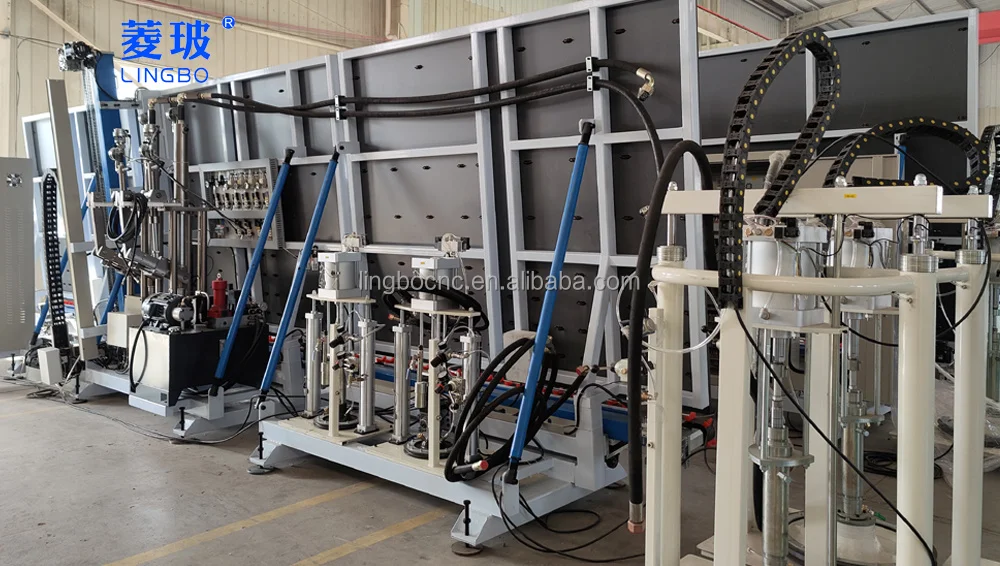

3. Hydraulic station:
(1) The horizontal motor is set, the motor is not in direct contact with the hydraulic oil, and no air bubbles will be generated
in the hydraulic oil, the hydraulic pressure is stable, and the glue discharge speed is fast and stable;
(2) Double-layer filtration to filter out the corresponding magazines in the hydraulic oil, the hydraulic system will not jam the valve, and the glue is stable;

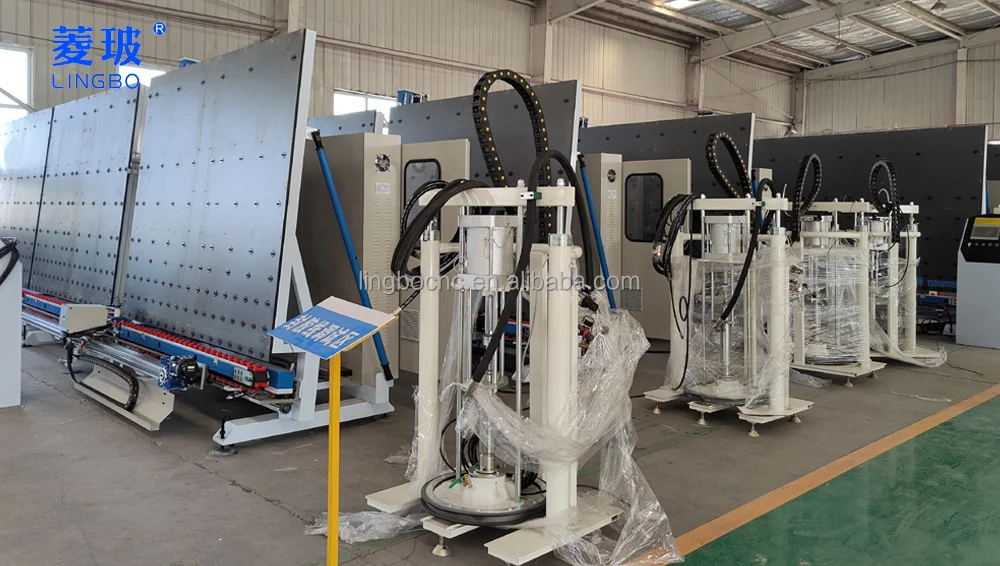

4. Glue supply:
(1) One ratio is used for a group of glue. For the double glue supply system, the pressure is stable and will not be dispersed,
and the glue effect is good;
(2) The two groups of glue channels are completely separated, each time the glue is changed easily and quickly, and the silicone and the structure will not be mixed;
5. Operation:
(1) The operation interface is convenient and concise, and it is easy for beginners to learn;
(2) The data storage function in 12 can meet 90% of the production situation of customers. No matter what kind of aluminum strip, including three glass and two cavities, it can be debugged in advance. When it is used, one key switch does not need to adjust the data again;
(3) Humanized alarm viewing, any unreasonable situation in the equipment will automatically alarm and display in the alarm viewing list, which is convenient for troubleshooting without delaying production;
(4) All photoelectric signals will be reflected in the signal detection column of the operation interface, which is convenient for troubleshooting;
(5) When the data is adjusted, the four sides and four corners of the glass are all in the same interface, which is convenient and quick without switching back and forth;
(6) Data statistics, how many pieces of glass and how many squares are made every day will be calculated by the system
independently, so that the bosses can understand the production situation;
(7) Reasonable design such as one-key connection, one-key glue removal, one-key switching automatic manual, one-key switching two-glass three-glass, etc.;
6. Electrical configuration:
(1) All imported electrical appliances, Yaskawa system, use 6 Yaskawa servo motors, Yaskawa latest motion controllers, circuit breakers and protectors are South Korean LG (LS), and the intermediate relay is American Honeywell.
(2) The entire electrical cabinet is larger than the same industry, because we have added more electrical protection, which has the greatest protective effect on precision and precious electrical appliances under the condition of unstable voltage and current in the workshop;
(3) Each electrical part is affixed with a corresponding logo, which is convenient for customers to troubleshoot problems through our telephone or video guidance in the later stage, and solve the problem as soon as possible without delaying production;
(4) All wires are marked with line numbers, which is convenient for the first investigation and maintenance in the later period;
(5) The program used in the whole machine is independently developed by our company, the program is guaranteed for free maintenance and upgrades for life, the service is guaranteed, and the after-sale service is reliable;
(6) There is a dry-type transformer unique to our company in the electric cabinet, which can stabilize the voltage and current and resist interference. Genuine Yaskawa electrical appliances are all 200V, while my country is generally 220V or 380V, so in order to stabilize the current and voltage in the electrical cabinet, current conversion is required;
(7) The connecting wires of the servo motor are all soft copper core wires, which are anti-interference;
(1) The V-shaped block on the conveyor belt is detachable, which is convenient for customers to replace and the replacement cost is low. The V-shaped block is not glued to ensure the perfect glue effect;
(2) The transmission structure has no chains and belts, all of which are directly connected by servo motors, reducers, and
conveyor belts, with no gaps, stable operation, and stable glue without waves;
(3) The back-to-back wheel is inlaid, and the glass runs more stably, especially for small glass;
2. Machine head:
(1) The machine head adopts square guide rails, which has smaller clearance than round guide rails, and runs softly, smoothly and stably;
(2) The scanning ruler has high sensitivity and is easy to calibrate, and can be calibrated without complete disassembly;
(3) The glue nozzle can be used for 4A-27A aluminum strips. The smaller the aluminum strips, the harder it is to play. This is the guarantee of technology. The glue nozzle is flexible, and if there is a wrong piece of glass with a small error (within 5mm), it can be glued normally, and the glass will not be wasted;
(4) Unique pressure relief valve device: the pressure relief valve can be opened to release the pressure in the needle valve when going off work every day, and the mixed glue in the glue mixer can be better cleaned. The first function is to quickly flush the glue, and the second function It is to effectively protect the sealing ring in the needle valve from being corroded by black glue. And no special waste of glue;
3. Hydraulic station:
(1) The horizontal motor is set, the motor is not in direct contact with the hydraulic oil, and no air bubbles will be generated
in the hydraulic oil, the hydraulic pressure is stable, and the glue discharge speed is fast and stable;
(2) Double-layer filtration to filter out the corresponding magazines in the hydraulic oil, the hydraulic system will not jam the valve, and the glue is stable;
4. Glue supply:
(1) One ratio is used for a group of glue. For the double glue supply system, the pressure is stable and will not be dispersed,
and the glue effect is good;
(2) The two groups of glue channels are completely separated, each time the glue is changed easily and quickly, and the silicone and the structure will not be mixed;
5. Operation:
(1) The operation interface is convenient and concise, and it is easy for beginners to learn;
(2) The data storage function in 12 can meet 90% of the production situation of customers. No matter what kind of aluminum strip, including three glass and two cavities, it can be debugged in advance. When it is used, one key switch does not need to adjust the data again;
(3) Humanized alarm viewing, any unreasonable situation in the equipment will automatically alarm and display in the alarm viewing list, which is convenient for troubleshooting without delaying production;
(4) All photoelectric signals will be reflected in the signal detection column of the operation interface, which is convenient for troubleshooting;
(5) When the data is adjusted, the four sides and four corners of the glass are all in the same interface, which is convenient and quick without switching back and forth;
(6) Data statistics, how many pieces of glass and how many squares are made every day will be calculated by the system
independently, so that the bosses can understand the production situation;
(7) Reasonable design such as one-key connection, one-key glue removal, one-key switching automatic manual, one-key switching two-glass three-glass, etc.;
6. Electrical configuration:
(1) All imported electrical appliances, Yaskawa system, use 6 Yaskawa servo motors, Yaskawa latest motion controllers, circuit breakers and protectors are South Korean LG (LS), and the intermediate relay is American Honeywell.
(2) The entire electrical cabinet is larger than the same industry, because we have added more electrical protection, which has the greatest protective effect on precision and precious electrical appliances under the condition of unstable voltage and current in the workshop;
(3) Each electrical part is affixed with a corresponding logo, which is convenient for customers to troubleshoot problems through our telephone or video guidance in the later stage, and solve the problem as soon as possible without delaying production;
(4) All wires are marked with line numbers, which is convenient for the first investigation and maintenance in the later period;
(5) The program used in the whole machine is independently developed by our company, the program is guaranteed for free maintenance and upgrades for life, the service is guaranteed, and the after-sale service is reliable;
(6) There is a dry-type transformer unique to our company in the electric cabinet, which can stabilize the voltage and current and resist interference. Genuine Yaskawa electrical appliances are all 200V, while my country is generally 220V or 380V, so in order to stabilize the current and voltage in the electrical cabinet, current conversion is required;
(7) The connecting wires of the servo motor are all soft copper core wires, which are anti-interference;
Specification
Full Automatic Double Glazing Glass Glue Coating Machine
Product model | Max. glass size | Min. glass size | Glass Thickness | Dimension |
FJX-2000x2500 | 2000x2500mm | 260*450mm | 12-50mm | 8050x1500x2900mm |
FJX-2000*3000 | 2000x3000mm | 260*450mm | 12-50mm | 10500x1500x2900mm |
FJX-2500*3100 | 2500x3100mm | 260*450mm | 12-50mm | 10500x2000x3550mm |
FJX-2500x4000 | 2500x4000mm | 260*450mm | 12-50mm | 12000x2000x3550mm |
Product packaging
Company Profile
LINGBO (SHANDONG) CNC MACHINERY Co., Ltd is a professional manufacturer of glass further processing machines more than ten years, and now based on the strong technical support and strong after-sell services, we develop rapidly. We are focusing on the high quality machines producing and supplying includes the focuses on the design, R&D, manufacture and after-sell service.
Our key machines is Insulating Glass Machine, Glass Filling Machine, Glass Sealing Machine, Glass Washing Machine, Glass Cutting Machine etc the complete glass deep processing machines. We have about 20 patent for our products, and now have Occupied one-third of the Chinese market.
Automatic Argon Gas Filling Machine Line is our patent products as well, we adopts the top technology of side filling way, which greatly improves the inflation effect and efficiency. Ensuring the double glazing glass argon gas concentration is kept at 90%, even reach 98% for small glasses.
We have developed two working methods for such argon gas filling line, one is suitable for all glass for filling, and the other is suitable for half of insulated glass. Strong technical support gives us a strong ability to serve customers. Now our argon gas filling machine is the most popular products, it adopts the side filling method as the special filling way to save energy. Filling result can get more than 90%. It is the ideal products for the old bottom filling ways.
In order to make sure the machine stability, we have specially make the machines structures and using the first-class electrical parts.
Our company develop slogan is Cooperate and Win-win, so we warm welcome to different zone customers to cooperate, and we will offer the best price with highest quality products.
Strong technical support gives us a strong ability to serve customers. We wish to cooperate with you for long time!
Our key machines is Insulating Glass Machine, Glass Filling Machine, Glass Sealing Machine, Glass Washing Machine, Glass Cutting Machine etc the complete glass deep processing machines. We have about 20 patent for our products, and now have Occupied one-third of the Chinese market.
Automatic Argon Gas Filling Machine Line is our patent products as well, we adopts the top technology of side filling way, which greatly improves the inflation effect and efficiency. Ensuring the double glazing glass argon gas concentration is kept at 90%, even reach 98% for small glasses.
We have developed two working methods for such argon gas filling line, one is suitable for all glass for filling, and the other is suitable for half of insulated glass. Strong technical support gives us a strong ability to serve customers. Now our argon gas filling machine is the most popular products, it adopts the side filling method as the special filling way to save energy. Filling result can get more than 90%. It is the ideal products for the old bottom filling ways.
In order to make sure the machine stability, we have specially make the machines structures and using the first-class electrical parts.
Our company develop slogan is Cooperate and Win-win, so we warm welcome to different zone customers to cooperate, and we will offer the best price with highest quality products.
Strong technical support gives us a strong ability to serve customers. We wish to cooperate with you for long time!
Certifications
Exhibition & Customers
FAQ
Q: we are first time to hear your brand, Are you NEW to this glass process filed? A: We are factory built 2014, we have good name
in home market, however we just start to open international market. Q: What is your advantages compared the other supplier? A: We
supply high quality machines with high technology but with lower prices. Because our company goal is to Provide the most
cost-effective products for the world. Q: How about your warranty? A: The guarantee period shall be 15 months counting from the
date of the goods on board, except wear parts. In the normal course of operation and maintenance if there is breakdown and damage,
during the Guarantee period (15 months) the repair parts should be supplied by the Seller for free, except wear parts. Q: What's
the payment term? A: we can accept T/T, L/C, western union etc. Q:Can we visit your factory before order? A:Yes, we warmly welcome
and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport. Q: What's
the delivery term? A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
in home market, however we just start to open international market. Q: What is your advantages compared the other supplier? A: We
supply high quality machines with high technology but with lower prices. Because our company goal is to Provide the most
cost-effective products for the world. Q: How about your warranty? A: The guarantee period shall be 15 months counting from the
date of the goods on board, except wear parts. In the normal course of operation and maintenance if there is breakdown and damage,
during the Guarantee period (15 months) the repair parts should be supplied by the Seller for free, except wear parts. Q: What's
the payment term? A: we can accept T/T, L/C, western union etc. Q:Can we visit your factory before order? A:Yes, we warmly welcome
and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport. Q: What's
the delivery term? A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
