DABA flexo digital cnc kraft thermal roll paper printer printing machine

Share on (1600475293660):


Price:$80,000.00

Quantity:


Product Overview

Description





Product Description


Main Features
1.From the discharge to the receipt of the short distance.
2.The ceramic stick is equipped with a scraper, which is printed and moist, and has a clear color.
3. Repeatedly printing the circumference of 190.5-635MM, filling the blank of the cascading flexographic printing machine, the slanting trademark printing machine, the petal printing machine and the printing length.
4. The use of gear color to solve the 360-degree coloring device gap, assembly, wear, etc., affecting the color accuracy and printing instability.
5.From left to right: coil feeding, printing, curing, film cutting, laminating, slitting,winding a coherent completion .
6. Water-based ink (UV ink) printing, pollution-free, environmentally friendly, printing speed varies according to the network cable, the speed is also different, the fastest speed of printing labels is 150 meters per minute.
7. Printing bills, labels, cardboard, high-grade stickers, clothing tags, etc.
8. Printing materials: paper 20~250g/m2 self-adhesive soft coil and other materials.
9. Process:
1 discharging, 2 automatic constant tension, 3 scraper, 4 printing unit, 5 traction, 6 automatic constant tension, 7 center receiving
Application:
The machine can finish material-feeding, printing, varnish, drying, rewinding and die-cutting in one process is an ideal machine for printing note and top-grade adhesive label.


Main Technical Parameter
Max. printing speed
150m/min.
Printing color station
8 colors
Max . printing width
320 mm
Max. Web width
350 mm
Max .unwind diameter
600 mm
Max. rewind diameter
600 mm
Max. repeat length
180-600 mm
Precision of Web Guide
±0.10mm
Horizontal registration
Automatic system
Operating Controller
Touch Panel With PLC
Fast changing ink system
Quick change of ink tank
Turn bar
Movable
Machine Power Supply
380V / 220V / 3Phase
Plate Thickness
1.7mm (also can do 1.14mm)

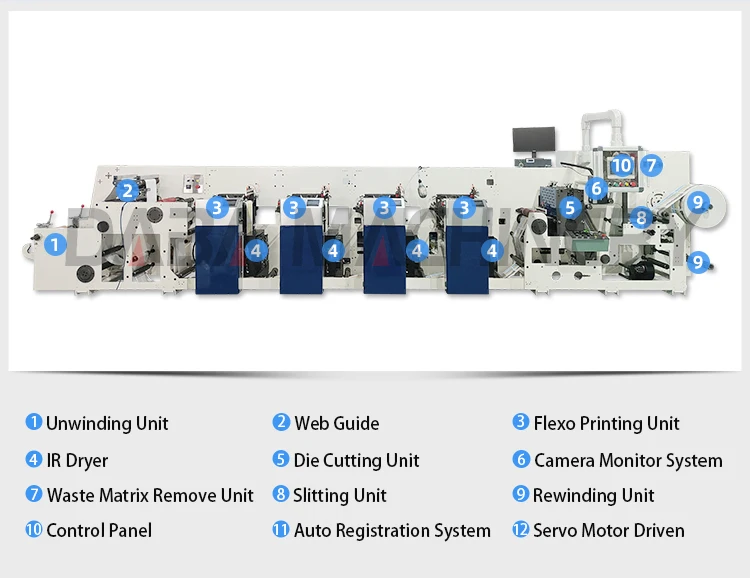

Details Images




1.Unwinding Unit
♦ 1 set servo motor
♦ Magnetic Powder Brake --- cooperated with Tension Control System
♦ Max unwinding and rewind material diameter: 600mm
♦ 3inch Air shaft (it can change other size Air shaft, 1inch, 1.5inch, 2inch)
♦ Fast inflating air gun (also can customize air inflating automatically function)
♦ Unwinding vector motor tension control system
♦ Optional: separate unwinding rack with pneumatic feed
2.Auto Web Guide System 1set --- EURODOW BRAND
♦ 1 set of paper splice table, With Pneumatic Holders
♦ Detection mode: Ultrasonic Sensor
♦ Precision: ±0.1mm
♦ Closed-loop control system
♦ Test method: Edge
♦ Electronic paper web guide traction device, there was a small offset paper web movement, the system can accurately continuously revised.

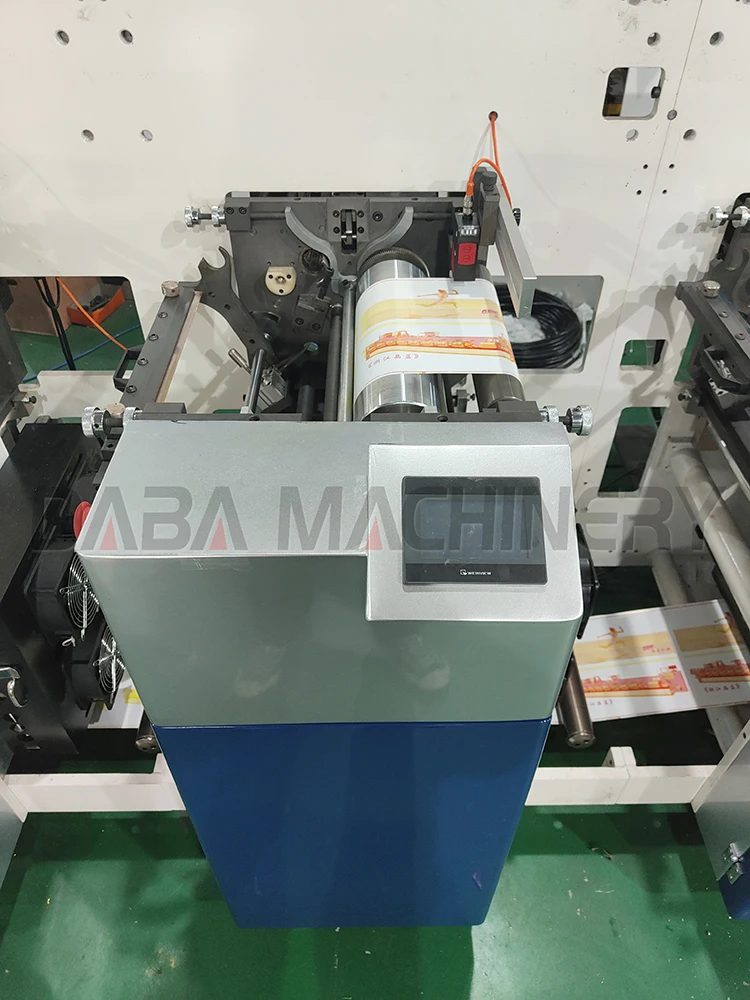

3.Printing Color Unit ---8 units
♦ 8 Set Servo Motor, 1set per Unit
♦ Printing width: 320mm
♦ Max Printing Area: 320*600mm
♦ Printing repeat range: 180~600mm
♦ Printing Station Comes with Ink Rubber Roller, Ceramic Anilox Cylinder, Printing Plate Cylinder, Scrapper Blade and Ink container.
♦ Helical Gear
♦ The Rubber roller of the flexo printing machine can break away automatically while parking, and running at a low speed, in order to avoid water being dried.
♦ Anilox Cylinder Pneumatic Clutch to leave plate from ceramic anilox cylinder when machine is stop. It can protect the printing plate.
♦ Ceramic anilox roller ---1 set (8pcs), can take more according exactly requirement.
♦ Printing cylinder ---1 set (8pcs), can take more according exactly requirement.
♦ Ceramic anilox roller: LPI can be chosen from 150LPI ~ 1000LPI
♦ Printing cylinder: Circumference can be chosen from 180mm~600mm
♦ Doctor blade
♦ Gear: 1/8 inch
♦ Automatic printing plate cleaning function: after the screen roller is released from pressure every time the machine stops, the plate roller continues to rotate for 1.5 seconds to transfer the ink on the printing plate to the paper to keep the printing plate clean.
♦ Full runout of anilox roller, plate roller and bottom roller: ≤0.003mm
4.IR Drying Unit
♦ Each Printing Unit comes with 1unit heating oven, 7 IR dryer & 1 UV Heating Drying Oven (standard)
♦ Each IR dryer with 4 powerful lamps.
♦ UV drying oven is placed on material and after each printing station.
♦ Imported Heating Lamb is fixed in each UV Drying Oven.
♦ Optional can use LED UV Drying Oven.

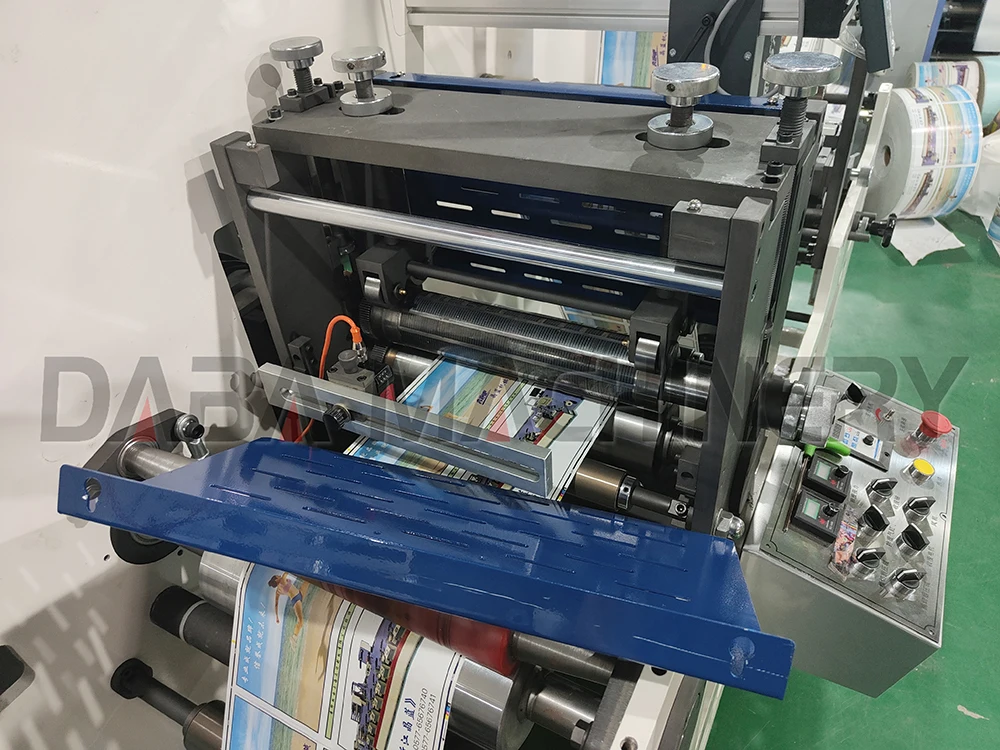

5.Die Cutting Unit --- 1 Unit(optional configuration)
♦ Gear: CP 1/8 inch
♦ 1 set servo motor per die cutting station
♦ Cooperated with magnetic cylinder and flexible dies sheet. But they need customization according to your label size. The cost of magnetic and Dies are excluded in the quotation.
♦ 3inch air shaft for waste matrix rewind (standard size, can optional with 1inch, 1.5inch & 2inch)
6.Camera Monitor System
♦ Standard with Chinese Pusai Brand
♦ Optional: BST Brand from Germany


7.Waste Matrix Remove Unit(optional configuration)
♦ 3inch air shaft for waste matrix rewind (standard size, can optional with 1inch, 1.5inch & 2inch)
8.Slitting Unit(optional configuration)



9.Rewinding unit
♦ 1 set servo motor
♦ Magnetic Powder Clutch -- Cooperated with tension control system
♦ Max unwind material diameter: 600mm
♦ 3inch air shaft (standard size, can optional with 1inch, 1.5inch & 2inch)
♦ Fast inflating air gun (can do customize air inflating automatically function)
♦ Rewinding vector motor tension control system
10.Control Panel
♦ Power Supply, Stop Button, Start Button and Emergency Stop.
♦ PLC CONTROLLER AND TOUCH SCREEN
♦ Anilox Roller Rotation Button for each Printing Station
♦ Length Counter and Speed Controller


Tension Control System and Configuration
♦ Rubber rollers for feeding
♦ MITSUBISHI Auto Constant Tension Controller -2sets, one for unwinding, the other is for rewinding.
♦ Magnetic Powder Brake & Clutch
♦ Dual pressure roller pressure feeding together
Turn Bar
♦ Movable model turn bar for back side printing, more convenient adjustable.


UV Drying Unit(optional configuration)
♦ Each Printing Unit comes with 1unit heating oven, 7 IR dryer & 1 UV Heating Drying Oven (standard)
♦ Each IR dryer with 4 powerful lamps.
♦ UV drying oven is placed on material and after each printing station.
♦ Imported Heating Lamb is fixed in each UV Drying Oven.
♦ Optional can use LED UV Drying Oven.

Laminating Unit(optional configuration)



Cold Stamping Unit(optional configuration)

Delarm&Relarm Unit(optional configuration)



Corona Unit(optional configuration)

Dust Remove Unit(optional configuration)



Application and Samples




Applicable Material:
* Self-adhesive paper,Self-adhesive thermal paper,thermal paper ATM etc.
* Self-adhesive film:Self-adhesive PE film,Self-adhesive PET film,Self-adhesive PVC film,etc.
* plastic film:Cpp film,PET film,PVC film,PE film,etc.
* Laminating Film.
* Paper material:kraft paper,paper cup paper,etc.




Application Industry:
* Food product label, Anti-counterfeit label, Daily chemical products label, Medicines label, Chemical label,
Paper cup paper, Blank label, Gold stamping label, Adhesive label, Wine Label,
Price Label, Wash care Label, Oil Label, Bottle Label, Napkin Label,
Milk label, PVC label, Thermal label, Beer Label, Commercial label,
Health product label, Delarm&Relarm label, Battery label, Alcohol label, etc.

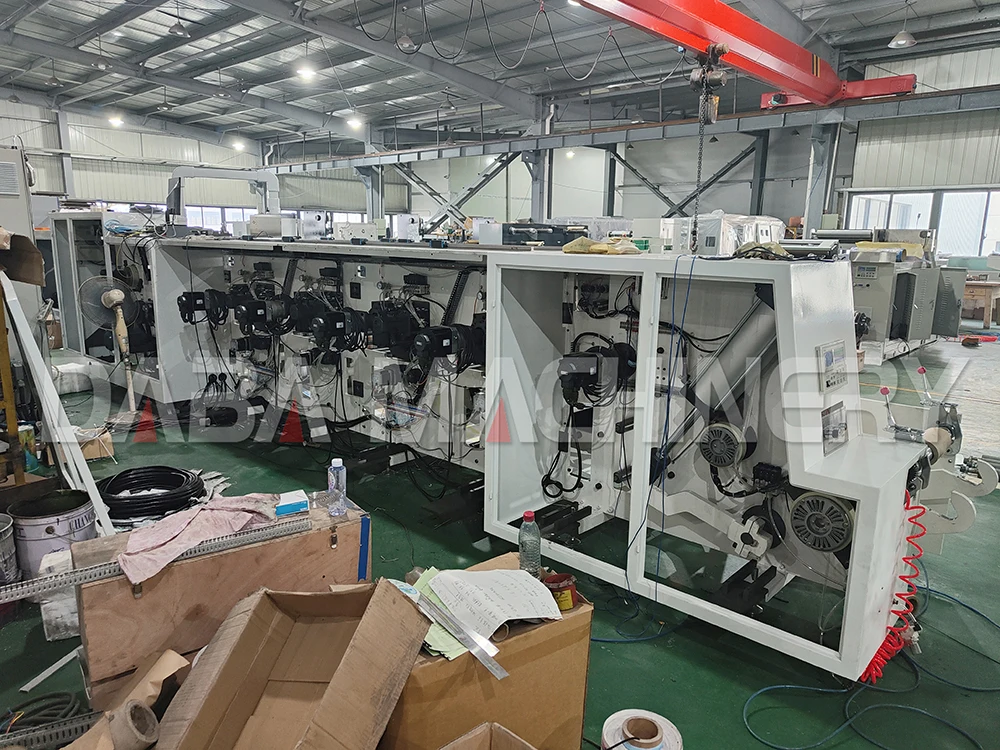

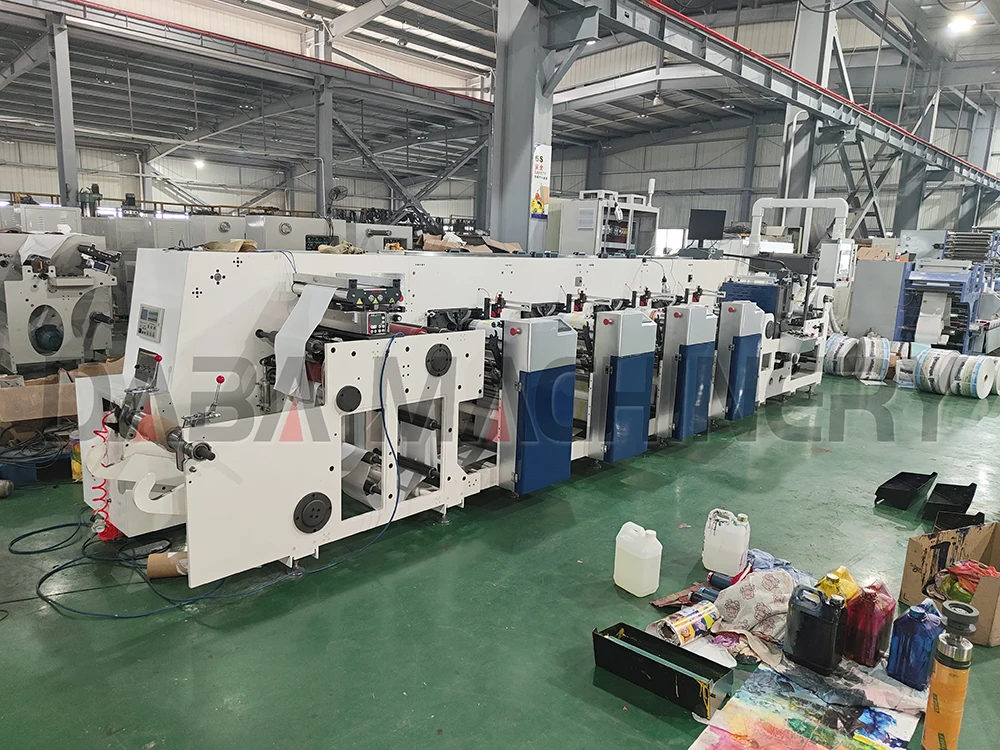

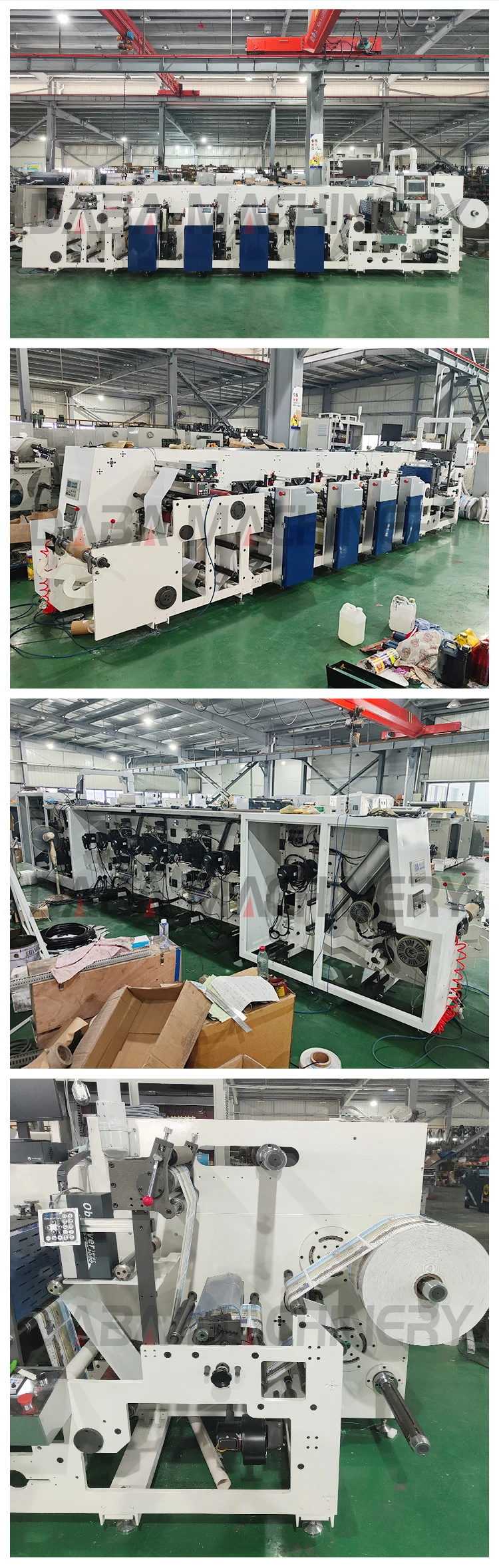

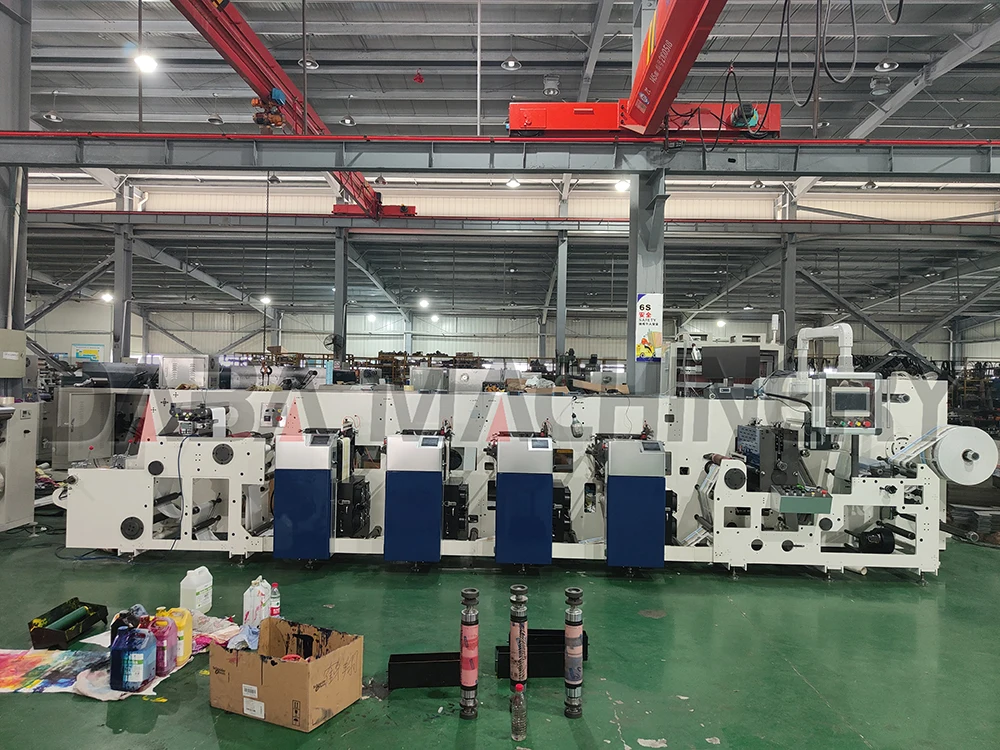

In Factory Photo




Our Service


1.Purchase Service
DABA COMPANY have a specialize and efficiency working team.If you are new onthe printing and packing area Some samples of your
products could be shew to uswill be appreicate we will give you specialized suggestion of whole work

2.Shipping Service
DABA COMPANY have a spcialized and independent department which just for
shipping the buyer's goods.The workers are knowing T/T,L/C Items well.All Exporteddocuments could be made perfectly
DABA COMPNAY cooperate with the most famous shipping company in China also.
They could provide the best and economic shipping ways to the buyer's port.

3.Installation Services
Installation Services are available with all DABA Company machines.DABA Comapnywill dispatch technician to The Buyer's factory to
installation and preoperation ofmachines But the buyer need to surpply the round trip tickets food hotel cost.

4.Clients Training Services
DABA Company advise The buyer could send own technican come to DABA factoryto learn how to operate machines.DABA Company
technician will teach and train thelerners hand by hand till he can operate machine by himself.
Obviouslly,Traning within Installation period is acceptable.

5.After Sales Service
DABA Company machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with
machines.Any parts broken Just a pictures or a videos.The new free parts will reachwithin 3-7 Express working days.


Contact us




Packing & Delivery




Company Information




FAQ
Q: What's your delivery date?
A: Usually finish the production within 30days after your 30% advanced payment, actually need to check according our stock & production plan.

Q: Terms of payment?
A: We accept T/T, 30% in advance and 70% balanced against B/L copy. We accept L/C at sight. We accept Cash.

Q: How many days will you finish installing ?
A: We will finish installation and training within 15days.

Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from finished installation.

Q: How could we do after one year warranty period?
A: We also can do service for you, however, if require overseas service, you need pay salary to our technician 100USD/day.

Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.

Q: How many worker do we need running those machines?
A: For flexo printing, slitting, die-cutting machine, only need one person for each.

Q: What should we charge for your engineer?
A: You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 100USD one day per person.
