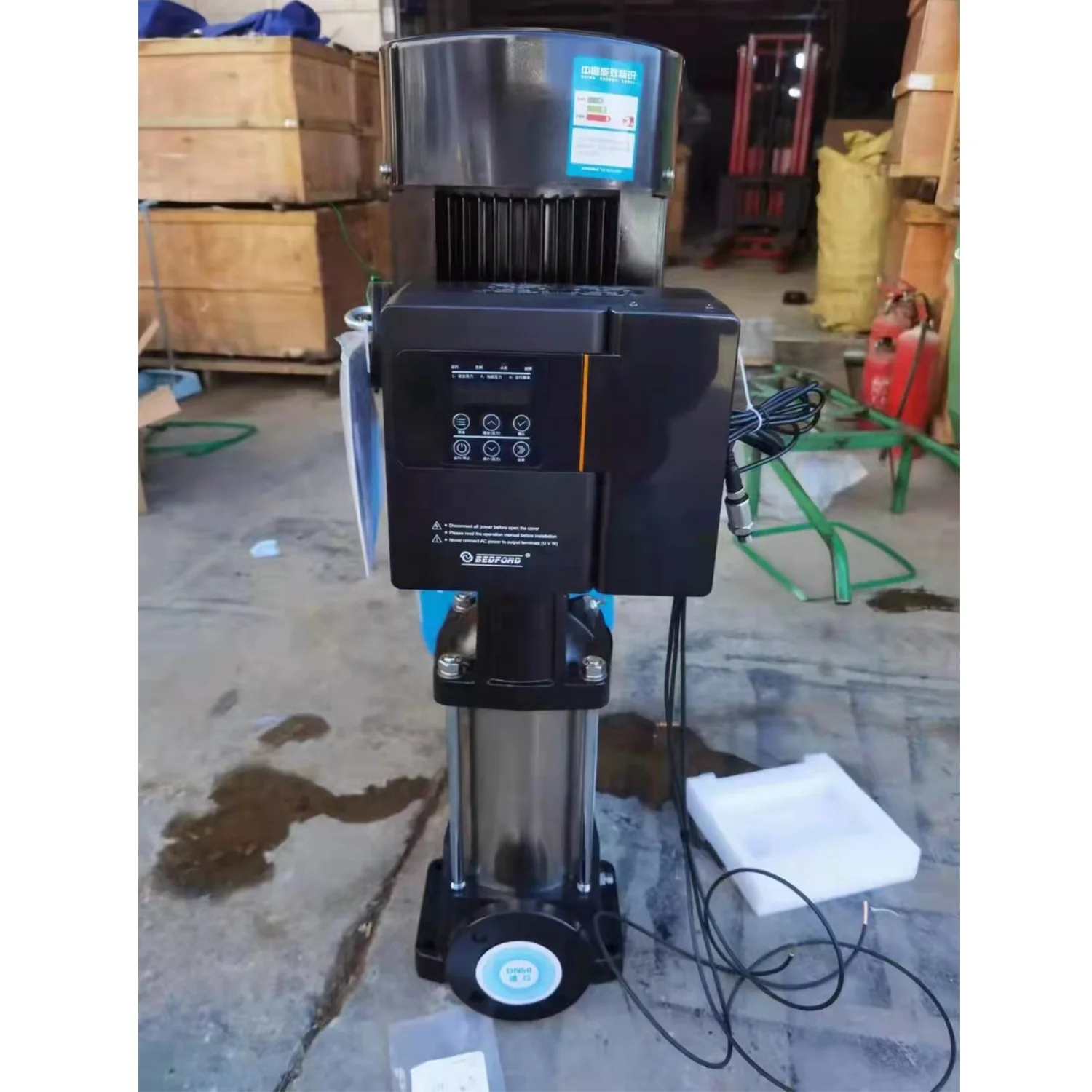

Constant Pressure Inverter 380V 4KW Automatic Water Pump Pressure Control VSD for Water Pump
- Category: >>>
- Supplier: Guangzhou Bedford Electric Equipment Co. Ltd.
Share on (1600475309864):
Product Overview
Description
Products Description

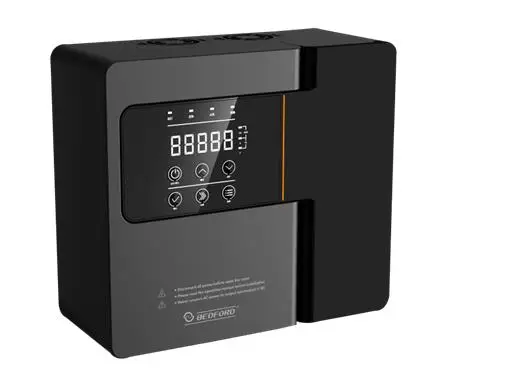

Bedford--W713B waterproof pump inverter features
1. Multi-Pumps Linkage: Max.6 pump linkage water supply.
2. Function: Auto-sleep, Freeze-Proofing, Anti-clogging, Power On Restart...
3. Alternate Running: Balance every pump’s running time , prolong service life.
4. Control Mode: Constant pressure ,constant differential pressure ,Constant temperature, Constant differential temperature, manual.
5. Linkage Mode: Synchronize ,master-slave, big-small pump combination, one duty one standby, one VFD drives two pump (requires additional control electrical cabinet).
6. Extendibility: Can be connected to Bedford's HMI and other companies' HMI(MobBus RTU).
3. Alternate Running: Balance every pump’s running time , prolong service life.
4. Control Mode: Constant pressure ,constant differential pressure ,Constant temperature, Constant differential temperature, manual.
5. Linkage Mode: Synchronize ,master-slave, big-small pump combination, one duty one standby, one VFD drives two pump (requires additional control electrical cabinet).
6. Extendibility: Can be connected to Bedford's HMI and other companies' HMI(MobBus RTU).
Speciation

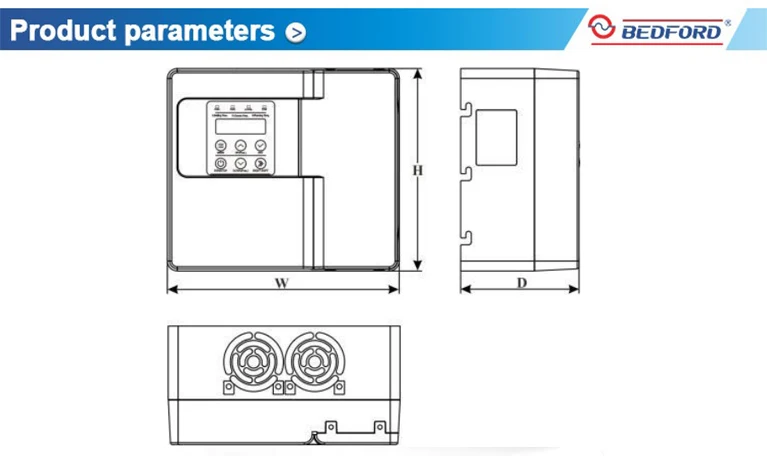

Model | Rated output current (A) | Motor power (kW) | External Dimension | |||||||
H(mm) | W(mm) | D(mm) | ||||||||
Input: AC 1PH 220V, Output: AC 3PH 0~220V | ||||||||||
W713B-2001 | 4.5 | 0.75 | 170 | 190 | 110 | |||||
W713B-2002 | 7.0 | 1.5 | ||||||||
W713B-2003 | 10.0 | 2.2 | ||||||||
Input: AC 3PH 220V, Output: AC 3PH 0~220V | ||||||||||
W713B-2001 | 4.5 | 0.75 | 170 | 190 | 110 | |||||
W713B-2002 | 7.0 | 1.5 | ||||||||
W713B-2003 | 10.0 | 2.2 | ||||||||
W713B-2004 | 13.0 | 3.0 | 205 | 235 | 120 | |||||
W713B-2005 | 17.0 | 3.7 | ||||||||
W713B-207 | 25.0 | 5.5 | 220 | 290 | 150 | |||||
W713B-2010 | 32.0 | 7.5 | ||||||||
Input: AC 3PH 380V, Output: AC 3PH 0~380V | ||||||||||
W713B-4001 | 2.1 | 0.75 | 170 | 190 | 110 | |||||
W713B-4002 | 3.8 | 1.5 | ||||||||
W713B-4003 | 5.1 | 2.2 | ||||||||
W713B-4004 | 6.8 | 3.0 | ||||||||
W713B-4005 | 9.5 | 4.0 | 205 | 235 | 120 | |||||
W713B-4007 | 14.0 | 5.5 | ||||||||
W713B-4010 | 18.5 | 7.5 | ||||||||
W713B-4015 | 25.0 | 11.0 | 220 | 290 | 150 | |||||
W713B-4020 | 32.0 | 15.0 | ||||||||
W713B-4025 | 38.0 | 18.5 | ||||||||
Solution
For more details reference, Click Contact Supplier
Single pump
Inverter model: W713B(IP54)
Two pumps
Inverter model: B603D(IP20)

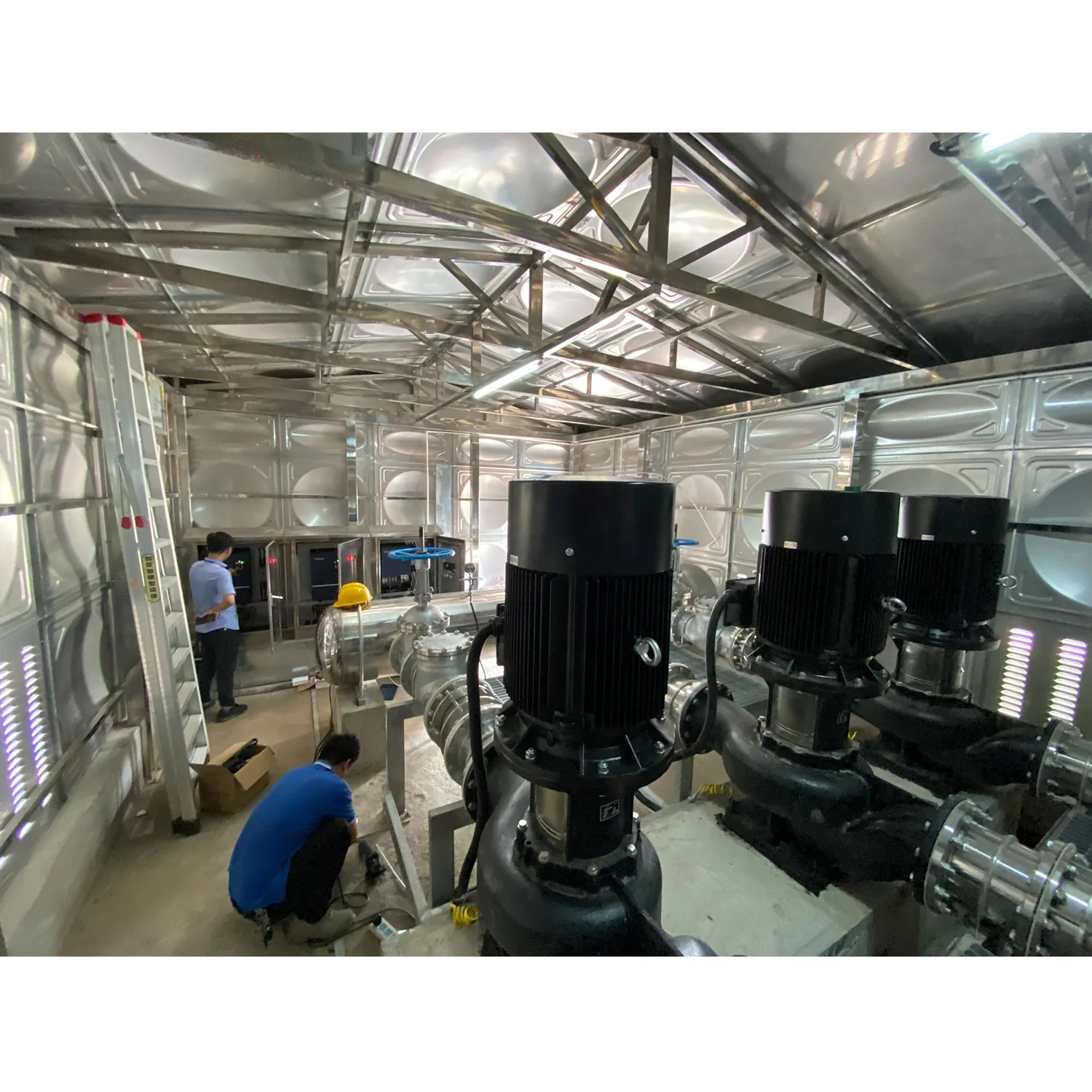

Three pumps
Inverter model: B200B(IP54)
Additional purchase:
HMI & App remote control

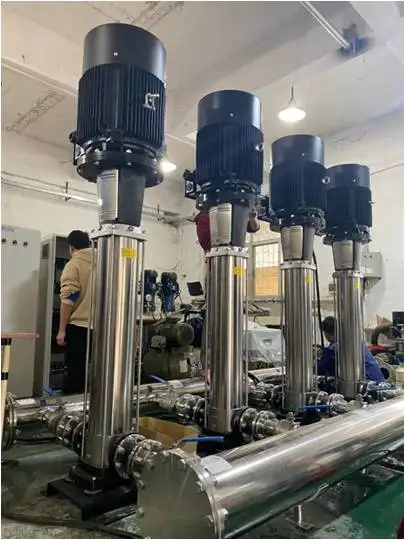

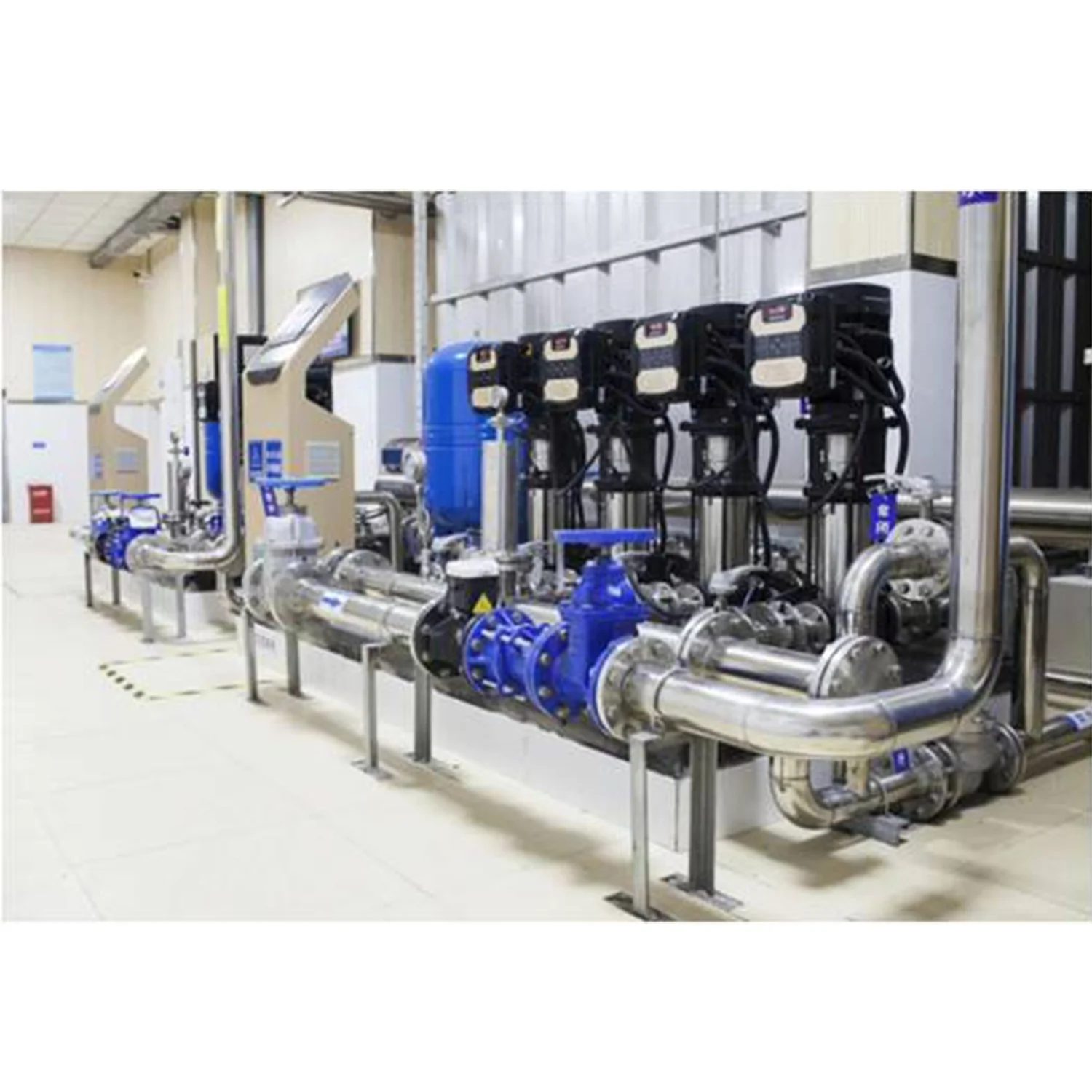

Four Pumps
Inverter model: B200B(IP54)
Additional purchase:
HMI & App remote control

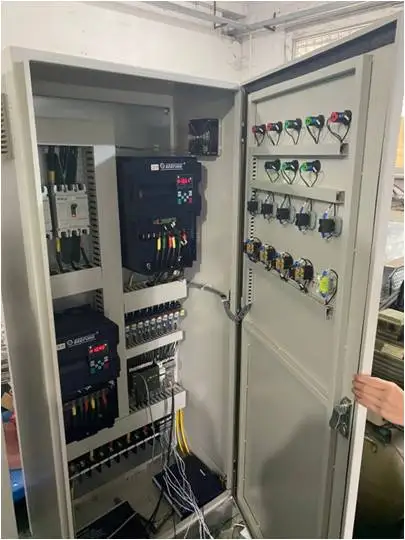

Four pumps
Inverter model: W713(IP20)
Additional purchase:
PLC control
We support customized pump system solutions
Chat to us for more details

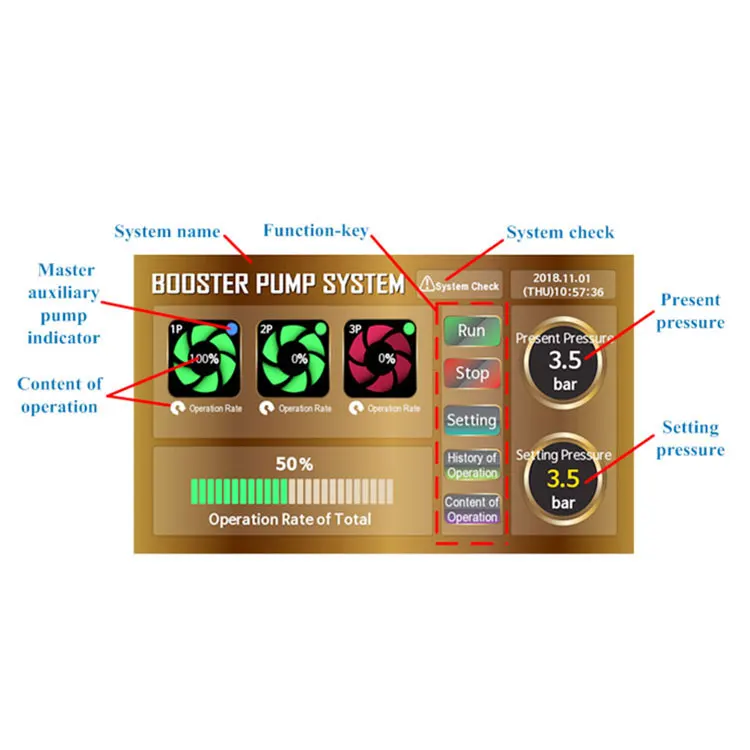

HMI Devices
There are two types of touch screens, and the difference is that they are access to the Internet in different ways. Access to the Bedford control center allows remote monitoring of the water supply system via a computer or mobile phone.
HMI touch screen
There are two types:
one is network cable access.
Second, IOT module access network.
IOT module
Purchased only when the touch
screen is used for IOT network access.
Remote Control App
Operation Info
Remote Settings
Fault Alarm

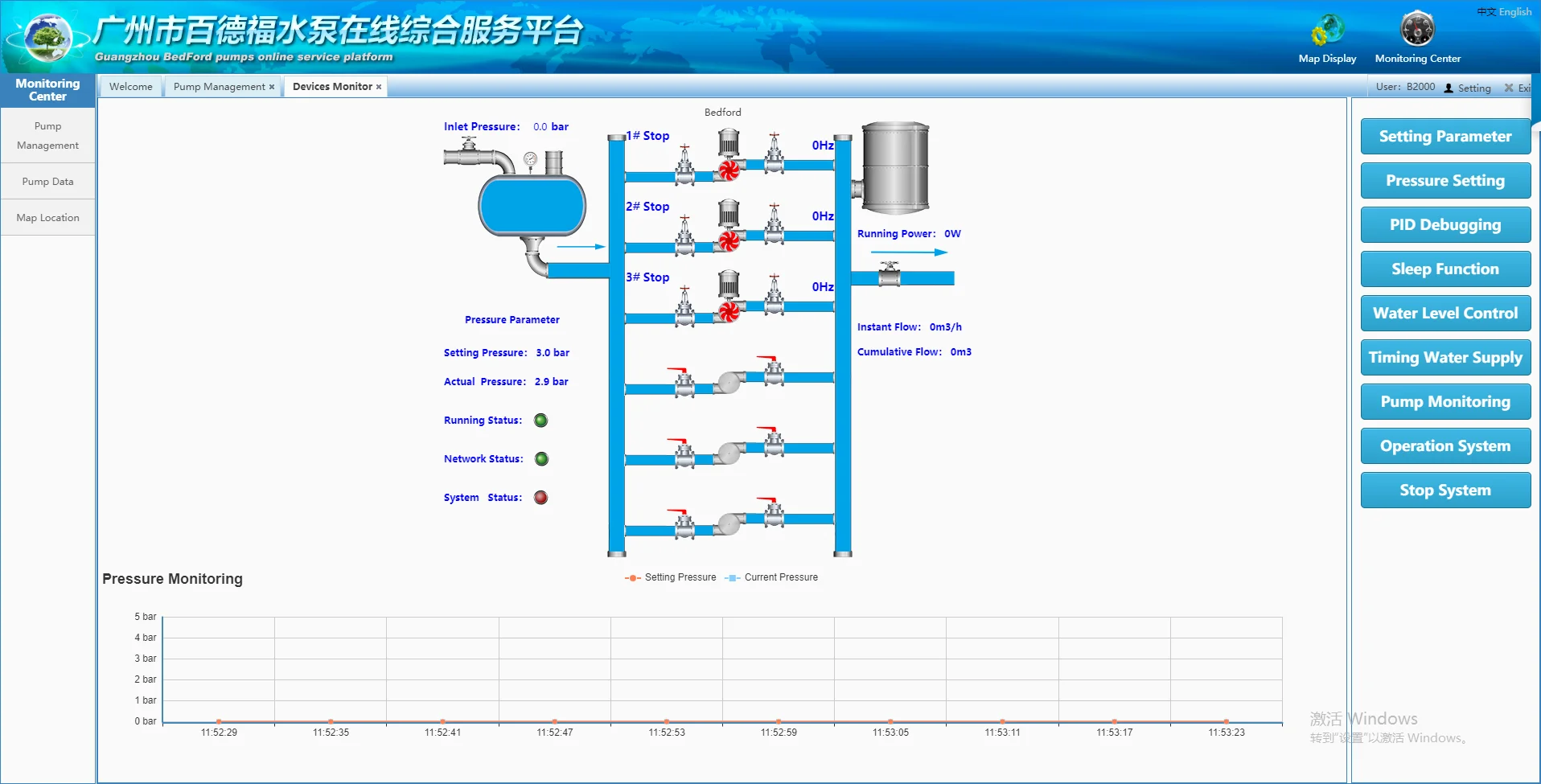

Remote Control Web
Our Advantages
Certifications
Exhibition
Contact us
Any information, catalog, price list, please send inquiry and chat with us:
For more details reference, Contact Supplier
FAQ
Q1: What's the different between inverter and solar inverter?
Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept DC input, it more save power.
Q2: What should be noticed when installing inverter?
Put the product in a place where is well ventilate,cool, dry and water-proof. Do not stress or put foreign objects into the inverter. Remember to turn on the inverter before turn on the appliance.
Q3: Do we need to set the parameter before using ?
No need, our preset parameters can already meet your normal use.
And our inverter is AI intelligent working.
If you need to adjust the parameters yourself, you can do it in a few simple steps.
Q4: What is the payment terms?
100% T/T in advance for sample order. 50% T/T in advance, banlance 50% T/T before delivery for bulk order.
Q5: What is your main market?
Our brands are well known in Europe, Africa, Middle East, Southeast Asia and South America.
Q6: Where is your factory located?
Our factory is located in Guangzhou, China, and you can get to our company within one hour from Guangzhou Baiyun Airport or Canton Fair Complex.You are very welcome to visit our company.Please feel free to contact us if you need information on road conditions or directions.
Q7 : How about the delivery time?
3-5 days for sample order;15-25 days for bulk order.
Q8:What is the supply capacity of your factory?
The monthly output of inverters is over 10,000 units.
Monthly output of water pumps is more than 8,000 units.
For regular orders, we can deliver to you in 5-24 days.
Q9: How can I trust you ?
We are a certified high-tech enterprise in China and an Alibaba certified factory.
We have got ISO certificate and are a China Honest Management Enterprise.
There are more than 250 people in our factory and more than 100 registered trademarks, patents and technology patents.
Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept DC input, it more save power.
Q2: What should be noticed when installing inverter?
Put the product in a place where is well ventilate,cool, dry and water-proof. Do not stress or put foreign objects into the inverter. Remember to turn on the inverter before turn on the appliance.
Q3: Do we need to set the parameter before using ?
No need, our preset parameters can already meet your normal use.
And our inverter is AI intelligent working.
If you need to adjust the parameters yourself, you can do it in a few simple steps.
Q4: What is the payment terms?
100% T/T in advance for sample order. 50% T/T in advance, banlance 50% T/T before delivery for bulk order.
Q5: What is your main market?
Our brands are well known in Europe, Africa, Middle East, Southeast Asia and South America.
Q6: Where is your factory located?
Our factory is located in Guangzhou, China, and you can get to our company within one hour from Guangzhou Baiyun Airport or Canton Fair Complex.You are very welcome to visit our company.Please feel free to contact us if you need information on road conditions or directions.
Q7 : How about the delivery time?
3-5 days for sample order;15-25 days for bulk order.
Q8:What is the supply capacity of your factory?
The monthly output of inverters is over 10,000 units.
Monthly output of water pumps is more than 8,000 units.
For regular orders, we can deliver to you in 5-24 days.
Q9: How can I trust you ?
We are a certified high-tech enterprise in China and an Alibaba certified factory.
We have got ISO certificate and are a China Honest Management Enterprise.
There are more than 250 people in our factory and more than 100 registered trademarks, patents and technology patents.
