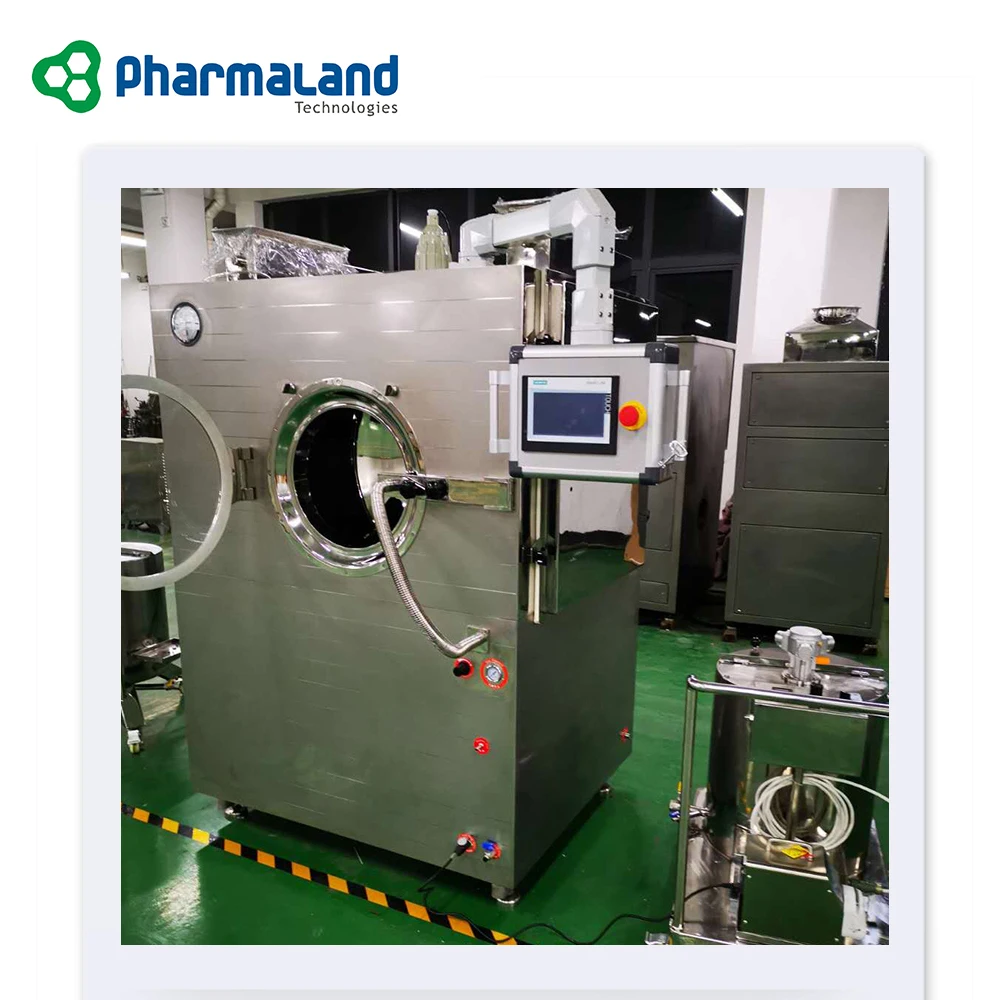

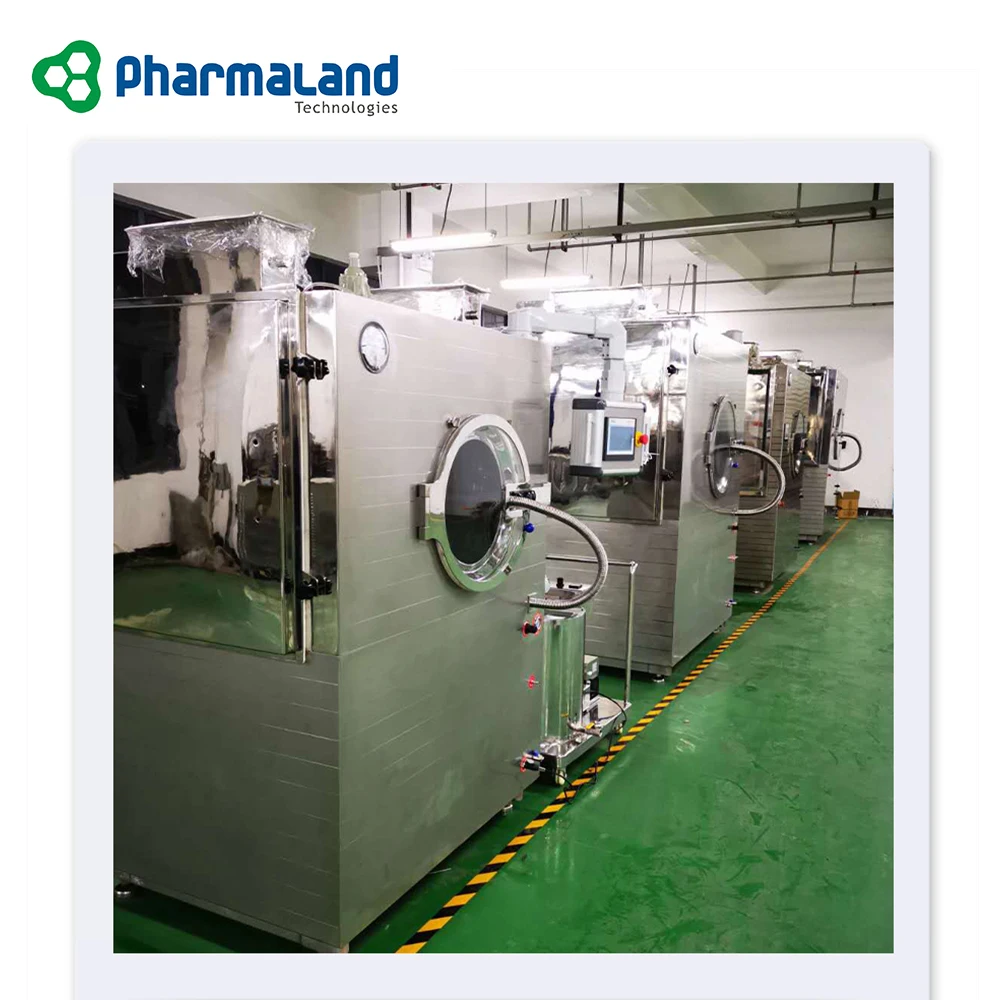

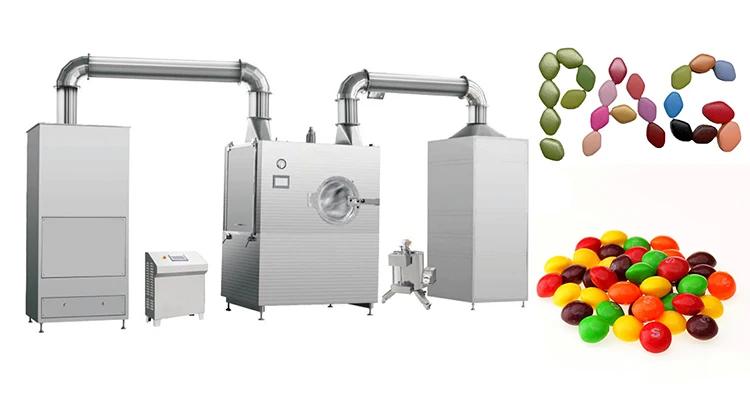

PJGB 150E High Effciency Automatic Fully Closed Candy Sugar Chocolate Bean Nuts Tablet pharmaceutical tablet coating machinery

Share on (1600475313031):


Price:$29,000.00 - $32,000.00

Quantity:


Product Overview

Description



Product Description



Main Features:


I.    New motors


II.   Adjustable air brake device


III.  Spiral stirrer


IV.  Unique micro-software design


V.   Purification of air supply cabinets


VI.  Exhaust cabinets


VII. Spray gun assembly


VIII. Touch screen operators


IX.    Operating control cabinets


X.     Box peristaltic pumps


Technical Parameters:






































































































































Project NameParameters
PJGB-150E
Maximum production capacity150kg/time
Speed range of coated drum2-20rpm
Main motor power2.2kw
Feeder diameter470mm
Diameter of coating drum1200mm
Diameter of roller mesh3.5mm
Air supply tank3200m³/h
Air-conditioning range<80℃
Cleanliness of hot air filtrationA level
Power supply cabinet2.2kw
Exhaust Air Volume4000m³/h
Power of exhaust cabinet7.5kw
Mainframe dimensions1530*1150*1885mm
Mainframe weight1100kg
Size of air supply cabinet1793*914*2270mm
Weight of supply cabin400kg
Extermal dimensions of exhaust cabinet(filter cartridge)1120*1040*2250mm
Exhaust Tank Weight450kg
Moment of peristaltic pump motor4nm
Speed range of peristaltic pump0~200rpm
Dimensions of peristaltic pump450*400*900mm
Heat preservation agitator power6kw
Volume of heat preservation mixing tank80L
Temperature range of heat preservation mixing tank<90℃
 External dimensions of heat preservation mixing tank 780*550*940mm
 Dimensions of power cabinet 1000*350*810mm
Control cabinet shape dimensions550*420*1300mm
Vertical multistage pipe pump (cleaning system)5.5kw
Magnetic drive pump(cleaning system)0.3kw
Cleaning system dimensions1400*670*1070mm



















Related Products


















































Delivered Project


photobank (1)





After-sales Service


We have our own oversea after sales team, our technical support and after sales service is available from China and Canada both for global market.











Why Choose Us


1. We can supply various machines.


2. We have our own oversea after sales technicians, our technical support and after sales service is available from China and Canada both for global market.


3. We have spares stock of 3000M3 to ensure spares supplywhy choose us





Company Information



Pharmaland Technologies Ltd, is a Canada company that was found in 2005 in Toronto with a version to offer affordable quality pharmaceutical and nutraceutical equipments and technical supports to our customers in Pharmaceutical, nutraceutical and food industries. With a global source of technologies and partnerships with those strategic manufacturers mainly in China, Pharmaland offers those most competitive products of the latest technologies with the world leading brand value.





Pharmaland Technologies’ machines are designed and developed with concepts and standards of Canadian mechanical quality and safety, and built up from our facilities of jointed venture and strategic partnership globally, mainly from those leading Pharmaceutical machinery manufacturers in China to offer solid, dependable, affordable and build-in last and long durations of production and package need.





We have our technical support team both in Toronto and Shenzhen China. We have our workshop, showroom and training center as well as parts inventory warehouse in China to provide our prompt service to global customer need.


Our commission is to offer pharmaceutical and nutraceutical manufacturing machinery with advanced technologies at an affordable price, reliable technical supports.









Packaging & Shipping


41iStock-12498888591





FAQ


Q1: How can you ensure the machines’ quality?


A1: Our factory is equipped with high precision lathe, and we only adopt superior material and leading brand components, the machines are designed in accordance with GMP standard.
We have very strict internal inspection during production and before shipment, will provide photos and testing video before shipment to our clients, the machines have one year warranty but life time service

Q2: Will validation documents provided?
A2: Yes, we can provide full set documents, IQ, OQ,PQ etc.

Q3. Any certificate you can provided?
A3:  ISO9001. CE and GMP approved.

Q4: What kind of after-sales service you can provided?
A4: 1. We offer 12 months warranty and lifetime technic service
      2.here is any technic problem, we will response within 24 hours by email or over phone, if problem can’t be solved on-line, we can arrange technician to provide on-site service.

Q5: Can you provide customized manufacture?
A5:  Yes, we have professional technician team to provide customized solutions, just share with us your request for evaluating.

Q6. How can I trust you for first time cooperation?
A6:  We can share with you our business license
Our main Alibaba shop has 15-years experienced .
It is workable for Alibaba trade assurance service for all orders.
You are warmly welcomed to our factory for visiting or machines audit at any time.
