Product Overview
Description
Features Of Smooth 11HY Series Hybrid Stepper motor
* With a wide range of applicants, high standard quality, Smooth provides many kinds of stepper motor for customers
* Stepper motors generate high torque with a compact body, and are ideal for quick acceleration and response.
* From size 8 to size 34 in a wide range of force outputs, Max. Output torque of size 8 is up to 60mNm, these linear actuators are perfect in performance as the high precision.
* All stepper motor linear actuators can be customized as specific application.
* Stepper motors generate high torque with a compact body, and are ideal for quick acceleration and response.
* From size 8 to size 34 in a wide range of force outputs, Max. Output torque of size 8 is up to 60mNm, these linear actuators are perfect in performance as the high precision.
* All stepper motor linear actuators can be customized as specific application.
Model No. | Lead wires | REsistance per phase | Inductance per phase | Rated current | Holding torque | Detent torque | Rotor inertia | L(MAX) |
17HD011-N | ohm±10% | mH±20% | A | mNm | mNm | g.cm² | mm (in.) | |
11HY104-12 | 6 | 7 | 1.3 | 0.4 | 40 | 2.5 | 9 | 33.5 |
11HY201-15B | 4 | 8 | 5 | 1 | 90 | 3 | 10 | 40 |
11HY301-2 | 4 | 58 | 24 | 0.2 | 90 | 5 | 12 | 45 |
11HY401-2S | 4 | 9.2 | 4.2 | 0.67 | 100 | 6 | 14 | 51 |
*For more model parameters, please contact us.

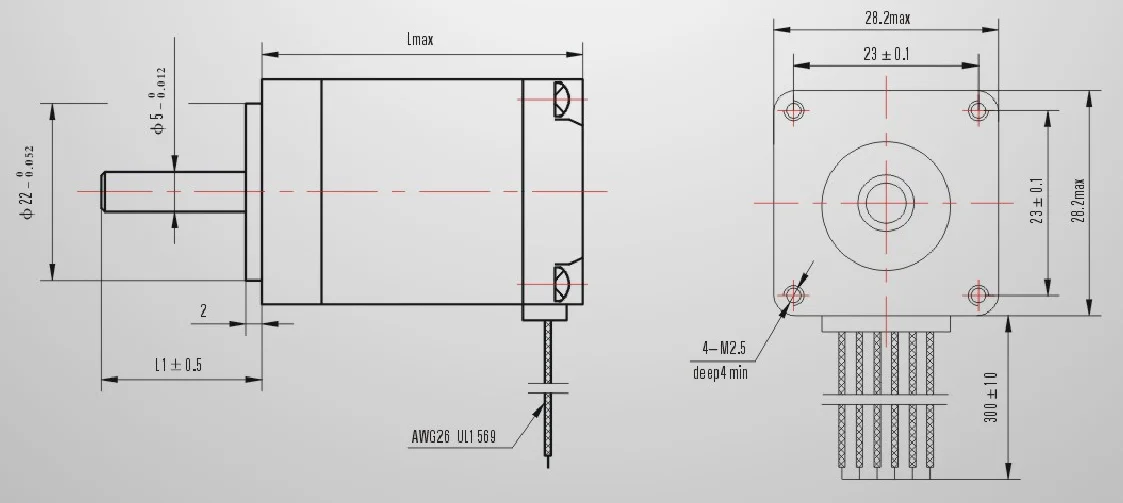

Dimensional Drawing
.Size 11 Hybird stepper motor Actuator
11HY104-12 | 11HY105-2C |
*Please contact us for more information.
Standard | Round Shaft | Single Flat | Female Thread |
Male Thread Hexagon Flat | Square Shaft | Double Flat |
* The above are standard options, customized design is available.
Applications
The Smooth Motor are ideal for applications requiring a combination of precise positioning, rapid motion and long life.
Stage Lighting | Medical Equipment | 3D Printer | Packing Machine |
Semicon Equipment | Sewing Machine | Robot | Engraving Machine |
Custom assembly
SMOOTH provide the custom service by combining the reliable stepper motor and precise mechanical parts for varies applications. more>>>
Products Recommended

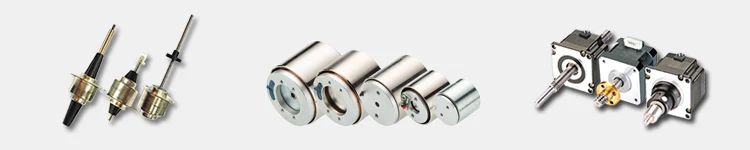

Can-stack motor | Voice coil motor | Linear stepper |
Stepper motor | Lead screw&Nut | Lead screw&Nut |
Plant and Capacity
65% key components are made in room | 60% automated productions | Annual capacity 3.5 millions |
