Factory Fully Automatic Sheet Paper Thermal Servo Laminating Machine with Good Price

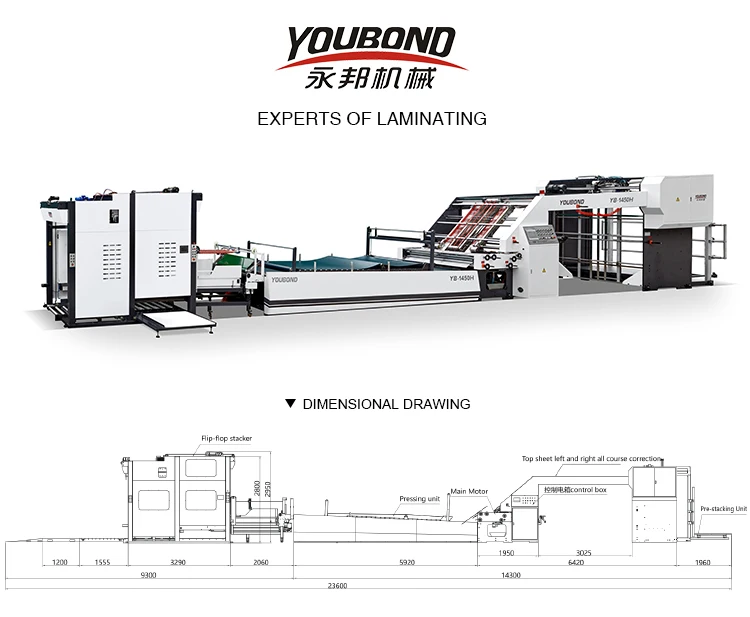

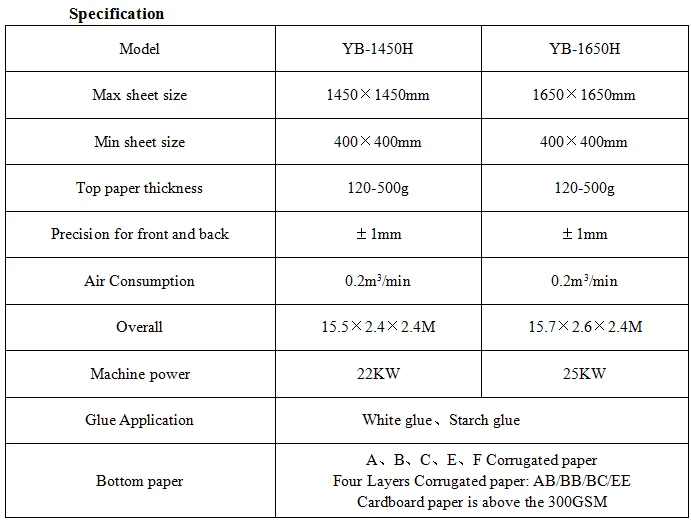

Specification of the YB-1450-1650H Servo laminating machines

Remarks: The top sheet could be the printed color sheet, filmed paper and uv varnished and paper from offset printing machine.

MAX SPEED 12000SPH

ONE-KEY COMMISSION 20S COMPLETION

CARDBOARD TO CORRUGATED PAPER & CARDBOARD TO CARDBOARD

SERVO COMPENSATION POSITIONING

TOP SHEET LEET AND RIGHT ALL COURSE CORRECTION

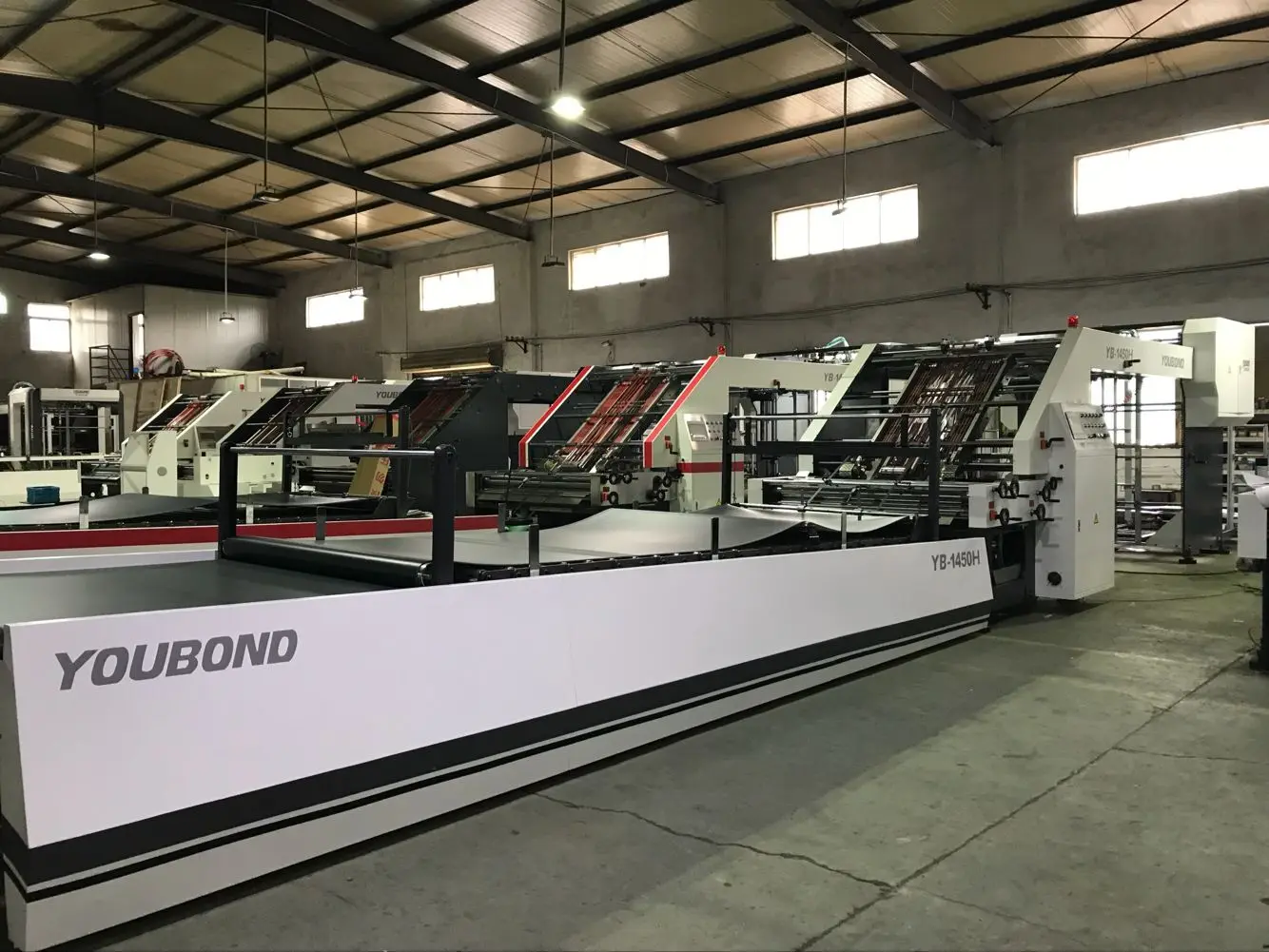

Introduction: This machine adopts motion control system and servo correction system, using multiple sets of photoelectric sensors at the end of the paper the relative position. It is equipped with 3 servo motors, one controls the bottom sheet and the other two control the top sheet. And what makes it differ from the normal automatic type is that the convey bridge for the top sheet is lengthened to be 1.5m, where lies several pulling-balls (correction unit), thus the fitness is very accurate. Servo laminating machine has the advantages of simple operation, we only need to input the size of paper and the machine would adjust the feeder, the bottom feeding and the pressure system automatically, which realizes the intelligent operation.

Detail parts:

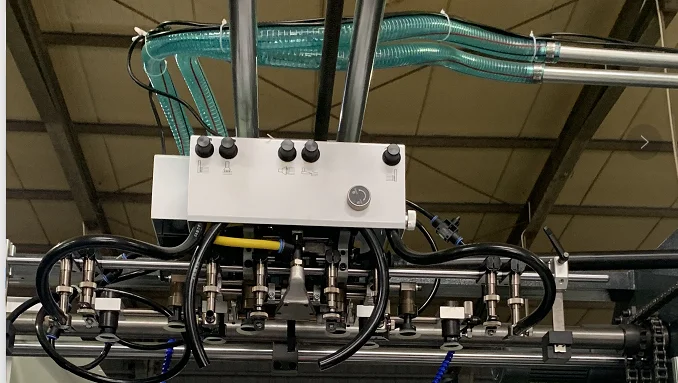

 1) Top sheet feeding mechanism: equipped with high speed auto dedicated feeder, both paper lifting and feeding nozzle can freely adjust angle to the paper, to ensure that whether thick or thin paper can be delivered rapidly and smoothly

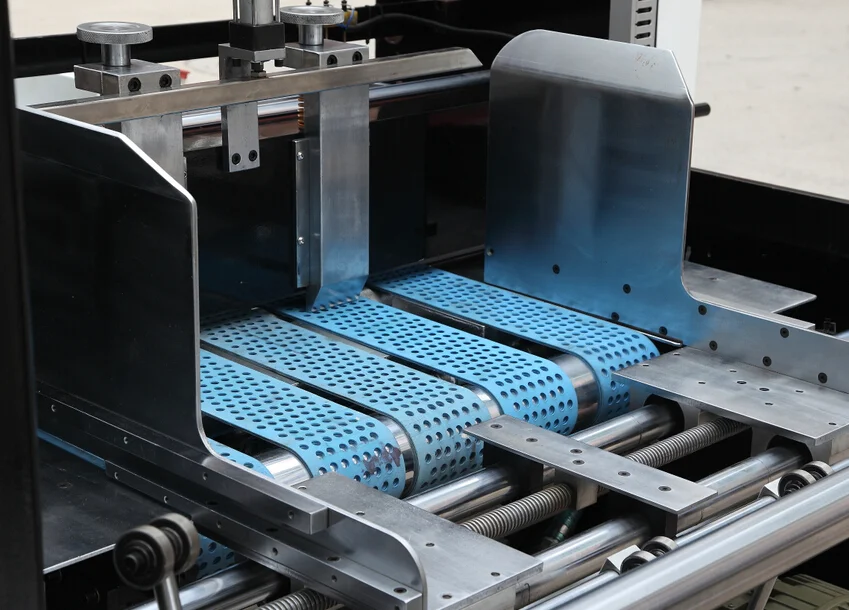

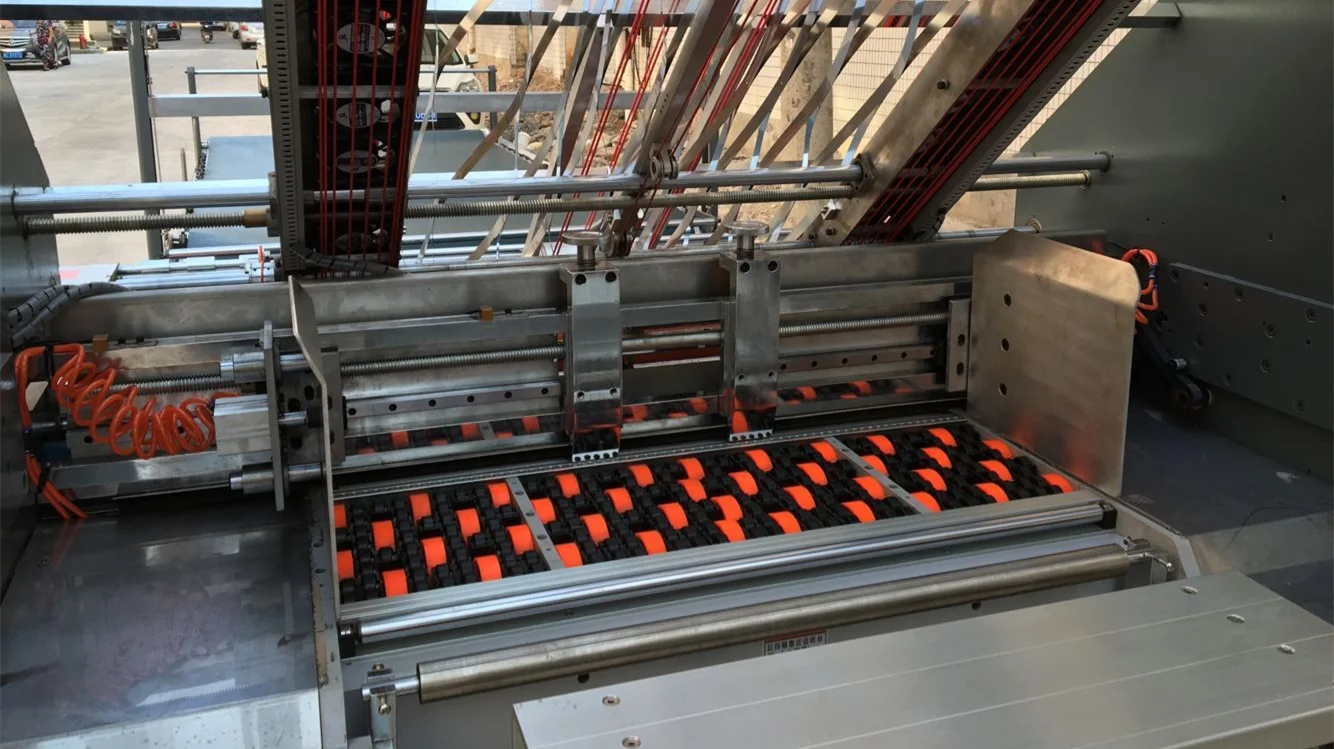

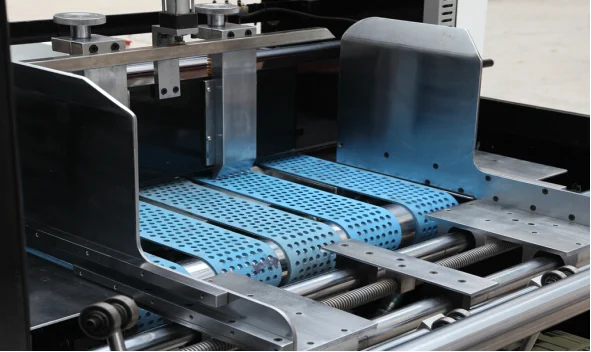

 2) Bottom paper feeding: Use imported Servo motor electric controlling system, with Japan NITTA suction belt to make suction power inverter, and belt cleaned by water roller; Patented technology to ensure corrugate and cardboard goes out smoothly and simple operation

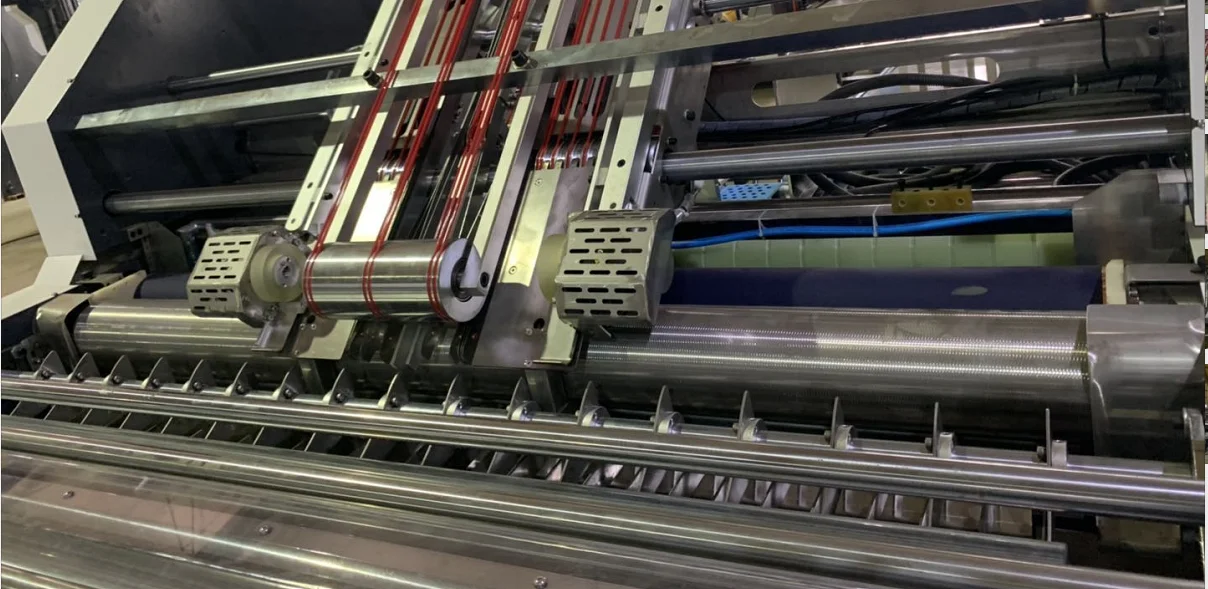

 3) Positioning System: Using groups of photoelectric sensing bottom paper forward relative position, control top paper on both sides of the servo motor, independent compensation action, the top paper and bottom paper precision laminated

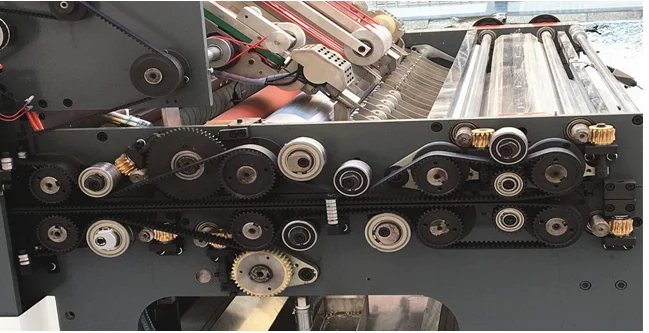

 4) Transmission Part : Imported double toothed synchronous belt drive, equipped with a tensioning device to ensure the accuracy of the transmission, stable, low noise

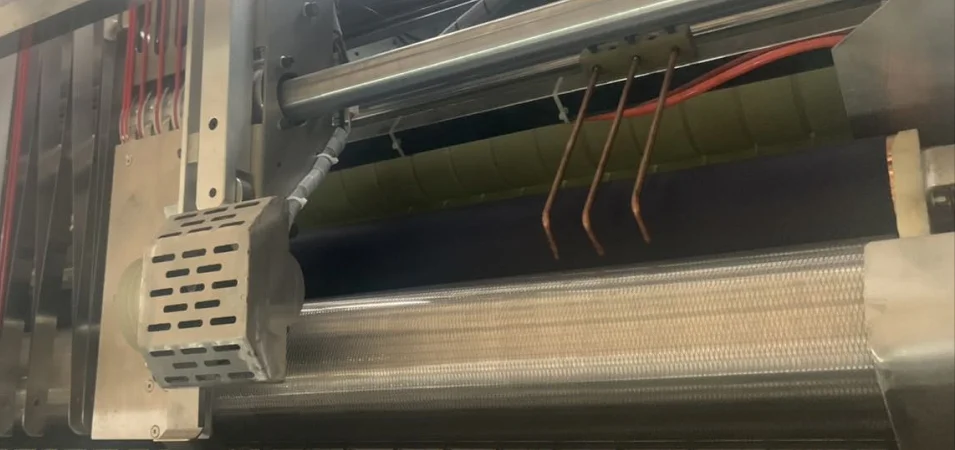

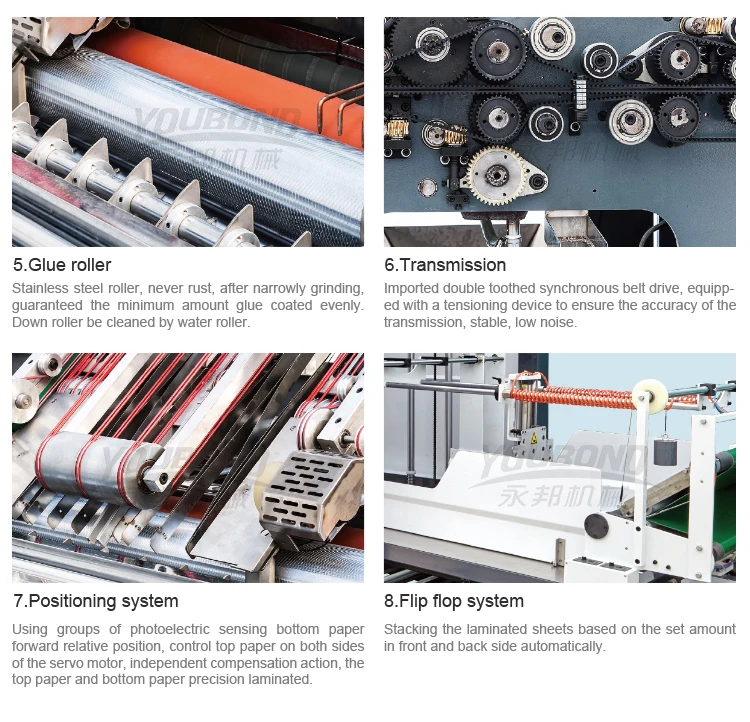

  5) Glue roller: Stainless steel roller, never rust, after narrowly grinding, guaranteed the minimum amount glue coated evenly. Down roller be cleaned by water roller.

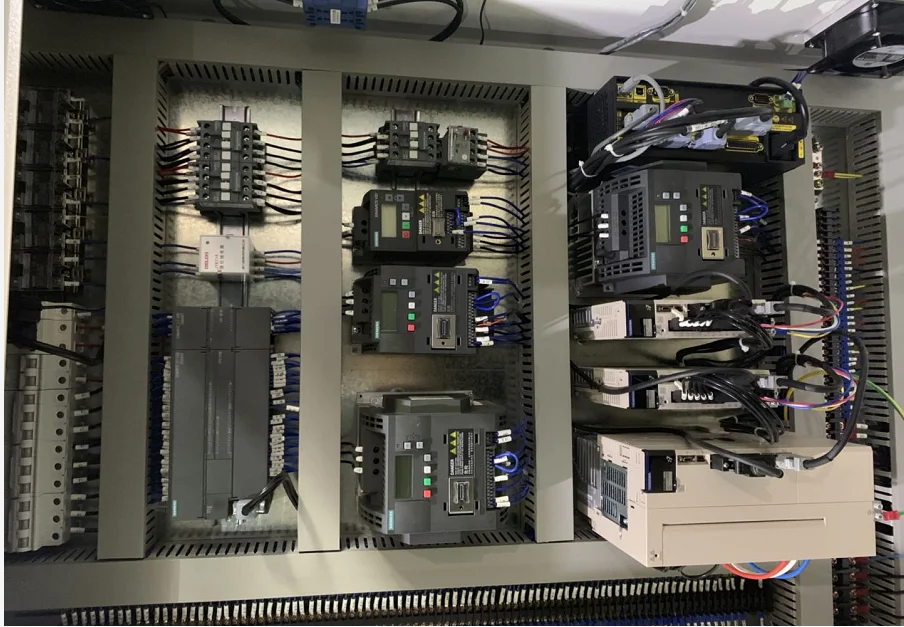

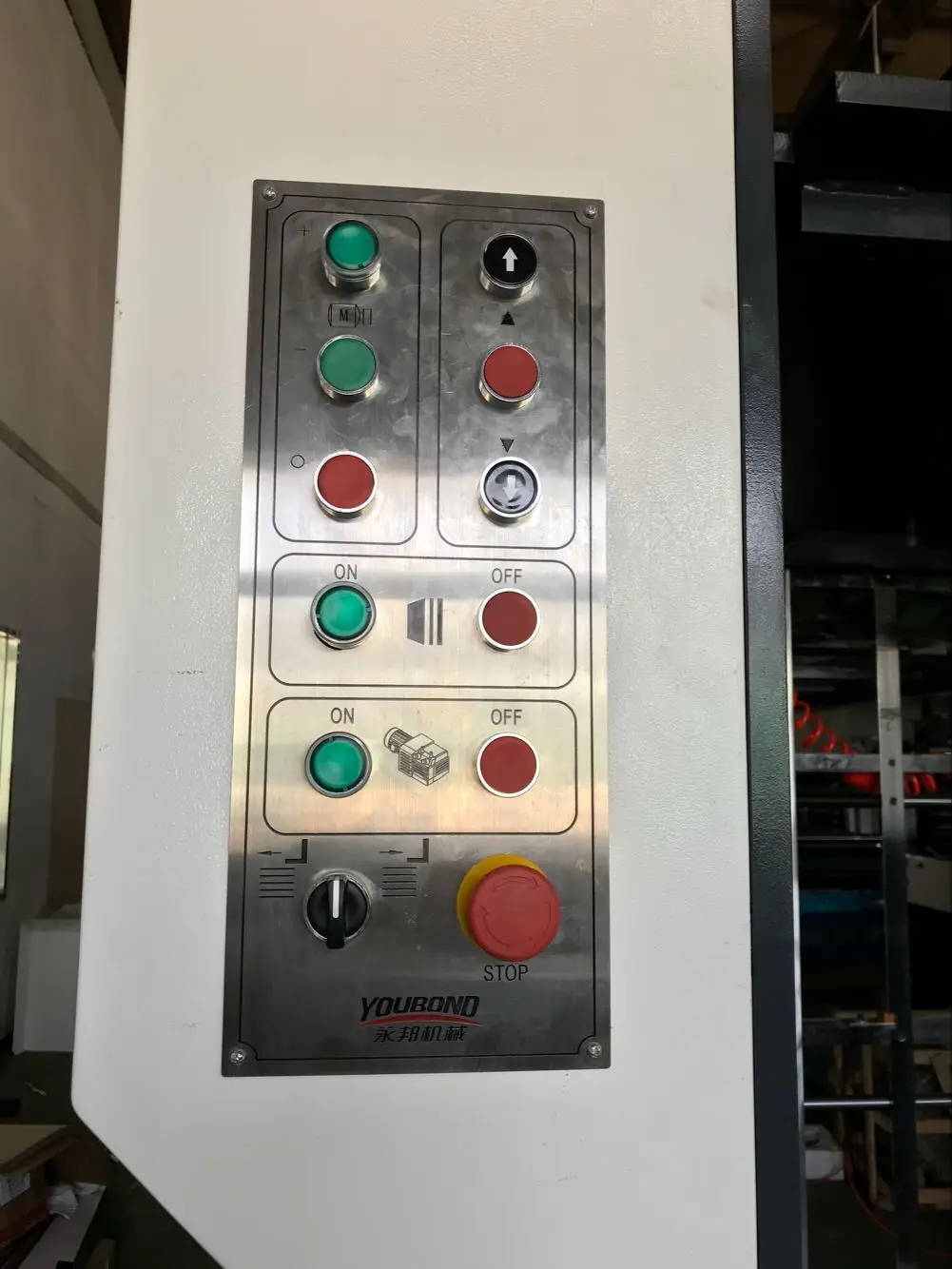

 6) Electrical system: Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc on the screen at a glance

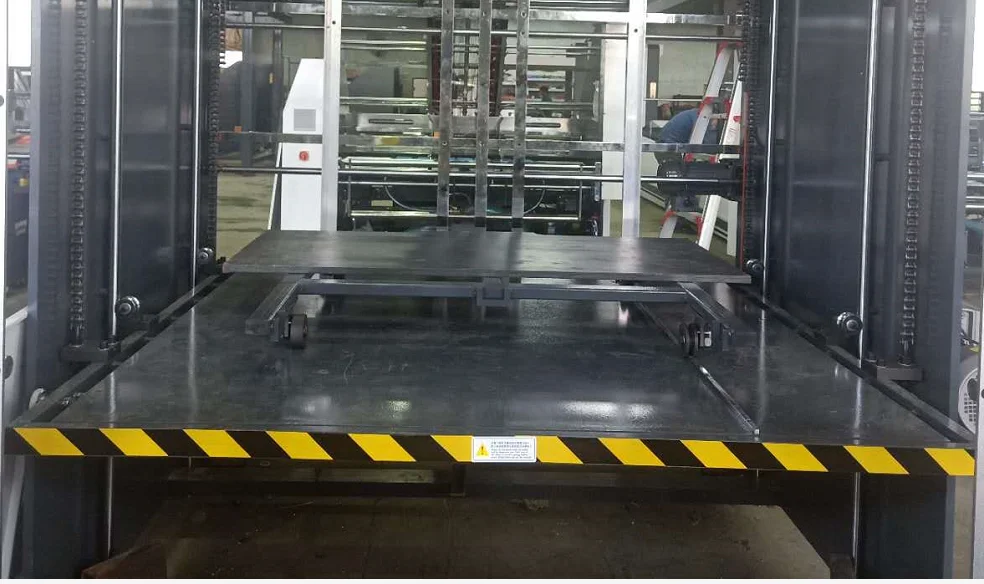

 7) Pre-stack section: pre-stack pile of paper under the condition of non-stop, improve efficiency. The special design of the pre stack paper frame, save time and effort.

 8) Leading Edge Feeding System: This system is for option, more suitable for large size and thick bottom sheets.

When machine arrives at the customers factory, we could dispatch the engineer to the customers factory for the installation and trainning, meanwhile, when customer has the questions, customer could contact us online, our service team will always there for customers service.

                 We have professional sales and well educated after-sales service team.

       If you have any inquiry, please feel free to contact us, it would be our pleasure to           help you and make your task a lot easier!
