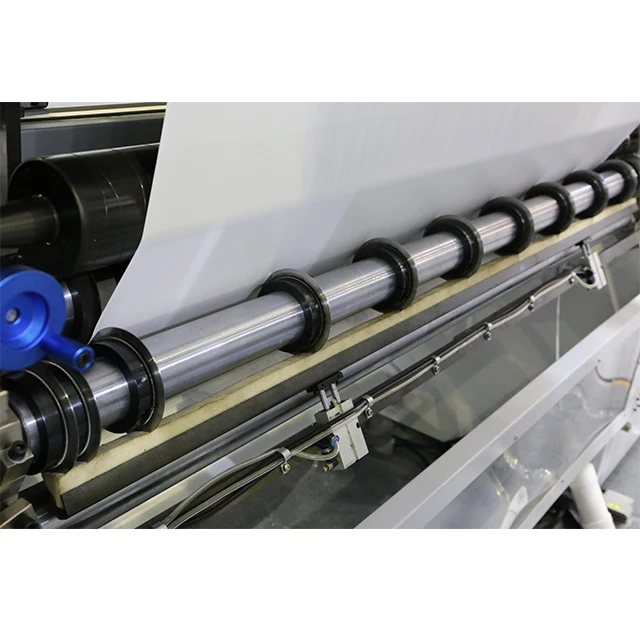

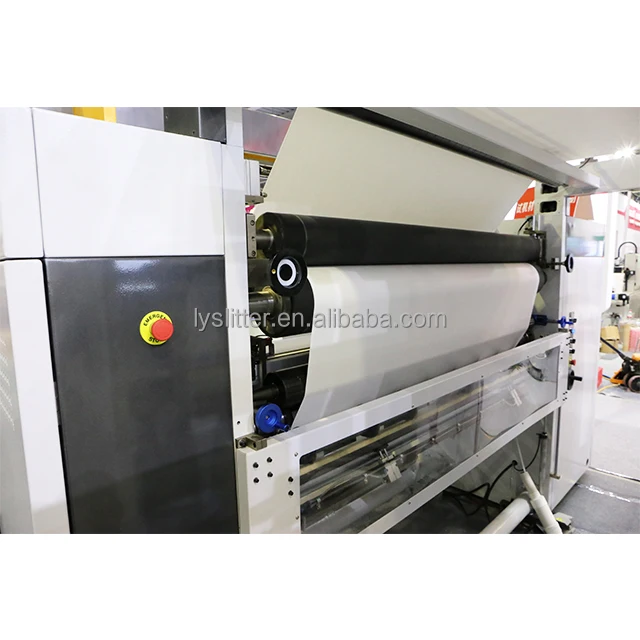

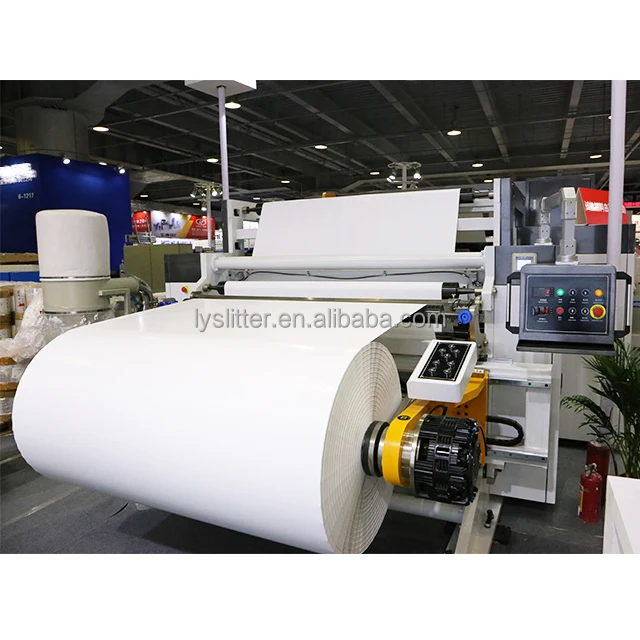

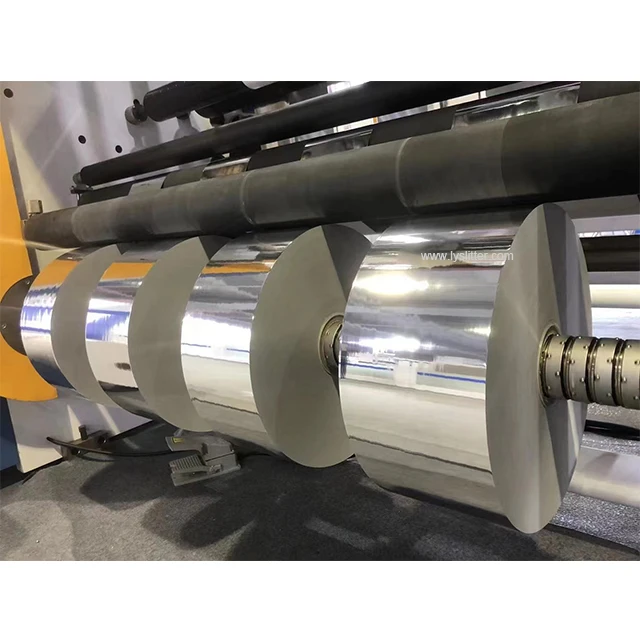

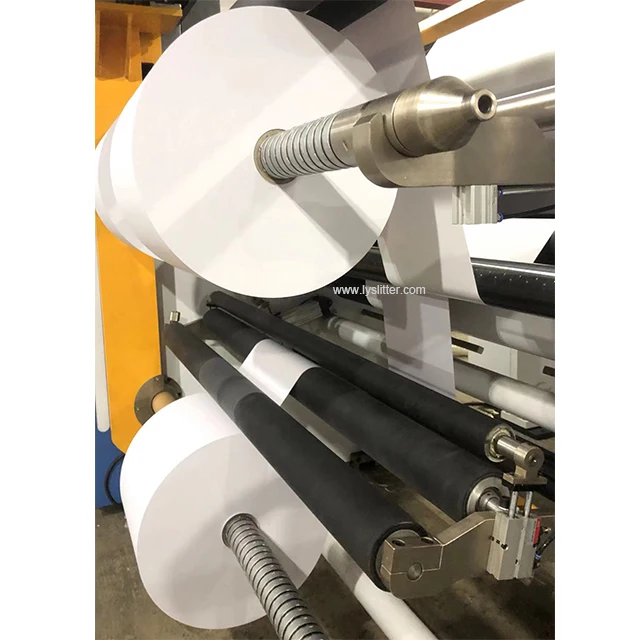

Paper Label Stock High Speed Shaftless Unwinding Slitting Rewinding Machine
- Category: >>>
- Supplier: Ruian Loyal Machinery Co. Ltd.
Share on (1600475357189):
Product Overview
Description
Products Description
The global famous label packing company we have cooperated are：
All4Labels, AVERY, CLL and etc.
Application:
This type high speed slitting machine is the most suitable machine for high speed and precision demand of the jumbo roller material slitting and rewinding. Such as: Paper, self adhesive paper, sticker, cardboard, electric screen protective film, laminated film, etc.
Advantage:
HCH3-B series is our latest innovation, own the excellent performance:
· Automatic unloading device, increase the productivity and ensure the production safety.
· Automatic shaft-less loading for jumbo roll.
· Machine driven by 3 sets 11kw synchronous servo motors, big power, high precision.
· Double "S" material path to avoid the gum leaking.
· Overhead material path to prevent the gum dripping.
· Machine body processing by CNC, ensure the whole machine precision and stability.
· Solve the problem of snake shape of finished product surface.
· Double-bead duplex friction shaft adopted.
· Semi-auto blade set. (Option)
· Automatic blade set. (Option)
· Automatic unloading device, increase the productivity and ensure the production safety.
· Automatic shaft-less loading for jumbo roll.
· Machine driven by 3 sets 11kw synchronous servo motors, big power, high precision.
· Double "S" material path to avoid the gum leaking.
· Overhead material path to prevent the gum dripping.
· Machine body processing by CNC, ensure the whole machine precision and stability.
· Solve the problem of snake shape of finished product surface.
· Double-bead duplex friction shaft adopted.
· Semi-auto blade set. (Option)
· Automatic blade set. (Option)
Printed Label & Stickers
Beverage Labels & Stickers
Pressure sensitive labels, promotions, shrink sleeves, stretch sleeves, washoff labels, sustainability labels
Wine and Spirits Label & Stickers
Qantas labels, pressure sensitive labels, promotional labels, shrink sleeves, wet glue labels
Food Labels & Stickers
Functional labels, in-mould labels, pressure sensitive labels, promotional labels, shrink sleeves, stretch sleeves
Home and Personal Care Labels & Stickers
Expanded content labels, in-mould labels, metallics, pressure sensitive labels, rigid reclose labels, shrink sleeves
Tube Pack
Labeled tubes, plastic tubes, Lami tube
Retail and Advertising Labels & Stickers
Qantas labels, Functional labels, in-mould labels, pressure sensitive labels, promotional labels, shrink sleeves, stretch sleeves
Pharmaceuticals and Healthcare Labels & Stickers
Expanded content booklet labels, shrink sleeves, brand protection, pressure sensitive labels, flexible packaging, tubes, pharmaceutical RFID
Pharmaceuticals Labels & Stickers
Pressure sensitive labels, pharmaceutical RFID
Industrial Chemical and Automobile Labels & Stickers
Pressure sensitive labels,decals & drum labels, expanded content labels, functional labels, ghs labels, in-mould labels, pressure sensitive labels, security labels, seed tags & labels, canwrap plus booklet labels, decal booklet labels, ecoslim booklet labels
Tire Labels & Stickers
Pressure-sensitive labels for rubber
RFID Labels & Stickers
Pressure-Sensitive Labels, Direct Thermal Labels
Booklet Labels & Stickers
Canwrap plus booklet labels, decal booklet labels, ecoslim booklet labels
QR Code Labels & Stickers
Pressure-Sensitive Labels
Brand Protection and Security Labels & Stickers
Egg Shell
Void Labels & Stickers
Void label
Technical Parameter
Machine model | HCH3-1300B | HCH3-1700B | HCH3-2000B |
Unwinding width | 1300mm | 1700mm | 2000mm |
Machine speed | 300m/min | 300m/min | 300m/min |
Slitting precision | ±0.03mm | ±0.03mm | ±0.03mm |
Unwinding diameter | 1200mm | 1200mm | 1200mm |
Rewinding diameter | 600mm | 600mm | 600mm |
Main motor power | 7.5kw | 11kw | 11kw |
Rewinding motor power | 2*7.5kw | 2*11kw | 2*11kw |
Installation dimension | 3980*4600*2250 | 3980*5000*2250 | 3980*5300*2250 |
Machine weight | 6000kg | 7000kg | 9000kg |
Details Images
Related Products
Why Choose Us
1. Quality Control
Incoming Quality Control
Our quality team will inspect the incoming parts before storage by sampling.
Process Quality Control
Our quality team will pick the first pcs of each kind part to inspect before assembly and also inspect randomly on site.
Outgoing Quality Control
Our quality team will inspect the machine’s appearance, features and characteristic etc. before delivery to meet and exceed client’s expectation.
2. Packing & Delivery
3. Certifications
4. Our Service
Inquiry and consulting support.
Sample material testing support.
Lead the customer to visit our factory if required.
12 months guarantee, life-long time technic maintenance and support.
Online Guidance support. Spare parts supports.
24 Hours * 7 days service online.
Company Profile
COMPANY PROFILE
Ruian Loyal Machinery Co.,Ltd located in Ruian city, southeast of China, specializing in the slitting machine, die cutting machine, printing machine making for more than 10 years in the application of label /flexible packing /electric protector film/new energy and paper industry.
RaLoyal have been always devoted to provide a global solution to the demands of markets in constant development with competitive and tailored equipment including the latest solutions in innovation, technology and sustainability for customers. We have set agent in Germany,Venezuela, which can provide immediate technical support available to minimize the waiting time for customers.
We deeply believe that Raloyal will become your loyal partner and supplier once we have a chance to start the cooperation!
