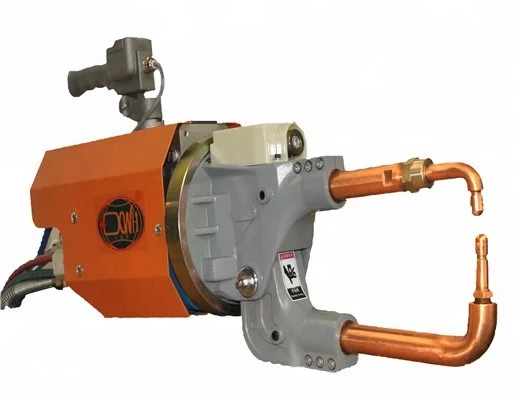

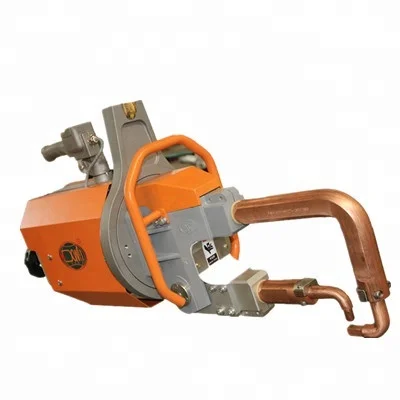

Jigs for Car Production Line
US $32750-$34580
Mild Stainless Steel Basin Barrel Box Hardware Industry Seam Welding Machine Spot Welders
- Category: Auto Production Line Equipment >>>
- Supplier: Chengdu Xingweihan Welding Equipment Co. Ltd.
Share on (1600475364429):
Product Overview
Description
Product Description
MAIN FEATURES
1. Light weight, easy to operate and save electricity
2. Compact structure and easy maintenance
3. The turntable is equipped with bearings and rotates 360°

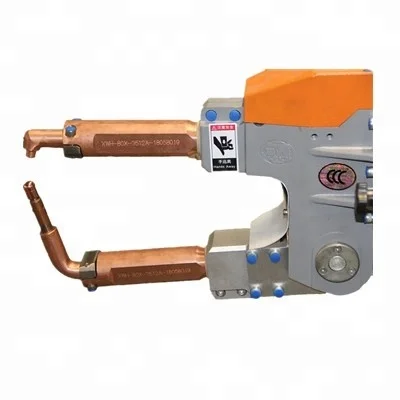

4. Customized welding tongs, the longest welding arm is 1300mm and the shortest is 220mm
5. Less wearing parts and high cost performance
6. The structure of the transformer is the same as that of Bosch. The transformer is equipped with temperature control protection. Water cooling, fast heat dissipation. Long sustainable working time (24h work)
7. Different specifications can be set (workpieces with different thicknesses can be welded) welding thickness 0.3mm+0.3mm∽5+5mm
8. Stable control functions
9. The cylinder is a customized pressurized cylinder, the brand is (SMC)
10. Balancer with self-locking function
11. The delivery period is stable and timely
2. Compact structure and easy maintenance
3. The turntable is equipped with bearings and rotates 360°
4. Customized welding tongs, the longest welding arm is 1300mm and the shortest is 220mm
5. Less wearing parts and high cost performance
6. The structure of the transformer is the same as that of Bosch. The transformer is equipped with temperature control protection. Water cooling, fast heat dissipation. Long sustainable working time (24h work)
7. Different specifications can be set (workpieces with different thicknesses can be welded) welding thickness 0.3mm+0.3mm∽5+5mm
8. Stable control functions
9. The cylinder is a customized pressurized cylinder, the brand is (SMC)
10. Balancer with self-locking function
11. The delivery period is stable and timely
Models Item | Unit | DN2-31X | DN2-31C | DN2-40X | DN2-40C | DN2-63X | DN2-63C |
Power at 50% | KVA | 31 | 31 | 40 | 40 | 63 | 63 |
Transformer turns ratio | 70 | 70 | 56 | 56 | 48 | 48 | |
Maximum short circuit current | KA | 14 | 14 | 18 | 18 | 20 | 20 |
Secondary unload voltage | V | 5.58 | 5.58 | 6.8 | 6.8 | 7.9 | 7.9 |
Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
Distance between the arms | mm | 168-288 | 100 | 168-328 | 100 | 168-428 | 100 |
Min. length of arms | mm | 220 | 200 | 300 | 200 | 400 | 200 |
Max. strength at electrodes | N | 3000 | 3000 | 3500 | 3000 | 3500 | 3000 |
Working stroke | mm | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
Max. stroke of cylinder | mm | 70 | 50 | 100 | 50 | 100 | 50 |
Max. arm length | mm | 750 | 350 | 1000 | 450 | 1100 | 500 |
Compressed Air supply | MPa | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Max.thickness of mild steel sheet with min. length s arm | mm | 3+3 | 3+3 | 4+4 | 4 +4 | 5+5 | 5+5 |
With 500mm arms | mm | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
With maximum length arms | mm | 1.2+2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
Cross wire maximum | mm | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
Cooling water pressure | MPa | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 |
Cooling water flow | L/min | 4 | 4 | 4 | 4 | 4 | 4 |

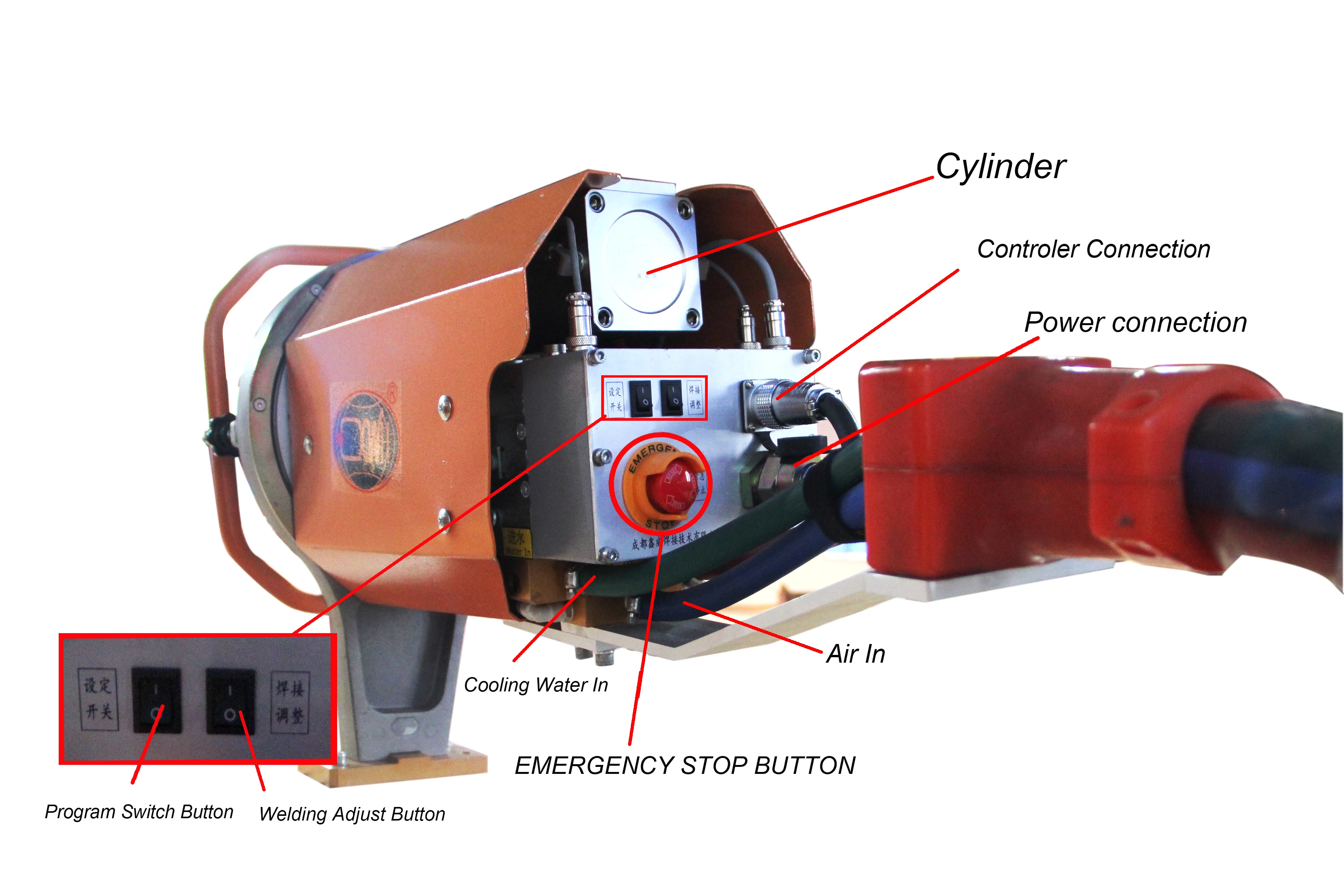

Detailed Images
Packing&Shipping
Related Products
Company Profile
Why Choose Us
*Your reply will be replied within 24 hours.
*Fast delivery time and good after service.
*Keep the mass production as the sample in high quality.
*Freight forwarder: faster, safer, and convenient.
*Good factory price.
*Guaranteed for one year.
*Providing overseas services.
Long-term Experience of Welding Machine Manufacturing
*Fast delivery time and good after service.
*Keep the mass production as the sample in high quality.
*Freight forwarder: faster, safer, and convenient.
*Good factory price.
*Guaranteed for one year.
*Providing overseas services.
Long-term Experience of Welding Machine Manufacturing
Customized Designing and Manufacturing
Many customer's trust
FAQ
Q1: What does your factory produce?
A: We produce and export all kinds of welding machine. We can also design and develop the
welding machine according to your requirement.
Q2: What about your standard delivery time?
A: Normally 15 days after receiving the deposit, delivery date will be longer on customized products.
Q3: Can I visit your factory?
A: Of course, we can pick you up in the airport.
Q4: Do you have CE certificate?
A: YES, we have CE, CCC, ISO.
Q5: Where do your factory located?
A: Our factory located in NO.538 Xingfu Road, Xindu, Chengdu, China.
Q6: Will you send engineer to help installing the welding machine?
A: Of course. If you need, we can send our engineer to fly to your factory to help installing the welding machine, train your
workers and make sure the welding machine running well before he leave.
welding machine according to your requirement.
Q2: What about your standard delivery time?
A: Normally 15 days after receiving the deposit, delivery date will be longer on customized products.
Q3: Can I visit your factory?
A: Of course, we can pick you up in the airport.
Q4: Do you have CE certificate?
A: YES, we have CE, CCC, ISO.
Q5: Where do your factory located?
A: Our factory located in NO.538 Xingfu Road, Xindu, Chengdu, China.
Q6: Will you send engineer to help installing the welding machine?
A: Of course. If you need, we can send our engineer to fly to your factory to help installing the welding machine, train your
workers and make sure the welding machine running well before he leave.
