40A 63A 230V Household Din rail automatic recovery reconnect over voltage and under voltage protective device protector
- Category: >>>
- Supplier: Wenzhou Xulueke Electric Co. Ltd.
Share on (1600475383617):
Product Overview
Description
Product Description

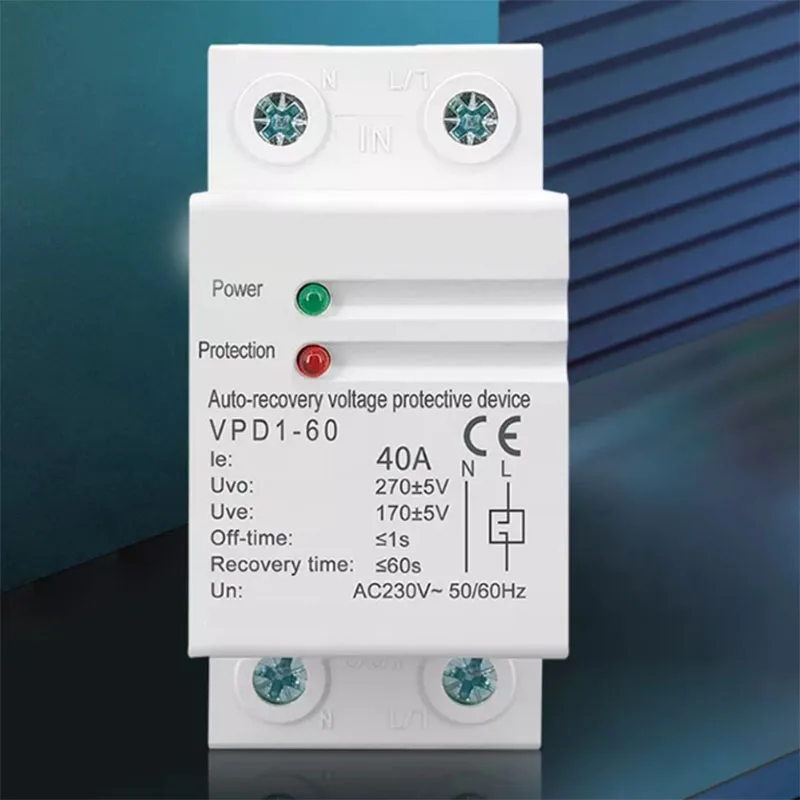

Under voltage and over voltage protector
Noted: When you first connect the product, you have to wait about 1 minute, after the red light turn off, then the product will
work.
The automatic recovery over voltage and under voltage protective device complies with modular design standards. the circuit boards
of products adopt good quality electronic components with reliable performance. when the power situation is unstable. It's
protection function will be automatically activated. once the voltage exceeds the limited range of products, it will automatically
cut off so as to protect the safely of electrical equipment and persons. The device will re-supply in 1 minute, when the power
returns to normal.

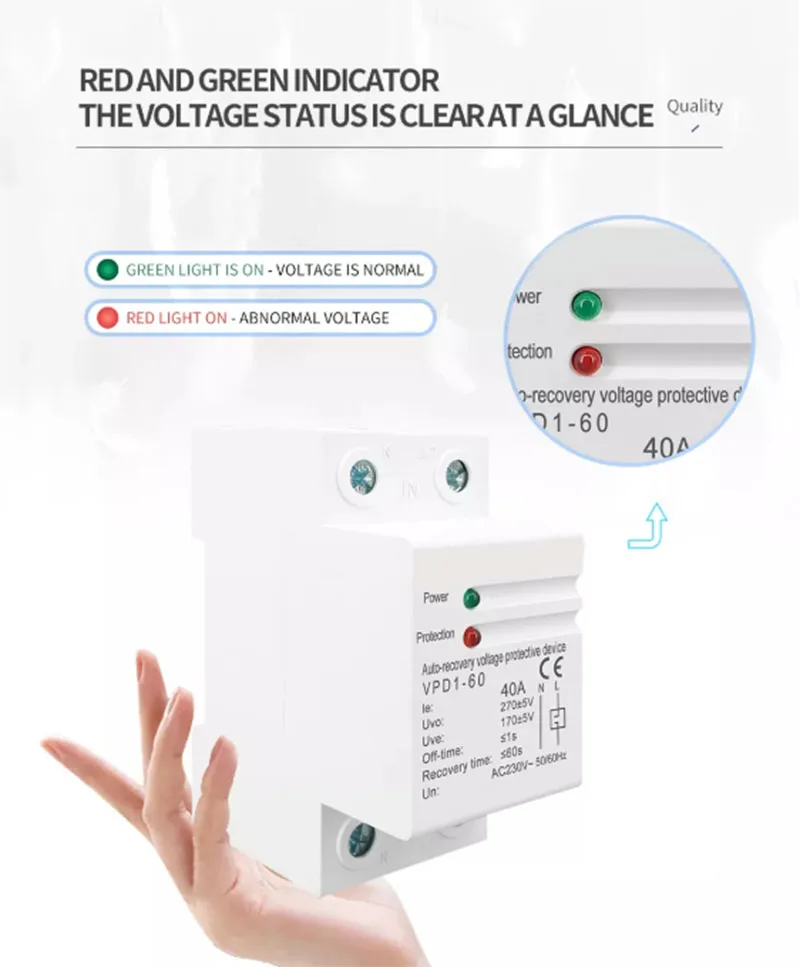

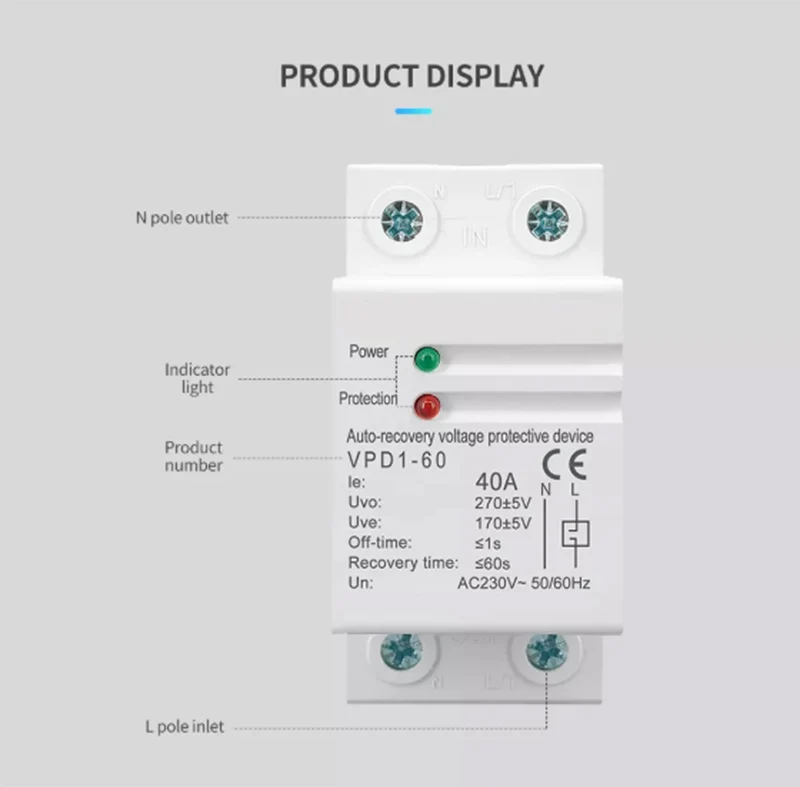

The green indicator display, when the power is normal supply.
The red indicator display, when the power over voltage or under voltage.
Installing: 35mm Din rail.

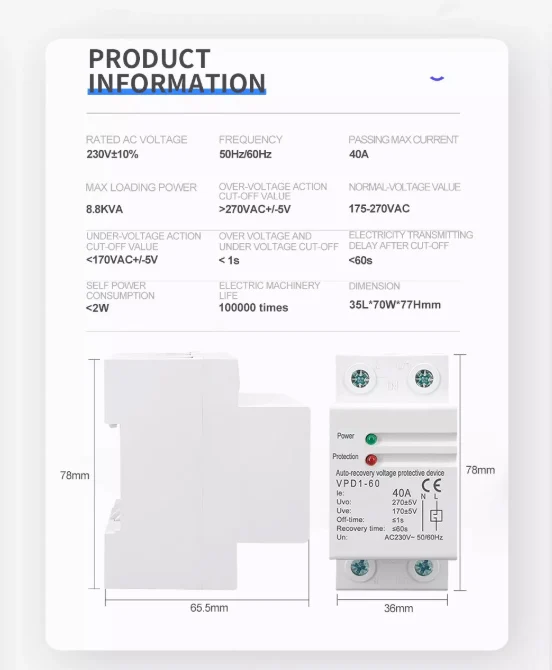

Main Technical Speacification:
1. Rated AC voltage 230V±10% and frequency 50Hz/60Hz
2. Passing Max Current: 40A
3. Max. Loading power: 8.8KVA
4. Over-voltage action cut-off value: >270VAC+/-5V
5. Normal-voltage value: 175-270VAC
6. Under-voltage action cut-off value: <170VAC+/-5V
7. Over voltage and under voltage cut-off:< 1s
8. Electricity transmitting delay after cut-off: <60s
9. Self power consumption<2W
10. Electric machinery life=100000 times
11. Dimension: 35L*70W*77Hmm
12. Installing: 35mm Din rail
Noted: When you first connect the product, you have to wait about 1 minute, after the red light turn off, then the product will
work.
The automatic recovery over voltage and under voltage protective device complies with modular design standards. the circuit boards
of products adopt good quality electronic components with reliable performance. when the power situation is unstable. It's
protection function will be automatically activated. once the voltage exceeds the limited range of products, it will automatically
cut off so as to protect the safely of electrical equipment and persons. The device will re-supply in 1 minute, when the power
returns to normal.
The green indicator display, when the power is normal supply.
The red indicator display, when the power over voltage or under voltage.
Installing: 35mm Din rail.
Main Technical Speacification:
1. Rated AC voltage 230V±10% and frequency 50Hz/60Hz
2. Passing Max Current: 40A
3. Max. Loading power: 8.8KVA
4. Over-voltage action cut-off value: >270VAC+/-5V
5. Normal-voltage value: 175-270VAC
6. Under-voltage action cut-off value: <170VAC+/-5V
7. Over voltage and under voltage cut-off:< 1s
8. Electricity transmitting delay after cut-off: <60s
9. Self power consumption<2W
10. Electric machinery life=100000 times
11. Dimension: 35L*70W*77Hmm
12. Installing: 35mm Din rail
Certifications
Our Advantages
Company Profile
Wenzhou XLK electric appliances co.,ltd.is a joint venture. My company is a manufacturer including desgn,development,produce and sale,professional producing MCB,MCCB,RCCB,RCBO and AC contactor ect. product enterprise.The company owns import and export power of self-run,expanding Europe and South America,Middle East,Southeast Asia etc.market,set a good public praise.
The company have more than 1500 workers,including senior engineer among them,engineer at inside of more than100 technician. And then set up to cover area more than 50 acres,construct area is more than 38000 square meters of the modern industrial Zone,providing with the forerunner's standard laboratory and various examination equipments.
Under XLK people to make great effort unremittingly,designed and develop by oneself ,develop and produce the series of mcb,rccb filled up local blank,attain inter-national advanced level, and acquire more than 20 national patents.The company acquires"30 strong eminent enterprises,top ten of export income,yueqing star class enterprise, attach importance to contract and keeps promise",title of honor for many times past years.Company still the initiative pass ISO 9001 managment system verification and 14001 environments management ayatem verification. our product passed quality verification of domestic and international authority organization like the CB\\SEMKO\\NF\\SIRIM\\SNI\\CE\\PCT\\TSE, in the meantime high breaking capacity breaker of our company in this city is the unique product which got"yueqing famous brand product"by yueqing people government.
XLK electric appliances is willing to make friends with social public,the world outside businessman join hands together for prosperous society and development to build a brighter future.
The company have more than 1500 workers,including senior engineer among them,engineer at inside of more than100 technician. And then set up to cover area more than 50 acres,construct area is more than 38000 square meters of the modern industrial Zone,providing with the forerunner's standard laboratory and various examination equipments.
Under XLK people to make great effort unremittingly,designed and develop by oneself ,develop and produce the series of mcb,rccb filled up local blank,attain inter-national advanced level, and acquire more than 20 national patents.The company acquires"30 strong eminent enterprises,top ten of export income,yueqing star class enterprise, attach importance to contract and keeps promise",title of honor for many times past years.Company still the initiative pass ISO 9001 managment system verification and 14001 environments management ayatem verification. our product passed quality verification of domestic and international authority organization like the CB\\SEMKO\\NF\\SIRIM\\SNI\\CE\\PCT\\TSE, in the meantime high breaking capacity breaker of our company in this city is the unique product which got"yueqing famous brand product"by yueqing people government.
XLK electric appliances is willing to make friends with social public,the world outside businessman join hands together for prosperous society and development to build a brighter future.
Workshop
Exhibition
FAQ
Q1. What advantages do you have?
A1.Are the direct Manufacturer in Wenzhou China, we have professional developing, marketing & production team to offer you the most competitive price and best service.
Q2. Could you print our own logo?
A2. Yes, Our company are available for Retail & Wholesale & OEM & ODM.
Q3. How long is the quality guarantee?
A3. 18 month warranty, our products are 100% inspection.
Q4. How long is the deliver time?
A4. It usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order.
Q5. What is your payment terms?
A5. Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight.
Q6. Any certification of your company or product?
A6.We have ISO 9001, CE, CB, SEMKO, SAA, TUV, CCC.
A1.Are the direct Manufacturer in Wenzhou China, we have professional developing, marketing & production team to offer you the most competitive price and best service.
Q2. Could you print our own logo?
A2. Yes, Our company are available for Retail & Wholesale & OEM & ODM.
Q3. How long is the quality guarantee?
A3. 18 month warranty, our products are 100% inspection.
Q4. How long is the deliver time?
A4. It usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order.
Q5. What is your payment terms?
A5. Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight.
Q6. Any certification of your company or product?
A6.We have ISO 9001, CE, CB, SEMKO, SAA, TUV, CCC.
