4 digits display high quality digital hydraulic pressure gauges

Product Overview

Description

Deccription:

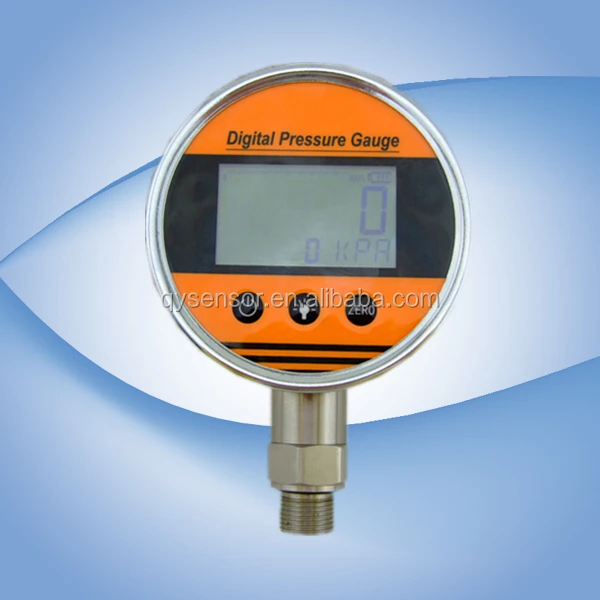

The QZP-108 Series media isolated digital pressure gauge offers the accuracy of a solid state sensor that result from its proprietary ASIC design. Its construction incorporates a micro-machined silicon pressure sensor (MEMS) isolated from the media by a stainless steel diaphragm. With no moving parts, a long life is assured. The large, LCD digital display eliminates the guesswork that occurs when taking readings with an analog dial gauge. Zeroing the display is conveniently done with the push of a button. Pressure readings are displayed continuously for 1-15 minutes (optional), when auto shut-off occurs, conserving battery life.

Feature:

Large 4-digit LCD display

0.25%FS full scale accuracy

9V battery included, can work lasting 2000hours.

User-selectable 0 or 15 minute auto-off

User-selectable engineering units: psi, bar, kg/cm2 , or kPa

User-selectable peak and hold or continuous reading

Compatible with most corrosive medium

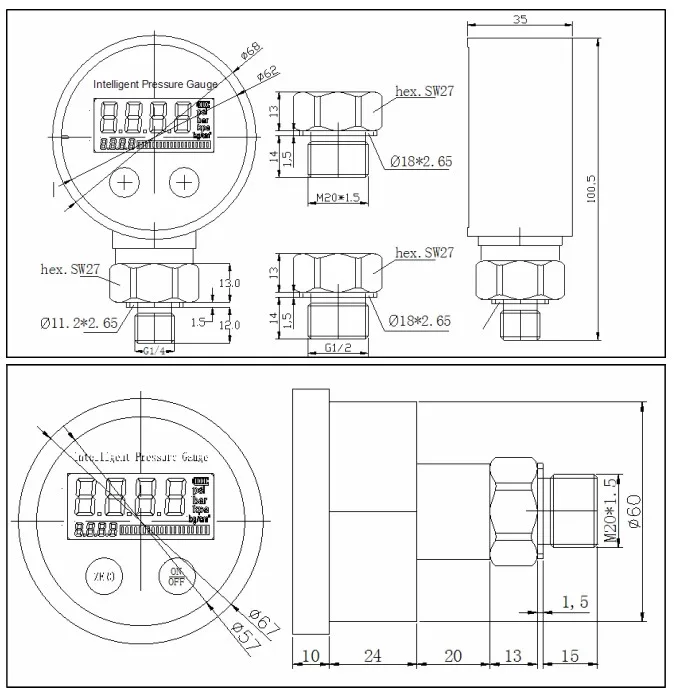

Dimensions: (unit: mm)

Specification:



Measuring Range	-0.1~0…100MPa	Accuracy	0.2% F.S
Overload Capacity	150%F.S	Pressure Type	Gauge pressure/absolute pressure/differential pressure
Stability	≤0.1%/year	Battery	9VDC
Display	LCD	Display Range	-1999~9999
Operating Temperature	-20℃~70℃	Relative Humidity	0~90%



 Selection Guide of QZP-108 prssure gauge

QZP-108	J	Radial mount
	Z	Axial Mount
Thread connection		G12	G1/2
		G14	G1/4
		M20	M20*1.5
Measuring Range	According  to customer’s request.
