Wholesale Automatic Industrial Specification One Point And Double Point Bamboo Toothpick Processing Making Machine Line For Sale

Product Overview

Description

 Automatic Industrial Specification One Point And Double Point Bamboo Toothpick Processing Making Machine Line

Technical parameters

No.	Item	Description & parameters	Motor
1	Bamboo sawing machine	Model : UD-111 Weight : 65 kg Dimension :900*510*930 mm	2.2 kw
2	Bamboo dissection machine	Model : UD-102 Weight :630kg Dimension :3000*850*1200mm	3.0 kw
3	Bamboo flaker	Model : UD-103 Weight :450kg Dimension :1460*660*1000mm	3.7 kw
4	Bamboo filament shaping machine	Model : UD-104 Weight :450kg Dimension :1050*650*990mm	8.1kw
5	Bamboo filament set-size machine	Model : UD-105 Weight :85kg Dimension :1500*650*990mm	0.75kw
6	bamboo toothpick set-size machine	Model : UD-278 Weight :210 KG Dimension :900*600*800 mm	2KW
7	Polishing machine	Model : UD-80 Weight :120 kg Dimension :1000*800*1200 mm	1.5kw
8	toothpick finishing machine	Model : UD-113 Weight :65 kg Dimension :530*1000*800 mm	0.55kw
9	Tooth pick mincing machine	Model :UD-268 Weight :260 kg Dimension :900*570*1010 mm	2.75KW
10	Multi-sharpen machine	Model : UD-112 Weight :65kg Dimension :750*500*950mm	0.55kw

Features

1. The original bamboo - take the material sawing - open bamboo - section of the set wide open film - drawing - bleaching - drying - cut length - polished - finishing - sharpening - packaging.

2. More than 10 for a production line, the production of two pointed toothpicks, 8 hours of production 800,000, about 100 kg. Need to operate 4-6 employees, the use of industrial electricity 380v. An increase of Unit 9, the output doubled, then 1.6 million.

3. If you want to produce a tip of a carved bamboo toothpicks, then replace the 9 machine (a sharpening machine) can, the same 10 machines as a set, 8 hours output of 600,000, an increase of 9 (a sharpening machine One), production doubled, then 1.2 million.

4. Usually every 100 kg of fresh (wet) bamboo, can produce diameter 2.0mm, 65mm long toothpick specifications of 10-13 million, about 13-16 kg dry finished toothpicks.

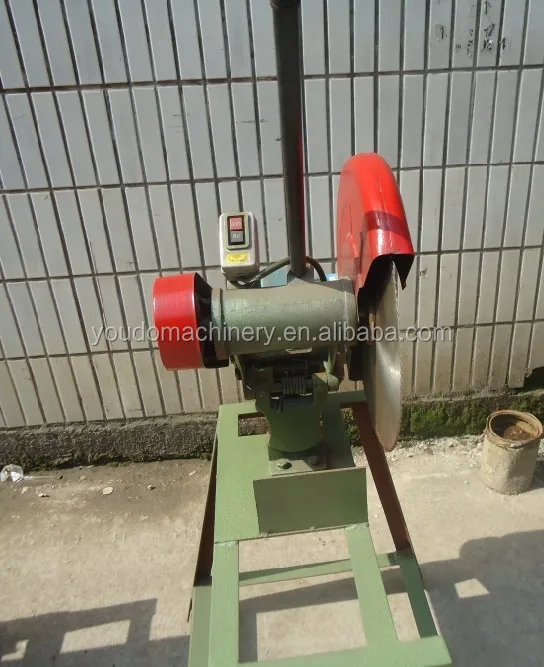

Bamboo sawing machine

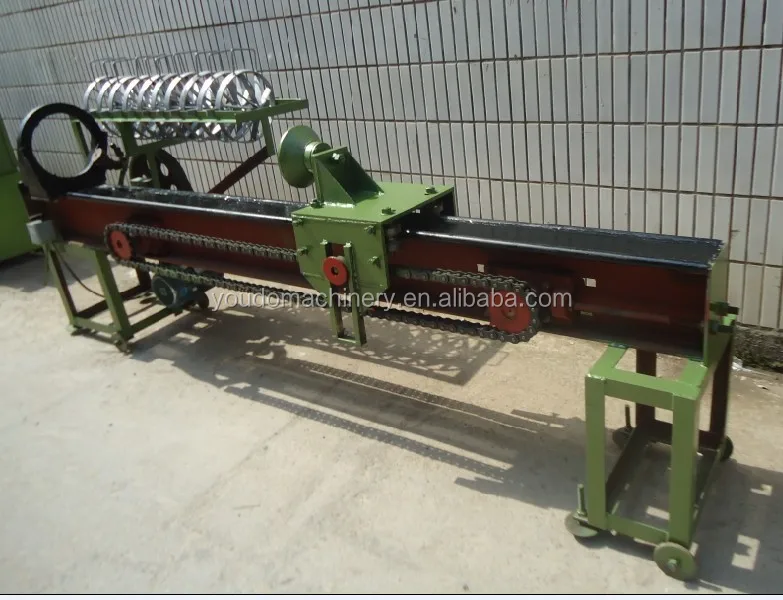

Bamboo dissection machine

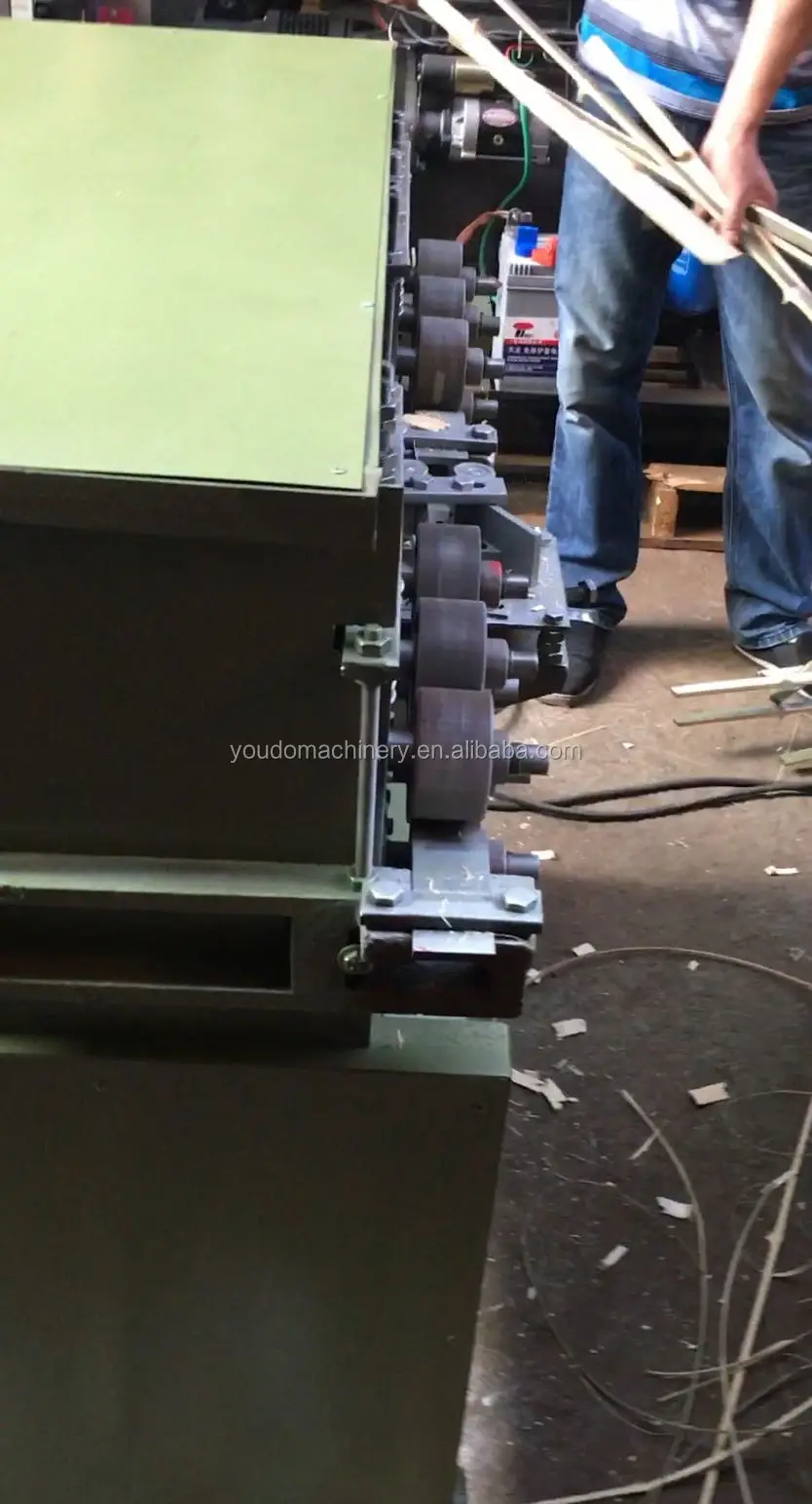

Bamboo flaker

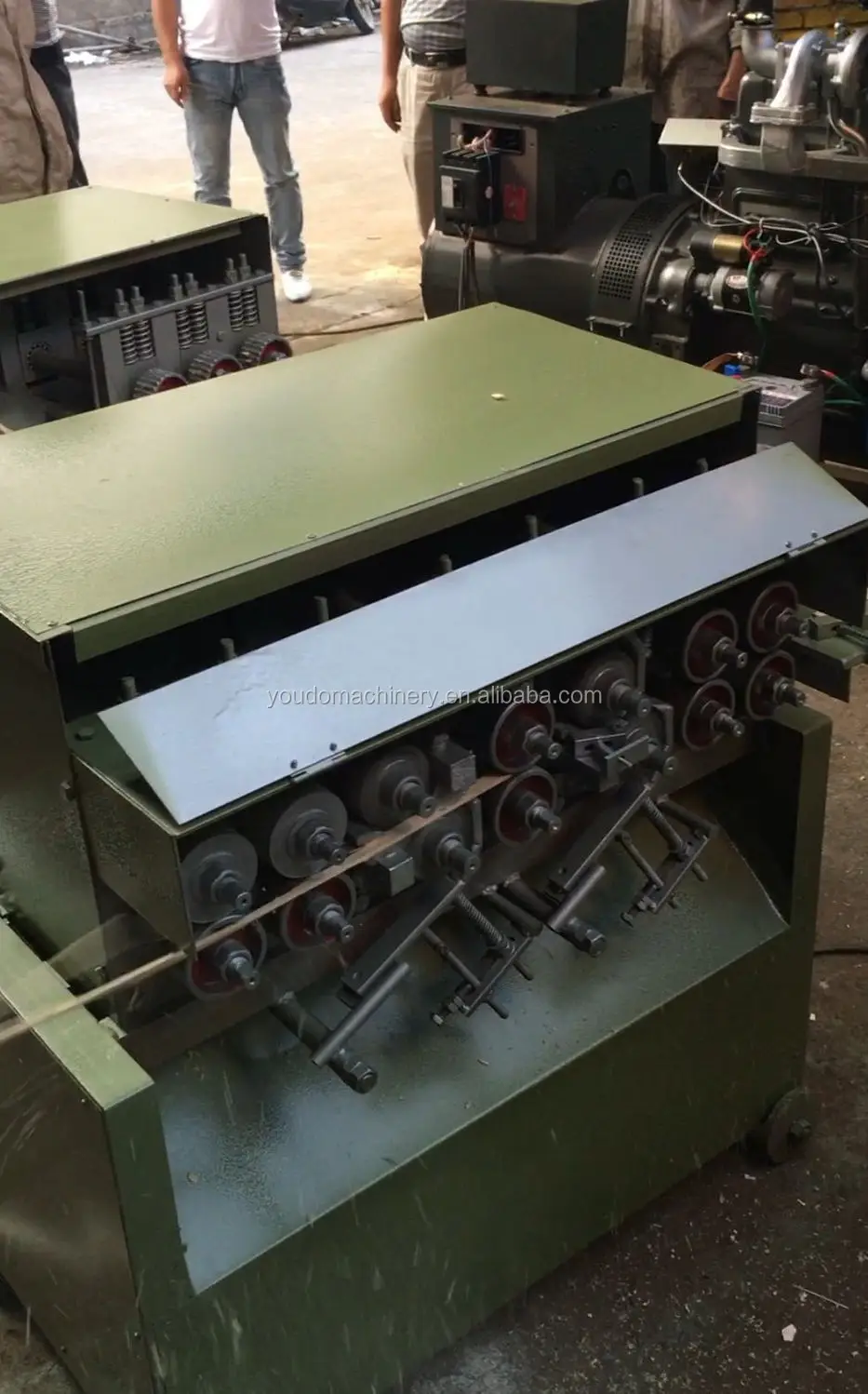

Bamboo filament shaping machine

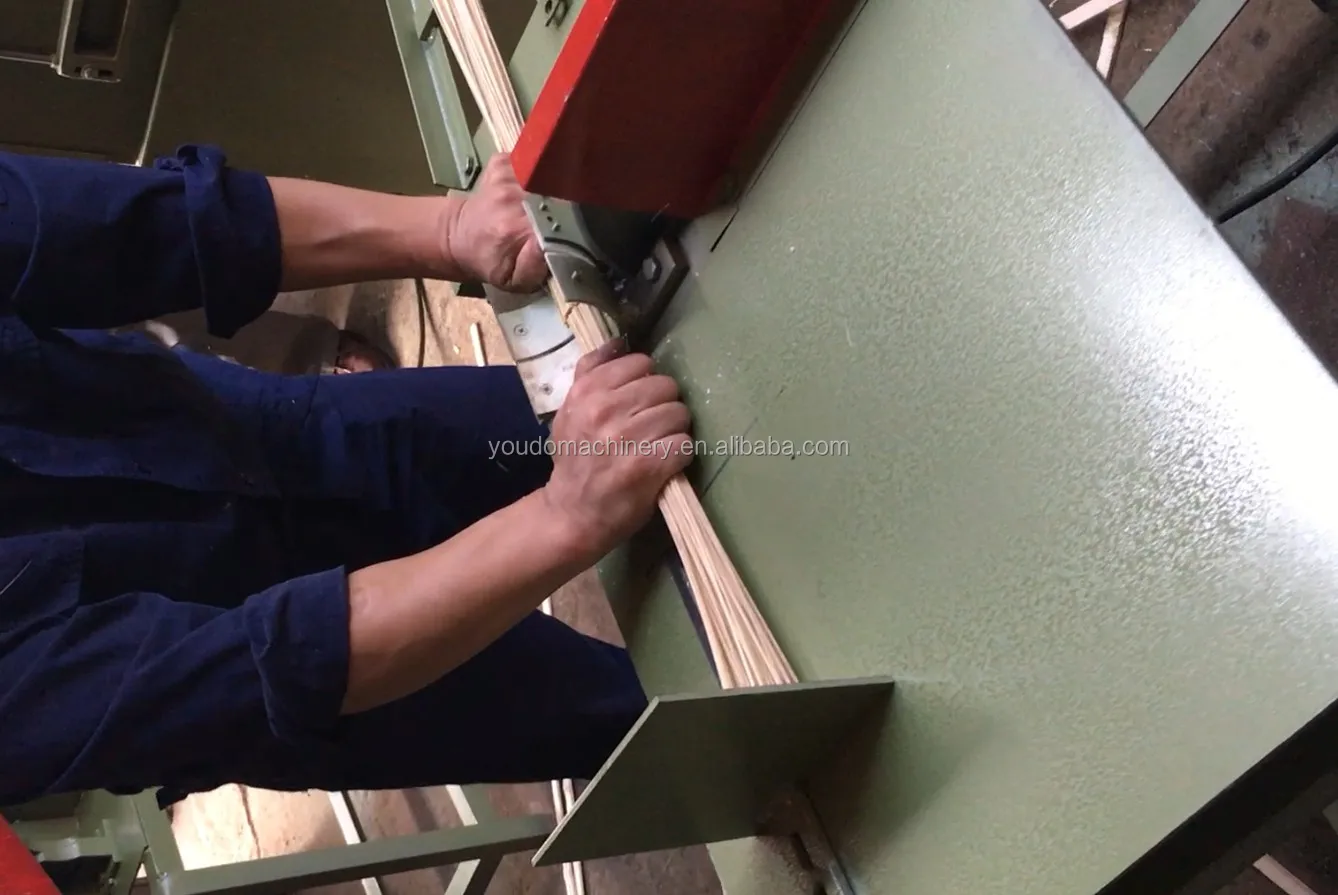

Bamboo filament set-size machine

Bamboo toothpick set-size machine

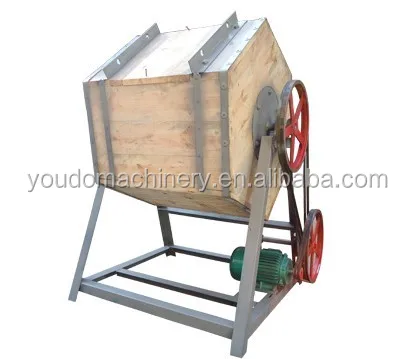

Polishing machine

Toothpick finishing machine

Toothpick mincing machine

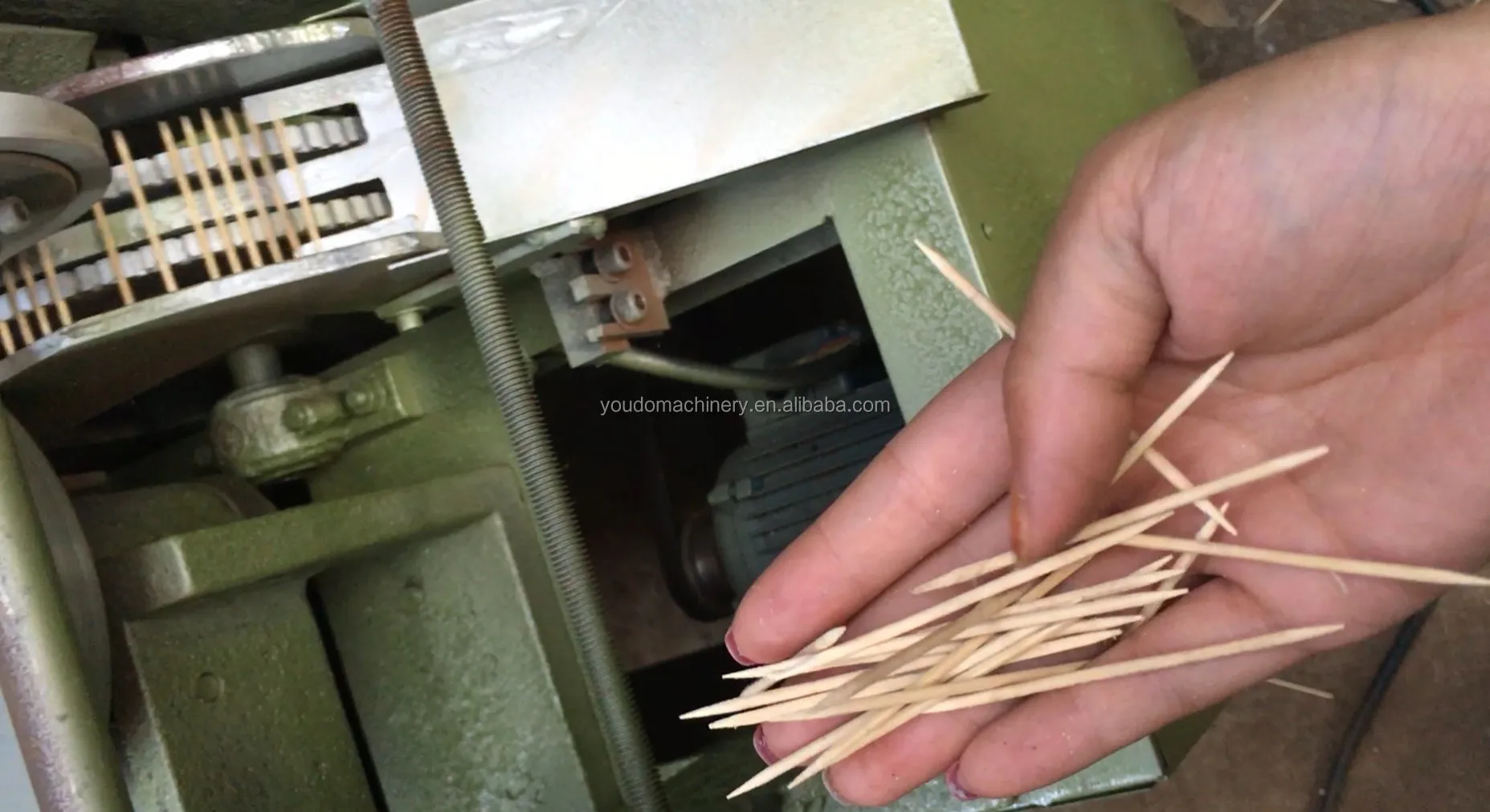

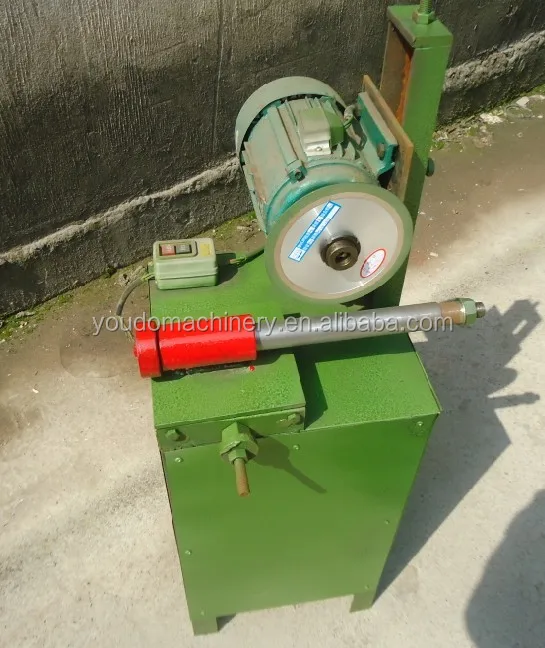

Multi-sharpen machine
