Product Overview
Description
new design solar panel regards slope 545W solar panels overlapping solar panels price lebanon
Description 1

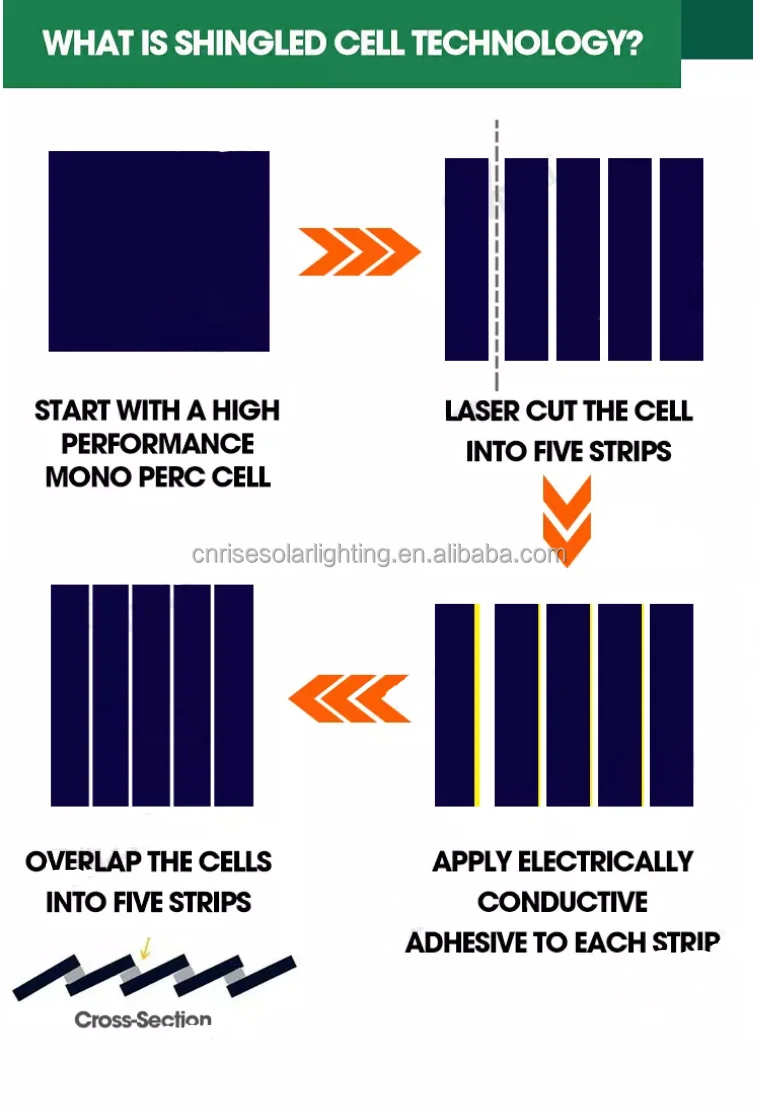

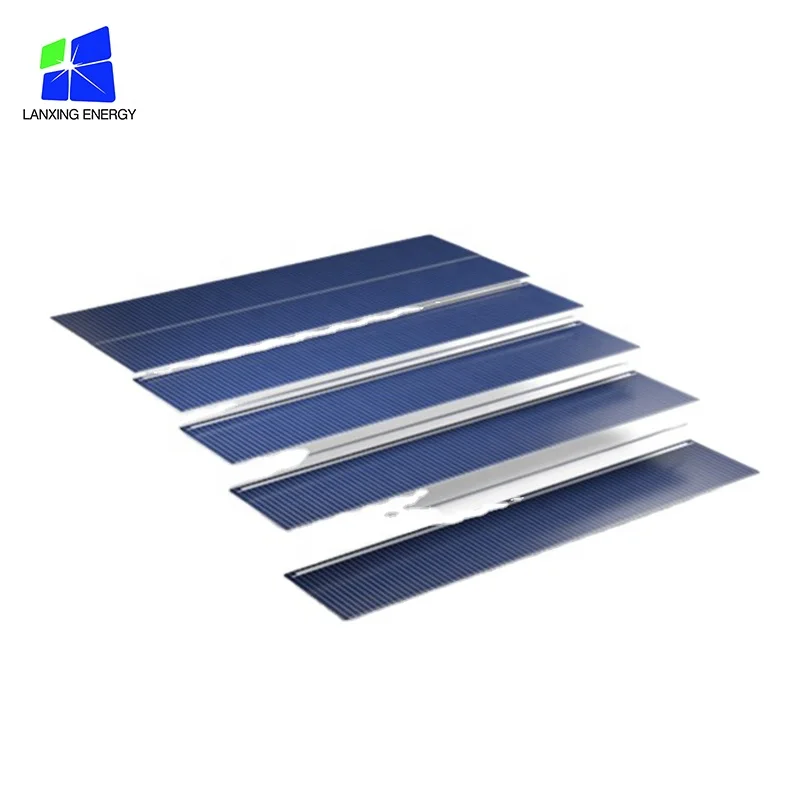

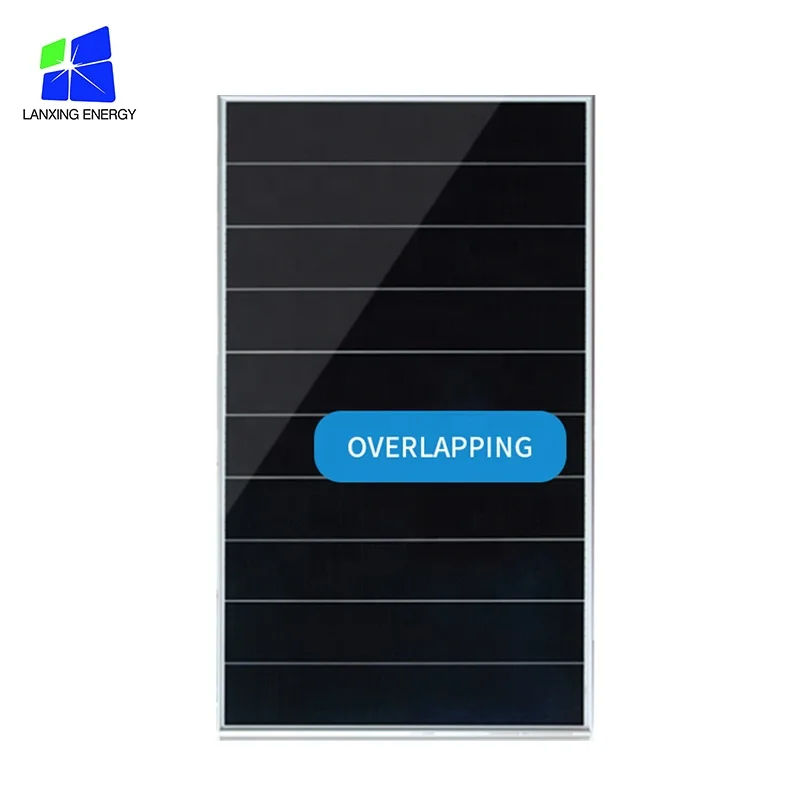

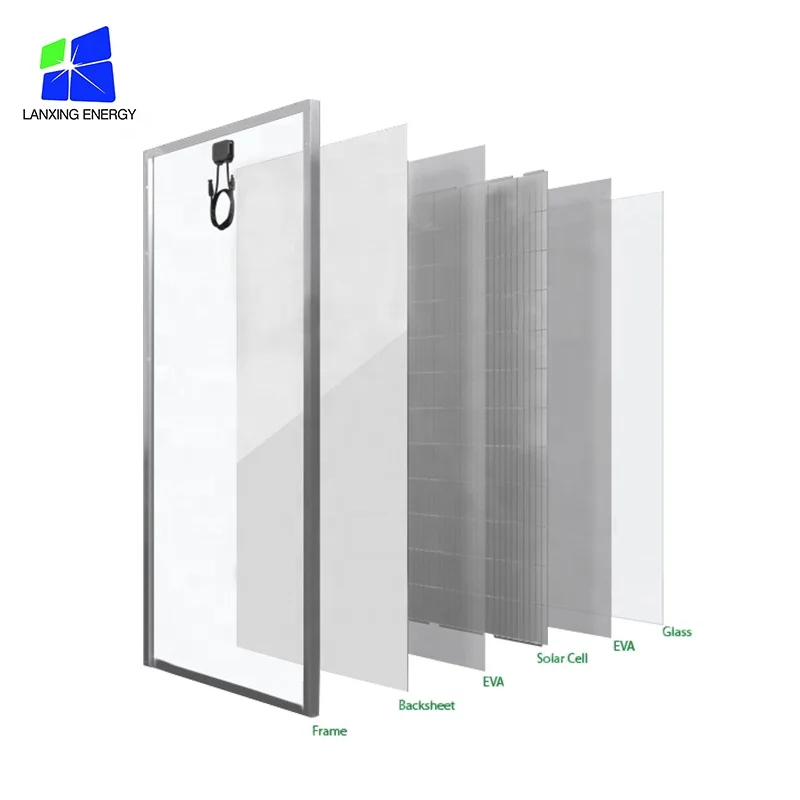

Shingled mono solar panel Technology:
1.Smaller solar cells optimize the current to extend the life of the module by keeping temperatures low in partial shadow. panel solar solar panel regards slope

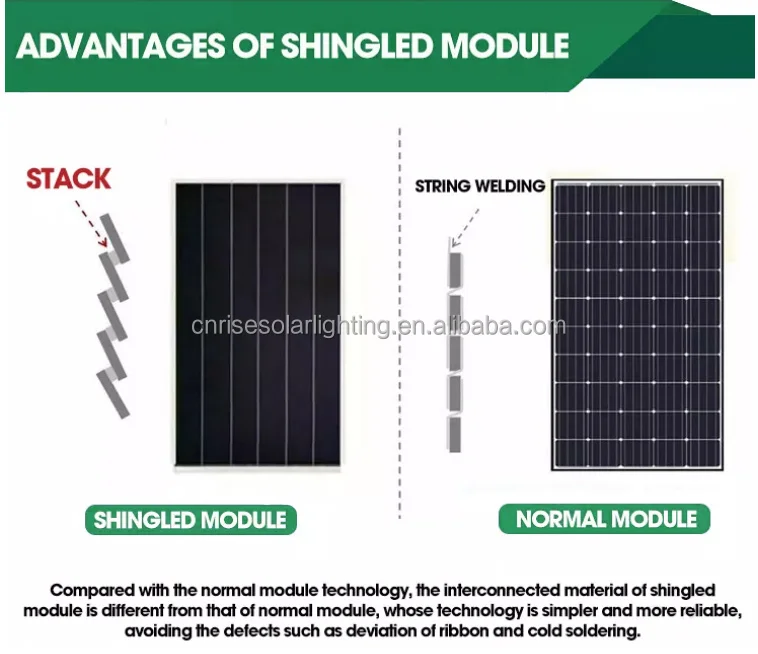

2.Innovative design of overlapping cell shortens the electronic propagation path, reduces current loss and boosts power output.solar panel system for home.power solar and panels. 545W solar panels
3.Special overlapping circuit design can reduce the impact of the power output by micro crack of cells.
4.Flexible conductive adhesive has excellent durability under daily temperature cycle pressure.solar panels price lebanon
Specification 1
Rated Maximum Power(Pmax) | 540W | 545W | 550W | 555W |
Maximum Power Voltage(Vmp) | 39.42V | 39.450V | 39.494V | 39.502V |
Maximum Power Current(Imp) | 13.774A | 13.815A | 13.942A | 14.05A |
Open Circuit Voltage(Voc) | 48.08V | 48.08V | 48.077V | 48.081V |
Short Circuit Current(Isc) | 14.543A | 14.657A | 14.672A | 14.690A |
Short-circuit current temperature coefficient | (0.065±0.015)%/℃ | |||
Open-circuit voltage temperature coefficient | -(80±10)mV/℃ | |||
Peak power temperature coefficient | -(0.5±0.05)%/℃ | |||
NOCT | 47±2℃ | |||
Operating temperature | -40℃ to 85℃ | |||
Maximum system voltage | 1500V DC | |||
Power tolerance | ±3% | |||
STC:lrradiance 1000W/m2,Module temperature 25℃,AM=1.5

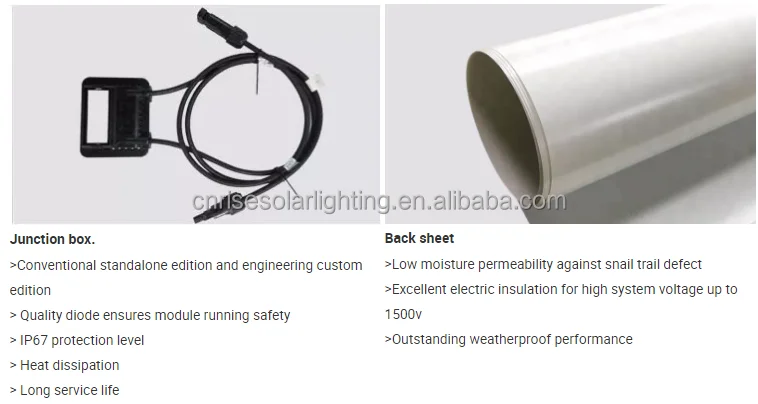

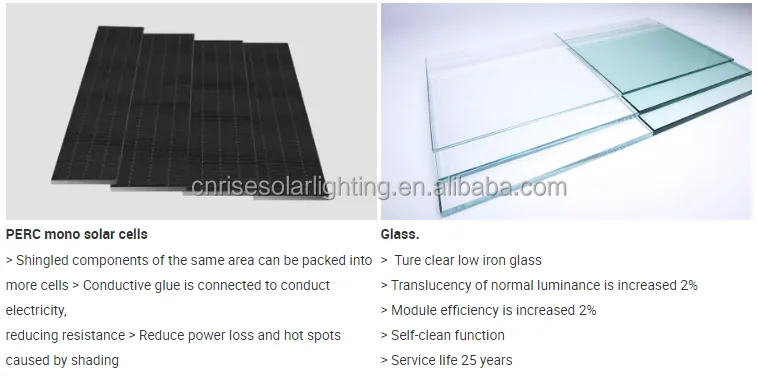

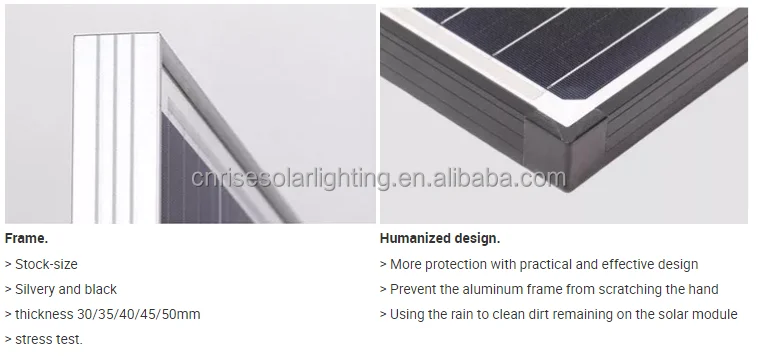

Products Details

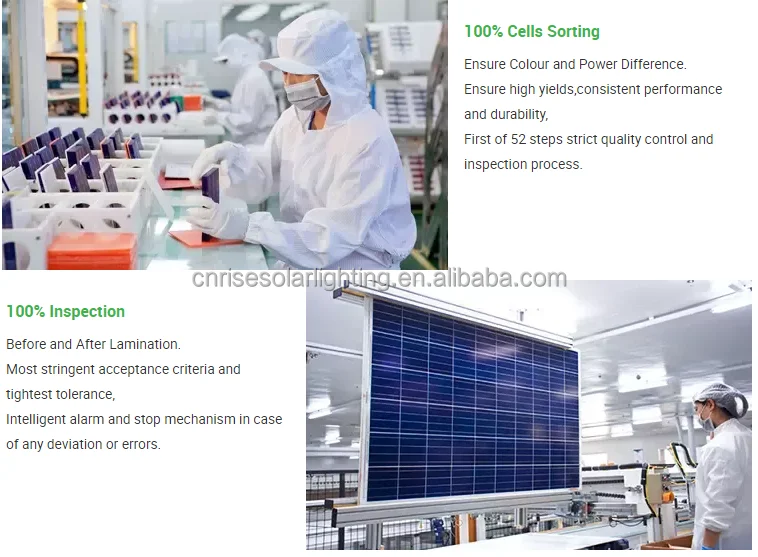

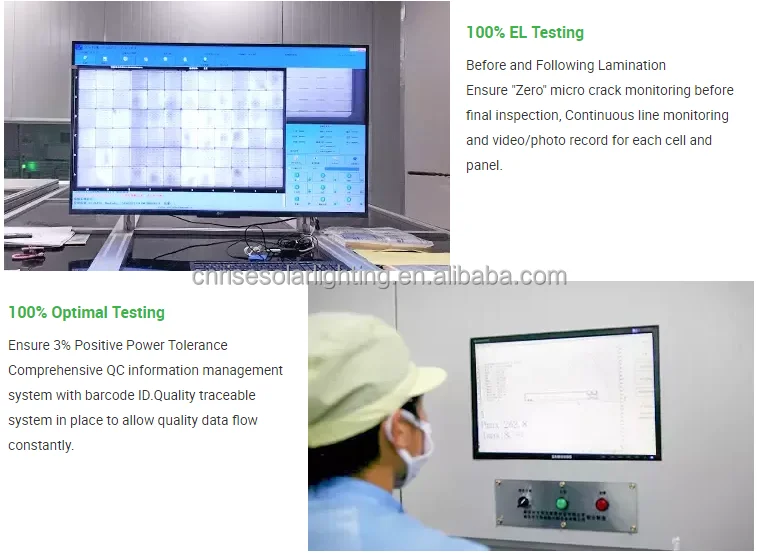

Inspection process

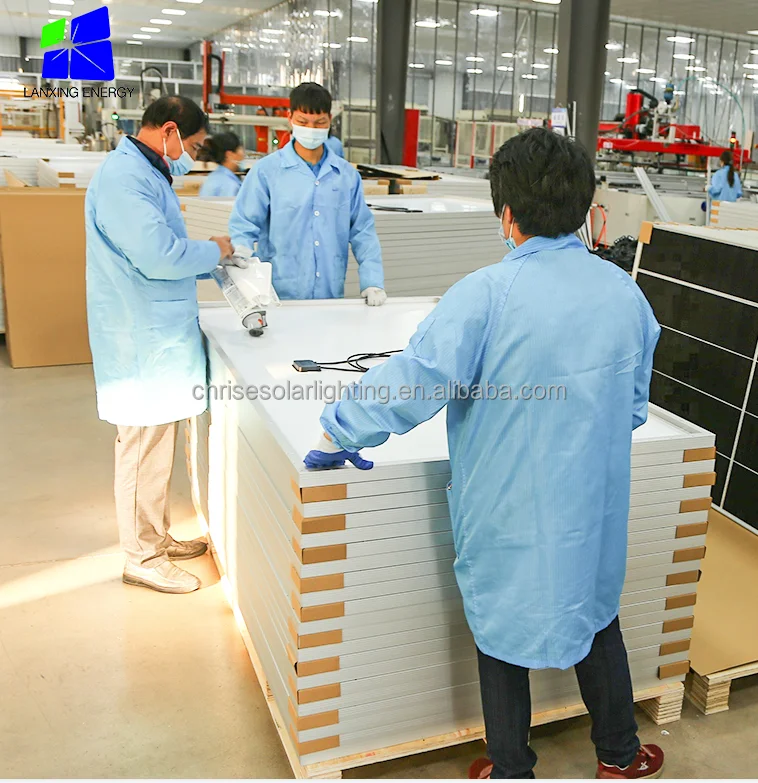

Packaging & Shipping

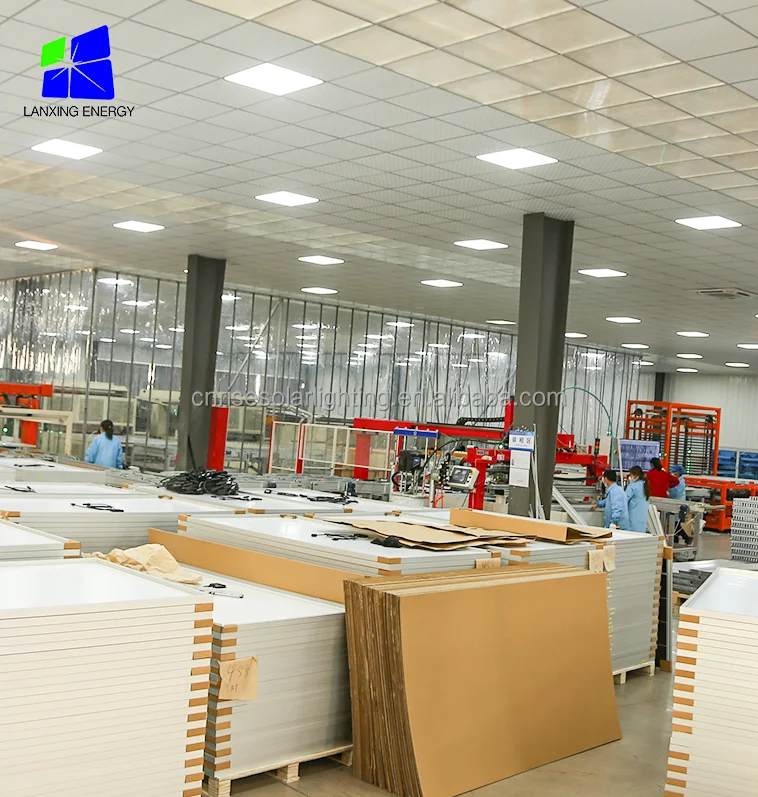

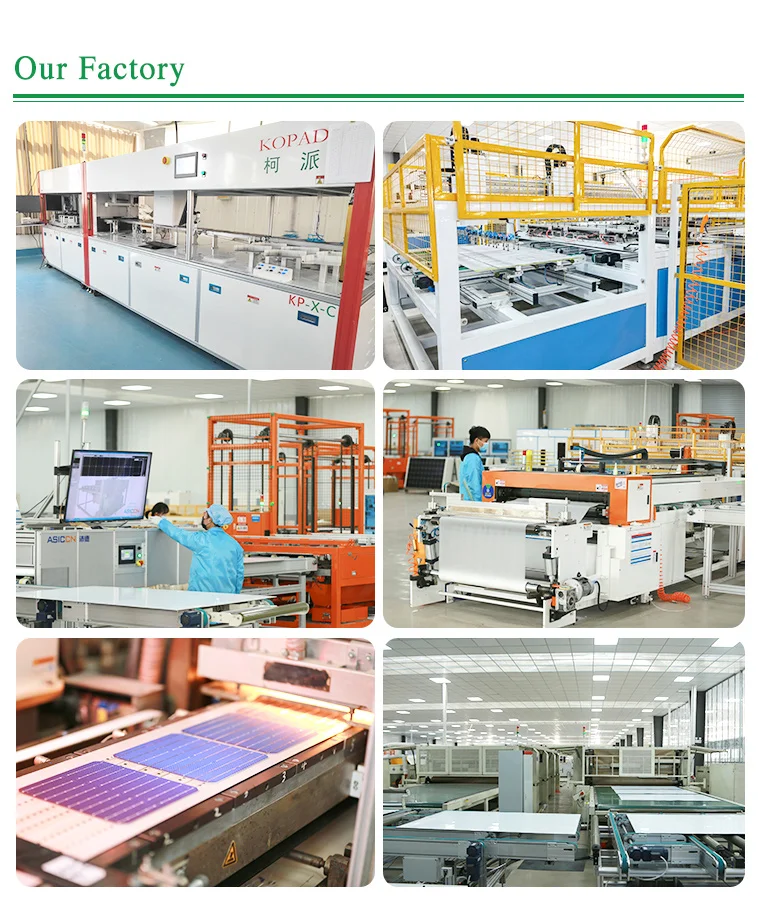

Our factory 3

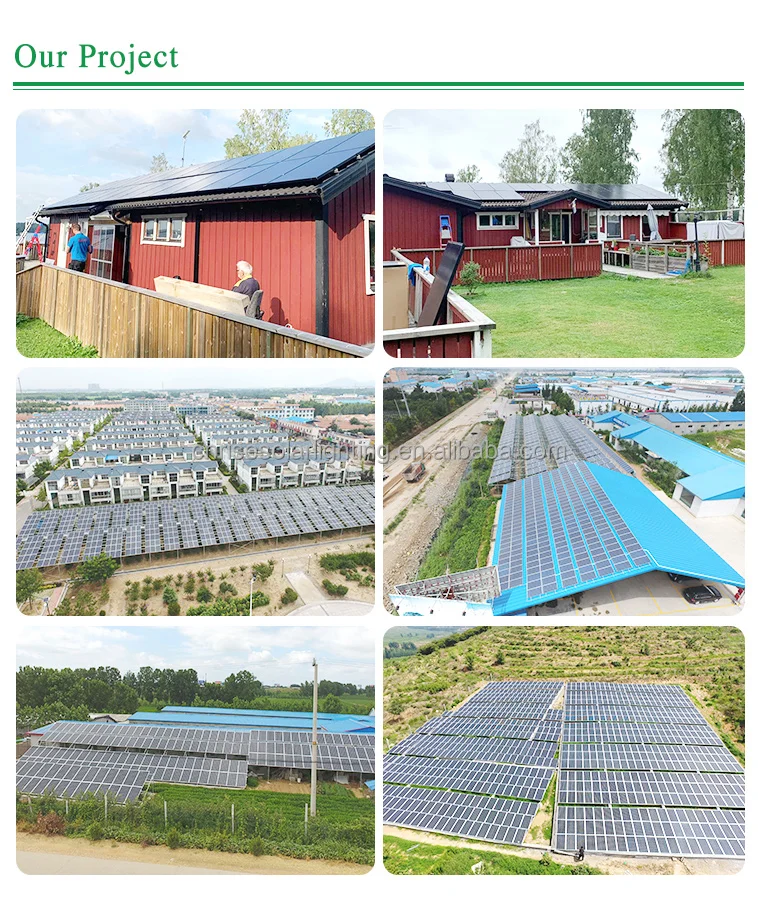

Application

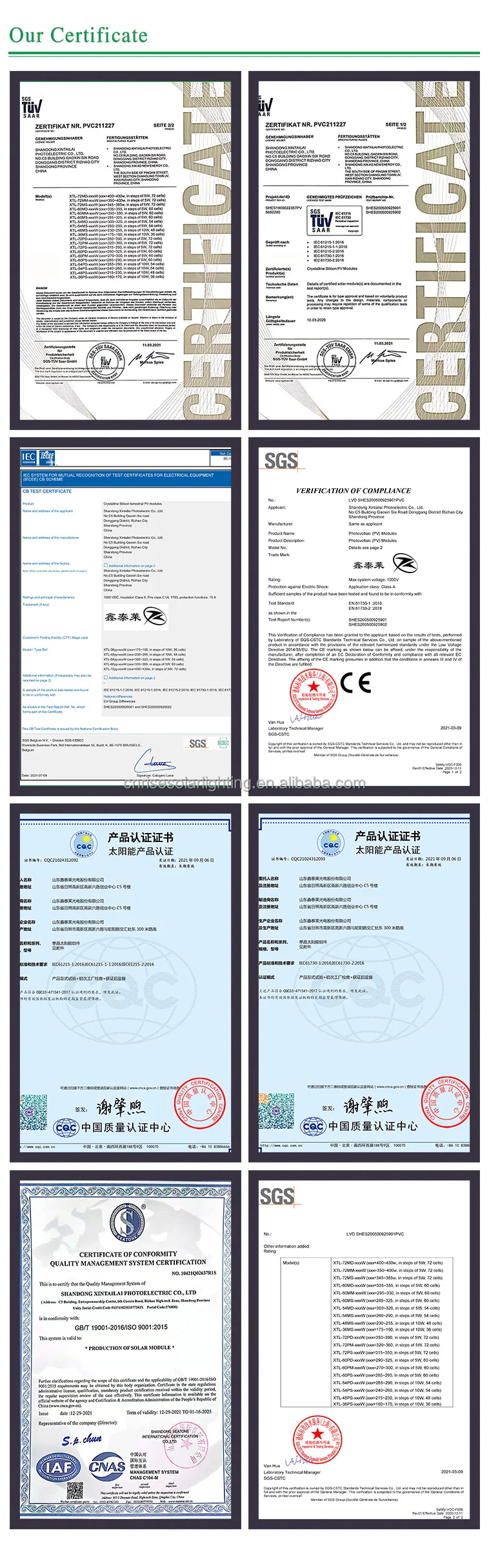

Certifications
