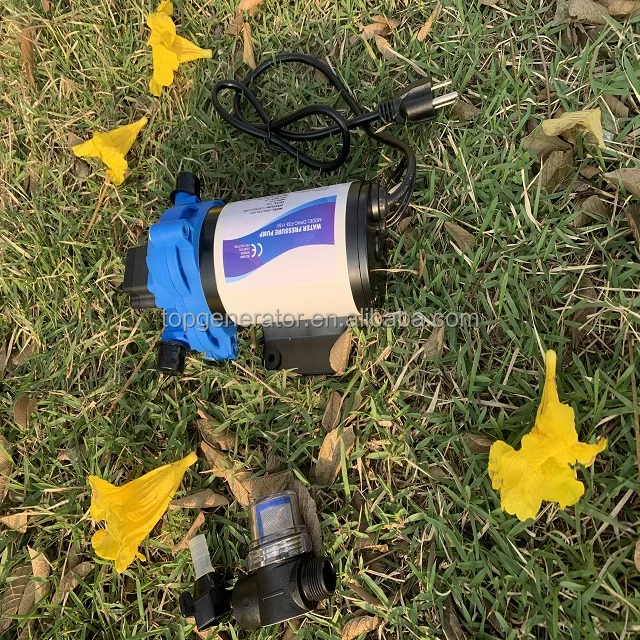

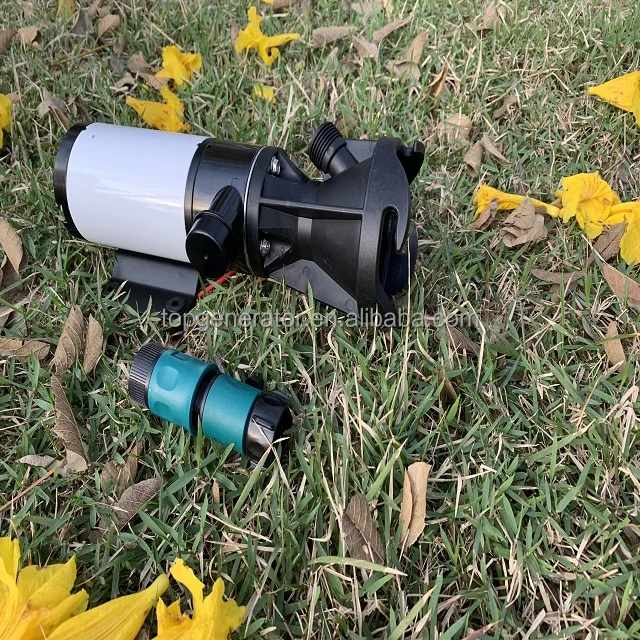

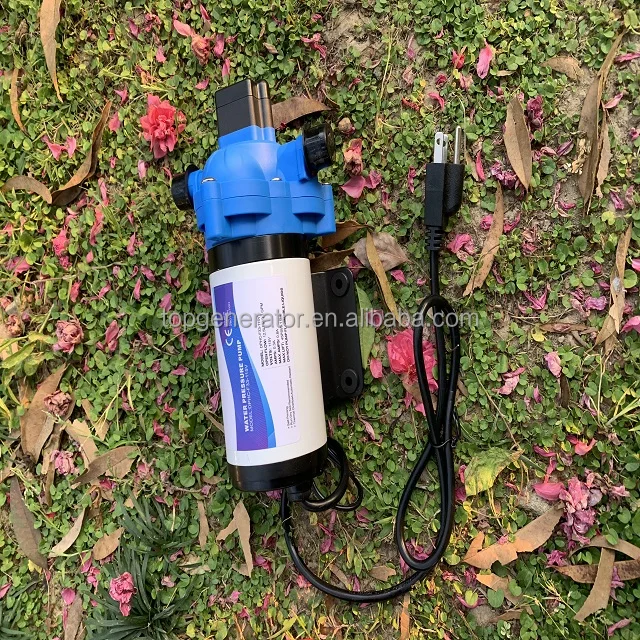

Marine spray agriculture micro electric diaphragm pump self suction water pump 220V AC
- Category: >>>
- Supplier: Fujian Top Industrial Co. Ltd
Share on (1600475439851):
Product Overview
Description

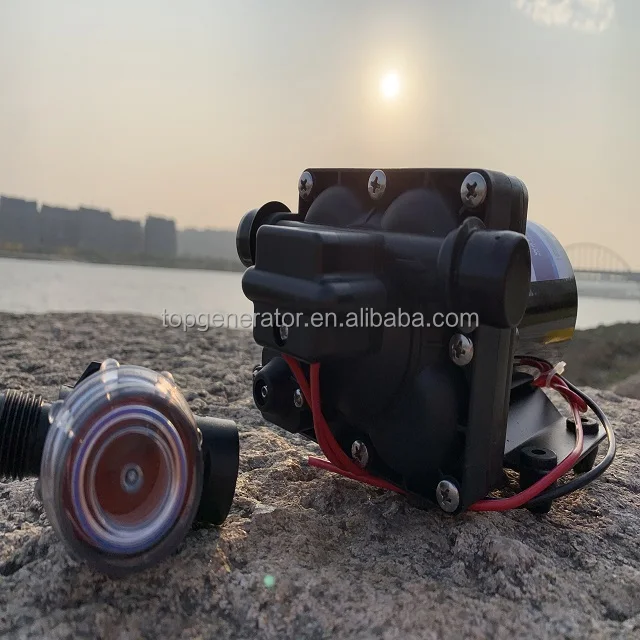

Diaphragm pump
Perfect for caravans, boats, motorbikes, trucks and camping. Use it with fresh or salt water with your deck wash or to run your toilet or shower. These pumps automatically turn themselves on and off when you turn the tap on and off. Comes with filter and fittings. hese pump are for intermittent use only.
A great pump for those country folk, with a small family, on tank water who only need to boost the pressure from a tank next to the house.
We have tested these pumps and found they will operate to a 2 metre suction lift and 5 metre head with no problems.
A great pump for those country folk, with a small family, on tank water who only need to boost the pressure from a tank next to the house.
We have tested these pumps and found they will operate to a 2 metre suction lift and 5 metre head with no problems.
Model | Voltage | Flow Rate | Pressure | Amps | |||
FL-30 | 12V DC | 2.6GPM(10.0LPM) | 17PSI(1.17 Bar) | 2.2A | |||
FL-31 | 24V DC | 2.6GPM(10.0LPM) | 17PSI(1.17 Bar) | 1.5A | |||
FL-32 | 220V AC | 3.3GPM(12.5LPM) | 35PSI(2.41Bar) | 0.4A | |||
FL-33 | 115V AC | 3.3GPM(12.5LPM) | 35PSI(2.41Bar) | 0.5A | |||
FL-34 | 24V DC | 3.3GPM(12.5LPM) | 35PSI(2.41 Bar) | 4.0A | |||
FL-35 | 12V DC | 3.3GPM(12.5LPM) | 35PSI(2.41 Bar) | 7.0A | |||
FL-40 | 12V DC | 4.47GPM(17.0LPM | 40PSI(2.76Bar) | 9.2A | |||
FL-41 | 115V AC | 4.47GPM(17.0LPM) | 40PSI(2.76 Bar) | 0.5A | |||
FL-43 | 220V AC | 4.47GPM(17.0LPM) | 40PSI(2.76 Bar) | 0.8A | |||
FL-44 | 24V DC | 4.47GPM(17.0LPM) | 40PSI(2.76 Bar) | 5.6A | |||
Inlet Size | 1/2" hose barb with filter | ||||||
Outlet Size | 1/2" hose barb;3/4"NPT thead | ||||||
Dimension/pc FL-3 SERIES | 33.5*12.5*10.5cm | ||||||
Net Weight/pc FL-3 SERIES | 1.9kg | ||||||
Gross Weight/pc FL-3 SERIES | 2.4kg | ||||||
Carton Dimension(10pcs) FL-3 | 56.5*38.5*36.5cm | ||||||
About this item

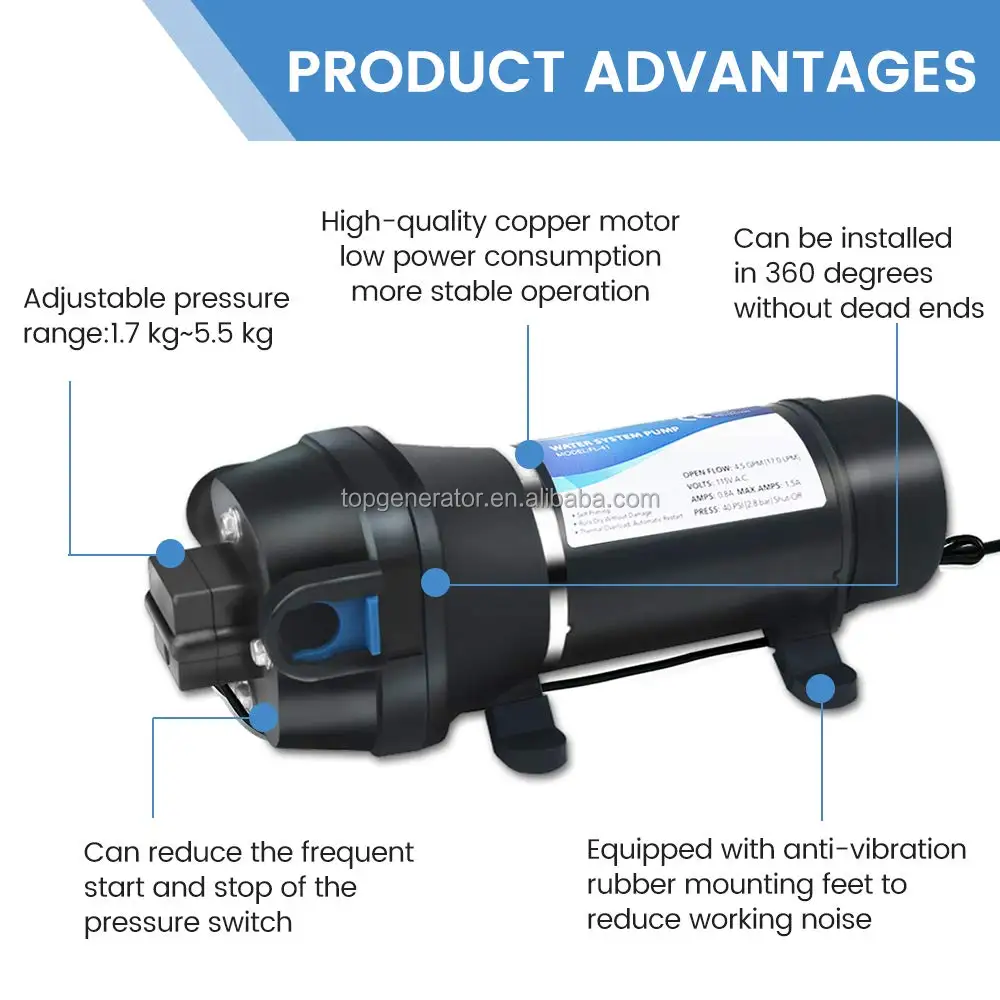

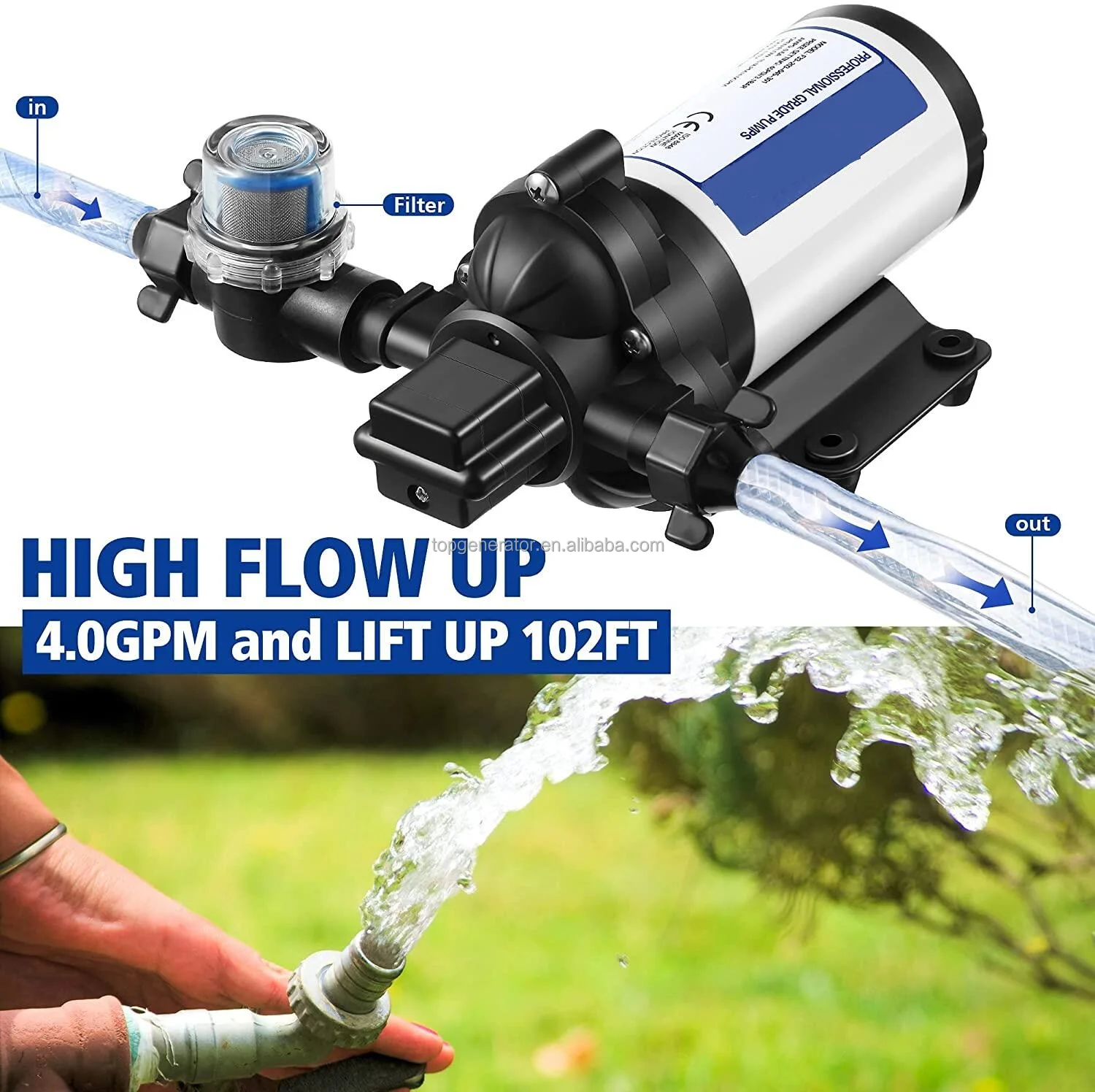

【Utility Pump Features】115V AC water pump features 4 gallons per minute water flow, pressure switch is set to 45PSI, 1.3 Max amps.
So easy that automatically opens when turn on the water tap, stops when turn off the water tap

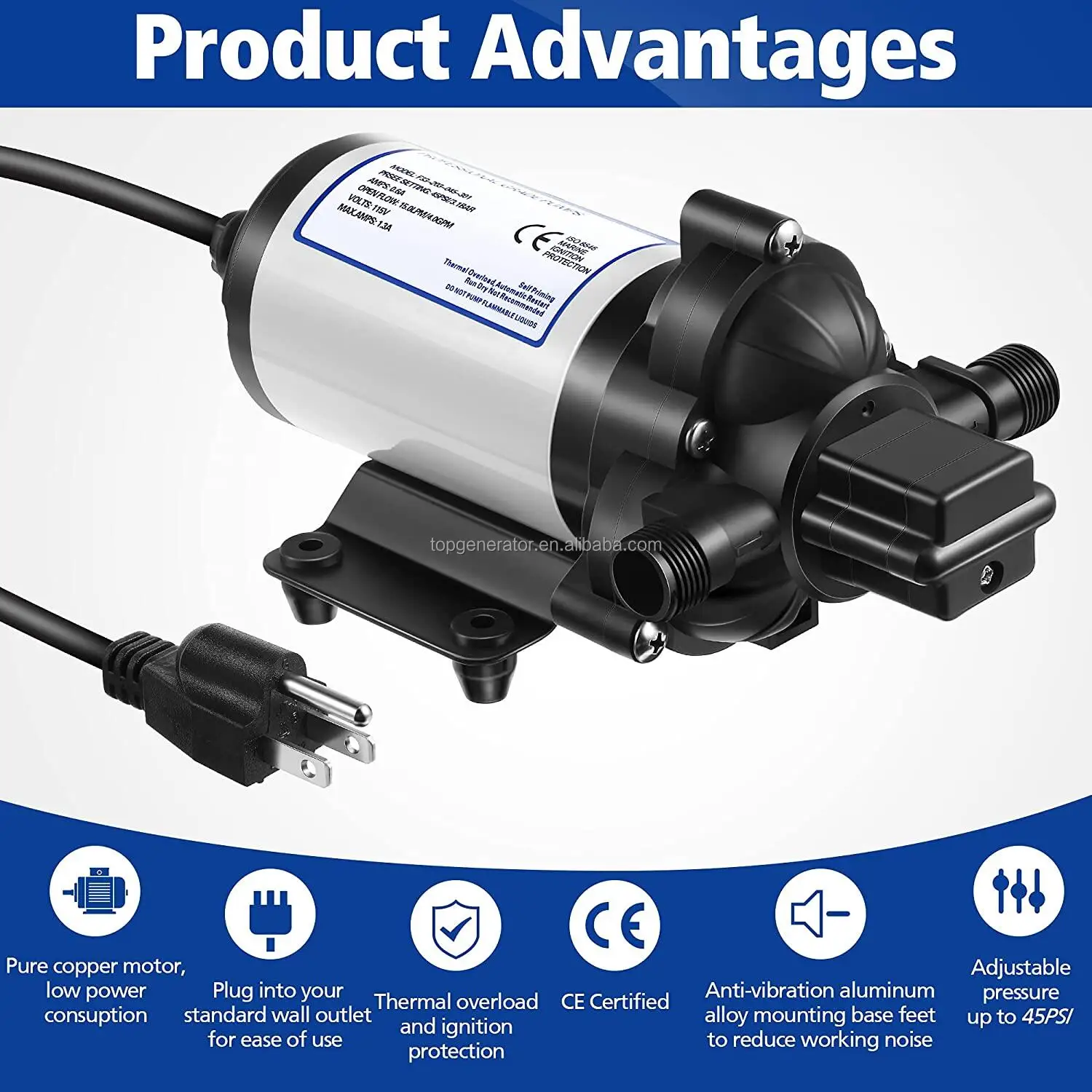

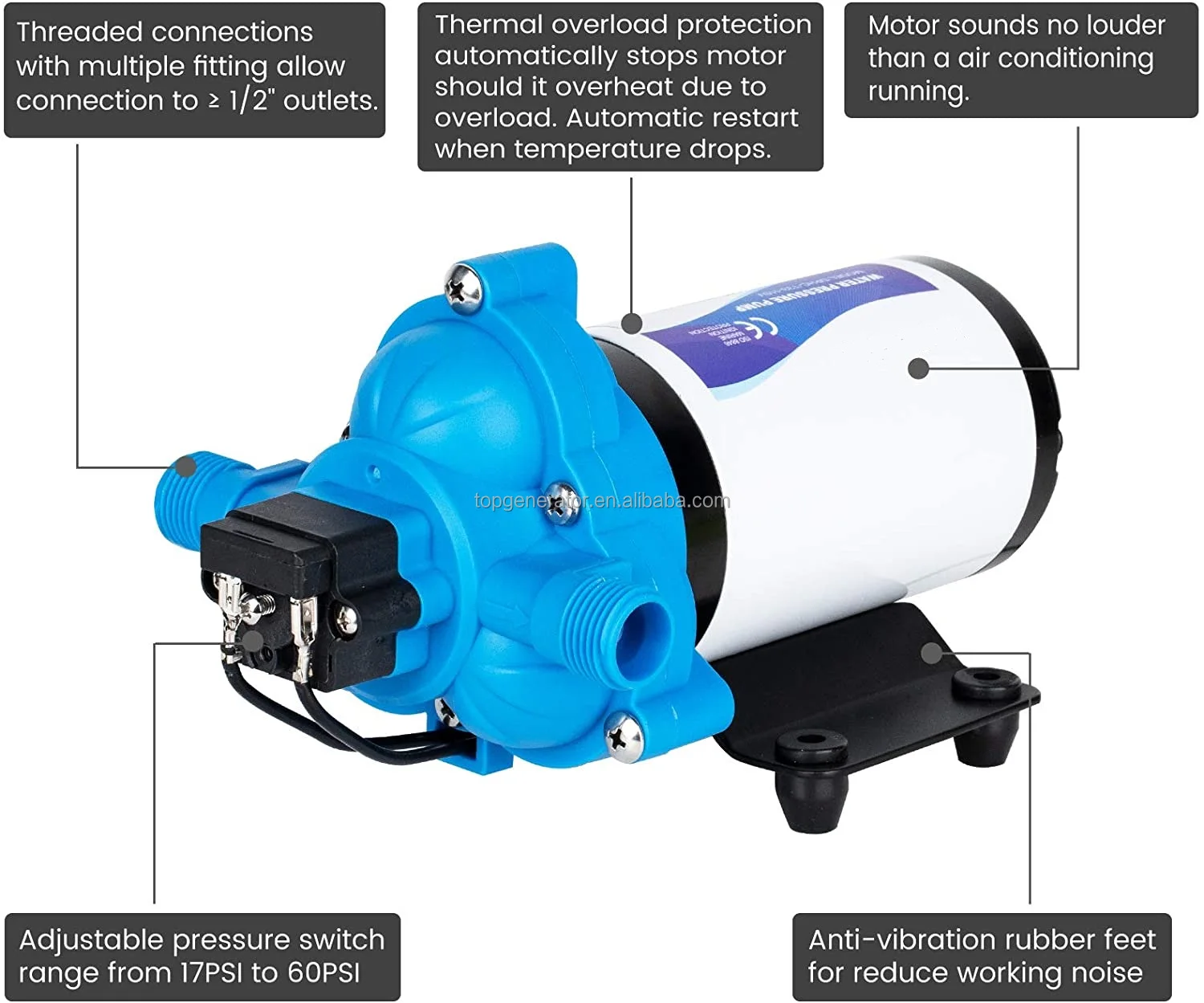

【Safe and Smooth】Our pump have certified to CE, stable and durable, smooth self priming with silent operation and can run dry
without damage, thermal overload and ignition protection( temperatures above 70℃/ 158℉ temporarily stop working ), recommend to
turn off the power and wait for the temperature to drop before come into service again. Tip: To avoid leakage to the pump rotor in
case of some product failure, the correct operation is to put the pump head down or flat during when installation

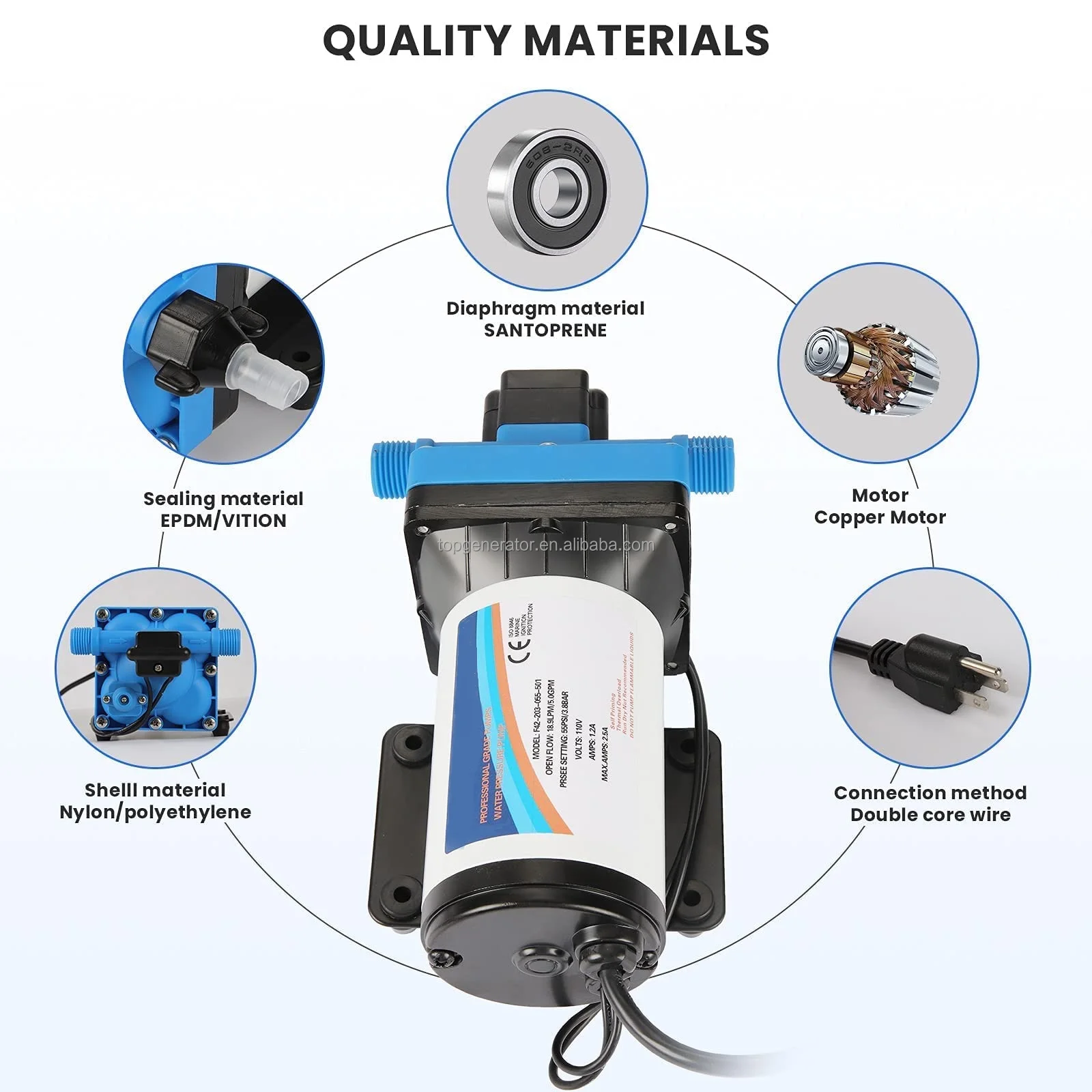

【Industrial Workmanship】features industry standard fittings, power plug and aluminum alloy mounting base to directly replace
similar common water pressure pump. Please connect all parts closely to avoid leakage or combine seal tape with our pump strainer
to better prevent leaks on pipes and plumbing

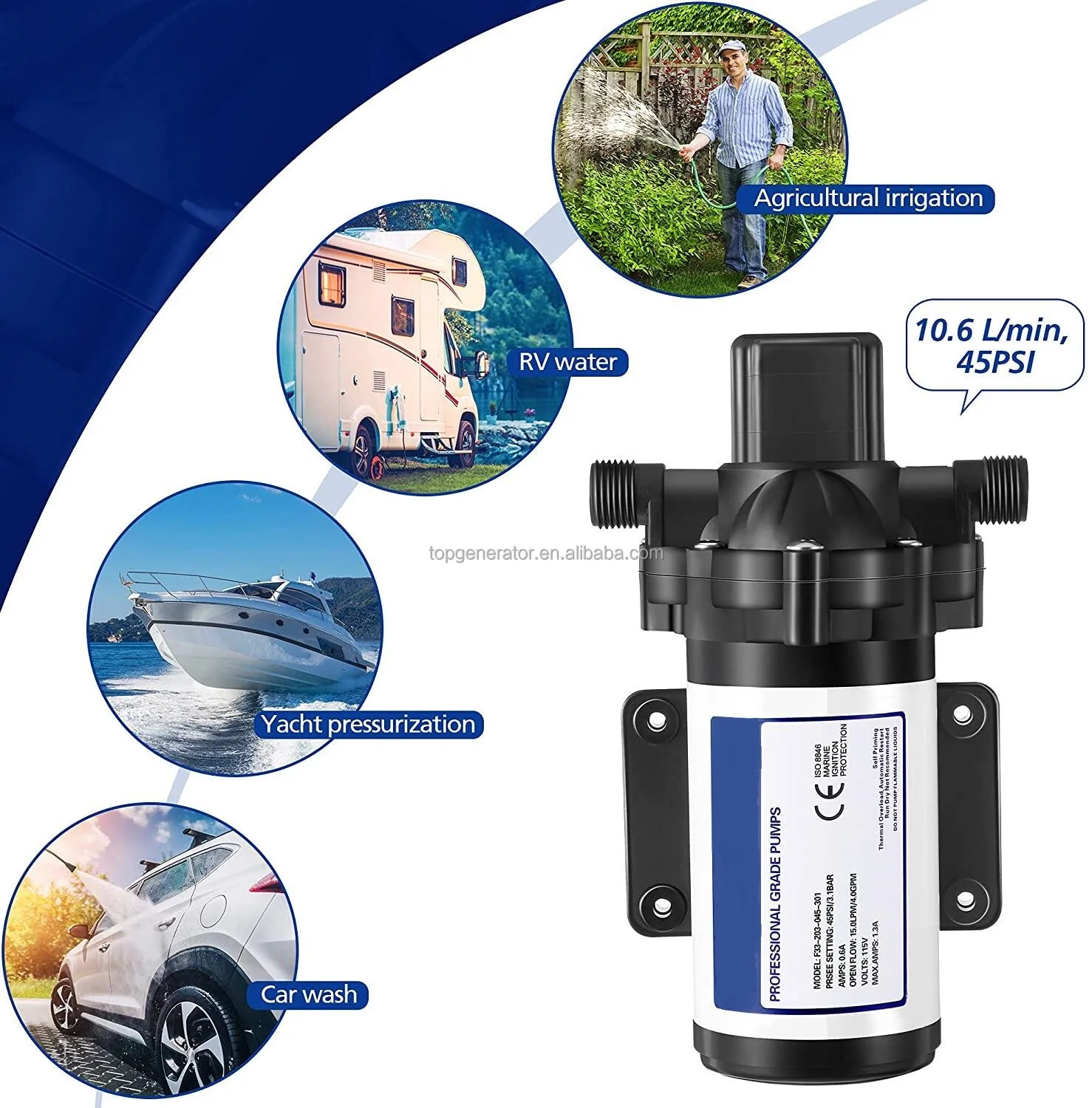

【Wide Application】Great for use in kitchen and bathroom. It is also the great partner of camper, sprayer, garden sprinklers,
fertilizers, sprinkler faucet and agricultural irrigation as you like

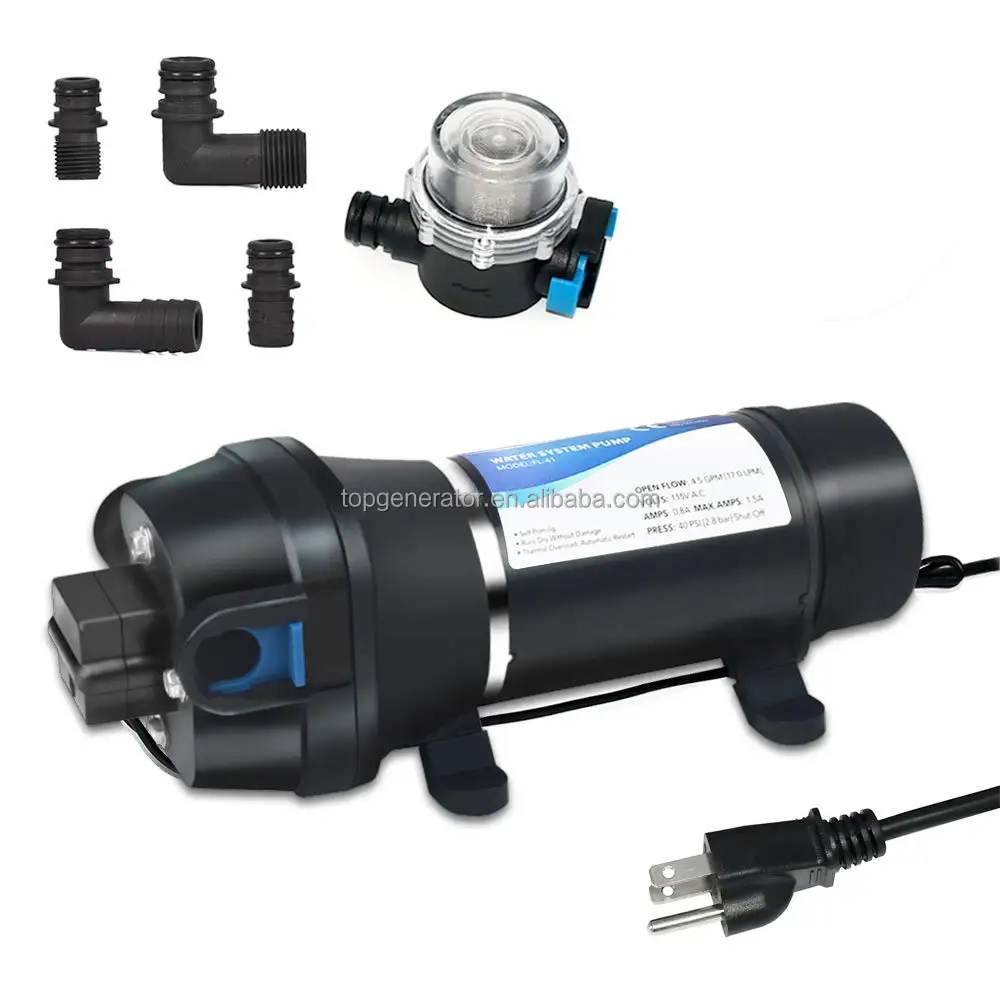

【Why You choose Us】High quality home and industrial facility should be available to everyone. You'll get 1 x AC Diaphragm Water
Pump, 1 x 1/2 inch Twist-on Water Strainer (includes 50 mesh stainless steel screen), 2 x Hose Fittings, 1 x User Manual, 1 x Box
Container
So easy that automatically opens when turn on the water tap, stops when turn off the water tap
【Safe and Smooth】Our pump have certified to CE, stable and durable, smooth self priming with silent operation and can run dry
without damage, thermal overload and ignition protection( temperatures above 70℃/ 158℉ temporarily stop working ), recommend to
turn off the power and wait for the temperature to drop before come into service again. Tip: To avoid leakage to the pump rotor in
case of some product failure, the correct operation is to put the pump head down or flat during when installation
【Industrial Workmanship】features industry standard fittings, power plug and aluminum alloy mounting base to directly replace
similar common water pressure pump. Please connect all parts closely to avoid leakage or combine seal tape with our pump strainer
to better prevent leaks on pipes and plumbing
【Wide Application】Great for use in kitchen and bathroom. It is also the great partner of camper, sprayer, garden sprinklers,
fertilizers, sprinkler faucet and agricultural irrigation as you like
【Why You choose Us】High quality home and industrial facility should be available to everyone. You'll get 1 x AC Diaphragm Water
Pump, 1 x 1/2 inch Twist-on Water Strainer (includes 50 mesh stainless steel screen), 2 x Hose Fittings, 1 x User Manual, 1 x Box
Container
