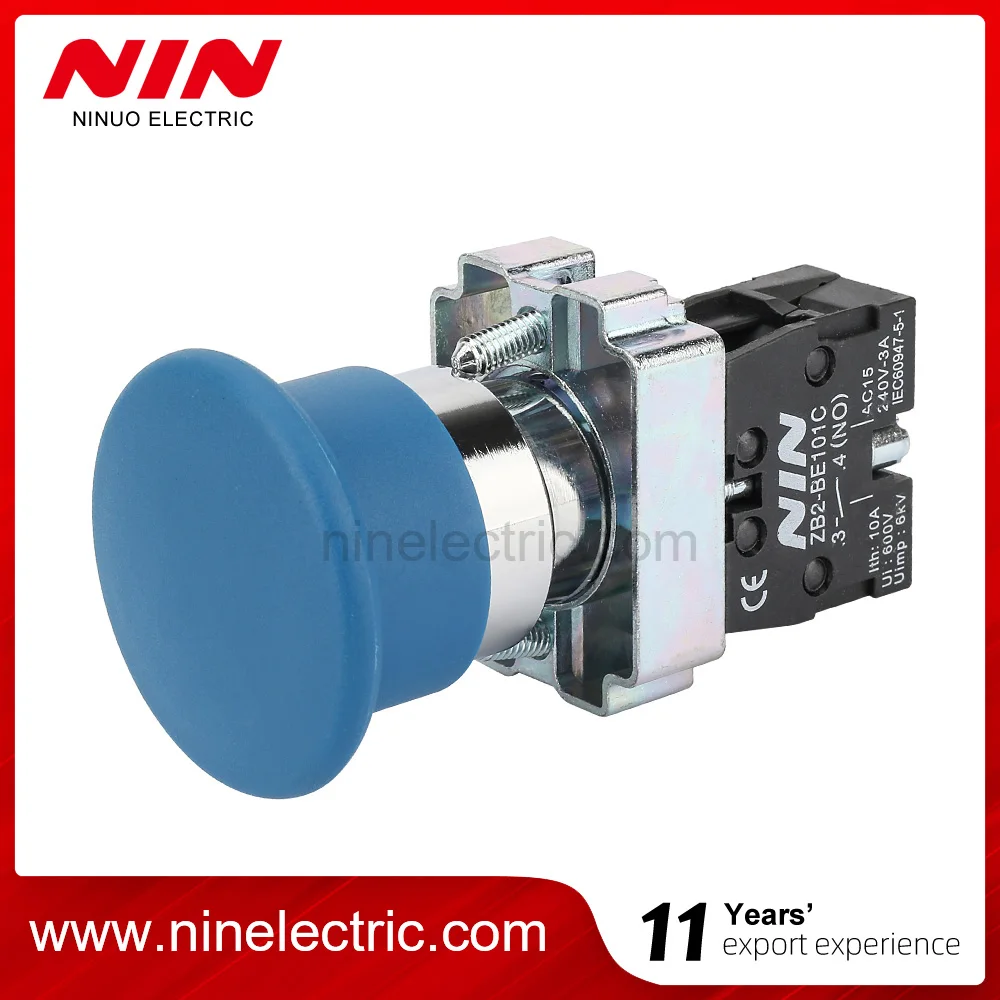

XB2 BC31 XB2 BC42 XB2 BC21 XB2 BC51 XB2 BC61 Momentary Mushroom Push Button Switch 1 NO 1 NC
- Category: >>>
- Supplier: Zhejiang Ninuo Electical Co. Ltd.
Share on (1600475449788):
Product Overview
Description
XB2-BC series 22mm Emergency Stop Red/Green/Black/Yellow/Blue Mushroom Switch/push button, emergency E-stop stop switch push button

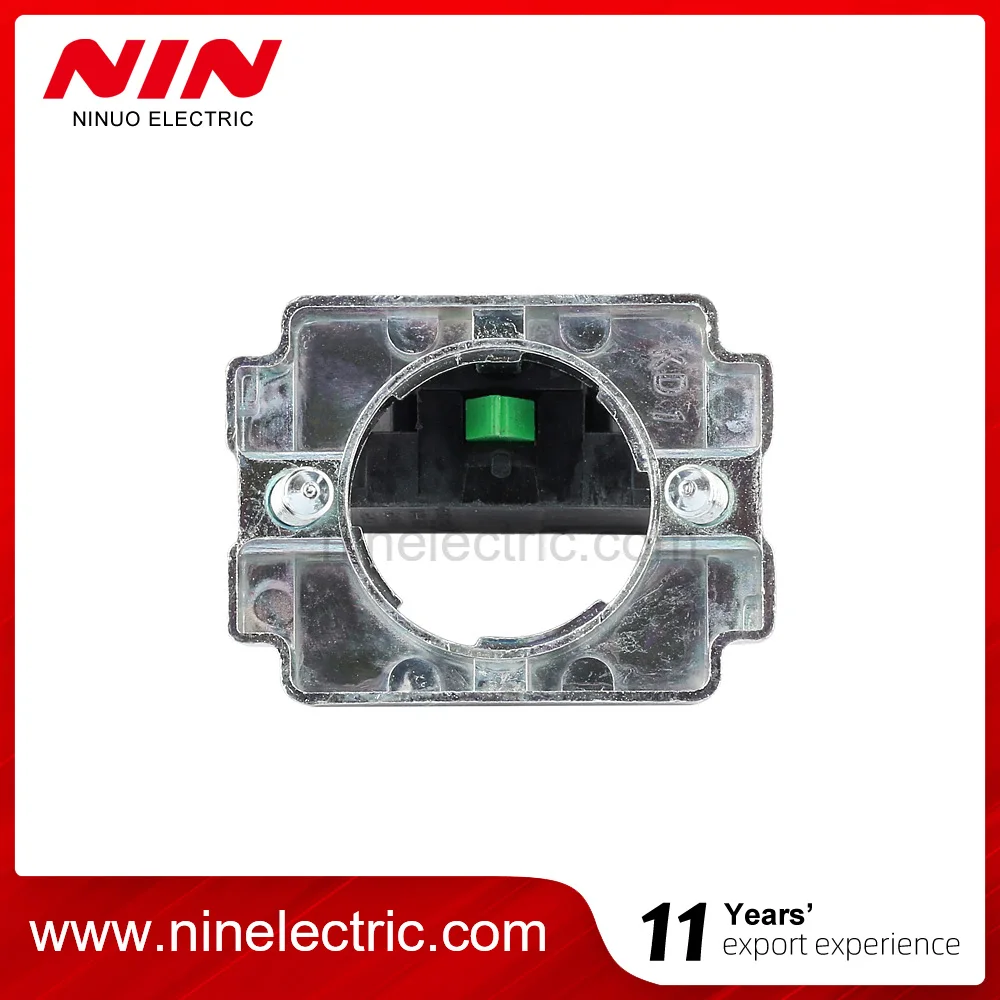

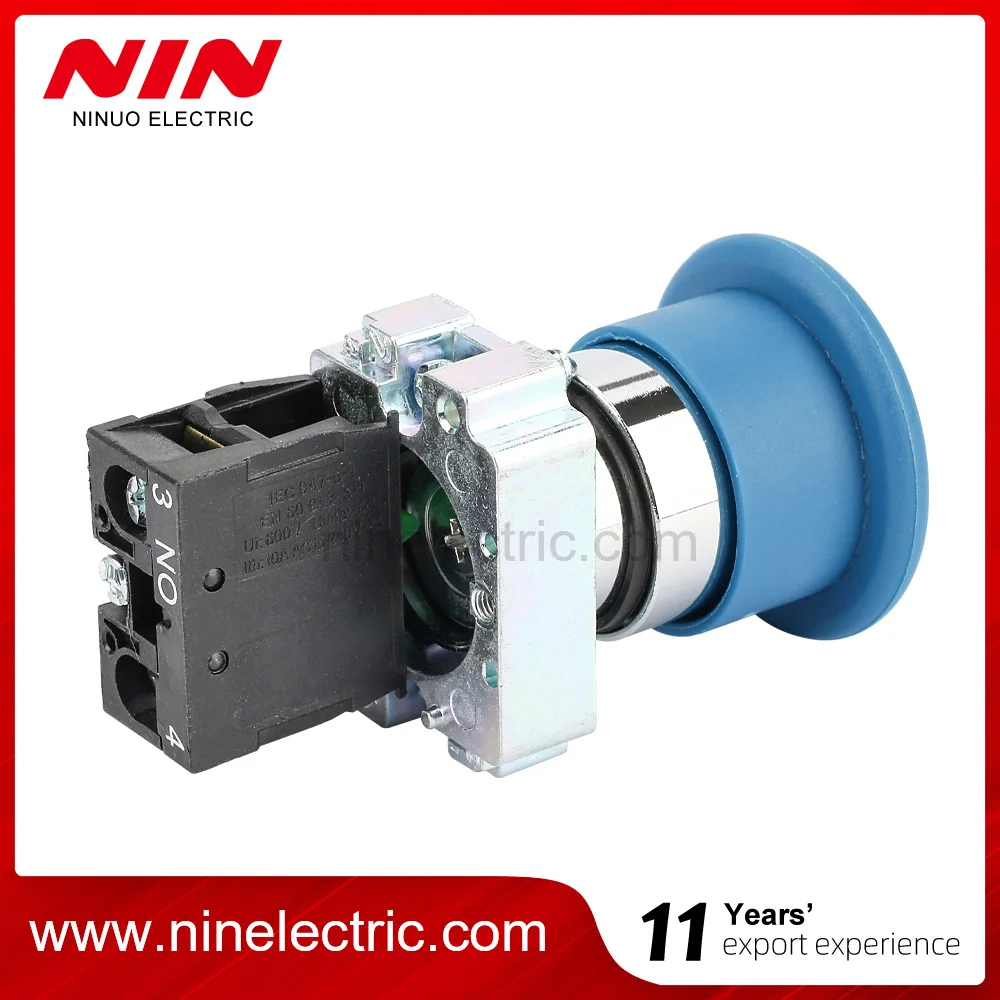

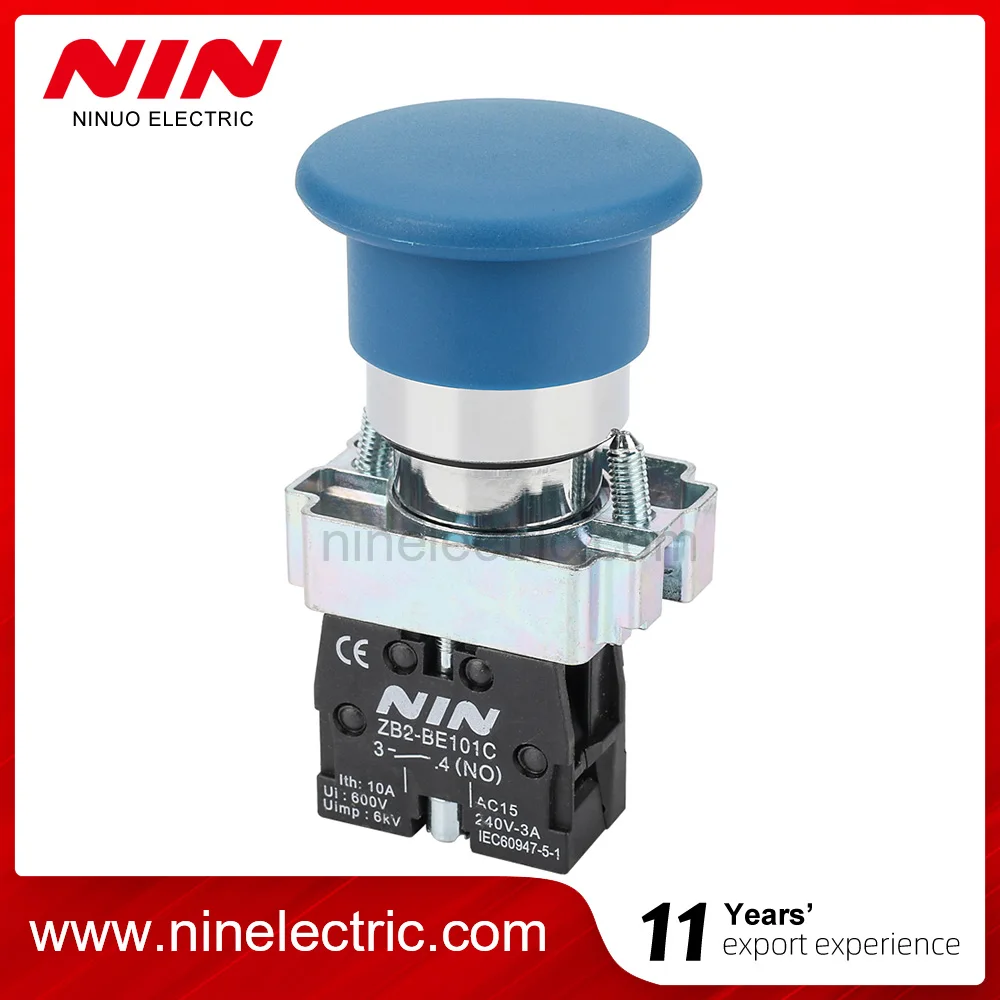

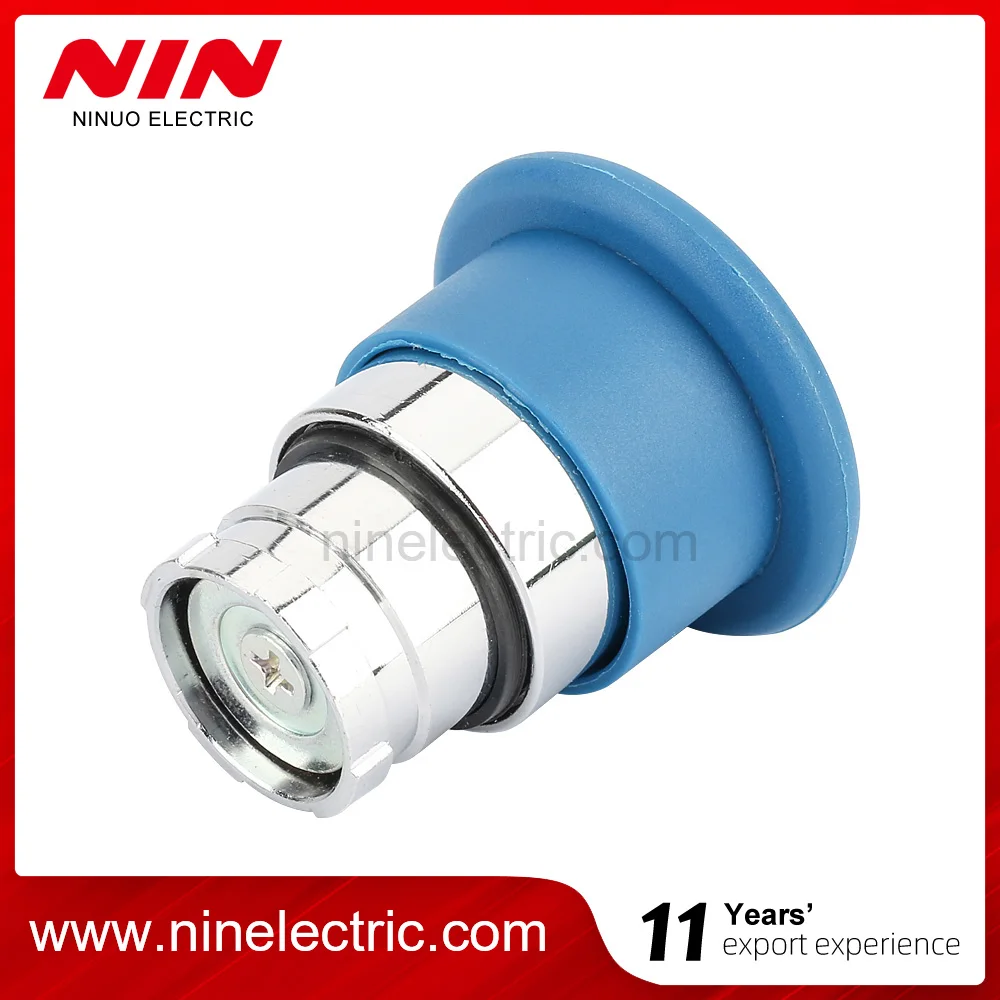

Detailed Images
Product Deatils
Work environment
* Surrounding temperature:-25℃~+55℃;
* Air relative humidity:≤85%.
* It can be normally work under following condition: Vibration frequency is 2~80Hz and acceleration speed is 0.7g/h;
* Pollution grade is Ⅲ, installation sort is Ⅲ, protection grade is up to IP65.
* Altitude:≤2000m
* Surrounding temperature:-25℃~+55℃;
* Air relative humidity:≤85%.
* It can be normally work under following condition: Vibration frequency is 2~80Hz and acceleration speed is 0.7g/h;
* Pollution grade is Ⅲ, installation sort is Ⅲ, protection grade is up to IP65.
* Altitude:≤2000m
Name | Rotating reset emergency stop button |
Type specification | XB2-BC21/BC31/BC51/BC61/BC42 |
Products Standard | IEC 947-5-1 |
Rated insulated Voltage | 600V |
Rated impulse withstand voltage | 6kV |
Stipulated hot current Ith | 10A |
Rated frequency | 50/60Hz |
Contact resistance | ≤50mΩ |
Environment temperature | -25~70℃ |
Storage temperature | -40~70℃ |
Relative humidity | ≤90% |
Electrical life | AC More than 100 thousand times |
Mechanical life | 300 thousand times |
Operation type | Latching |
Contact configuration | 1NO,1NC,1NO1NC,2NO2NC |
Head shape | mushroom |
Crust material | plastic |
Contact material | Silver alloy |
Mounting hole size | 22mm |
