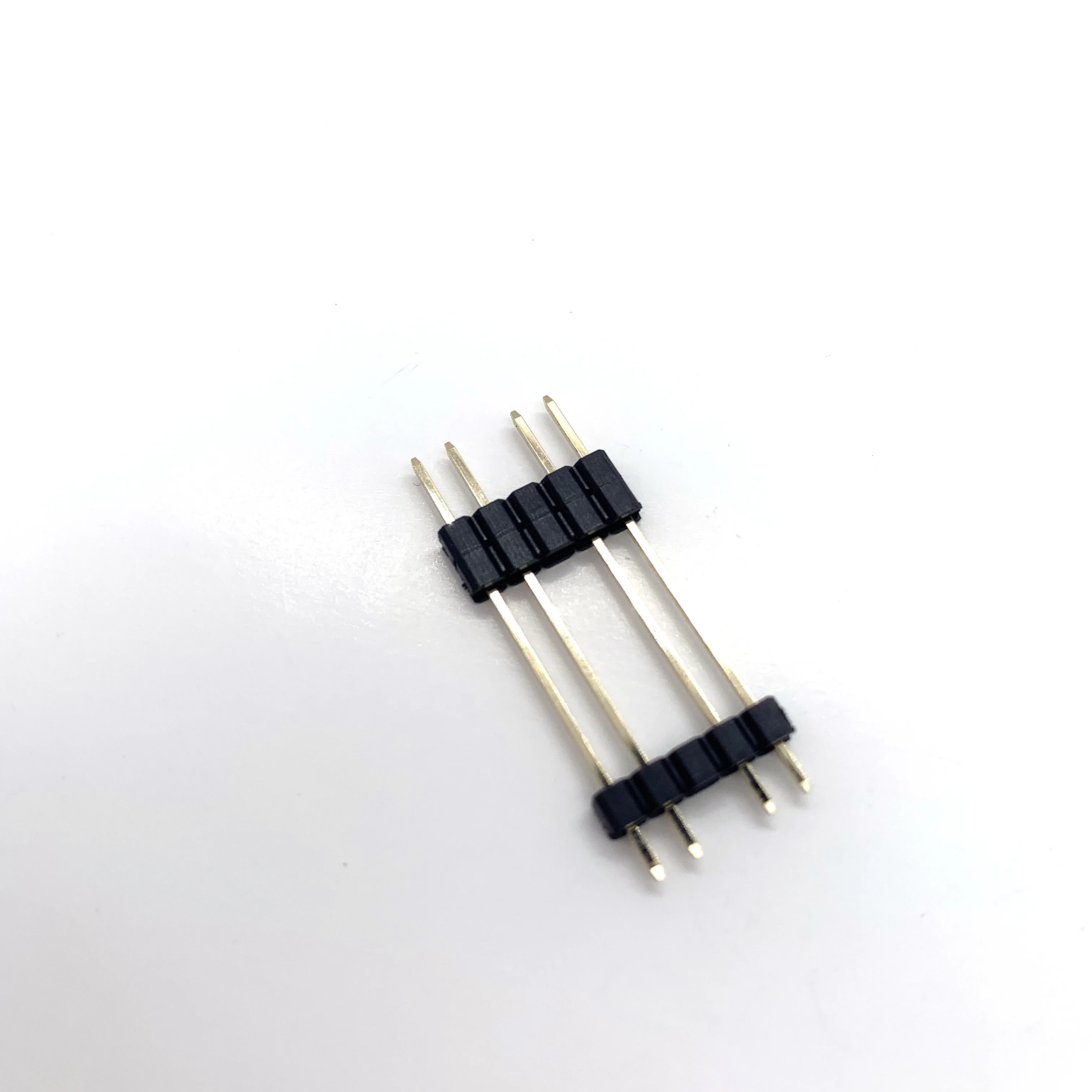

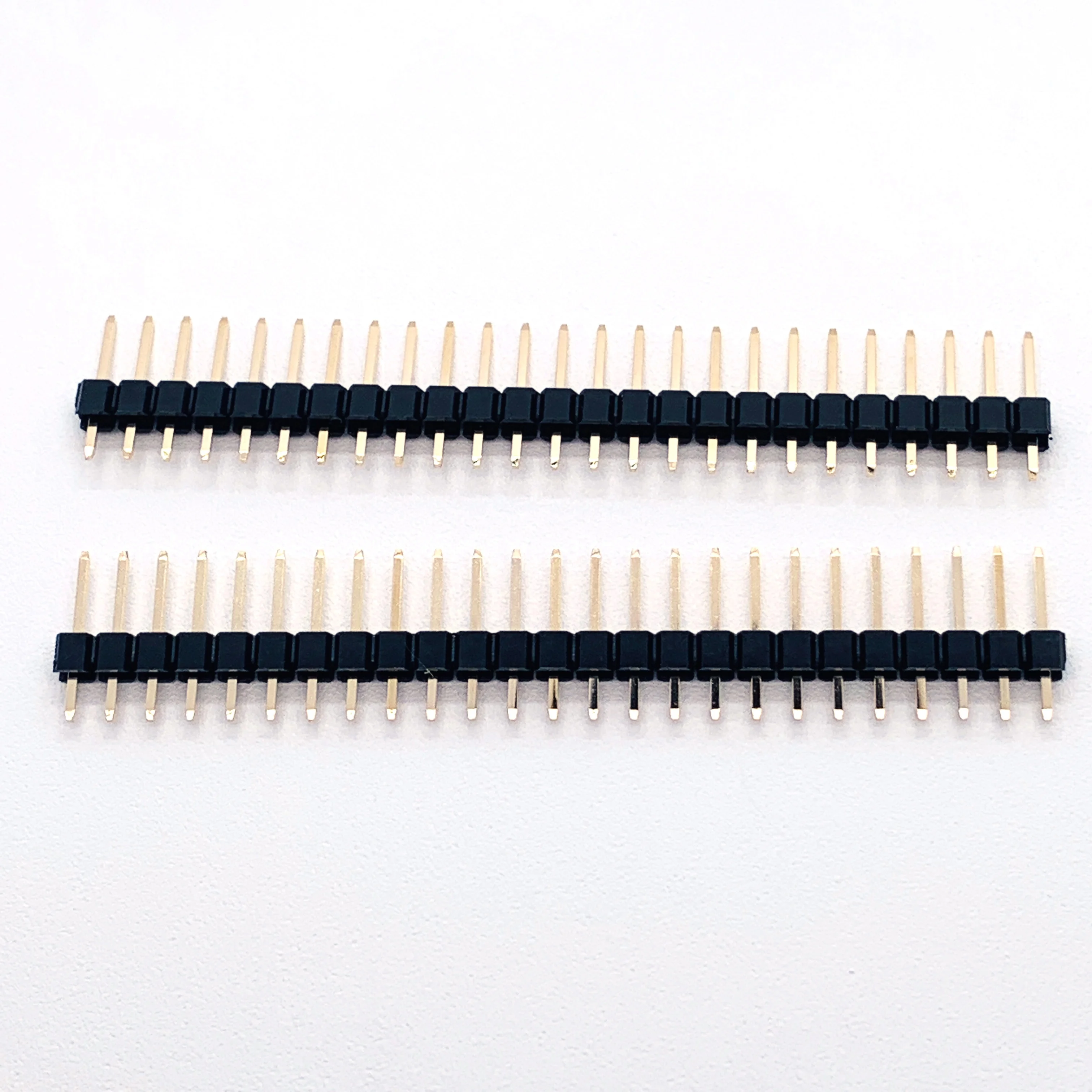

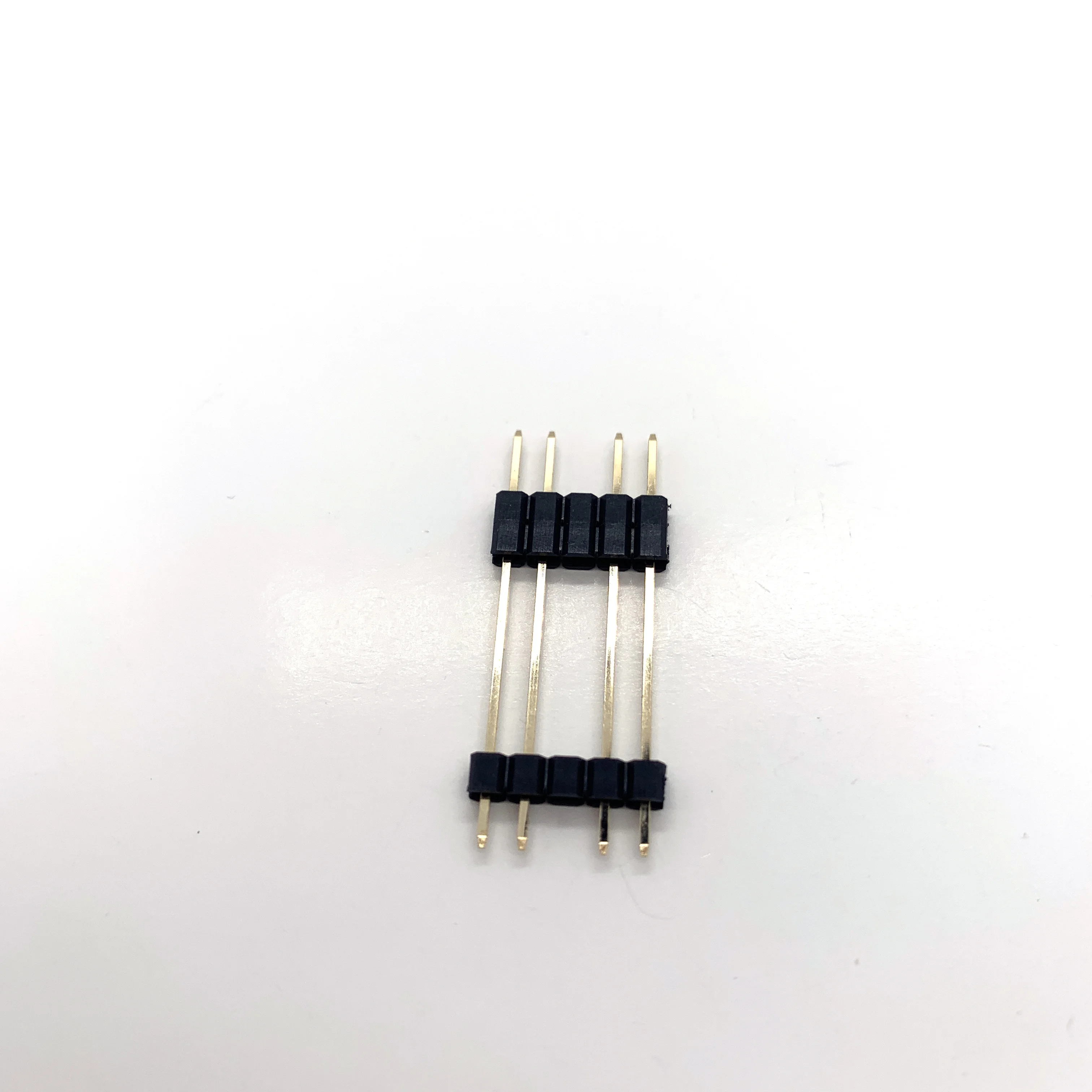

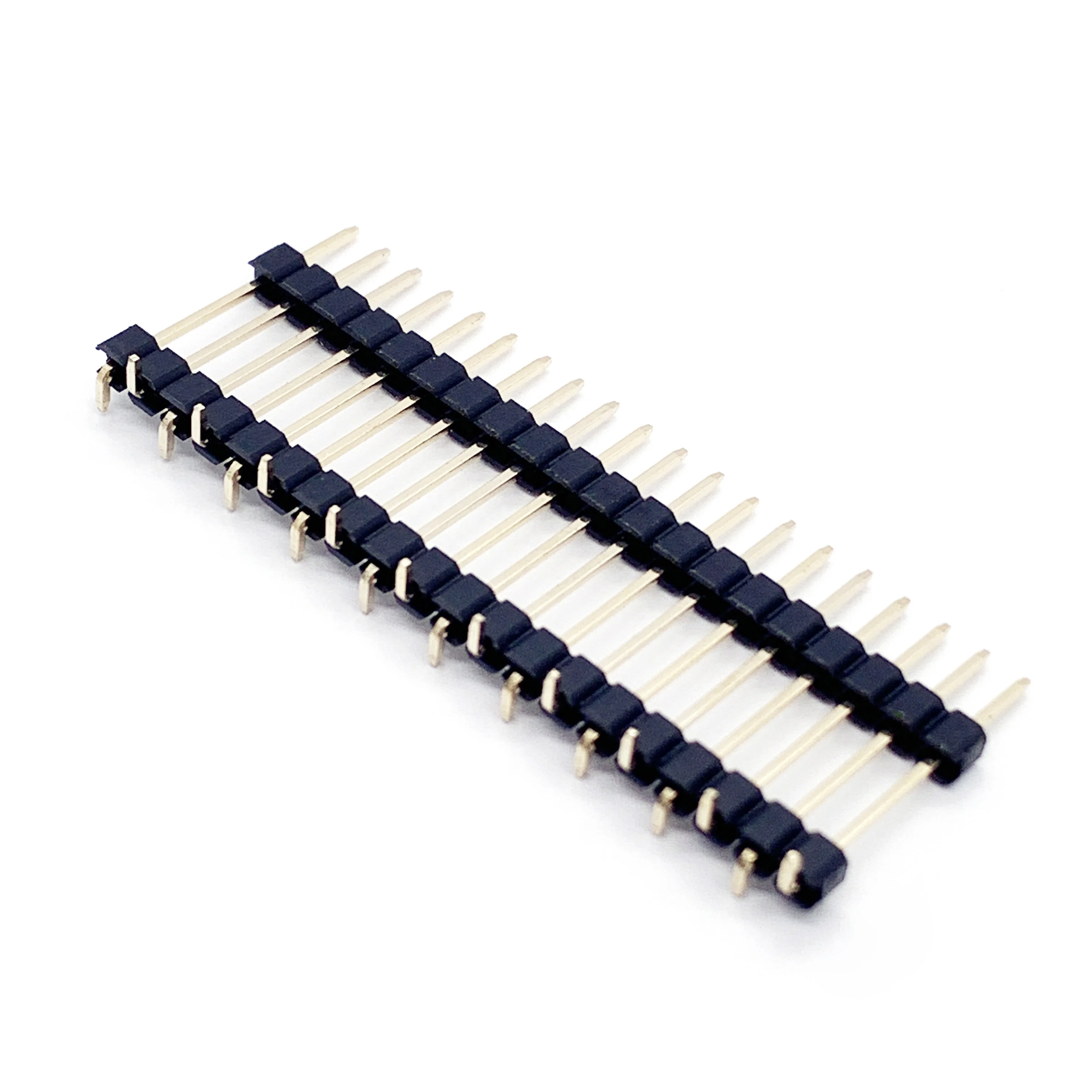

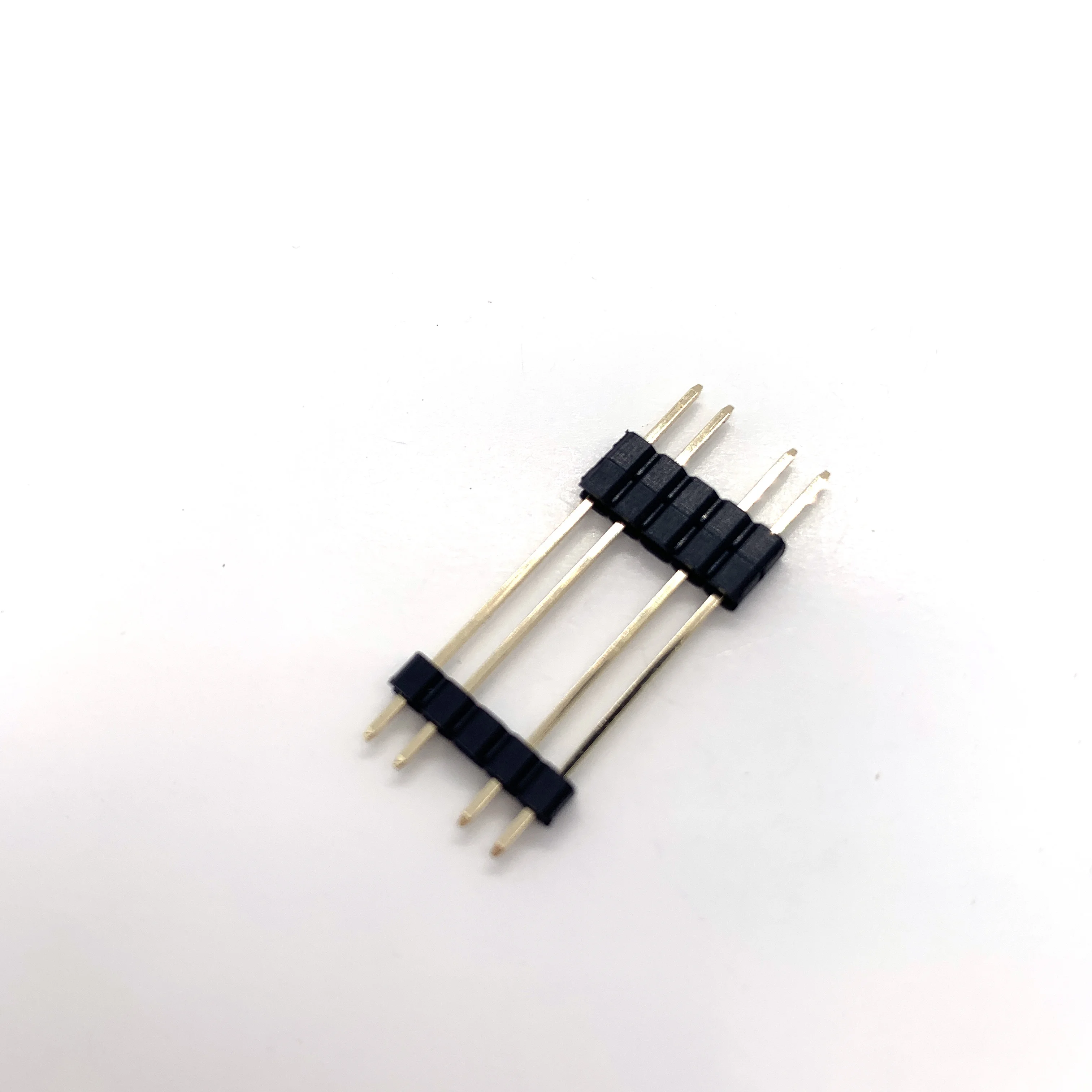

H1.5mm pitch 1.0mm 180degreee dip type 1pin to 40pin customization male female pin headers berg strip
- Category: >>>
- Supplier: Bestconn (Wuhan) Technology Co. Ltd.
Share on (1600475474040):
Product Overview
Description

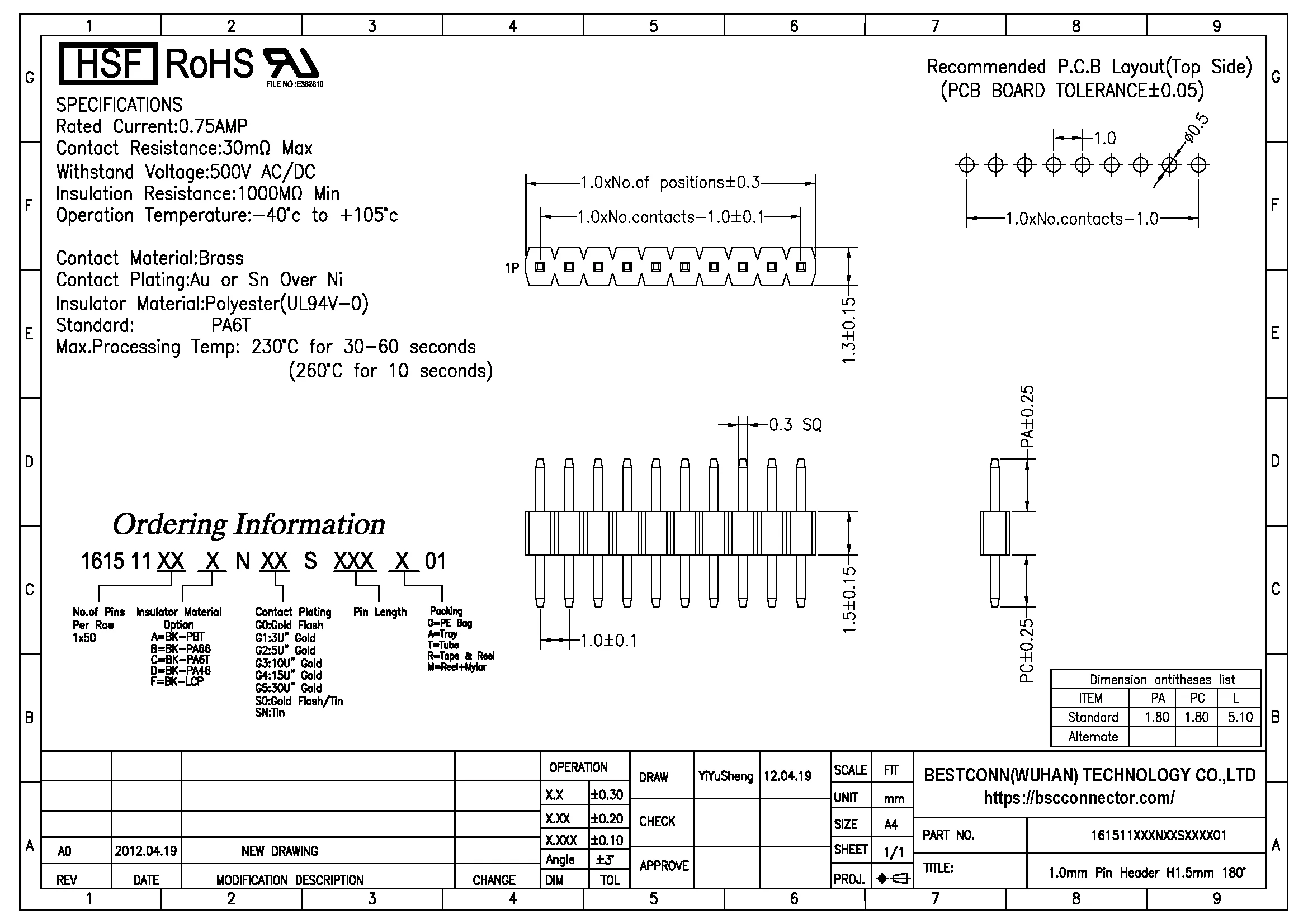

Model Number | 1615-11XXXNXXSXXXX01 |
Type | HEADER |
Place of Origin | GUA |
Brand | BSC |
Packaging | PE Bag/Tray/Tube or Tape&Reel Packing |
Description | |
No. of Pins: | 2~100P |
Type: | Straight |
Rated Current: | 0.75AMP |
Contact Resistance: | 30mΩ Max |
Withstand Voltage: | 500V AC/DC |
Insulation Resistance: | 1000MΩ Min |
Contact Material: | Brass |
Contact Plating: | Au over Ni |
Insulator Material: | PA6T black+30%GF |
Operation Temperature: | -40°C to + 105°C |
Pin header is a form of electrical connector, it can be widely used in PCB circuit boards of various electronics, electrical appliances, instrumentation and instruments. Especially in the PCB board of the integrated circuit. A male pin header consists of one or more rows of metal pins molded into a plastic base, available in many spacing.
1. Cost-effective.
2. Easy to transport.
3. Widely used.
4. ROHS-Compliant
5. High stability
Mating times are twice the industry standard
6. Long service life
The service life of more than 5 years
7. Anti-oxidation
Maintain anti-oxidation for more than 3 years.
8. High and low-temperature resistance
Can withstand changes in a temperature difference of 145℃.
2. Easy to transport.
3. Widely used.
4. ROHS-Compliant
5. High stability
Mating times are twice the industry standard
6. Long service life
The service life of more than 5 years
7. Anti-oxidation
Maintain anti-oxidation for more than 3 years.
8. High and low-temperature resistance
Can withstand changes in a temperature difference of 145℃.
Bestconn(Wuhan) Technology Co.,Ltd is a specialized provider of connector total solution, in developing and delivering reliable Bconnectors, cable, and wire harness that stand for quality, reliability, and convenience. Our products are widely used in electronic applications around the world including telecommunications, household appliances, electronic toys, automotive, medical equipment, and more. We can provide standard or custom products to your requirement. Creating superior products and the highest value for our customers is our ultimate goal. Welcome to join us and let’s link to the future together!
Products Range
PIN HEADERS/FEMALE HEADERS/EJECTOR HEADERS/BOX HEADERS/PLCC/IC SOCKET/IC ADAPTER/MACHINE FEMALE HEADER/MACHINE PIN HEADER/WAFER/DIP PLUG/IDC SOCKET/DIN41612/BOARD-TO-BOARD CONNECTOR/TERMINAL BLOCKS/MMICRO MATCH/CABLE ASSEMBLY
