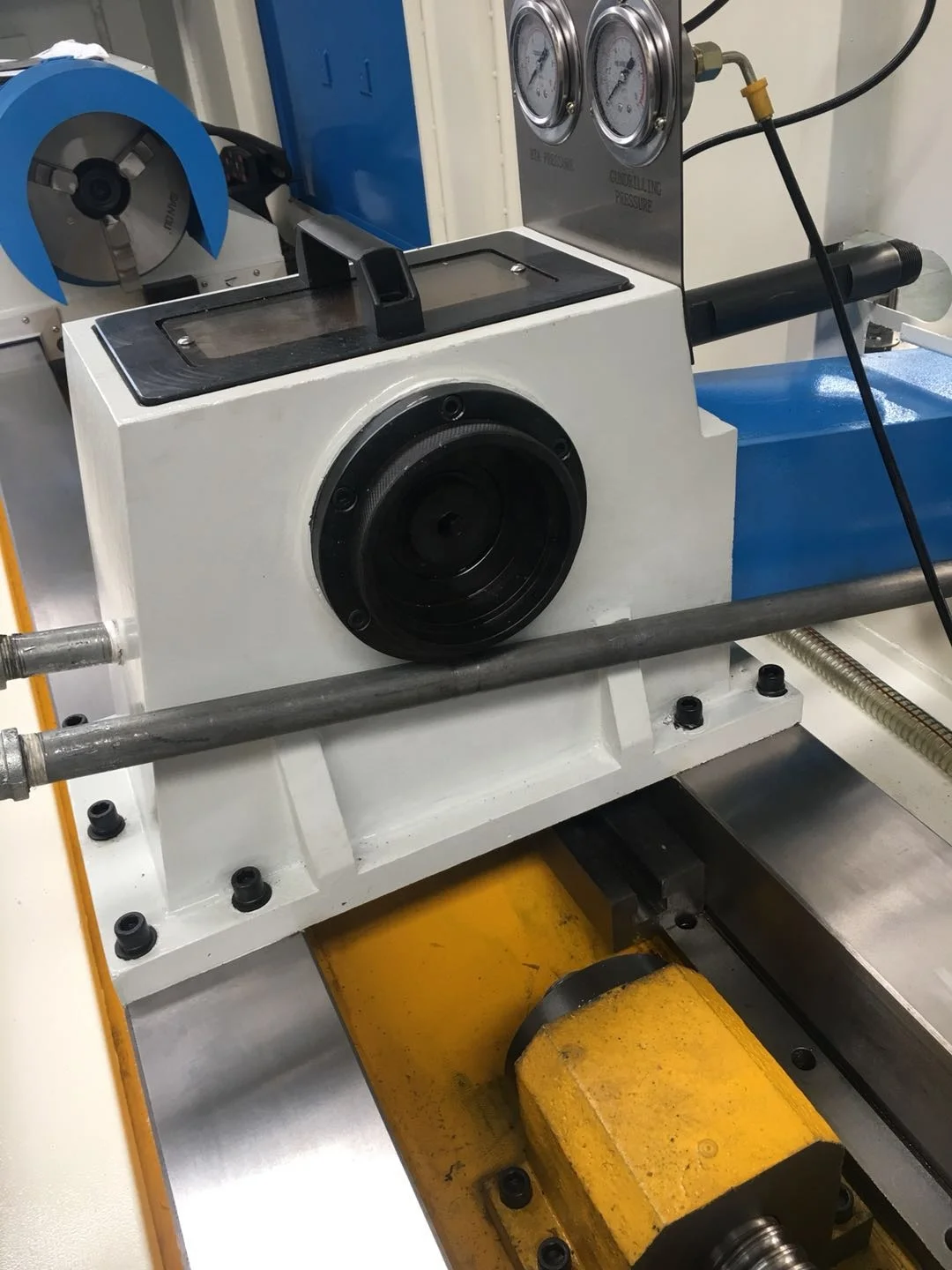

BTA and gundrilling combined machine in double spindle structure
- Category: >>>
- Supplier: Dezhou Guanlu Precision Machinery Co. Ltd.
Share on (1600475481039):
Product Overview
Description
Product Overview

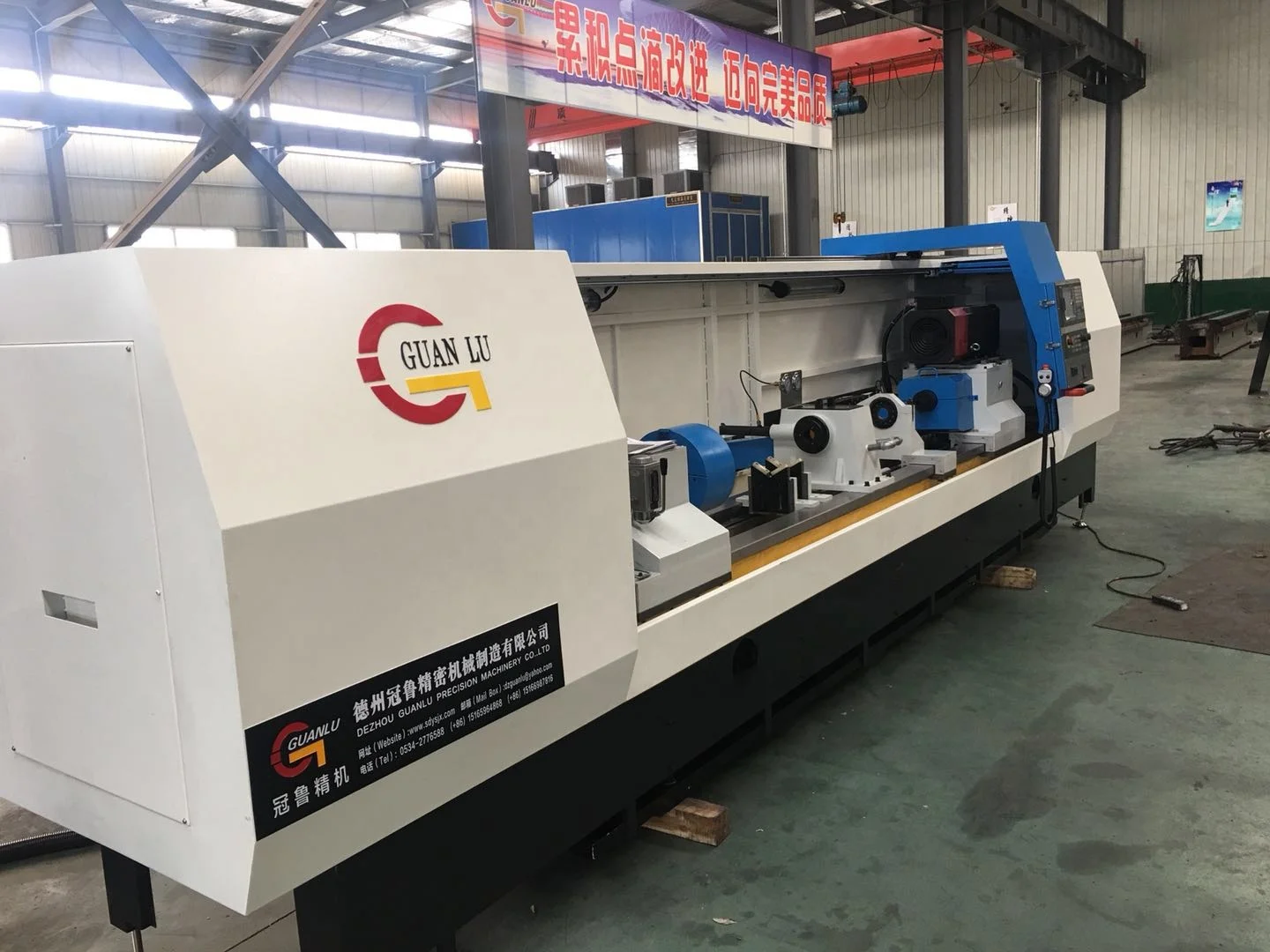

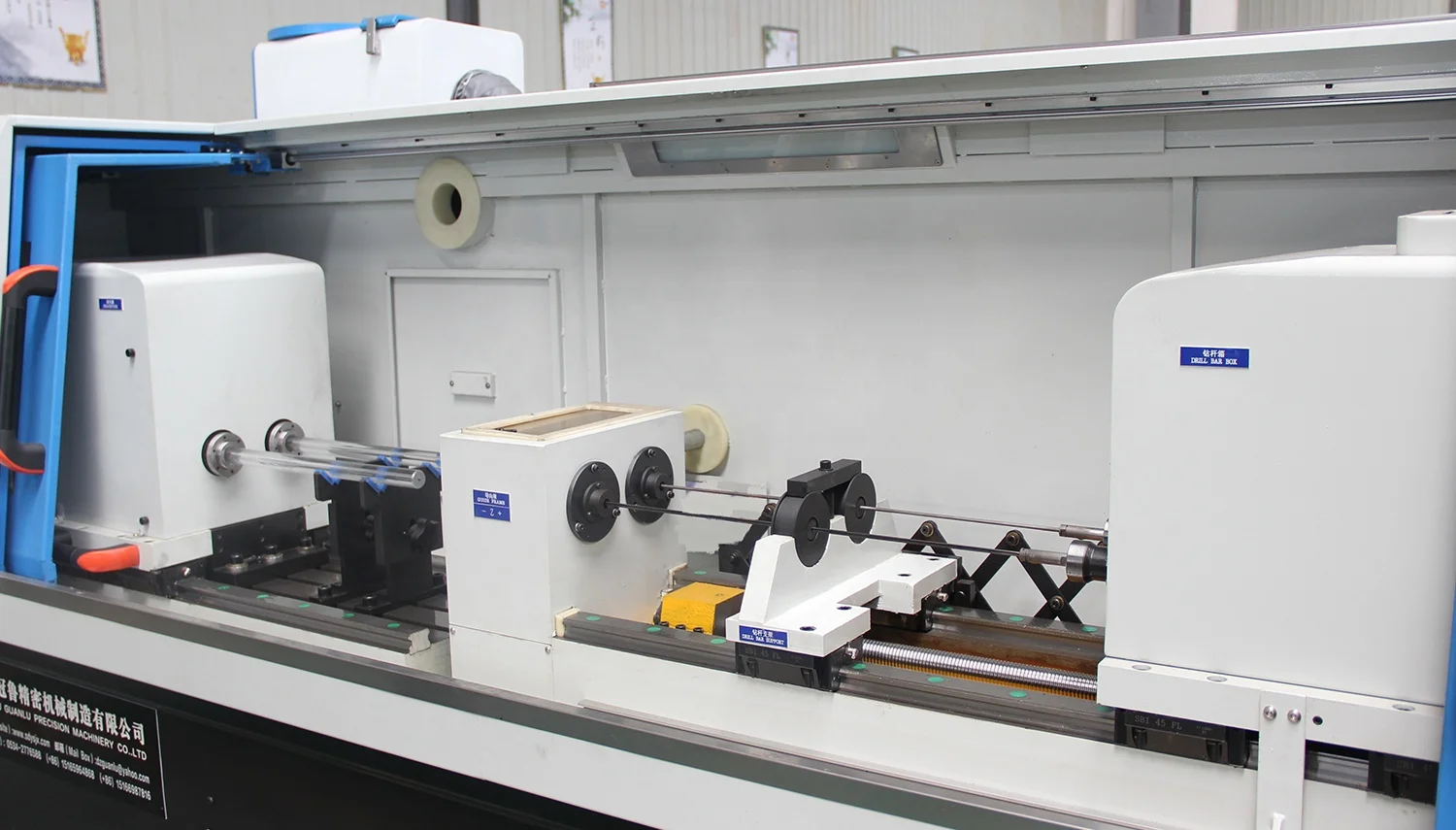

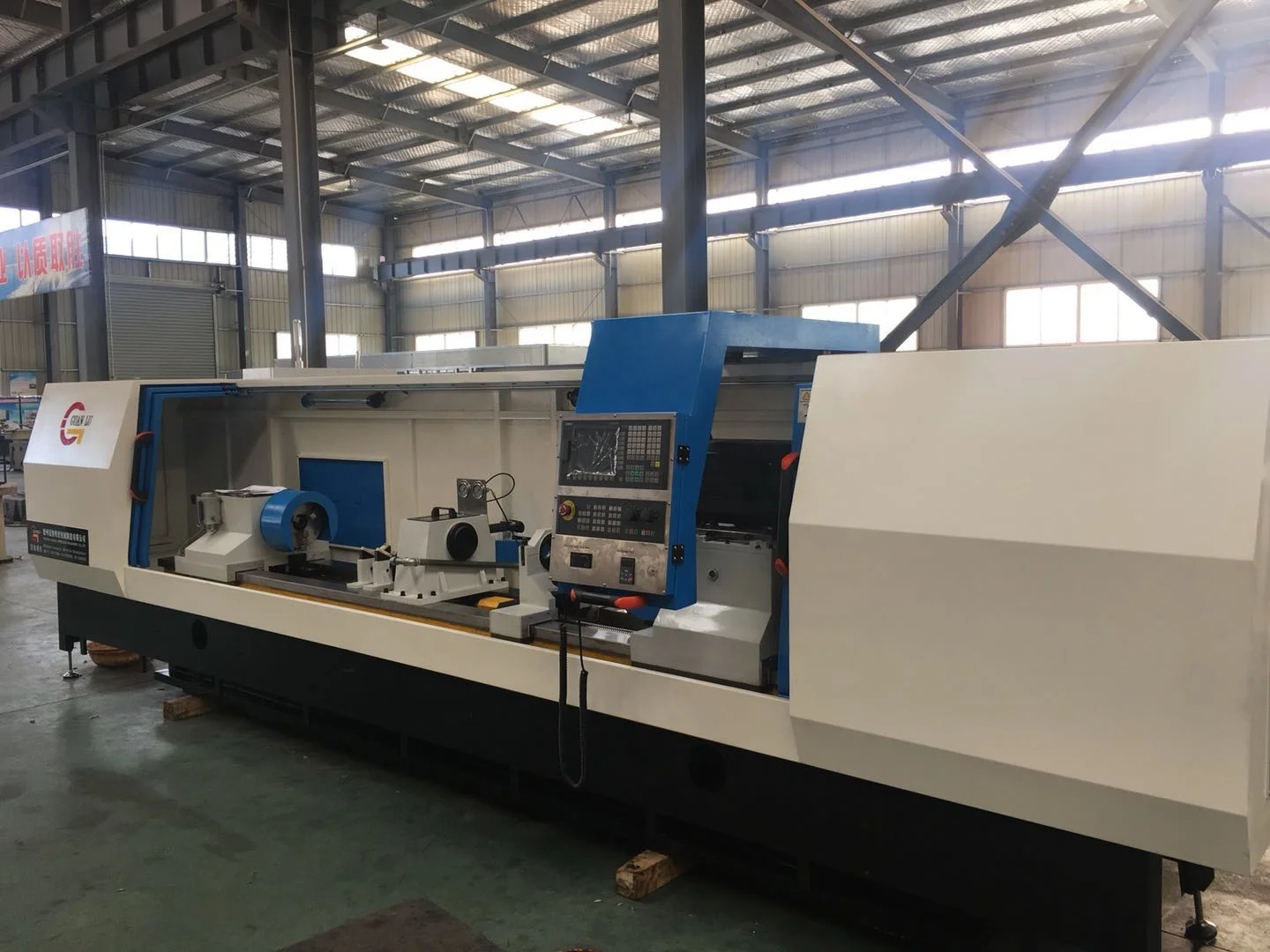

BTA and gundrilling combined machine---Double spindle structure
This machine both have gundrilling and BTA drilling method , hole diameter range 4mm to 80mm , Max.drilling 3000mm.
This machine both have gundrilling and BTA drilling method , hole diameter range 4mm to 80mm , Max.drilling 3000mm.
FEATURES AT A GLANCE
This series machine has single spindle and double spindle two structures.
This combined machine reduce the end users cost and floor space.
This combined machine reduce the end users cost and floor space.
PRODUCT SPECIFICATIONS
Technical specification | Parameters | ||||||
Single spindle structure | Double spindle structure | ||||||
Working capacity | Drill hole diameter(mm) | Gundrilling | 8-30 | 4-30 | |||
BTA | 25-60 | 25-80 | |||||
Working depth(mm) | 1000-3000 | ||||||
Workpiece length(mm) | 1000-3000 | ||||||
Max.workpiece OK(mm) | 250 | ||||||
Max.workpiece weight(kg) | 2000 | ||||||
Machine Character | Drill bar box | Rotating speed(r/min) | 200-2000 | Gun drill:200-5000 | |||
BTA:200-1000 | |||||||
Main motor power | 18.5 | Gun drill:7.5 | |||||
BTA:22 | |||||||
Z Axis | Infeed speed range(mm/min) | 5-500 | 5-500 | ||||
Rapid movement speed(mm/min) | 2000 | 2000 | |||||
Motor torque(Nm) | 15 | 15 | |||||
Others | Hole Max.L-D raito | 100:1 | 100:1 | ||||
Machine general power | 45 | 55 | |||||
Coolant system | Max.pressure(MPa) | 10 | 10 | ||||
Max.flow(L/min) | 200 | 300 | |||||
Filtering accuracy(Um) | 20 | 40 | |||||
SALES AND SERVICE NETWORK

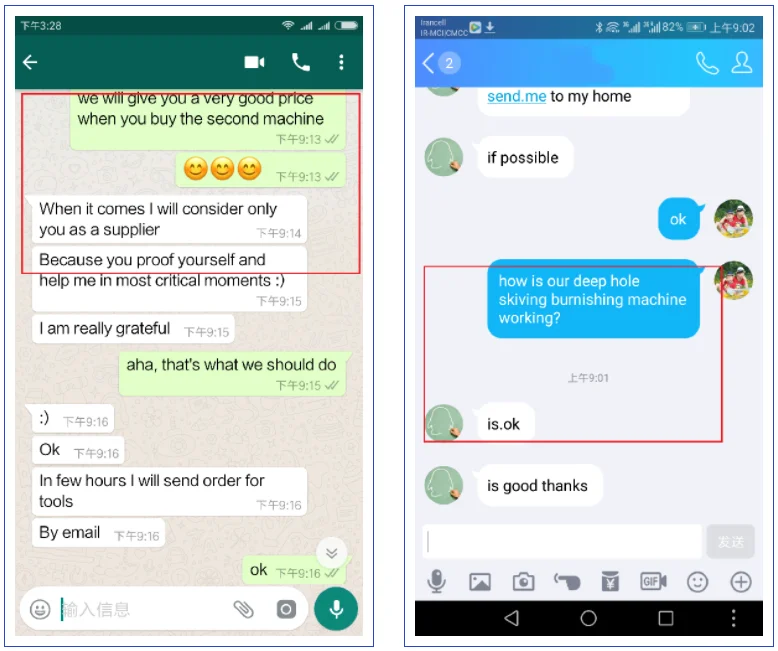

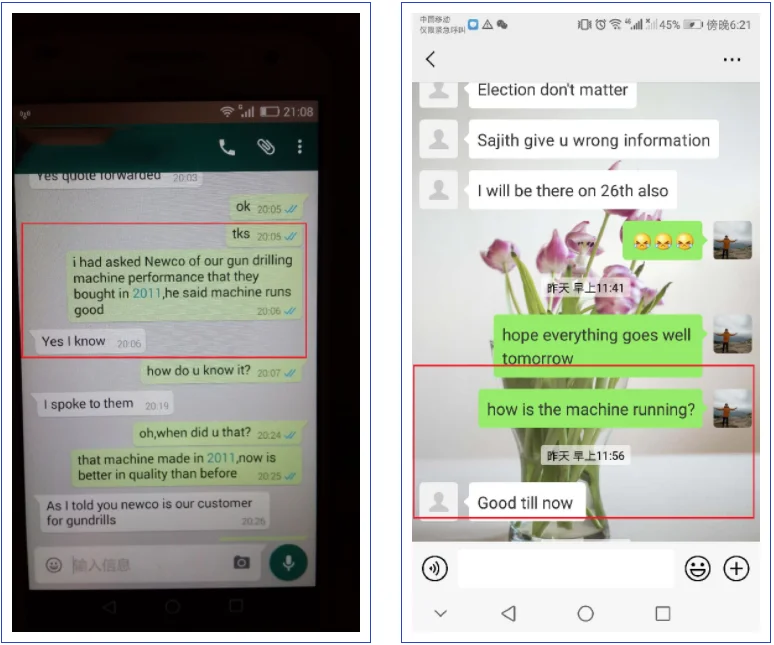

Customer Evaluate
PRODUCT PACKING
1. Before shipment, every part of the machine will be painted with a layer of anti-rust and water-proof oil to prevent possible erosion during transportation.
2. A plastic cover to wrap around machine parts to enhance corrosion prevention.
3. Export standard fumigated wood cases are measured and specially made for packing.
4. Steel wire will be used to tighten and strengthen the packages inside the container.
2. A plastic cover to wrap around machine parts to enhance corrosion prevention.
3. Export standard fumigated wood cases are measured and specially made for packing.
4. Steel wire will be used to tighten and strengthen the packages inside the container.
Company Information
Guanlu Precision has been engaged in the Deep Hole Processing Machine Tools manufacturing and exporting since 2009. Our machines are running well in more than 20 countries all over the world( including France, Singapore and etc).
We have built very good and long-term business relationships with our customers. And they are satisfied with our machine’s high performance very much. too.
We have built very good and long-term business relationships with our customers. And they are satisfied with our machine’s high performance very much. too.
FAQ
1. Q: How about the payment terms?
A: We accept T/T 30% prepaid when ordering, the balance paid before shipping.
2. Q: How about the delivery time?
A: Normally, 4-6 months after the deposit.
3. Q: How about the after-sale services?
A: We supply on-site commissioning, operators training, and maintaining services.
4. Q: How about the technical support?
A: While the customer is meeting the technical problems in processing, our engineer will try their best to give them suggestions and support. This is for free to our customer
A: We accept T/T 30% prepaid when ordering, the balance paid before shipping.
2. Q: How about the delivery time?
A: Normally, 4-6 months after the deposit.
3. Q: How about the after-sale services?
A: We supply on-site commissioning, operators training, and maintaining services.
4. Q: How about the technical support?
A: While the customer is meeting the technical problems in processing, our engineer will try their best to give them suggestions and support. This is for free to our customer
