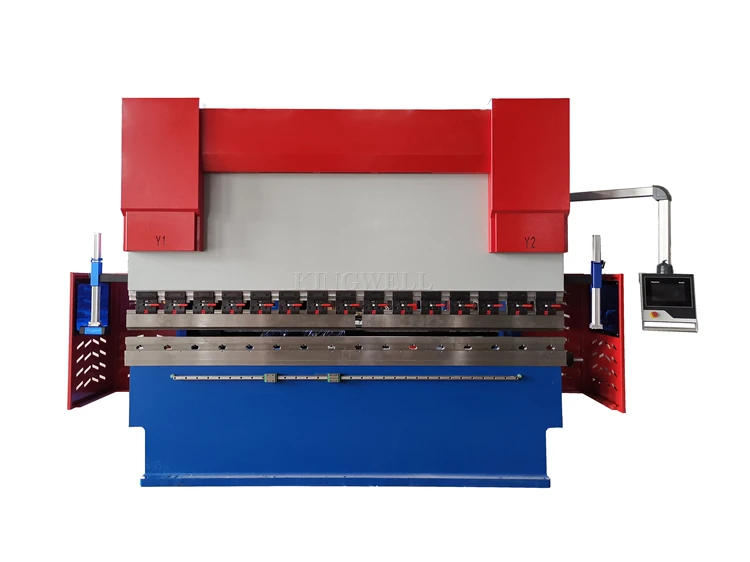

Electric Servo Synchronized CNC Brake Press Delem 100t 125t 160t 200t Sheet Metal Hydraulic Press Brake Machine
- Category: >>>
- Supplier: Nantong Kingwell Machinery Co. Ltd.
Share on (1600475483594):
Product Overview
Description
Product Description

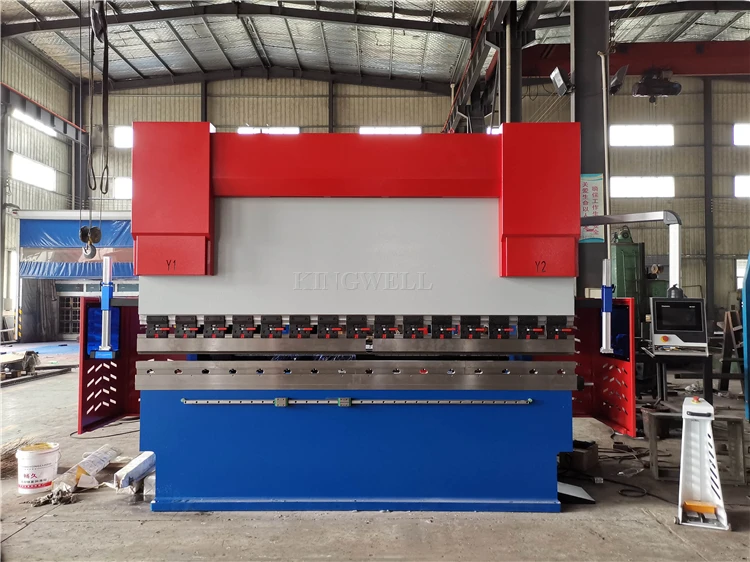

WE67K-160TX3200 Top Quality CNC Hydraulic Press Brake DELEM DA53T
Product Application
Our range of hydraulic press brake is simple to use, easy for starting , and convenient for maintenance. It is the mainstream machine in the metal bending market, widely used in sheet metal processing industries.
TECHNICAL PARAMETER | ||||||
1 | Machine Model | WE67K-160TX3200 DELEM DA53T | ||||
2 | Nominal Pressure | KN | 160 | |||
3 | Length of working table | mm | 3200 | |||
4 | Strength of shearing sheet | Mpa | ób≤450 | |||
5 | Throat depth | mm | 320 | |||
6 | Ram stroke | mm | 180 | |||
7 | Max open height | mm | 480 | |||
8 | Main motor power | KW | 11 | |||
9 | Control method | 4 Axis +1 | X, Y1, Y2, R | |||
Description of CNC Axis:
Y1, Y2 Axis: respectively control the movement of the left and right sides of the slider.
X Axis: control the back gauge movement back and forth.
R Axis: back gauge moves up and down
1: crowning working table
Main Features
1. EU streamlined design, all the components of the machine are designed under the instruction of the computer aided design and software of CAD/CAE/CAM to fully guarantee the intensity and rigidity of all the components.
2. KINGWELL engineers utilize parametric 3D SolidWorks using FEM & DOE analysis as well as static and mechanism analysis.
3. All machine body is total monoblock welded assembly by high quality steels . After welding procedure, the machine body will be milled to ensure the balance and precision.
4. Electro-hydraulic servo synchronization and the complex compensation are designed so as to raise the work pieces precision.
5. Adopt integrated hydraulic system, more reliable and easy for maintenance.
6. The stroke and distance of the backgauge is adjusted by the motor and is well adjusted by hand,the adjustment is displayed by digital meters
7. Inch, single, continuous operation mode being designed for the machine and reversing and maintain time can be controlled by the time relays
8. Humanistic concern security design in all details and also the scientific details through KINGWELL standard.
Standard Equipment
1. Wedge compensation on top punch clamping
2. Plate Support Arms
3. Collapsible Backstop Finger
4. Standard Top Dies and Multi-V Lower Dies
5. Hydraulic and Electrical overload protection
6. Squaring Arm and Front Support Arms
7. Dies can be designed under clients' requirement.
8. SIEMENS Motor or China Hanneng High Quality Motor
9. Germany Bosch Rexroth Hydraulic System
10. USA SUNNY Hydraulic Gear Pump
11. The sealing parts will be from JAPAN VALQUA .
12. Germany SIEMENS or France SCHNEIDER Main Electric Elements.
13. Taiwan HIWIN ball screw and polished rod with 0,05 mm accuracy.
14. DELEM DA53T CNC system or other cnc controller system.
Delem DA53T CNC System Features:
1. Quick, one page programming
2. Hotkey navigation
3. 7'' VGA Color TFT
4. Up to 4 axes (Y1, Y2 and 2 auxiliary axes)
5. Crowning control
6. Tool/material/product library.
7. USB, peripheral interfacing.
8. Advanced Y-axis control algorithms for closed loop as well as open loop valves.
Detailed Images

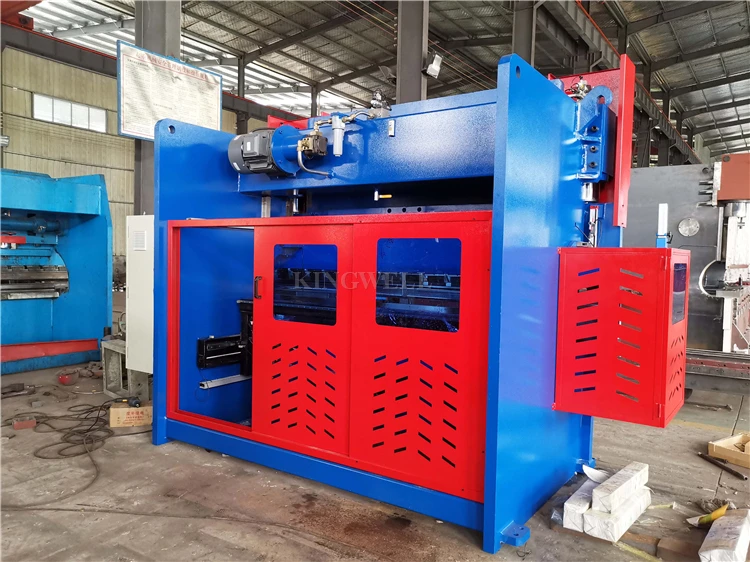

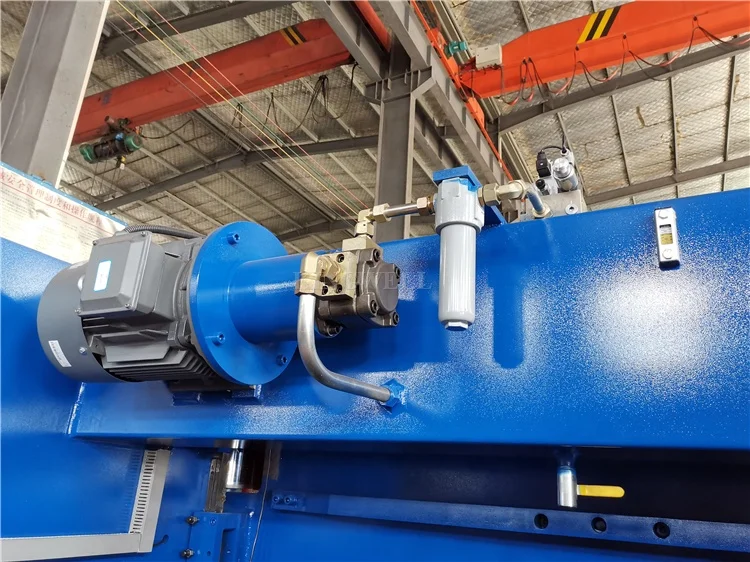

Motor and Oil Pump
Top quality main motor and good quality USA Sunny pump.
with strong power and low noise. Adopt the best quality Germany Rexroth cylinder valve to ensure high performance and high reliability, no oil leakage and faulit

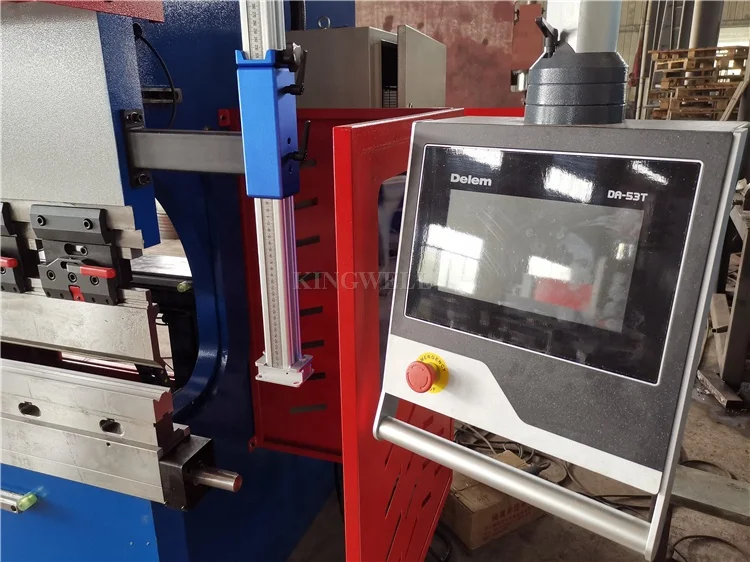

DELEM DA53T CNC System
The new compact DA-53T adds a state-of-the-art complete touch control solution for synchronized press brakes. Offering easiest CNC programming based on the DELEM graphical touch screen user interface.

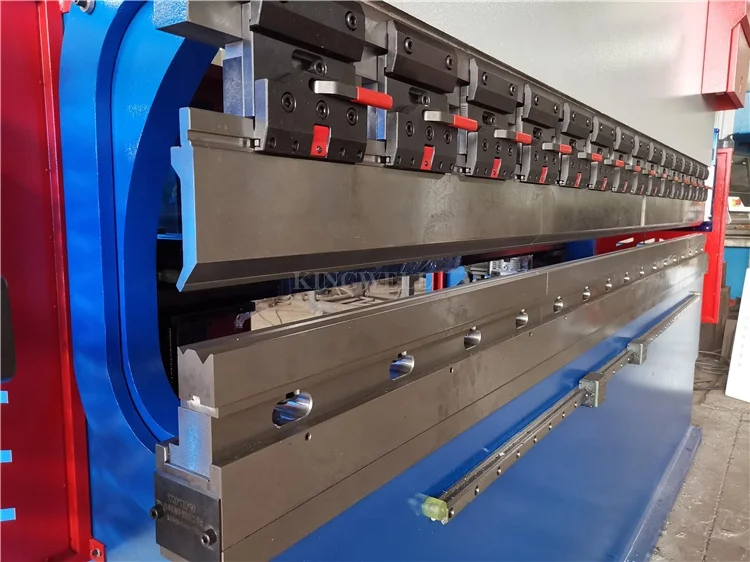

Punch and Bottom Tools.
We can make according to customer's requirement.

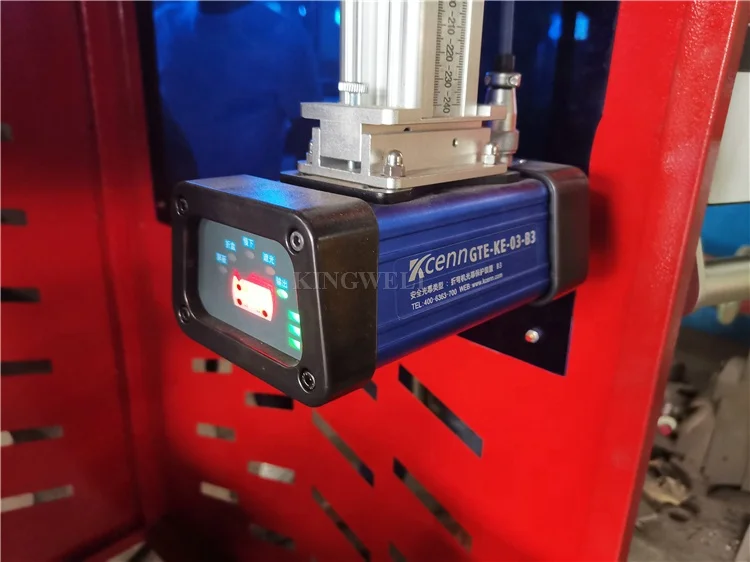

Laser Protection Device
This device can protect the safety of worker during operation.
Fast Clamping and Auto Crowing Worktable
This clamping device has the advantages of convenient adjusting, short clamping time, low labor intensity and accurate location. The auto crowing worktable can make sure the working precision.
Back Gauge System
Easy to operate and with high precision.
You can also choose other models from below sheet by your requirement.
8(Ratio) x 2 mm(thickness) x 2.5 meter (width)= 40
So, you need WC67Y-40T/2500 press brake to bend 2 mm thick x 2500 mm width mild steel.

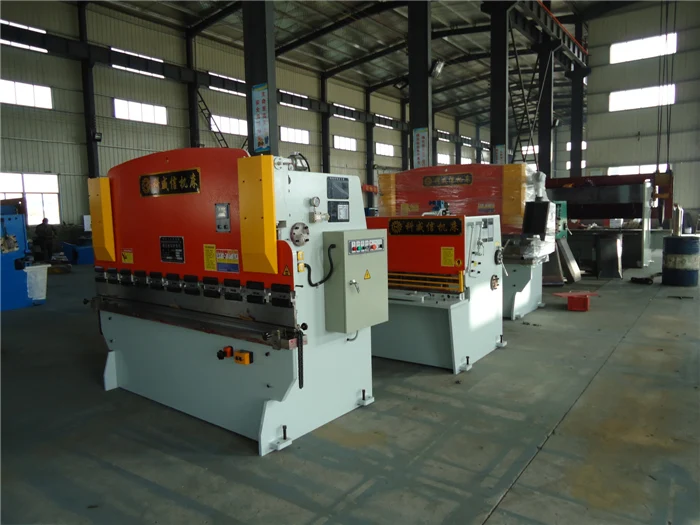

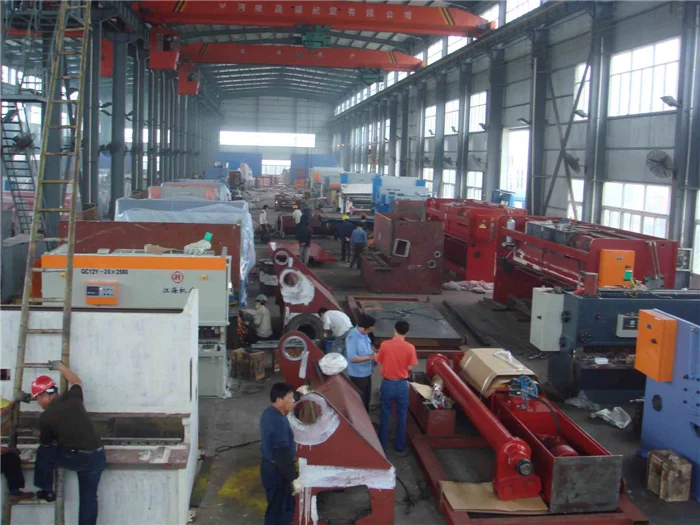

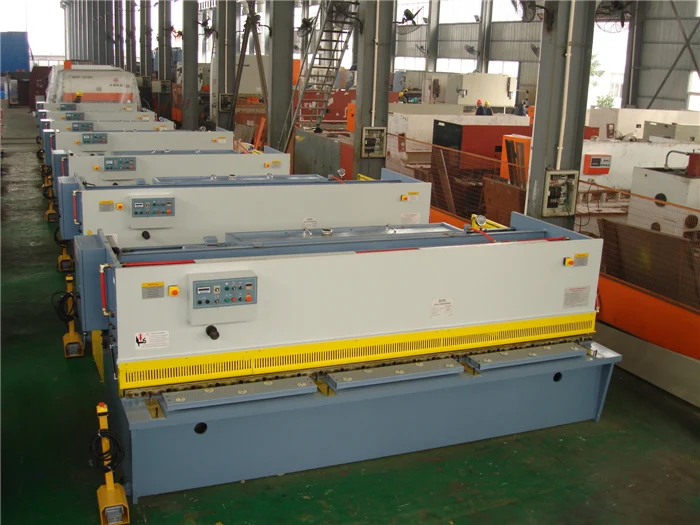

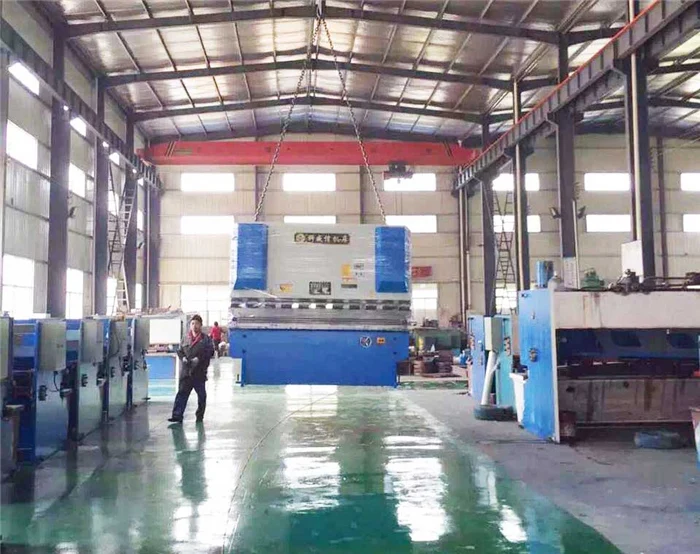

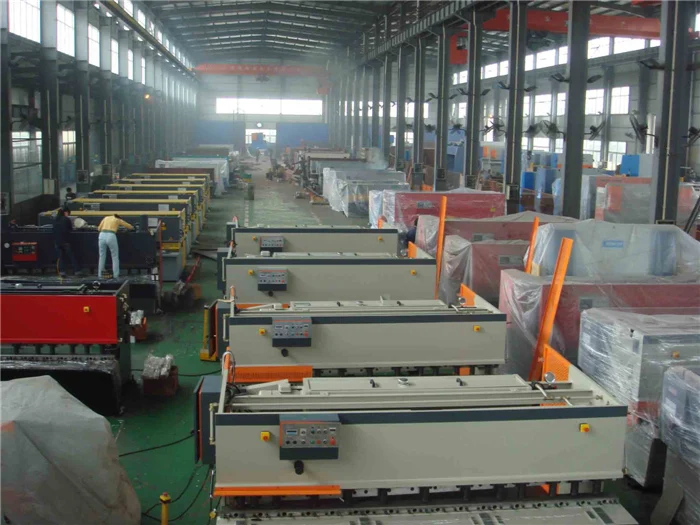

Our Company

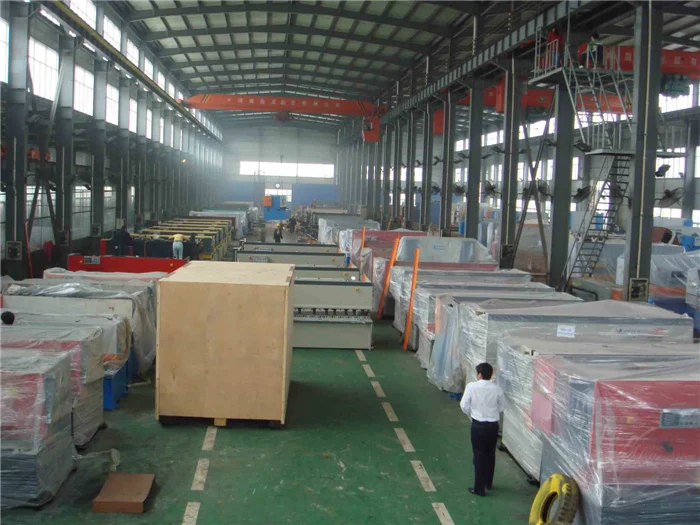

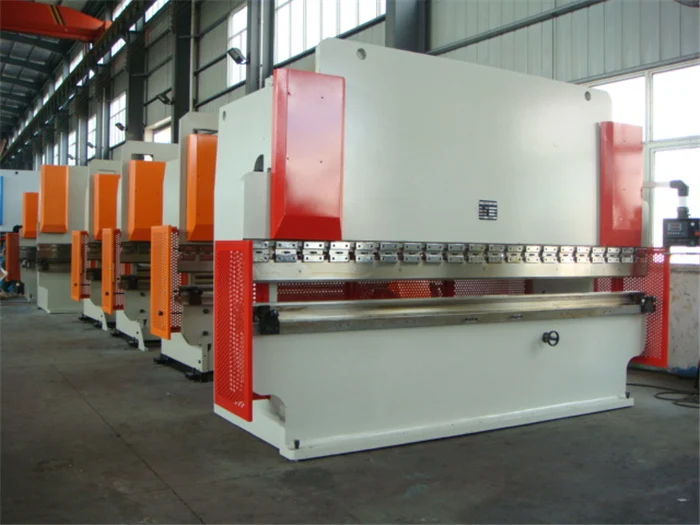

We, Nantong Kingwell Machinery Co.,Ltd manufacture different kinds of metal processing machines and cleaning equipment, such as shearing machine, press brake, plate bending machine, profile bending machine, leveling machine, hydraulic press, power punching machine, electric road sweeper, floor scrubber, patrol car, golf car to the market over the passing 20 years. We have four isolated manufacturing facilities/plants, which locating Nantong, Jiangsu Province, to manufacture around 2000 machines annually. We not only supply the reliable and durable machines but also supply good service/technical support after sales through its experienced staff. The machines manufactured by us are widely being used in various fields, such as petro-chemical industry, ship construction, metal construction, marine industry, pressure vessels, bridge construction, water/oil tanker, wind energy, automobiles, cooking utensils, polymer material and the other fields.
We are involving in the technique innovation and technical improvement with the market, we have been offering, and will continue to supply alternatives quality assured metal processing machines.
Certifications
Our Customers
In the past 20 years, we have established business relationships with customers from more than 40 countries, including Australia, Southeast Asia, Europe, Middle East , South America, North America, Africa and so on.
We here thanks all your trust. Your encouragement is the driving force of our progress.

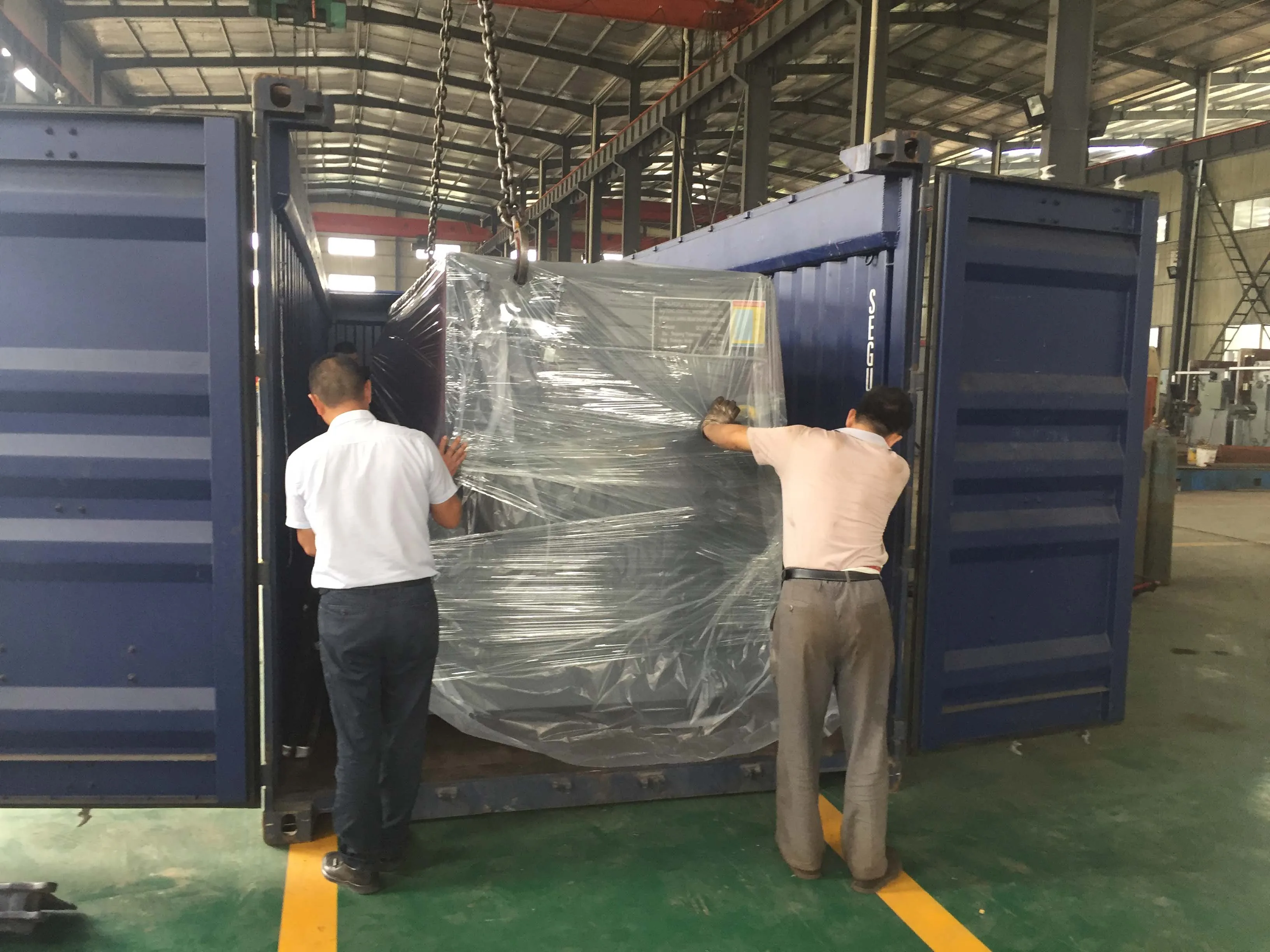

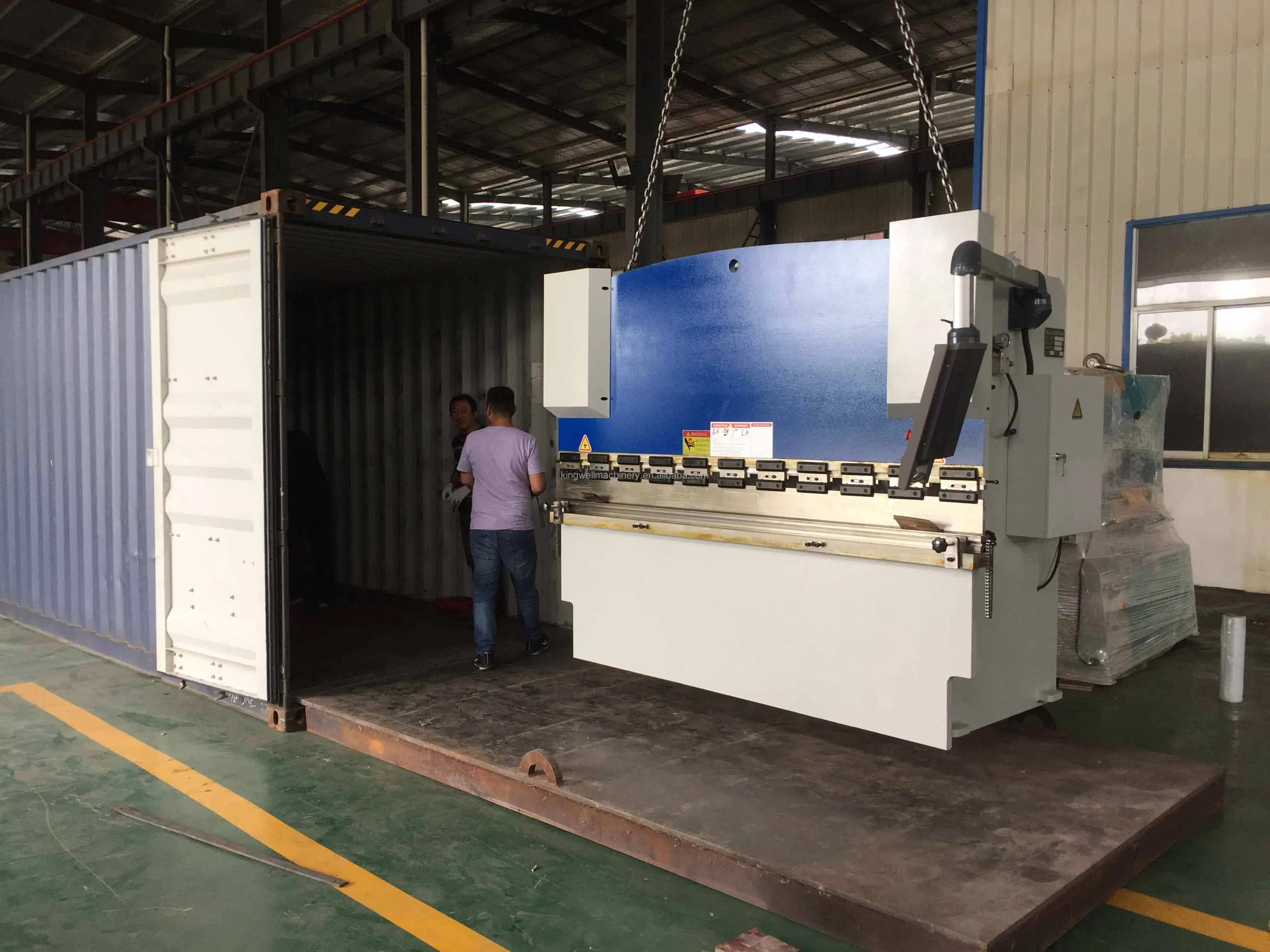

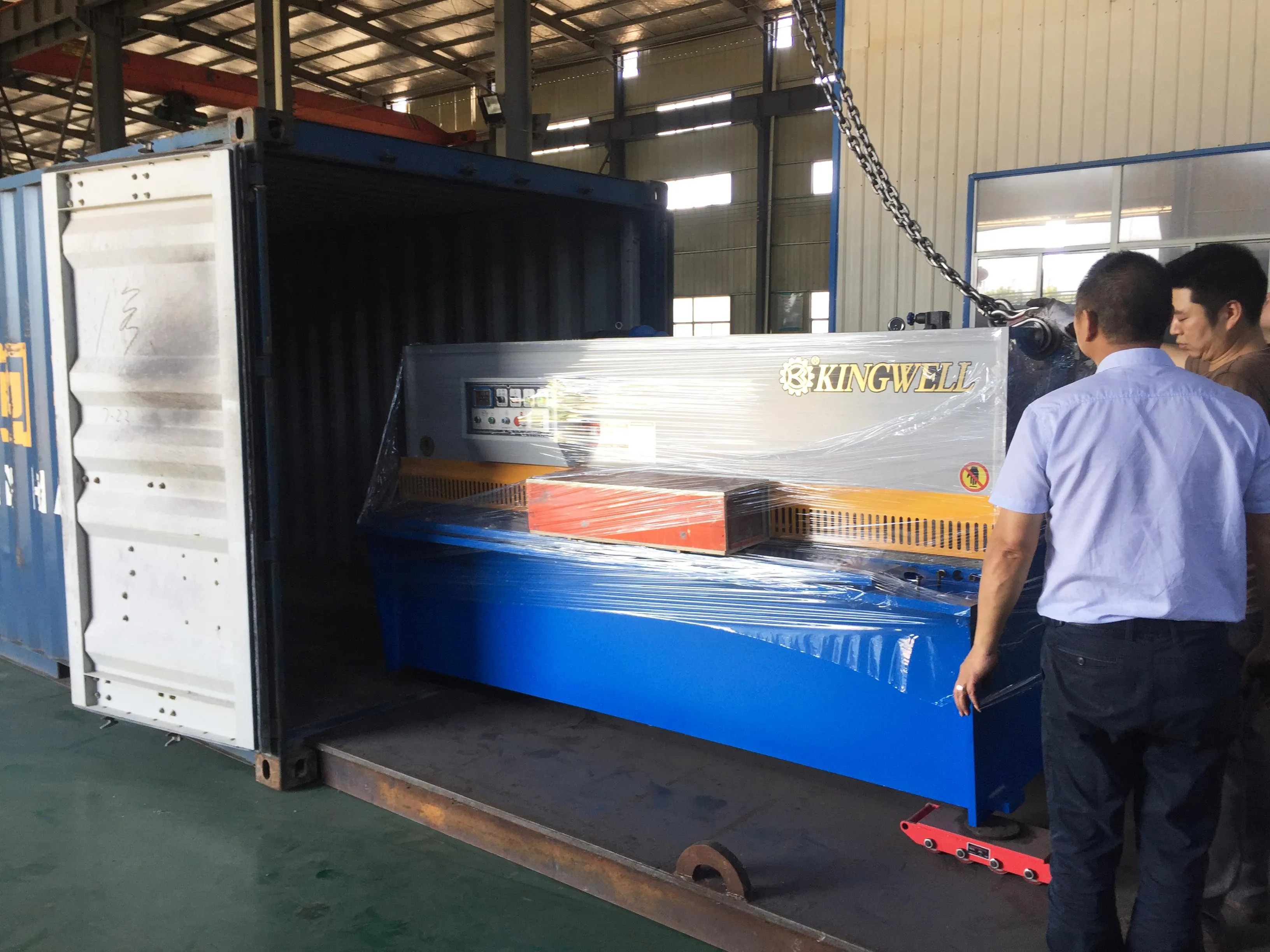

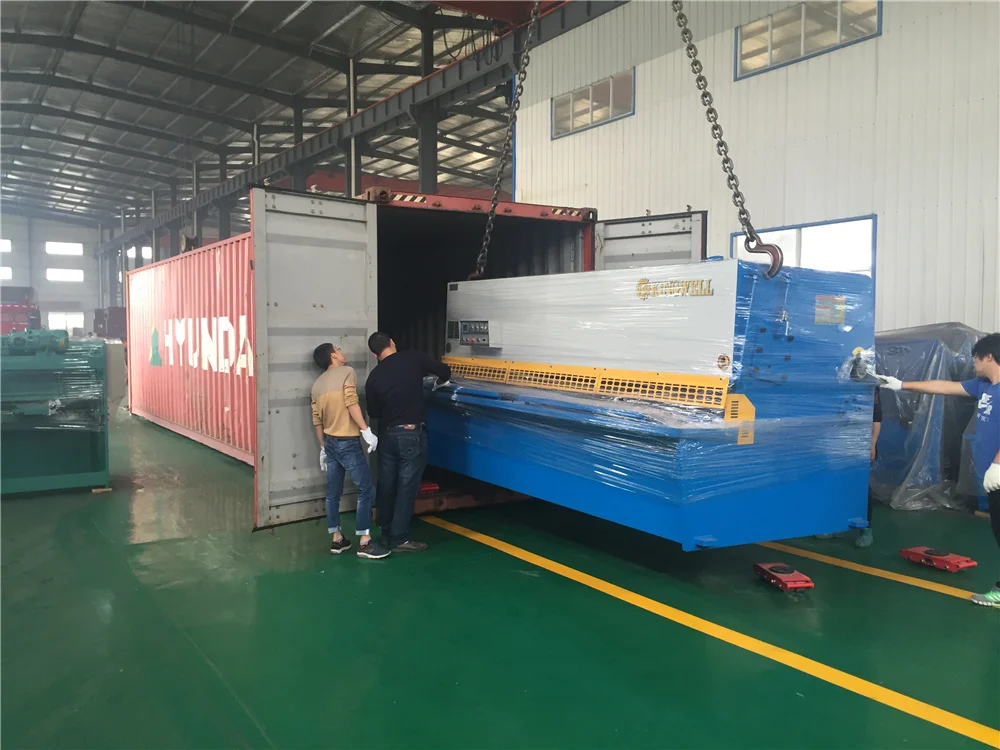

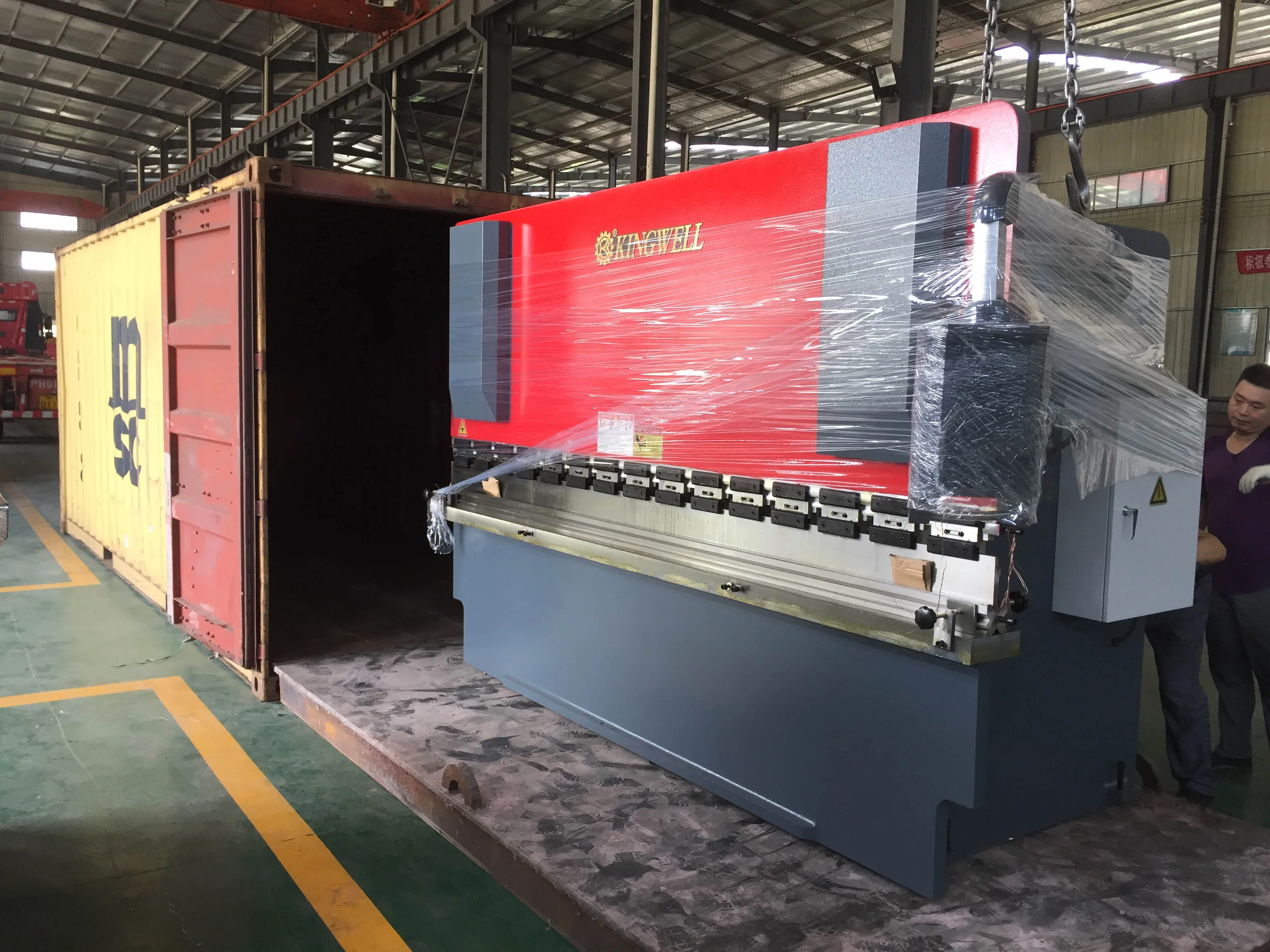

Packing & Delivery
FAQ
Q1. Are you a factory or trading company and where are you located?
Q3. Does your company have any certification?
A: Yes. We have CE , ISO 9001 and so on.
Q4. Do you have machine operating instruction?
A: Yes. We have English machine operating instruction together with the machine.
Q5. What's the delivery time?
A: Generally, it takes 15-25 working days to finish an order. Exact delivery time would be confirmed by further communication.
Q6. Can i put my own LOGO on the products?
A: Yes. You can put your own LOGO on the products.
A: We are a factory located in Nantong, Jiangsu, China, about 200 km far from Shanghai city. The transportation is convenient.
Q2. How long about your machine guarantee period?
A: 12 months. Our machine comes with 1 year warranty, except for wearing parts and damage incurred by improper usage/negligence.After this period , you can still enjoy our service all the time.
Q2. How long about your machine guarantee period?
A: 12 months. Our machine comes with 1 year warranty, except for wearing parts and damage incurred by improper usage/negligence.After this period , you can still enjoy our service all the time.
Q3. Does your company have any certification?
A: Yes. We have CE , ISO 9001 and so on.
Q4. Do you have machine operating instruction?
A: Yes. We have English machine operating instruction together with the machine.
Q5. What's the delivery time?
A: Generally, it takes 15-25 working days to finish an order. Exact delivery time would be confirmed by further communication.
Q6. Can i put my own LOGO on the products?
A: Yes. You can put your own LOGO on the products.
