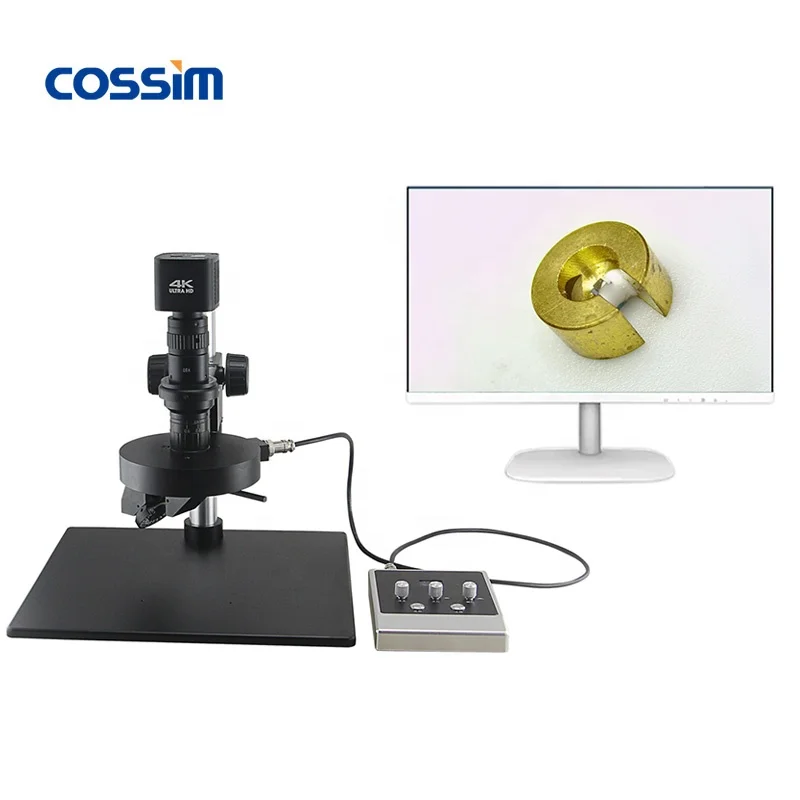

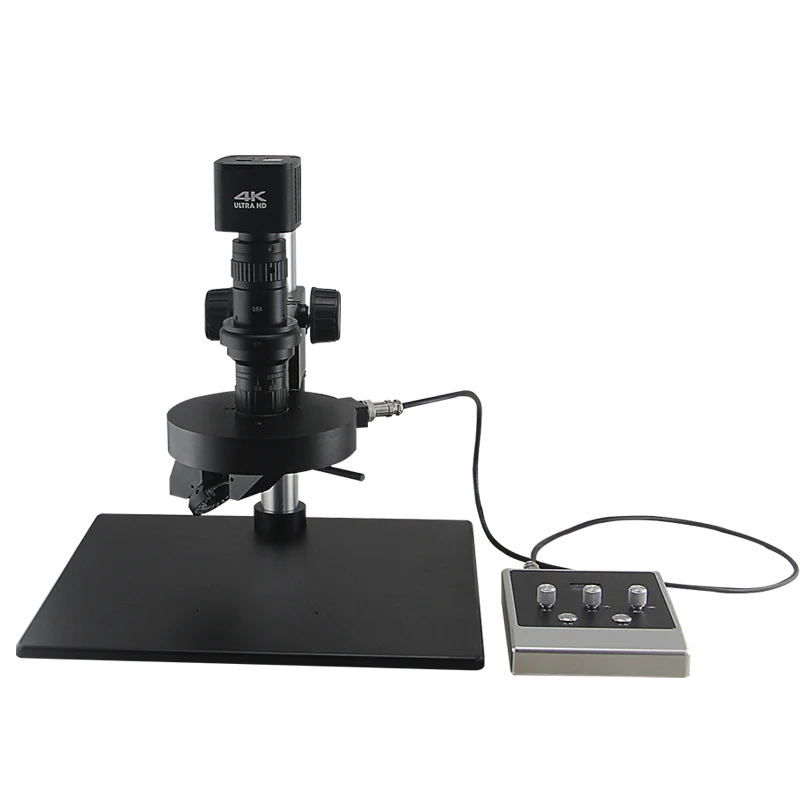

DTE 25 Motor Drive Auto Stereo 14~120X Digital 3D Microscope with 4K Camera & Side View for PCB Inspection
- Category: >>>
- Supplier: Suzhou Jingtong Instrument Co. Ltd.
Share on (1600475492344):
Product Overview
Description
 | 4K Measuring Camera Max 120X Mag. Monocular Head Auto 360° Rotation Real-time Image Observation Rotate Speed Adjustable Two Light Sources |
Product Description
DTE-25 automatic 3D 360° video stereoscopic microscope has long working distance, wide field of view and high-definition imaging quality. Based on the two-dimensional observation, rotating three-dimensional observation function is added, its simple to push and pull to switch. Real-time image observation and 360° rotation, which makes unilateral specimen easy to be observed in all directions, multi-directionally.
Equipped with two type light sources: front light and side light, which perfectly solves the problem of light dark angle. Adding the 4K HDMI-compatible measuring microscope camera, which has SONY CMOS sensor. Providing photo, video, and measuring functions.
It is widely used in electronic components, precision hardware, deep hole wall, life science, animal and plant morphology, criminal investigation and identification and so on.
Features
---Real-time image observation and 360° rotation
---Front & side LED light sources, brightness adjustable
---Rotate speed adjustable, continuous zoom, multi angles observation
---Wide range of depth of field, high resolution (required digital camera support)
---Total Magnification can reach 120X, the max working distance is 86mm

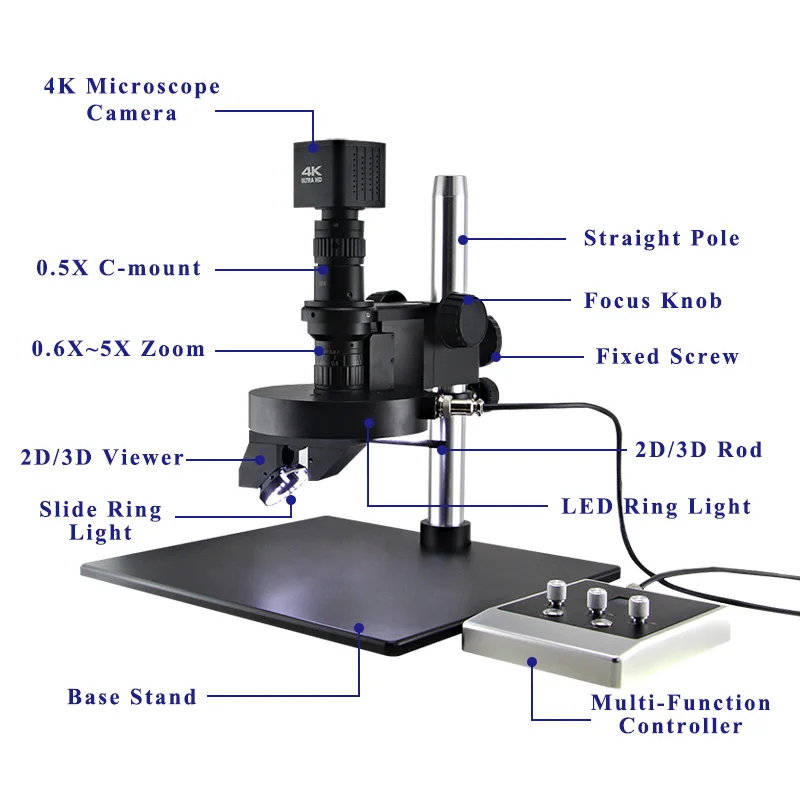

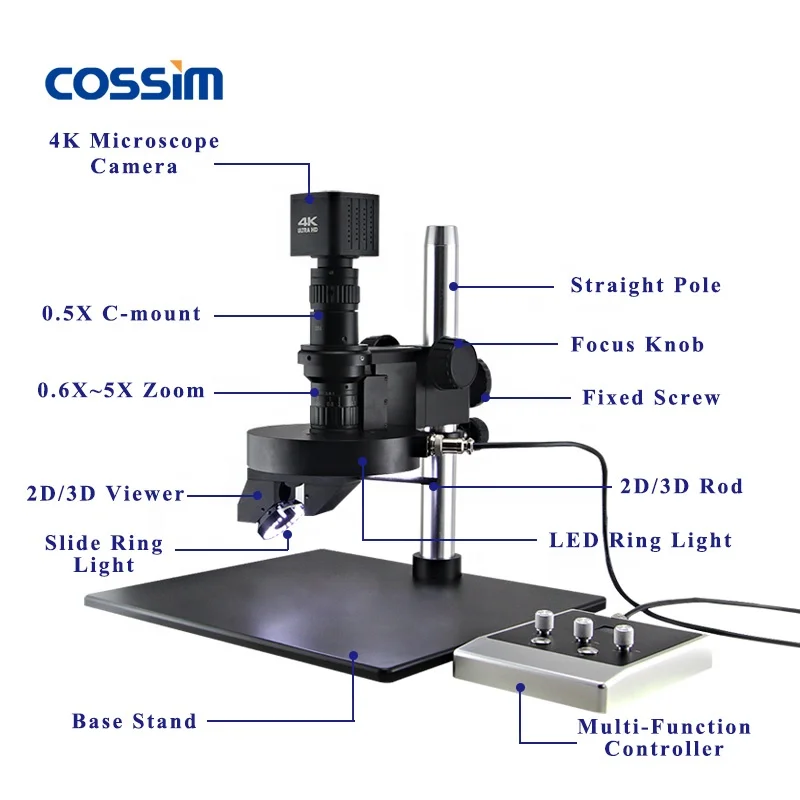

| Structure of DTE-25 3D Stereo Microscope with 4K Measuring Camera |

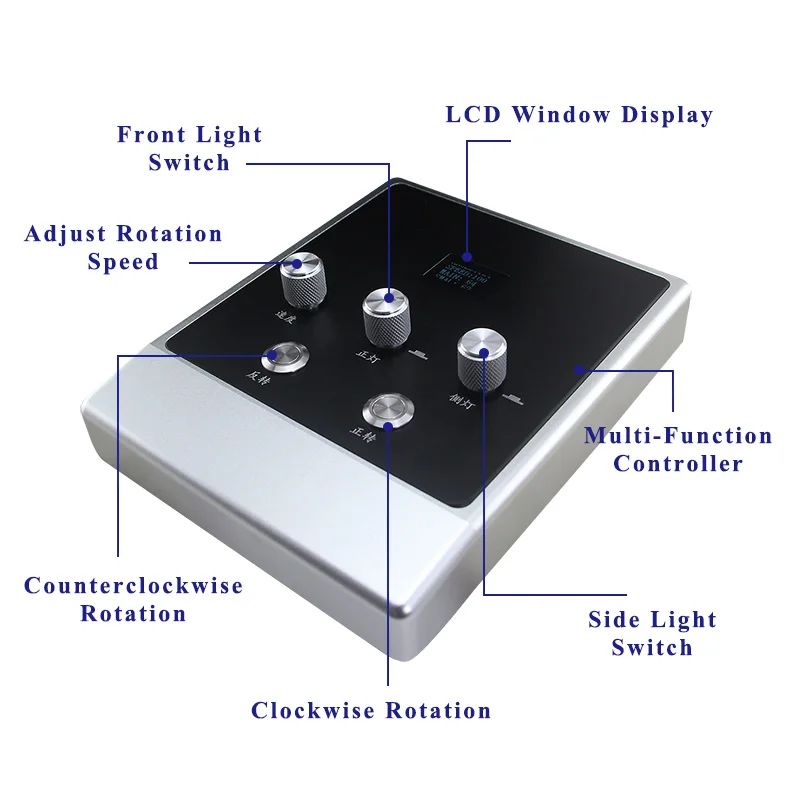

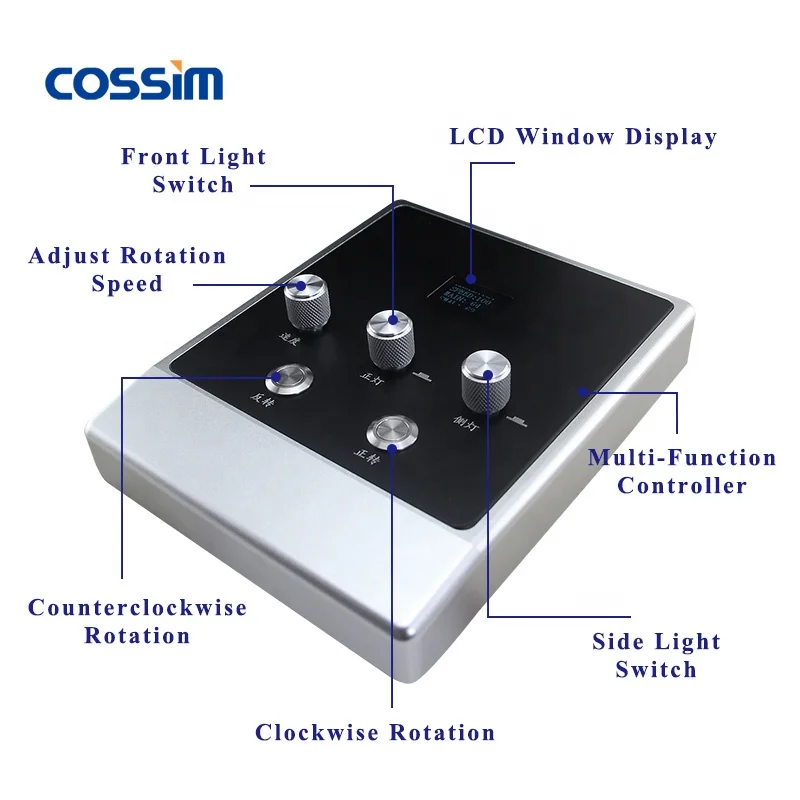

| Structure of DTE-25 3D Stereo Microscope Multi-Function Controller |

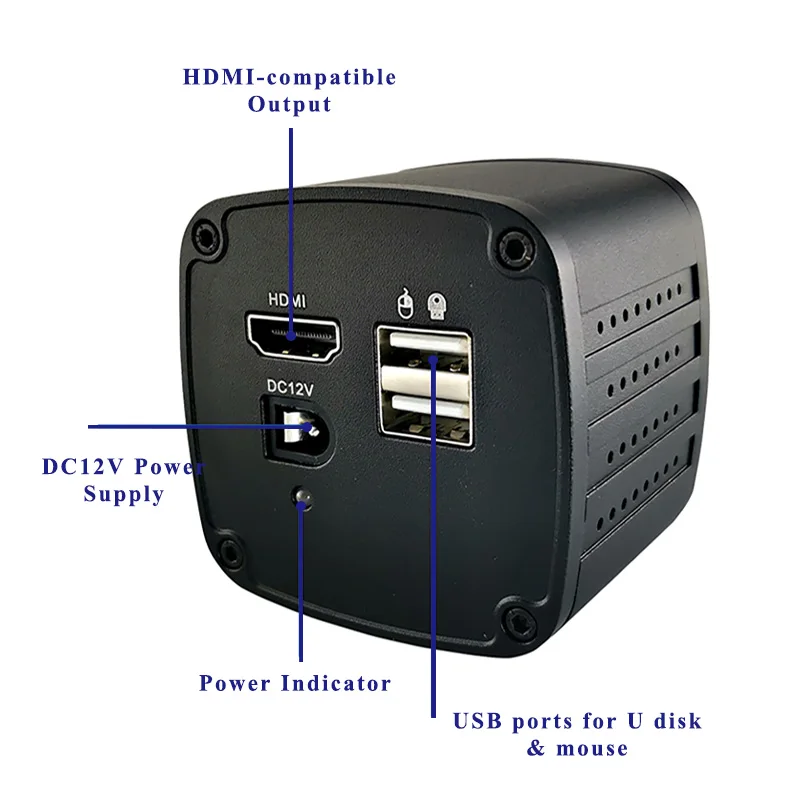

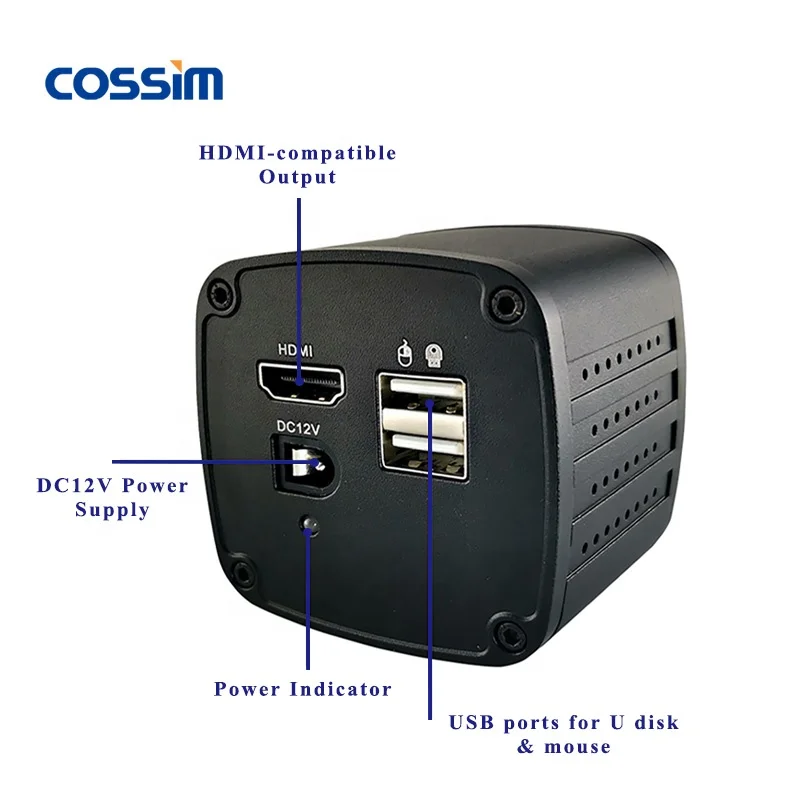

| Structure of 4K Measuring CMOS Camera |

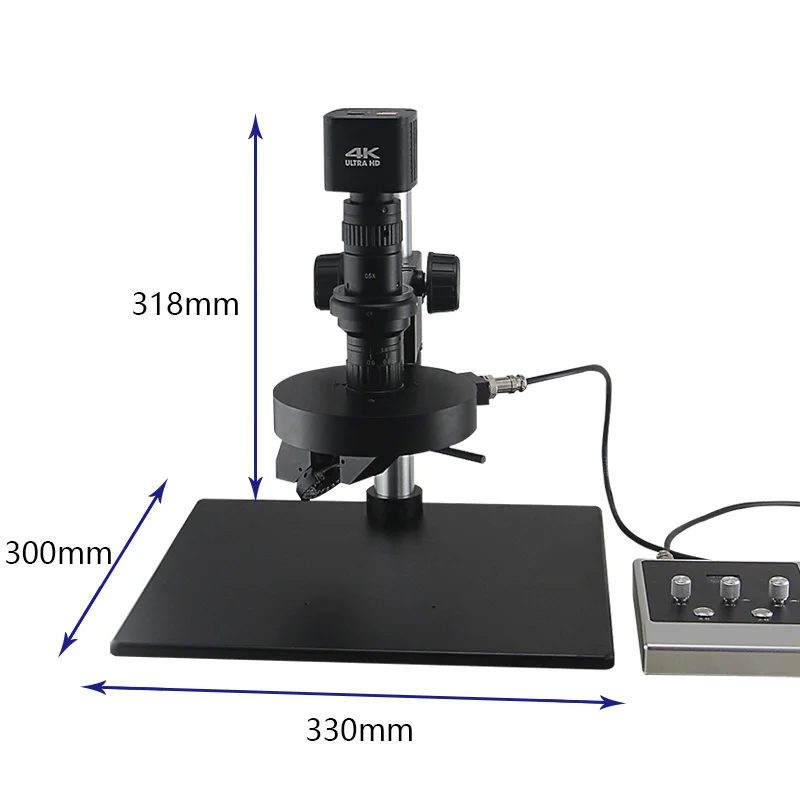

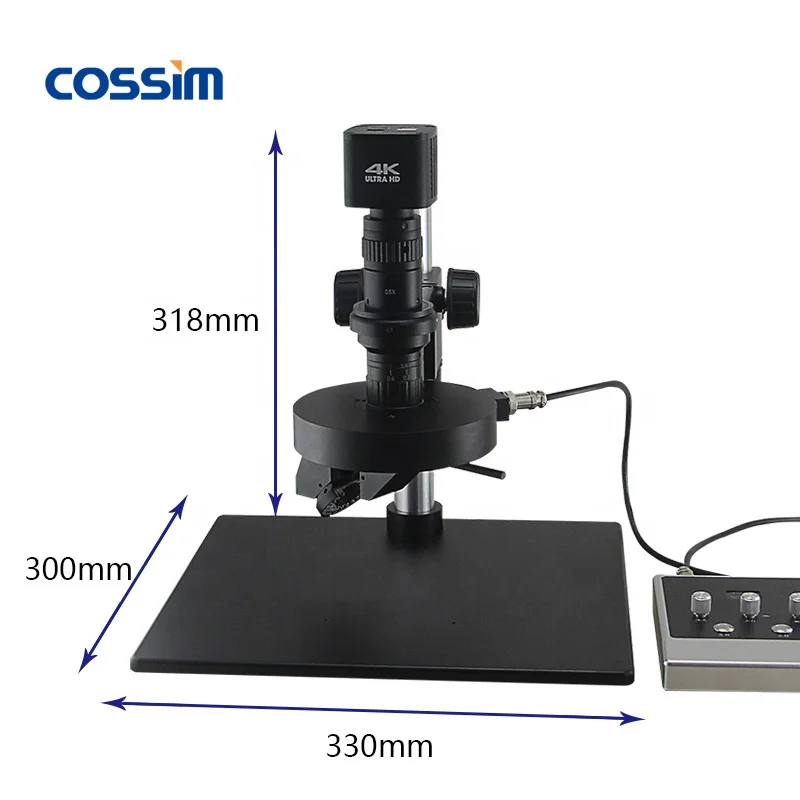

| Dimension of DTE-25 3D Stereo Microscope with 4K Measuring Camera |
Specification
Parameters for Microscope DTE-25 | |
|---|---|
Optical magnification | 0.6-5.0X zoom body with 0.5X C mount |
Total magnification | 14-120X (based on 15.6inch 4K monitor) |
Working distance | 2D:86mm; 3D:50mm |
Ratio | 1:8.3 |
Field of view | 25.6x14.4-3.0*1.7mm |
Lens mount | Standard C mount |
Observe mode | 2D observation |
Automatic 360 degree rotation 3D observation | |
Push and pull switch | |
Sensor | 1/1.8” SONY CMOS |
Resolution | 3840x2160 |
Pixel | 8.0MP |
Frame | 60 FPS |
Pixel size | 2.0μm x 2.0μm |
Output | HDMI output |
Memory function | Take photo and video to U disk |
Product Details

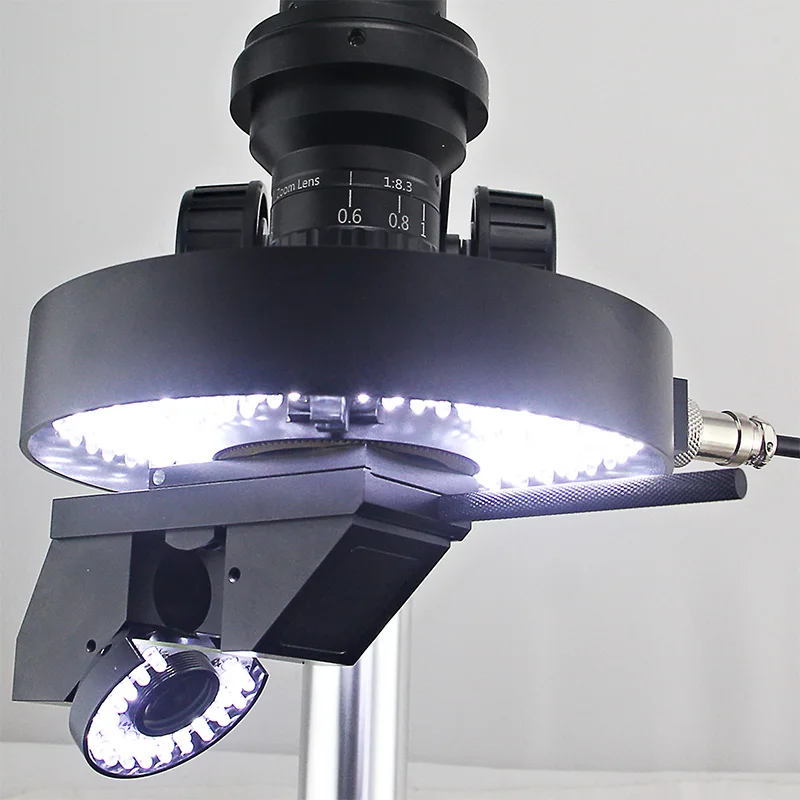

 | Two LED Light Source Front lamp and side lamp. The side light 360° rotates with the 3D body, which perfectly solves the problem of light dark angle. Front Lamp: 267 LED granule beads, 6000K color temperature; Side Lamp: 31 LED granule beads, 6000K color temperature. |

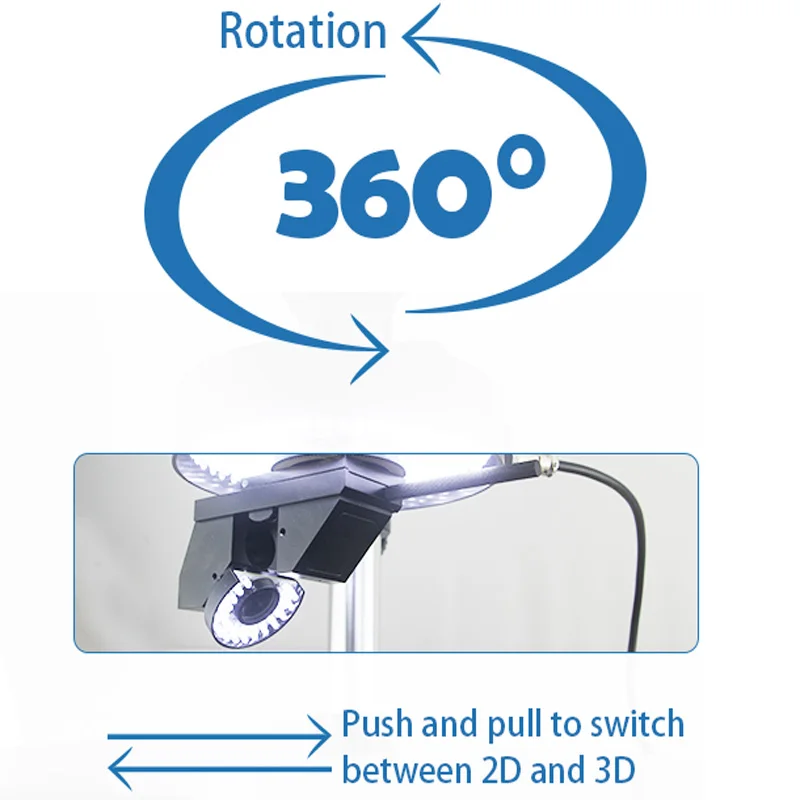

Switch Mode 2D observation or automatic 360° rotation. Push and pull switch, simple and convenient. |  |

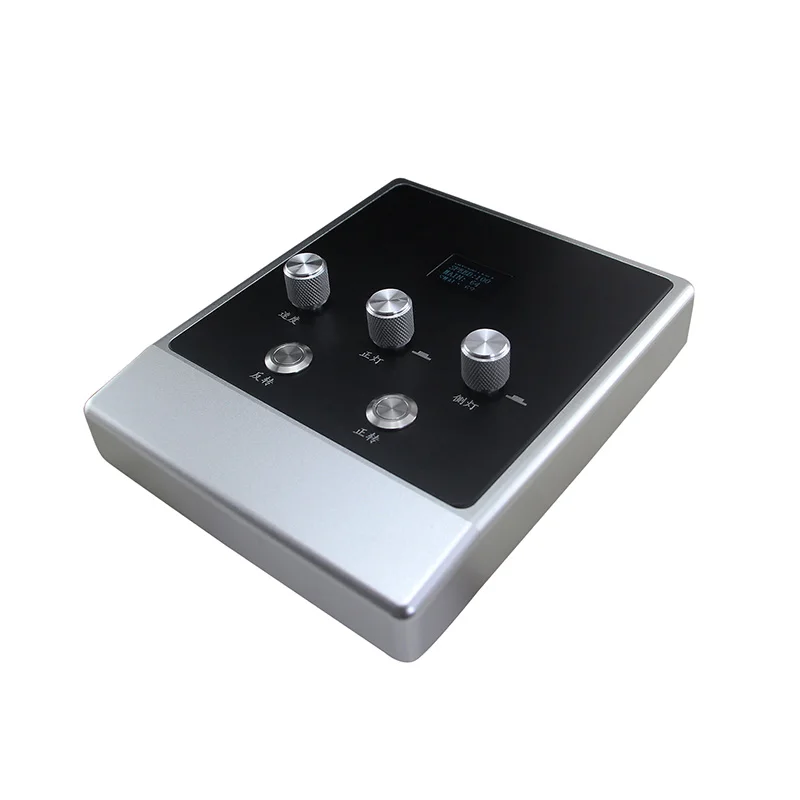

 | Multi-functional Controller With digital LCD screen, can remember the last light source setting after power off. |

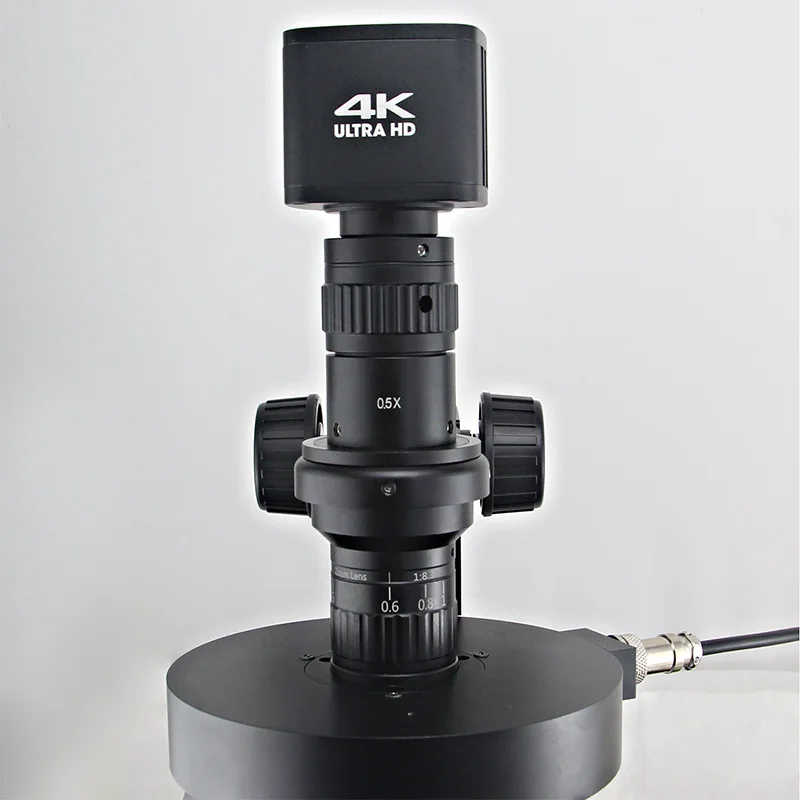

Three Optical Magnification Optional 0.6~5X Zoom Body; 0.5X C-mount is standard, 0.3X & 1X C-mount are optional. |  |

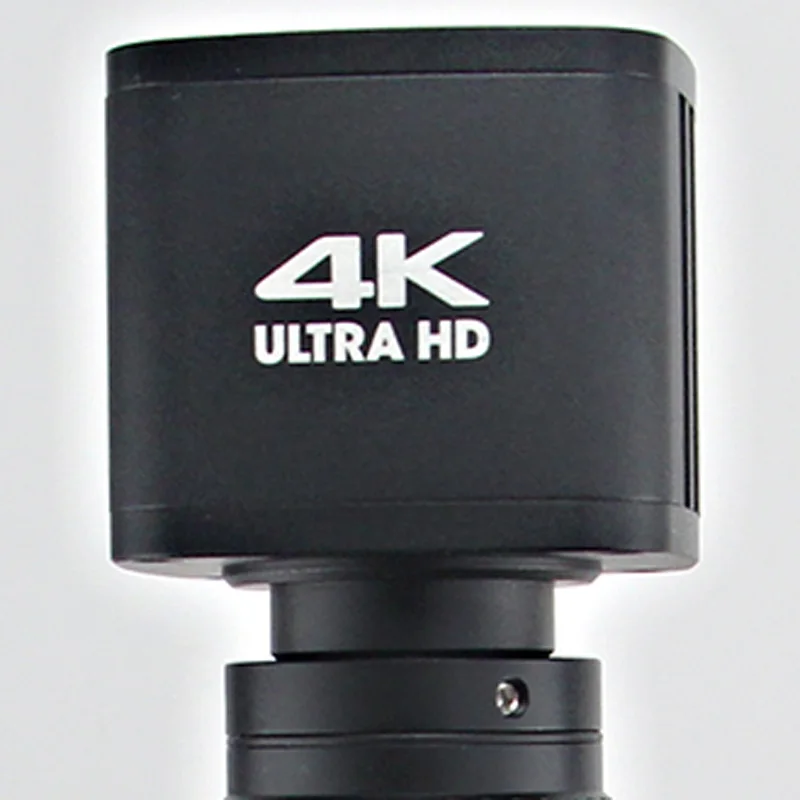

 | 4K HDMI-compatible Camera SONY CMOS Sensor, can take photos, videos, and measuring. |

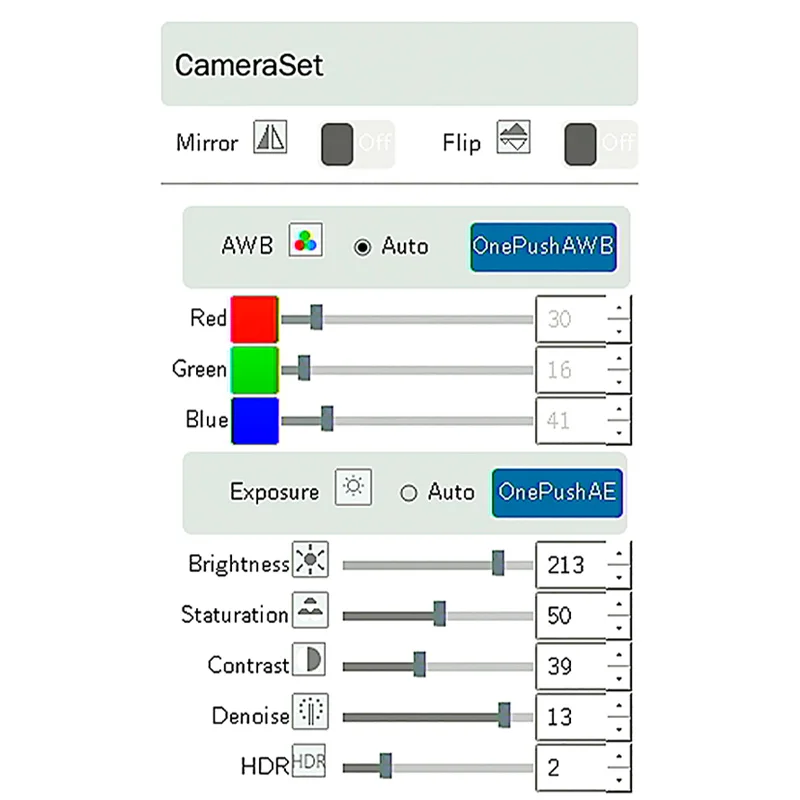

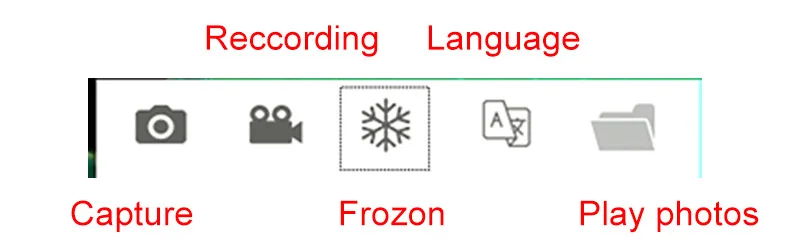

Basic Functions
Supporting taking photo, video saving to U disk. Playing Photo online, freezing, image mirroring, flip, automatic white balance, automatic exposure and other functions.

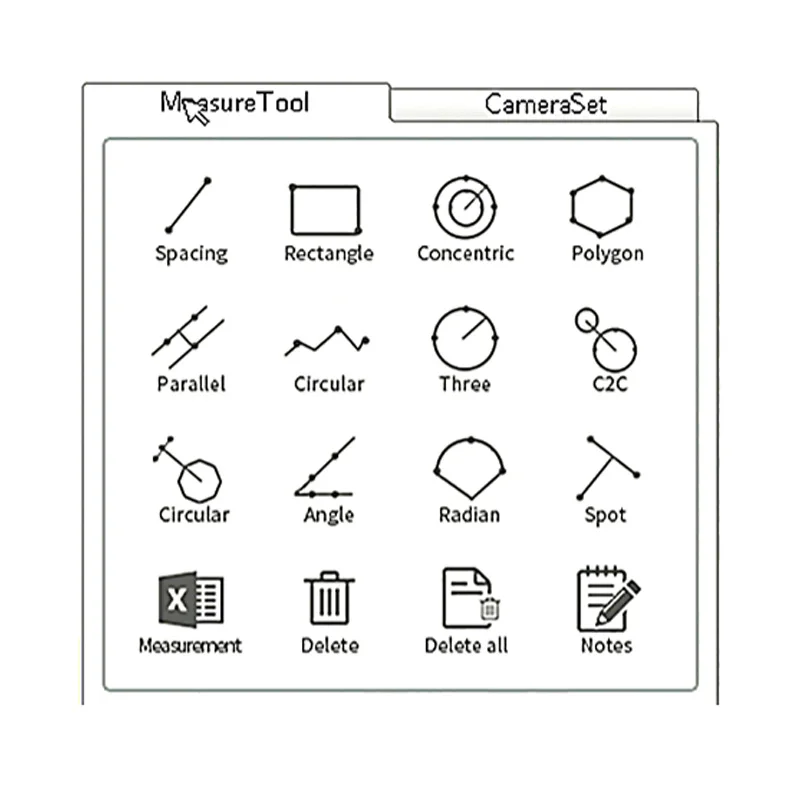

Measuring Function
Supporting line distance, circle, angle, polygon, etc.measurement, and the data could be saved.
Samples

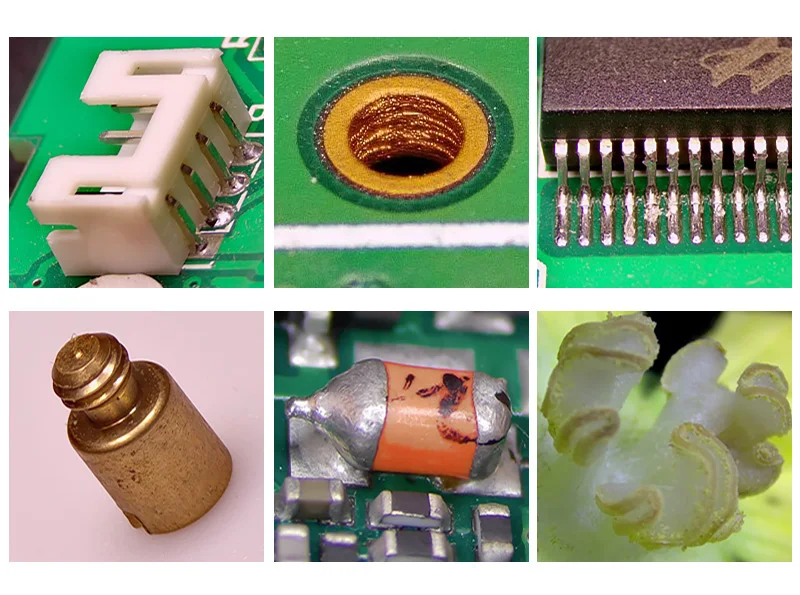

| Samples Captured by DTE-25 |
