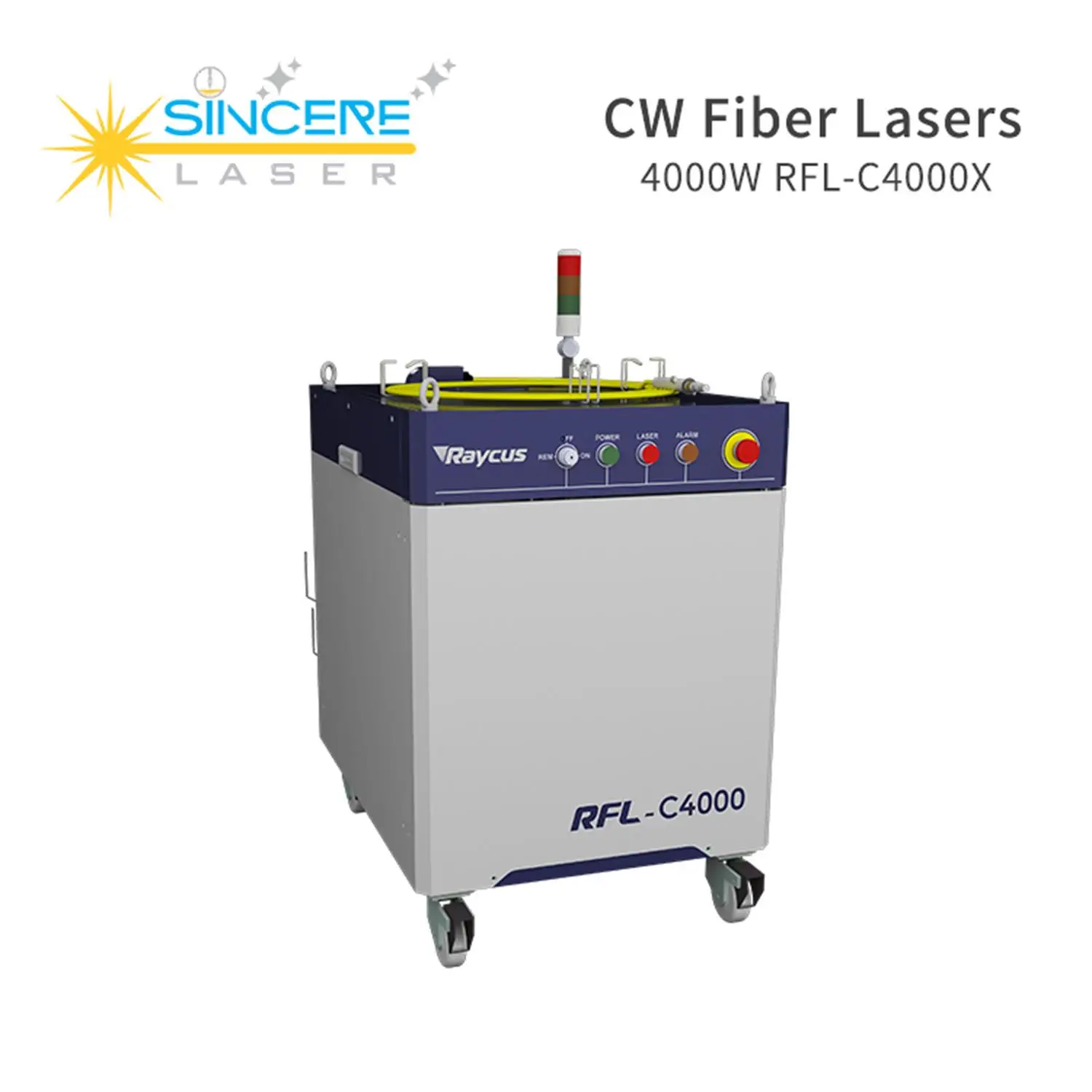

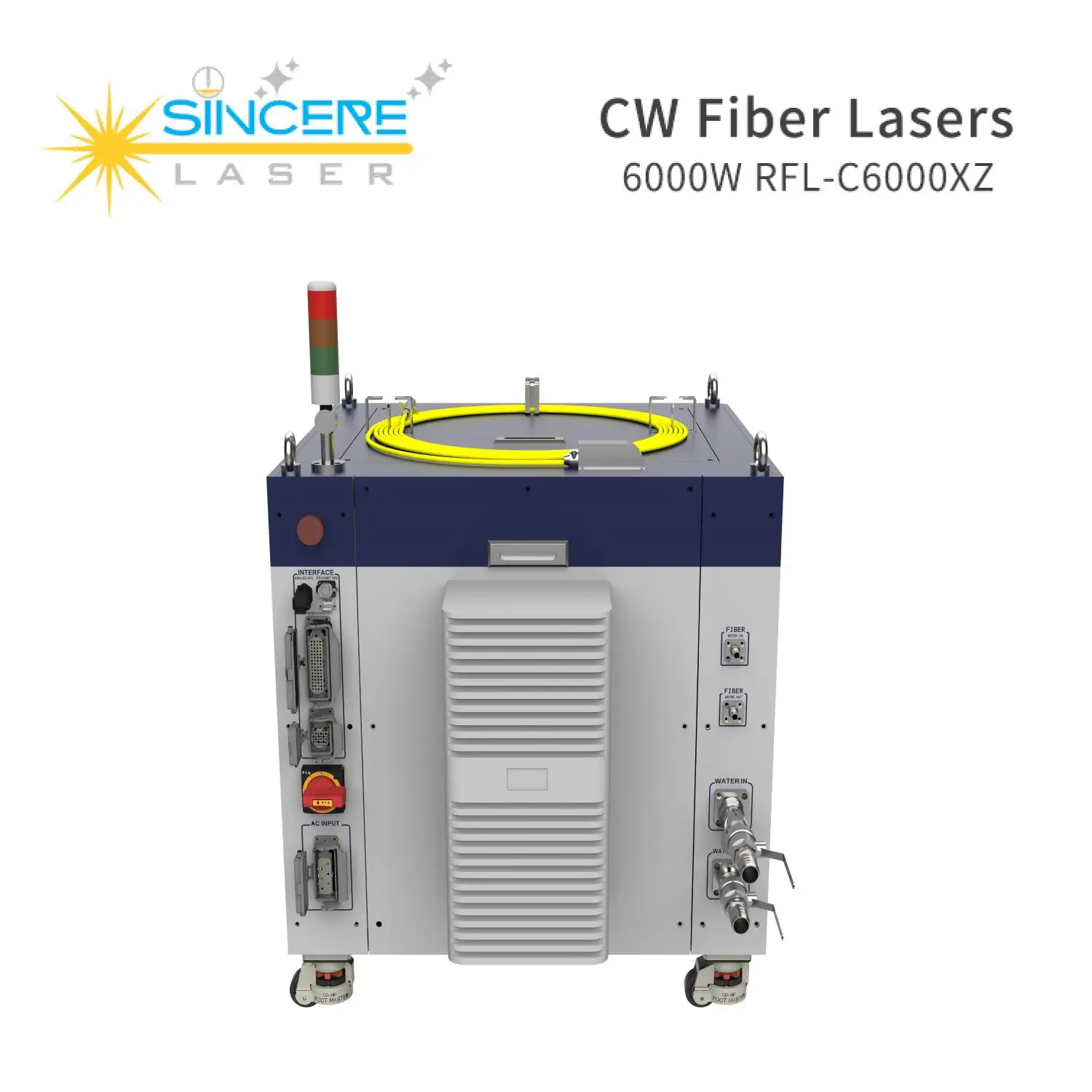

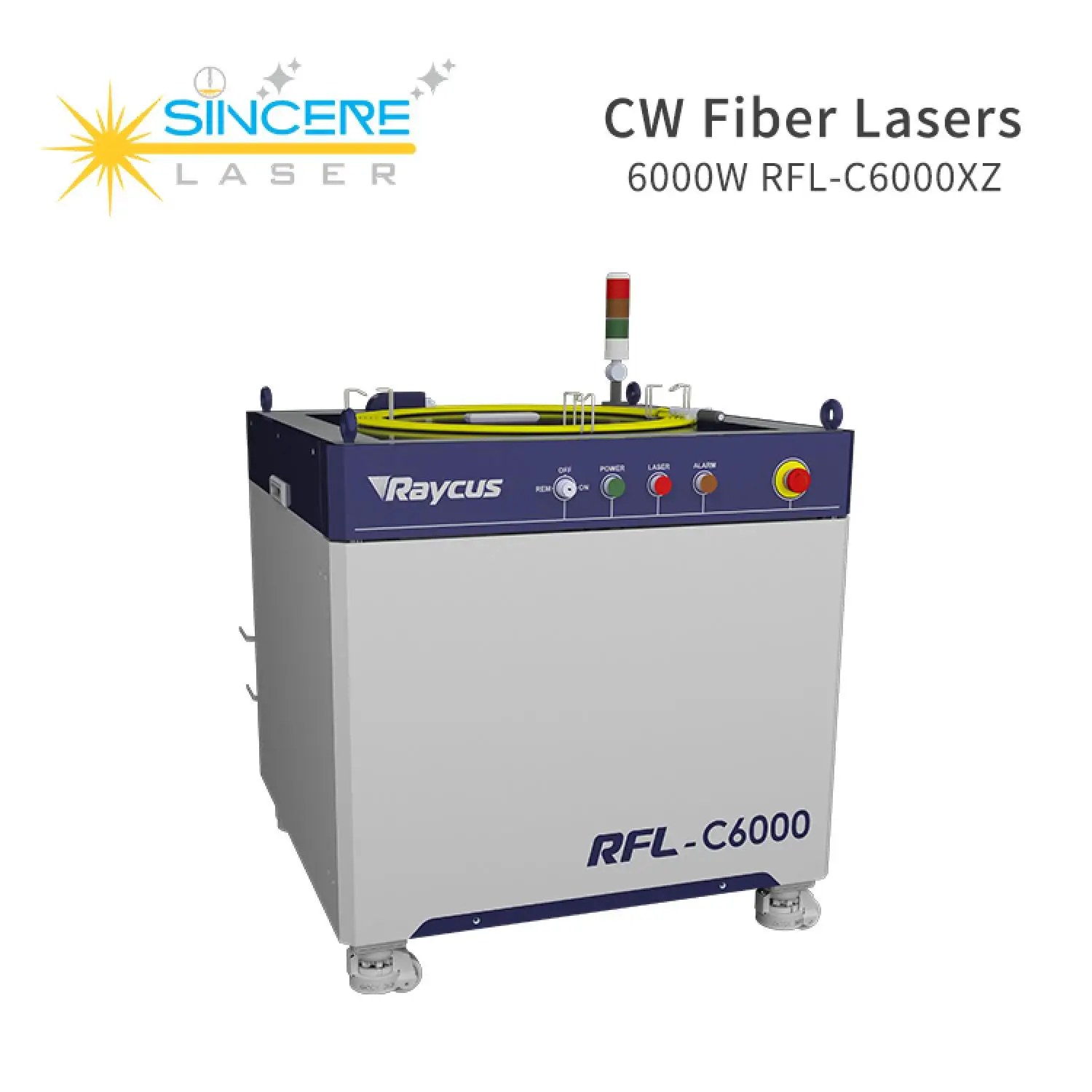

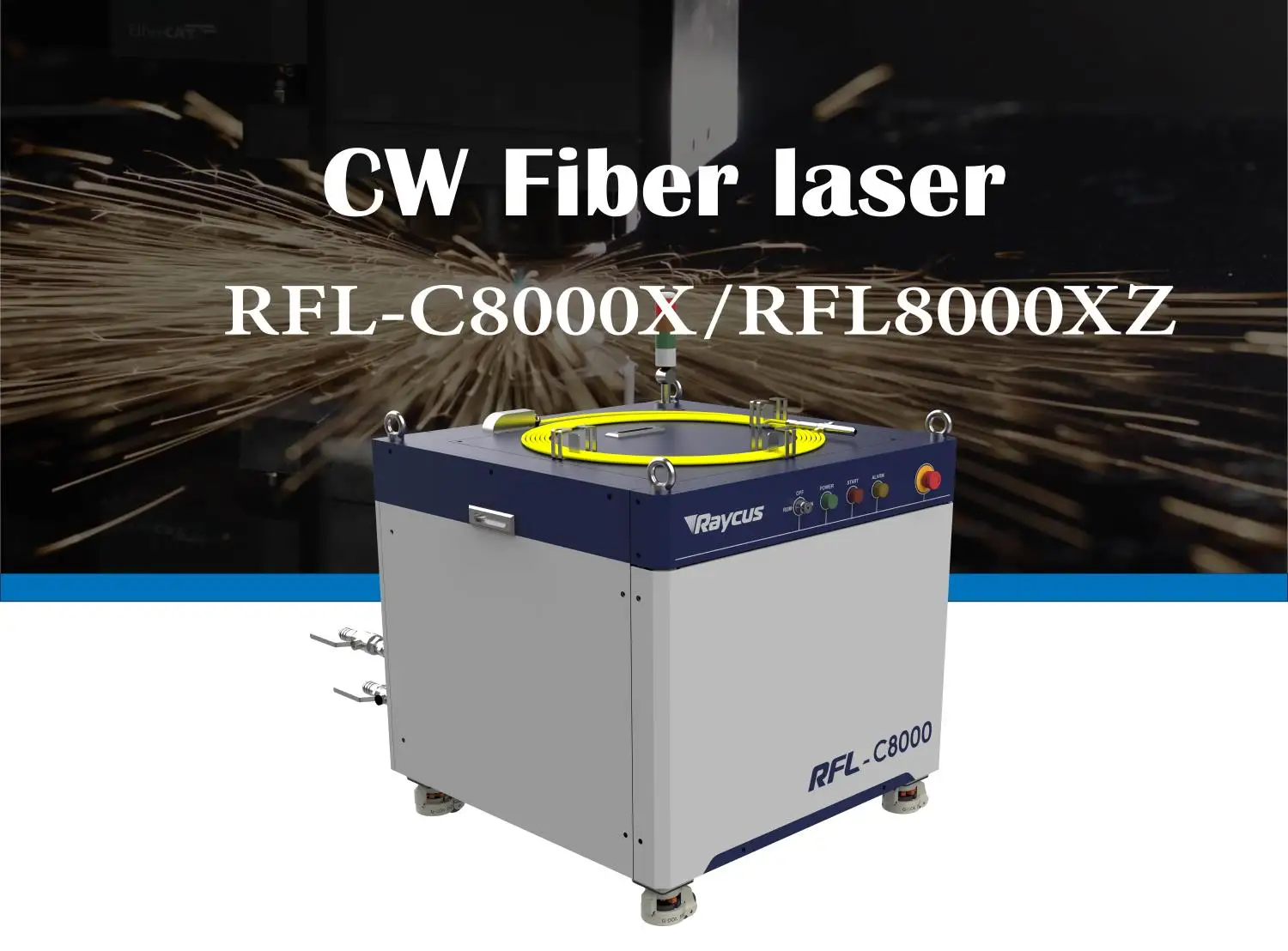

High power fiber laser Raycus 4000w 6000w 8000w All Cover Fiber Laser Cutting Machine fiber laser module
- Category: >>>
- Supplier: Sincere Laser Tec. (Wuhan) Co. Ltd.
Share on (1600475496868):
Product Overview
Description
VR
Product Description
Product Introduction
The third-generation single module CW fiber laser series developed by Raycus range from 300W to 30000W, the new lasers have higher electro-optical conversion efficiency, higher and more stable optical quality, stronger altitude stress-resisting capacity and it applies optimized second-generation fiber transmission system to ensure more stable and more sophisticated cutting effect in thick sheet cutting. This machine applies to many application scenarios cutting welding , holing, medical device processing, etc., with a narrow seam of the cut sheet and bright section. Compared with same lasers, it has obvious advantages.
Feature
①.High Electro-optical Conversion Efficiency
②.Stable beam quality
③.Sheet Cutting Efficienc
④.Altitude Stress-resisting Capacity
⑤.Maintenance-free Operation
⑥.Customized Output Fiber Length

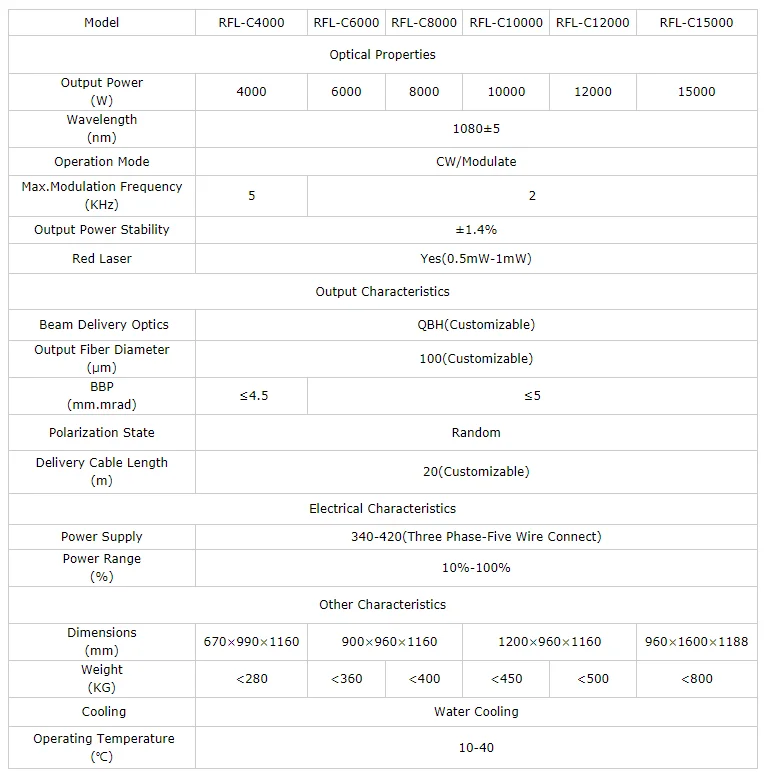

Product Specifications
Model | RFL-C4000 | RFL-C6000 | RFL-C8000 | ||
Average Output Power (W) | 4000 | 6000 | 8000 | ||
Central Wavelength(nm) | 1080±5 | ||||
Max. Modulation Frequency(kHz) | 2 | ||||
Operation Mode | CW / Modulate | ||||
Output Power Stability(%) | ±1.5 | ||||
Red Laser | Yes(Output Power0.5mW~1mW) | ||||

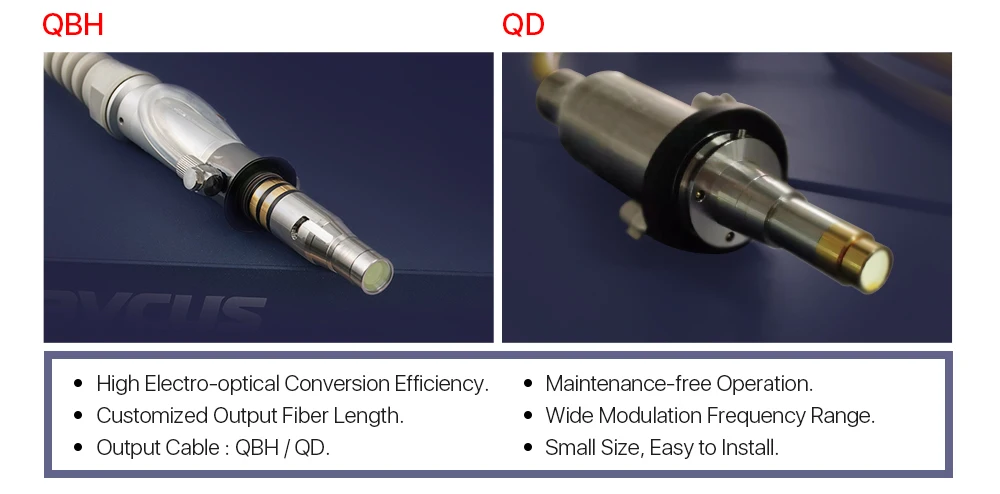

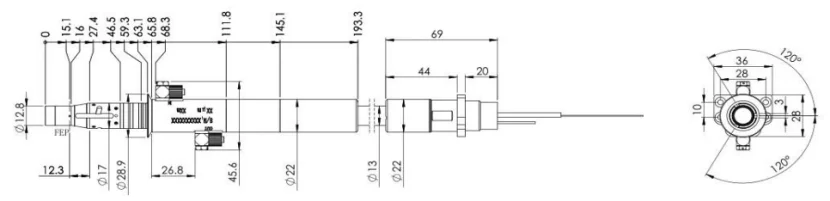

Beam Delivery Optics | QBH(Customizable) | QD | |||
Output Fiber Diameter(μm) | 100(Customizable) | ||||
BPP(mm.mrad) | ≤4 | ||||
Polarization State | Random | ||||
Delivery Cable Length(m) | 20(Customizable) | ≤30 | |||

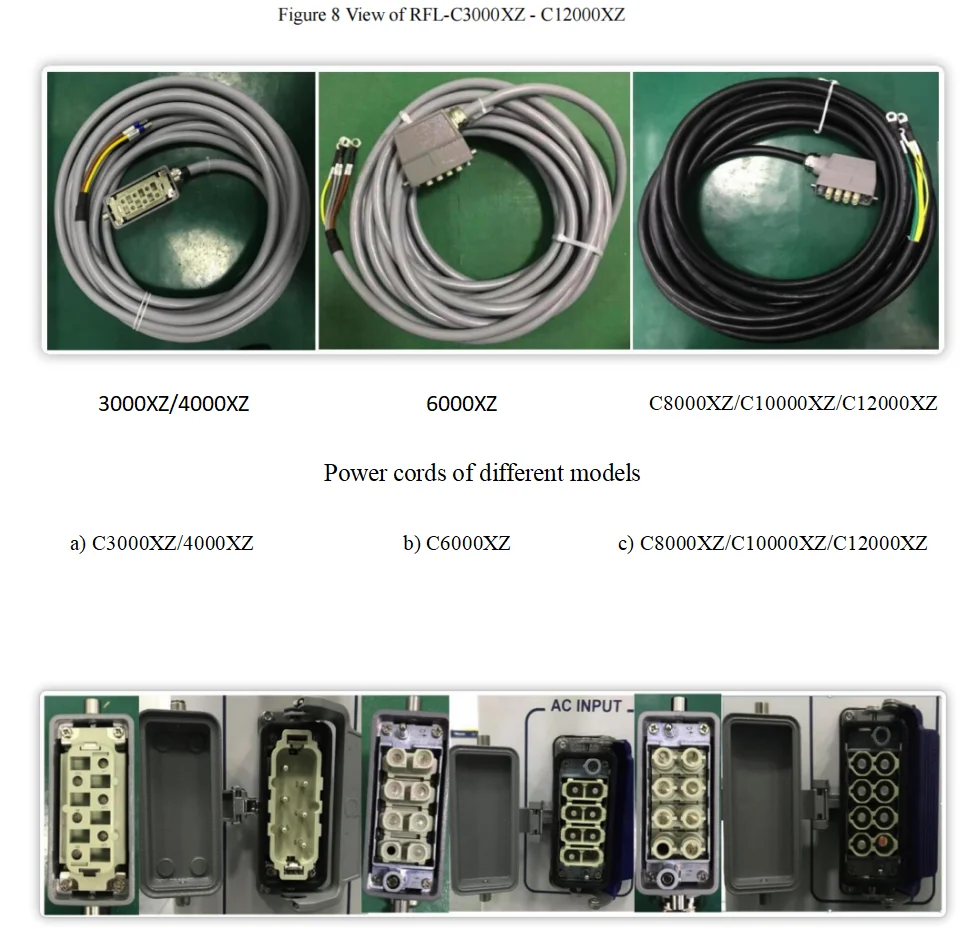

Power Supply (V AC) | 323~437, Three Phase-four Wire Connect, @47-63Hz | ||||
Control Mode | RS232/AD | ||||
Power Range(%) | 10~100 | ||||

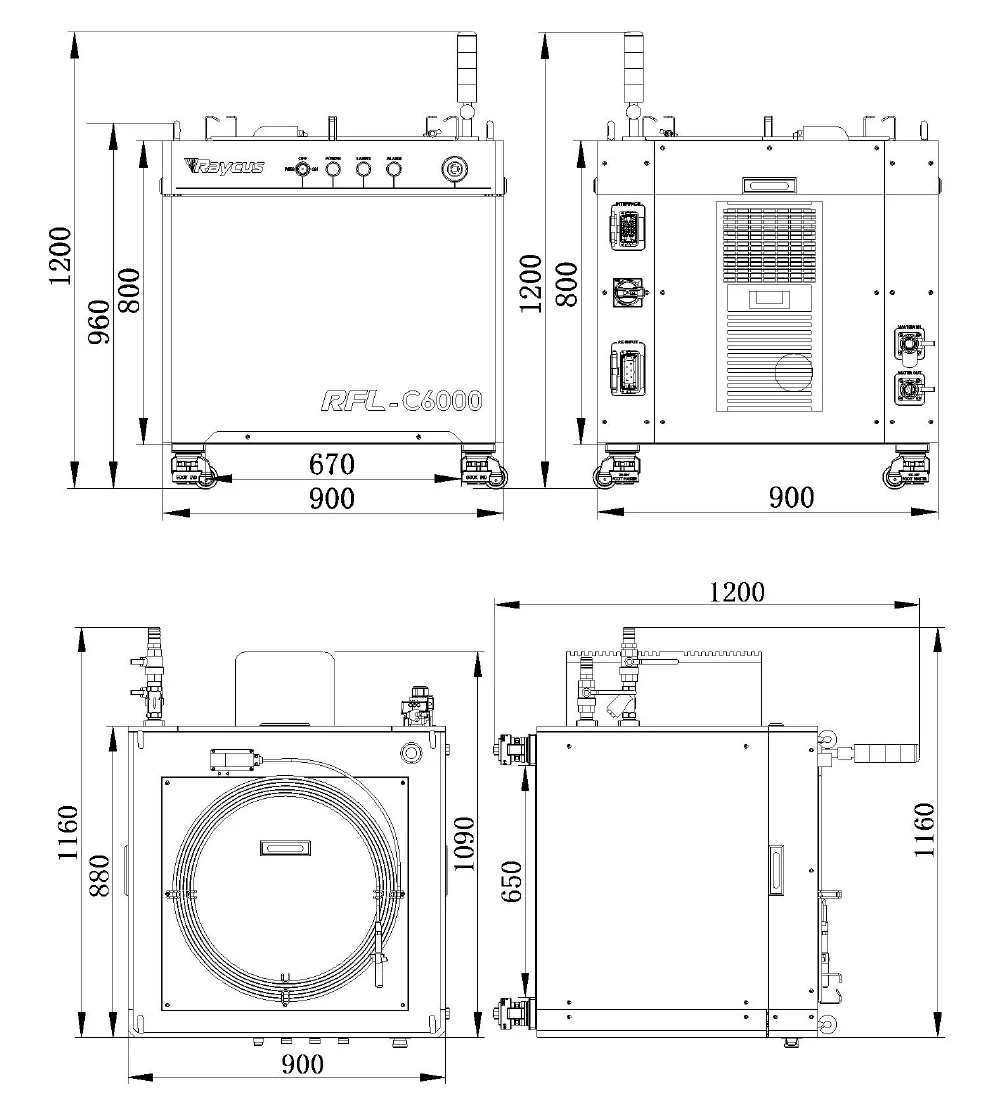

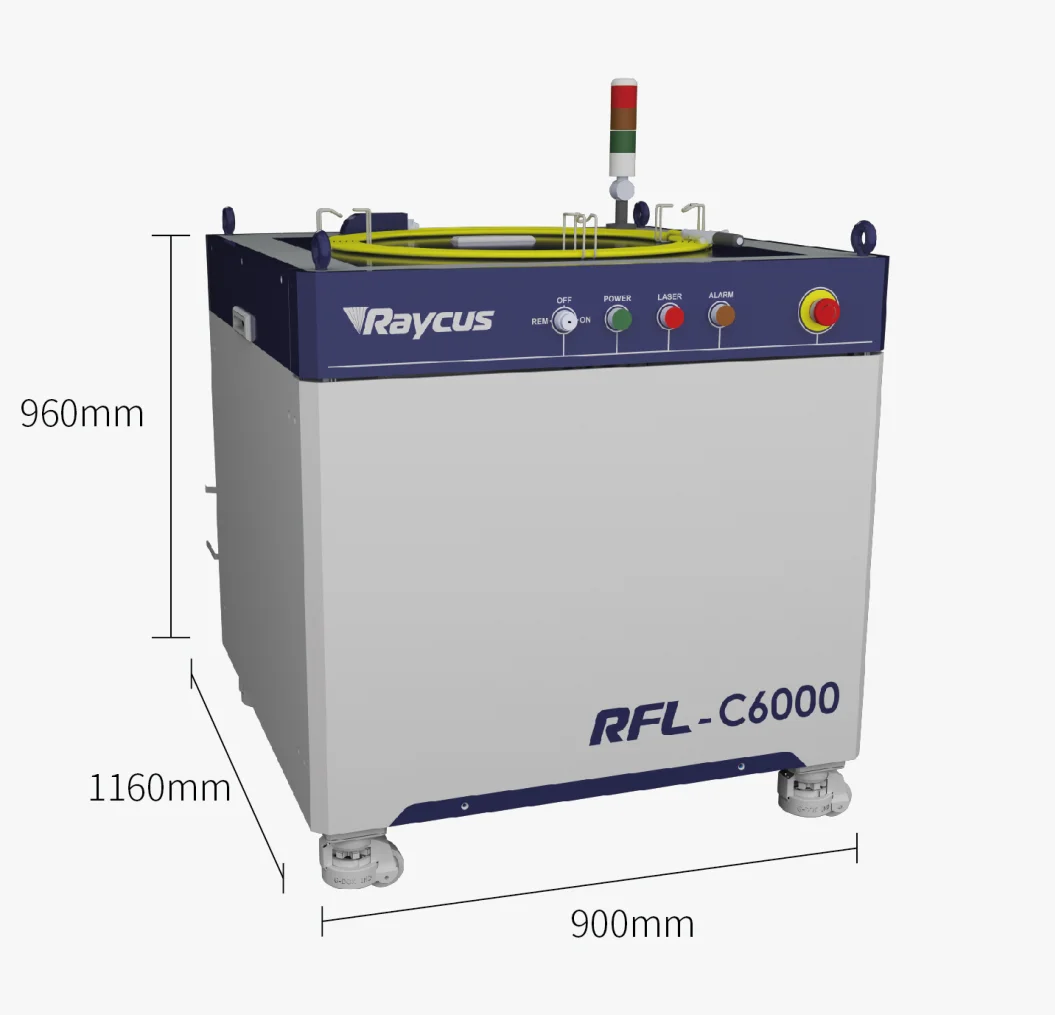

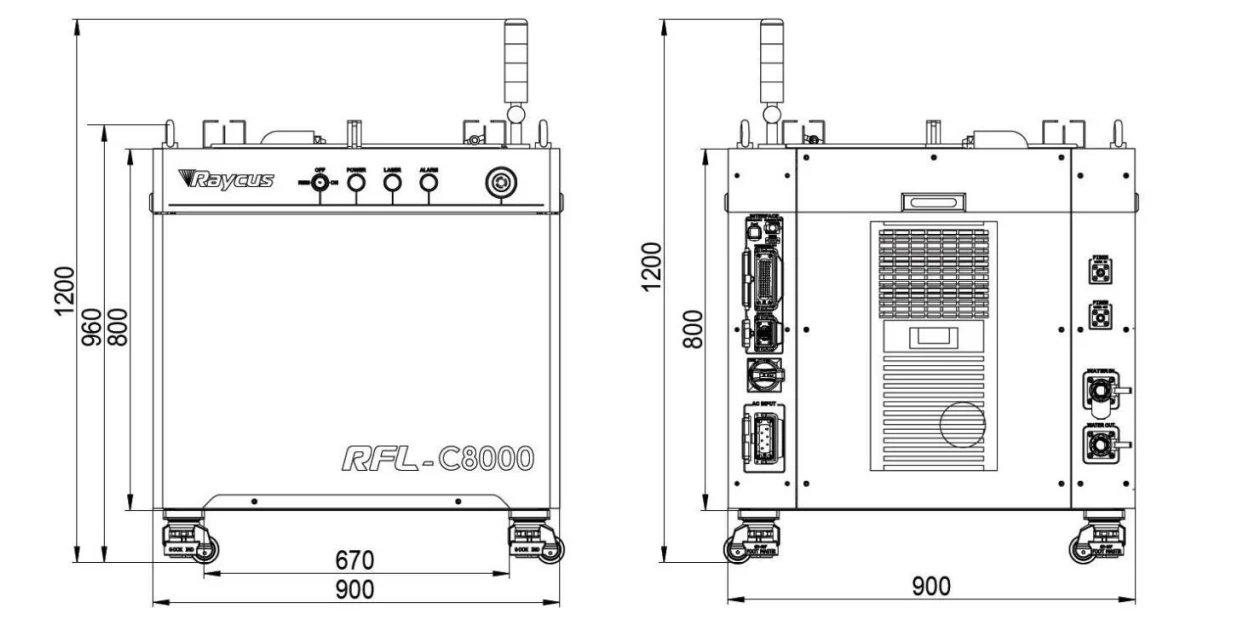

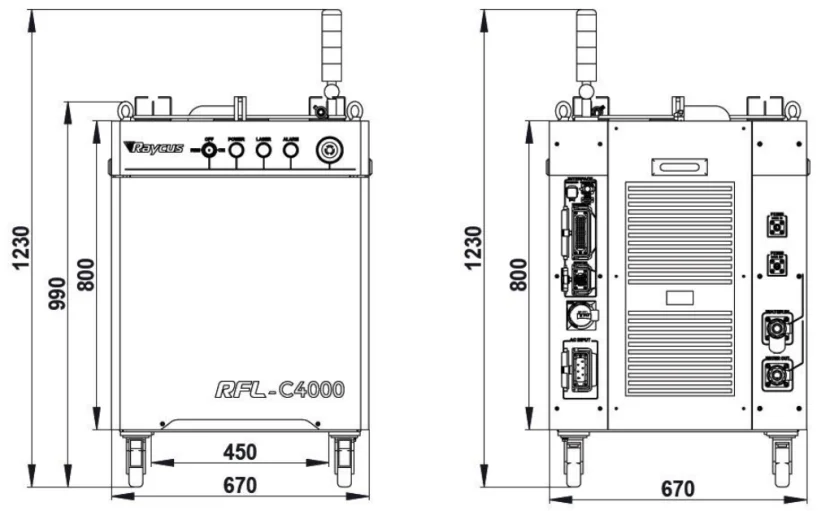

Dimensions(W×H×D)(mm) | 670×990×1160 | 900×960×1160 | |||
Operating Temperature(℃) | 10~40 | ||||
Cooling Method | Water cooling | ||||

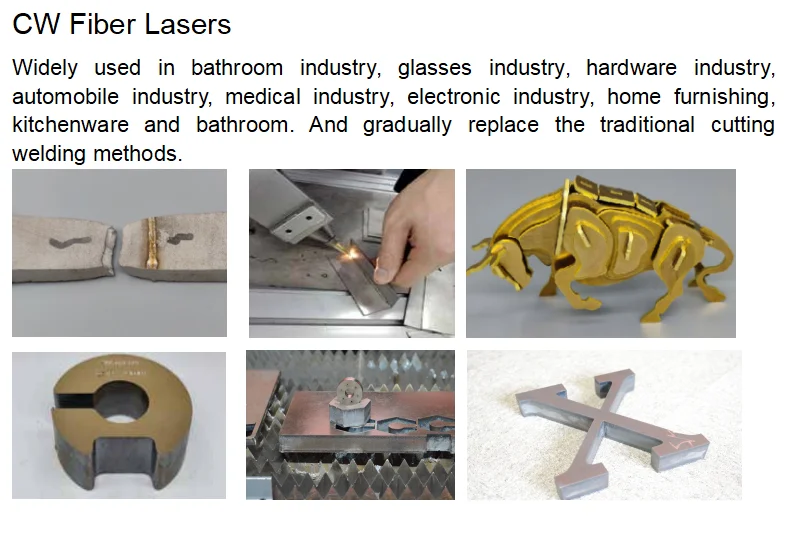

Application
