Product Overview
Description
Product Description

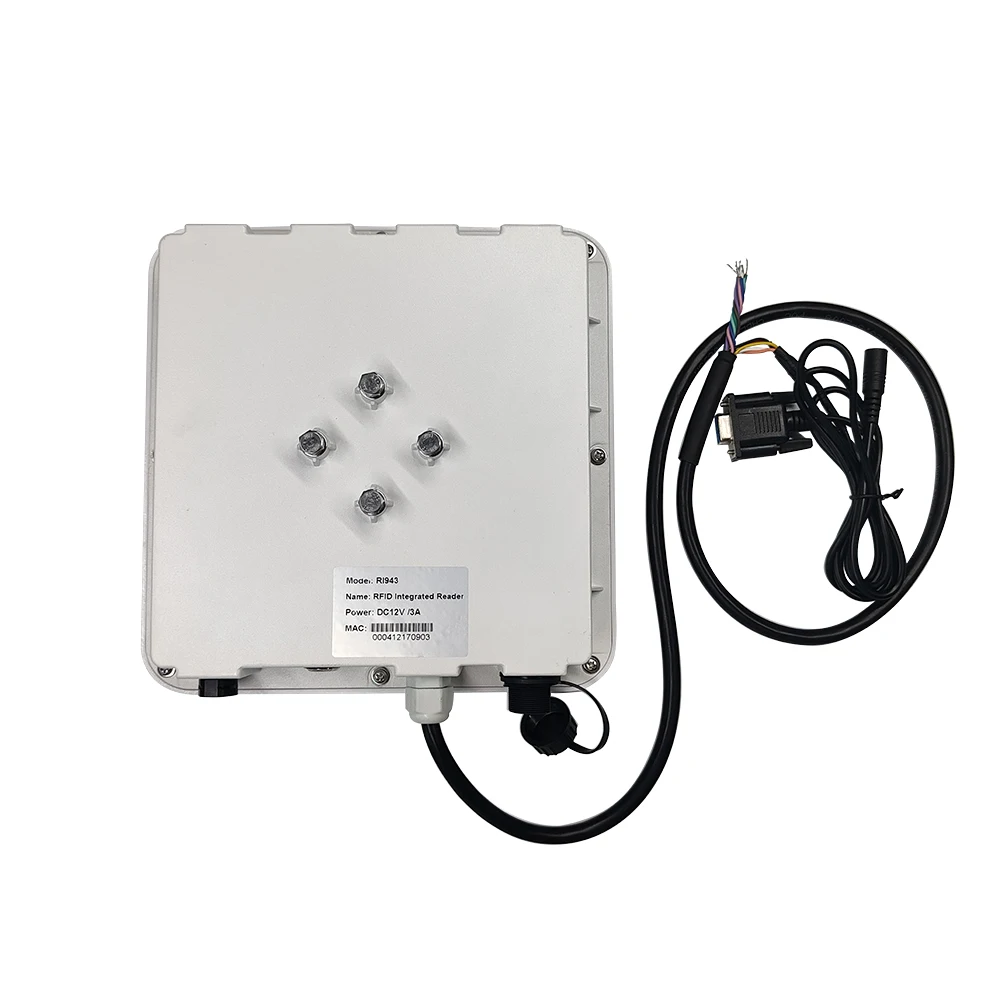

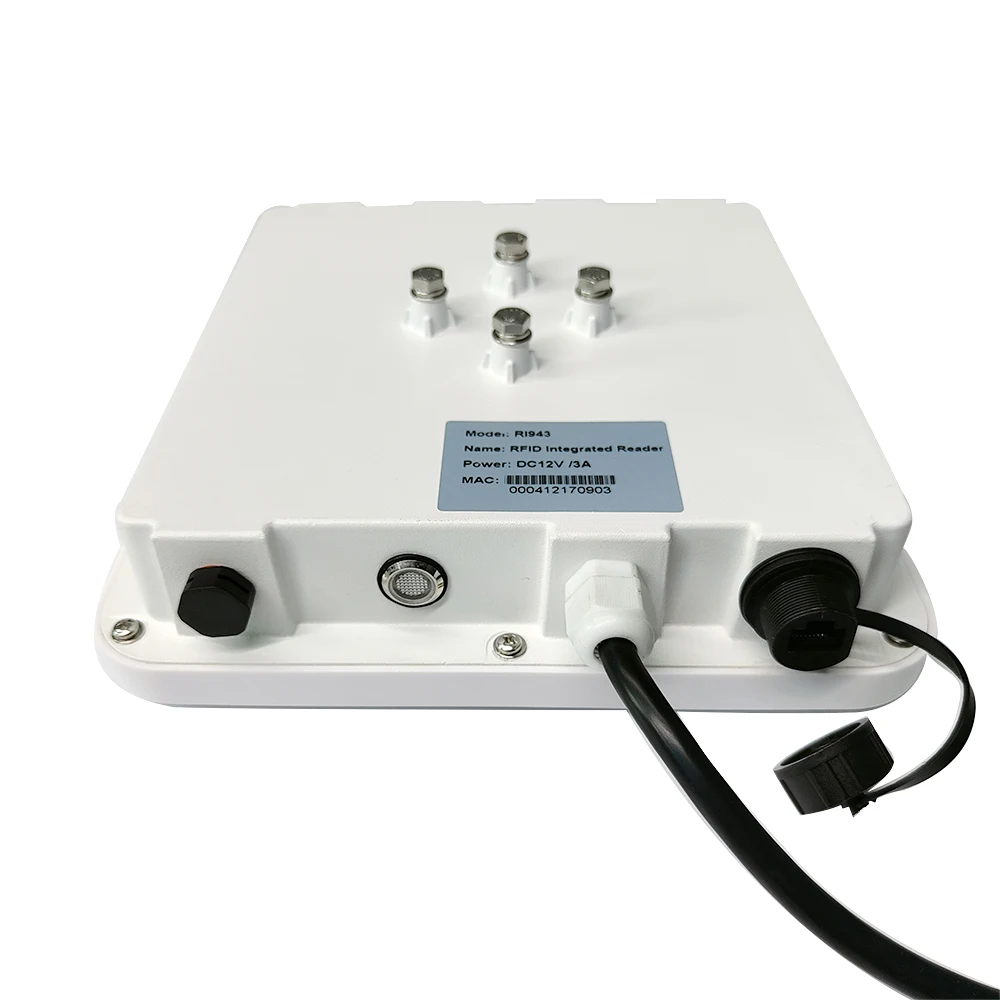

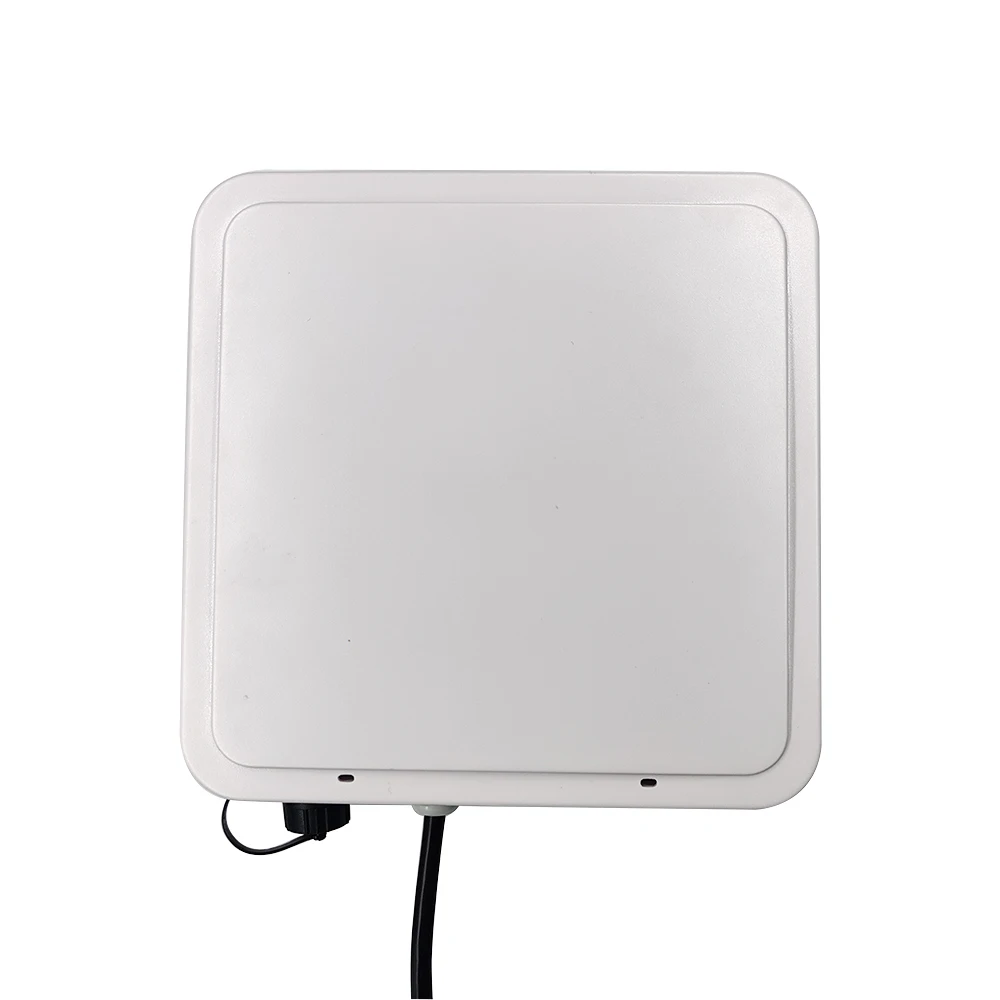

Ci-RI943 8dBi Rugged Integrated UHF RFID Reader
This UHF RFID reader provides high performance uhf RFID Reading in tough
and rugged environment, it’s basedon Impinj R2000 RFID chip, small in size but big in reading distance.
The reader is highly resistant to water and dust, IP66 rating suitable for tough environment.
Features:
* UHF Frequency Band, Support 866-868Mhz CE, 902-928Mhz FCC, Other Frequency Band Customizable
* All-in-One Design, with Antenna 8dBi Circular Polarization Antenna
* Support RS232, RS485, Ethernet, Wiegand26/34 standard port, and additional available in 4G, WIFI, POE.
* Self-Developed R2000 Chip Module, Reading Range 15m Adjustable
* Lightning and Surge Protection Design, Low/ High Temperature Tolerance (-40°C ~70°C),
* All-in-One Design, with Antenna 8dBi Circular Polarization Antenna
* Support RS232, RS485, Ethernet, Wiegand26/34 standard port, and additional available in 4G, WIFI, POE.
* Self-Developed R2000 Chip Module, Reading Range 15m Adjustable
* Lightning and Surge Protection Design, Low/ High Temperature Tolerance (-40°C ~70°C),
IP66 Rating, Suitable for Tough Environment
* Support Online Upgrading
* Support Online Upgrading
Applications:
* Smart City combined with WIFI, 4G module
* None Stop Vehicle Access Control
* Production Line Management
* Assets Tracking
* Warehouse Management
* Access Control Systemzd
* Production Line Management
* Assets Tracking
* Warehouse Management
* Access Control Systemzd
Integrated UHF Reader RI943 Mainly Technical Parameter | ||
Operating Frequency | 866-868Mhz EU 902-928Mhz FCC 920-925Mhz China Other frequency band customizable | |
Working Protocol | EPC C1 GEN2(ISO18000-6C) | |
Antenna gain | 8dBi, circular polarization | |
Communication interface | RJ45(Ethernet), RS232, RS485, Wiegand26/34 | |
GPIO | 2 channel relay output, 1channel photoelectric isolation input | |
Reading distance | 0~12m (depends on antenna and tag as well)-- Popular UHF Reader Device | |
Reading speed | 300pcs/s at standard | |
Working Voltage | DC 12V/3A | |
Dimensions | 228*228*66mm | |
Weight | 1.5kg | |
Operating Temperature | -30°C~+70°C | |
Storage Temperature | -40℃~+85℃ | |
Waterproof | IP66 | |
Free SDK Software Kit

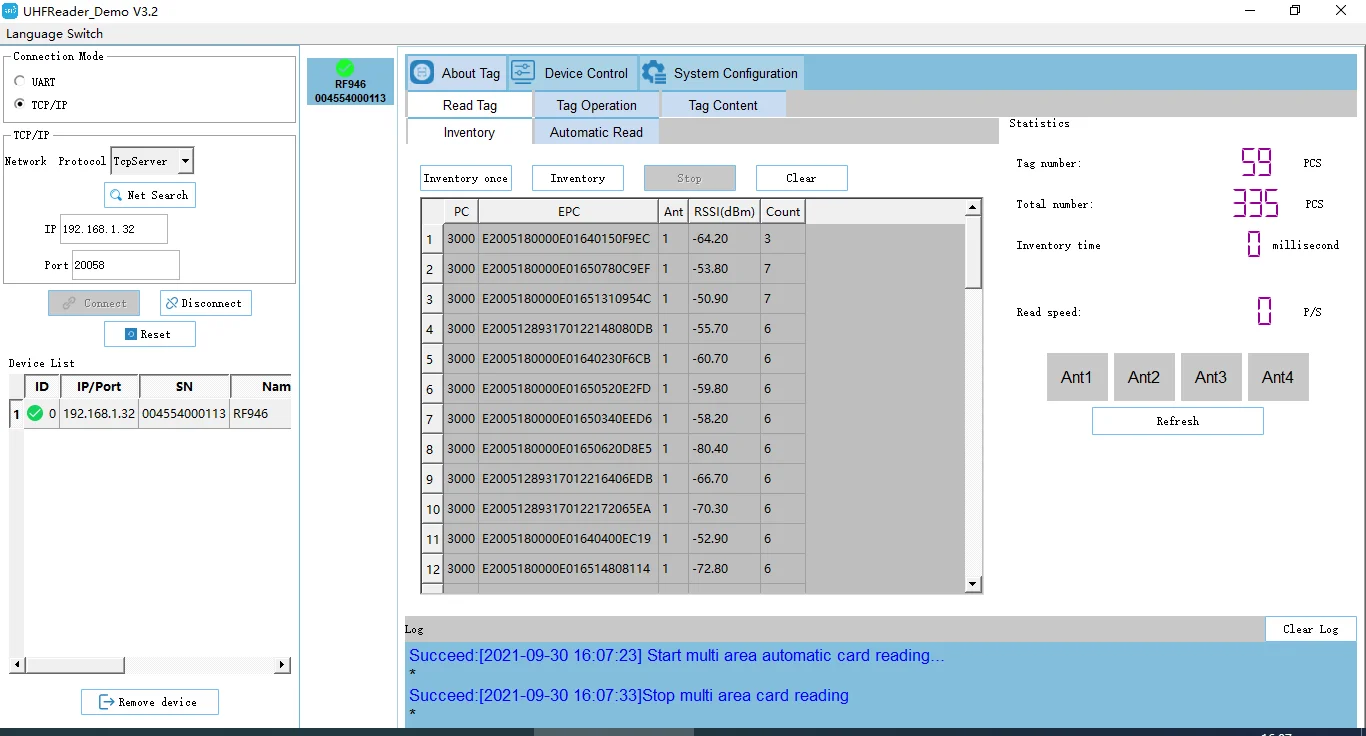

UHF Reader Software Kit
Two Optional Connecting Method:
1, TCP/IP connecting;
2, RS232 Connecting.
Introduction Manual and Operation Video Provided.
RFID Reader Operation Video Provided:
1, WIFI Cofiguration 940 Series
2, 4G Cofiguration 940 Series
Available Free UHF SDK Provided, await your Feedback and Information soon.
Two Optional Connecting Method:
1, TCP/IP connecting;
2, RS232 Connecting.
Introduction Manual and Operation Video Provided.
RFID Reader Operation Video Provided:
1, WIFI Cofiguration 940 Series
2, 4G Cofiguration 940 Series
Available Free UHF SDK Provided, await your Feedback and Information soon.
RFID Reader Application Scene
RFID Smart City solutions is the productive utilization of advanced projects and services through information and communication technologies (ICT) to provide various applications and strategies for better operation of the city.
Smart City Solution in Demo Garbage Truck
Garbage Actual Picture
Company Profile

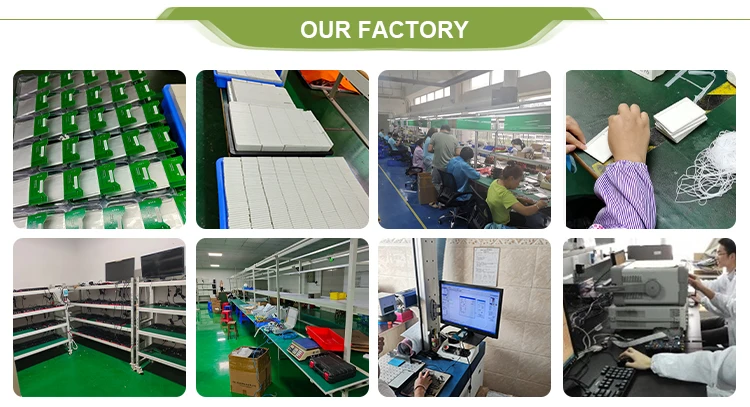

Factory
Certificate
Package & Shipment

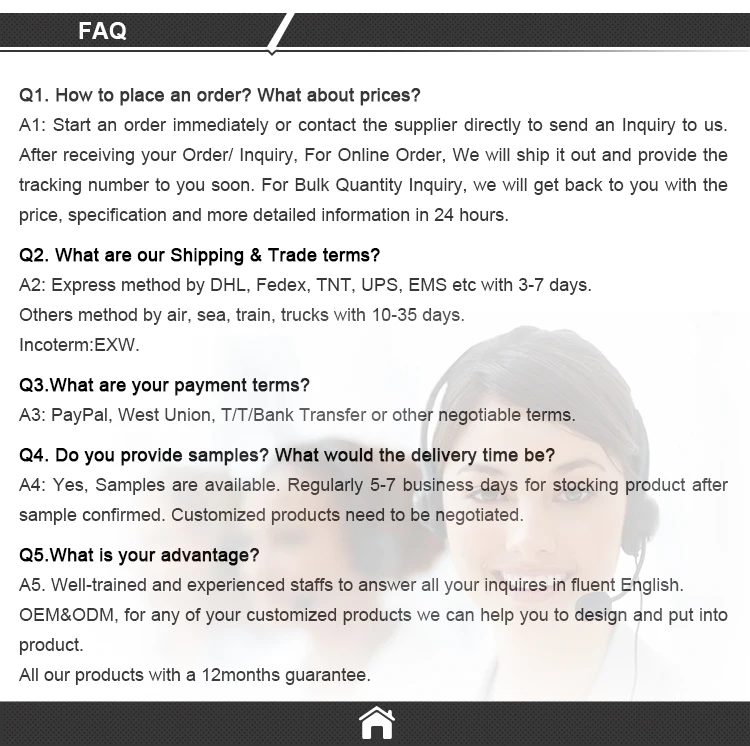

FAQ
Who we are and what we can provide?
1. Foxcoon&HUAWEI industry 4.0 verified supplier
2. 15+ years experienced R&D team on RFID&IoT
3. FCC&CE&ISO certified
4. Products range cover HF&UHF&2.4Ghz RFID readers &modules&tags &antennas
How to assure the durability of our products?
1. All components base on original high performance chip
2. 72 hours full aging time, 100% testing
3. Personalized appearance design, IP55- IP67 protection grade
4. QC-QA-Factory test-Engineer test, 4 quality control process
What support we can give?
1. Free Pre-project consultance
2. Within 24hours quick response from sales engineers
3. Software provided in C++,C#, Java, android calling sample,source code available
4. Professional R&D team for OEM&ODM, average 20days lead time for customization
5. 1 year warranty, any repair/replace are free within guarantee
6. Centralized Procurement
1. Foxcoon&HUAWEI industry 4.0 verified supplier
2. 15+ years experienced R&D team on RFID&IoT
3. FCC&CE&ISO certified
4. Products range cover HF&UHF&2.4Ghz RFID readers &modules&tags &antennas
How to assure the durability of our products?
1. All components base on original high performance chip
2. 72 hours full aging time, 100% testing
3. Personalized appearance design, IP55- IP67 protection grade
4. QC-QA-Factory test-Engineer test, 4 quality control process
What support we can give?
1. Free Pre-project consultance
2. Within 24hours quick response from sales engineers
3. Software provided in C++,C#, Java, android calling sample,source code available
4. Professional R&D team for OEM&ODM, average 20days lead time for customization
5. 1 year warranty, any repair/replace are free within guarantee
6. Centralized Procurement
