CE Certified FL33 Series Automotive Industrial Water Pressure Pump / Power Plug for Wall Outlet 115V
- Category: >>>
- Supplier: Fujian Top Industrial Co. Ltd
Share on (1600475521458):
Product Overview
Description
Enjoy fresh water on your trip
In RV, the water system is one of the most important systems. From the tanks to the faucets, each piece needs to perform its own duties. One of these parts is the water pump. The pump is what draws the water up from these tanks and pushes it to your various fixtures.If this does not work properly, the entire water supply system will not work properly.
In RV, the water system is one of the most important systems. From the tanks to the faucets, each piece needs to perform its own duties. One of these parts is the water pump. The pump is what draws the water up from these tanks and pushes it to your various fixtures.If this does not work properly, the entire water supply system will not work properly.
Make water works for you
Our 33 series is a 3-chamber diaphragm pump, it can output a larger flow rate at a lower pressure. The flow rate is up to 3.0 GPM (11.6Lpm), and the self-priming is 9.8 feet. Meet all your water demands on the trip.
Features
* Built-in adjustable pressure switch, automatically turns off once the pressure reaches 45PSI.
* The self-priming is 9.8 feet (3m) and the lift is 98 feet (30m).
* Support run dry within 5 to 10 minutes.
* Thermally Protected: Automatically stops motor should it overheat due to overload.
* Easy to install, smooth and silent operation
Our 33 series is a 3-chamber diaphragm pump, it can output a larger flow rate at a lower pressure. The flow rate is up to 3.0 GPM (11.6Lpm), and the self-priming is 9.8 feet. Meet all your water demands on the trip.
Features
* Built-in adjustable pressure switch, automatically turns off once the pressure reaches 45PSI.
* The self-priming is 9.8 feet (3m) and the lift is 98 feet (30m).
* Support run dry within 5 to 10 minutes.
* Thermally Protected: Automatically stops motor should it overheat due to overload.
* Easy to install, smooth and silent operation
Specification
Color | White, Black, Blue |
Item Dimensions LxWxH | 10.71 x 5.83 x 5.08 inches |
Maximum Flow Rate | 3 Gallons Per Minute |
T33-Series 115VAC Fresh Water Pump
Multifunctional tool to meet all your water needs Our 33 series will perform best at both high flow and low flow. It also has a self-priming function, which can lift up to 9.8 feet
of feet vertically while running quietly in any application. The pump can run idling for 30 minutes and even includes a built-in
check valve.
of feet vertically while running quietly in any application. The pump can run idling for 30 minutes and even includes a built-in
check valve.
* 3 Chamber, 3.3GPM Flow Capacity, 115V AC, Current Draw 0.3Amps (0.8 Max Amps).
* Thermal overload protection: automatically stops motor should it overheat due to overload. Automatic restart when temperature
drops.
* Built-in adjustable pressure switch that turns on/off at 45 PSI.
* Self-priming 9.8 vertical feet.
* Easy to install, quiet and no noise.
* Thermal overload protection: automatically stops motor should it overheat due to overload. Automatic restart when temperature
drops.
* Built-in adjustable pressure switch that turns on/off at 45 PSI.
* Self-priming 9.8 vertical feet.
* Easy to install, quiet and no noise.
On-demand pressure switch
On-demand pressure switch
Pressure can be adjusted: Open the lid on the top, turning clockwise will increase pressure and flow will decrease; turning counterclockwise will decrease pressure and flow will increase.
Tip: The built-in pressure switch is subject to the outlet pressure to automatically turn on or off. When the outlet pressure exceeds 45psi, the pump will automatically turn off itself.
Pressure can be adjusted: Open the lid on the top, turning clockwise will increase pressure and flow will decrease; turning counterclockwise will decrease pressure and flow will increase.
Tip: The built-in pressure switch is subject to the outlet pressure to automatically turn on or off. When the outlet pressure exceeds 45psi, the pump will automatically turn off itself.
Strainer
The strainer can be removed for cleaning.
Tip: The diaphragm pump can only be used to pump clean water. If the liquid contains impurities, please install a filter at the inlet.
Tip: The diaphragm pump can only be used to pump clean water. If the liquid contains impurities, please install a filter at the inlet.

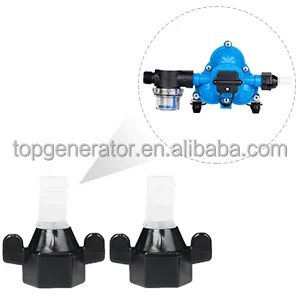

2PCS Hose Fitting
Inlet/Outlet: 1/2"MNPT
External threaded connections with multiple fitting allow connection to ≥ 1/2" outlets, convenient to connect to any outlet.
External threaded connections with multiple fitting allow connection to ≥ 1/2" outlets, convenient to connect to any outlet.
Self-priming
The vertical self-priming is 9.8 feet, and the lift up is 98 feet.
Tip: Do not flammable liquids.
Tip: Do not flammable liquids.
Multifunctional application
It is the best partner for RV / yacht / camping. The pump can also be used for showers, faucets, garden sprinklers, agricultural irrigation, etc.

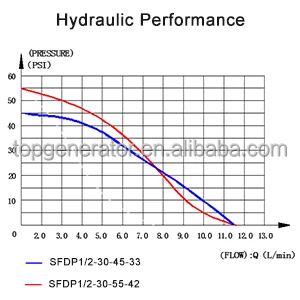

Pressure & flow graph
Hydraulic Performance is the amount of pressure boost the pump will add to your incoming pressure at a specific flow rate. Select the best pump for your application based upon your existing incoming pressure and desired combined system pressure.
* T33 / 12V DC / 0-45 PSI Incoming Pressure
* T33 / 115V AC / 0-45 PSI Incoming Pressure
* T42 / 12V DC / 0-55 PSI Incoming Pressure
* T42 / 110V AC / 0-55 PSI Incoming Pressure
* T33 / 12V DC / 0-45 PSI Incoming Pressure
* T33 / 115V AC / 0-45 PSI Incoming Pressure
* T42 / 12V DC / 0-55 PSI Incoming Pressure
* T42 / 110V AC / 0-55 PSI Incoming Pressure
Packing & Delivery
FAQ
Do you accept OEM/ODM Service?
Yes, we have been the professional OEM/ODM supplier for many years.
What's your main products?
Brushless dc water pump, drinking pump, solar pump, submersible pump, centrifugal pump, diaphragm pump, booster pump, etc... for many years we develop the products with our client together, also customize the products they want.
How can I choose the pump?
We can study together for the using purpose, specification in the working condition, then we will suggest you the most suitable one from our products range.
What's your product MOQ?
We accept sample order, the MOQ can be negotiated.
How long is your delivery time?
Sample order within one week. Bulk order within 20 days. If the pumps in stock, within 2 days.
How long is your warranty of pump?
Warranty is one year, can be repaired free of charge
What's the payment method?
By Trade Assurance, T/T, L/C, Western Union, etc...
What certificates have your pumps passed?
All our products have passed CE, RoHs. Parts of pumps met UL.
How do you ship the goods?
Yes, we have been the professional OEM/ODM supplier for many years.
What's your main products?
Brushless dc water pump, drinking pump, solar pump, submersible pump, centrifugal pump, diaphragm pump, booster pump, etc... for many years we develop the products with our client together, also customize the products they want.
How can I choose the pump?
We can study together for the using purpose, specification in the working condition, then we will suggest you the most suitable one from our products range.
What's your product MOQ?
We accept sample order, the MOQ can be negotiated.
How long is your delivery time?
Sample order within one week. Bulk order within 20 days. If the pumps in stock, within 2 days.
How long is your warranty of pump?
Warranty is one year, can be repaired free of charge
What's the payment method?
By Trade Assurance, T/T, L/C, Western Union, etc...
What certificates have your pumps passed?
All our products have passed CE, RoHs. Parts of pumps met UL.
How do you ship the goods?
Shipping by express (sample order) and by air or by sea (bulk order). Pls contact us before order because the freight fee base on quantity
What's your port of loading?
Fuzhou port, Xiamen port, for other we can communicate it.
What's your port of loading?
Fuzhou port, Xiamen port, for other we can communicate it.
