PP Biaxial Geogrid
- Category: >>>
- Supplier: Hitex Insulation (ningbo) Co. Ltd.Hitex Ltd.
Share on (1600475522255):
Product Overview
Description
PP Biaxial Geogrid
Product Description
PP Biaxial Geogrid is made of high molecular polymer through extrusion, forming and punching before longitudinal and lateral stretching. This material has considerable tensile strength in longitudinal and lateral directions. This chain structure can effectively bear and diffuse forces on soil and is applicable to large area permanent load bearing foundation as a reinforce.
Application
Biaxial geogrig stretch plastic geogrid is used to reinforce dyke and roadbed, side slope, tunnel wall, large airport, parking lot, pier freight yard, etc. that are with permanent load bearing.
l Increase the bearing capacity of the roadbed and foundation and prolong their service life.
l Prevent road surface and foundation from sinking or flawing, keep clean and beautiful ground surface.
l Convenient construction saves time and labor, reduce mounting time and decrease maintenance expense.
l Prevent culverts from flawing.
l Enhance earth slope and prevent water loss and soil erosion.
l Decrease underlayer thickness and save manufacturing cost.
l Enhance the stability of side slope turf net patch to improve greening.
l Replace wire netting used in mine as intermediate ceiling netting.
Specification
Items | TGSG15-15 | TGSG20-20 | TGSG30-30 | TGSG40-40 | TGSG45-45 |
Mass-area ratio (g/m) | 300±30 | 330±30 | 400±40 | 500±50 | 550±50 |
Width(m) | 4.06.0 | ||||
Longitudinal stretching force at yield per linear meter(KN/m≥) | 15 | 20 | 30 | 40 | 45 |
Lateral stretching force at yield per linear meter(KN/m≥) | 15 | 20 | 30 | 40 | 45 |
Longitudinal elongation at yield(%≤) | 16 | ||||
Lateral elongation at yield(%≤) | 13 | ||||
Stretching force for 2% longitudinal extensibility (KN/m≥) | 5 | 8 | 11 | 13 | 16 |
Stretching force for 2% lateral extensibility(KN/m≥) | 7 | 10 | 13 | 15 | 20 |
Stretching force for 5% longitudinal extensibility (KN/m≥) | 8 | 10 | 15 | 16 | 25 |
Stretching force for 5% lateral extensibility(KN/m≥) | 10 | 13 | 15 | 20 | 22 |

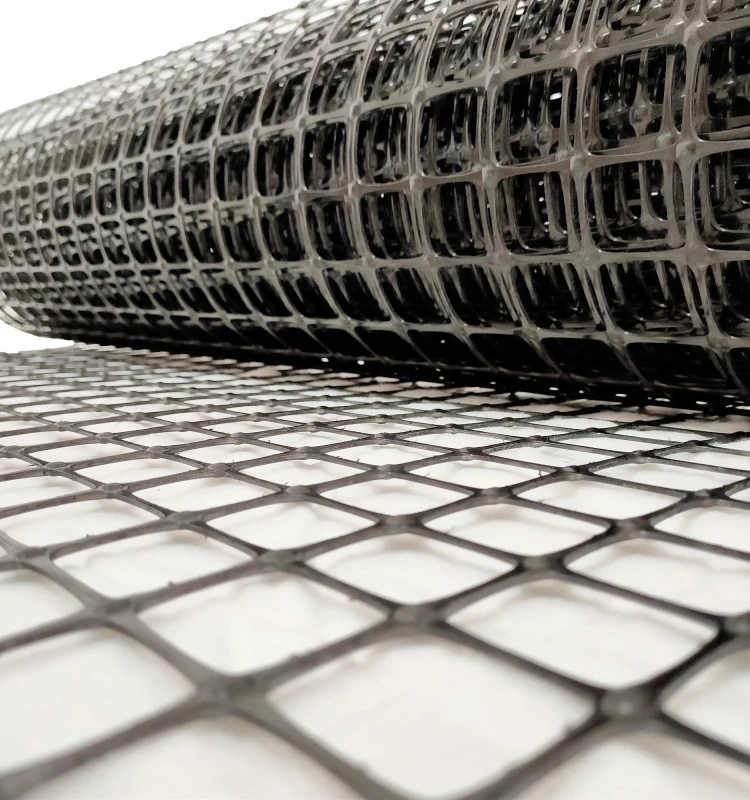

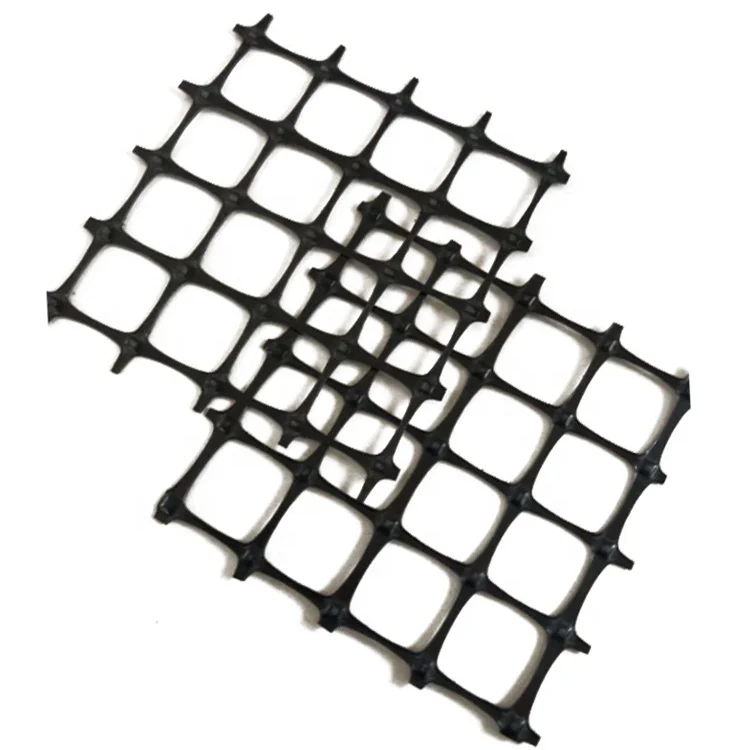

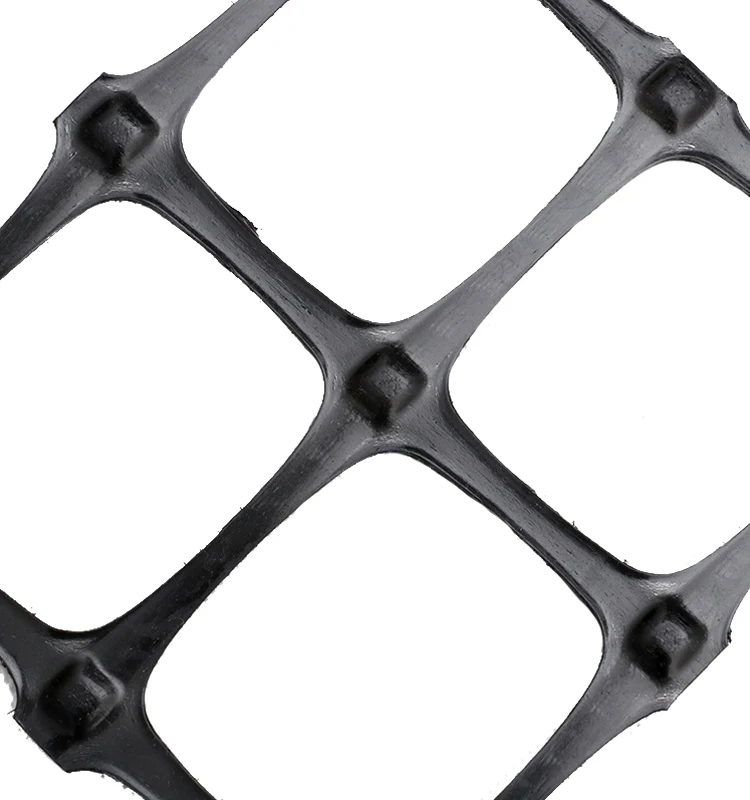

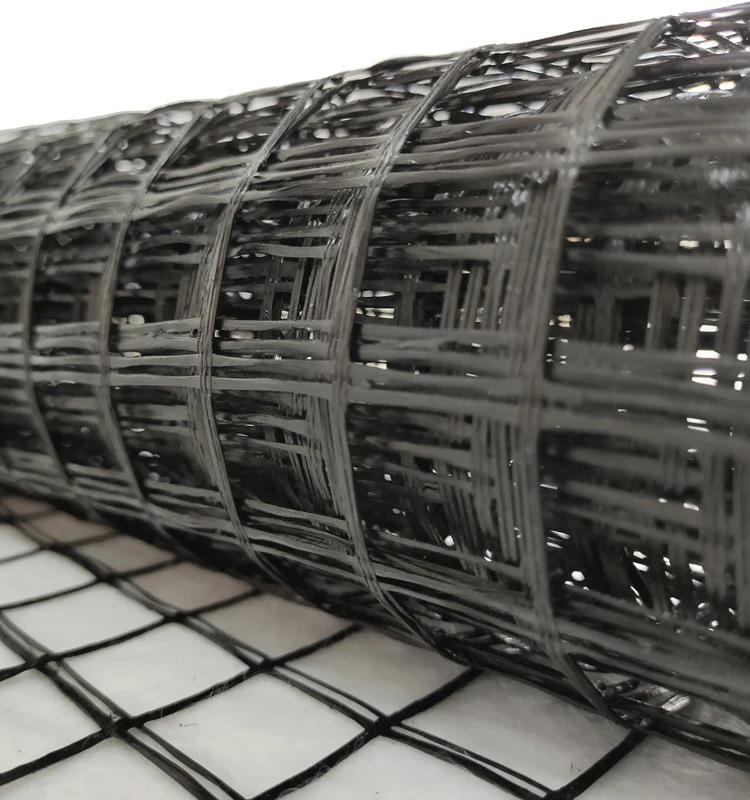

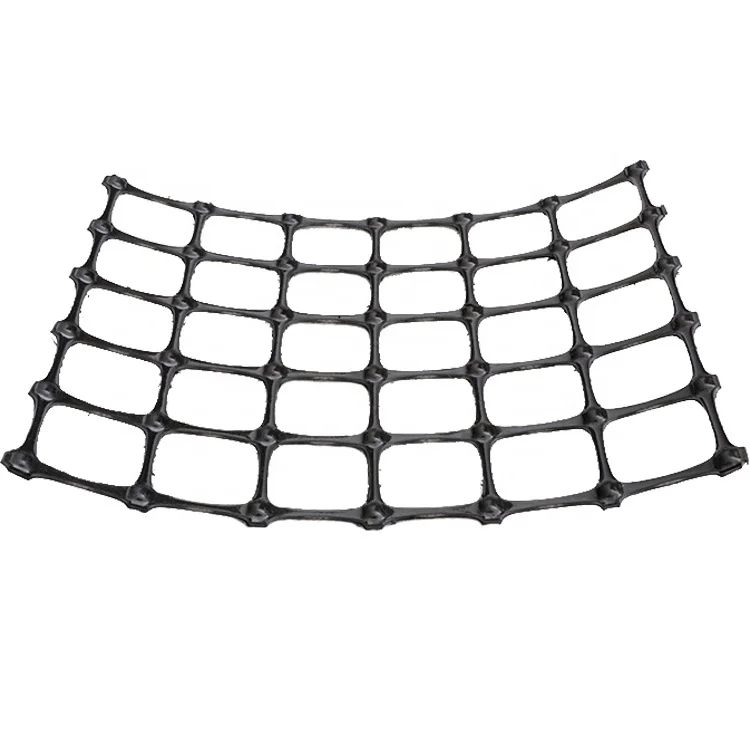

Detailed Images
About US
Hitex is supplying various of high temperature fabrics &textiles for thermal insulation, fire fighting, welding & cutting protecting, sealing & gaskets, refractory and composite industries. The technical fabrics are available with difference coating & treatment to working for extreme temperature and conditions etc.
If you have any inquiry, welcome to ask for quote and we will relpy you as soon as possible.
FAQ
Q1.You are a trading company or manufacturer?
We are manufacturer with more than 10 years production experience, and we have our own factory in yuyao
.
Q2.Can you send me a sample? Is it free?
Yes, the samples is free, but the courier charge should be on your side
Q3.Mode of transportation?
By sea or by air
Q4.How about the Delivery time?
Usually around 2-3 weeks after order confirmed
Q5.Can you product the customized goods?
Surely, we can be customized according to your demanding.
Q6.Do you have other production?
Certainly, We, Hitex are supplying various of high temperature fabrics &textiles for thermal insulation, fire fighting, welding & cutting protecting, sealing & gaskets, refractory and composite industries. The technical fabrics are available with difference coating & treatment to working for extreme temperature and conditions etc.
Q7.What kinds of payment you accept?
We accept T/T, D/A, L/C,D/P,O/A
