China Horizontal Siphon Peeler Centrifuge With Model GKH 1250 N

1. Compared with the common horizontal peeler centrifuge, the output is increased by 40%-60%. And the filter cake moisture content is lower.

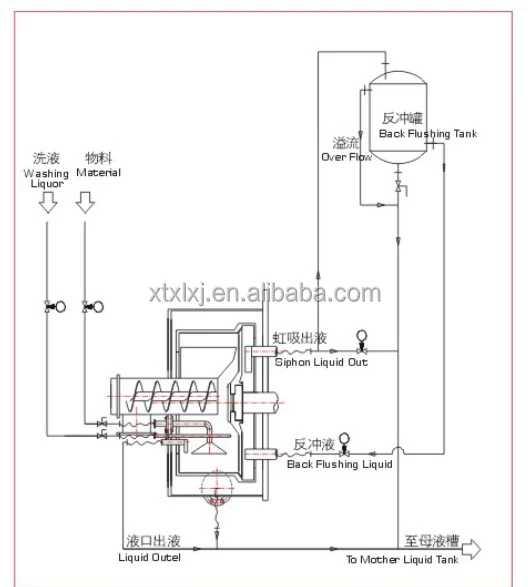

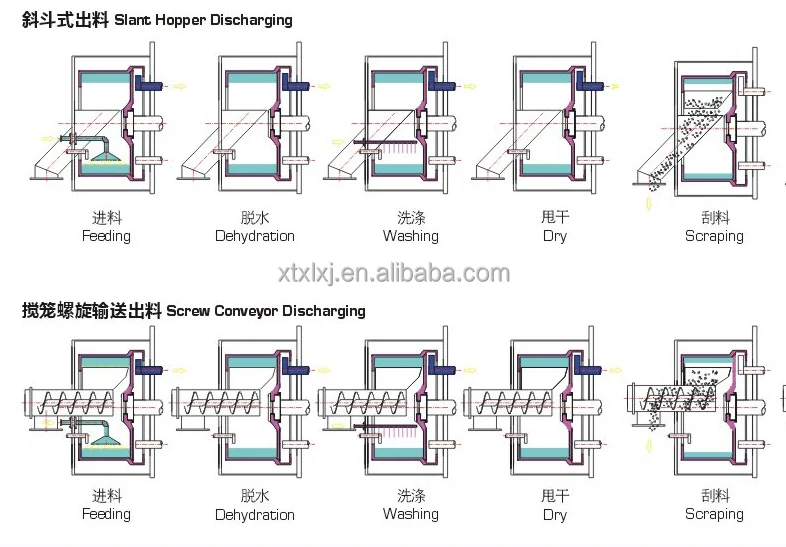

As shown in figure above , when the machine is operated, the idling basket runs at full speed, and water is poured into the machine from the recoil pipe. The liquid is forced into the basket through the through-hole between the basket and the siphon chamber. On the one hand, the air in the siphon chamber is eliminated. On the other hand, a layer of liquid is formed on the filter medium, so that the material is evenly distributed during feeding, and then the feeding is started. At the same time, the siphon is rotated down to a certain position.The chamber is then rotated to a predetermined lower position. After the feeding, the siphon is turned to the lowest position. After the suspension enters the basket, the solid in it is trapped on the filter cloth, while the liquid passes through the filter cloth, the filter screen and the inner basket, flows into the siphon chamber through the channel between the inner and outer baskets and the channel between the basket and the siphon chamber, and then the filtrate is pumped away by the siphon. The solid materials trapped on the filter cloth pass through the siphon.After drying for a certain period of time, scrape it off with a rotary scraper, and then send it to the outside of the machine through the screw discharge mechanism. If the materials need to be washed, open the washing valve after the end of feeding, spray the washing water on the materials through the washing nozzle, and under the effect of centrifugal force, pass through the filter cake layer.
