4 Pin 1.0mm Pitch Plastic Connector Wire Harness JST SH custom cable assembly SHR 04V S B
- Category: >>>
- Supplier: Chengdu Yunqiao Electronics Co. Ltd.
Share on (1600475558051):
Product Overview
Description
product parameter

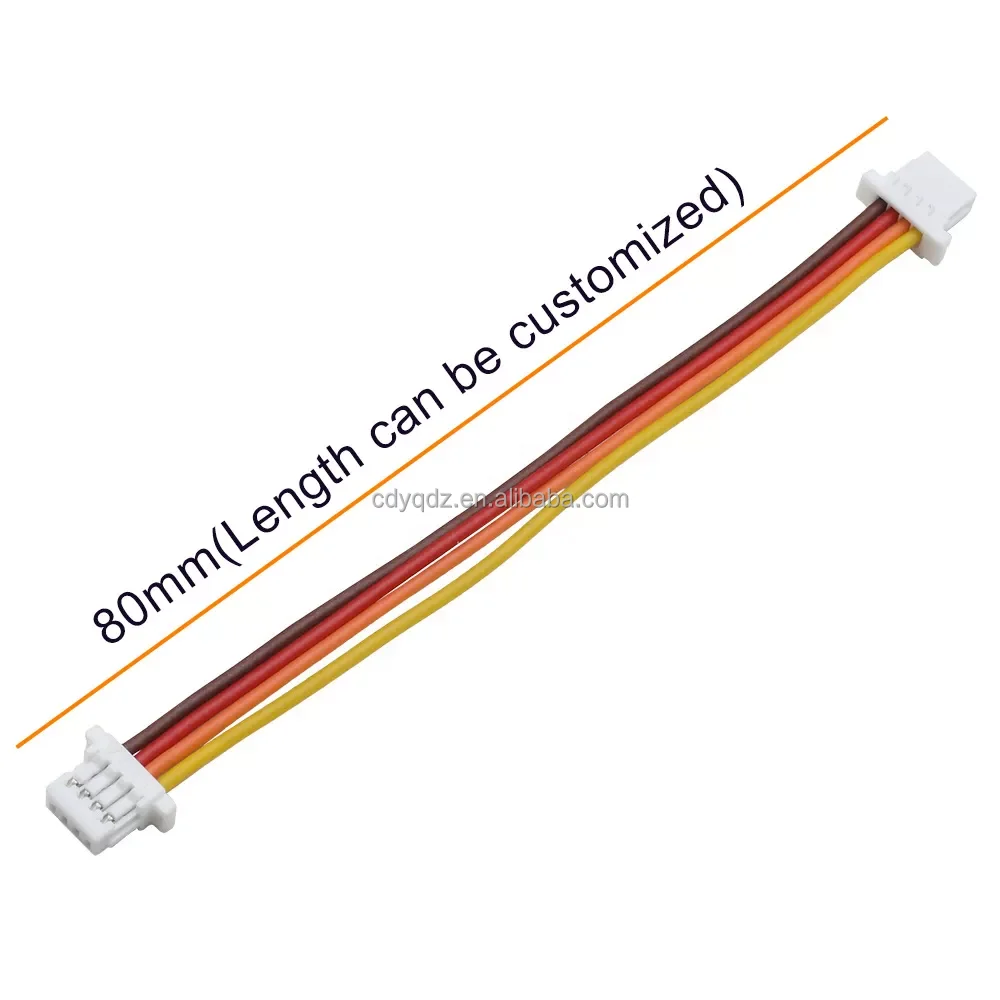

SHR-04V-S-B 4 Pin 1.0mm Pitch Plastic Connector Wire Harness JST SH custom cable assembly
The price of Shr-04v-s-b 4 Pin 1.0mm Pitch Plastic Connector Wire Harness Jst Sm Ph Sh Vh Xh Zh Scn San Custom Cable Assembly from China is based on the bulk order quantity
Current rating | 1.0 A AC, DC (AWG #28) |
Voltage rating | 50 V AC, DC |
Temperature range | -25°Cto +85°C (including temperature rise in applying electrical current) |
Contact resistance | Initial value/ 20 mΩ max. After environmental tests/ 40 mΩ max. |
Insulation resistance | 100 MΩ min |
Withstanding voltage | 500 VAC/minute |
Applicable wire | Conductor size/ AWG #32 to #28 Insulation O.D./ 0.4 to 0.8 mm |
Our advantage | 10+ years of experience, can accept ODM, OEM. have IS9001 certification. |
