Product Overview
Description

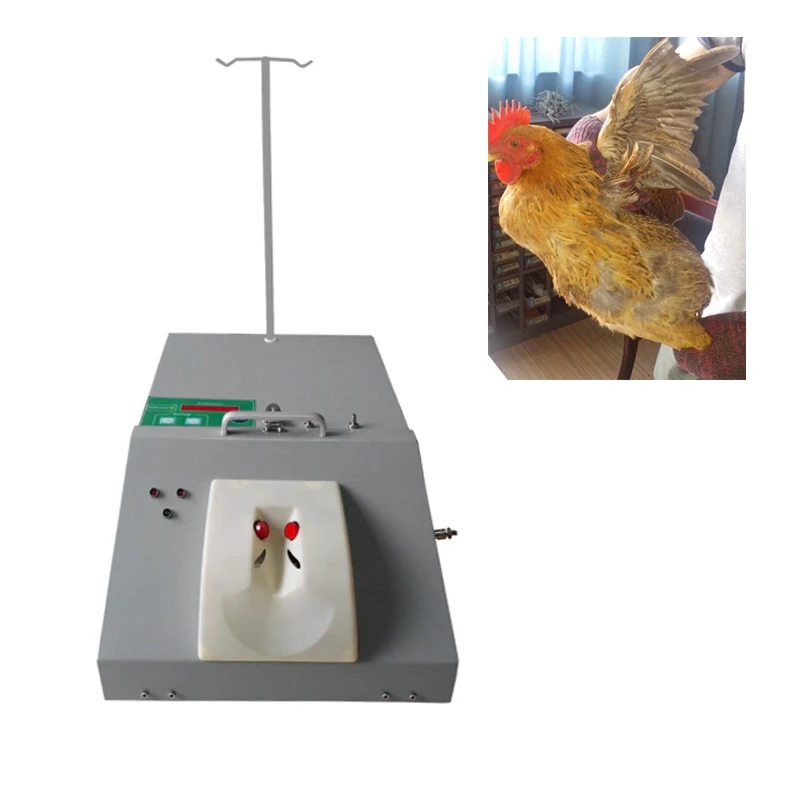

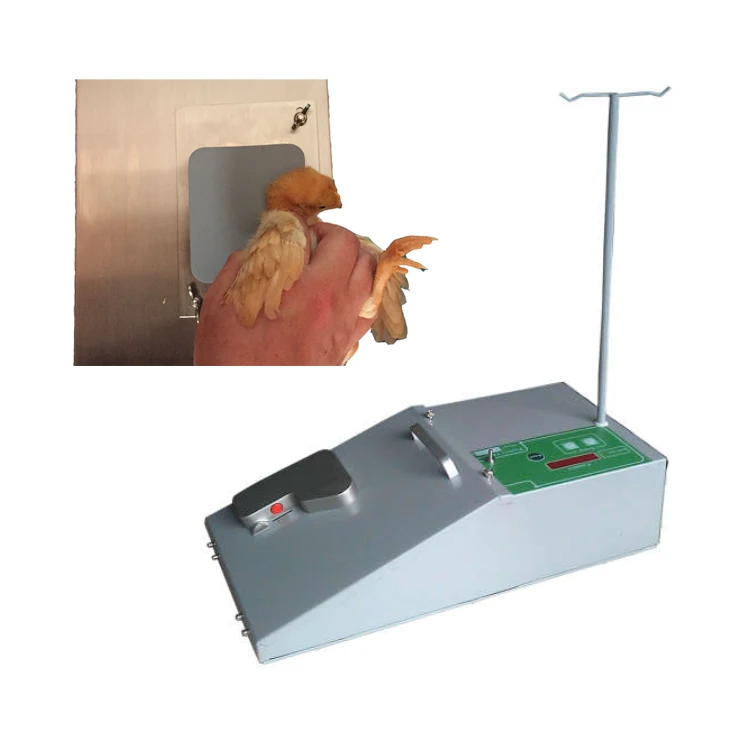

Automatic Vaccinator for poultry
Product introduction

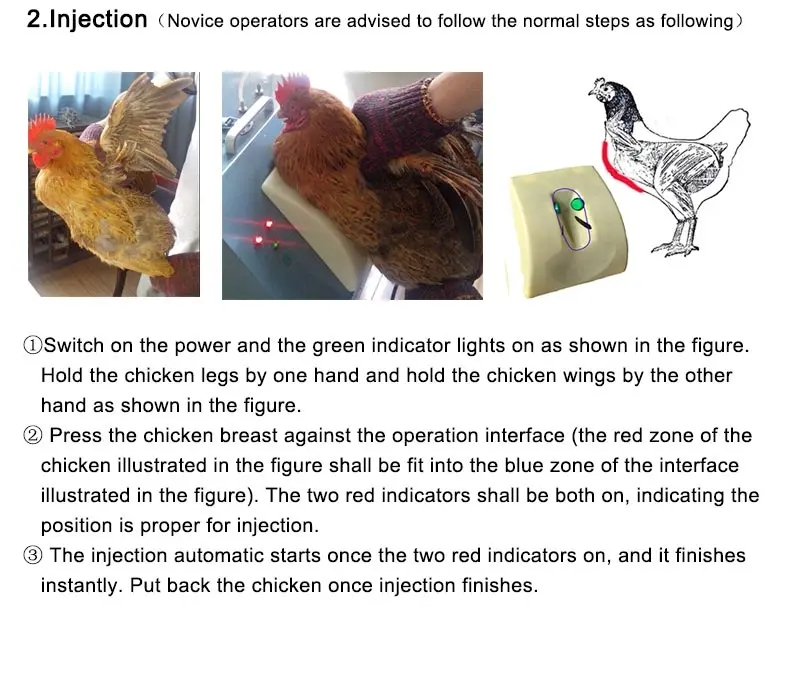

Automatic Vaccinator for Poultry (AID-P-M) is used for poultry of 3 weeks or older. The operator holds the bird by legs and wings and places the breast against the machine, and the injection completes in less than one second. The machine is very easy to use and maintain. It does not need special training for operation. This vaccinator provides safer, more accurate and consistent injection. It can have injection speed up to 1500 birds per hour.
The automatic vaccinator for day-old chick is a patented device developed and manufactured by Changzhou ZA Medical Devices (ZAM), China. The device is used for the injection of day-old chicks or within 7-days poultry. The device is suitable for the administration of live vaccines (Marek Disease), killed vaccines (ND Inactivated), antibiotics or vitamins (either water or oil based liquid). It has the features of rapid injection, easy operation, accurate and multiple dose
Product Paramenters
Driving Power | Step Motor |
Power Source | AC: 220/110V 50HZ |
Injection Dose | 0.15ml~0.3ml adjustable (others upon customer’s request) |
Injection Accuracy | + 0.01ml |
Key Component Material | Stainless steel, Medical Silicon rubber tube |
Suitable Injection Objects | Within 12-days Poultry (Chick, Duck, etc.) |
Suitable Vaccines | Water or oil based vaccines |
Max. Injection Rate | 4000 per hr |
Net Weight | 15kg |
Driving Power | Linear Voice Coil Motor |
Power Source | AC: 220/110V 50HZ |
Injection Dose | 0.3-0.6ml are available (upon customer’s request) |
Injection Accuracy | ±0.02ML |
Key Component Material | Stainless Steel, Medical Silicon/Nylon Tube |
Suitable Injection Objects | Poultry of 45 days or older |
Suitable Vaccines | Water or oil based vaccines |
Max. Injection Rate | 1500 birds per hour |
Net Weight | 18kg |
Package Components
1.Machine Body 2.Powe wire 3.Power adapters(only for matured poulry vaccinator)
4. Hanger for vaccine bottle 5.Needles 6.50ml syringe
7.Medical-use soft tube 8.Small wrench 9.Product manua;

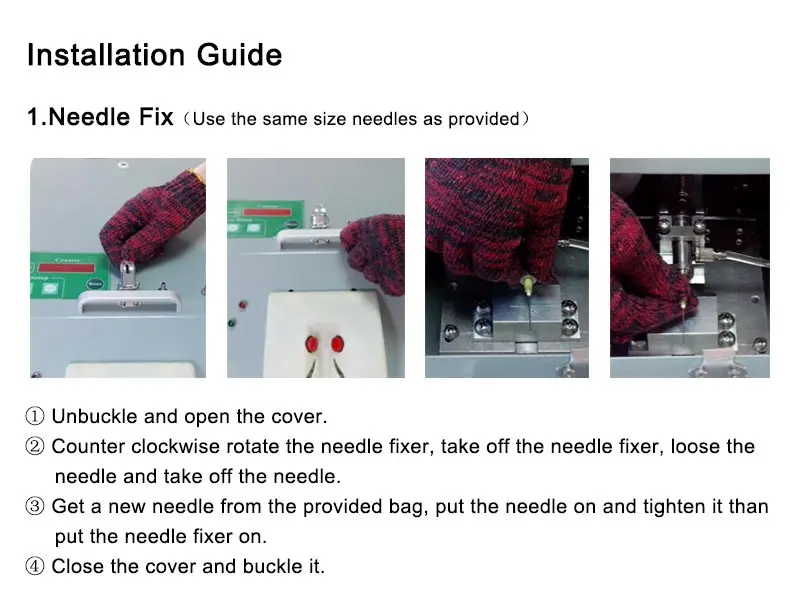

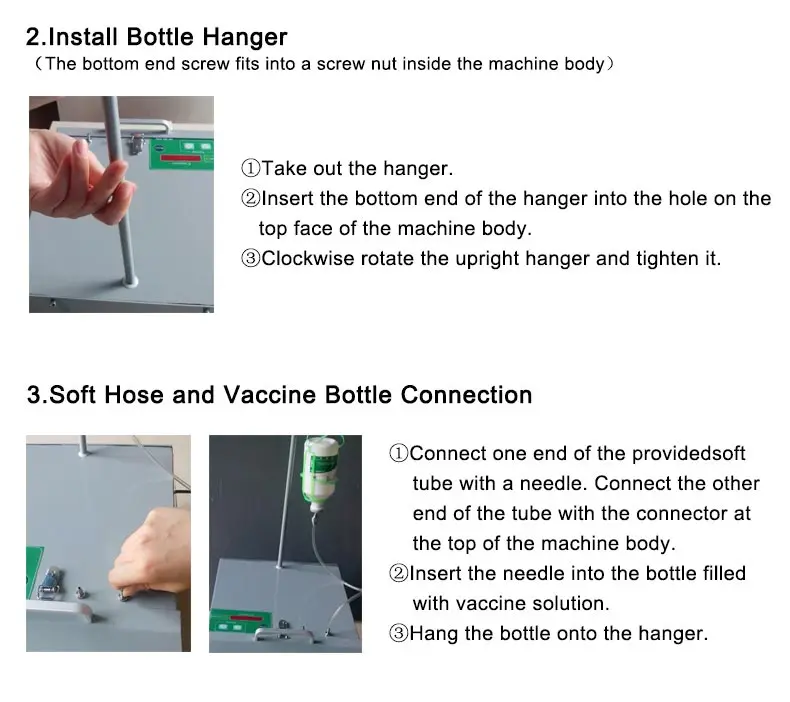

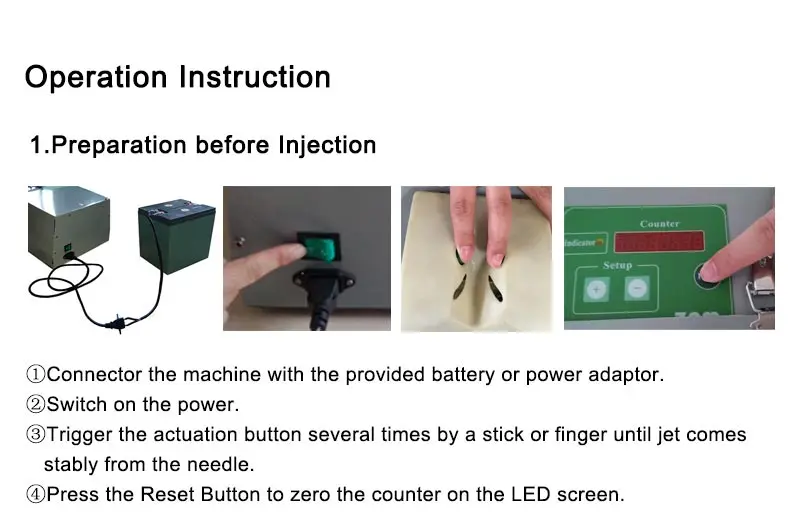

Installation Guidance
