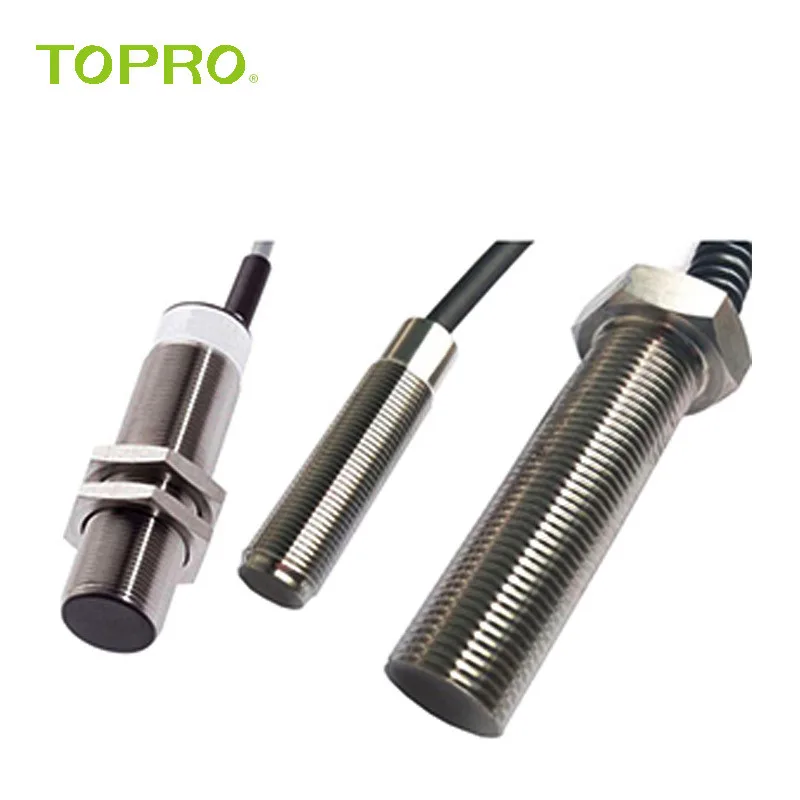

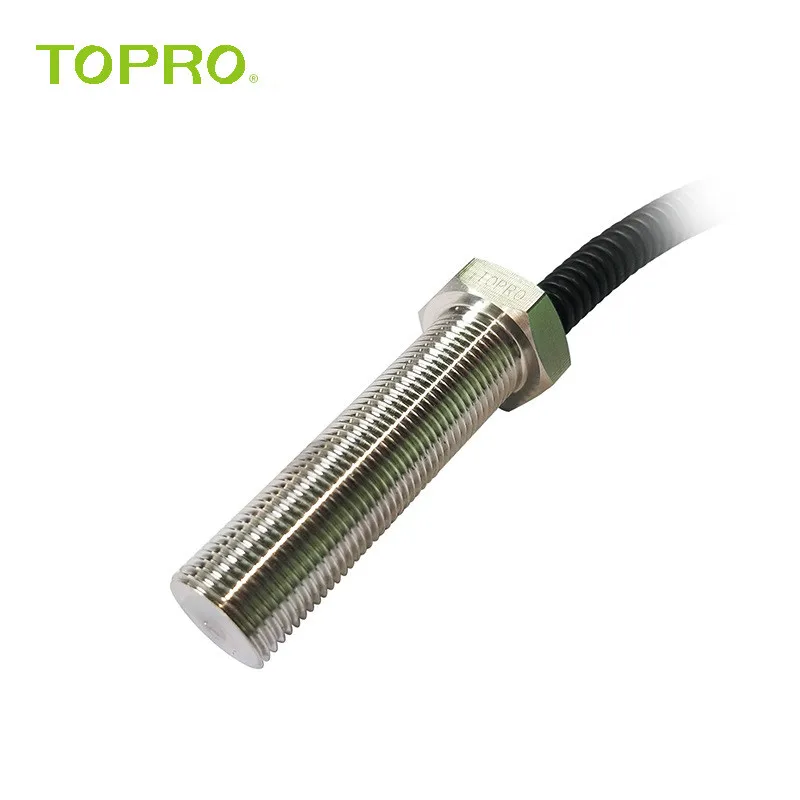

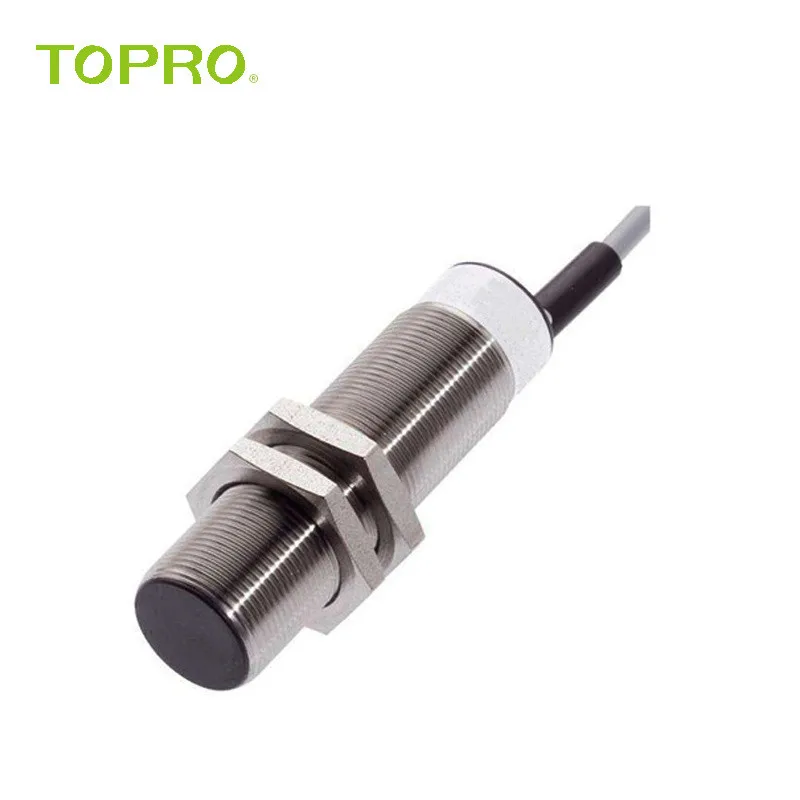

Gear speed sensor Measuring gear or rotating object speed voltage pulse 1 channel sensor

Technical parameters

1. Operating Voltage Range: 10 ~ 30VDC

2. Frequency response: 0~20KHz

3. Output signal: square wave, the peak-peak value equal to the the amplitude of voltage,  unrelated to speed, maximum output current 20mA,

4. Operating temperature: -3~+120°C

5. Thread specification: Thread M8

6. Teeth gap: 1~2mm

7. Weight: about 120g

Dongguan TOPRO Electrical Technology Co., Ltd. has been a specialized manufacturer of bimetal thermal protectors, thermostats, relays and a solution provider of intelligent control, connection, protection, and sensoring fields since 2003.

During the period our business scope has also grown with the company and the times. In the year 2016, TOPRO entered into the field of relays to supply high quality yet still price competitive Electromagnetic Relays, Magnetic Latching Relays, Automotive Relays, Communication Relays, High Voltage DC Relays, etc.

The fields of intelligent control, connection, protection and sensing are interconnected. Solutions of different projects may involve multiple fields.

In close cooperation with the customer we develop the optimum solution, providing the lowest cost products without compromising the quality and thus increasing your competitive advantage. Contact now and get our prompt reply!

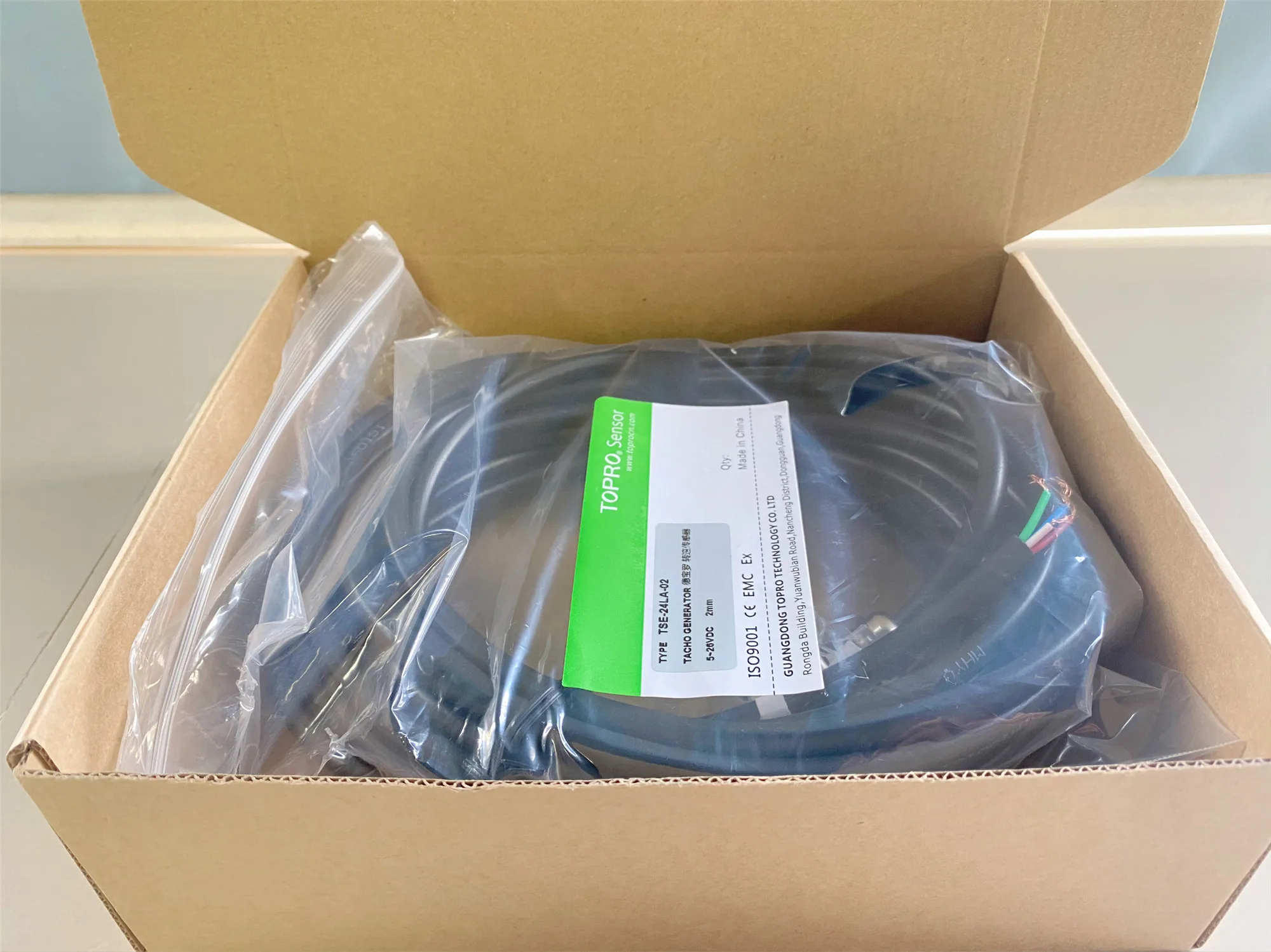

                STANDARD & SOLID PACKAGING ENSURES YOUIR GOODS SAFETY

 Purchase guide
To recommend you the most suitable sensor, please tell us below information.
1.  Working temperature: -40~+125 °C ?
2.  Test range?
3.  Output: 4-20mA ,  or others?
4.  Screw: G1/4, 1/4NPT, R1/4, M20*1.5?
5.  Electrical connection: Packard, Direct lead?
6.  Order quantity: ?
