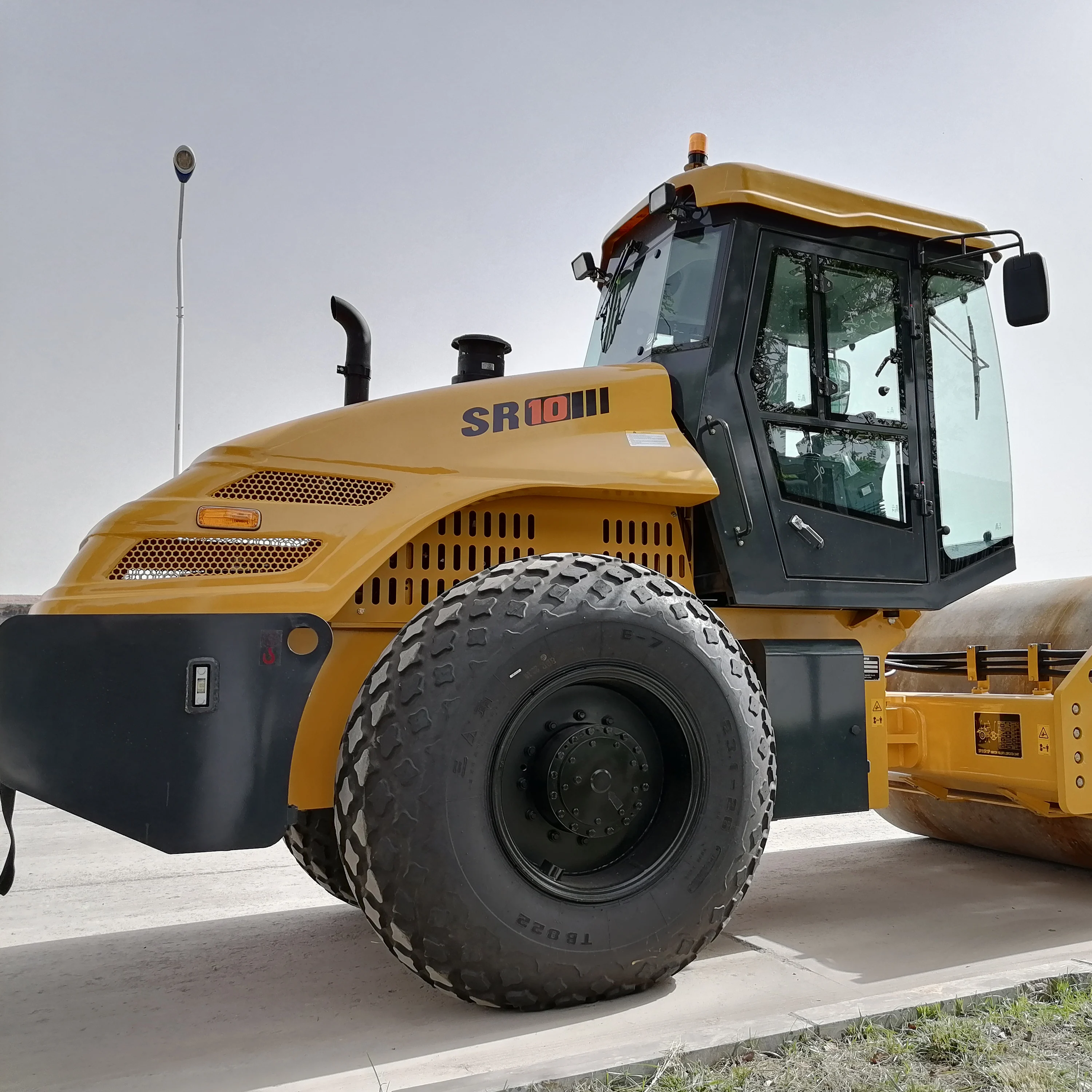

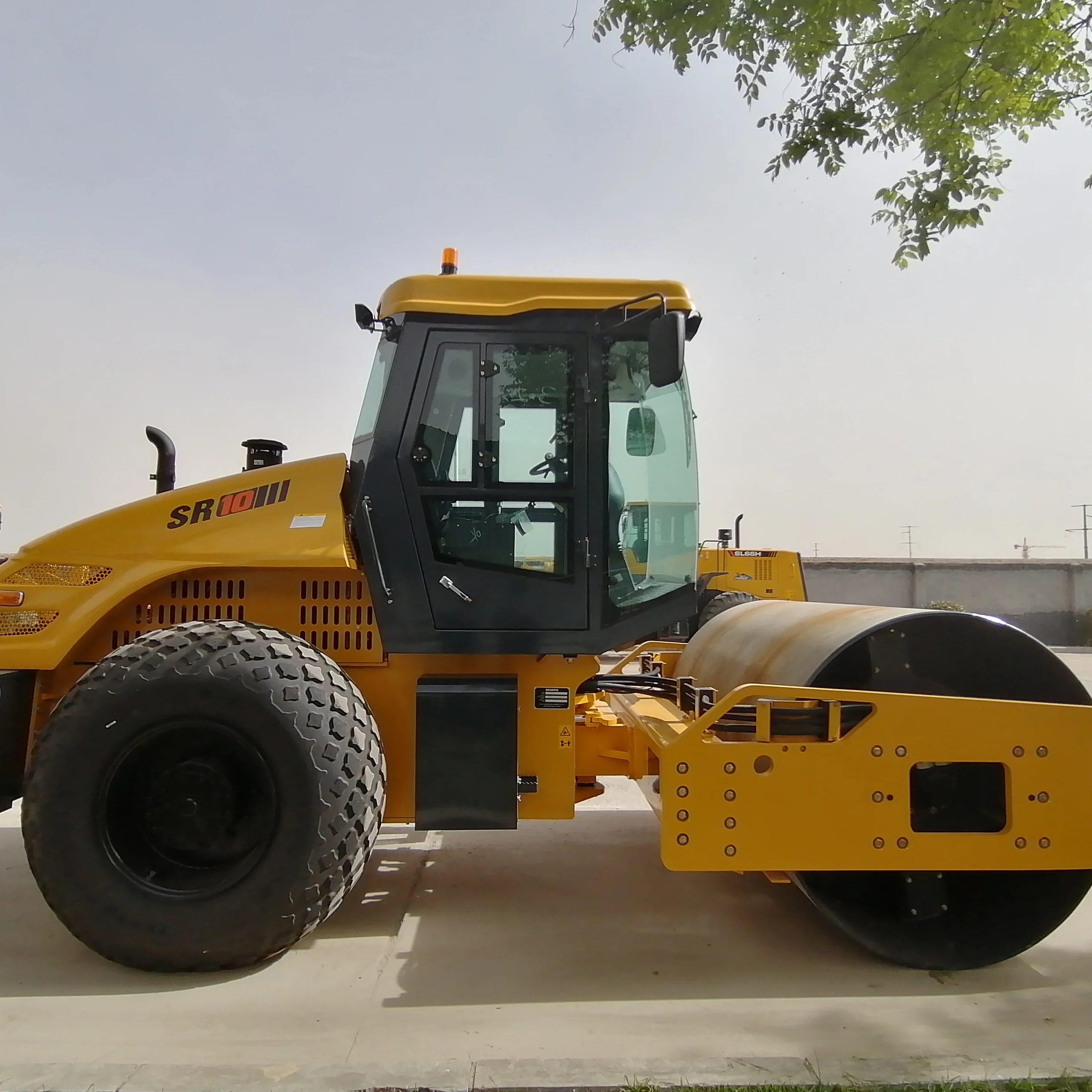

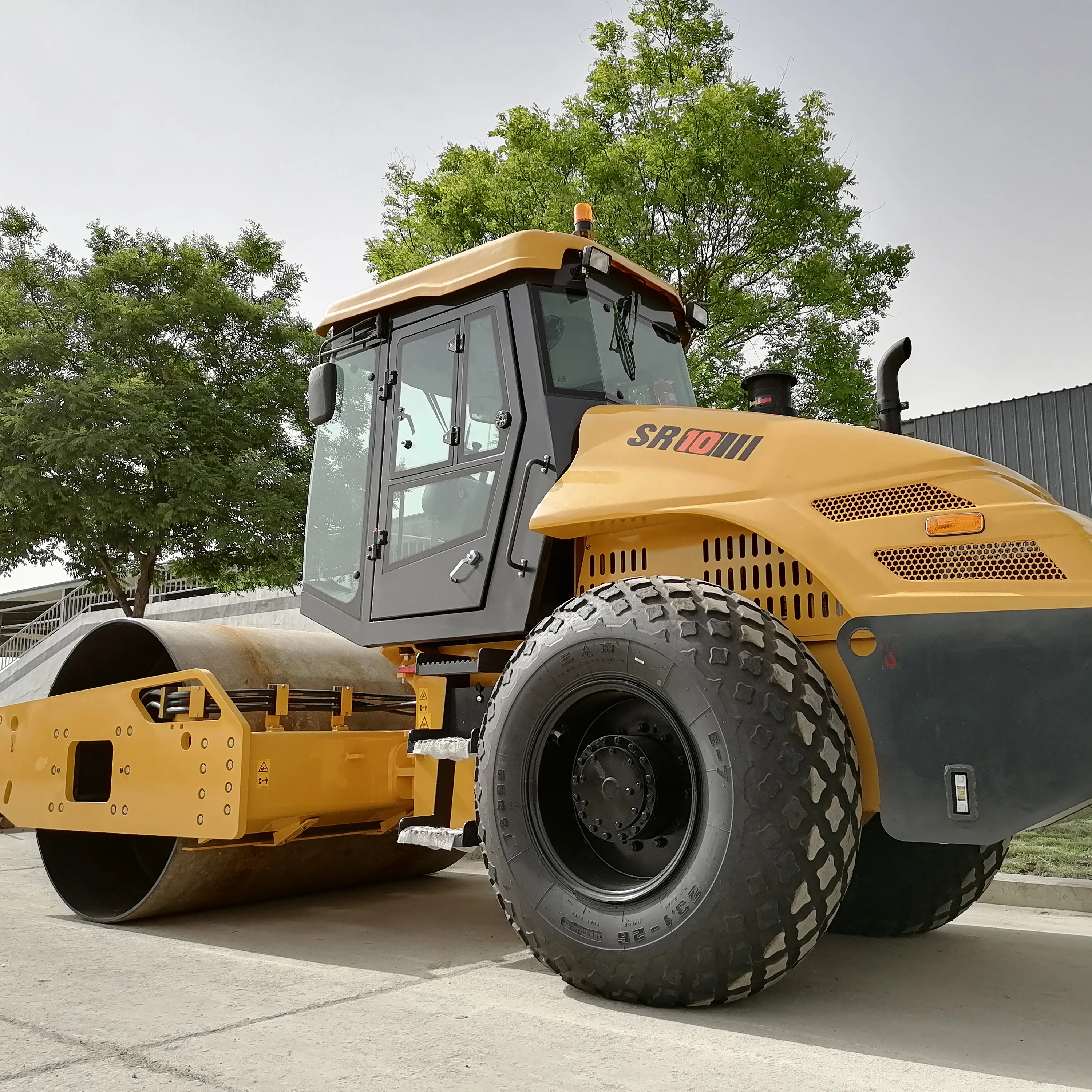

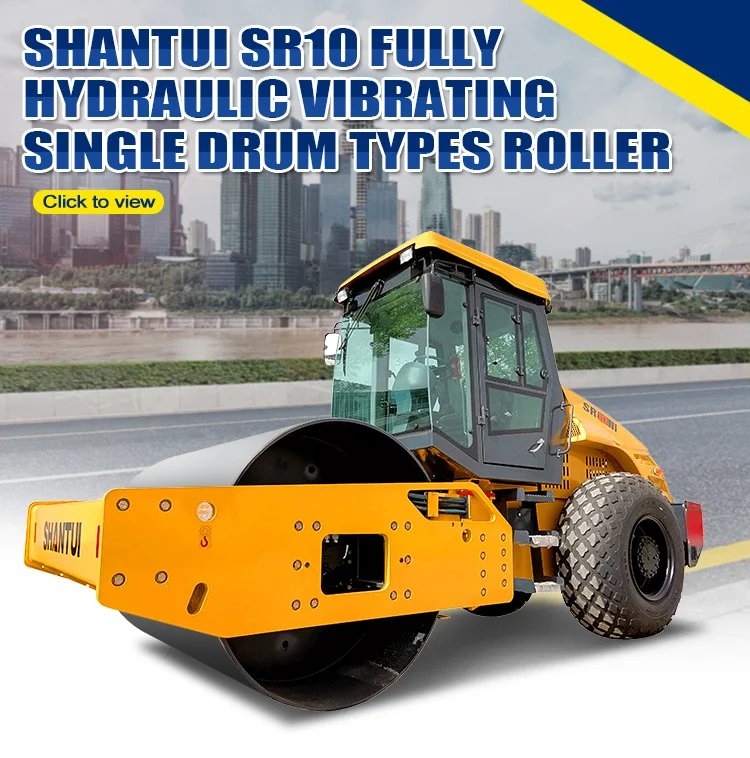

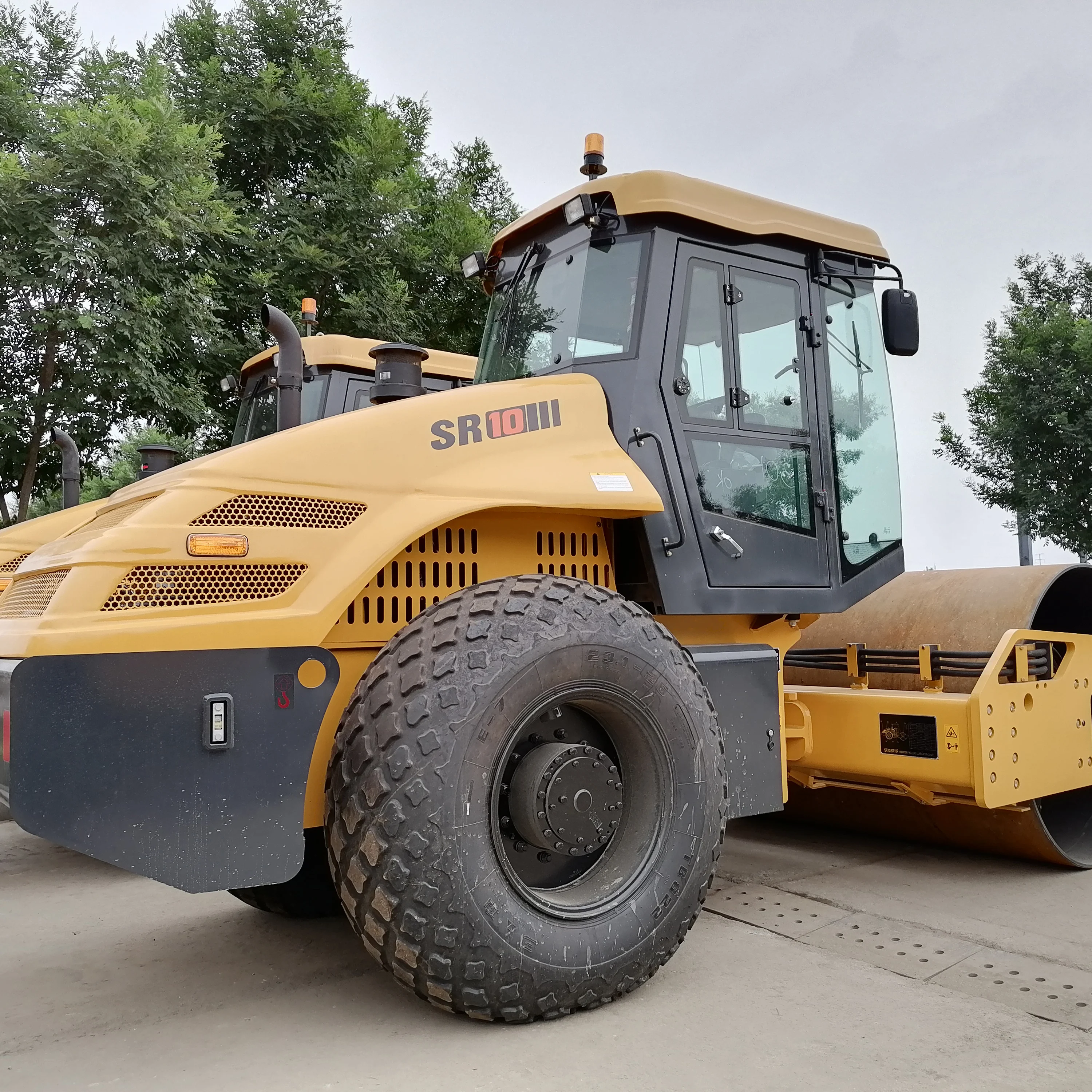

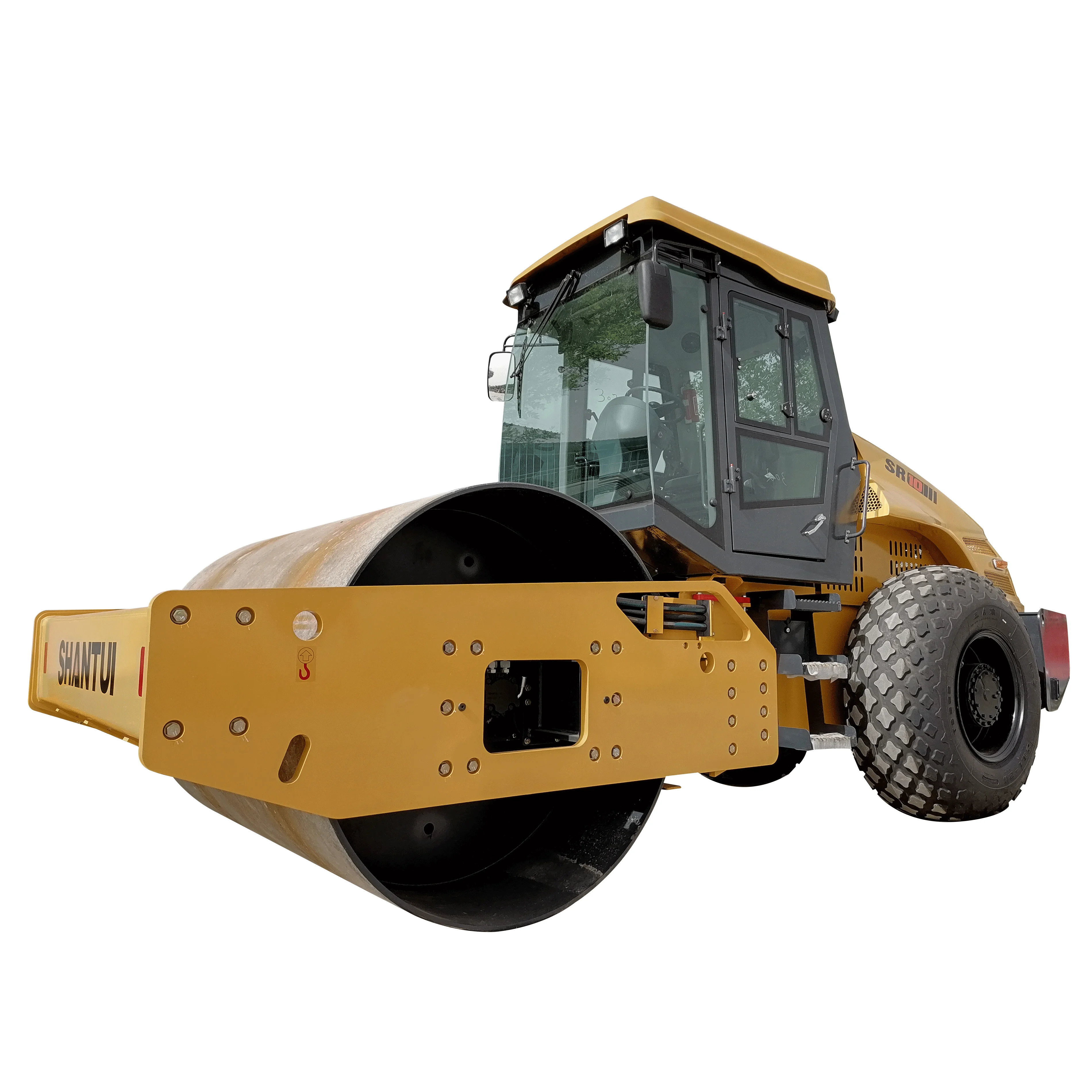

High Quality Ride on Type Road Roller 10ton Road Roller SR10 Economic Vibratory Roller Compactor
- Category: >>>
- Supplier: Shandong Panda Construction Machinery Co. Ltd.
Share on (1600475606400):
Product Overview
Description
Product information

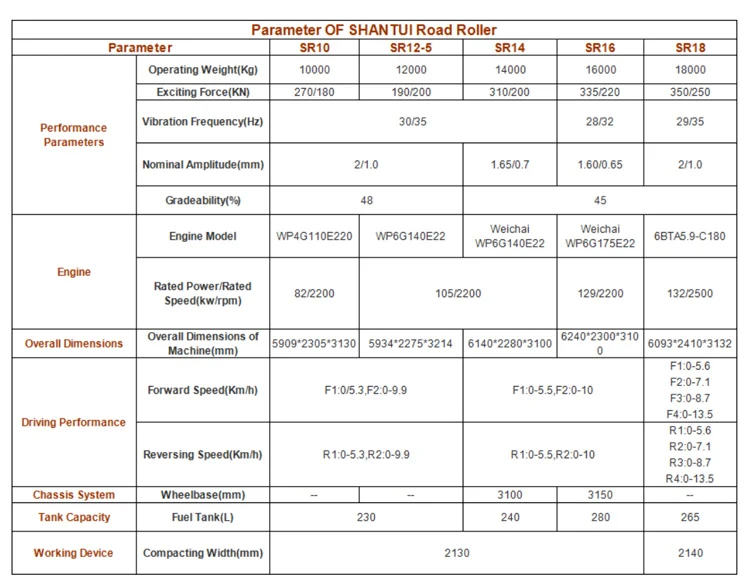

Product parameters
SR10 Technical specifications | ||||
MODEL | SR10 | |||
Operating weight | 10120 kg | |||
WEIGHT AND DIMENSIONS | Axle load, drum Axle load, wheel | 5980 kg 4140 kg | ||
Static linear load (at drum) | 259 N/cm | |||
Maximum working width | 2130 mm | |||
Drum diameter | 1500 mm | |||
Overall length | 5860 mm | |||
Overall width | 2325 mm | |||
Overall height | 3014 mm | |||
Drum and tires | Drum shell thickness Number of padfeet | 25 mm — | ||
Height of the padfoot | — | |||
Steering angle (Grad) | ±36° | |||
Minimum turning radius | 5880 mm | |||
Oscillating angle (Grad) | ±12° | |||
Tire size | 23.1-26-8PR | |||
Frequency | High amplitude Low amplitude | 30 Hz 36 Hz | ||
Nominal amplitude | High Low | 2 mm 1.0 mm | ||
Centrifugal force | Maximum Minimum | 270 kN 180 kN | ||
I | 0~5.3 km/h | |||
Forward speed | II III | 0~9.9 km/h – | ||
IV | – | |||
I | 0~5.3 km/h | |||
Reverse speed | II III | 0~9.9 km/h – | ||
IV | — | |||
Maximum climbing ability | 48% | |||
Drive system | Hydrostatic | |||
Make & model | Weichai WP4G110E220 | |||
Type | Turbocharged | |||
Fuel | Diesel | |||
Fuel capacity | 240 L | |||
Cool | Water | |||
Number of cylinders | 4 | |||
Rated power | 82 kW | |||
Rated speed | 2200 rpm | |||
DC, negative ground | 24 V | |||
Electrical system | Alternator | 28 V, 55 A | ||
Batteries | – | |||
Brakes | Service brake Parking brake | Hydrostatic Spring-loaded/mechanical | ||
Steering | Steering system Steering method | Oscillating, articulating Hydrostatic | ||

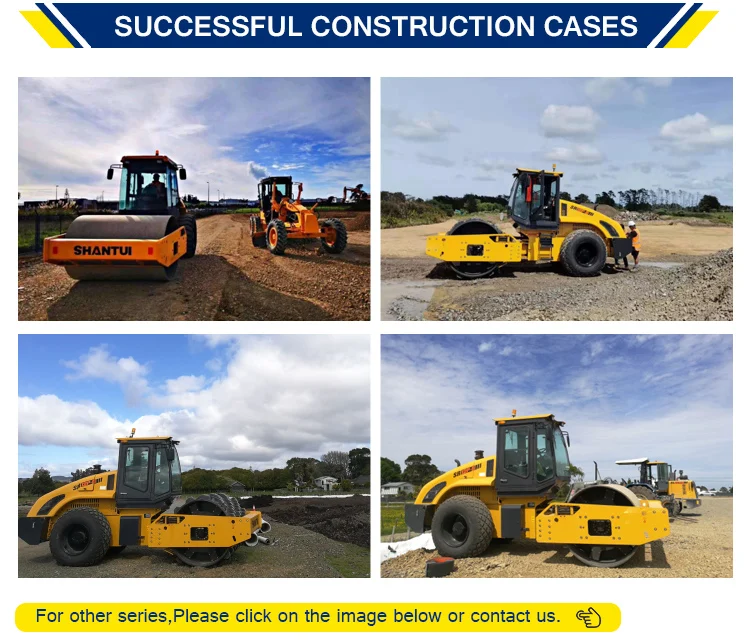

Successful construction cases

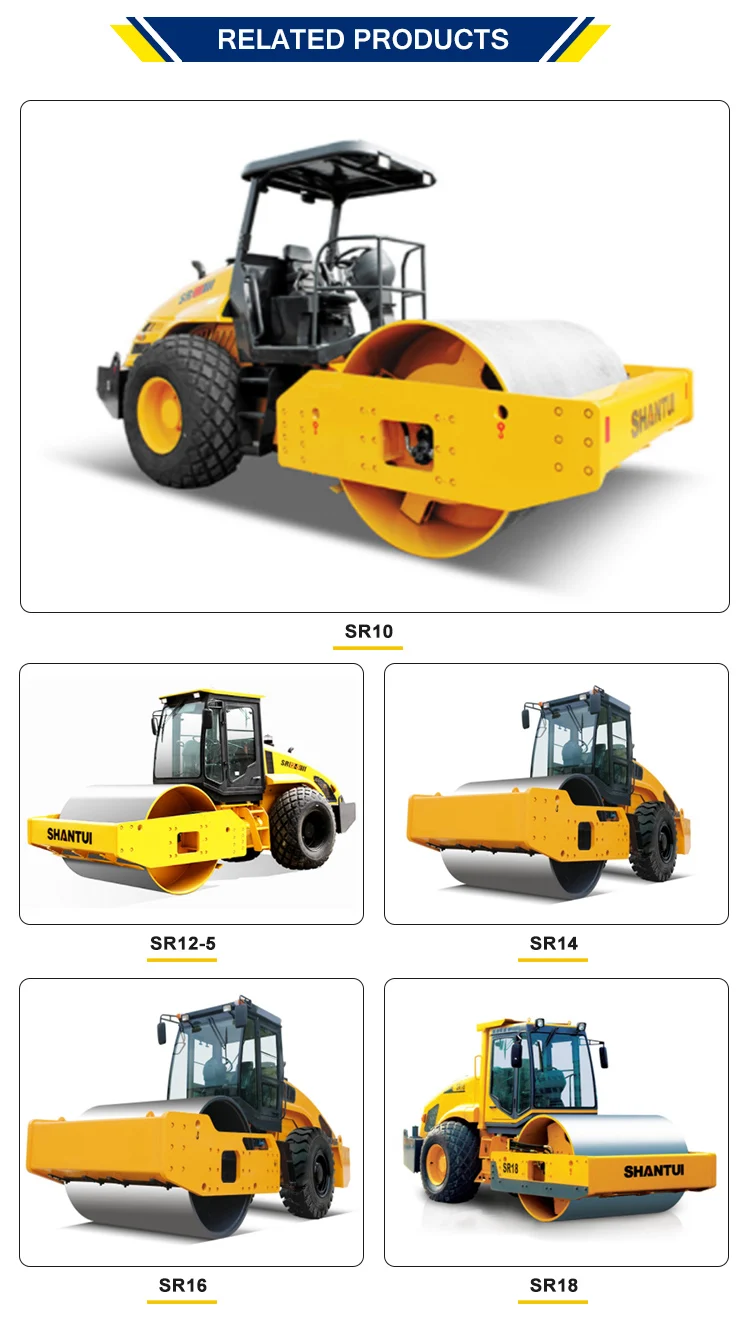

Related products

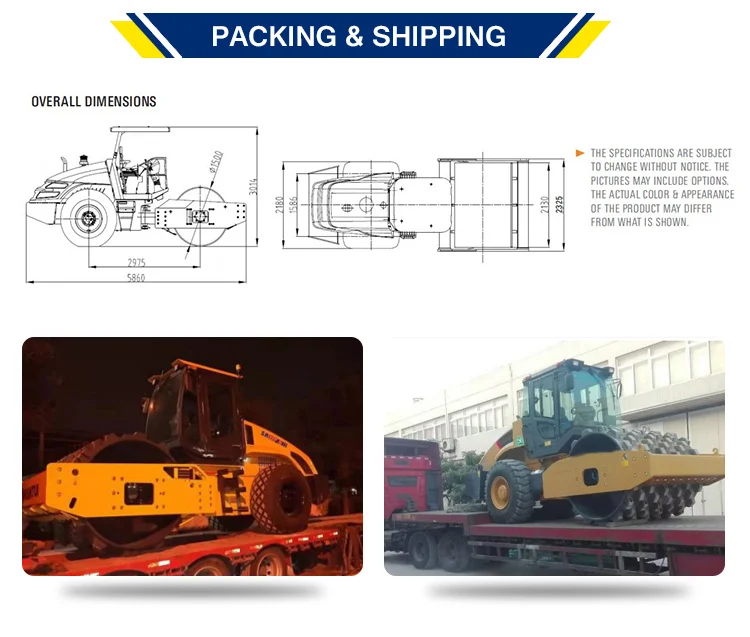

Packing & Delivery
